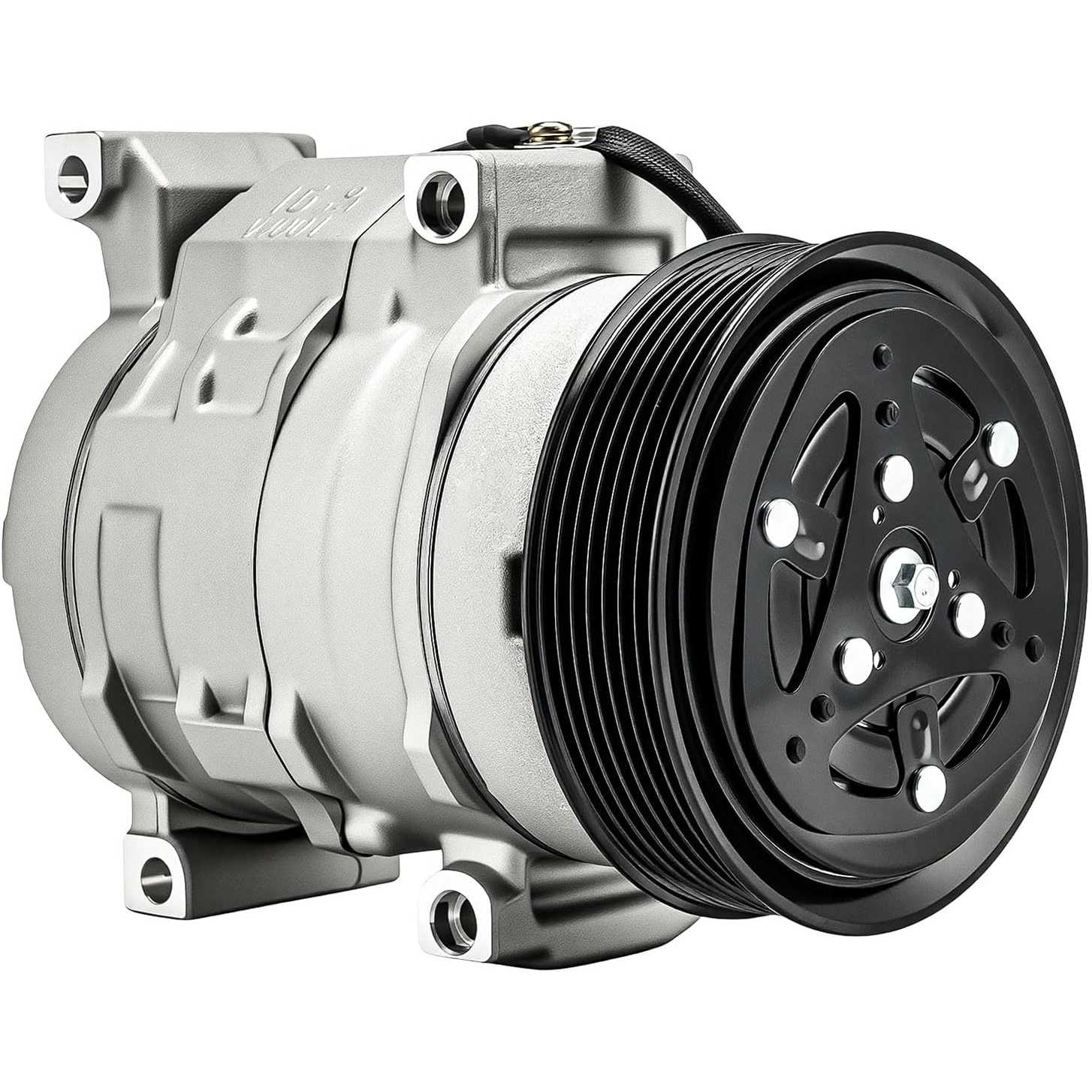

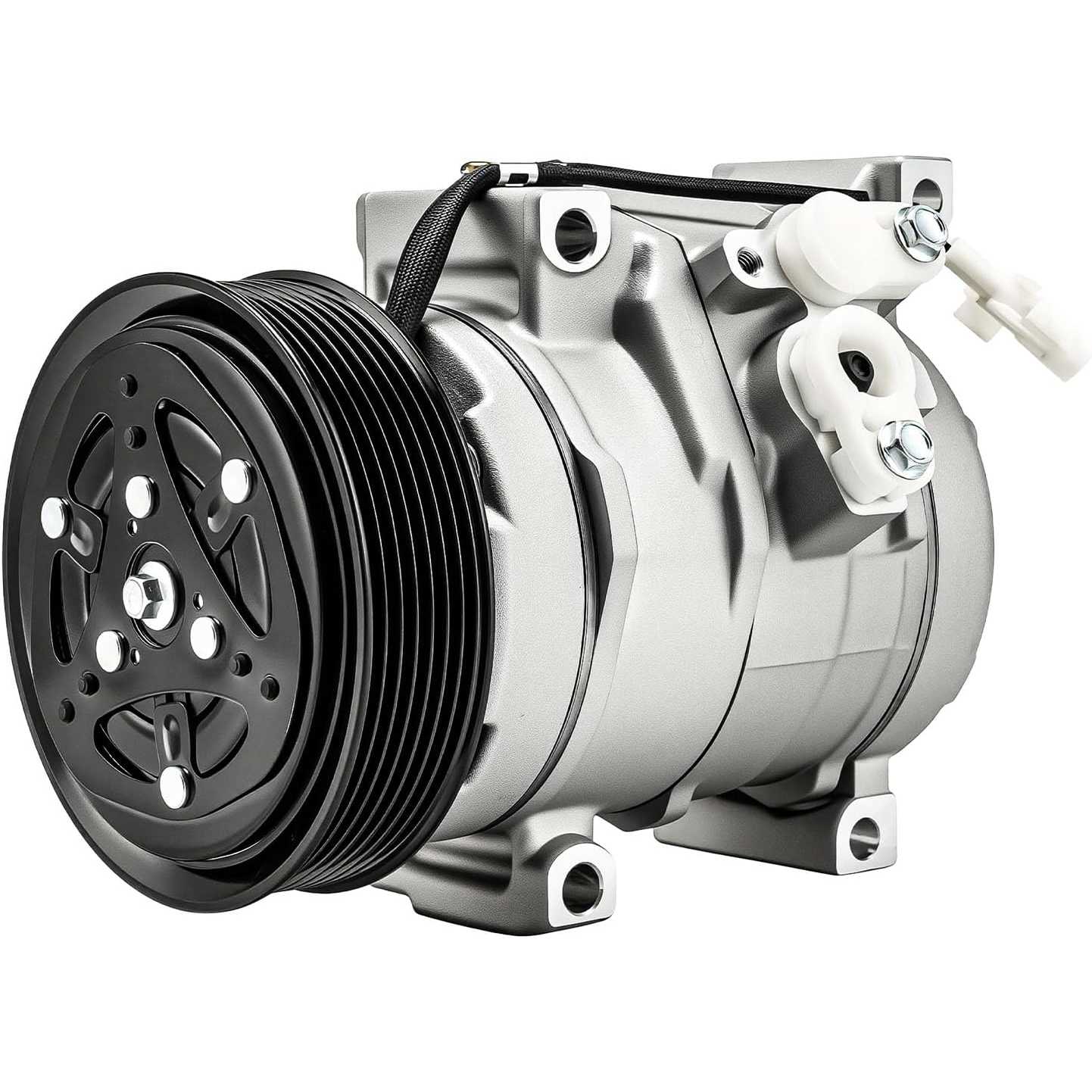

2007-2010 Scion tC 2.4L | 10S15C New A/C Compressor | OE#8832021100/98393 - PHILTOP

2007-2010 Scion tC 2.4L | 10S15C New A/C Compressor | OE#8832021100/98393 - PHILTOP

PAG

10S15C

R134a

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
40ISACC5627US

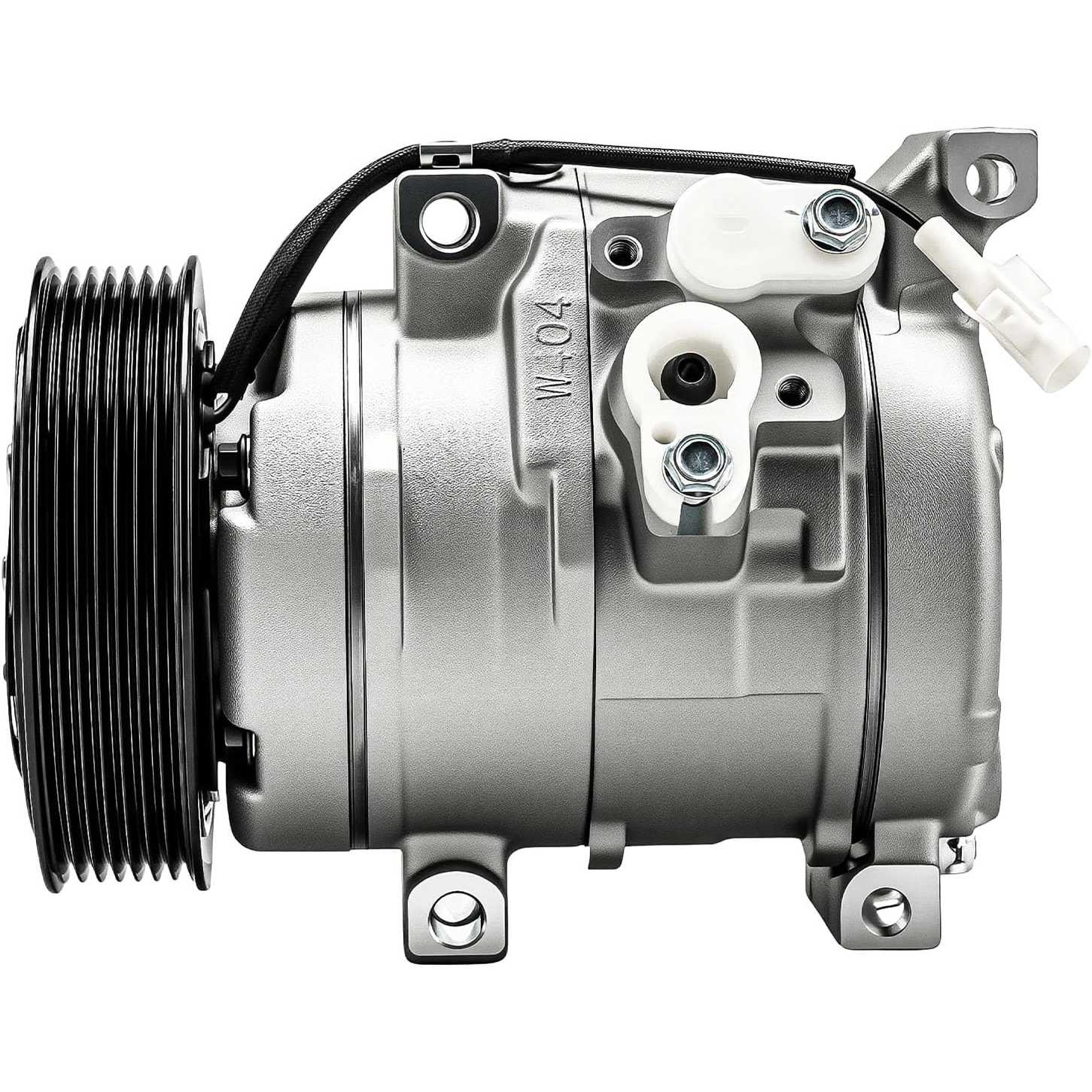

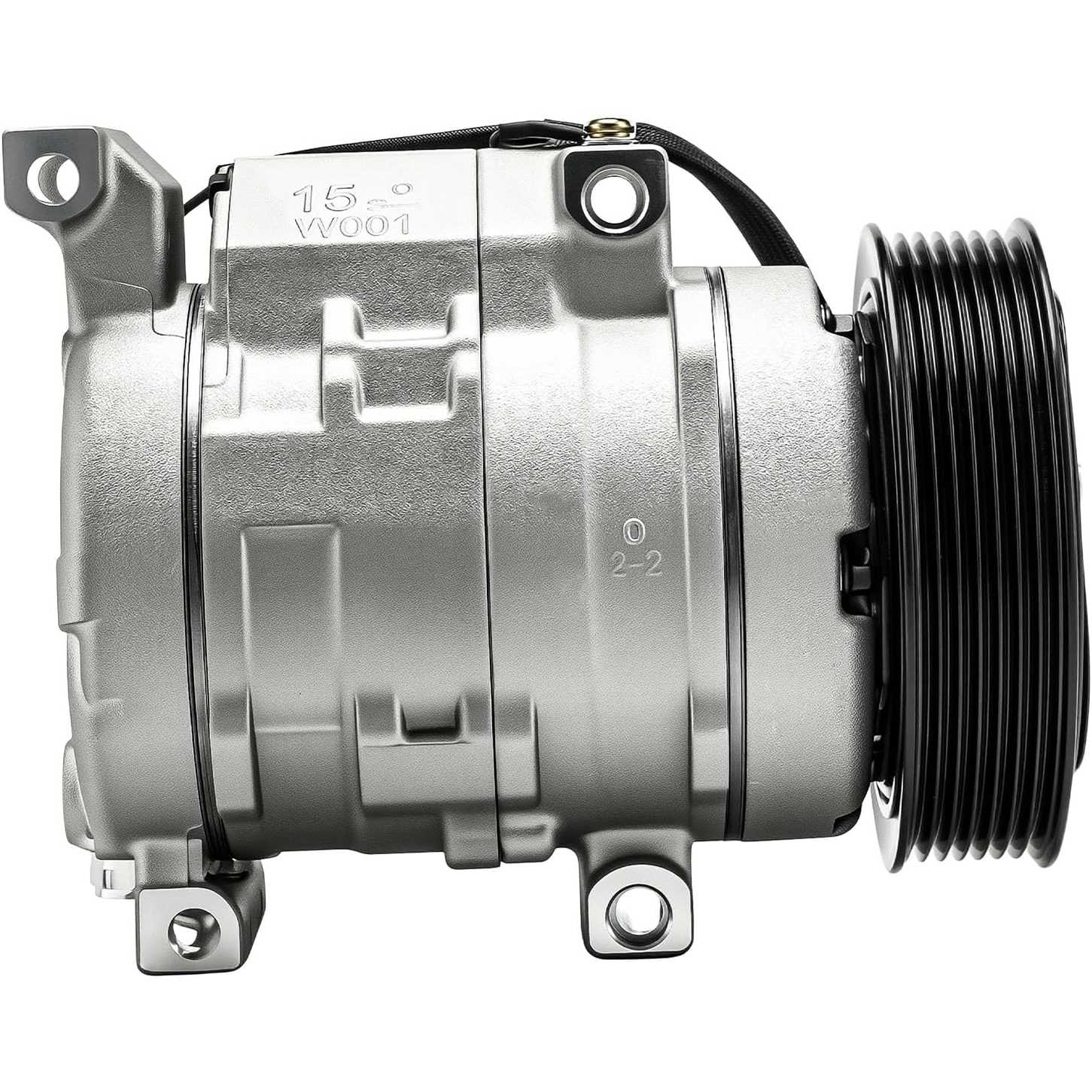

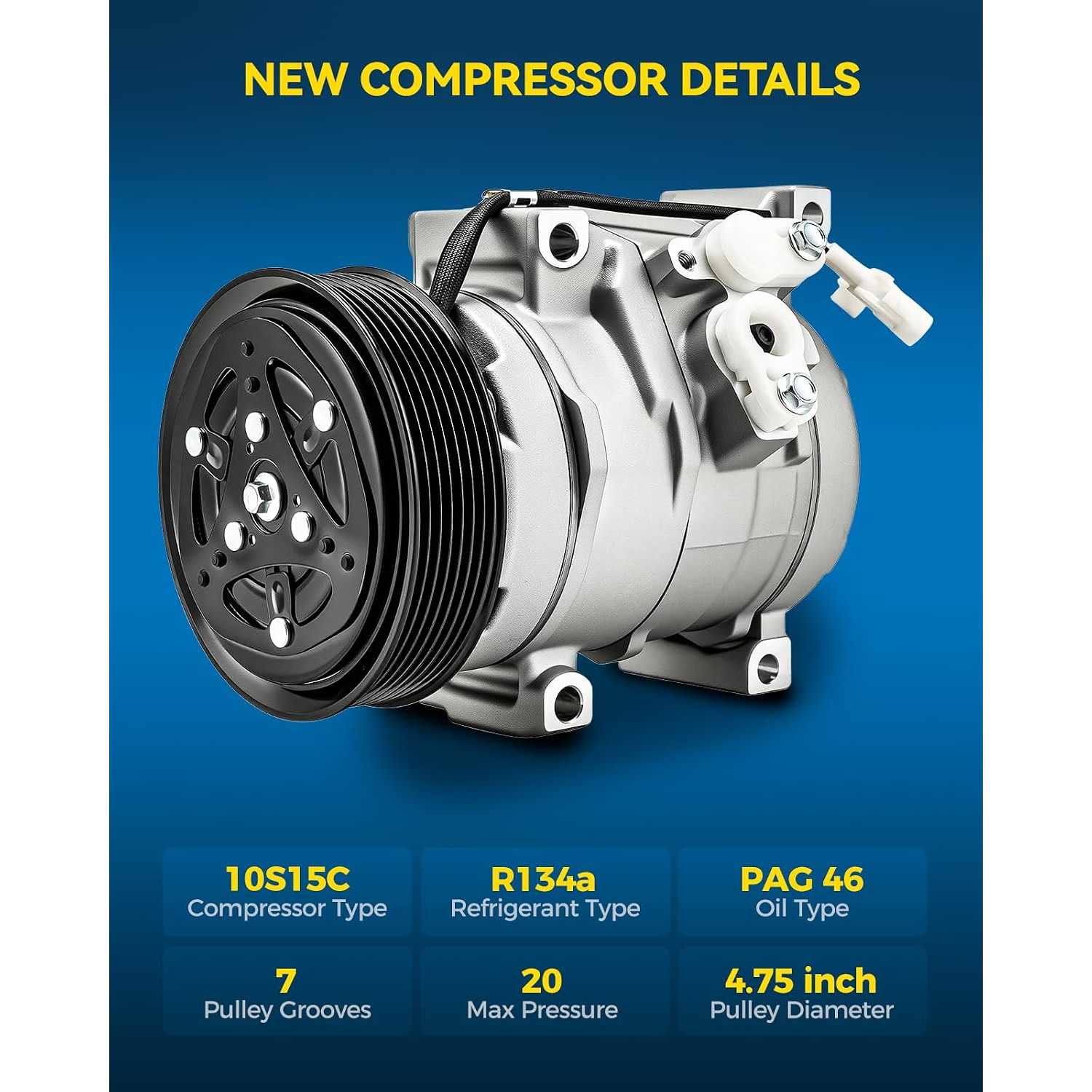

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
10S15C
Belt Type
Serpentine
Refrigerant Type
R134a
Pulley Groove Count
7
Items Included
1x A/C Compressors & Clutches - 98393,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.75 in/120.65 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
8832021100
Part Number
98393,140236NEW,639897,4710370,6512403,7512403,2000148R,C1664,CO29013C

Highlights

  • #8,639 in Automotive (See Top 100 in Automotive)
  • #7 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 7;④Pulley Diameter:4.75 inch ;⑤Compressor type:10S15C;⑥Pulley type:Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withtC 2007-2010.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:8832021100,2021752AM,98393,2000148R,2021752R,140236NEW,639897,4710370,6512403,7512403,2021752,C1664,CO29013C.Verify your vehicle info using the Philtop compatibility checker.
  • ENSURES FAST DEFOGGING AND DEFROSTING - Our air conditioning compressor is crucial for winter visibility. It drives the system to dehumidify the incoming air, quickly clearing frost and condensation from the windshield and windows, ensuring safer driving in cold and wet conditions
  • FULLY TESTED & EASY INSTALLATION - The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20102007 - 2008
MakeScionScion
ModeltCtC
TrimBaseSpec
Engine2.4L L42.4L L4
Note
w/ 10S15C Compressor
w/ 10S15C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP 98555 Air Conditioning AC Compressor for Civic 2006 2007 2008 2009 2010 2011 1.8LPHILTOP A/C Compressor

Reviews

4.3/5

Based on 3 reviews

567%
40%
333%
20%
10%

CarGuy_John_445

10/13/2025

This AC compressor looks really solid and well-made. You can tell it's good quality just by looking at it. Considering how much dealerships wanted, this is an amazing value.

Chris_GearHead_684

11/17/2025

Installation was straightforward, easier than I expected. Everything lined up perfectly. Compared to other options I saw, this one seemed like the best bang for the buck and it turned out to be true.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
