2008-2013 Polaris Outlaw 50 | 4x6.14" 131mm Center Bore 3/8"-24 Thread Wheel Hub Accessory - PHILTOP

2008-2013 Polaris Outlaw 50 | 4x6.14" 131mm Center Bore 3/8"-24 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
89ISWSA4777US

Specifications

Brand
PHILTOP
Bolt Pattern
4x156mm
Wheel Bolt Pattern
4x156mm
Vehicle Bolt Pattern
4x156mm
Thread Size
3/8"-24
Center Bore
131
Hub-Centric Lip
No
Thickness
1inch
Outside Diameter
192
Inside Diameter
5.16 in/131 mm
Lug Patterns
4

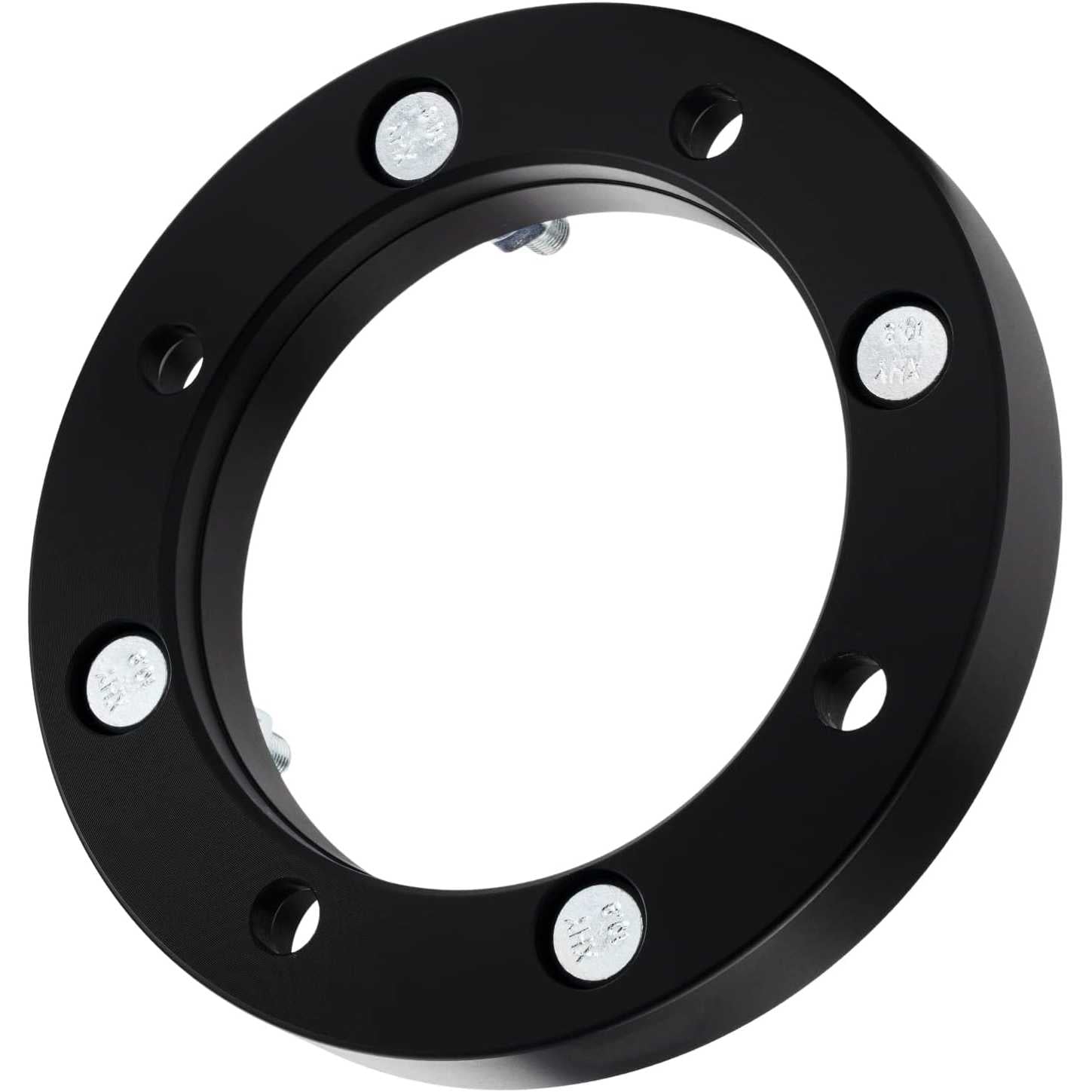

Type
Wheel Spacer
Items Included

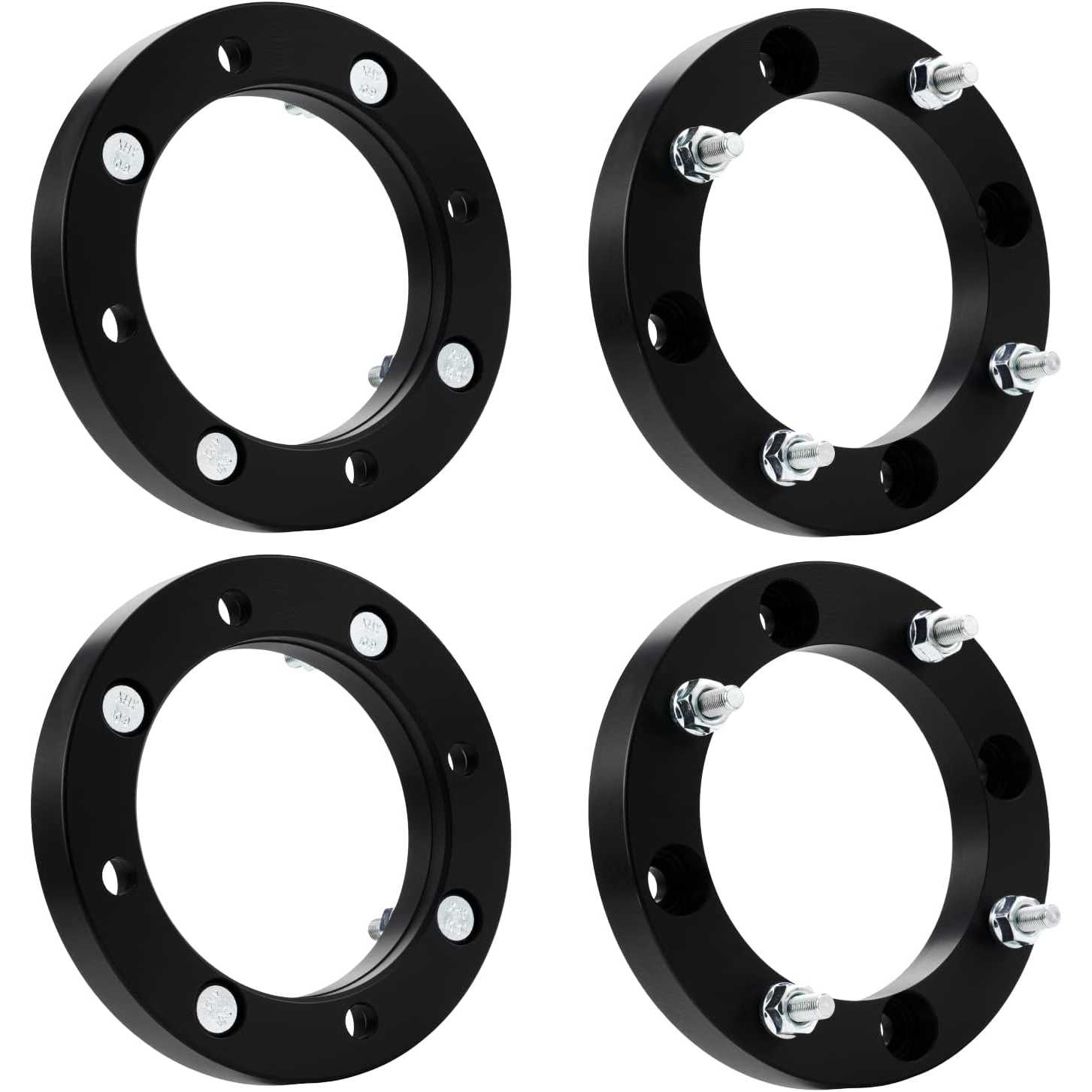

4x Lug-Centric Wheel Spacers
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
20-30 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 4x156 Wheel Spacer set replacement for 2004-2008 YFZ450; 2002-2006 Sportsman 700; 2003-2007 Predator 500; 2003-2005 Sportsman 600; 2007-2011 Outlaw 90; 2008-2013 Outlaw 50; 2001-2005 Sportsman 400; 2006-2007 Outlaw 500; 1998-2000 Sportsman 335; 2000-2002 Xpedition 325; 1994-1999 Sport 400L
  • [Wheel Spacers Specification] --- Bolt Pattern: 4x156mm ; | Thickness: 1 inch(25mm) ; | Thread Pitch: 3/8"-12 ; | Hub Bore: 131mm ; | Recommended torque: 44-49ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Enhance Driving Experience] --- These 4x156 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance

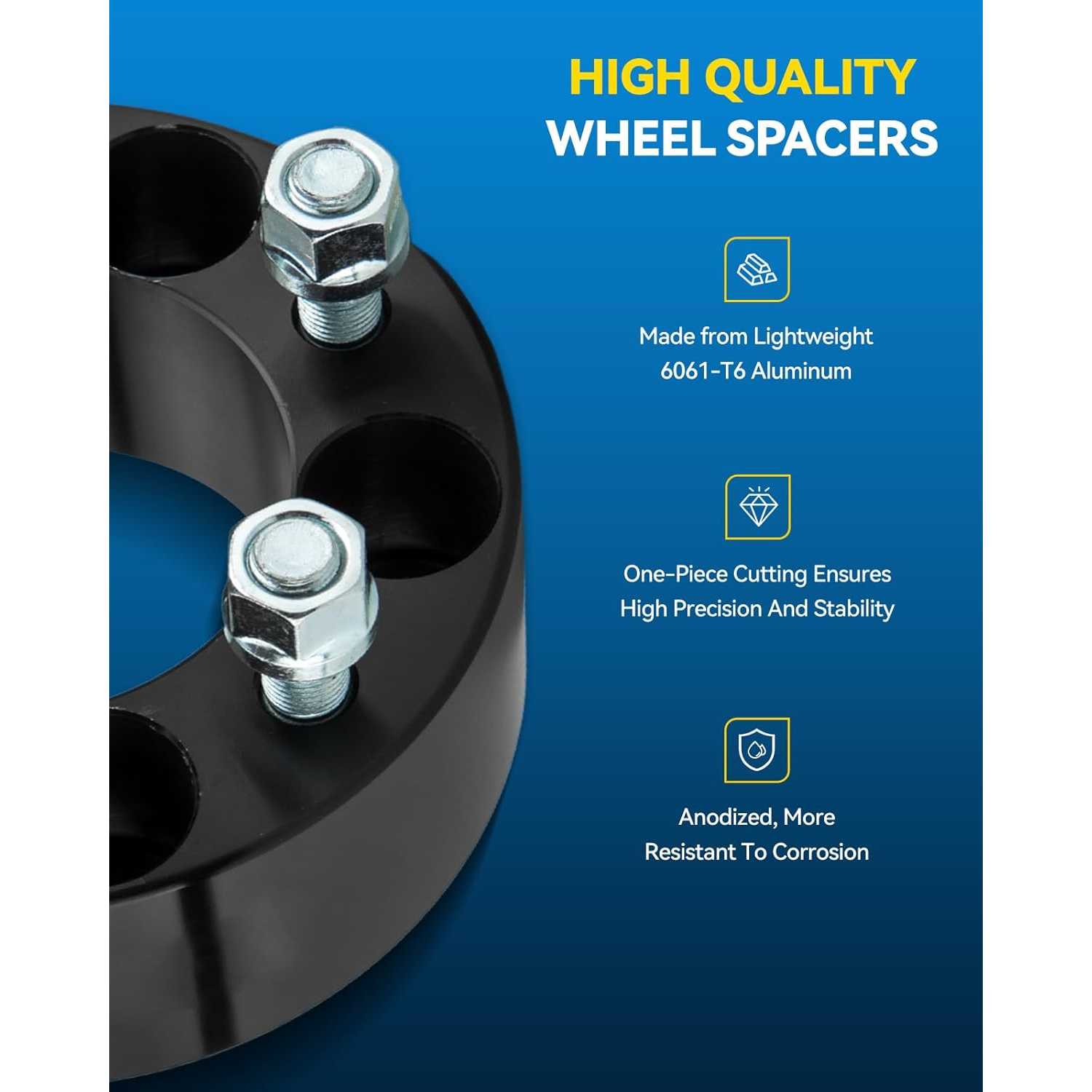

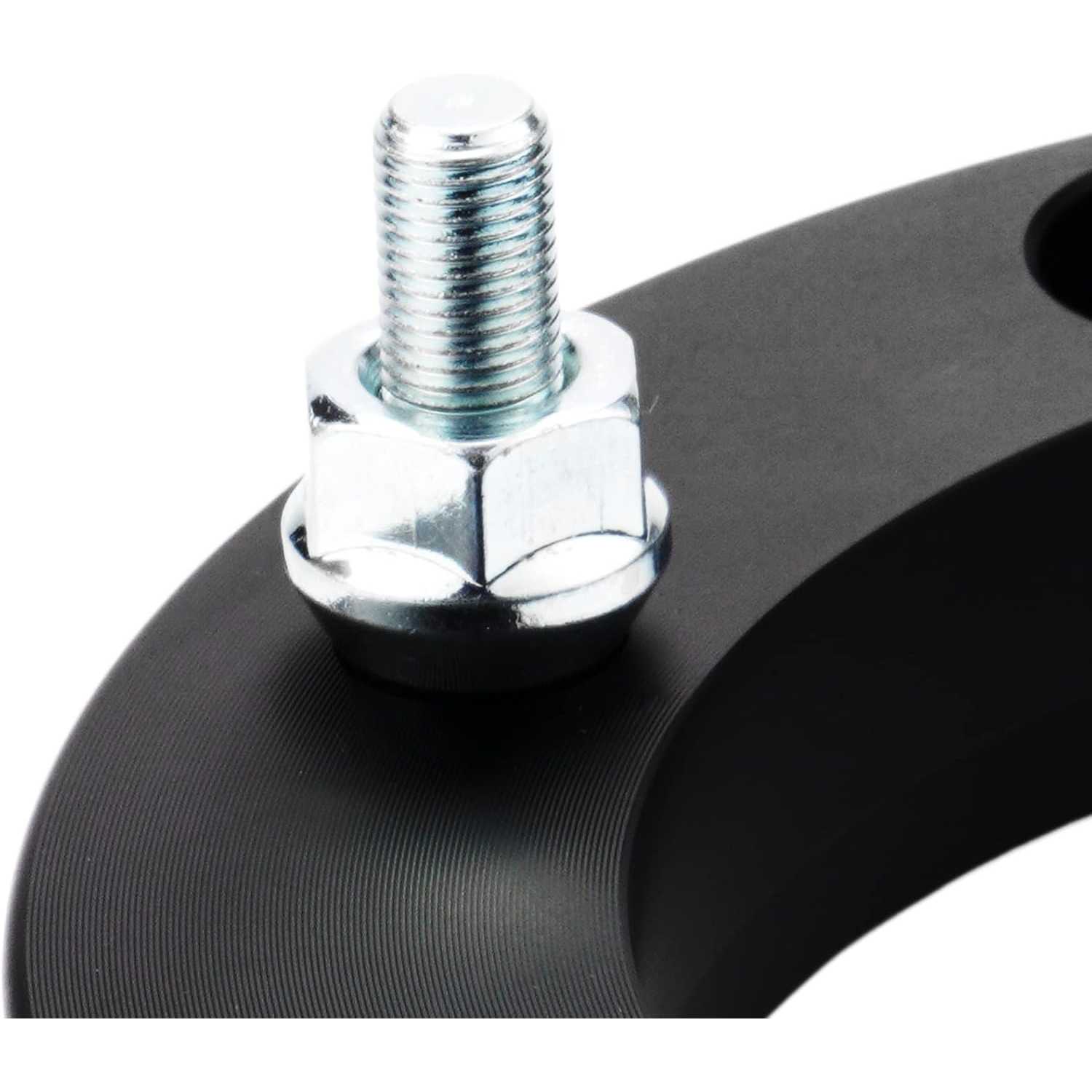

  • [Unsurpassed Quality] ---4x156 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20132006 - 20072007 - 20112003 - 20071994 - 19991998 - 20002001 - 20052003 - 20052002 - 20062000 - 20022004 - 2008
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisYamaha
ModelOutlaw 50Outlaw 500Outlaw 90Predator 500Sport 400LSportsman 335Sportsman 400Sportsman 600Sportsman 700Xpedition 325YFZ450
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine-----------
Note-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

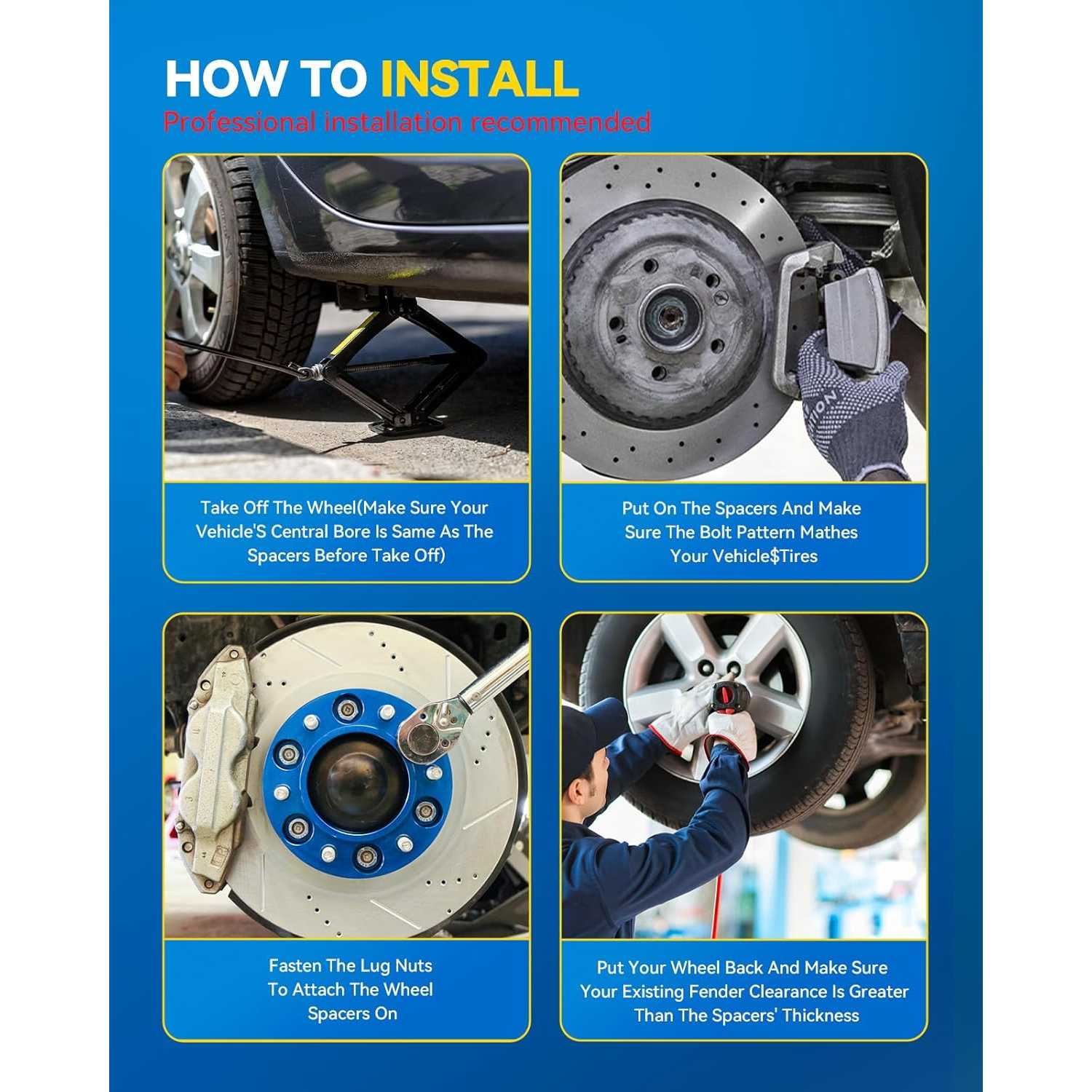

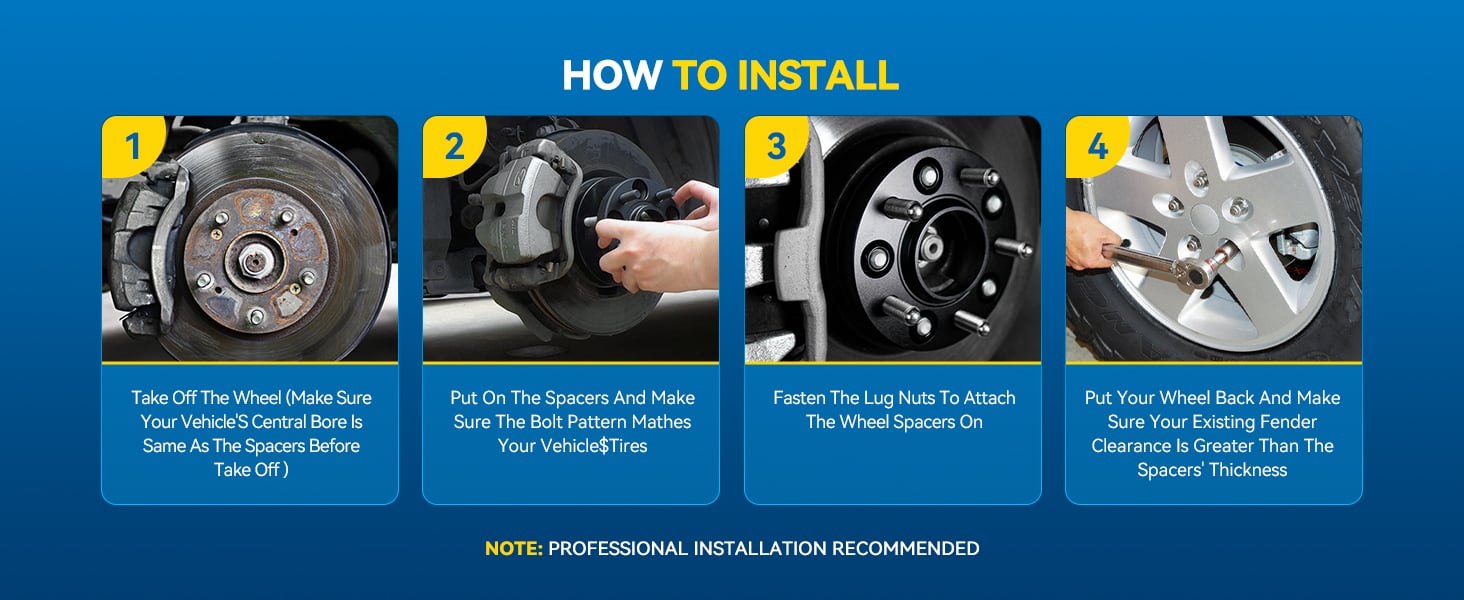

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Customer photos and videos

Bigfoot

09/26/2023

Verified buyer

For a 2008 Polaris sportsman 800 EFI H.O. Went up s size from 26x8R12 to 26x9R12 and the new tires were running the tie rod.. These spacers fit perfect without any modification

Donna Stanfield

11/15/2024

Verified buyer

Excellent seller, a pleasure to do business with you Read more

FAQS

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.
