1984-2013 Chevrolet Corvette 5.7L V8 5x120 to 5x114mm 74mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1984-2013 Chevrolet Corvette 5.7L V8 5x120 to 5x114mm 74mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
93ISWSA4737US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.75" To 5x4.5"
Wheel Bolt Pattern
5x4.5"
Vehicle Bolt Pattern
5x4.75"
Thread Size
M12x1.5
Center Bore
74
Hub-Centric Lip
No
Thickness
1inch
Note1
Only for 5x4.75" Models with 5x4.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x4.5" Wheel.
Outside Diameter
164
Inside Diameter
2.91 in/74 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included

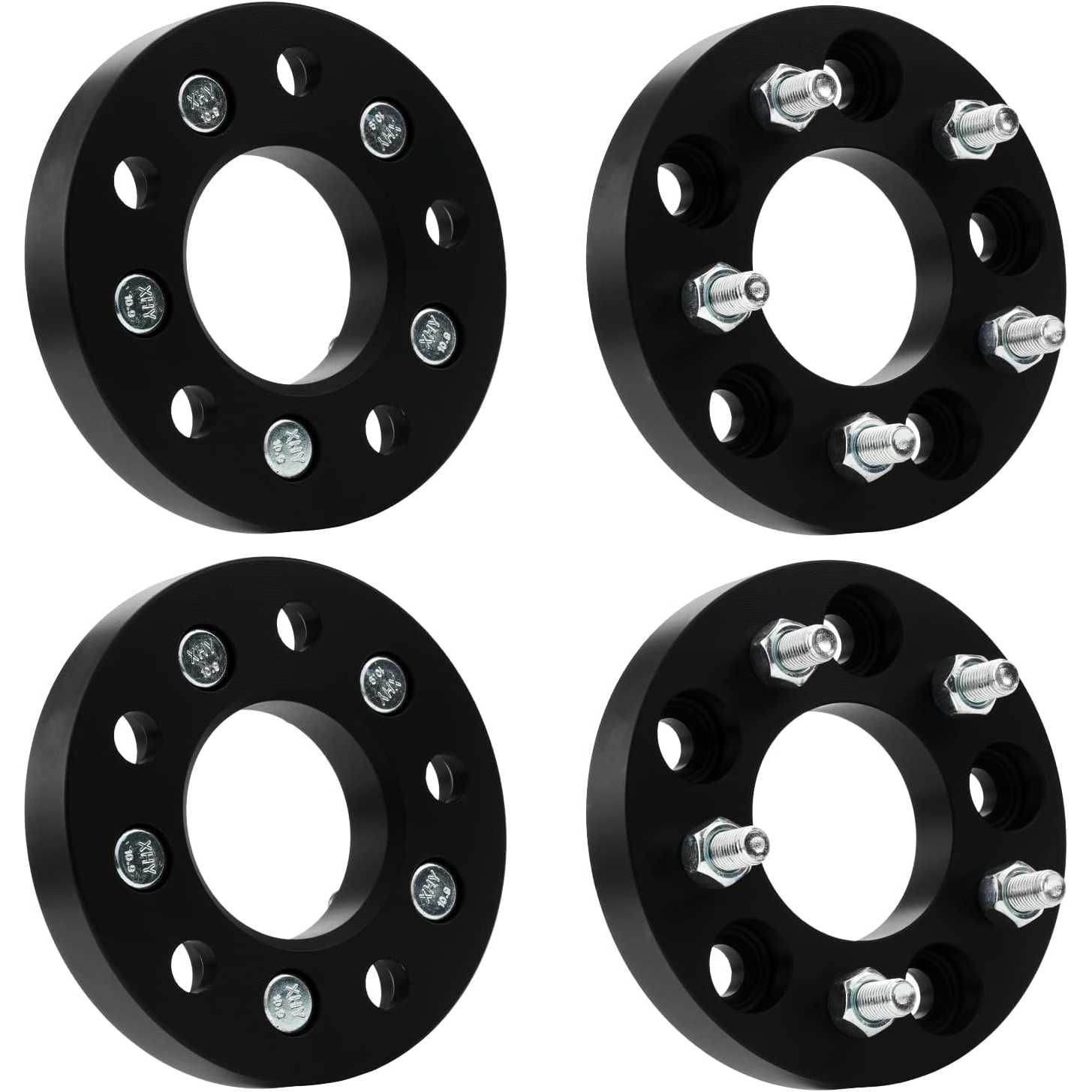

4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x4.75"(5x120.65) ; | Wheel Bolt Pattern: 5x4.5"(5x114.3mm) ; | Thickness: 1 inch(25mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 74mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x4.75 to 5x4.5 Wheel Adapters set replacement for 1984-2004 Corvette 5.7L Naturally Aspirated 350cid OHV GAS Base V8; 2014-2019 Corvette 6.2L Naturally Aspirated 376cid OHV GAS Stingray V8; 1996-2004 Blazer 4.3L 4WD Naturally Aspirated 262cid OHV GAS LS V6; 2005-2007 Corvette 6.0L Naturally Aspirated 364cid OHV GAS Base V8; 1993-2002 Camaro 5.7L Naturally Aspirated 350cid OHV GAS Z28 V8

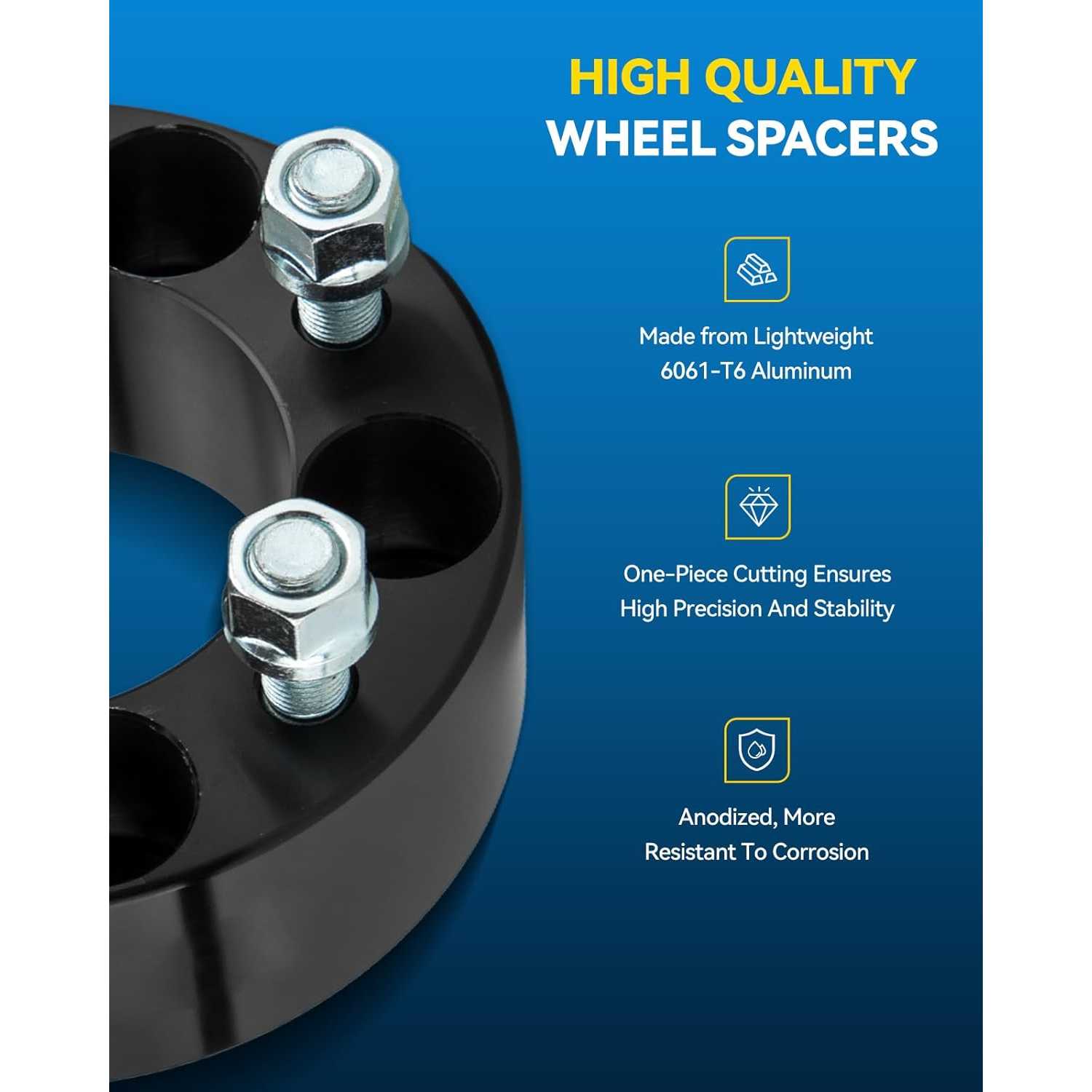

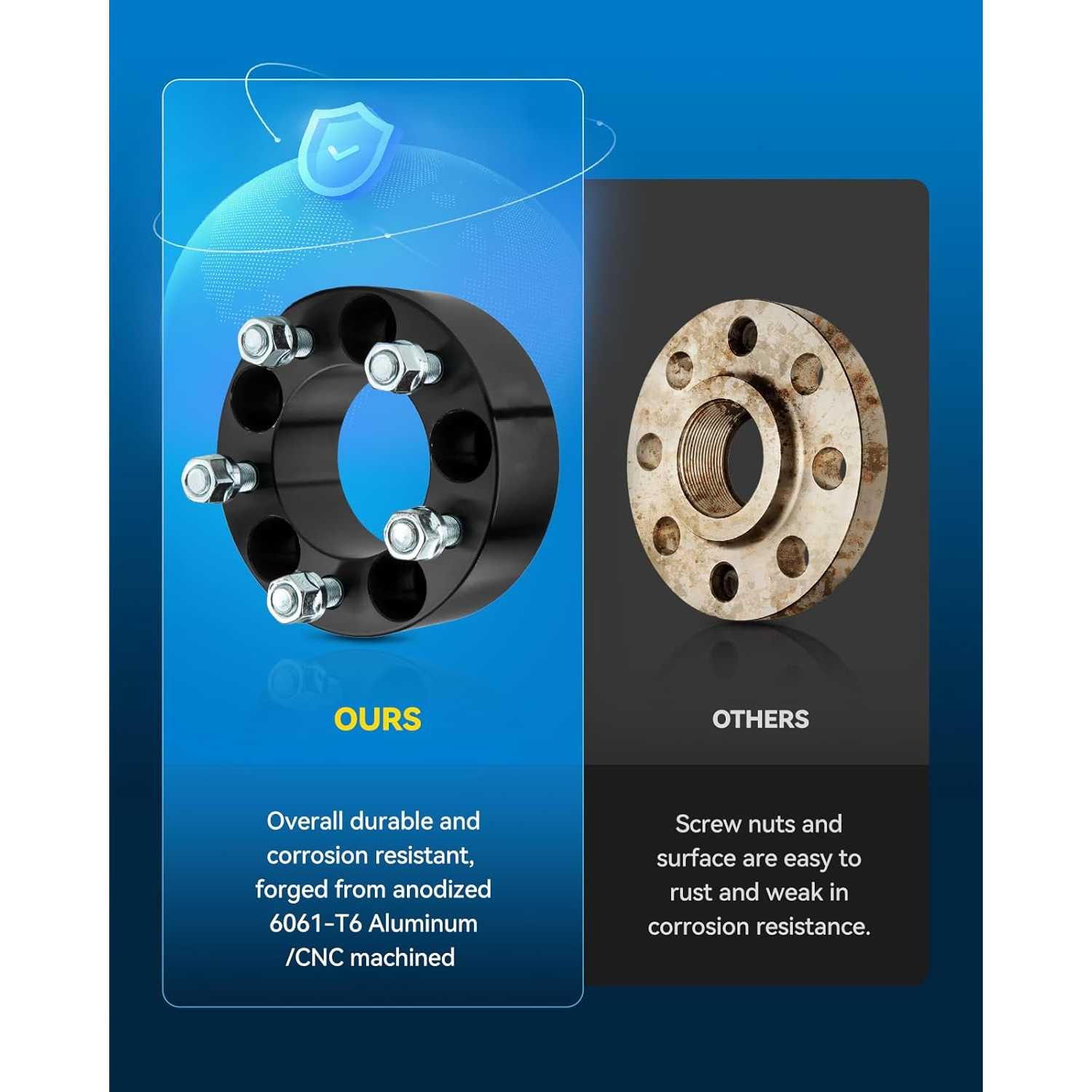

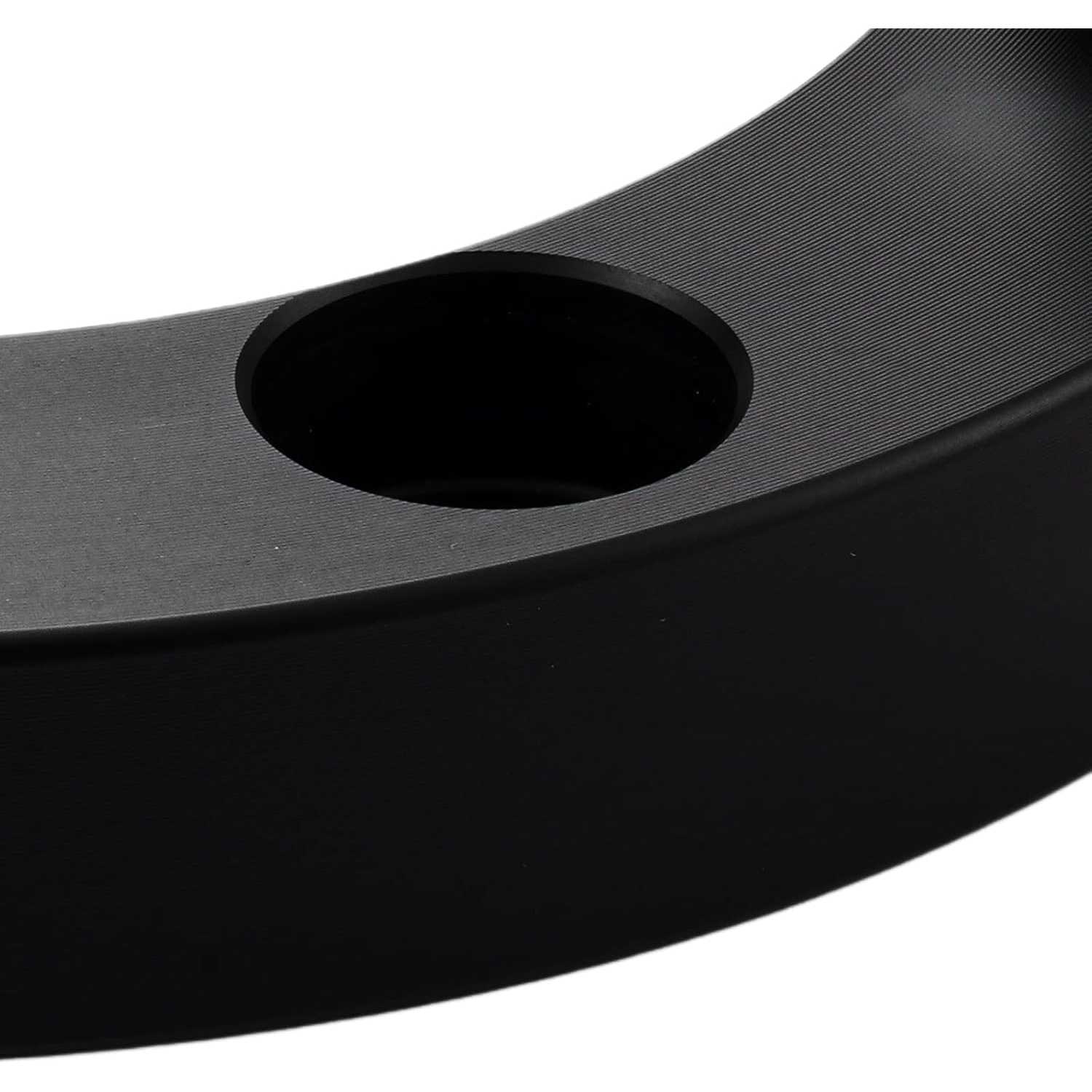

  • [High Quality] --- 5x4.75 to 5x4.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

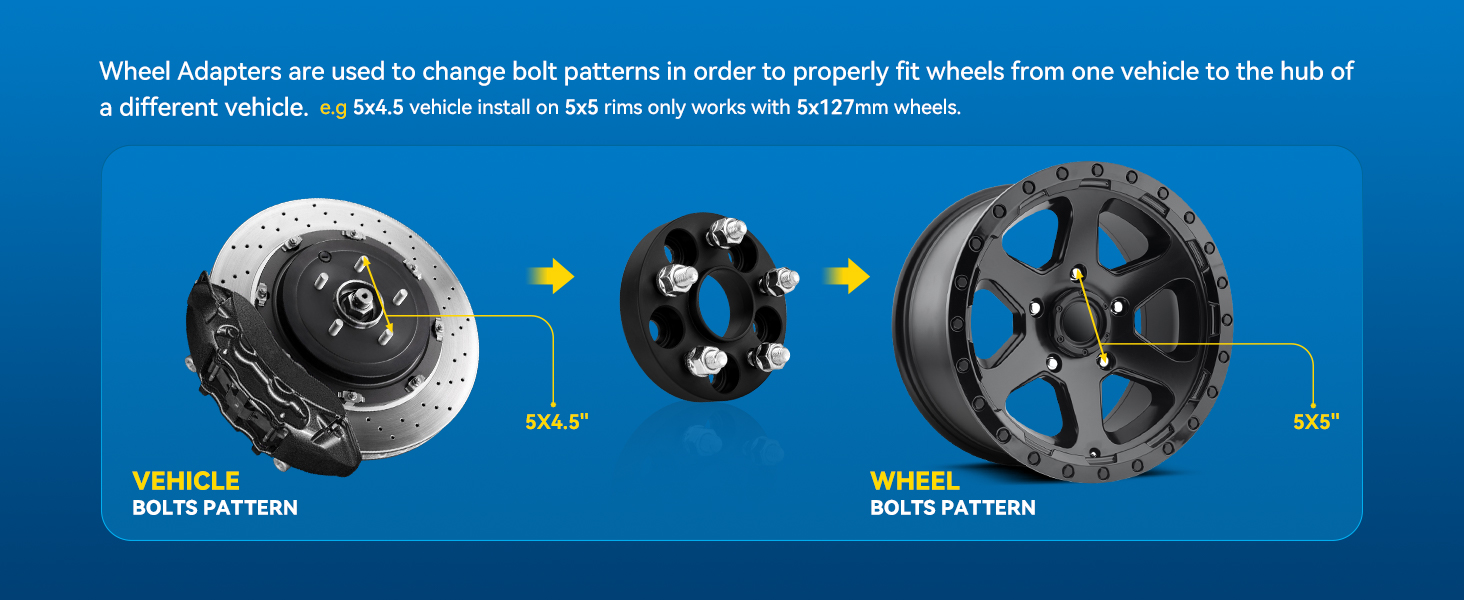

  • [Aggressive Driving Experience] --- These 5x4.75 to 5x4.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

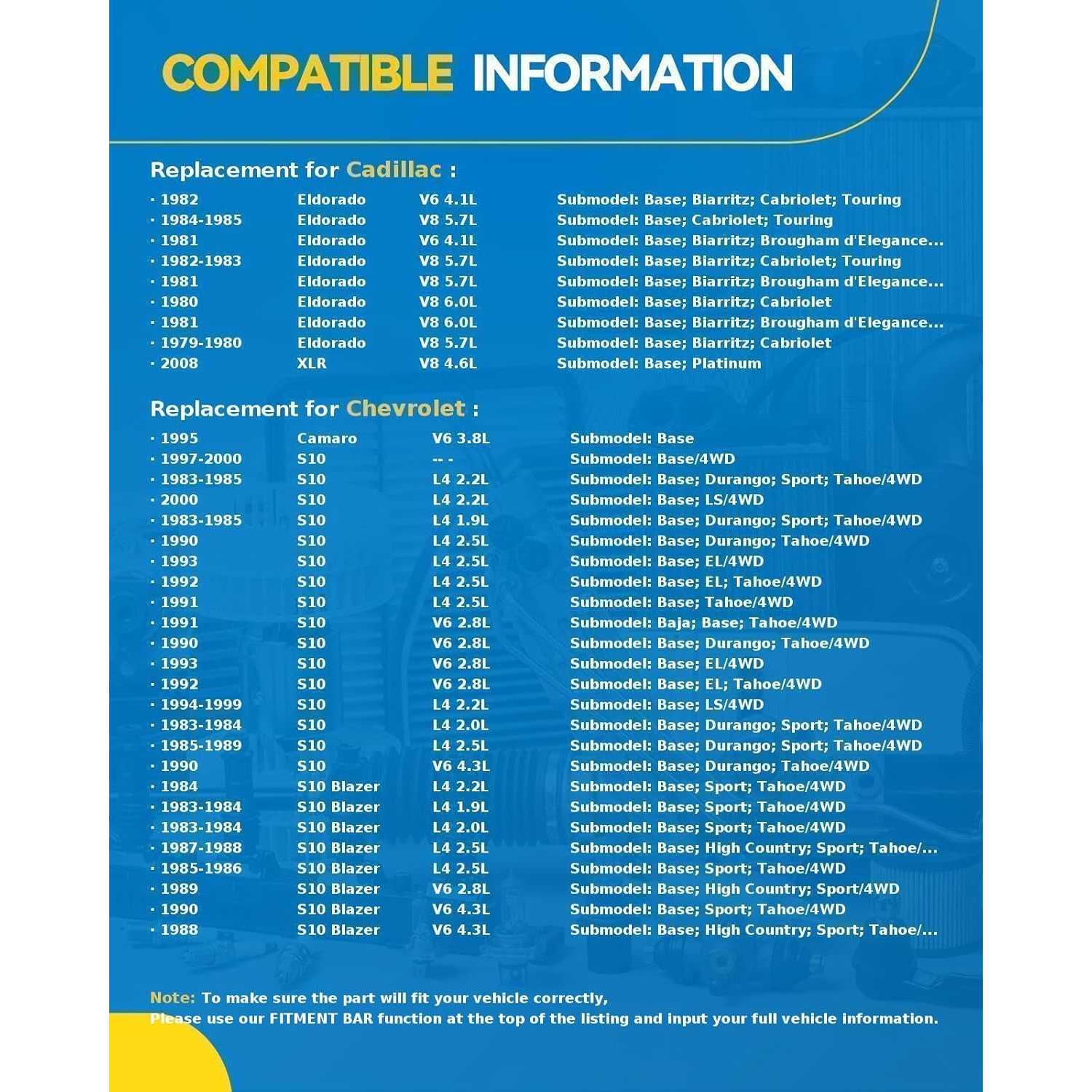

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20082008 - 20092006 - 200919881993 - 19951995 - 200219881982 - 19861982 - 198619931985 - 19901987 - 19901987198719891990 - 19921996 - 19971989 - 1992199219921982 - 19861982 - 19871982 - 19871982 - 19871991 - 19921991 - 20021992199219821998 - 20021988199320132008200320031984 - 20042005 - 20072008 - 2013199619962010 - 20131986199519982001 - 20042006 - 201320111990 - 19952009 - 20131982 - 19861982 - 198819891990 - 19921993 - 19951995 - 19981999 - 20002001 - 20021982 - 19881989 - 19921987 - 19881989 - 19921989 - 19981999 - 20002001 - 20021982 - 19841982 - 19861982 - 198619891982 - 19881989 - 19921987 - 19881989 - 19981999 - 20002001 - 200219941989 - 19921989 - 19921989
MakeCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelXLRXLRXLRCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebird
TrimBasePlatinumVBaseBaseBaseBaseBerlinettaBerlinettaIndianapolis 500 Pace CarIroc-ZIroc-ZLTLTRSRSRSRSRS Heritage EditionRS Heritage EditionSportSportSportZ28Z28Z28Z28 Heritage EditionZ28 Heritage EditionZ28 Indianapolis 500 Pace CarZ28 SS35th Anniversary Edition40th Anniversary Edition427427 Limited Edition Z0650th Anniversary Edition50th Anniversary Edition Pace CarBaseBaseBaseCollector's EditionGrand SportGrand SportIndianapolis 500 Pace CarIndianapolis 500 Pace CarIndianapolis 500 Pace CarZ06Z06Z06 CarbonZR-1ZR1BaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseFormulaFormulaFormulaFormulaS/ES/ES/ETrans AmTrans AmTrans AmTrans AmTrans AmTrans AmTrans AmTrans Am GTTrans Am GTATrans Am GTATrans Am GTA SE
Engine4.6L V84.6L V84.4L V82.8L V63.4L V63.8L V65.0L V82.8L V65.0L V85.7L V85.0L V85.7L V82.8L V65.0L V82.8L V63.1L V63.8L V65.0L V83.1L V65.0L V82.5L L42.8L V65.0L V85.0L V85.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.7L V85.7L V87.0L V87.0L V85.7L V85.7L V85.7L V86.0L V86.2L V85.7L V85.7L V86.2L V85.7L V85.7L V85.7L V85.7L V87.0L V87.0L V85.7L V86.2L V82.5L L42.8L V62.8L V63.1L V63.4L V63.8L V63.8L V63.8L V65.0L V85.0L V85.7L V85.0L V85.7L V85.7L V85.7L V82.5L L42.8L V65.0L V83.8L V65.0L V85.0L V85.7L V85.7L V85.7L V85.7L V85.7L V85.0L V85.7L V83.8L V6
Note
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
----
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
--
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
-
only works with 5x114.3 / 5x4.5 Wheels
-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

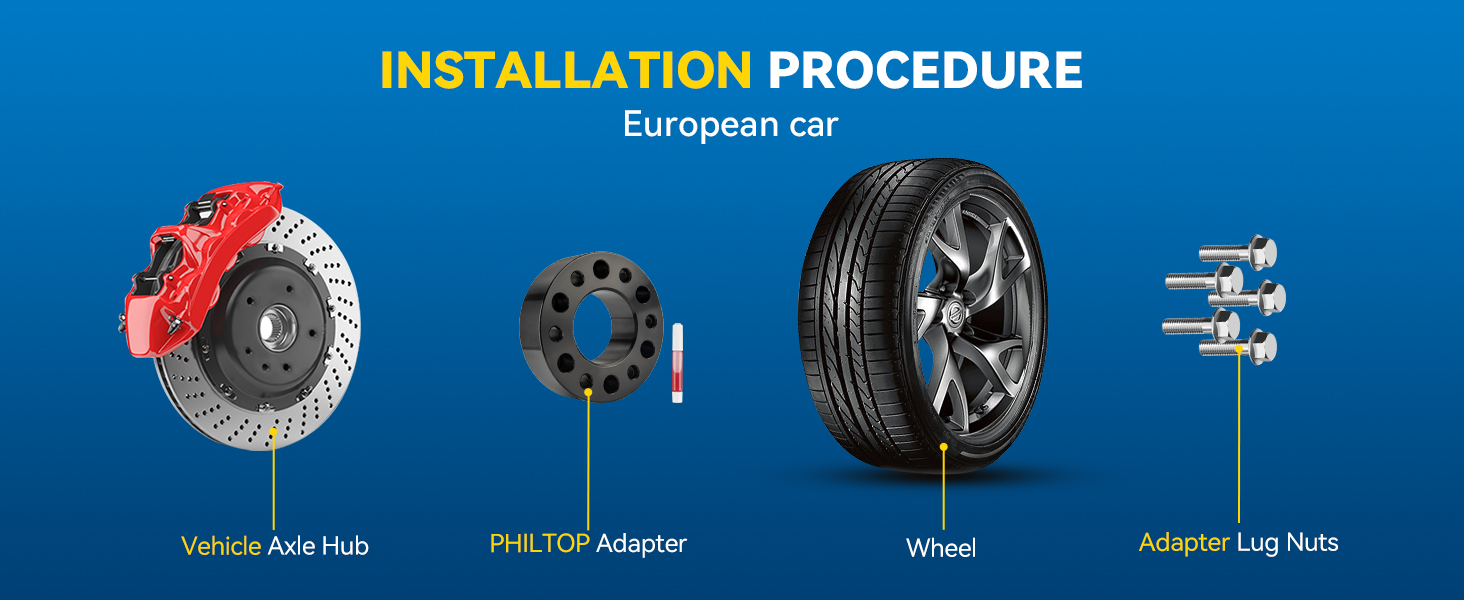

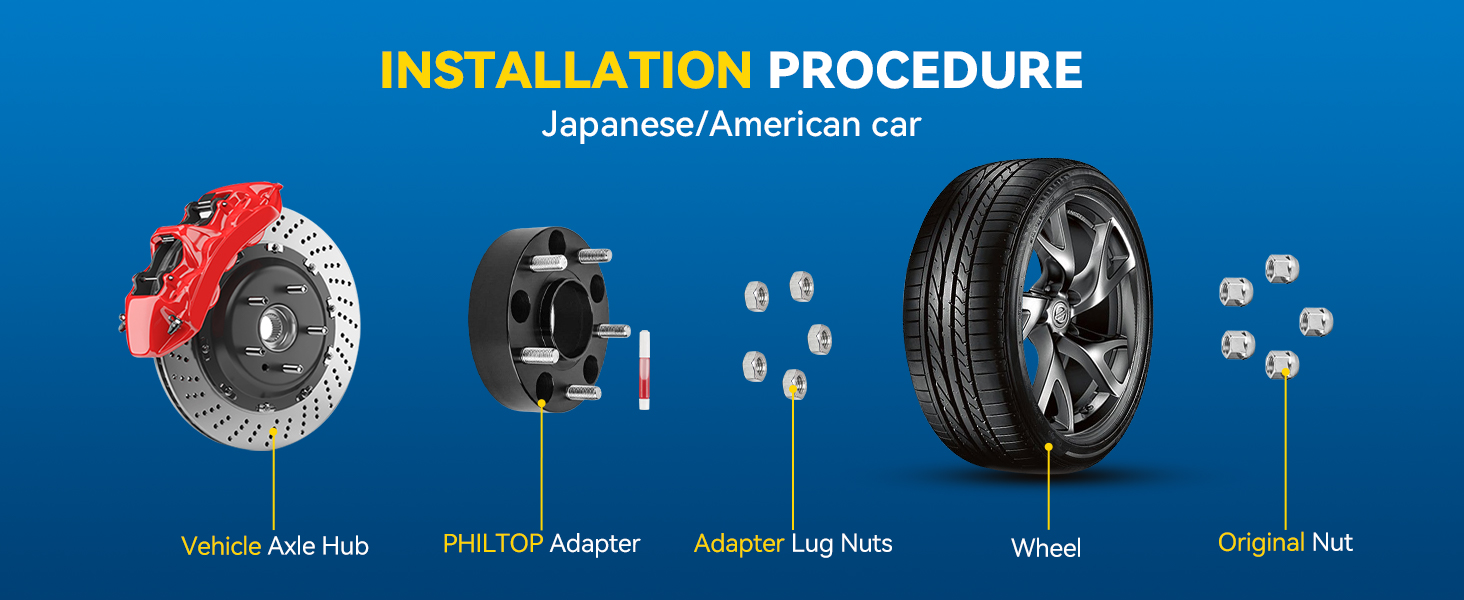

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.9/5

Based on 10 reviews

590%
410%
30%
20%
10%

Ava Brown

01/28/2025

Took a gamble on these adapters for my project car and they paid off. No vibrations at highway speeds, solid product.

Alexander Lee

01/17/2025

Fantastic build quality on these adapters. Changed my stance exactly how I wanted.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
