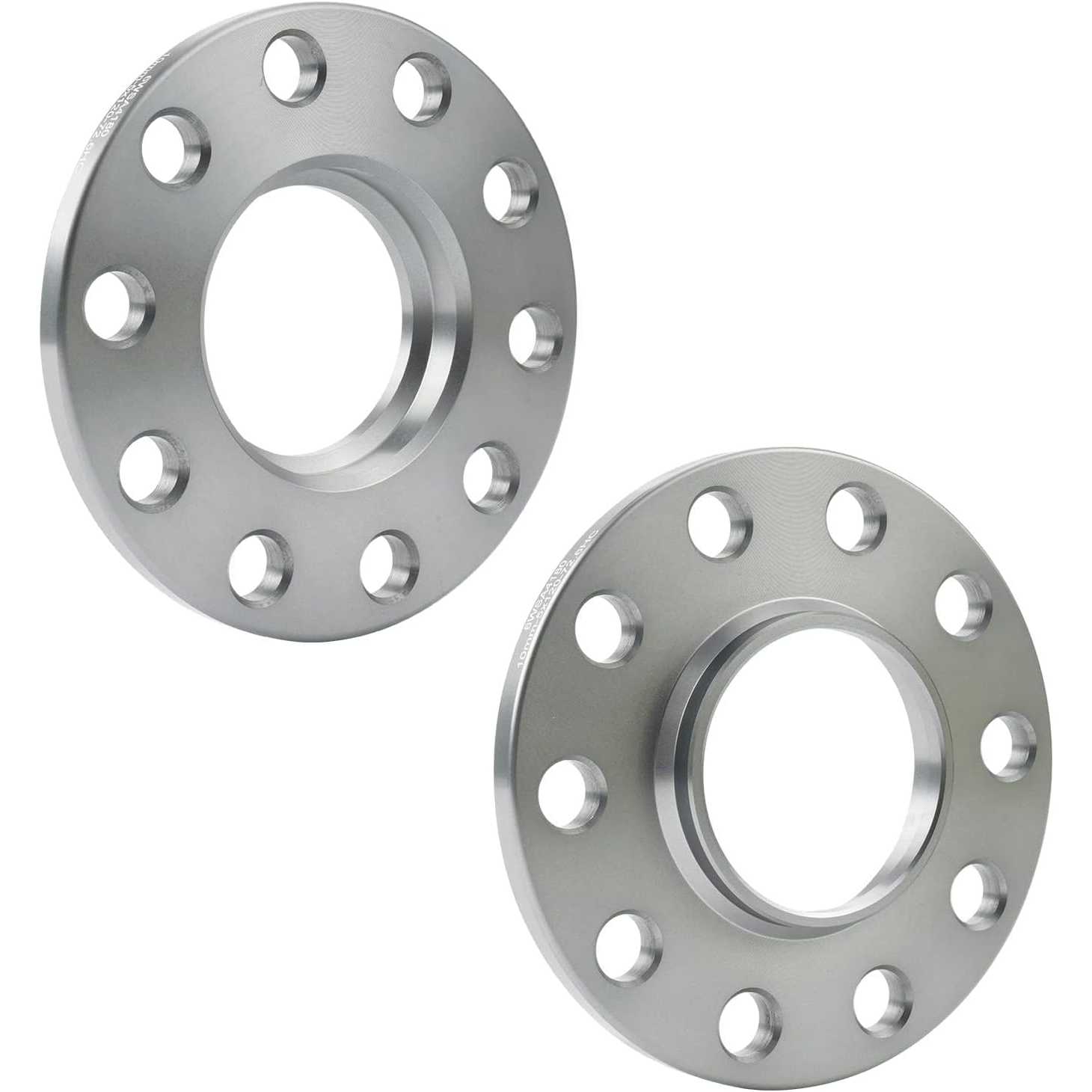

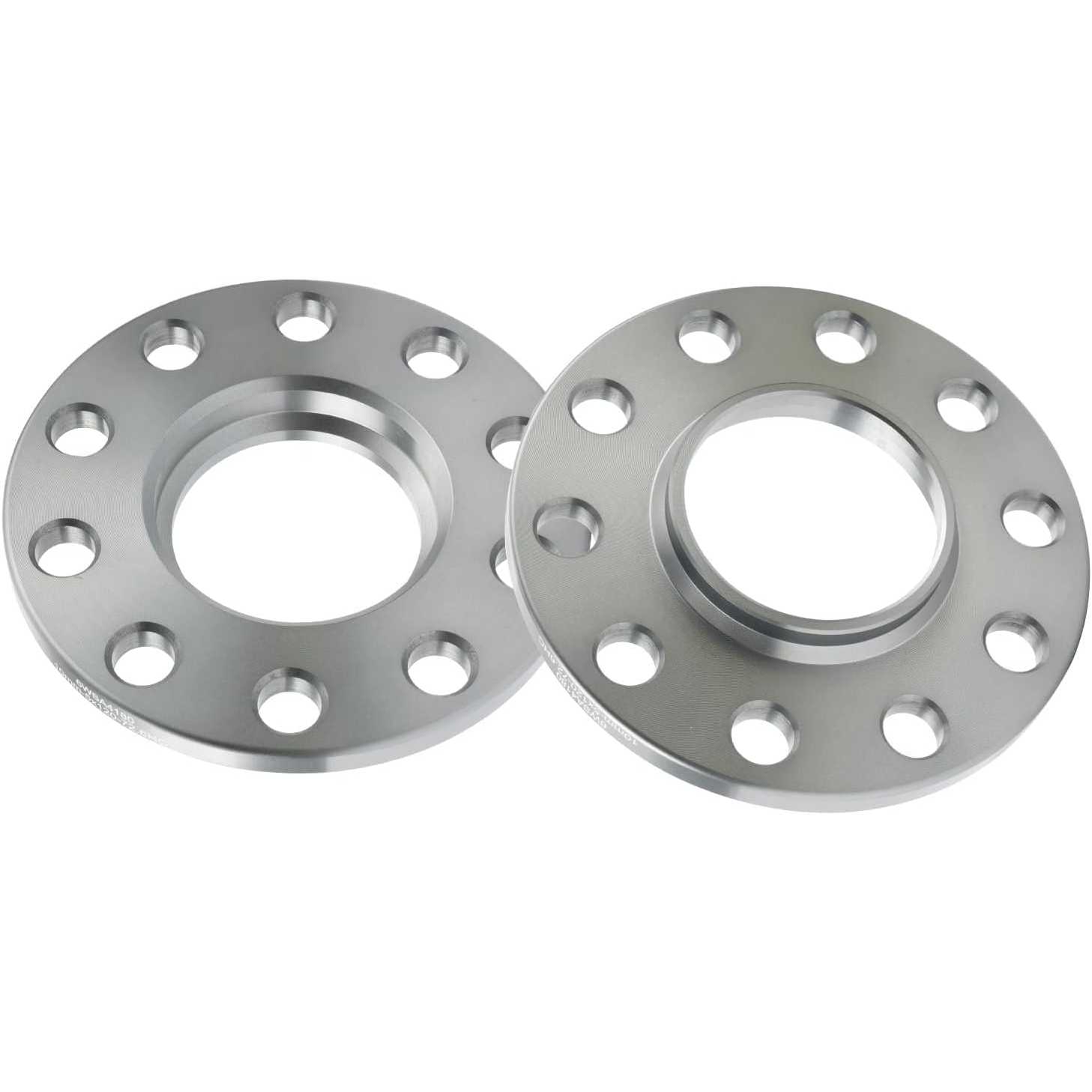

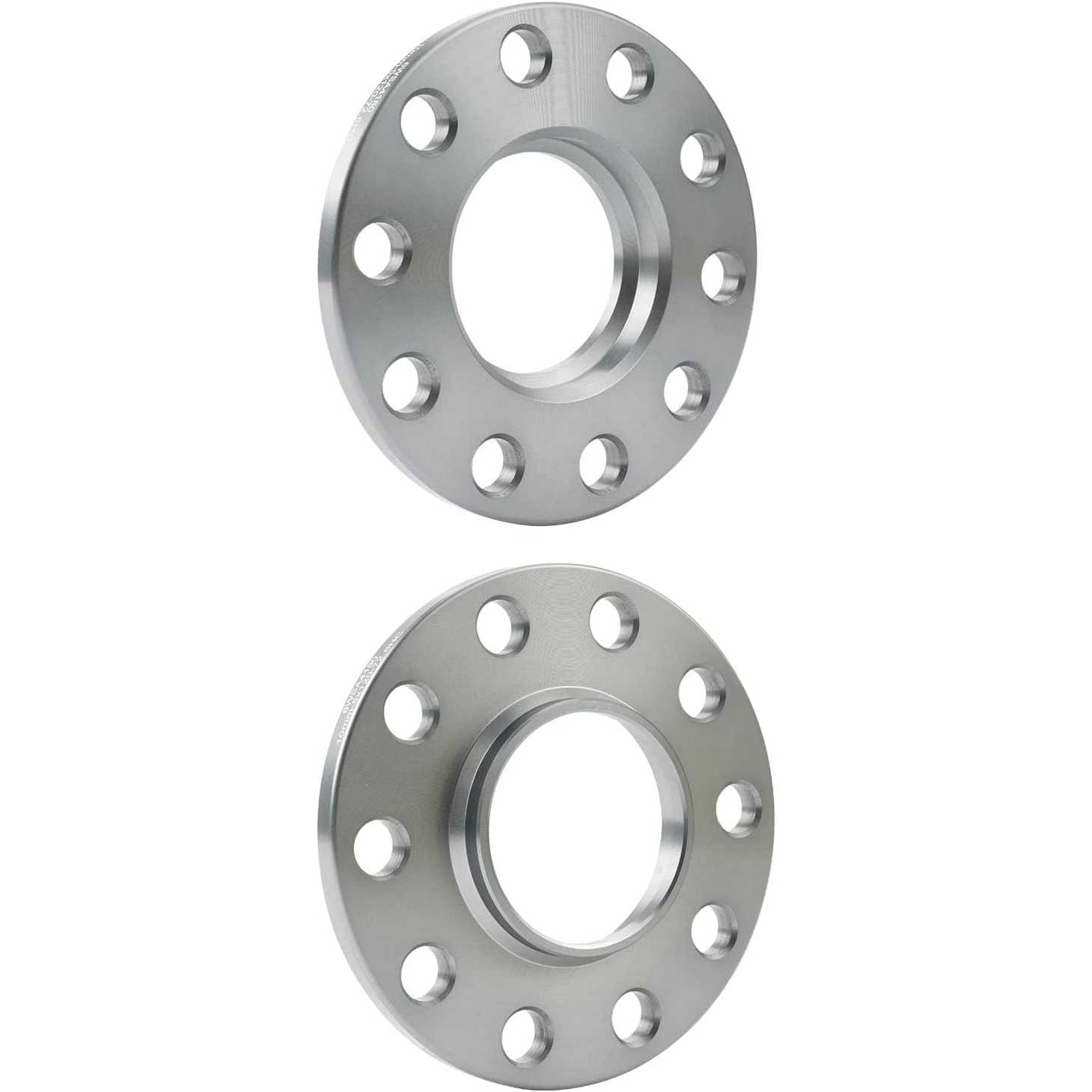

1991-1995/2001-2006 BMW 325i 2.5L L6 | 5x4.72 72.6mm Center Bore Boltless Thread Wheel Hub Accessory - PHILTOP

1991-1995/2001-2006 BMW 325i 2.5L L6 | 5x4.72 72.6mm Center Bore Boltless Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
31ISWSA118007US

Specifications

Brand
PHILTOP
Bolt Pattern
5x120mm
Wheel Bolt Pattern
5x120mm
Vehicle Bolt Pattern
5x120mm
Thread Size
Boltless
Center Bore
72.6
Hub-Centric Lip
Yes
Thickness
10mm
Outside Diameter
155
Inside Diameter
2.86 in/72.6 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
2x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x120mm ; | Thickness: 10mm ; | Center Bore: 72.6mm. !!! Note: Package include 2Pcs wheel spacers, no bolts
  • [Vehicle Application] --- The 5x120 Wheel Spacer set replacement for 2003-2016 BMW Z4; 1988-2001 BMW 750iL; 2004-2017 BMW X3; 2006-2016 BMW 550i; 2010-2019 Rolls-Royce Ghost; 2006-2015 BMW 750Li; BMW 750i; 2007-2016 BMW 328i; 1985-1993 BMW 535i; 2008-2016 BMW 528i; BMW 535i; 2007-2015 BMW 335i; 1993-2001 BMW 740iL; 1992-1999 BMW 318i; BMW 318is; 2005-2012 BMW 120i; 2000-2006 BMW X5; 1996-2002 BMW Z3; 1989-1995 BMW 525i; 2004-2010 BMW 525i; BMW 530i; 2012-2018 BMW M6; BMW 640i; BMW 650
  • [High Quality] ---5x120 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- The 5x120 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Notice] --- This style of wheel spacer does not have studs pressed in themn, so they retain the use of the vehicle's factory wheel studs orlug bolts.Extended wheel studs or lug bolts may be required touse a slip-on spacer. If there is a problem with the product, PHILTOP provide you with a free return/exchange service. Please feel free to contact us with any questions regarding our products and services.

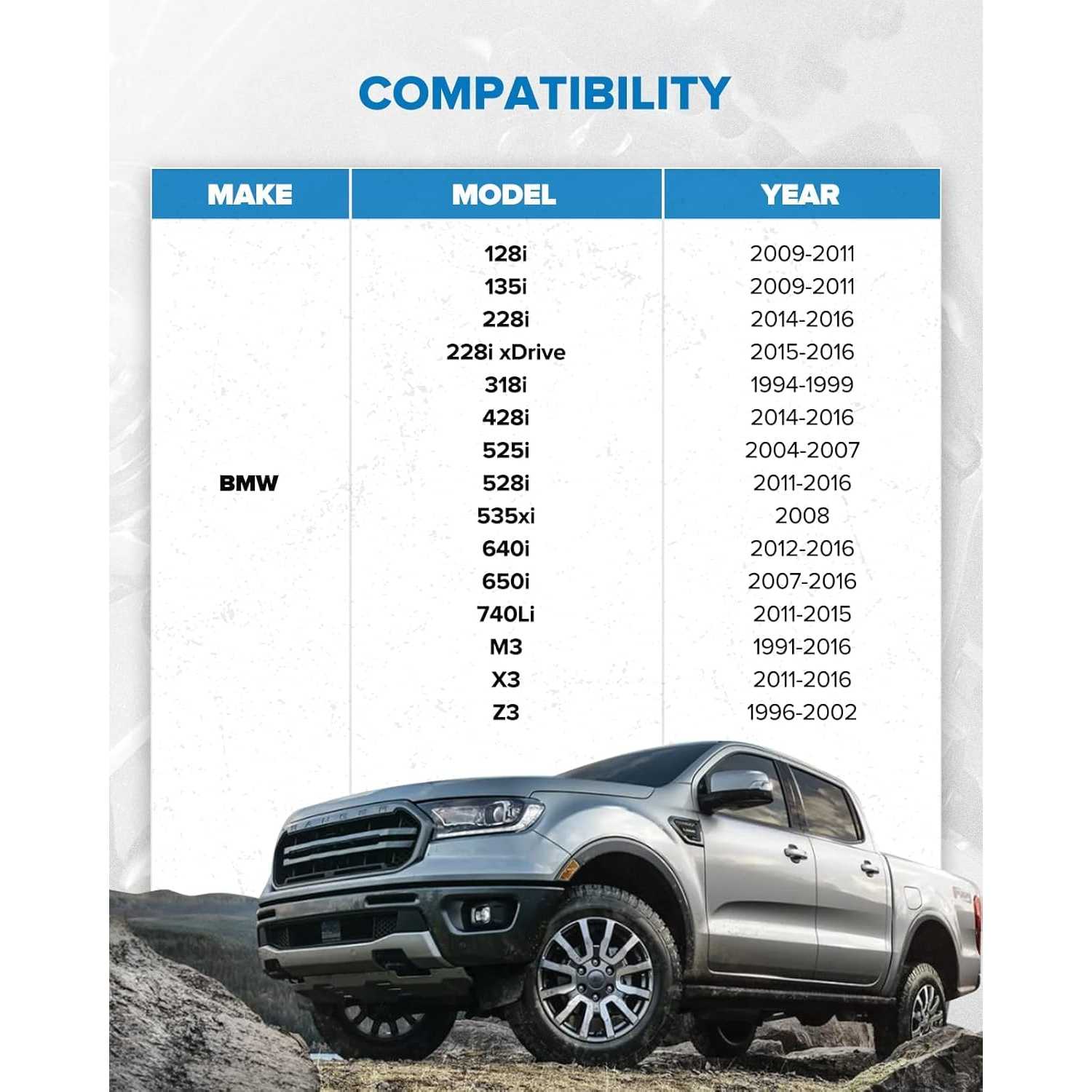

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20112008 - 20102011 - 20132008 - 201320132014201520162017 - 20182017 - 20201991 - 19951996 - 19981991 - 19951996 - 199719951996 - 199920132014201520162017 - 20182017 - 201820001998 - 20001998 - 19992001 - 2005200619911992 - 19931994 - 19952001 - 2005200619911991 - 19952001 - 2005200620002014 - 201520162017 - 20182017 - 20182012201320142015 - 20161996 - 20002007 - 20082009 - 2011201220132009 - 20111996 - 19992007 - 20082001 - 20062016201820172017 - 20182001 - 20062017 - 20182017 - 20182001 - 20062009 - 20112007 - 20132014 - 20152009 - 20112011 - 20132007 - 200820162017 - 20182017 - 20192017 - 201820142015 - 20162015 - 2016201720192017 - 20202017 - 202020142015 - 20162015 - 20162017 - 20192017 - 20202017 - 20201985 - 19861989 - 199019911992 - 19952004 - 20052006 - 200719932006 - 20071982 - 19882012 - 20132014 - 201620082009 - 20102011200920082004 - 20071994 - 19952006 - 20071983 - 19842014 - 201620082009 - 20102011201220132014201520161985 - 199019911992 - 19932010 - 20172009198820081994 - 19952004 - 200520112012 - 20132014201520162006 - 20102010 - 2015201120171983 - 19841985 - 19892012 - 20182013 - 20192004 - 2005201220132014 - 20182006 - 20102013 - 20191987 - 19921988 - 199220152011 - 20152011 - 20132014 - 20151993 - 19951997 - 20011993 - 19951996 - 20012002 - 20052002 - 20052011 - 2012200920102011 - 201220132014 - 20152006 - 20082011 - 2012200920102011 - 201220132014 - 20152006 - 20081988 - 19941995 - 20012003 - 20082010 - 20152004 - 20061994 - 19951996 - 19971994 - 19951993 - 19941995 - 19971991 - 19922013 - 20152012 - 20162013 - 20152015 - 20192007 - 20082011 - 20152011 - 201519871986 - 19872014201520162017 - 20192017 - 20211988 - 199119951996 - 19992001 - 20062008 - 2013199519881991 - 19932013 - 20162006 - 20101987 - 19882012 - 20182006 - 20102014 - 201520192013 - 201520122013 - 20152013 - 20152004 - 20052004 - 20062007 - 20082015201620172015201620172013 - 2015201620172011 - 20122009 - 20102011 - 2015201620172016 - 20182015 - 20182015 - 20162001 - 200620002001 - 20062002 - 20032004 - 20061999 - 20002001 - 20021999 - 20021998 - 20021996 - 19981999 - 20021997 - 20002001 - 20022003 - 20052003 - 20052006 - 20082006 - 20082006 - 20082006 - 20082006 - 20082012 - 201620092010 - 201120092010 - 20162011 - 20162011 - 20162011 - 20162013 - 20162013 - 201620192016 - 20192010 - 20192012 - 2019201920192014 - 2019
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWMiniMiniMiniMiniRolls-RoyceRolls-RoyceRolls-RoyceRolls-RoyceRolls-RoyceRolls-RoyceRolls-Royce
Model1 Series M128i128i135i135is228i228i228i230i230i xDrive318i318i318is318is318ti318ti320i320i320i320i320i320i xDrive323Ci323i323is325Ci325Ci325i325i325i325i325i325iX325is325xi325xi328Ci328d328d328d328d xDrive328i328i328i328i328i328i328i328i328i328i xDrive328is328xi330Ci330e330e330e330i330i330i GT xDrive330i xDrive330xi335d335i335i335i xDrive335is335xi340i340i340i GT xDrive340i xDrive428i428i428i Gran Coupe430i430i430i xDrive430i xDrive Gran Coupe435i435i435i Gran Coupe440i440i xDrive440i xDrive Gran Coupe524td525i525i525i525i525i525iT525xi528e528i528i528i528i528i528i xDrive528xi530i530i530xi533i535d535i535i535i535i535i535i535i535i535i535i535i535i GT535i xDrive535is535xi540i545i550i550i550i550i550i550i550i GT550i GT xDrive550i GT xDrive633CSi635CSi640i640i Gran Coupe645Ci650i650i650i650i650i Gran Coupe735i735iL740Ld xDrive740Li740i740i740i740i740iL740iL745Li745i750Li750Li750Li750Li750Li750Li750Li750i750i750i750i750i750i750i750iL750iL760Li760Li760i840Ci840Ci850CSi850Ci850Ci850iActiveHybrid 3ActiveHybrid 5ActiveHybrid 7Alpina B6 xDrive Gran CoupeAlpina B7Alpina B7Alpina B7LL6L7M235iM235iM235iM240iM240i xDriveM3M3M3M3M3M3M5M5M5M5M6M6M6M6 Gran CoupeM6 Gran CoupeX1X1X1X1X3X3X3X3X3X3X3X3X3X3X3X3X3X3X3X3X3X4X4X4X5X5X5X5X5Z3Z3Z3Z3Z3Z3Z3Z3Z4Z4Z4Z4Z4Z4Z4Z4Z4Z4Z4Z4Z4Cooper CountrymanCooper CountrymanCooper PacemanCooper PacemanCullinanDawnGhostGhostPhantomPhantomWraith
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseiPerformanceBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseActiveHybridBaseBaseBaseBaseBaseBaseActiveHybridBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseLightweightBaseBaseBaseBaseBaseBaseBaseBaseBasesDrive28ixDrive28ixDrive28ixDrive35i2.5i3.0i3.0sisDrive28isDrive28isDrive28ixDrive28dxDrive28dxDrive28dxDrive28ixDrive28ixDrive28ixDrive28ixDrive30ixDrive35ixDrive35ixDrive35iM40ixDrive28ixDrive35i3.0i4.4i4.4i4.6is4.8isCoupeCoupeM CoupeM RoadsterRoadsterRoadsterRoadsterRoadster2.5i3.0iCoupe 3.0siM CoupeM RoadsterRoadster 3.0iRoadster 3.0sisDrive28isDrive30isDrive30isDrive35isDrive35isDrive35isBaseSBaseSBaseBaseBaseEWBBaseEWBBase
Engine3.0L L63.0L L63.0L L63.0L L63.0L L62.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.9L L41.8L L41.9L L41.8L L41.9L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.5L L62.5L L62.5L L62.5L L62.5L L62.5L L62.5L L62.5L L62.5L L63.0L L62.5L L62.5L L62.5L L63.0L L62.8L L62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.8L L63.0L L63.0L L63.0L L63.0L L63.0L L62.8L L63.0L L63.0L L62.0L L42.0L L42.0L L42.0L L43.0L L62.0L L42.0L L43.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.0L L63.0L L63.0L L63.0L L63.0L L63.0L L62.4L L62.5L L62.5L L62.5L L62.5L L63.0L L62.5L L63.0L L62.7L L62.0L L42.0L L43.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L V83.0L L63.2L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.0L L63.5L L63.5L L63.5L L63.0L L63.0L L63.5L L63.0L L64.0L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.8L V84.4L V84.4L V84.4L V83.2L L63.5L L63.0L L63.0L L64.4L V84.4L V84.4L V84.4L V84.8L V84.4L V83.5L L63.5L L63.0L L63.0L L63.0L L63.0L L64.0L V84.4L V84.0L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.8L V84.4L V84.4L V84.4L V84.4L V84.4L V84.4L V84.8L V85.0L V125.4L V126.0L V126.0L V126.0L V124.0L V84.4L V85.6L V125.0L V125.4L V125.0L V123.0L L63.0L L63.0L L64.4L V84.4L V84.4L V84.4L V83.5L L63.5L L63.0L L63.0L L63.0L L63.0L L63.0L L62.3L L43.0L L63.2L L63.2L L64.0L V83.0L L63.5L L63.6L L64.4L V85.0L V103.5L L64.4L V85.0L V104.4L V84.4L V82.0L L42.0L L42.0L L43.0L L62.5L L63.0L L63.0L L62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.0L L63.0L L63.0L L63.0L L63.0L L63.0L L62.0L L43.0L L63.0L L64.4L V84.4L V84.6L V84.8L V82.8L L63.0L L63.2L L63.2L L61.9L L42.5L L62.8L L63.0L L62.5L L63.0L L63.0L L63.2L L63.2L L63.0L L63.0L L62.0L L43.0L L63.0L L63.0L L63.0L L63.0L L61.6L L41.6L L41.6L L41.6L L46.7L V126.6L V126.6L V126.6L V126.7L V126.7L V126.6L V12
Note-
Front
Front;Rear
Front
-
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front;Rear
12 (mm) Bolt Mounting Dimension;228i Base Model;228i xDrive;Front;Rear
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;228i Base Model;Front
--------
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;320i Base Model;320i xDrive;Front;Rear
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;320i Base Model;Front;Rear
12 (mm) Bolt Mounting Dimension;320i Base Model;Front;Rear
12 (mm) Bolt Mounting Dimension;320i Base Model;Front
14mm Bolt Mounting Dimension;320i Base Model;Front
-
Front
Front
-
Front;Rear
Front
-
325iC Models;Front;Rear
Front;Rear
-
Front
-----
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;328d Base Model;Front;Rear
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;328d Base Model;Front
14mm Bolt Mounting Dimension;328d Base Model;Front
-
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front
14mm Bolt Mounting Dimension;328i Base Model;Front
-
12 (mm) Bolt Mounting Dimension;328i Base Model;Front
Front;Rear
Convertible;Front;Rear
Front
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front
14mm Bolt Mounting Dimension;328i Base Model;Front
---
Front
14mm Bolt Mounting Dimension;Front
14mm Bolt Mounting Dimension;Front
14mm Bolt Mounting Dimension;Front
14mm Bolt Mounting Dimension;330i Base Model;Front
Front
---
Front
Front
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;335i Base Model;Front;Rear
---
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;340i Base Model;Front
14mm Bolt Mounting Dimension;340i Base Model;Front
--
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;428i Base Model;Front
12 (mm) Bolt Mounting Dimension
12 (mm) Bolt Mounting Dimension
----
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;435i Base Model;Front
12 (mm) Bolt Mounting Dimension
-----
Front
From 04011991;Front;Thru 03311991
------
528i Base Model;528i xDrive;Front;Front 528i xDrive;Rear
528i Base Model;528i xDrive;Front;Front 528i xDrive
Front
Front;RWD
Front;Rear
---
Front
----
Front;RWD
535i Base Model;Front;Rear
535i Base Model;535i xDrive;Front;Rear
535i Base Model;535i xDrive;Front;Front 535i xDrive;Rear
535i Base Model or 535i GT Base Model;535i GT xDrive or 535i xDrive;Front;Front 535i GT xDrive 535i xDrive
535i Base Model;535i xDrive;Front;Front 535i xDrive
-
Front
From 04011991;Front;Thru 03311991
------
Front
550i Base Model;Front;Rear
550i Base Model;550i xDrive;Front;Rear
550i Base Model or 550i GT Base Model;550i GT xDrive or 550i xDrive;Front;Front 550i GT xDrive 550i xDrive
550i Base Model;550i xDrive;Front;Front 550i xDrive
550i Base Model;550i GT xDrive or 550i xDrive;Front;Front 550i GT xDrive 550i xDrive
Front
-------
Front
650i Base Model;650i xDrive;Front;Front 650i xDrive;Rear
650i Base Model or 650i Gran Coupe;650i xDrive Base Model or 650i xDrive Gran Coupe;Front;Front 650i xDrive Base Model 650i xDrive Gran Coupe;Rear
650i Base Model or 650i Gran Coupe;650i xDrive Base Model or 650i xDrive Gran Coupe;Front;Front 650i xDrive Base Model 650i xDrive Gran Coupe
Front
-----
Front;Rear
-
Front
-
Front
Front
Front
Front
750Li xDrive;Front;Rear
Front;Rear
750Li Base Model;750Li xDrive;Front;Rear
750Li xDrive;Front;Rear
750Li Base Model;750Li xDrive;Front;Front 750Li xDrive;Rear
750Li Base Model;750Li xDrive;Front;Front 750Li xDrive
Front
750i xDrive;Front;Rear
Front;Rear
750i Base Model;750i xDrive;Front;Rear
750i xDrive;Front;Rear
750i Base Model;750i xDrive;Front;Front 750i xDrive;Rear
750i Base Model;750i xDrive;Front;Front 750i xDrive
Front
--------------------
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front;Rear
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front;M235i Base Model;Rear
12 (mm) Bolt Mounting Dimension;14mm Bolt Mounting Dimension;Front;M235i Base Model
--
Front
------
Front
--
Front
----
Front
AWD;Front
Front
Front
Front;Rear
Front;Rear
Front;Rear
Front
Front;xDrive28i
Front
Front
Front;xDrive28i
Front
Front
Front;xDrive28i
Front
Front
Front;Rear
Front
Front;xDrive28i
Front
Front
Front
Front
Front;Rear
From 400;Front;Rear
Front;Rear
Front;Rear
Front;Rear
---------------
Front
-
Front
-
Front
Front
-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.9/5

Based on 20 reviews

590%
410%
30%
20%
10%

Eddie Love

01/26/2025

Verified buyer

Exelent item came in fast and accurste item

Sofia Walker

03/29/2025

I was unsure if spacers were right for my vehicle but these have worked out nicely. They spaced the wheels out just the right amount and have held up well over many miles.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Remove rust, dirt, and raised debris so the spacer can sit flat against the hub. The mating surfaces should be clean and undamaged before the fasteners are tightened.

Thickness depends on the desired clearance and the available space around the tire, fender, and suspension. Measure carefully and confirm that the selected size is permitted for your vehicle setup.
