2010-2013 Kia Forte 2.0L/2.4L | 6-Groove Pulley 110A Alternator | OE#3730025310/600029 - PHILTOP

2010-2013 Kia Forte 2.0L/2.4L | 6-Groove Pulley 110A Alternator | OE#3730025310/600029 - PHILTOP

Pulley Grooves: SC6

Amperage: 110 A

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5301ANR070AUS

Specifications

Brand
PHILTOP
Pulley Grooves
SC6
Amperage
110 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11189N 1x Manual
Warranty Period
2-Year
OE Number
3730025310,3730025301,3002G100,3730025400,30025201,30025301,30025310,30025400
Part Number
600029,11189N,15598,426128,A0002655544,12748,AL4065X,2116014

Highlights

  • [Vehicle Fitment]: Alternator compatible with Sonata 2006-2010 2.4L, Forte 2010-2013 2.0L 2.4L, Optima 2006-2010 2.4L, Rondo 2007-2010 2.4L.
  • [Replace Reference Number]: 3730025201, 11189, 373002G100, 600029, TG11C076, 3730025201RU, 2655544, 11189N, 3730025310, 15598, 12748, 3730025301, 23700AA78A, A0002655544, AL4065X, 426128, 2116014, 3730025400, 3002G100, 90225551, 30025301, 30025201, 30025310, 30025400.

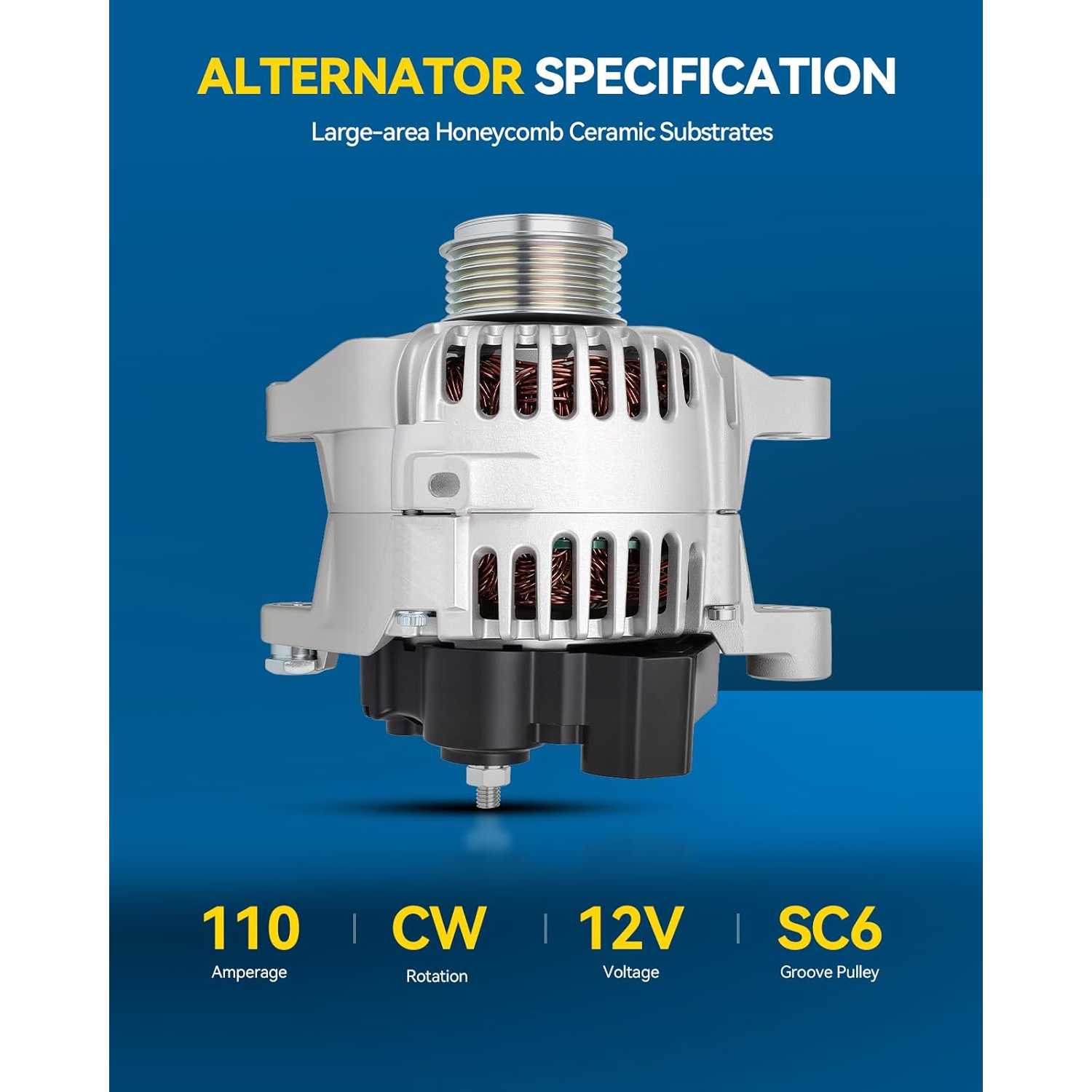

  • [Specifications]: ①Amperage Rating: 110Amp;②Voltage: 12V;③Rotation Direction: CW(Clockwise);④Regulator/Fan Type: IR/IF;⑤Pulley Groove: SC6;⑥Number of Grooves: 6;⑦Plug Clock: 5 o'clock;⑧Plug Code: 427;
  • [OEM Quality]: Automotive replacement alternator undergo rigorous quality testing, including tests on electrical performance, speed load, conversion efficiency, temperature, vibration, insulation performance, noise, and appearance dimensions, meeting or exceeding OEM standards.

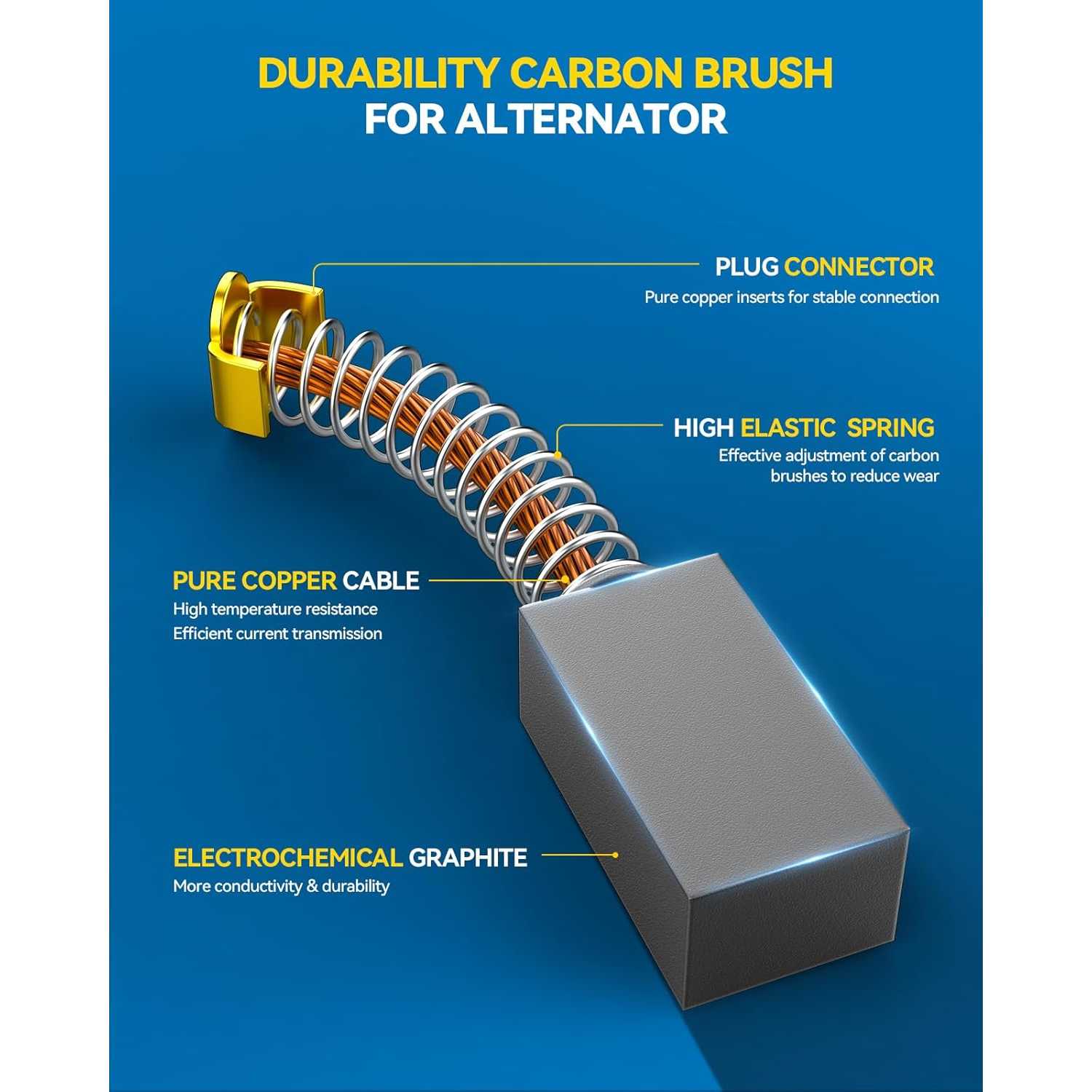

  • [Performance Alternators]: The high amp alternators's brushes and commutator are made from wear resistant, highly conductive materials. They maintain stable contact and conductivity even during high speed rotation and prolonged operation, ensuring efficient power transmission and reliable performance.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062006 - 20102008 - 20102008 - 20102010 - 20132010 - 20132010 - 20132006 - 20102006 - 20102009 - 20102007 - 20102007 - 2010
MakeHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKia
ModelSonataSonataSonataSonataForteForteForteOptimaOptimaOptimaRondoRondo
TrimGLGLSLimitedSEEXLXSXEXLXSXEXLX
Engine2.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

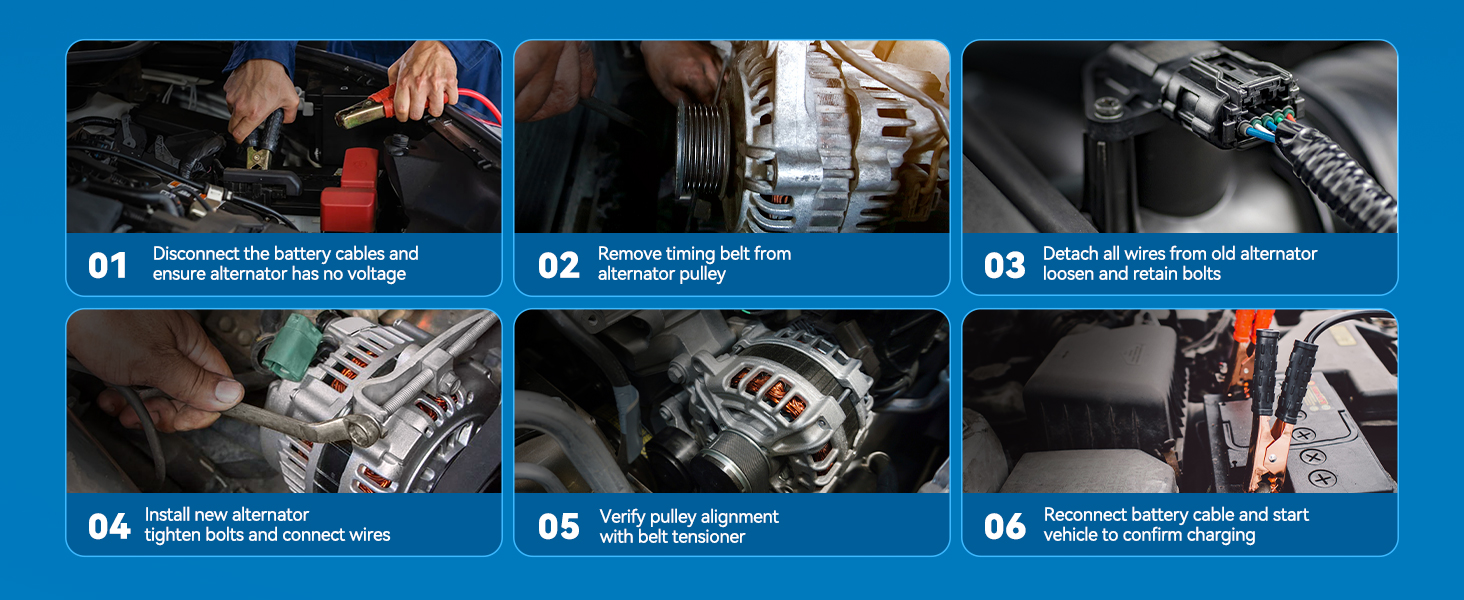

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

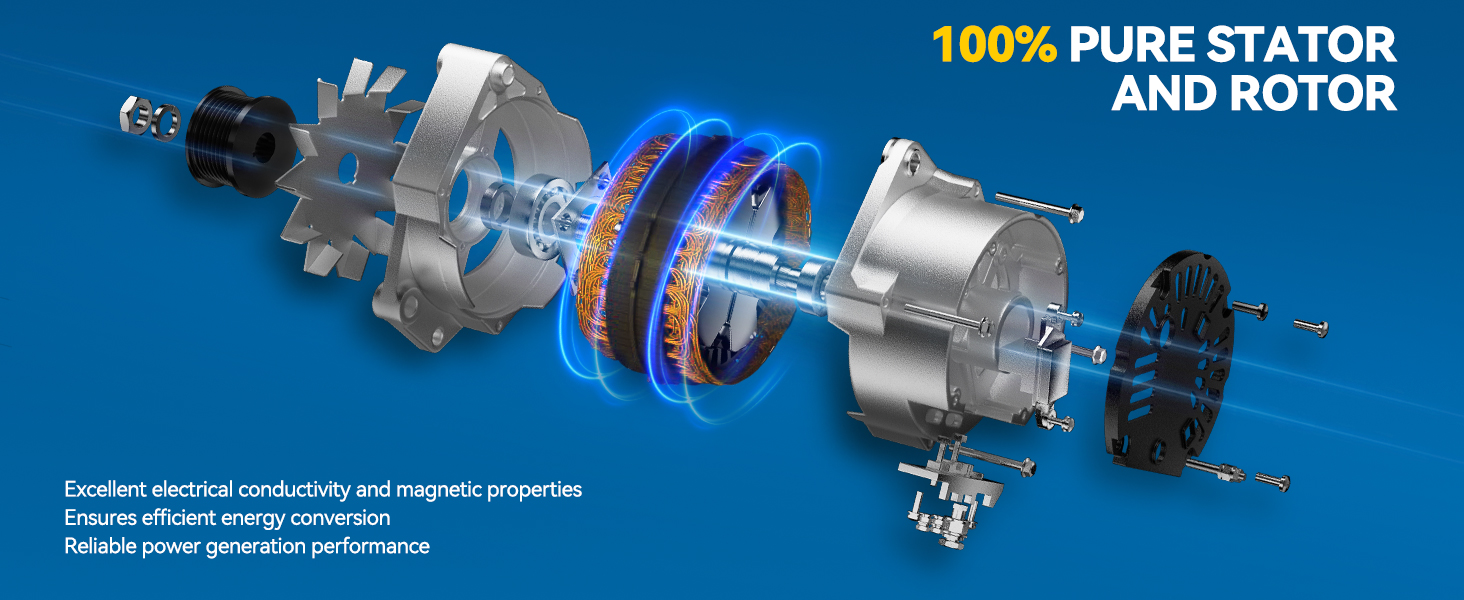

Alternator Replacement forAlternator Replacement for

Reviews

4.6/5

Based on 8 reviews

575%
413%
313%
20%
10%

Francisco Javier Rosario Bernabel

05/06/2026

Verified buyer

Excelente gracias mil bendiciones, no lo esperaba hoy, llego a tiempo perfecto 👌

YYZ3

06/08/2025

Verified buyer

This alternator is built to last. The die-cast aluminum alloy covers look and feel really sturdy. I know it will serve me well for a long time.

FAQS

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.
