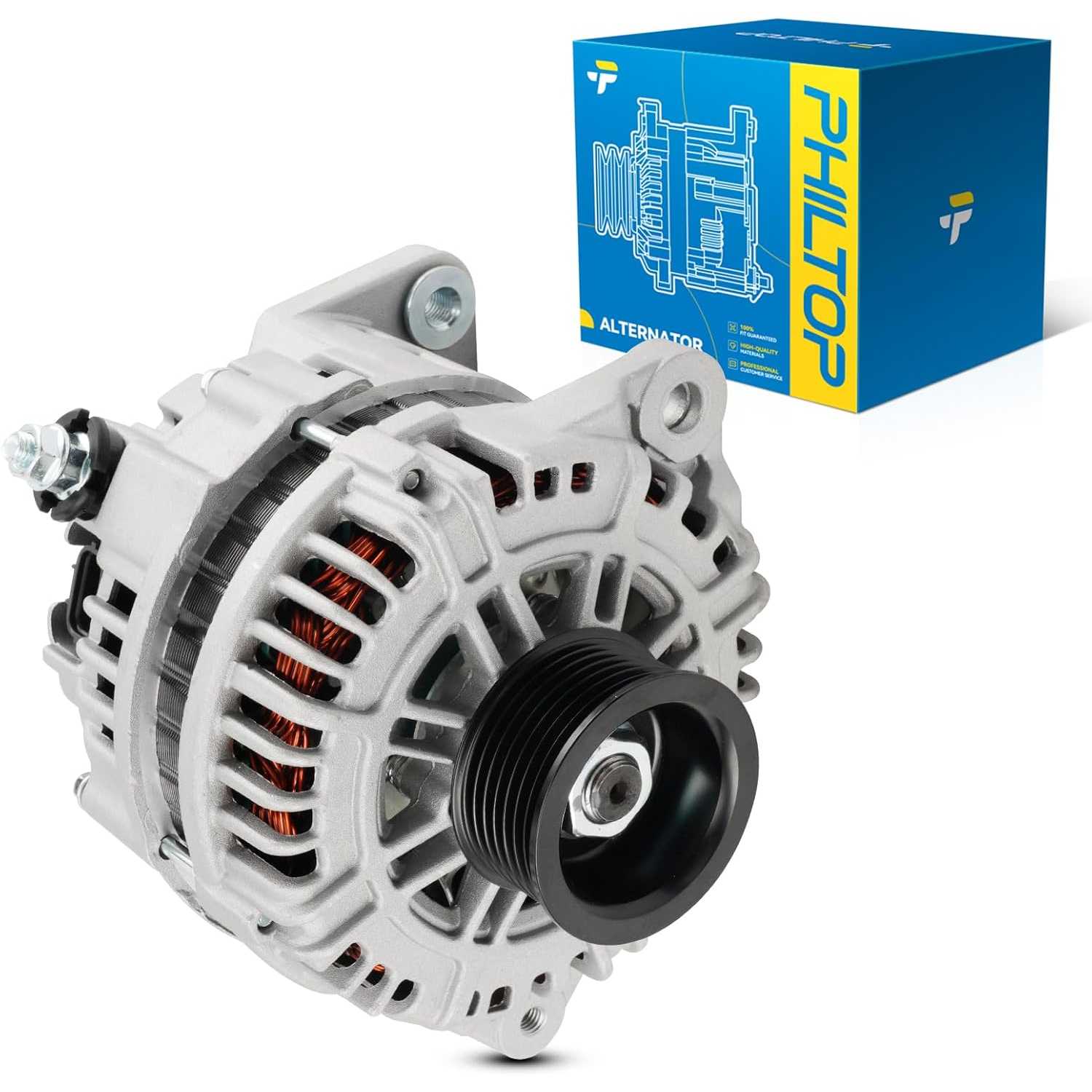

2005-2007 Nissan Xterra 4.0L V6 | 7-Groove Pulley 110A Alternator | 11121N - PHILTOP

2005-2007 Nissan Xterra 4.0L V6 | 7-Groove Pulley 110A Alternator | 11121N - PHILTOP

Pulley Grooves: S7

Amperage: 110 A

Built to Last

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4662ANR089GUS

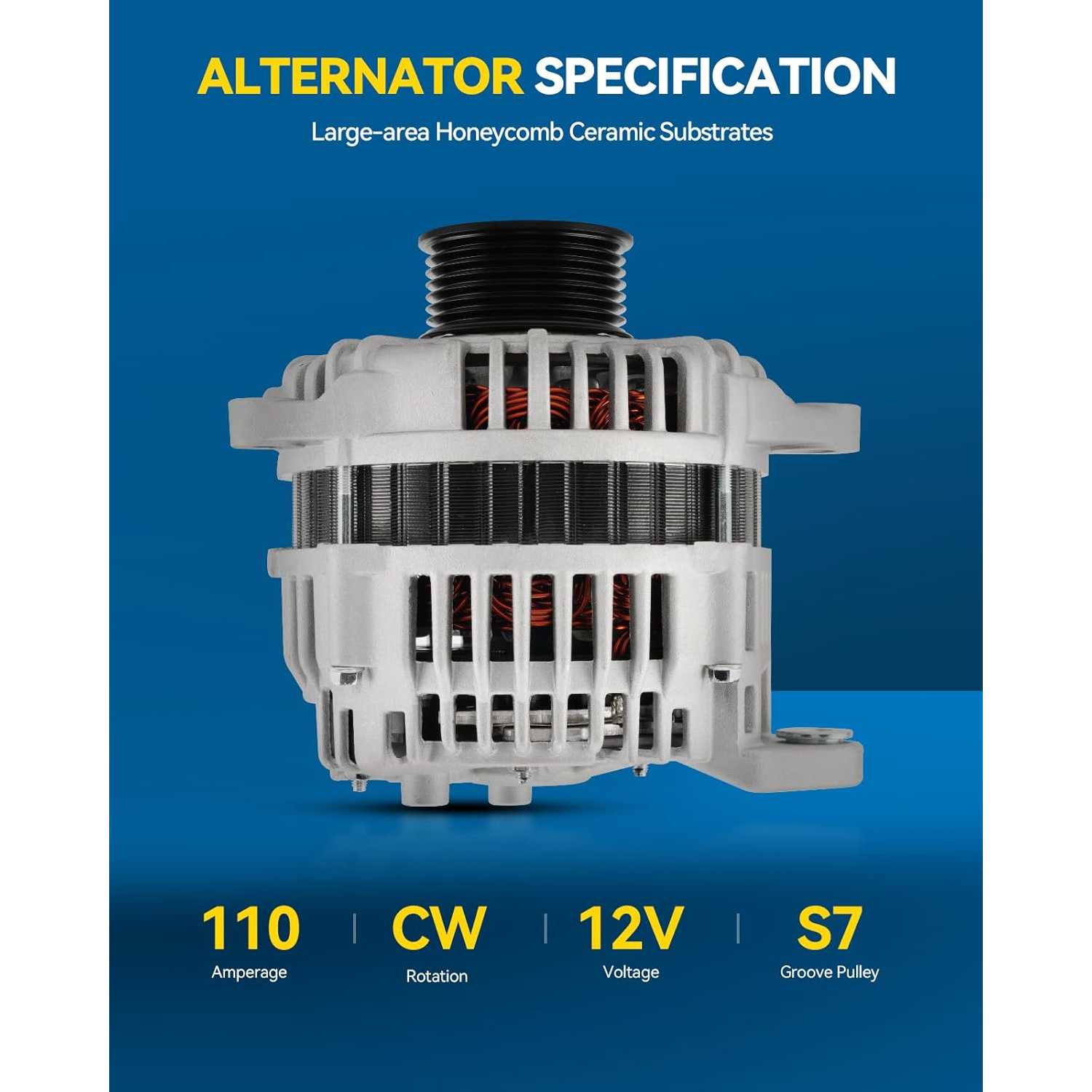

Specifications

Brand
PHILTOP
Pulley Grooves
S7
Amperage
110 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11121N 1x Manual
Warranty Period
2-Year
Part Number
11121N

Highlights

  • Alternators compatible with: Nissan; for2005-2007 Frontier 4.0L, 2005-2007 Xterra, 2005-2007 Pathfinder 4.0L
  • Replacement for Alternator OEM Number: 11121N,11121N, 23100EA20BR, LR1110725BR, 23100EA201, 23100EA20B, 11121, 90251184, LR1110725, LR1110725B
  • Automotive alternator specifications: Amperage Rating -110 Amp,Voltage -12 Volt,Groove Pulley-CW,Rotation-S7Design-IR/IF,Plug Clock-
  • High Output & Reliability:​ Precision-Engineered.Our alternator integrates computer-controlled manufacturing and high-density copper windings to deliver exceptionally stable voltage and robust current output, effectively preventing electrical failures while optimizing the charging efficiency of your vehicle's system
  • Ensure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first timeEnsure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first time

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20072005 - 20072005 - 20072006 - 200720052005 - 20072005 - 20072005 - 20072006 - 2007
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelFrontierFrontierFrontierPathfinderPathfinderXterraXterraXterraXterra
TrimLENismo Off-RoadSESXEOff-RoadSSEX
Engine4.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V6
Note-----
To 01/2007
To 01/2007
To 01/2007
To 01/2007

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Reviews

5.0/5

Based on 5 reviews

5100%
40%
30%
20%
10%

Customer

06/05/2025

Verified buyer

Works very well

Ashley_RoadTrip_544

02/11/2026

No more whining noises coming from under the hood. This thing runs much quieter than the original one that failed.

FAQS

PHILTOP New Alternator feature factory-matched cores, stator and rotor are impregnated with insulating varnish. Rigorously tested to OE standards. This ensures secure bonding, stable high-speed operation, durability, and safety.

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
