2007-2011 Mercedes-Benz S550 5.5L V8 | 6-Groove Pulley 180A Alternator | AL0844X - PHILTOP

2007-2011 Mercedes-Benz S550 5.5L V8 | 6-Groove Pulley 180A Alternator | AL0844X - PHILTOP

Pulley Grooves: S6

Amperage: 180 A

Built to Last

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3199ANR196HUS

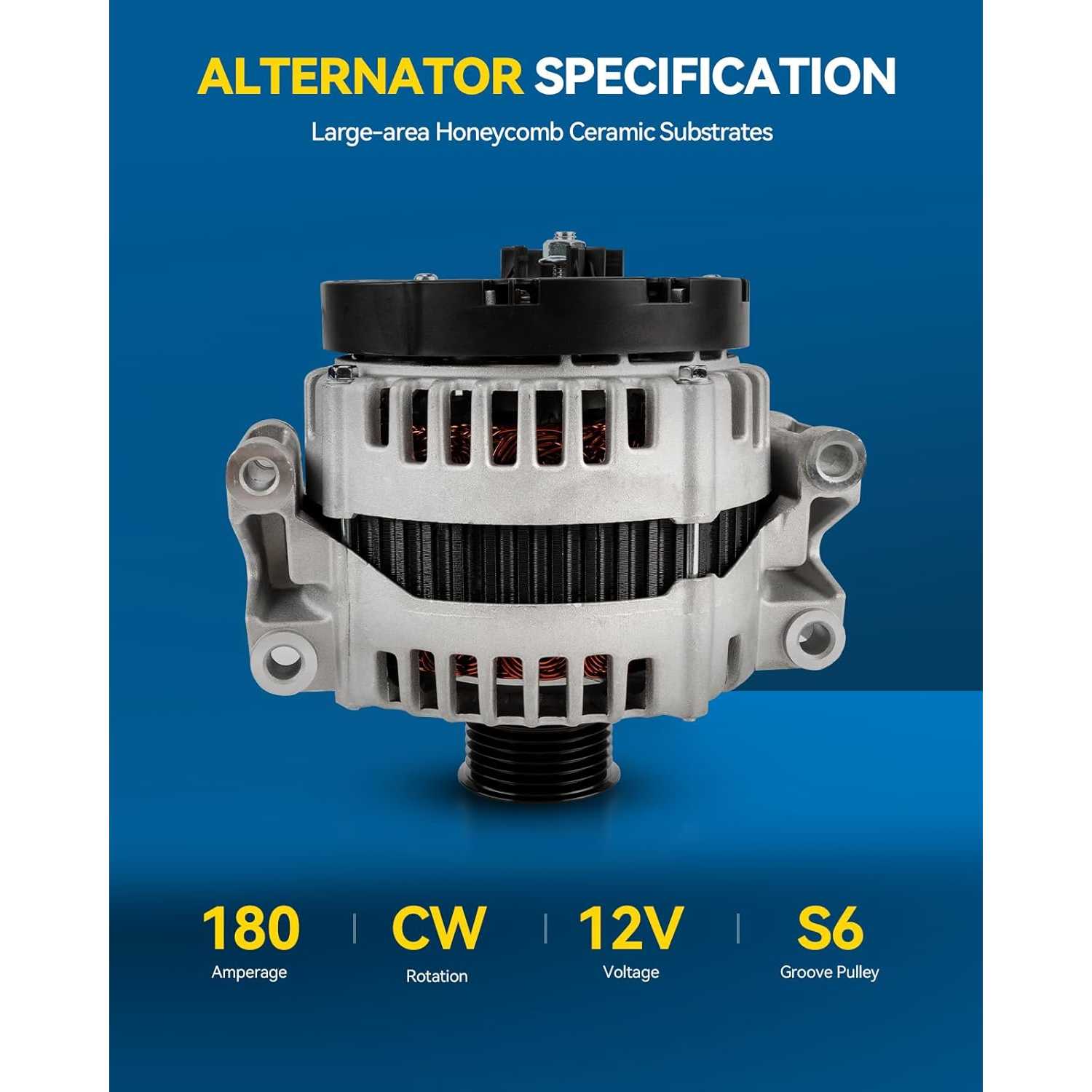

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
180 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included

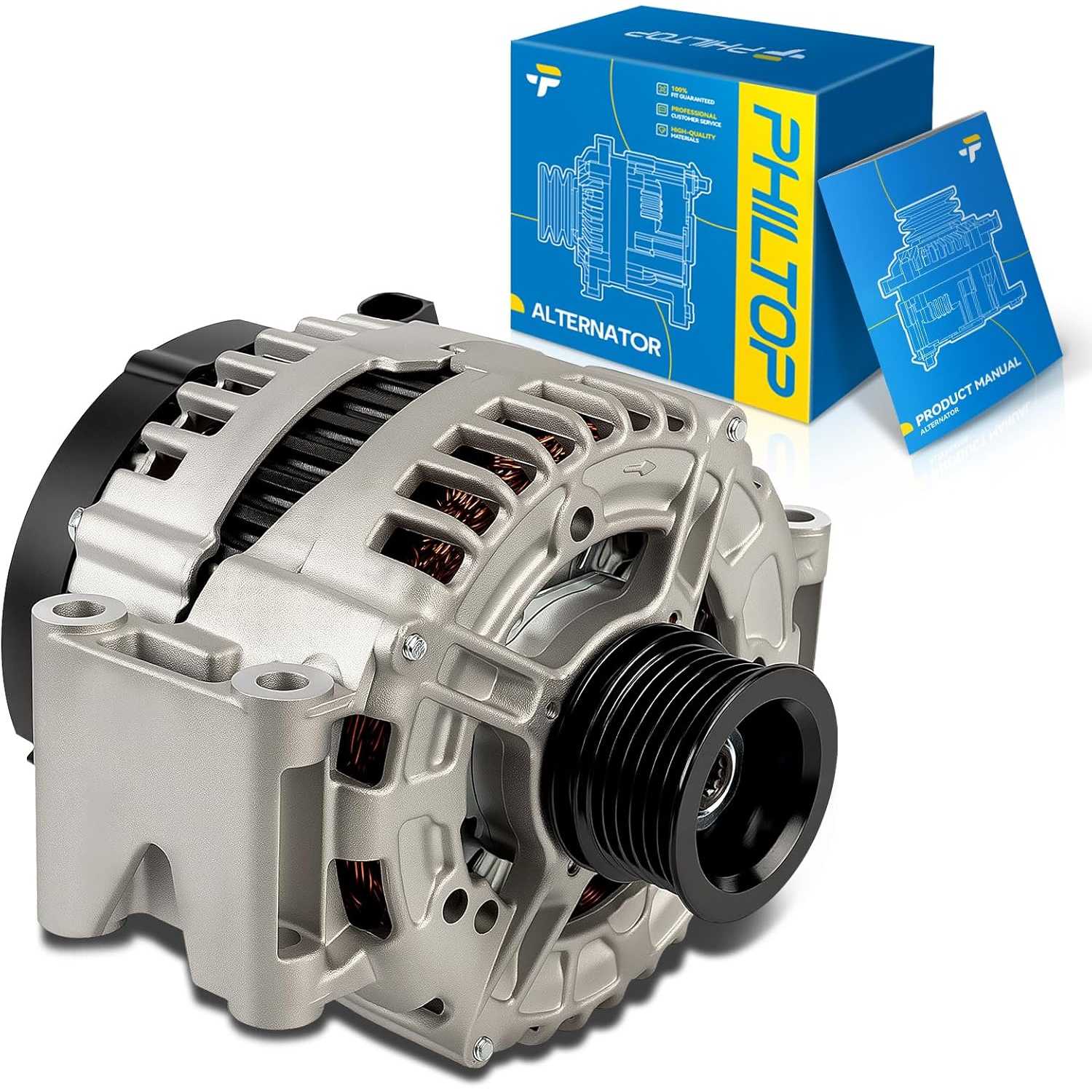

1x Alternator 11220N 1x Manual
Warranty Period
2-Year
Part Number
AL0844X

Highlights

  • Alternators compatible with: Mercedes-Benz; for2006-2010 E350, 2007-2011 S550, 2011 E350 3.5L, 2008-2009 ML350, 2007-2011 E550, 2007-2009 2011-2012 SL550, 2010 ML350 3.5L, 2008-2009 GL450, 2007-2011 CLS550, 2007-2009 R350, 2008-2010 GL550, 2007-2009 CLK550, 2009-2015 G550, 2008-2010 ML550, 2007-2010 CL550, 2010 R350 3.5L, 2016-2018 G65 AMG, 2010 SLK350, 2010 ML450, 2014-2018 SL65 AMG
  • Replacement for Alternator OEM Number: 11220N,0131545602, 0131543502, AL0844X
  • Automotive alternator specifications: Amperage Rating -180 Amp,Voltage -12 Volt,Groove Pulley-CW,Rotation-S6Design-IR/IF,Plug Clock-
  • High Output & Reliability:​ Precision-Engineered.Our alternator integrates computer-controlled manufacturing and high-density copper windings to deliver exceptionally stable voltage and robust current output, effectively preventing electrical failures while optimizing the charging efficiency of your vehicle's system
  • Ensure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first timeEnsure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first time

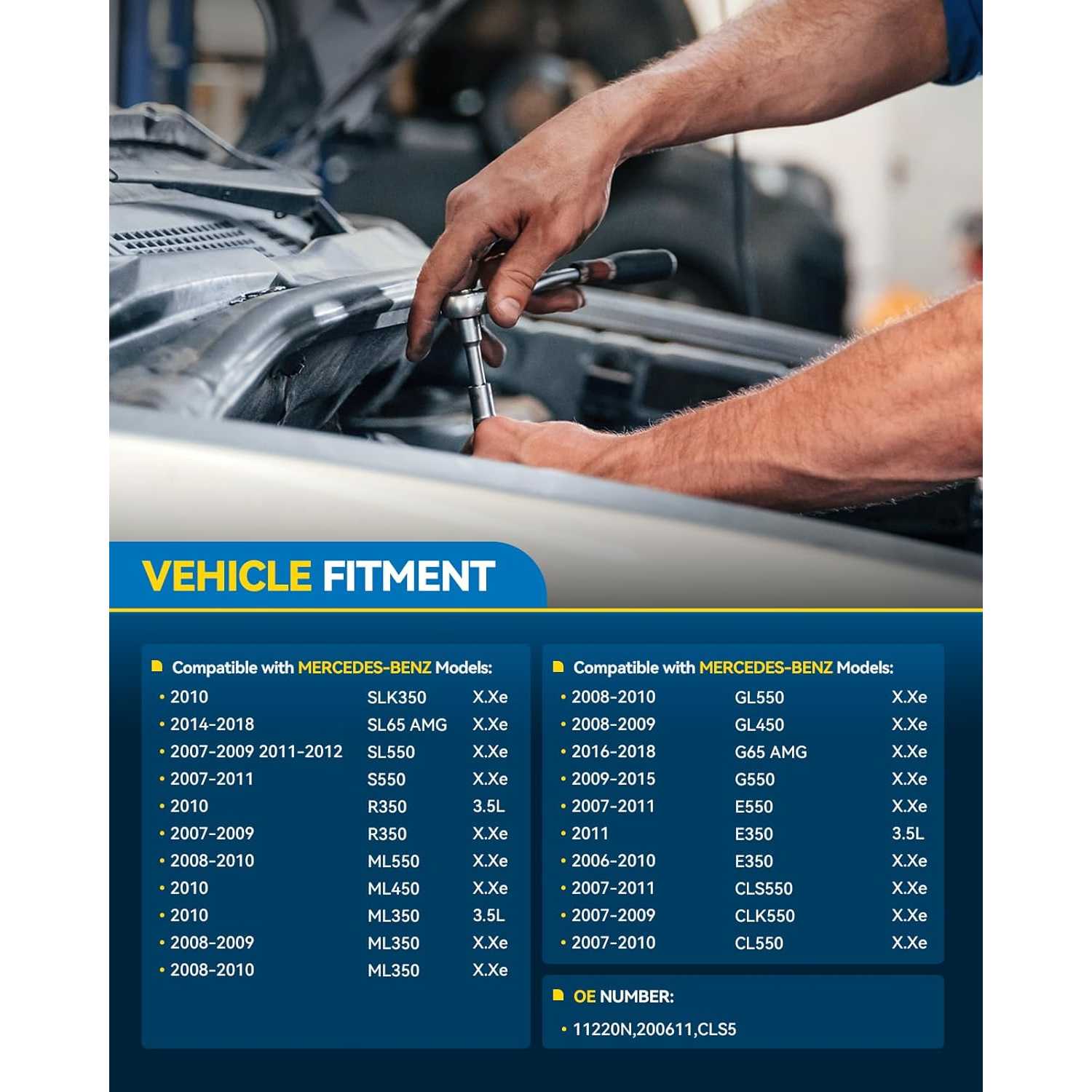

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20092007 - 20112006 - 20112006 - 20112007 - 20112007 - 20112009 - 20152008 - 20092008 - 20102008 - 20102009 - 201020102008 - 20102007 - 20102008 - 20092007 - 20092011 - 20122010
MakeMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-BenzMercedes-Benz
ModelCLK550CLS550E350E350E550E550G550GL450GL550ML350ML350ML450ML550R350R350SL550SL550SLK350
TrimBaseBase4MaticBase4MaticBaseBaseBaseBase4MaticBaseHybrid 4MaticBase4MaticBaseBaseBaseBase
Engine5.5L V85.5L V83.5L V63.5L V65.5L V85.5L V85.5L V84.7L V85.5L V83.5L V63.5L V63.5L V65.5L V83.5L V63.5L V65.5L V85.5L V83.5L V6
Note
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
180 Amp; Bosch Unit; Not For 220 Amp High-Output
Bosch; 180 Amp; S6
180 Amp; Bosch Unit; Not For 220 Amp High-Output

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.
