2009-2019/2021 Ford E-350 Super Duty 5.4L V8 | 6-Groove Pulley 120A Alternator | OE#9C2Z10346B/2104308 - PHILTOP

2009-2019/2021 Ford E-350 Super Duty 5.4L V8 | 6-Groove Pulley 120A Alternator | OE#9C2Z10346B/2104308 - PHILTOP

Pulley Grooves: S6

Amperage: 120 A

Built to Last

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7061ANR141SUS

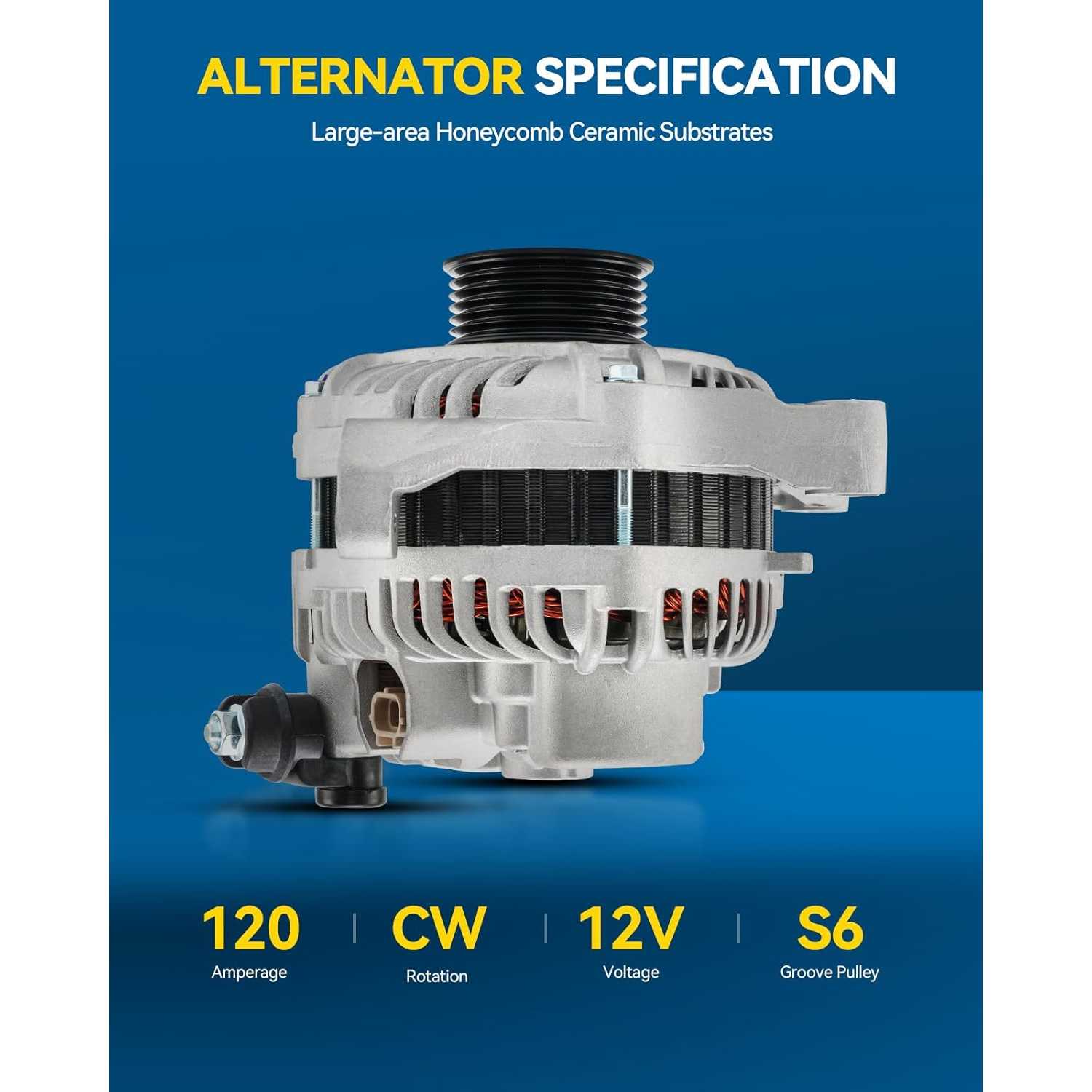

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
120 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included

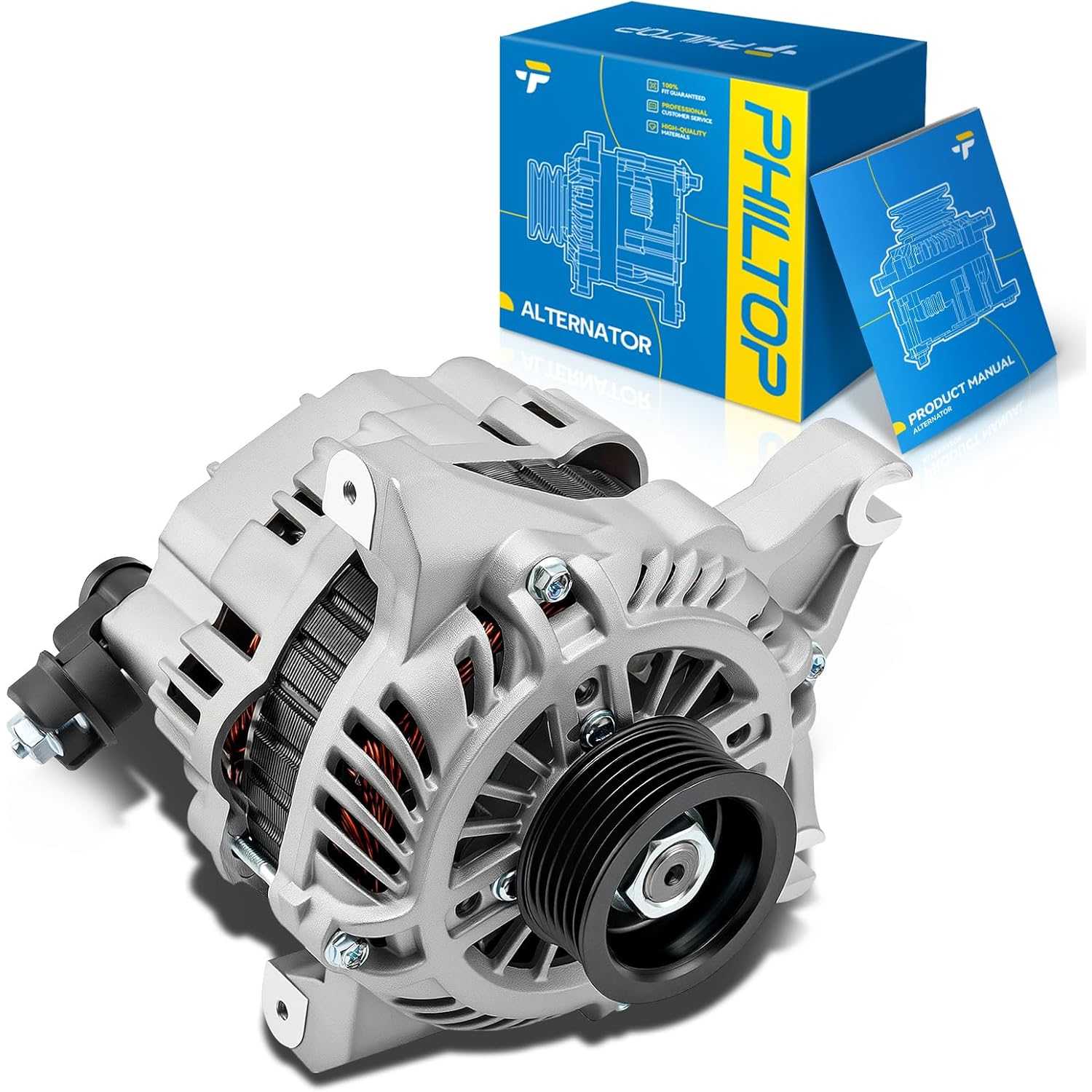

1x Alternator 11274N 1x Manual
Warranty Period
2-Year
OE Number
9C2Z10346B,9C2T10300DA,A3TG5591
Part Number
2104308

Highlights

  • Alternators compatible with: Ford; for2011-2015 2021 350 Super Duty, 2009-2014 250-e, 2009-2014 150-e, 2009-2010 2016-2019 350 Super Duty 6.8L, 2009-2010 350 Super Duty 5.4L, 2009-2010 2016-2019 E-450 Super Duty 6.8L, 2011-2015 2021 E-450 Super Duty, 2009-2010 E-450 Super Duty 5.4L
  • Replacement for Alternator OEM Number: 11274N,9C2Z10346B, 9C2T10300DA, 11274, A3TG5591, 12934, 2104308, 112748, 90273380, A3274, A11274
  • Automotive alternator specifications: Amperage Rating -120 Amp,Voltage -12 Volt,Groove Pulley-CW,Rotation-S6Design-IR/IF,Plug Clock-

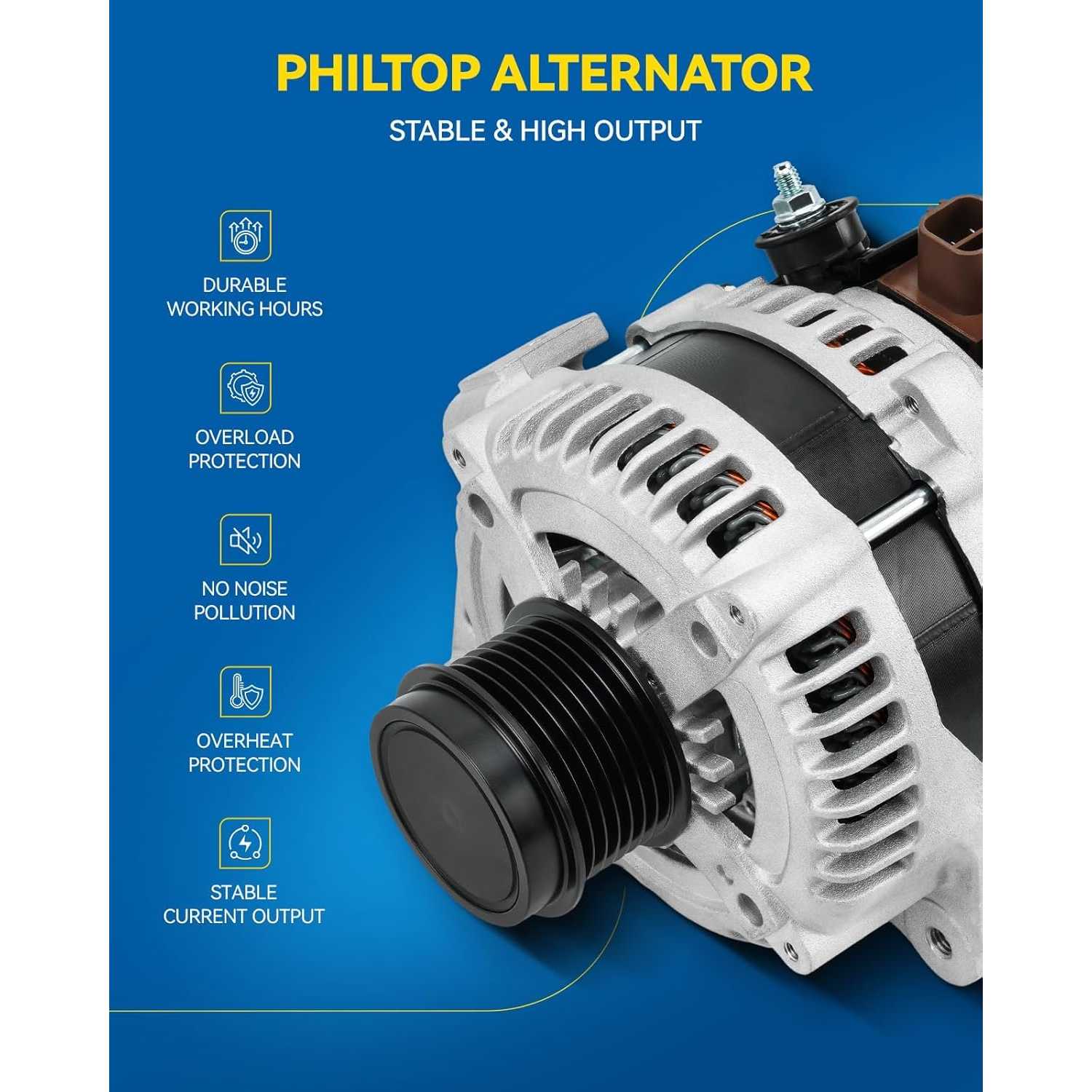

  • High Output & Reliability:​ Precision-Engineered.Our alternator integrates computer-controlled manufacturing and high-density copper windings to deliver exceptionally stable voltage and robust current output, effectively preventing electrical failures while optimizing the charging efficiency of your vehicle's system
  • Ensure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first timeEnsure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first time

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20142009 - 20142009 - 20142009 - 20142009 - 20142009 - 20142009 - 20142009 - 20142009 - 20152009 - 201920212009 - 20142009 - 20142009 - 20142010 - 20142009 - 201120152009 - 20112015
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelE-150E-150E-150E-150E-150E-150E-250E-250E-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-450 Super DutyE-450 Super DutyE-450 Super DutyE-450 Super Duty
TrimBaseBaseXLXLXLTXLTBaseBaseBaseBaseBaseXLXLXLTXLTBaseBaseBaseBase
Engine4.6L V85.4L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V86.8L V107.3L V85.4L V86.8L V105.4L V86.8L V105.4L V85.4L V86.8L V106.8L V10
Note-------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Reviews

4.9/5

Based on 8 reviews

588%
413%
30%
20%
10%

bill wasik

07/04/2026

Verified buyer

Changed it out in 20 minutes working well

boatjabba

09/26/2025

Verified buyer

The item was brand new, since i Had removed the old one previously, it only took me about an hour or less to install this. Perfect fit in my E450 Ford Chassis Winnebago 10 cylinder. Works like a charm, i am very pleased.

FAQS

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.

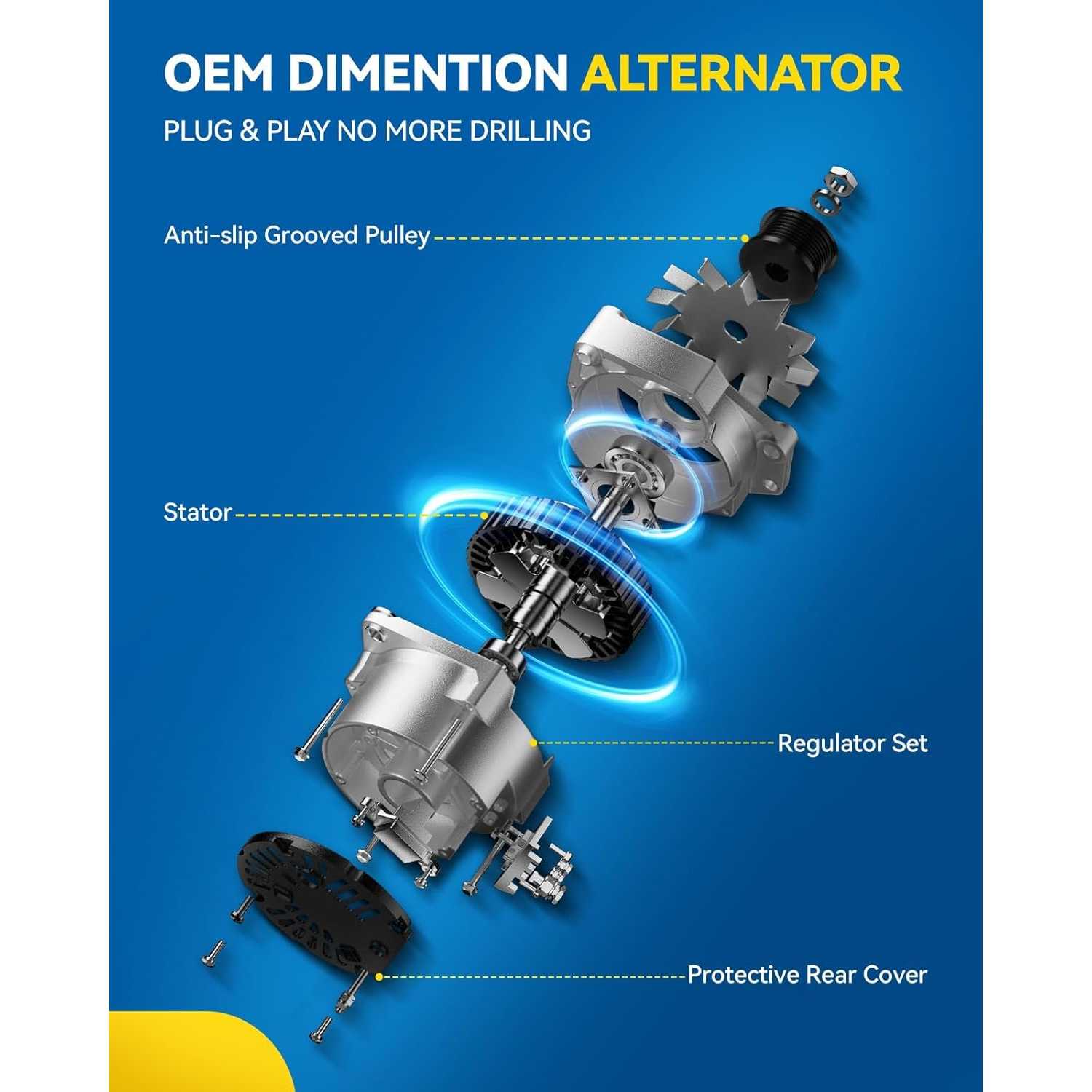

PHILTOP New Alternator feature factory-matched cores, stator and rotor are impregnated with insulating varnish. Rigorously tested to OE standards. This ensures secure bonding, stable high-speed operation, durability, and safety.

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.
