2009-2010 Ford F-150 4.6L V8 | 6-Groove Pulley 150A Alternator | 11292N - PHILTOP

2009-2010 Ford F-150 4.6L V8 | 6-Groove Pulley 150A Alternator | 11292N - PHILTOP

Pulley Grooves: S6

Amperage: 150 A

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2000ANR071CUS

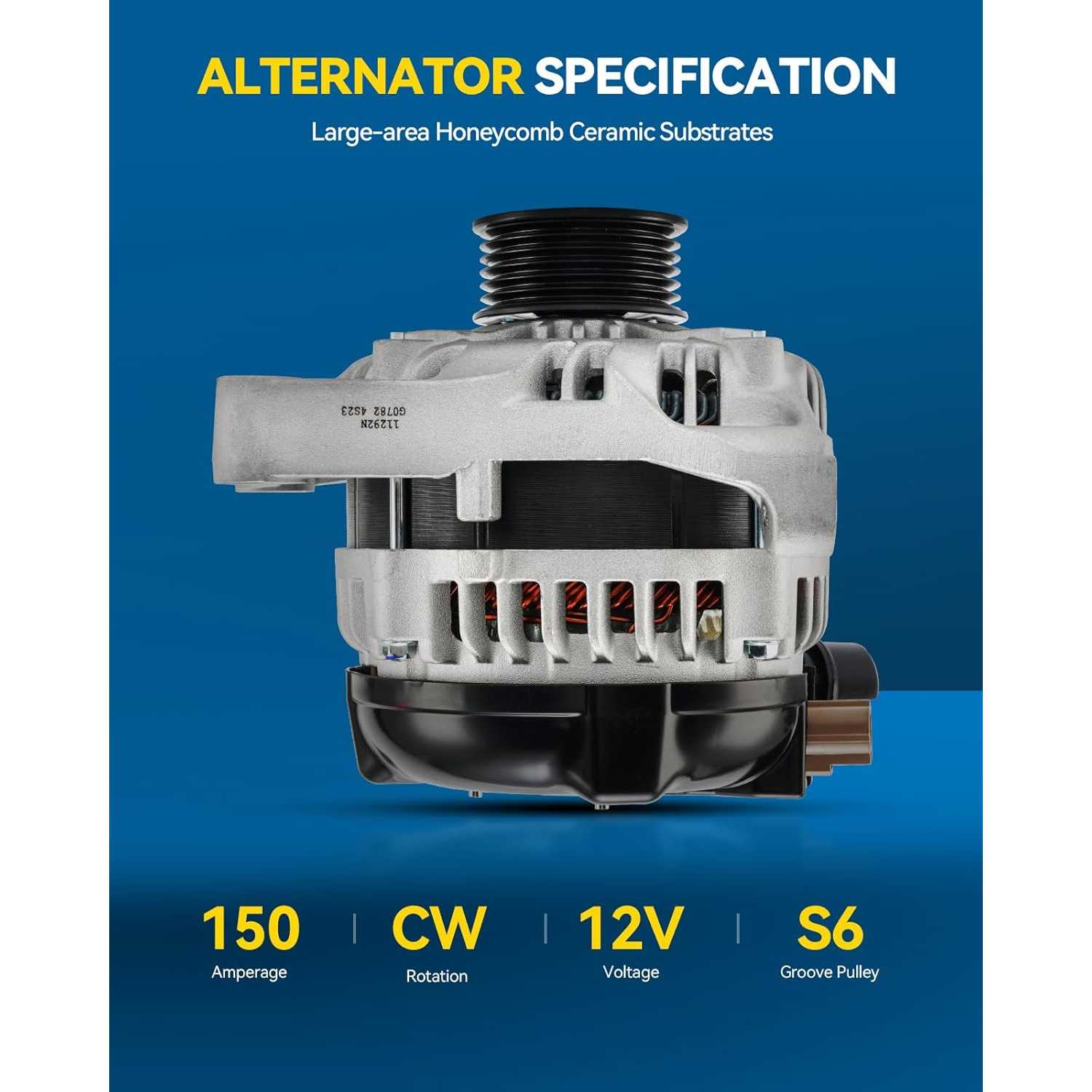

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
150 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material

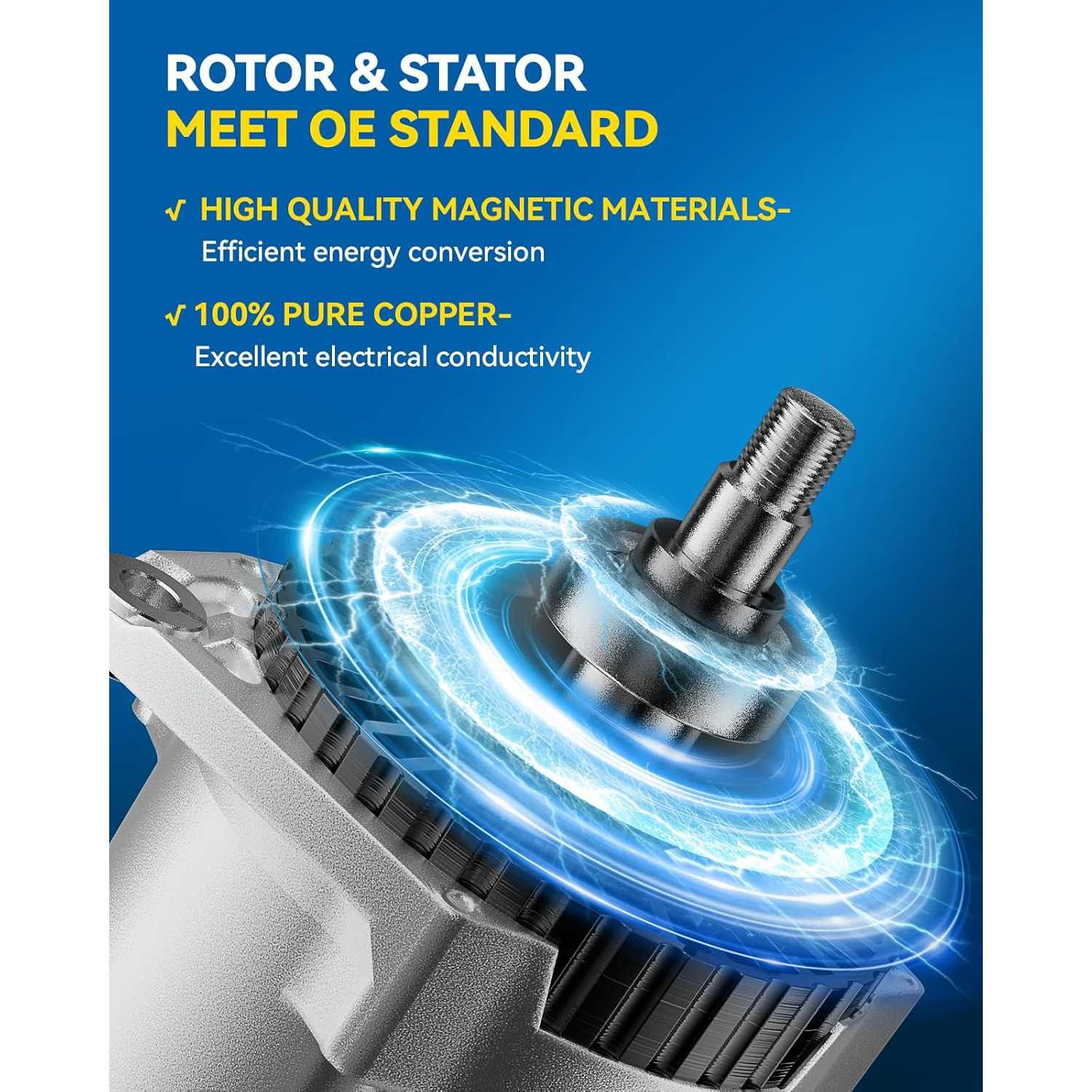

Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11292N 1x Manual
Warranty Period
2-Year
Part Number
11292N

Highlights

  • Alternators compatible with: Ford, Lincoln; for2009-2010 150 5.4L, 2009-2010 150 4.6L, 2009-2010 Expedition, 2009-2010 Navigator
  • Replacement for Alternator OEM Number: 11292N,11292N
  • Automotive alternator specifications: Amperage Rating -150 Amp,Voltage -12 Volt,Groove Pulley-CW,Rotation-S6Design-IR/IF,Plug Clock-
  • High Output & Reliability:​ Precision-Engineered.Our alternator integrates computer-controlled manufacturing and high-density copper windings to deliver exceptionally stable voltage and robust current output, effectively preventing electrical failures while optimizing the charging efficiency of your vehicle's system
  • Ensure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first timeEnsure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first time

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 2010201020102009 - 201020102009 - 20102009 - 20102009 - 20102009 - 201020102009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150NavigatorNavigator
TrimEL Eddie BauerEL King RanchEL LimitedEL XLTEddie BauerKing RanchLimitedXLTFX2FX2FX4Harley-Davidson EditionKing RanchLariatPlatinumSTXSVT RaptorXLXLXLTXLTBaseL
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V85.4L V8
Note--------
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
Engine VIN 8; Navigation System
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Mike Clark

03/04/2025

Verified buyer

Works seamlessly with my F150 2010. Quality is excellent, and shipping was a breeze.

Rob_HomeGarage_275

02/28/2026

Shipping was lightning fast, arrived two days early. Swapping it into my Expedition was a breeze since everything lined up perfectly.

FAQS

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.
