2015-2021 Jeep Renegade 2.4L L4 | 6-Groove Pulley 160A Alternator | OE#56029624AB/2104198 - PHILTOP

2015-2021 Jeep Renegade 2.4L L4 | 6-Groove Pulley 160A Alternator | OE#56029624AB/2104198 - PHILTOP

Pulley Grooves: SD6

Amperage: 160 A

Built to Last

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5802ANR0910US

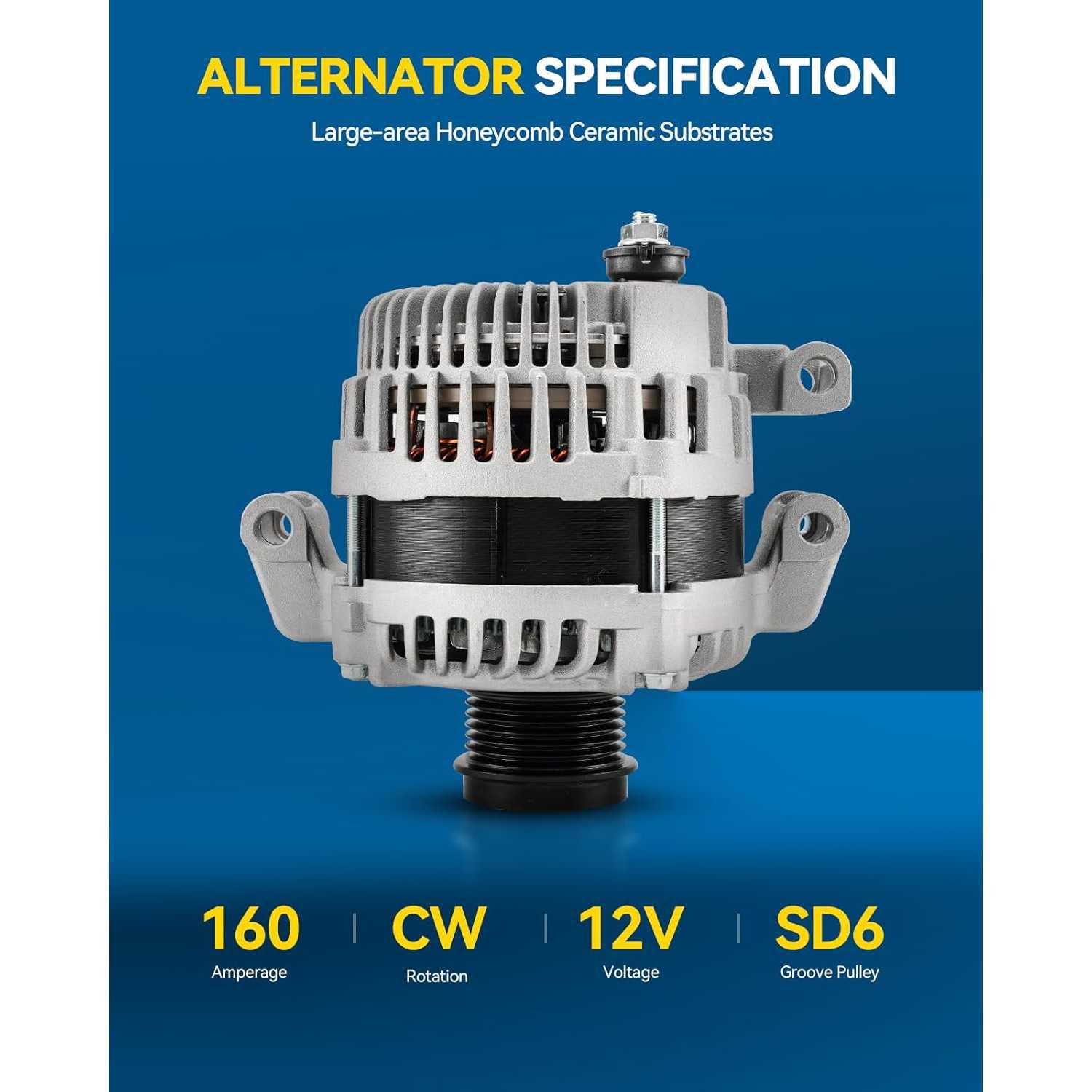

Specifications

Brand
PHILTOP
Pulley Grooves
SD6
Amperage
160 A
Rotation Direction
CW
Regulator
ER
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included

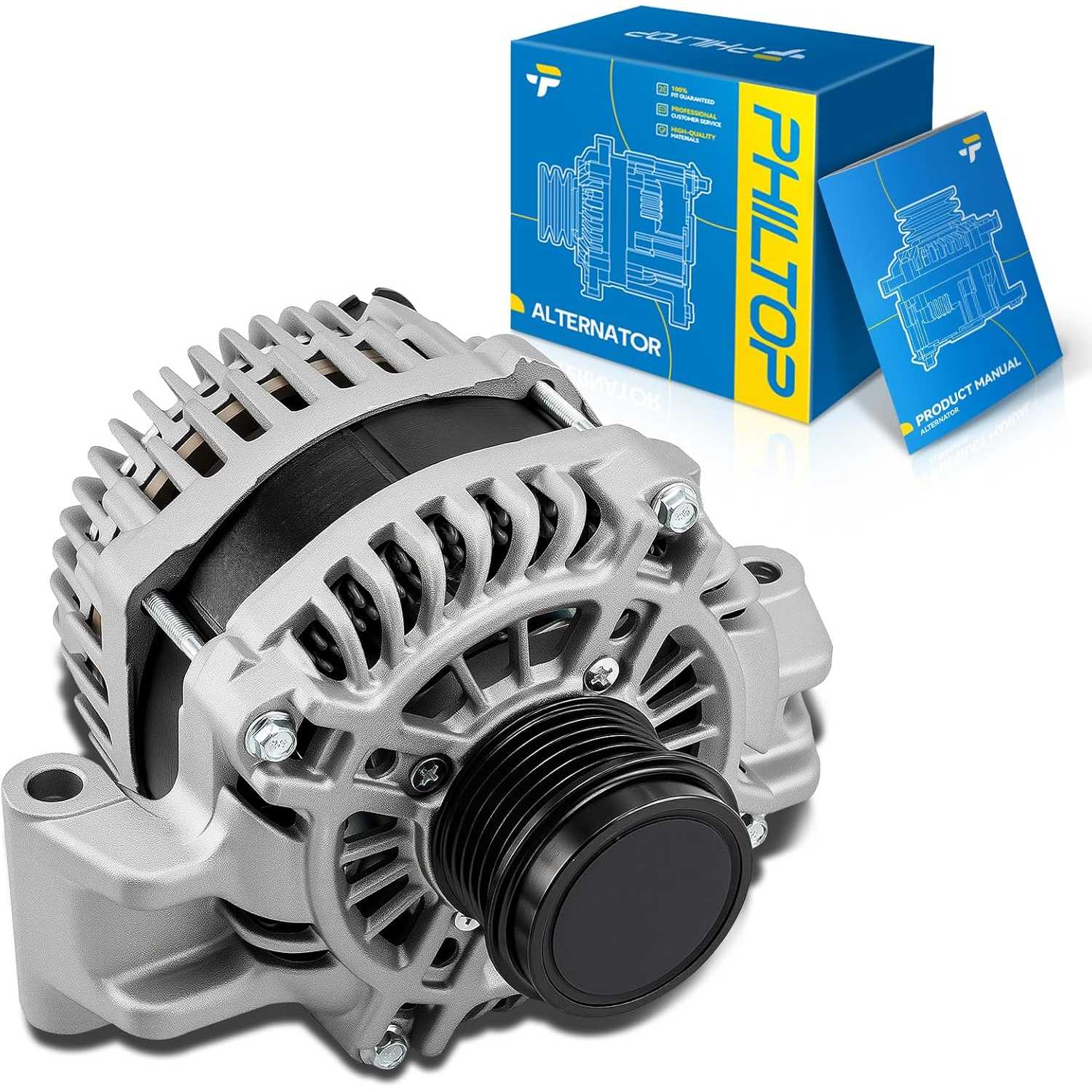

1x Alternator 11554N 1x Manual
Warranty Period
2-Year
OE Number
56029624AB,56029624AA
Part Number
2104198

Highlights

  • Alternators compatible with: Jeep, Chrysler, Ram, Fiat; for2018-2022 Compass, 2014-2019 Cherokee 2.4L, 2015-2021 Renegade 2.4L, 2015-2017 200 2.4L, 2015-2022 ProMaster City, 2017 Compass 2.4L, 2016-2018 500X 2.4L
  • Replacement for Alternator OEM Number: 11554N,56029624AB, 56029624AA, 11554, 56029624AC, 20024, 2104198
  • Automotive alternator specifications: Amperage Rating -160 Amp,Voltage -12 Volt,Groove Pulley-CW,Rotation-SD6Design-ER/IF,Plug Clock-

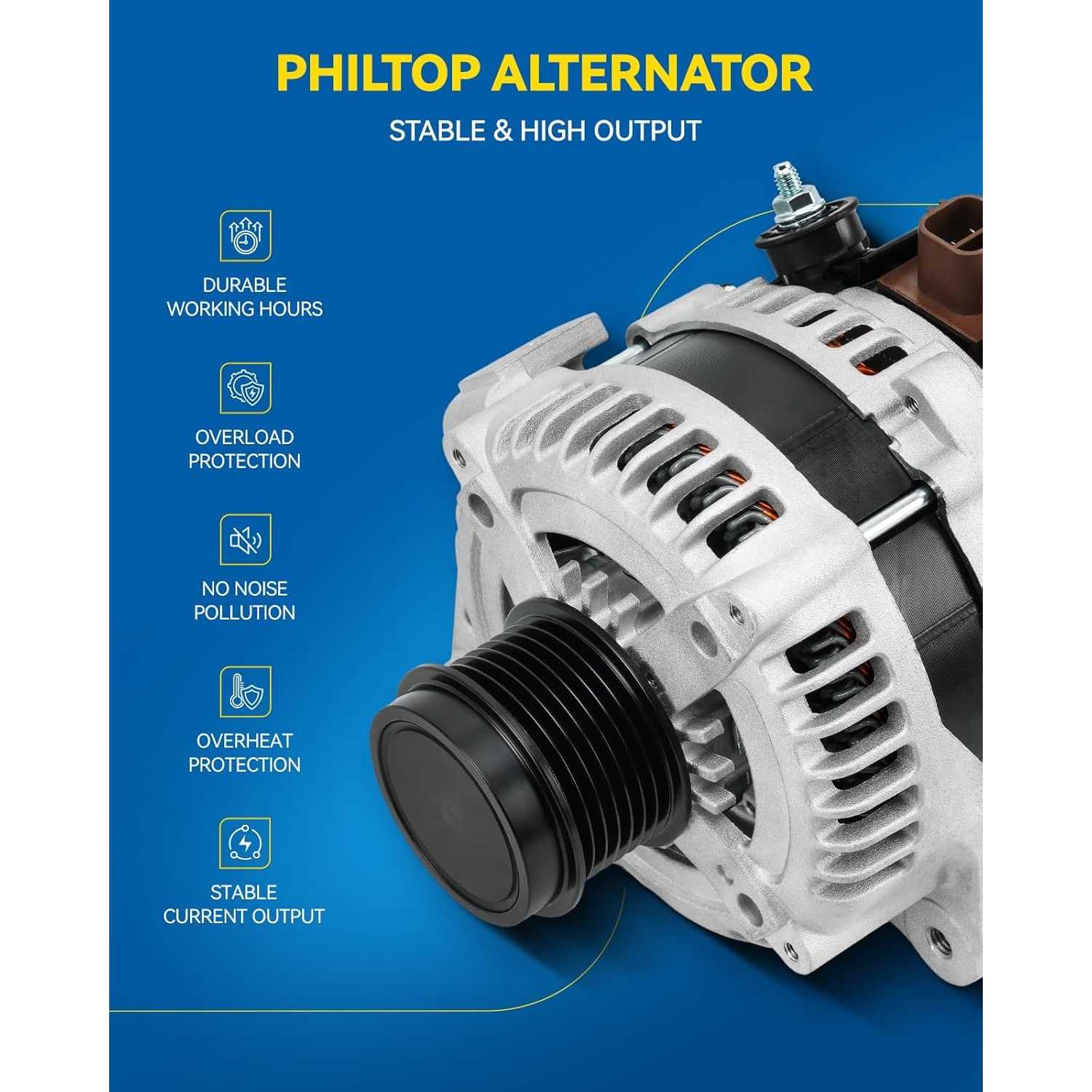

  • High Output & Reliability:​ Precision-Engineered.Our alternator integrates computer-controlled manufacturing and high-density copper windings to deliver exceptionally stable voltage and robust current output, effectively preventing electrical failures while optimizing the charging efficiency of your vehicle's system
  • Ensure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first timeEnsure a Perfect Fit: Confirm Compatibility in Seconds.​To guarantee seamless installation and optimal performance, we strongly advise verifying your vehicle’s compatibility using the detailed list and notes in the product description. This quick check helps you avoid returns or mismatches, ensuring your purchase is right the first time

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 20172015 - 201720162016 - 20182016 - 20182016 - 201820162017 - 20182016201920192014 - 20192018 - 20192014 - 20192016 - 20182014 - 20172014 - 201820212019 - 20222019 - 202020222017 - 202220222017 - 202220222017 - 20222017 - 20222019201620212018 - 20202016202120212015 - 20212015 - 20182015 - 20212015 - 20182019 - 20212015 - 20222015 - 20212015 - 20222015 - 2021
MakeChryslerChryslerChryslerChryslerFiatFiatFiatFiatFiatFiatJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepRamRamRamRam
Model200200200200500X500X500X500X500X500XCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeProMaster CityProMaster CityProMaster CityProMaster City
TrimCLXLimitedSEasyLoungePopTrekkingTrekking PlusUrbana75th AnniversaryAltitudeHigh AltitudeLatitudeLatitude PlusLimitedOverlandSportTrailhawk80th AnniversaryAltitudeHigh AltitudeHigh AltitudeLatitudeLatitude LuxLimitedRedSportTrailhawkUpland75th Anniversary80th AnniversaryAltitudeDawn Of JusticeIslanderJeepsterLatitudeLimitedSportTrailhawkUplandBaseSLTTradesmanTradesman SLT
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note---------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Reviews

4.9/5

Based on 8 reviews

588%
413%
30%
20%
10%

JD

09/09/2026

Verified buyer

Fits my 2018 Jeep Cherokee Limited. Budget friendly option,no issues so far.

Customer

12/28/2025

Verified buyer

Even though it’s a heavier part in a box, it was still delivered in good condition!

FAQS

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.
