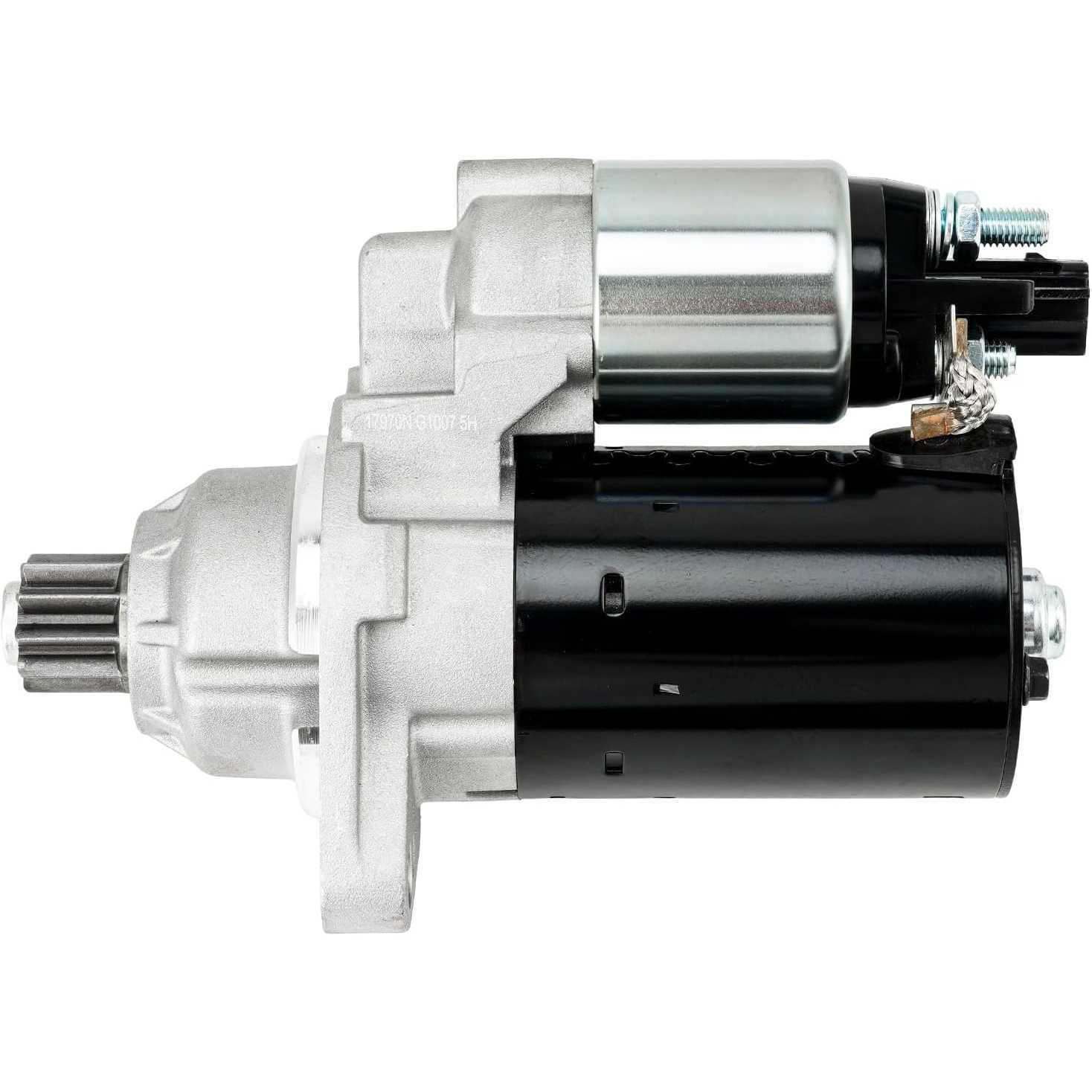

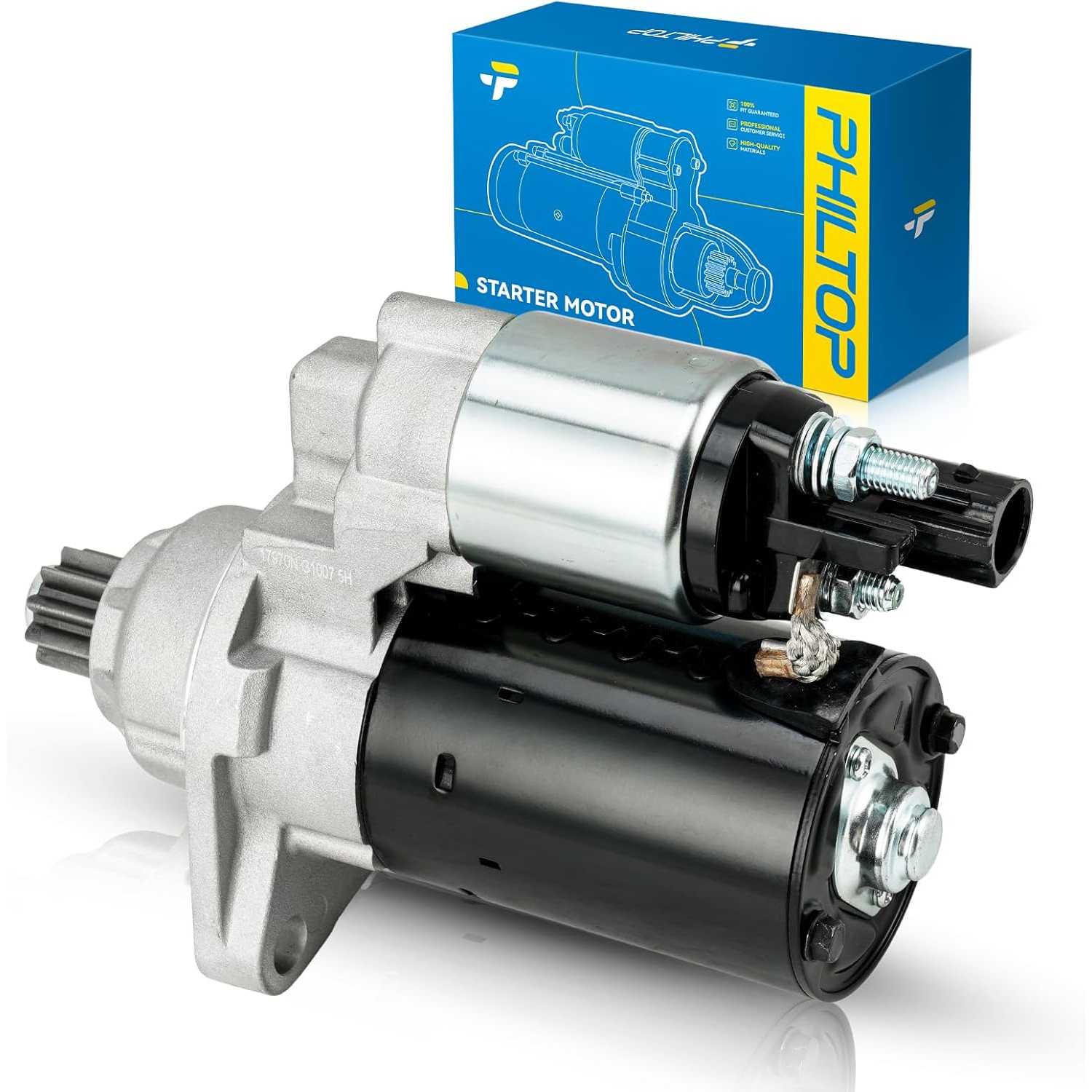

2010-2017 Volkswagen Tiguan 2.0L | 1.1KW 10-Tooth Starter | 17970N - PHILTOP

2010-2017 Volkswagen Tiguan 2.0L | 1.1KW 10-Tooth Starter | 17970N - PHILTOP

Power: 1.1 kW

Pinion Teeth: 10

Quick Starting Response

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8228STM0429US

Specifications

Brand
PHILTOP
Power
1.1 kW
Pinion Teeth
10
Voltage
12 V
Rotation Direction
CCW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17970N 1x Manual
Warranty Period
2-Year
Part Number
17970N

Highlights

  • Compatibility: 2010-2017 Tiguan, 2006-2010 2012-2013 Jetta 2.0T, 2011 2013-2015 Jetta 2.0L, 2010-2016 CC 2.0T, 2006-2009 2012-2014 GTI 2.0T, 2006-2010 Passat 2.0T, 2012-2013 Beetle 2.0T, 2007-2010 Eos 2.0T, 2018 Tiguan Limited, 2012-2013 Golf 2.0T, 2006 2009-2010 2013 A3 2.0T, 2008 R32, 2009 TT 2.0T, 2010 TT Quattro 2.0T
  • OEM Number: 02M911023G、02M911023G、02M911023GX、02M911023GX、17970N
  • Starter Specification: ①Power Rating: 1.1KW; ②Voltage: 12V; ③Number of Teeth: 10 Teeth; ④Rotation: CCW(Counterclockwise); ⑤Specs for: Bosch PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

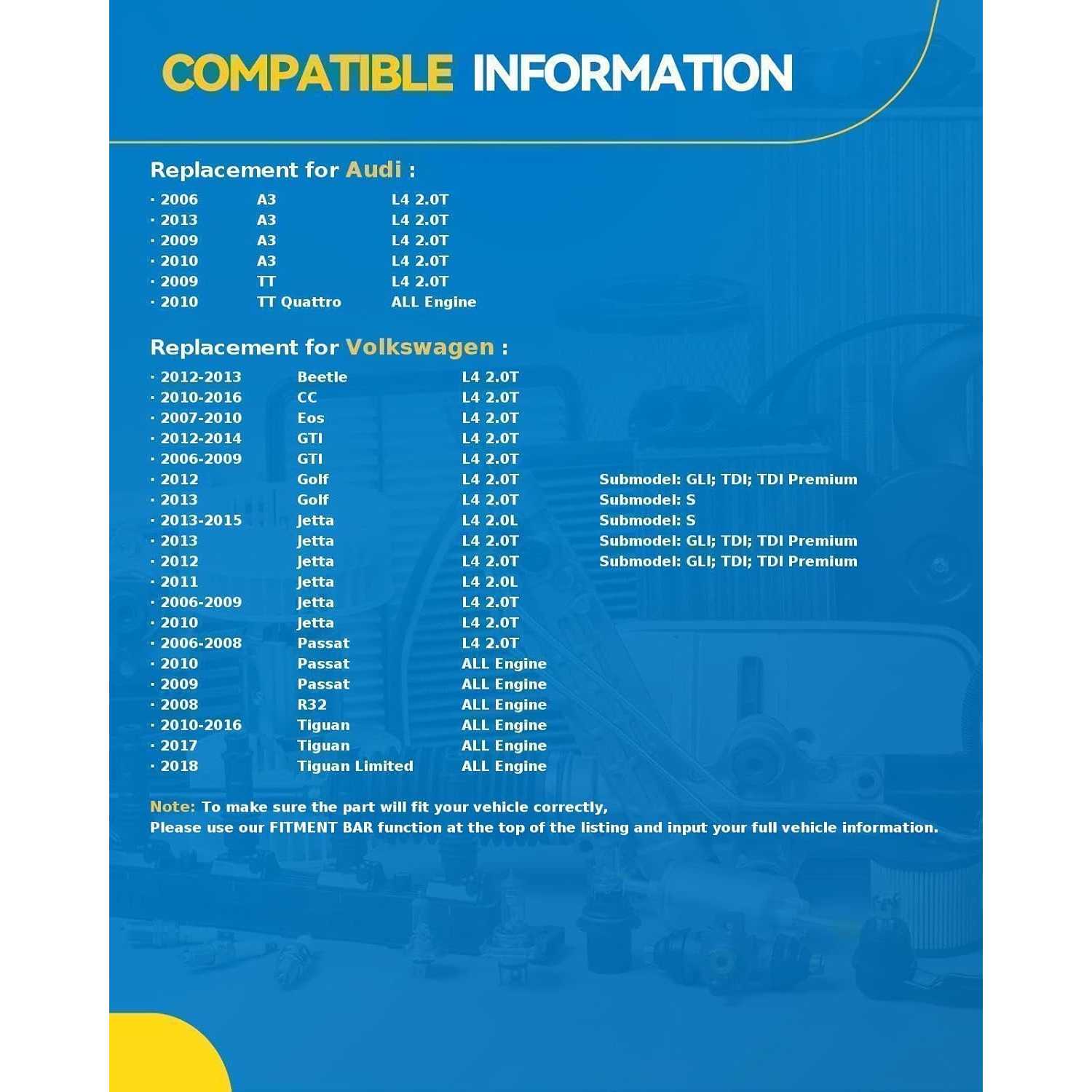

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062009 - 201320092010201320132012 - 20132011 - 20162010 - 201520132016200720072008 - 201020082006 - 20092012 - 20132014200720142012 - 20132006 - 200720112006 - 20092012 - 201320112013 - 201520092009 - 20102012 - 201320102012 - 20132008 - 20102006 - 20072008 - 2010200820082006 - 2007200720082014 - 20162010 - 20172010 - 20162010 - 20172017201020172018
MakeAudiAudiAudiAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelA3A3TTTT QuattroBeetleBeetleBeetleCCCCCCCCEosEosEosEosGTIGTIGTIGTIGTIGolfJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaPassatPassatPassatPassatPassatPassatR32TiguanTiguanTiguanTiguanTiguanTiguanTiguanTiguan Limited
TrimBaseBaseBaseBaseR-LineTDITurboR-LineSportSport PlusTrend2.0TBaseKomfortTurboBaseBaseDriver's EditionFahrenheitWolfsburg EditionTDI2.0TBaseGLIGLISSSELTDITDITDI Cup EditionTDI PremiumWolfsburg Edition2.0TKomfortLuxTurboValue EditionWolfsburg EditionBaseR-LineSSESELSportWolfsburg EditionWolfsburg EditionBase
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.2L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Kelly_SUV_Life_209

12/01/2025

I was tired of my Passat struggling to turn over in the cold. Swapped in this PHILTOP starter and it makes a world of difference. It is much more reliable than the factory one ever was.

Lisa_CivicDriver_953

02/04/2026

This was a perfect fit for my VW Jetta and the delivery was super quick. I had it installed and running in under an hour. Really impressed with the service and the part.

FAQS

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.

Not necessarily. Keep your existing battery if it tests good and holds a charge.

The engine should crank smoothly without grinding. If the starter keeps running after the engine starts, switch off immediately.
