1992-2007 Ford Crown Victoria / 2007-2014 Ford Edge | 5x4.5" to 5x4.75" 70.3mm Center Bore 1/2"x20 Thread Wheel Hub Accessory -

1992-2007 Ford Crown Victoria / 2007-2014 Ford Edge | 5x4.5" to 5x4.75" 70.3mm Center Bore 1/2"x20 Thread Wheel Hub Accessory -

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
27ISWSA5207US

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.5" To 5x4.75"
Wheel Bolt Pattern
5x4.75"
Vehicle Bolt Pattern
5x4.5"
Thread Size
1/2"x20
Center Bore
70.3
Hub-Centric Lip
Yes
Thickness
1.25inch
Note1
Only for 5x4.5" Models with 5x4.75" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 5x4.75" Wheel.
Outside Diameter
164
Inside Diameter
2.77 in/70.3 mm
Lug Patterns
5
Type
Wheel Adapter
Items Included
2x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 5x4.5"(5x114.3mm) ; | Wheel Bolt Pattern: 5x4.75"(5x120.65) ; | Thickness: 1.25 inch ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 70.3mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

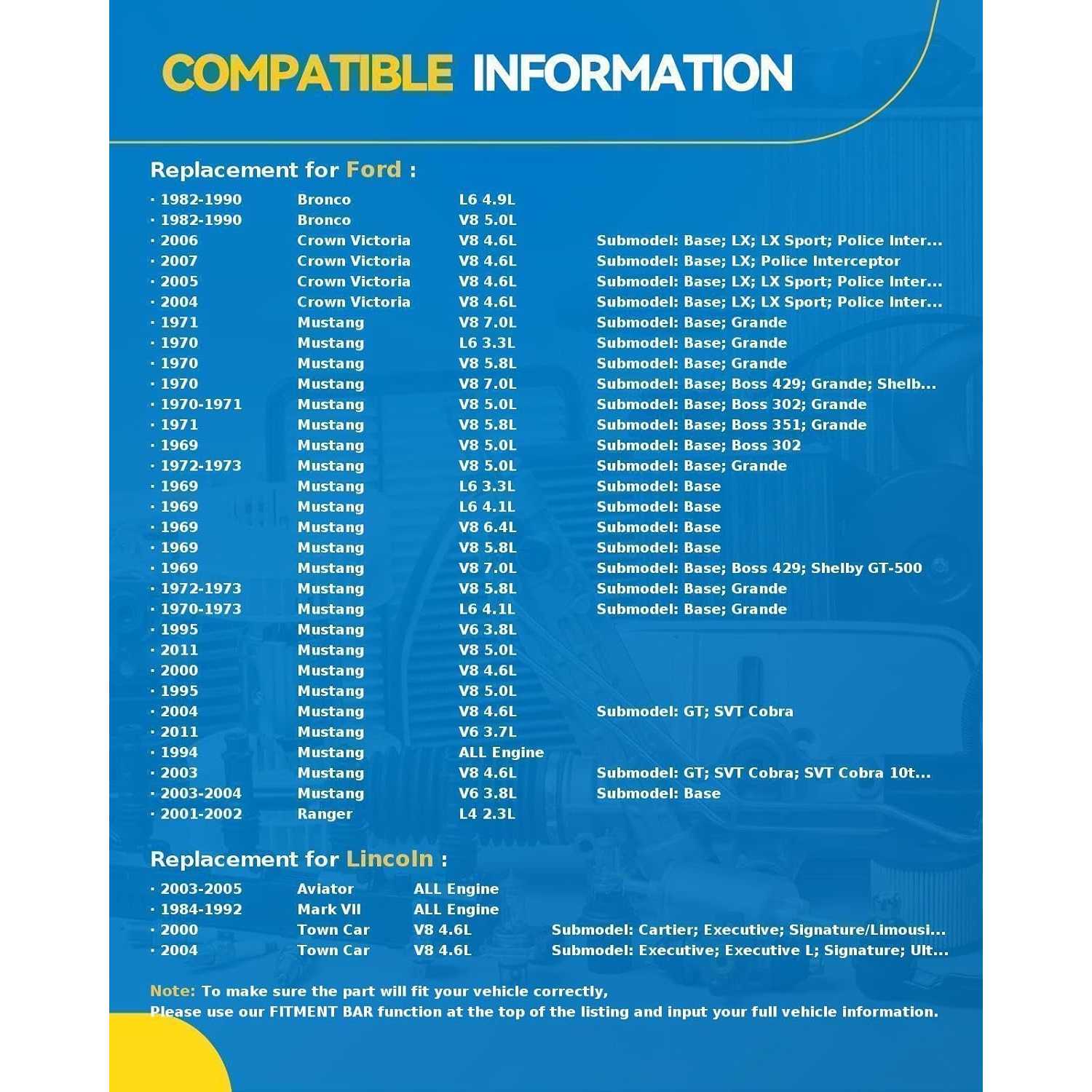

  • [Vehicle Application] --- The 5x4.5 to 5x4.75 Wheel Adapters set replacement for 2007-2014 Edge; 1991-2010 Explorer Eddie Bauer/XLT; 1996-2010 Mustang 4.6L SOHC GT; 1991-2002 Ranger 3.0L 2doors; 2005-2010 Mustang 4.0L SOHC Base; 1990-2002 Ranger 4.0L 2doors; 1994-2004 Mustang 3.8L OHV Base; 1983-1997 Ranger 2.3L 2doors; 1999-2006 Explorer XLS; 1993-2010 Explorer Limited; 1998-2001 Ranger 2.5L 2/4doors; B2500; 1992-2007 Crown Victoria Base/LX; 1998-2002 Ranger 3.0/4.0L 4doors

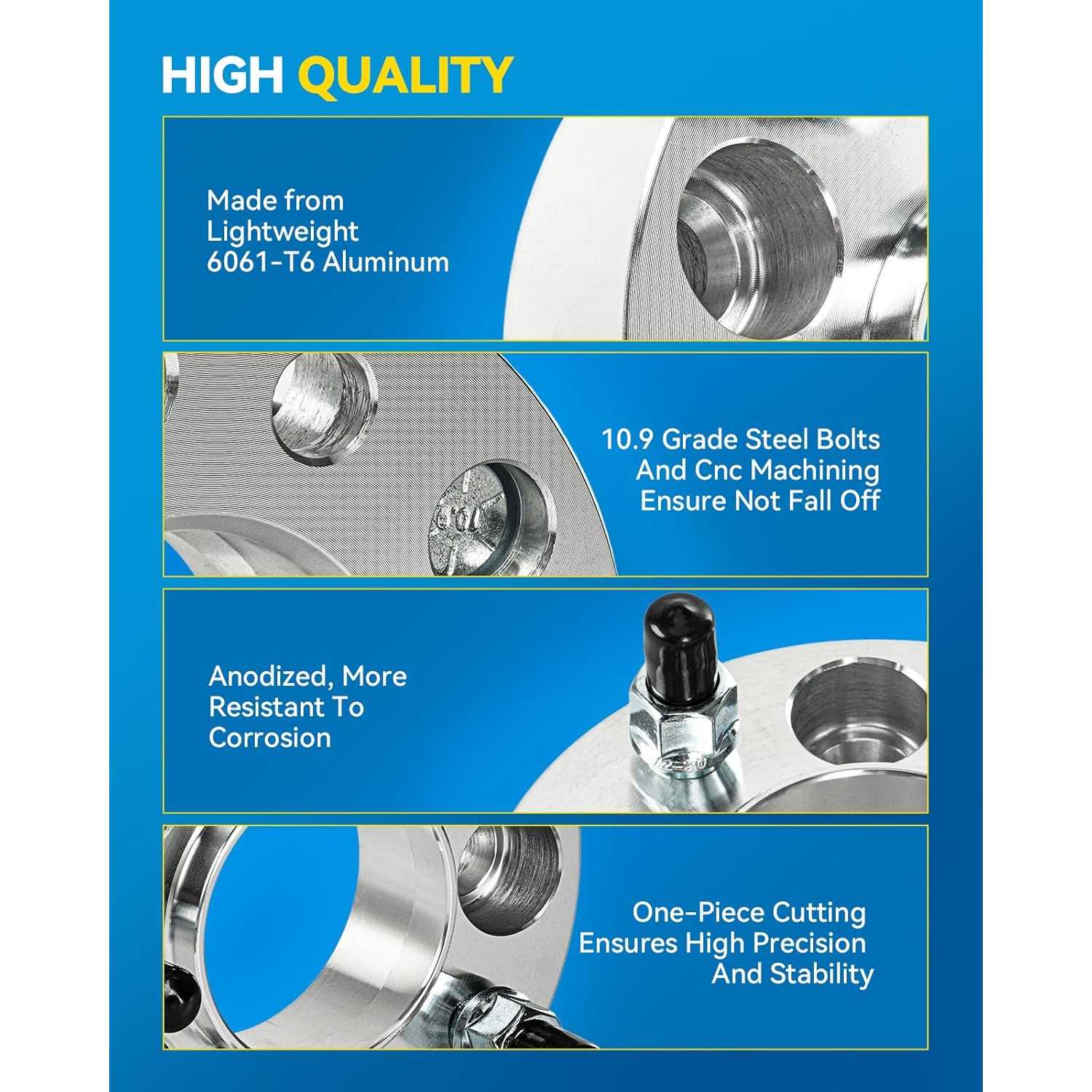

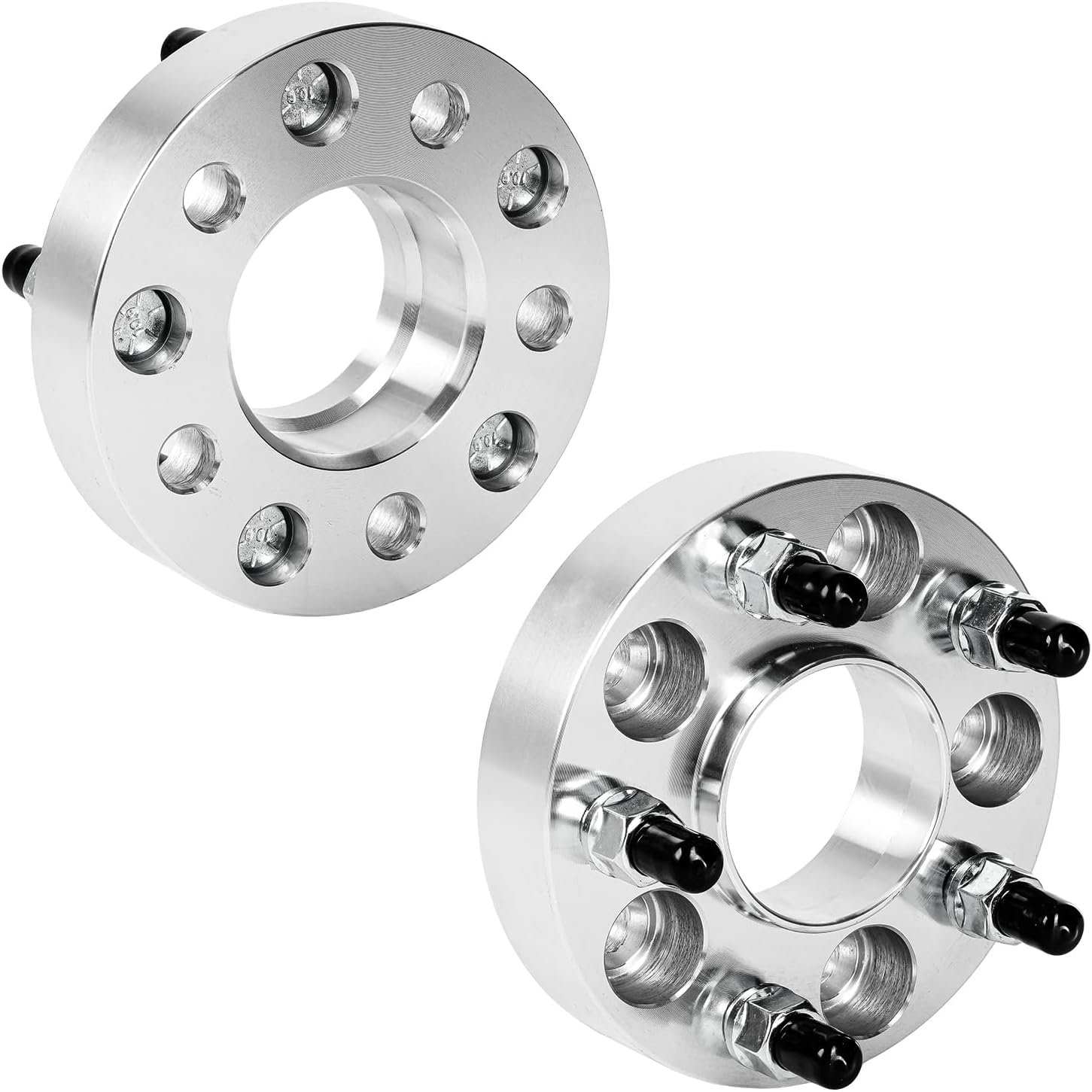

  • [High Quality] --- 5x4.5 to 5x4.75 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

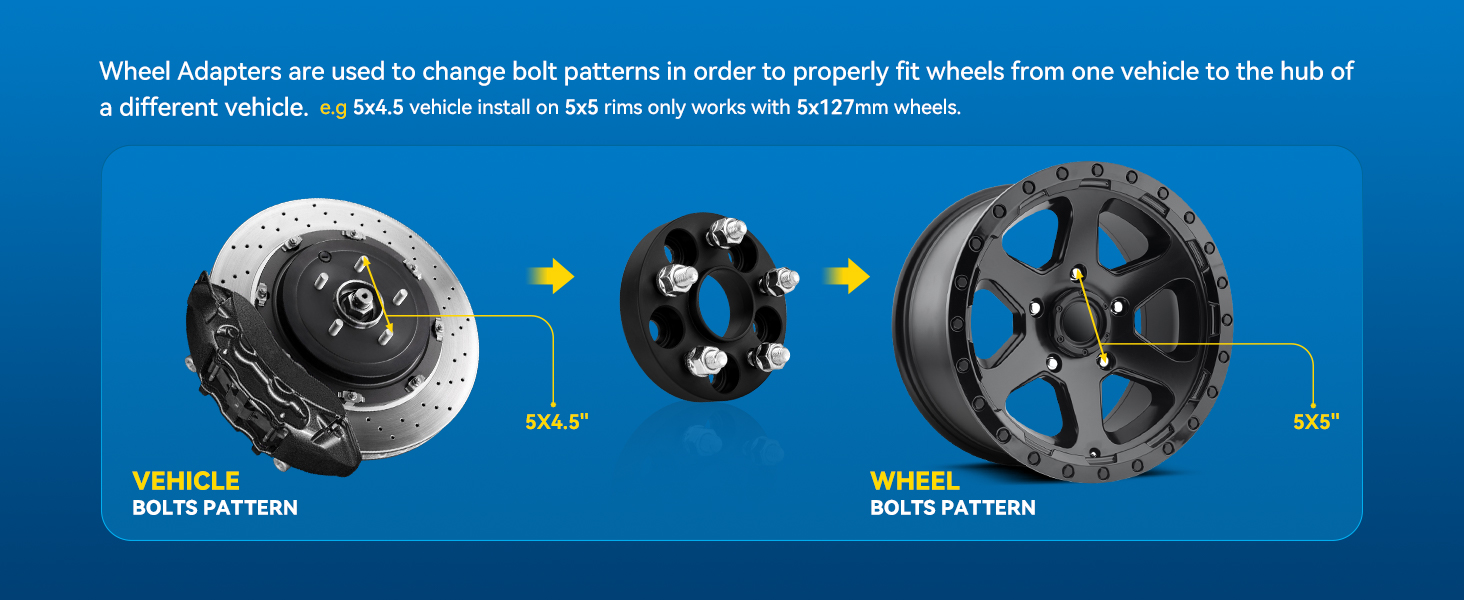

  • [Aggressive Driving Experience] --- These 5x4.5 to 5x4.75 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1992 - 20072006 - 20072002 - 20071992 - 20072004 - 20061993 - 20071992 - 2005200519922012 - 20142008 - 20142012 - 20142007 - 20142012 - 20142007 - 201420072009 - 20102011 - 20141991 - 20102002 - 20101996 - 200119951993 - 20102002 - 20101996 - 2001200420042000 - 20031991 - 20001991 - 19992000 - 20011999 - 200619992004 - 20051991 - 20102002 - 20101996 - 20012004 - 20052004 - 20051967 - 197020111994 - 200420042005 - 20101969 - 19731967 - 19681968 - 19731969 - 19731967 - 19691968 - 19711969 - 19711971 - 19721969 - 19702008 - 20091996 - 20101994 - 199520112001199519701970 - 19731970 - 19731970 - 19731970 - 19712003 - 20041970 - 19731970 - 19731970 - 19711996 - 199920012003 - 20041994 - 19952003200019952007 - 2008196719681969 - 19701967 - 197019682007 - 20112008 - 200919831985198319831985 - 19861983198519861987 - 19921987 - 19921991 - 19921990 - 19921998 - 20022001 - 20052001 - 20052005 - 20091988 - 1989200219841986 - 19881984198419861988 - 199219841991 - 19921990 - 1992199019901986 - 19901993 - 19951986 - 19921991 - 19971990 - 19971993 - 199719981993 - 19981993 - 19981991 - 1993199720091991 - 19921991 - 199319972006 - 20081991 - 199319972006 - 2009200420041983 - 19851983 - 19841983 - 19861993 - 19972001 - 20032005 - 20091998 - 20011983 - 198519861993 - 20032005 - 20081993 - 19961998 - 20032005 - 20091995199519951983 - 19851983 - 19841983 - 19851983 - 19851983 - 19851983 - 19841983 - 19972001 - 20091998 - 20011983 - 19851986 - 19921991 - 20081990 - 20092003 - 20051984 - 19851984 - 19871984 - 19851984 - 19911984 - 19851984 - 19911984 - 19851984 - 198519961991 - 19991981 - 19901991 - 20031982 - 19902001 - 20031991 - 199519901991 - 200419902001 - 20042003199320041991 - 20041982 - 199019891991 - 1995199719901994200420041998 - 20011998 - 200119991994 - 199620022001 - 20041994 - 19961998 - 20012003 - 2004199820001999 - 200019972002 - 20092001 - 20041995 - 19961995 - 20012003 - 200820001998 - 20042007 - 20102002 - 20041997 - 20012005 - 200620052005 - 20062005 - 20062004 - 20052007 - 20102004 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaCrown VictoriaEdgeEdgeEdgeEdgeEdgeEdgeEdgeEdgeEdgeExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangMustangRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerAviatorMark VIIMark VIIMark VIIMark VIIMark VIIMark VIIMark VIIMark VIITown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarTown CarB2500B2500B2500B3000B3000B3000B3000B3000B3000B3000B3000B3000B4000B4000B4000B4000B4000B4000B4000MountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineer
TrimBaseFleetLWBLXLX SportPolice InterceptorSSpecial EditionTouring SedanLimitedLimitedSESESELSELSEL PlusSportSportEddie BauerEddie BauerEddie BauerExpeditionLimitedLimitedLimitedNBXNBXPostalSportXLXL FleetXLSXLSXLS SportXLTXLTXLTXLT SportXLT SportBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBoss 302Boss 351Boss 429BullittGTGTGTGT BullittGTSGrandeGrandeGrandeGrandeGrandeMach 1Mach 1Mach 1Mach 1SVT CobraSVT CobraSVT CobraSVT CobraSVT Cobra 10th AnniversarySVT Cobra RSVT Cobra RShelby GTShelby GT-350Shelby GT-350Shelby GT-350Shelby GT-500Shelby GT-500KRShelby GT500Shelby GT500KRBaseBaseBaseBaseBaseBaseBaseBaseCustomCustomCustomCustomEVEdgeEdgeFX4GTPostalSSSSSSSSSS PlusS PlusSTXSTXSTXSTXSTXSplashSplashSplashSplashSportSportSportSportSportSportSportSportSportSportTremorTremorXLXLXLXLXLXLXLXLXLXLXLXLXLXLXL SportXL SportXL SportXLSXLSXLSXLSXLTXLTXLTXLTXLTXLTXLTXLTXLTBaseBaseBaseBill BlassBill BlassLSCLSCVersaceVersaceAnniversaryBaseBaseCartierCartierCartier LCypressCypressExecutiveExecutiveExecutive LExecutive Protection SeriesJack NicklausProtection SeriesSignatureSignatureSignature SETouring EditionTouring EditionTouring EditionTournament EditionUltimateUltimate LSESXTroy LeeBaseBaseDSSESESESXSXTroy LeeBaseBaseDSLESESETroy LeeBaseBaseBaseBaseConvenienceConvenienceLuxuryLuxuryPremierPremierPremier
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V82.0L L43.5L V62.0L L43.5L V62.0L L43.5L V63.5L V63.5L V63.7L V64.0L V64.6L V85.0L V84.0L V64.0L V64.6L V85.0L V84.0L V64.6L V84.0L V64.0L V64.0L V64.0L V64.0L V65.0L V84.0L V64.0L V64.6L V85.0L V84.0L V64.6L V83.3L L63.7L V63.8L V63.9L V64.0L V64.1L L64.7L V85.0L V85.8L V86.4L V87.0L V85.0L V85.8L V87.0L V84.6L V84.6L V85.0L V85.0L V84.6L V85.0L V83.3L L64.1L L65.0L V85.8L V87.0L V84.6L V85.0L V85.8L V87.0L V84.6L V84.6L V84.6L V85.0L V84.6L V85.4L V85.8L V84.6L V84.7L V85.0L V85.8L V87.0L V87.0L V85.4L V85.4L V82.0L L42.0L L42.2L L42.3L L42.3L L42.8L V62.8L V62.9L V62.3L L42.9L V63.0L V64.0L V6-3.0L V64.0L V64.0L V62.9L V6-2.0L L42.0L L42.2L L42.3L L42.3L L42.3L L42.8L V63.0L V64.0L V62.3L L44.0L V62.3L L42.3L L42.9L V63.0L V64.0L V62.3L L42.5L L43.0L V64.0L V62.3L L42.3L L42.3L L42.9L V63.0L V63.0L V63.0L V64.0L V64.0L V64.0L V63.0L V64.0L V62.0L L42.2L L42.3L L42.3L L42.3L L42.3L L42.5L L42.8L V62.9L V63.0L V63.0L V64.0L V64.0L V64.0L V62.3L L43.0L V64.0L V62.0L L42.2L L42.3L L42.8L V62.0L L42.2L L42.3L L42.3L L42.5L L42.8L V62.9L V63.0L V64.0L V64.6L V82.4L L65.0L V82.4L L65.0L V82.4L L65.0L V82.4L L65.0L V84.6L V84.6L V85.0L V84.6L V85.0L V84.6L V84.6L V85.0L V84.6L V85.0L V84.6L V84.6L V84.6L V84.6L V84.6L V85.0L V85.0L V84.6L V84.6L V85.0L V84.6L V84.6L V84.6L V82.5L L42.5L L42.5L L43.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.6L V85.0L V84.0L V64.6L V84.0L V64.6L V84.0L V64.0L V64.6L V8
Note---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

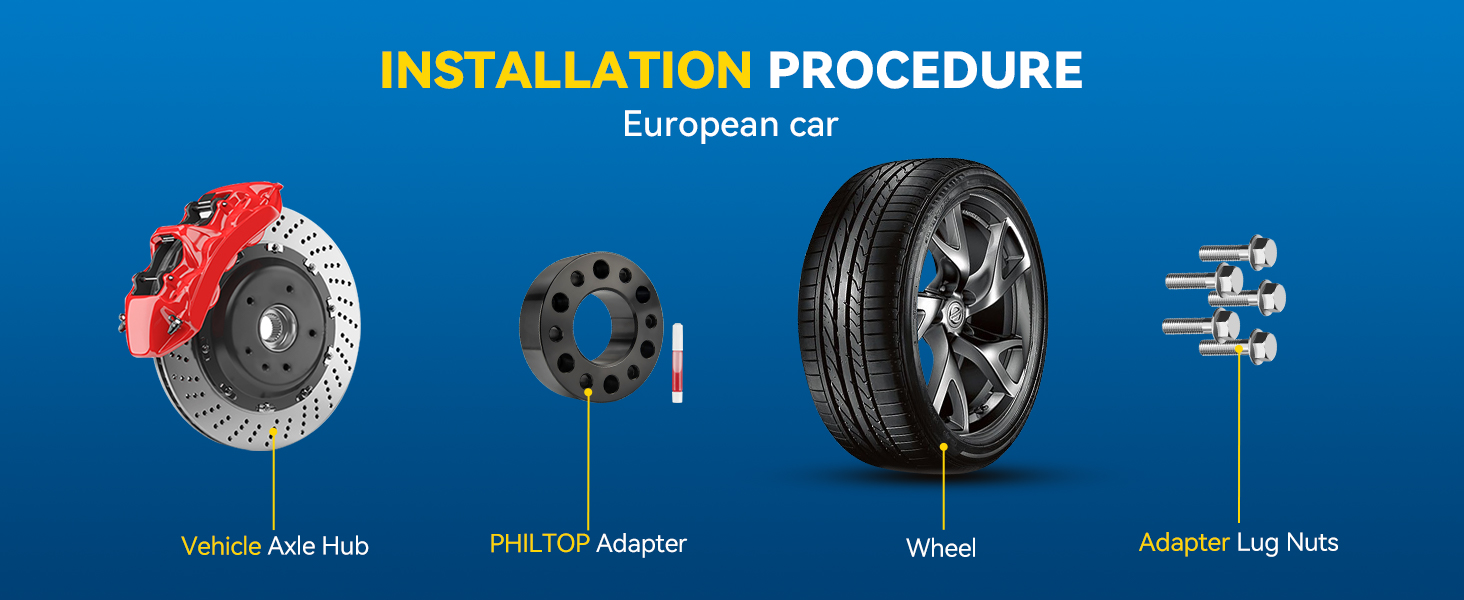

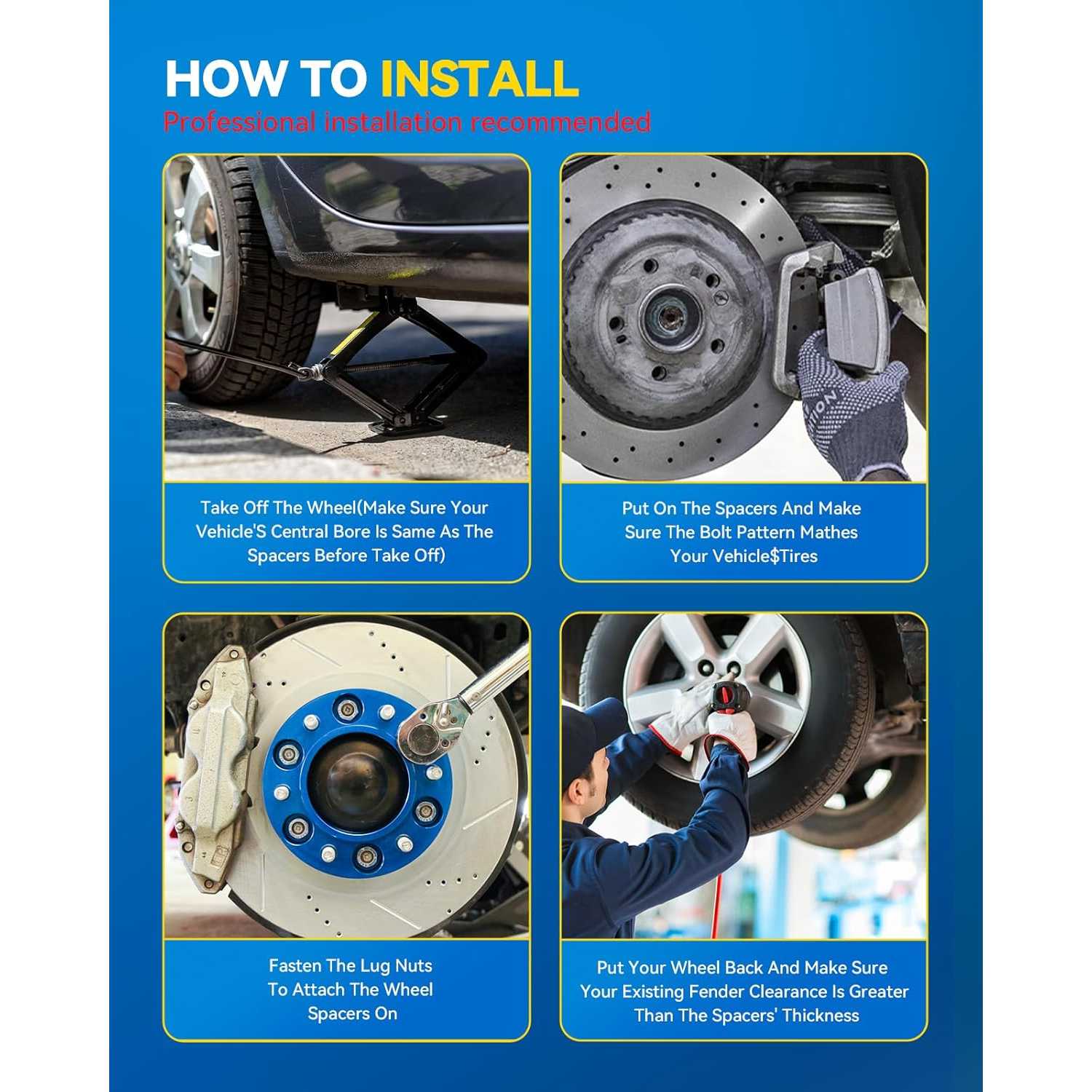

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

judith Arrieta

10/18/2024

Verified buyer

Perfect fit Read more

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
