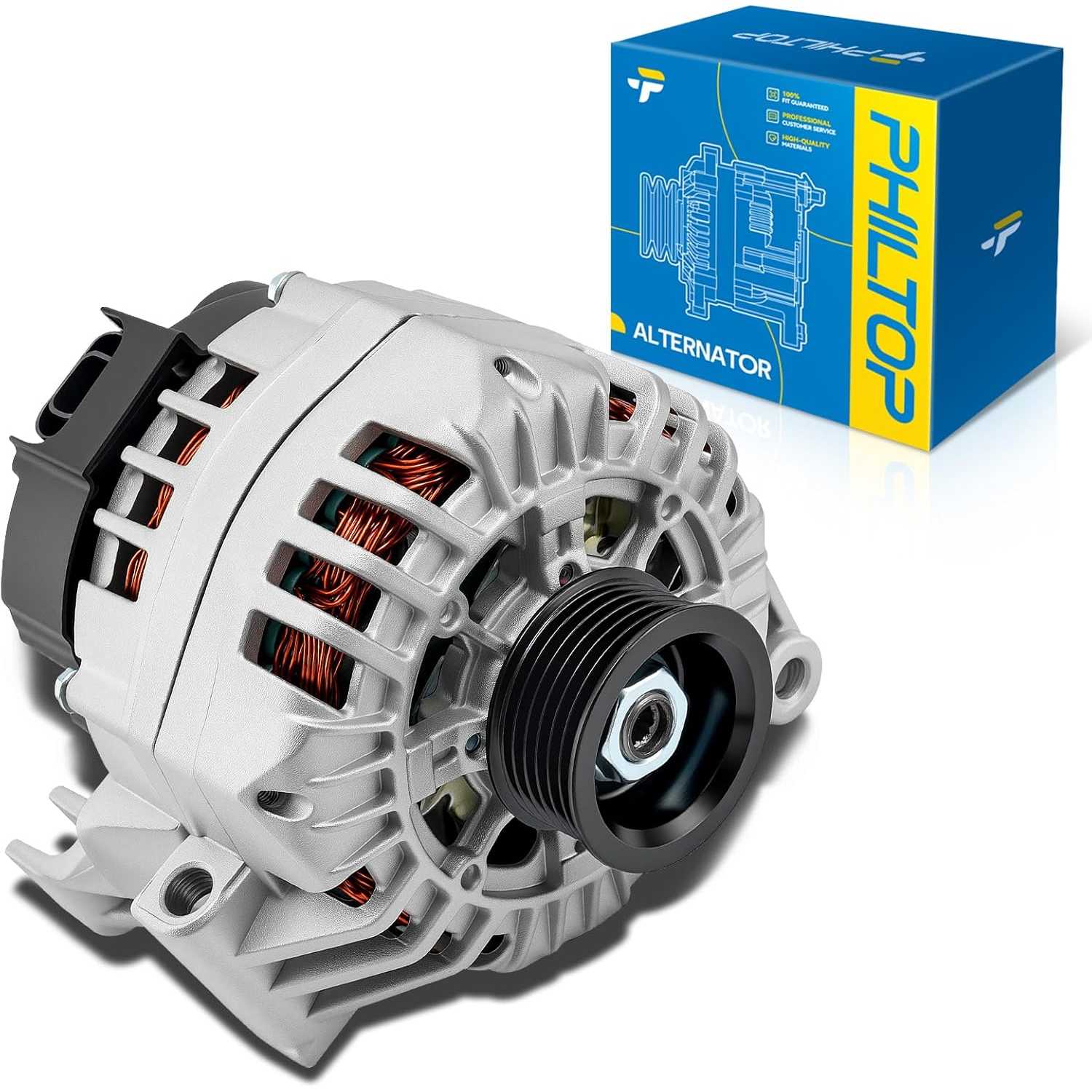

2005-2008 Chevrolet Uplander 3.5L V6 | 6-Groove Pulley 125A Alternator | 11023N - PHILTOP

2005-2008 Chevrolet Uplander 3.5L V6 | 6-Groove Pulley 125A Alternator | 11023N - PHILTOP

Pulley Grooves: S6

Amperage: 125 A

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4583ANR190YUS

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
125 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11023N 1x Manual
Warranty Period
2-Year
Part Number
11023N

Highlights

  • Compatibility: PHILTOP 11023N New Alternator compatible with 2005 2007-2008 Uplander, 2006 Uplander 3.5L, 2005-2007 Terraza, 2005-2006 Montana 3.5L, 2005-2007 Relay, 2006 Uplander 3.9L, 2006 Montana 3.9L
  • OEM Number: 11023N、15201678、15201679、420180、26501803、TG13S020、TG13S017、2650352、TG13S030、2650371、2650304、TG13S029、2650181、TG10S022SP、TG13S029SP、2650506SP、2650305、90225544、110238、90225527、15251755、15251755、15784559、15863714、15215546、11021、11023、15863715、15251756、15784560、15784560、25808702、15215547、TG10S022、11023、TG10S017、2650180、TG10S016、TG10S012、2650505、TG13S012、11021、25808702
  • Alternator Specification: ①Amperage: 125A; ②Voltage: 12V; ③Pulley Class: S6; ④Rotation: CW(Clockwise); ⑤Specs for: Valeo IR/IF
  • Professional Alternator: PHILTOP alternator has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.

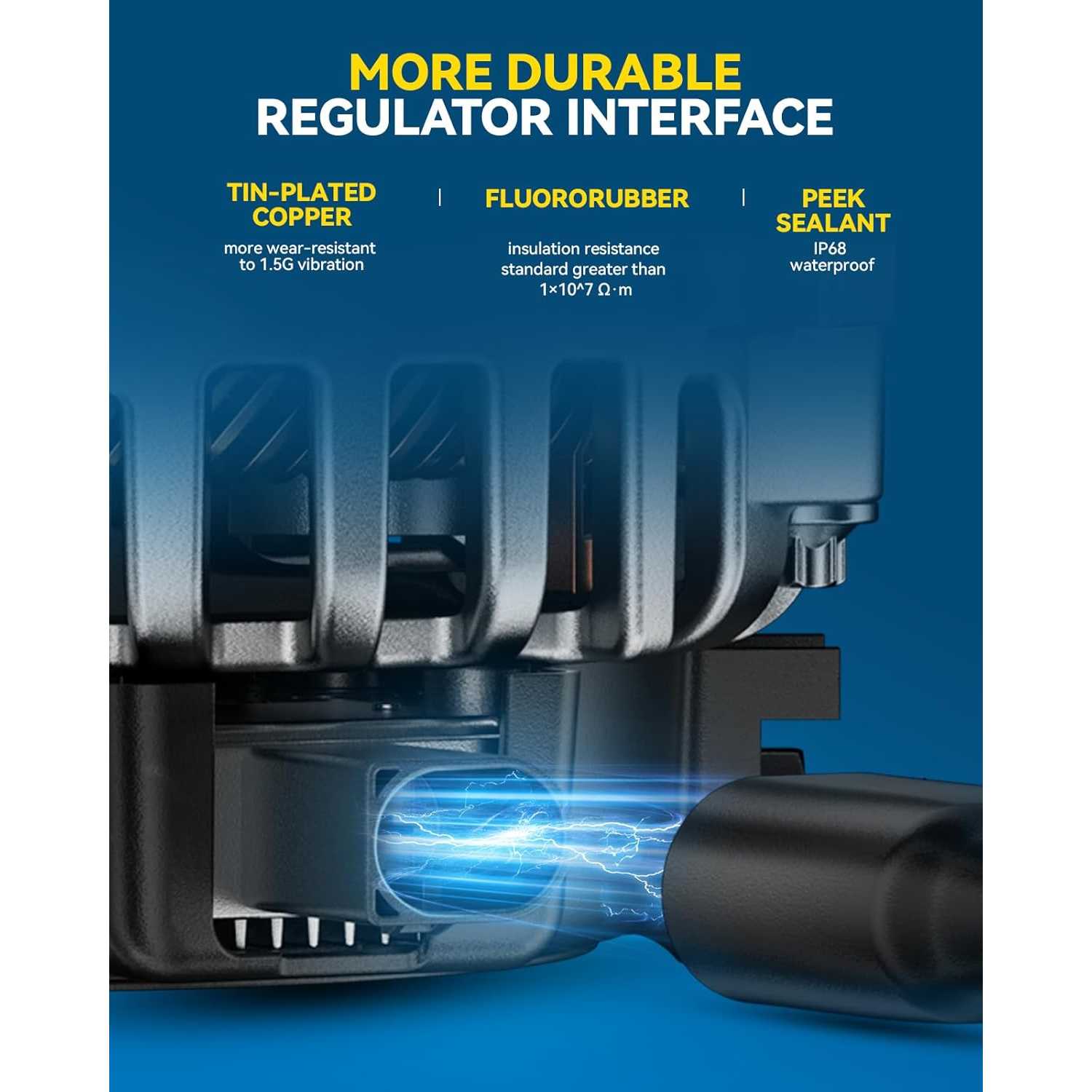

  • Safety & Stability: PHILTOP alternators feature an upgraded aluminum housing with superior heat dissipation and deformation resistance. Equipped with an OEM-compatible voltage regulator and overload protection, they comprehensively safeguard your vehicle's electrical system.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20062006 - 20072005 - 20062006 - 20072005 - 20062007 - 20082005 - 20062007 - 20082005 - 20062006 - 20082005 - 2006200620072005 - 200620072005 - 20062006 - 2007
MakeBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletPontiacPontiacSaturnSaturnSaturnSaturnSaturn
ModelTerrazaTerrazaTerrazaTerrazaUplanderUplanderUplanderUplanderUplanderUplanderMontanaMontanaRelayRelayRelayRelayRelay
TrimCXCXCXLCXLBaseBaseLSLSLTLTSV6SV612233
Engine3.5L V63.9L V63.5L V63.9L V63.5L V63.9L V63.5L V63.9L V63.5L V63.9L V63.5L V63.9L V63.9L V63.5L V63.9L V63.5L V63.9L V6
Note-----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

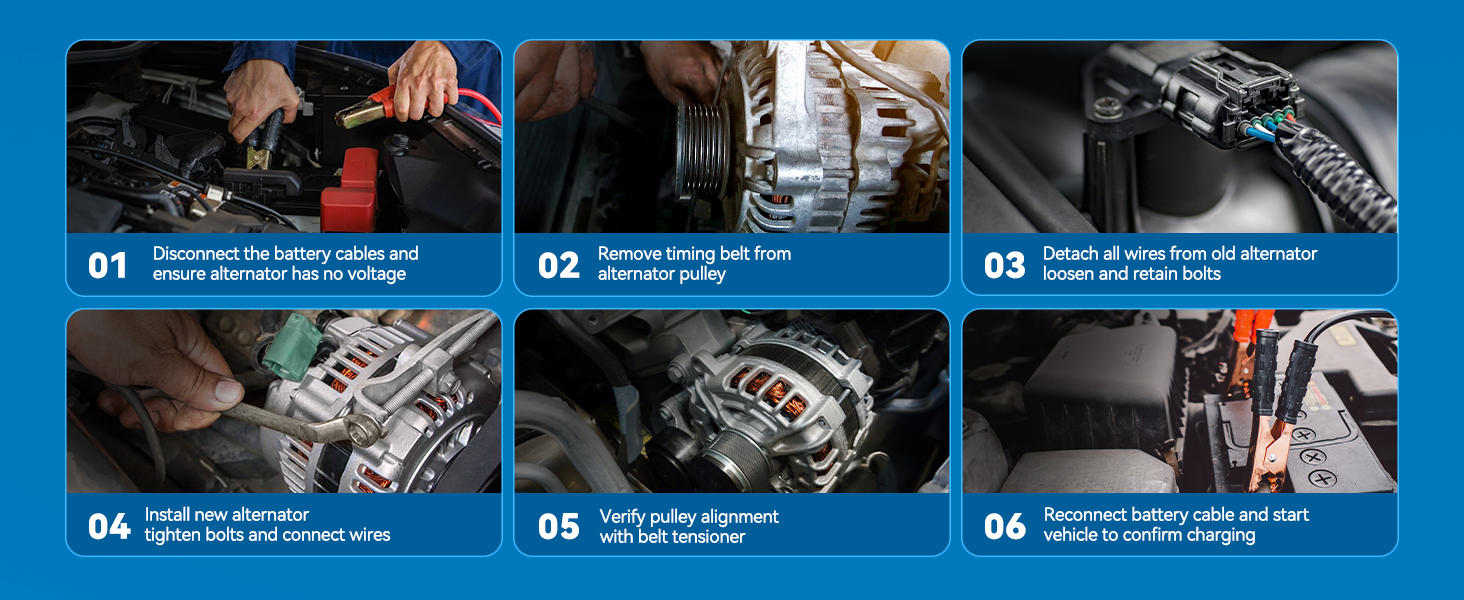

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.8/5

Based on 12 reviews

583%
417%
30%
20%
10%

John Richardson

04/24/2026

Verified buyer

The bolt holes line up. The copper is real. It does charge the battery. This is a lot cheaper than the factory OEM cost.

Mike

03/31/2026

Verified buyer

The PHILTOP 125A alternator for the 2008 Uplander was a perfect direct replacement. It arrived in like-new condition, matched the original unit exactly, and worked flawlessly right out of the box. Installation was quick and straightforward.Before starting, be sure to disconnect the battery. If your serpentine belt is still in good condition, you can re-tighten it to the same tension—look for the clean spot on the tensioner bolt as a reference. Once installed, the alternator produced a steady 14.1V and operated smoothly and quietly with no issues.Best of all, it costs significantly less than a dealership replacement, making it a great value and a hassle-free upgrade.

FAQS

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
