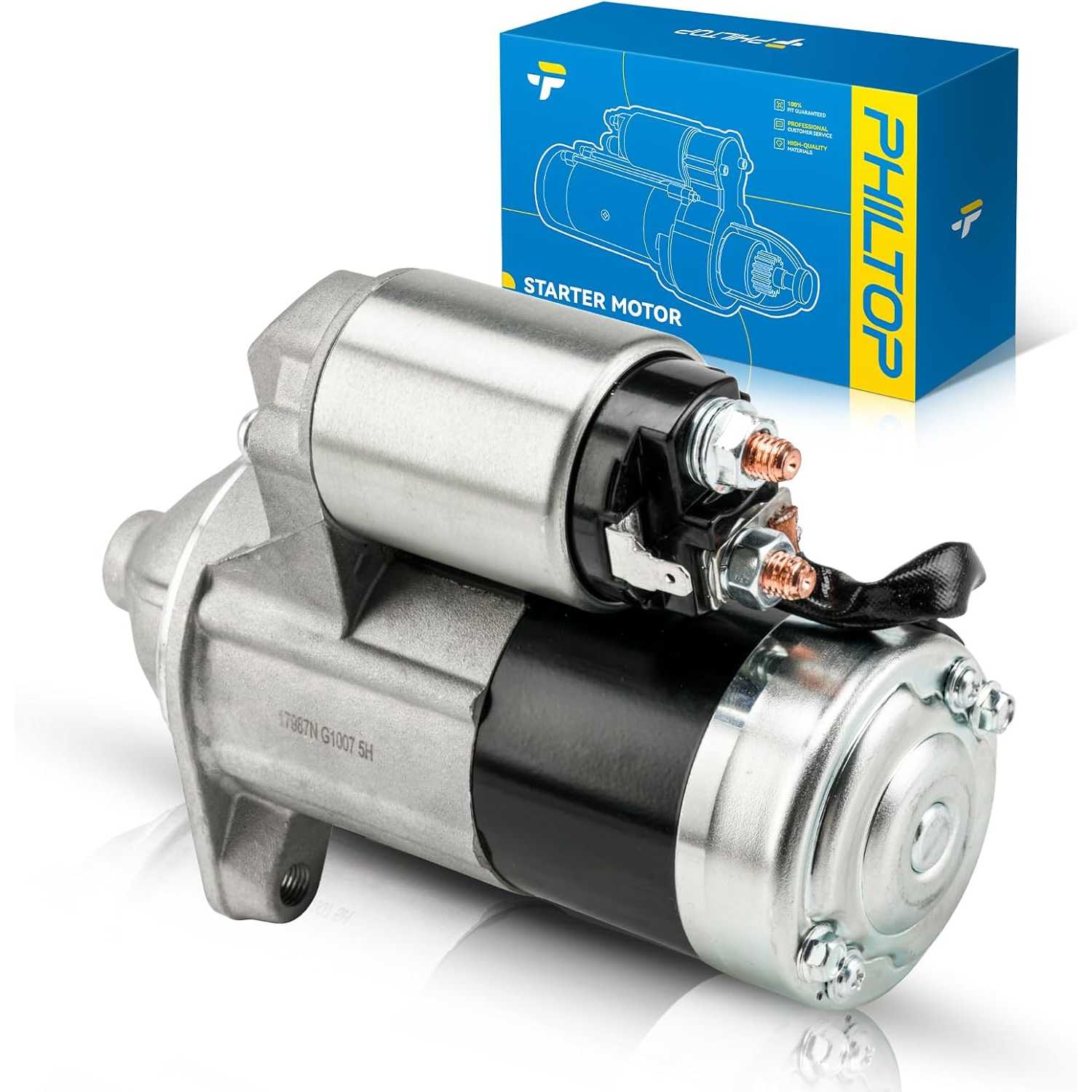

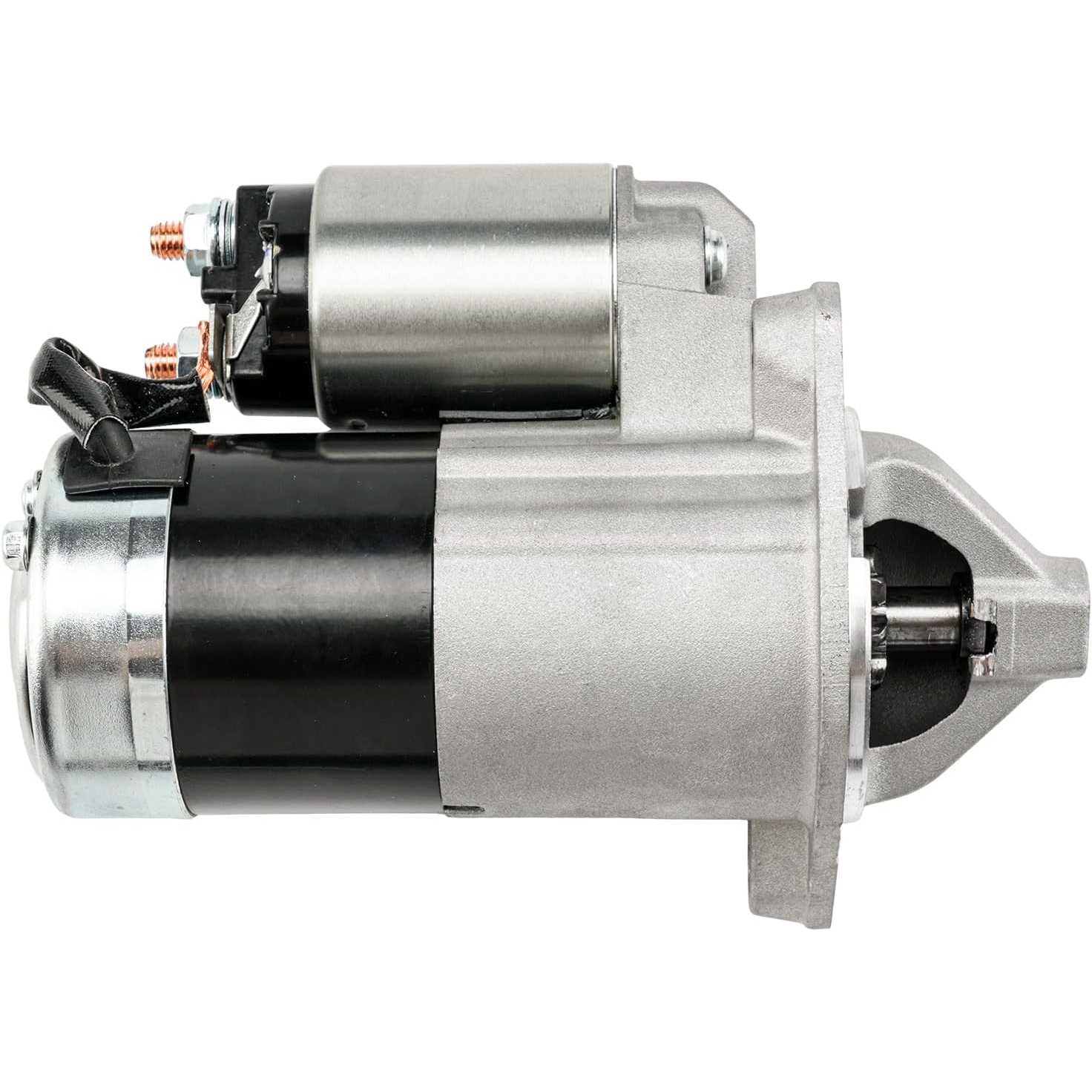

2007-2012 Hyundai Elantra 2.0L | 1.2KW 8-Tooth Starter | 17987N - PHILTOP

2007-2012 Hyundai Elantra 2.0L | 1.2KW 8-Tooth Starter | 17987N - PHILTOP

Power: 1.2 kW

Pinion Teeth: 8

Quick Starting Response

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1266STM102DUS

Specifications

Brand
PHILTOP
Power
1.2 kW
Pinion Teeth
8
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17987N 1x Manual
Warranty Period
2-Year
Part Number
17987N

Highlights

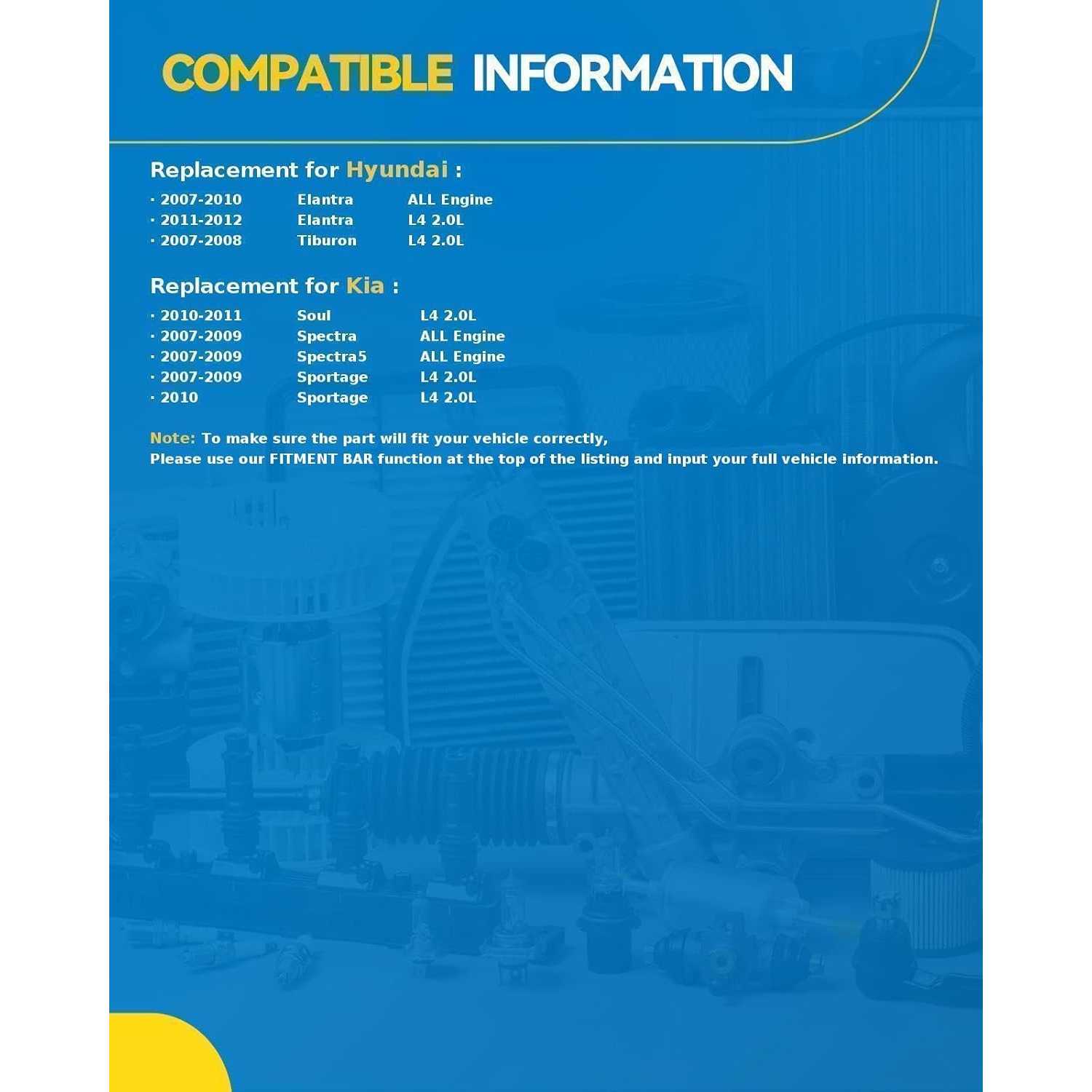

  • Compatibility: 2007-2010 Elantra, 2010-2011 Soul 2.0L, 2007-2009 Spectra, 2007-2010 Sportage 2.0L, 2011-2012 Elantra 2.0L, 2007-2009 Spectra5, 2007-2008 Tiburon 2.0L
  • OEM Number: TM000A37901、3610023070、3610023071、3610023070RU、17987N
  • Starter Specification: ①Power Rating: 1.2KW; ②Voltage: 12V; ③Number of Teeth: 8 Teeth; ④Rotation: CW(Clockwise); ⑤Specs for: Valeo PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102007 - 201020072007 - 201020092010 - 20122010 - 20122007 - 20082010 - 20112010 - 20112010 - 20112007 - 20092007 - 20092007 - 20092007 - 20092007 - 2010
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKia
ModelElantraElantraElantraElantraElantraElantraElantraTiburonSoulSoulSoulSpectraSpectraSpectraSpectra5Sportage
TrimBlueGLSLimitedSETouringTouring GLSTouring SEGS!+SportEXLXSXSXLX
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

4.3/5

Based on 3 reviews

567%
40%
333%
20%
10%

Brad_AutoParts_477

12/14/2025

My car was struggling to start, but this new starter fixed it immediately. It sounds much stronger than the factory one ever did. I am very happy with how it performs.

DaveTheMechanic_985

11/06/2025

The build quality is impressive and the price is much better than what I found elsewhere. It feels like a solid, durable part that will last a long time. Definitely worth every penny.

FAQS

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.

The engine should crank smoothly without grinding. If the starter keeps running after the engine starts, switch off immediately.

Recheck battery power and wiring. If the engine cranks normally but won’t start, another system may need diagnosis.
