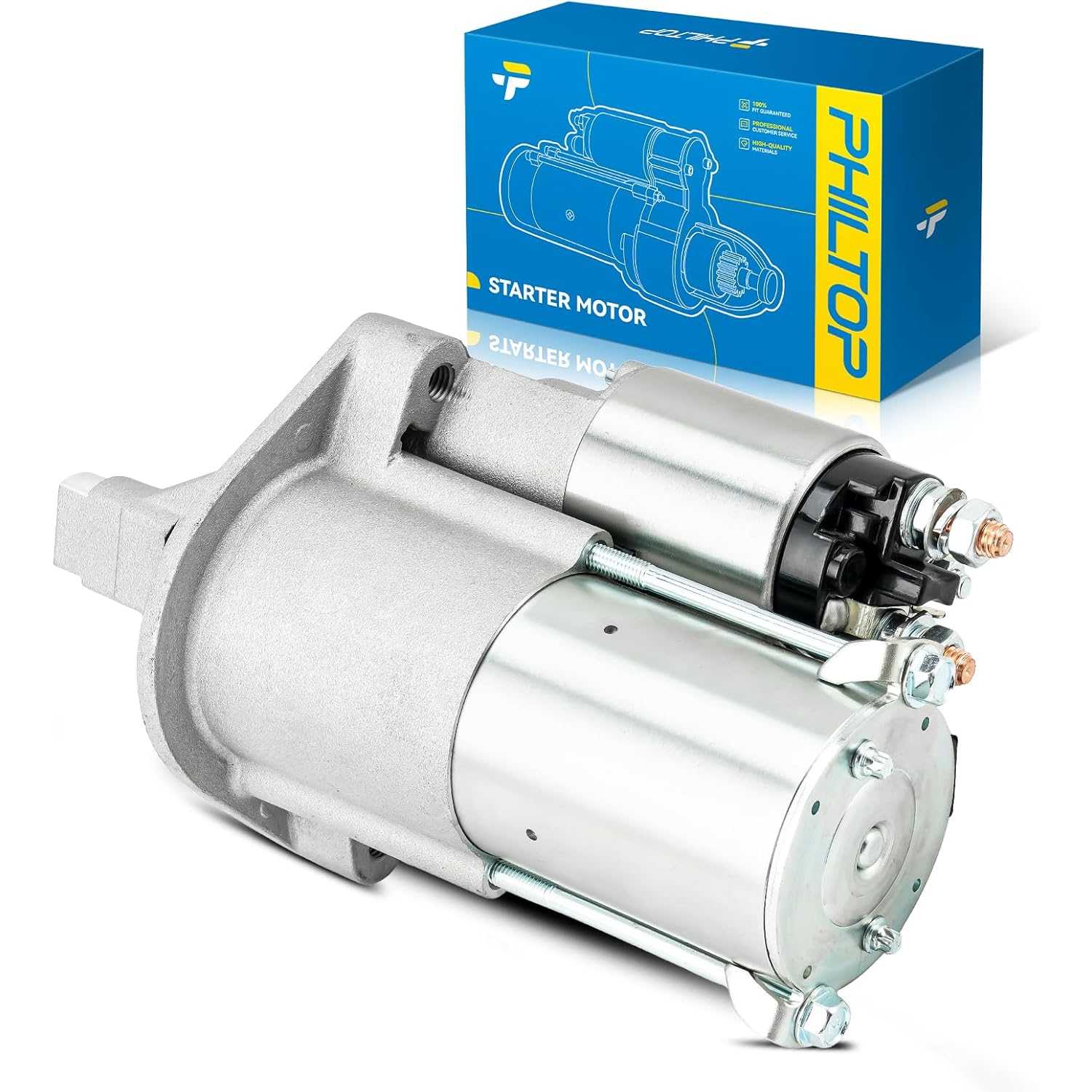

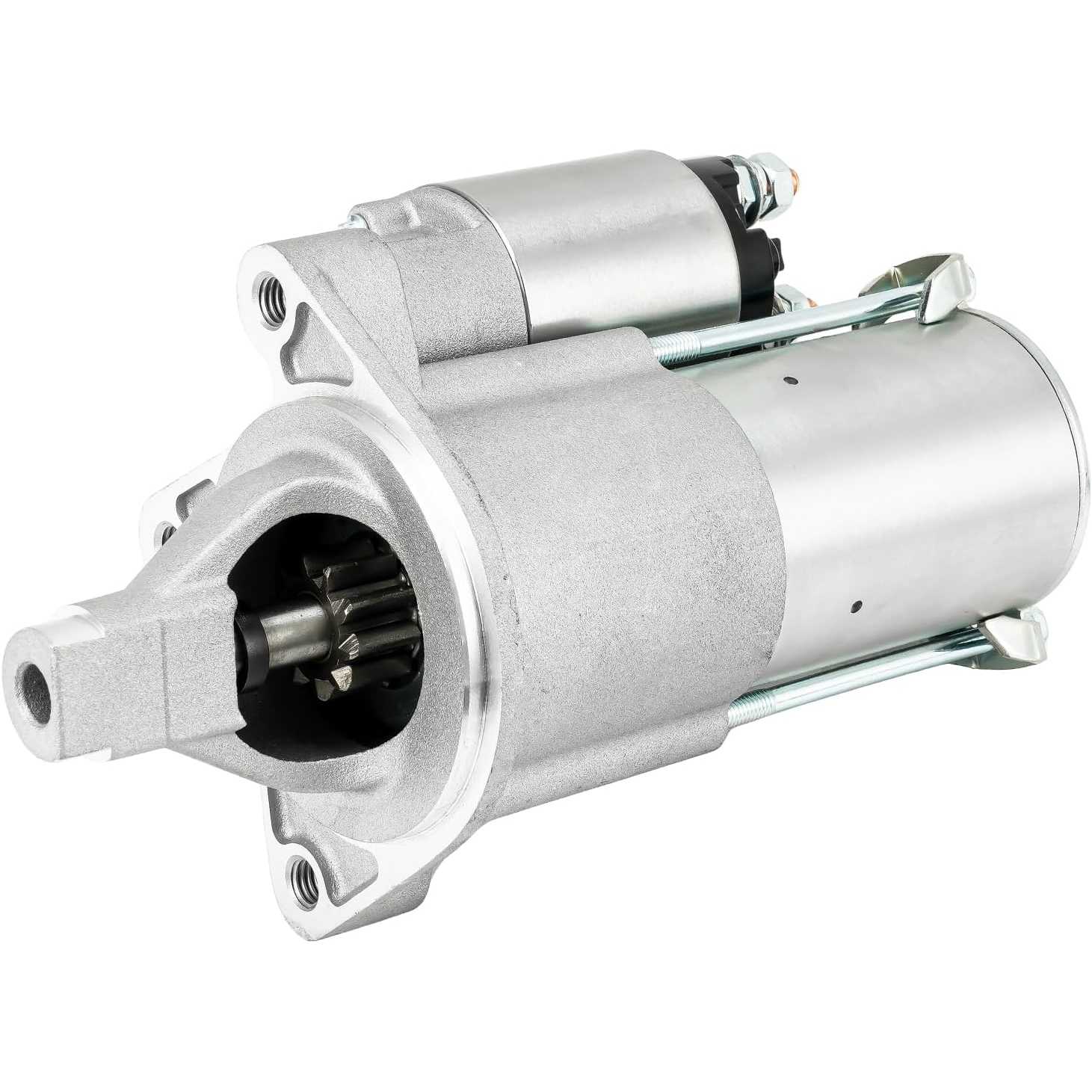

2007-2011 Jeep Wrangler 3.8L V6 | 1.2KW 10-Tooth Starter | 6763N - PHILTOP

2007-2011 Jeep Wrangler 3.8L V6 | 1.2KW 10-Tooth Starter | 6763N - PHILTOP

Power: 1.2 kW

Pinion Teeth: 10

Quick Starting Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4441STM135KUS

Specifications

Brand
PHILTOP
Power
1.2 kW
Pinion Teeth
10
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 6763N 1x Manual
Warranty Period
2-Year
Part Number
6763N

Highlights

  • Compatibility: 2009-2011 Wrangler Manual 3.8L, 2007-2008 Wrangler, 2007-2011 Nitro 4.0L
  • OEM Number: 4801269AB、8000160、04801269AB、4801269AD、8000243、6763N、04801269AD
  • Starter Specification: ①Power Rating: 1.2KW; ②Voltage: 12V; ③Number of Teeth: 10 Teeth; ④Rotation: CW(Clockwise); ⑤Specs for: Delco PG260D PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

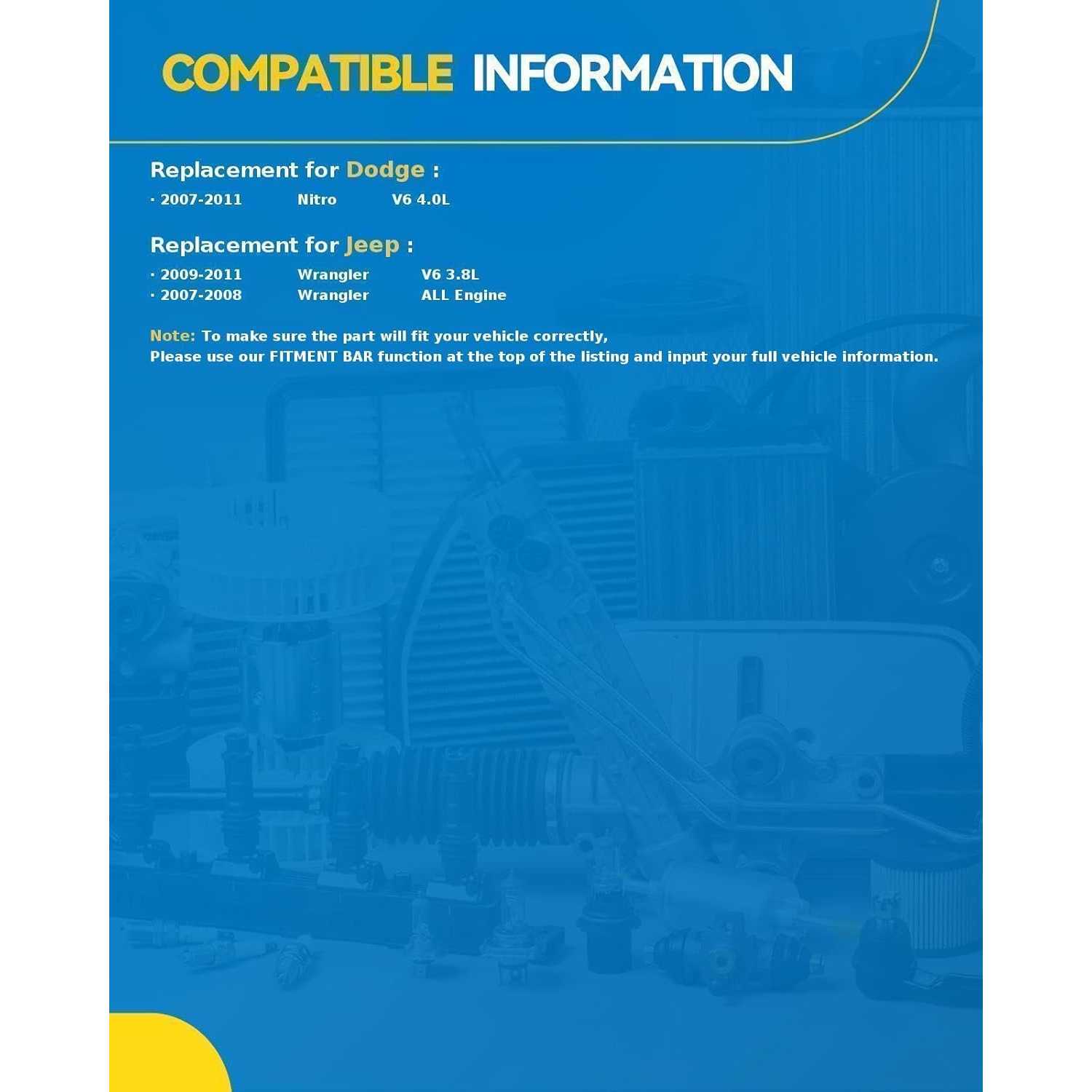

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20112010 - 20112007 - 20092010 - 20112010 - 201120112007 - 20112007 - 20112010 - 201120112007 - 20112007 - 20112010 - 20112007 - 20102007 - 2010
MakeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelNitroNitroNitroNitroNitroWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimDetonatorHeatR/TSXTShock70th AnniversaryRubiconSaharaSportUnlimited 70th AnniversaryUnlimited RubiconUnlimited SaharaUnlimited SportUnlimited XX
Engine4.0L V64.0L V64.0L V64.0L V64.0L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V6
Note---------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

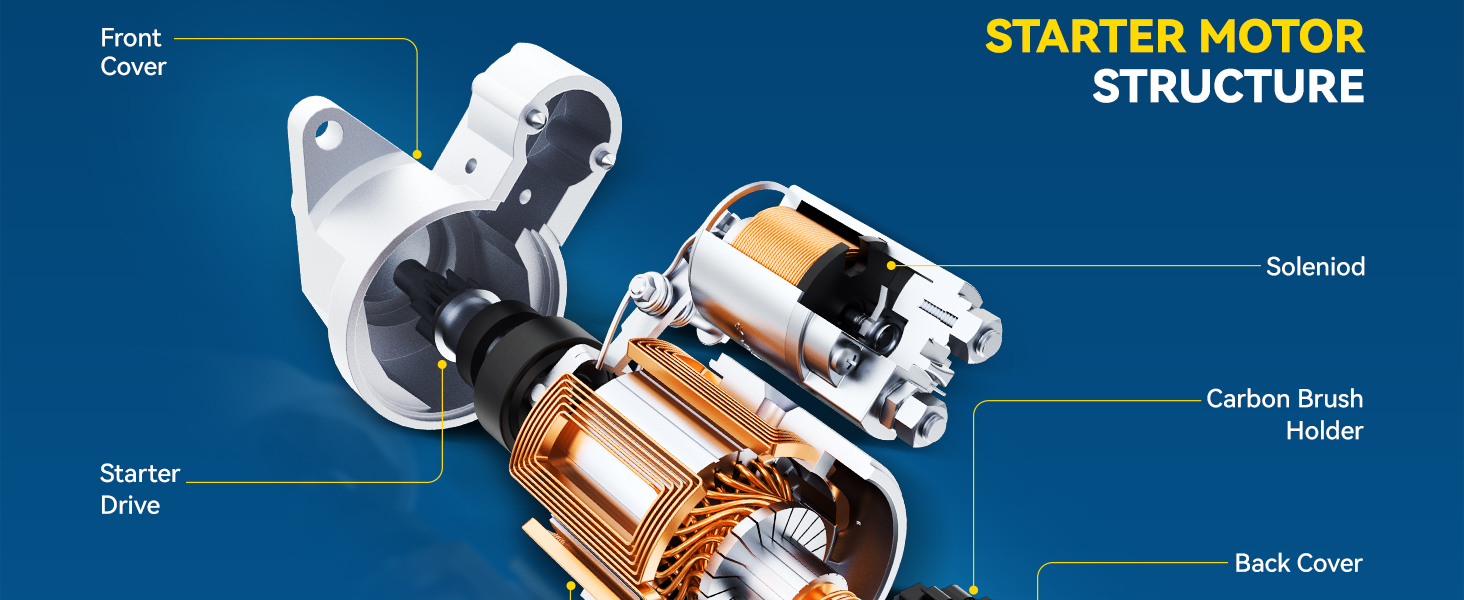

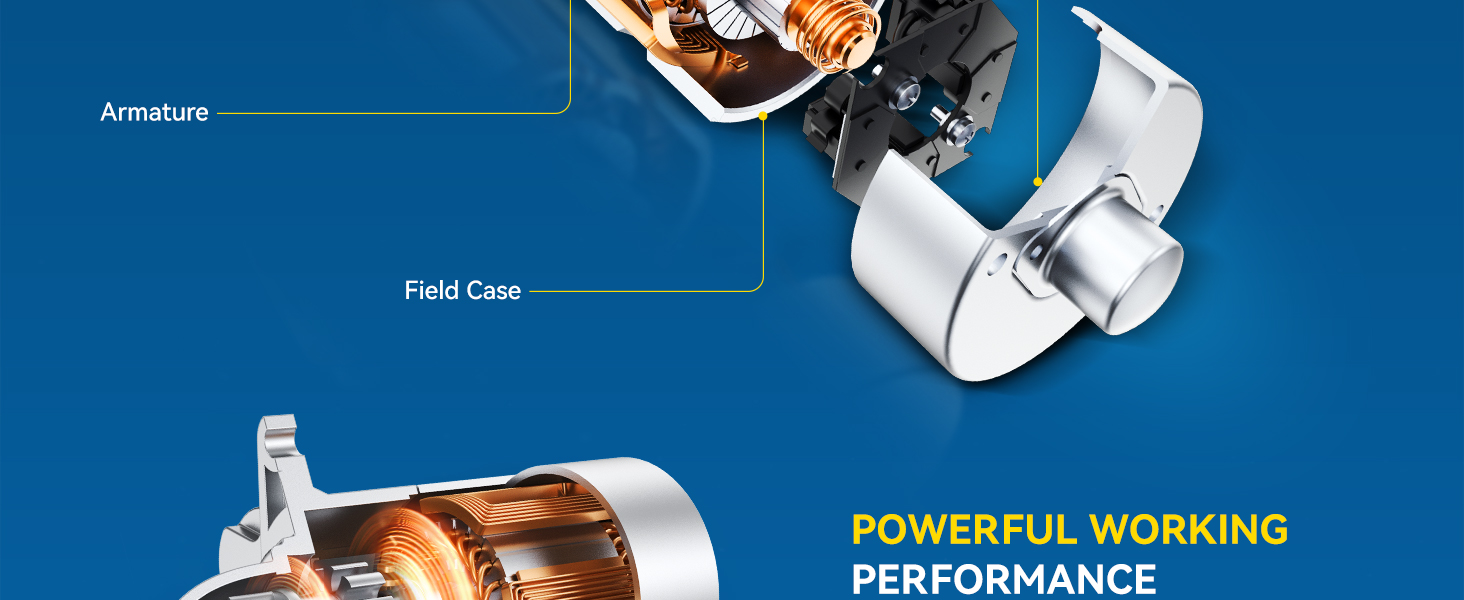

starter motorstarter motor

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

DaveTheMechanic_765

10/04/2025

I had this installed in under 45 minutes thanks to the perfect fit. Shipping was incredibly fast, which I really appreciated.

Emma_DailyCommute_530

10/18/2025

No more clicking sounds when I turn the key in my Jeep. This starter provides a strong, consistent crank every single time.

FAQS

Consider replacement if you notice: slow cranking, loud grinding/clicking noises, or the engine not turning over. Please confirm the specific parameters of the product before purchasing.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.

Yes. Follow your vehicle’s instructions; on most conventional vehicles, disconnect the negative terminal first.
