PAG

Hcc-RS18

R-134a or R1234yf

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5559ACC4460US

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
Hcc-RS18
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf

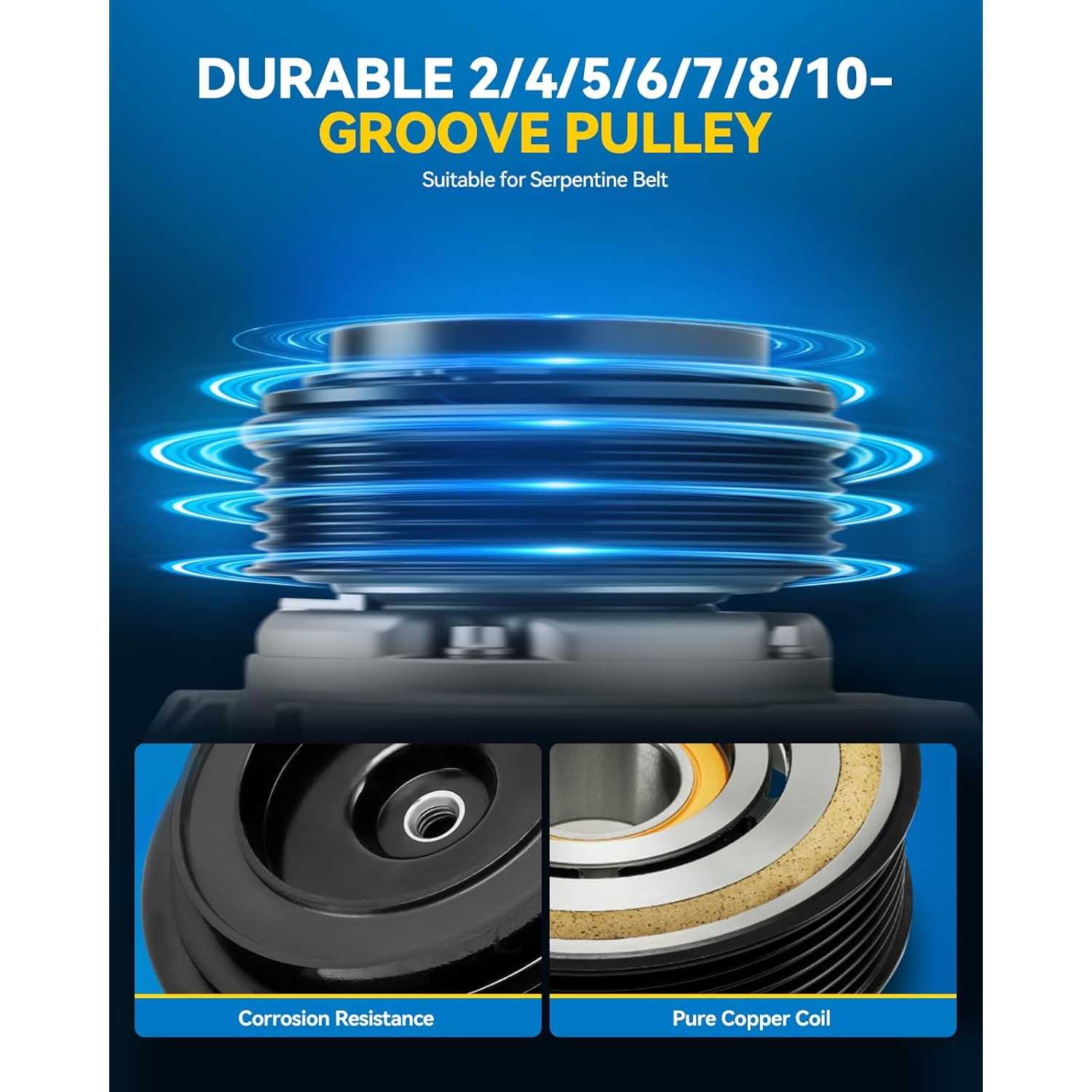

Pulley Groove Count
6
Items Included

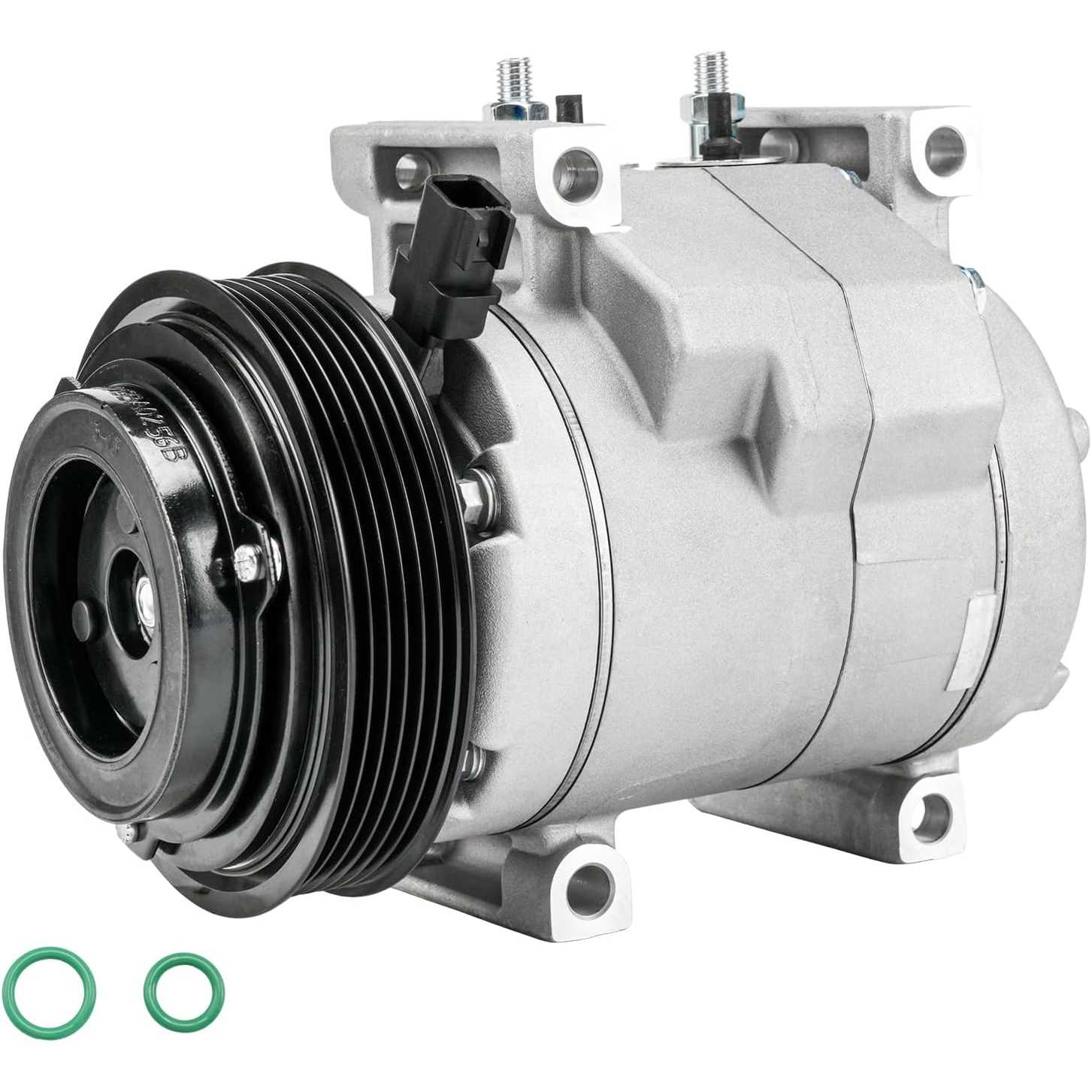

1x A/C Compressors & Clutches - 98311,2x O-Ring,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.7 in/119.38 mm
Mounting Distance
1.53 in/38.86 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
68084274AB,68242651AA,68058043AB,68084274AA,68058043AC,68058043AA,68021637AG,68294506AC,68021637AC,68294506AB,68021637AF,68021637AD,68021637AE,R8021637AD,68294506AA,RL021637AD
Part Number
98311,6512903,0610302,639898,98302,97302,CO20766C,7512903,140405,2022082,5512903,TEM276051,1264X

Highlights

  • #90,904 in Automotive (See Top 100 in Automotive)
  • #80 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:-;②R-efrigerant Type:R-134a or R1234yf;③Pulley Grooves: 6;④Pulley Diameter:4.70 inch ;⑤Compressor type:HCC-RS18;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible with Grand Cherokee 2011-2015 3.6L, 2016 3.0T, Durango 2011-2015 3.6L, Charger 2011-2013 3.6L, 300 2011-2013 3.6L, Challenger 2011-2014 3.6L.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:68021637AC,140405,68294506AB,68021637AF,68021637AD,0610302,68021637AE,68242651AA,R8021637AD,203716T1NEW,68294506AA,RL021637AD,639898,140405NC,98302,2022082,205990,2022082AM,4716054,5512903,A76051,CO30008C,276051,6512903,68084274AB,97302,C2576,CO20766C,68021637AG,7512903,98311,68294506AC,68058043AB,68084274AA,68058043AC,68058043AA,TEM276051,1264X,CO30008F,CO30008Z,AC1205990,T98311,CO30008AN,F500DW9AA08.Verify your vehicle info using the Suncentauto
  • Fully Tested & Easy Installation: The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor.
  • Low Noise & Low Fuel Consumption: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 2013201320132011 - 20122012 - 2013201420112012 - 201420122011 - 20132011 - 20132012 - 2013201220112012 - 2014201520112012 - 20132011201120142015201420152012 - 201420152012 - 201420152011 - 201520162011 - 201520162011 - 2015201220162014 - 2015
MakeChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeep
Model300300300300300ChallengerChallengerChallengerChallengerChargerChargerChargerChargerDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee
TrimBaseCC LuxuryLimitedSRallye RedlineSESXTSXT PlusPursuitSESXTSXT PlusCitadelCitadelCitadelCrewCrewExpressHeatLimitedLimitedRallyeRallyeSXTSXTSpecial ServiceSpecial ServiceLaredoLimitedLimitedOverlandOverlandOverland SummitSummitSummit
Engine3.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.0L V63.6L V63.0L V63.6L V63.6L V63.0L V63.6L V6
Note
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/o Rear AC; w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor
w/ HCC-RS18 Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP AC CompressorAC Compressor

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

DIY_Karen_395

04/18/2026

This compressor totally fixed my AC woes. The air is ice cold now, which is a massive relief. Definitely a worthwhile purchase.

Brad_AutoParts_217

11/16/2025

The quality of this part is impressive, feels very robust. For the price point, it's a great value. My AC is now as cold as an icebox.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Flushing may be needed if the previous compressor failed internally or debris is present. Some components cannot be flushed and may need replacement; follow the vehicle service procedure.

Replacement may be recommended after certain compressor failures or when the system has been open. Requirements vary by vehicle and the cause of failure.
