2007-2017 Jeep Patriot 2.4L/2.0L | 6-Groove Pulley 140A Alternator | 11228N - PHILTOP

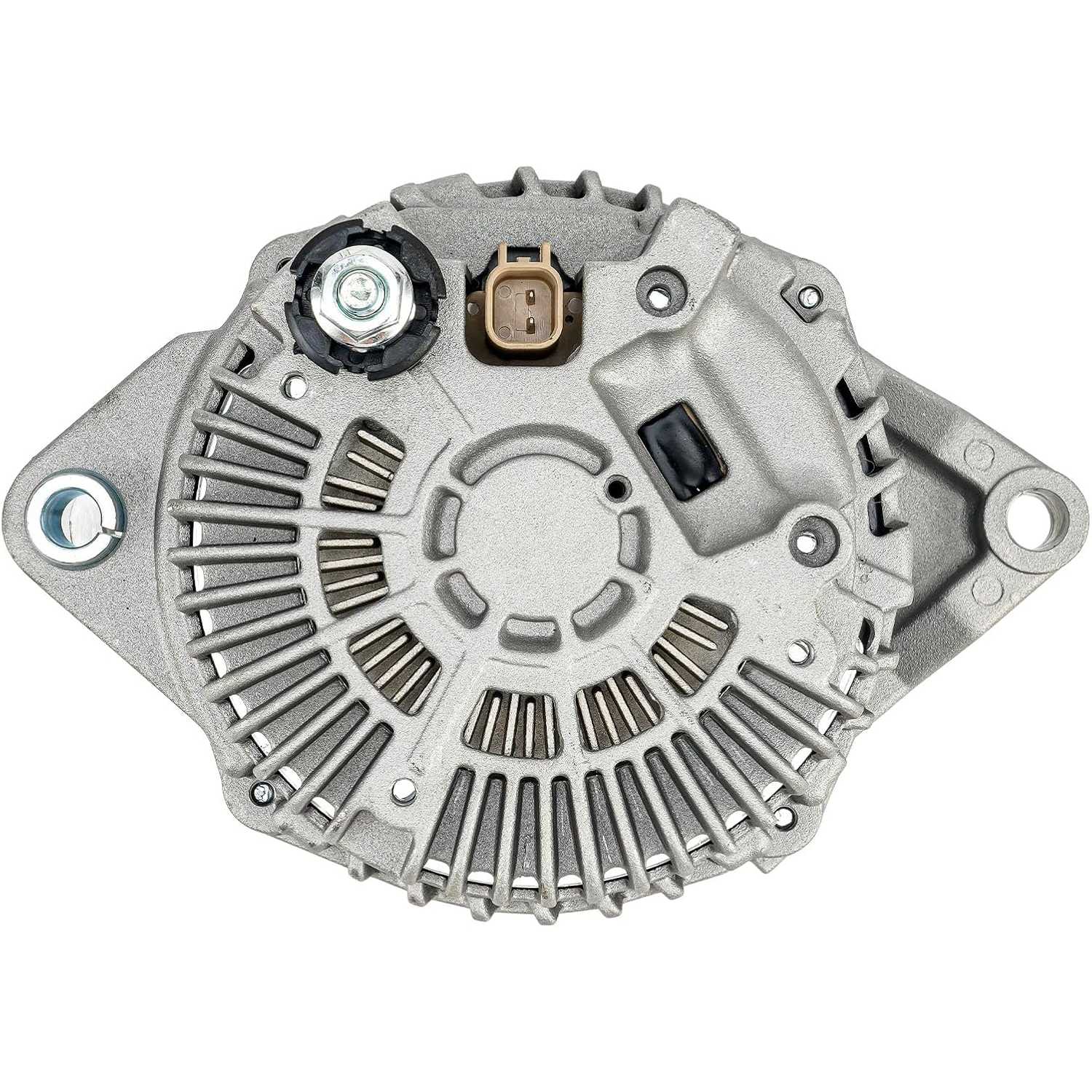

2007-2017 Jeep Patriot 2.4L/2.0L | 6-Groove Pulley 140A Alternator | 11228N - PHILTOP

Pulley Grooves: SD6

Amperage: 140 A

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9208ANR3071US

Specifications

Brand
PHILTOP
Pulley Grooves
SD6
Amperage
140 A
Rotation Direction
CW
Regulator
ER
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11228N 1x Manual
Warranty Period
2-Year
Part Number
11228N

Highlights

  • Compatibility: PHILTOP 11228N New Alternator compatible with 2007-2010 2012-2017 Patriot, 2007-2017 Compass, 2008-2014 Avenger 2.4L, 2011-2014 200 2.4L, 2007-2010 Sebring 2.4L, 2011 Patriot 2.4L, 2011 Patriot 2.0L, 2008-2009 Caliber 2.4T
  • OEM Number: 4801477AA、04801477AA、4801477AG、11228N、11228、90273367
  • Alternator Specification: ①Amperage: 140A; ②Voltage: 12V; ③Pulley Class: SD6; ④Rotation: CW(Clockwise); ⑤Specs for: Mitsubishi ER/IF
  • Professional Alternator: PHILTOP alternator has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Safety & Stability: PHILTOP alternators feature an upgraded aluminum housing with superior heat dissipation and deformation resistance. Equipped with an OEM-compatible voltage regulator and overload protection, they comprehensively safeguard your vehicle's electrical system.

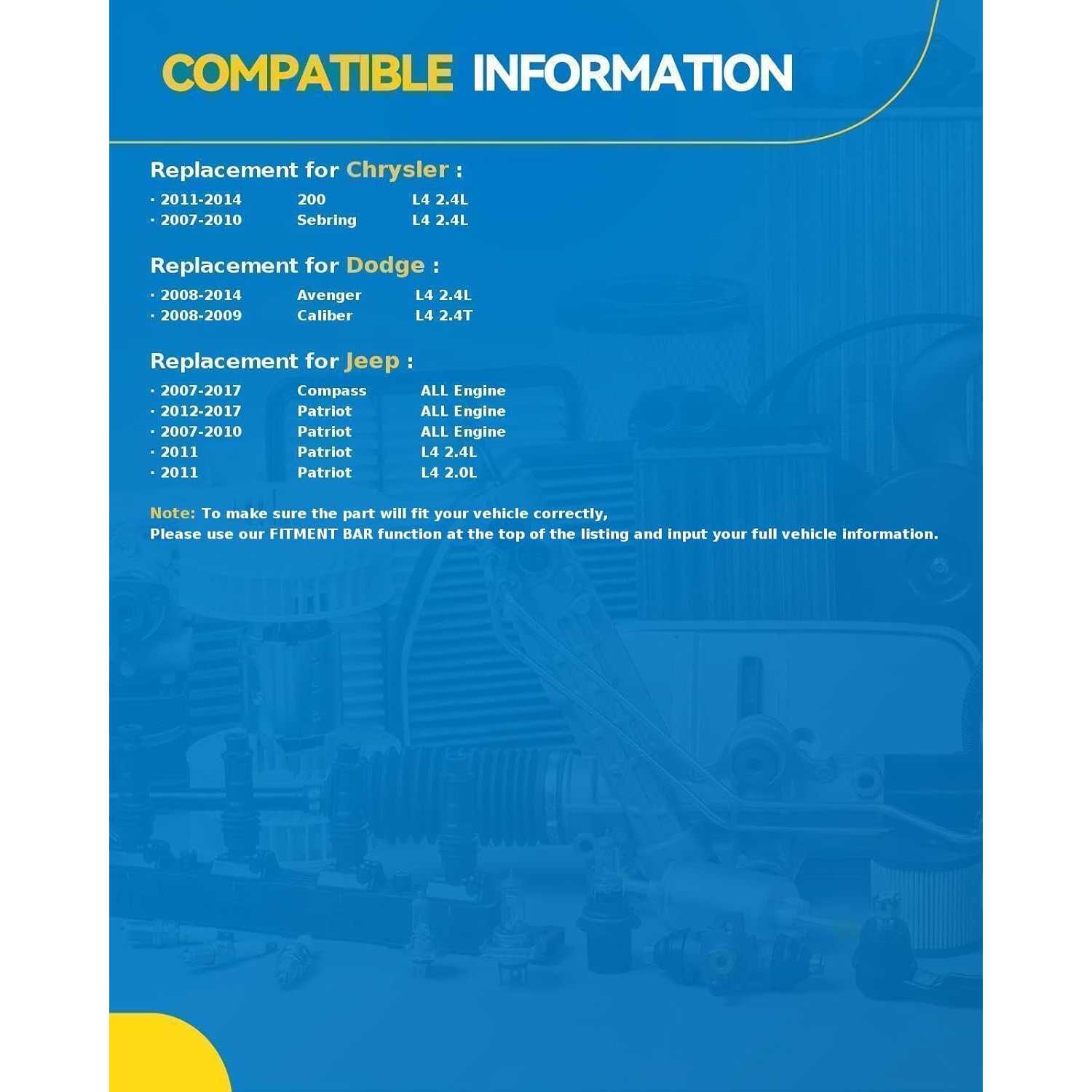

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20142011 - 20142011 - 201420072008 - 20102007 - 20102007 - 20102010 - 2011201120112009 - 20102008 - 20092012 - 20142008 - 20102012 - 20142008 - 2009201620152011201120152011 - 20172011 - 20172007 - 201520172007 - 20102012 - 20172007 - 20102012 - 2017201720162011 - 20172011 - 201720112007 - 20102012 - 20152007 - 20172007 - 2017
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
Model200200200SebringSebringSebringSebringAvengerAvengerAvengerAvengerAvengerAvengerAvengerAvengerCaliberCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassPatriotPatriotPatriotPatriotPatriotPatriotPatriotPatriot
TrimLXLimitedTouringBaseLXLimitedTouringExpressLuxMainstreetR/TSESESXTSXTSRT-475th AnniversaryAltitudeBaseBaseHigh AltitudeLatitudeLatitudeLimitedLimitedSportSportSportSportTrailhawk75th AnniversaryLatitudeLatitudeLatitude XLimitedLimitedSportSport
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.0L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L4
Note--------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

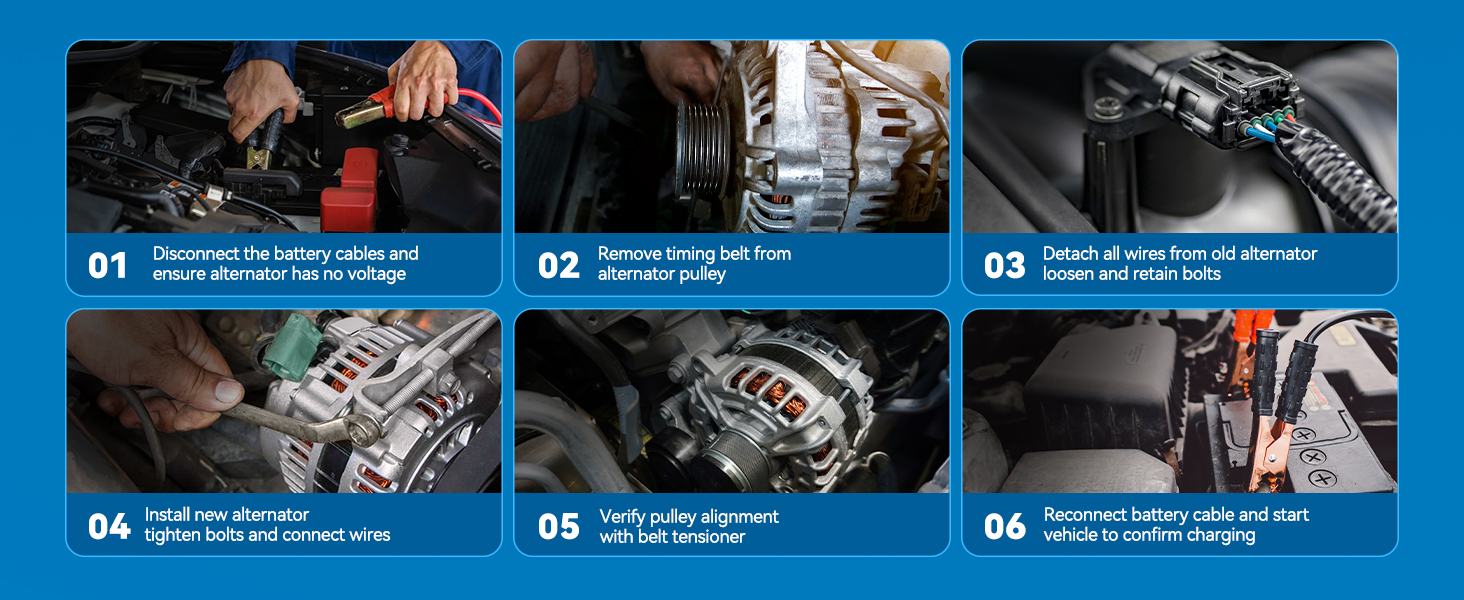

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

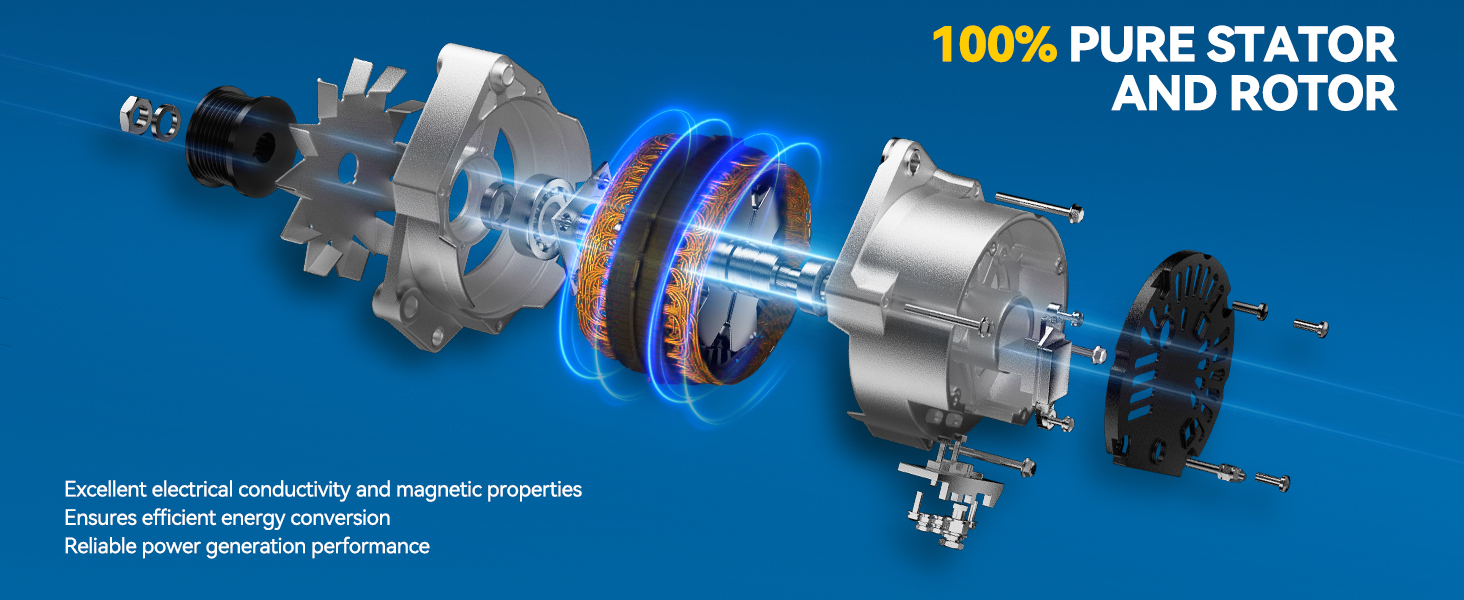

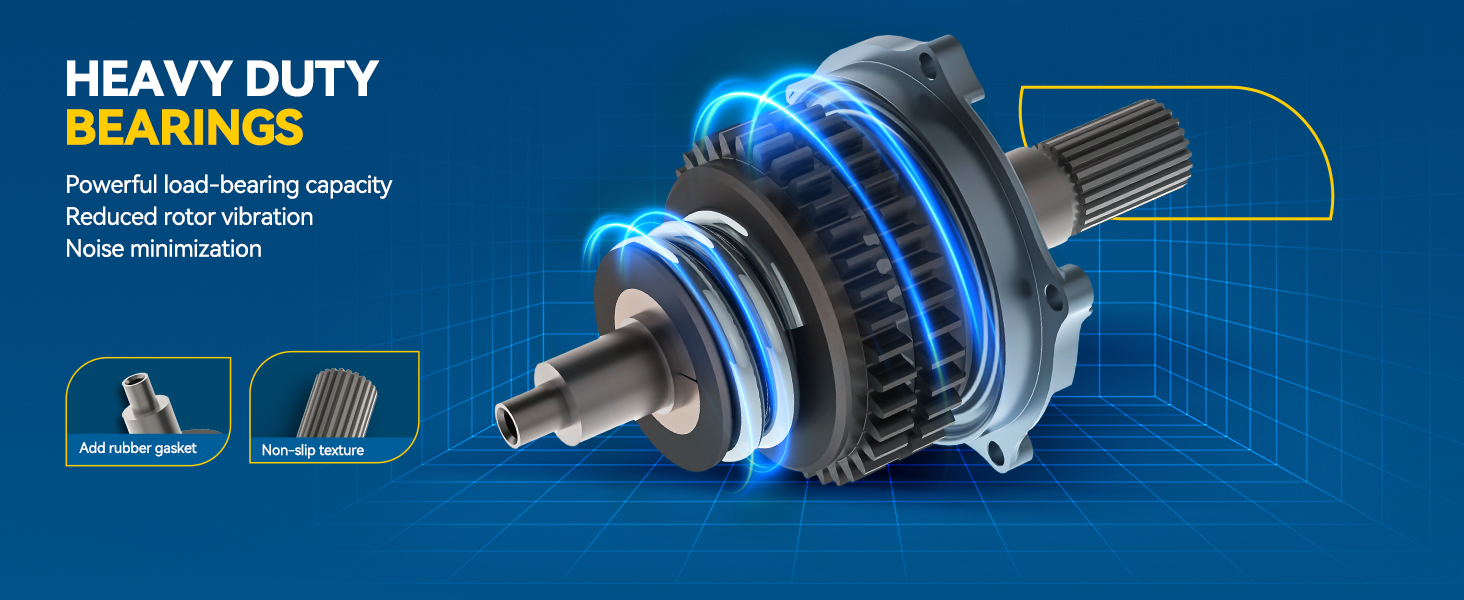

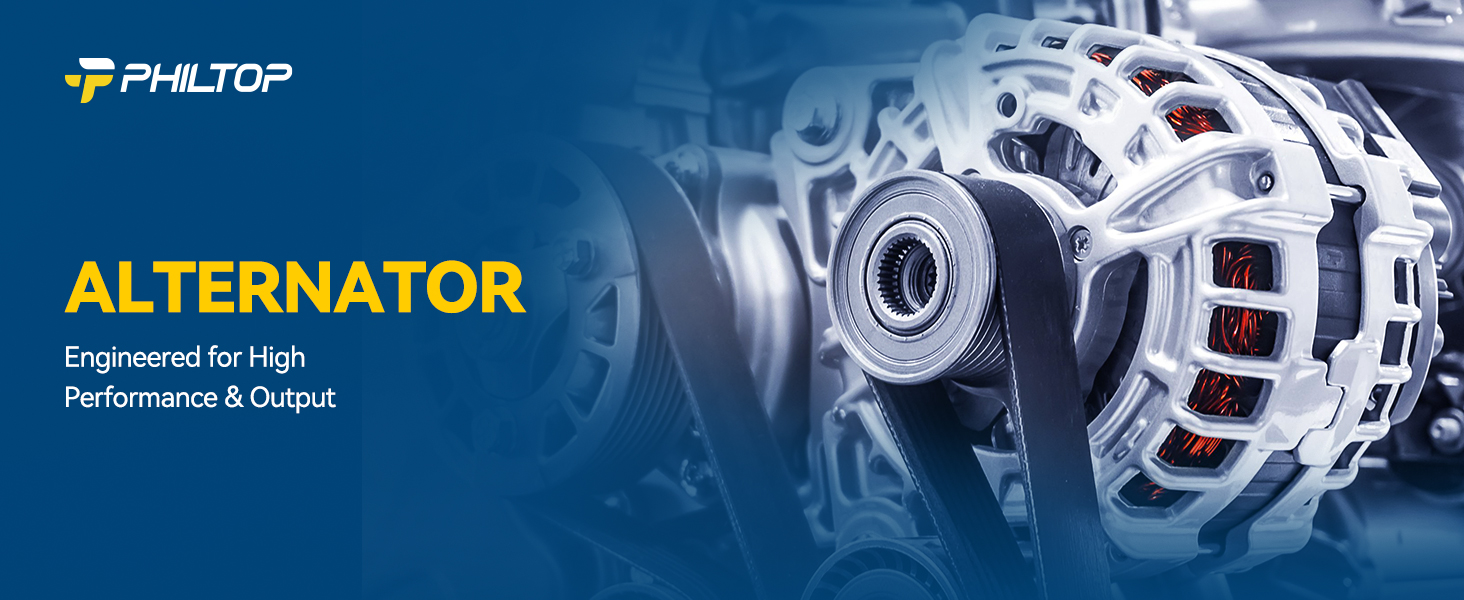

Alternator Replacement forAlternator Replacement for

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Nancy_FirstCar_923

10/18/2025

Great value for a brand new alternator. The build quality looks excellent and it's been working perfectly.

DaveTheMechanic_15

03/02/2026

Really impressed with the quality for this price point. It's a solid part that performs exactly as advertised.

FAQS

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.

Our alternator is proven in extreme temperatures. Designed for powerful, efficient performance, its premium components ensure stable voltage, quiet operation, and a long service life.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
