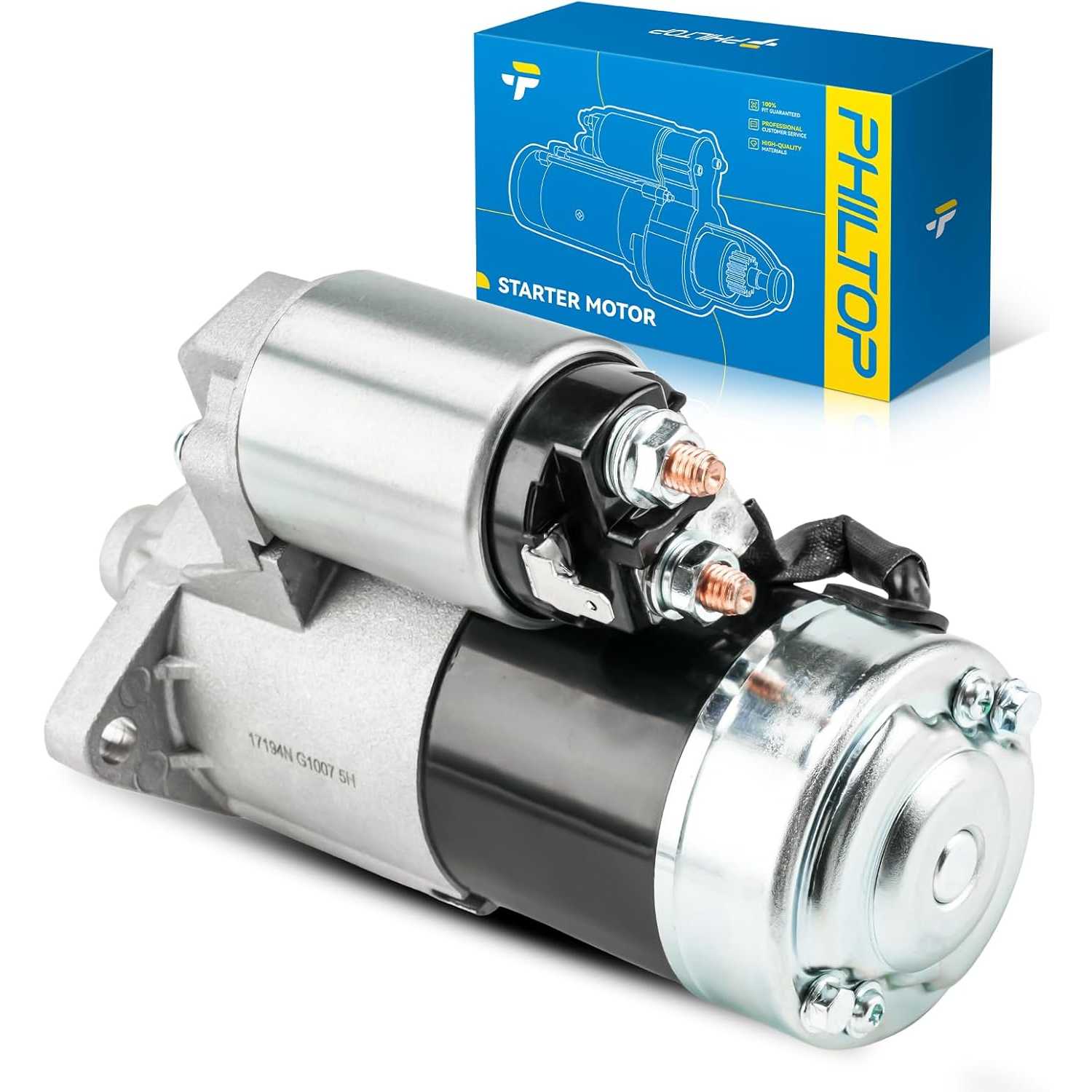

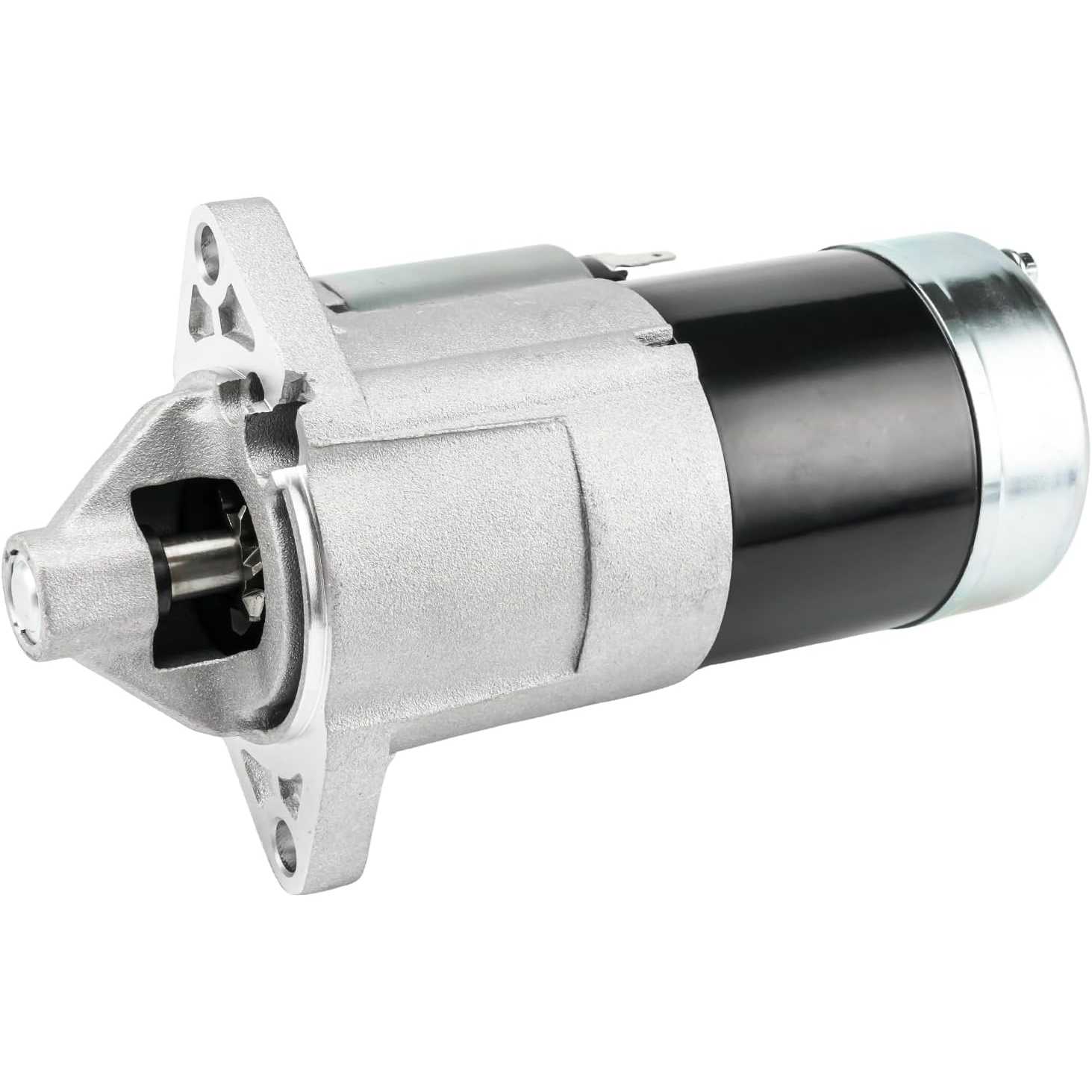

1989-1997 Geo Tracker 1.6L L4 | 1.4KW 8-Tooth Starter | 17194N - PHILTOP

1989-1997 Geo Tracker 1.6L L4 | 1.4KW 8-Tooth Starter | 17194N - PHILTOP

Power: 1.4 kW

Pinion Teeth: 8

Quick Starting Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8134STM009LUS

Specifications

Brand
PHILTOP
Power
1.4 kW
Pinion Teeth
8
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17194N 1x Manual
Warranty Period
2-Year
Part Number
17194N

Highlights

  • Compatibility: 1989-1997 Tracker, 1990-1998 Sidekick, 1999 Tracker 2.0L, 1998 Tracker, 1999-2000 Vitara 2.0L, 1996-1998 X-90, 1989 Sidekick 1.6L, 1999-2001 Vitara 1.6L
  • OEM Number: 17194、96065247、3110060A22、3110060A13、96065611、3110060A12、3110060AC4、3110060A21、17194N
  • Starter Specification: ①Power Rating: 1.4KW; ②Voltage: 12V; ③Number of Teeth: 8 Teeth; ④Rotation: CW(Clockwise); ⑤Specs for: Mitsubishi PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

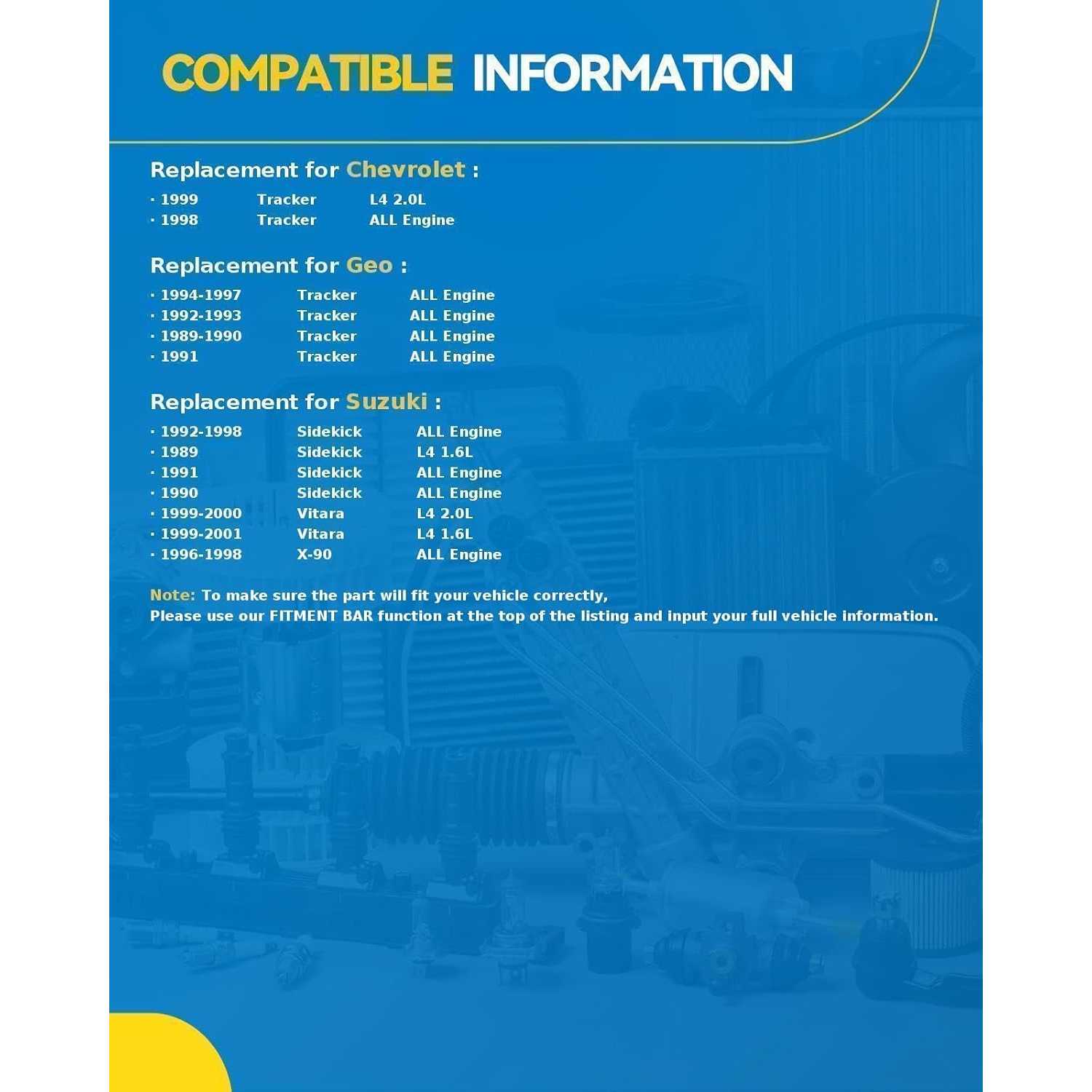

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19981999199819991989 - 19971989 - 199719911989 - 19951996 - 19981990 - 19981997 - 19981989 - 19981996 - 19982000 - 200120002000 - 200120001999 - 20011999 - 2000199919991999 - 20011999 - 2000199919991996 - 19981998
MakeChevroletChevroletChevroletChevroletGeoGeoSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzukiSuzuki
ModelTrackerTrackerTrackerTrackerTrackerTrackerSidekickSidekickSidekickSidekickSidekickSidekickSidekickVitaraVitaraVitaraVitaraVitaraVitaraVitaraVitaraVitaraVitaraVitaraVitaraX-90X-90
TrimBaseBaseLSiLSiBaseLSiJLJLXJLX SportJSJS SportJXJX SportJLSJLSJLXJLXJSJSJS PlusJS PlusJXJXJX PlusJX PlusBaseSE
Engine1.6L L42.0L L41.6L L42.0L L41.6L L41.6L L41.6L L41.6L L41.8L L41.6L L41.8L L41.6L L41.8L L41.6L L42.0L L41.6L L42.0L L41.6L L42.0L L41.6L L42.0L L41.6L L42.0L L41.6L L42.0L L41.6L L41.6L L4
Note---------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Brad_AutoParts_403

01/05/2026

The difference between my old worn-out starter and this new one is night and day. My Geo starts up on the first click every single time now. I'm really happy with how it performs.

Emma_DailyCommute_795

10/17/2025

My old Sidekick was struggling to turn over, but this new PHILTOP starter fixed it instantly. It cranks much faster and smoother than the original one ever did. Highly recommend if you're having starting issues.

FAQS

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.

Not necessarily. Keep your existing battery if it tests good and holds a charge.

The engine should crank smoothly without grinding. If the starter keeps running after the engine starts, switch off immediately.
