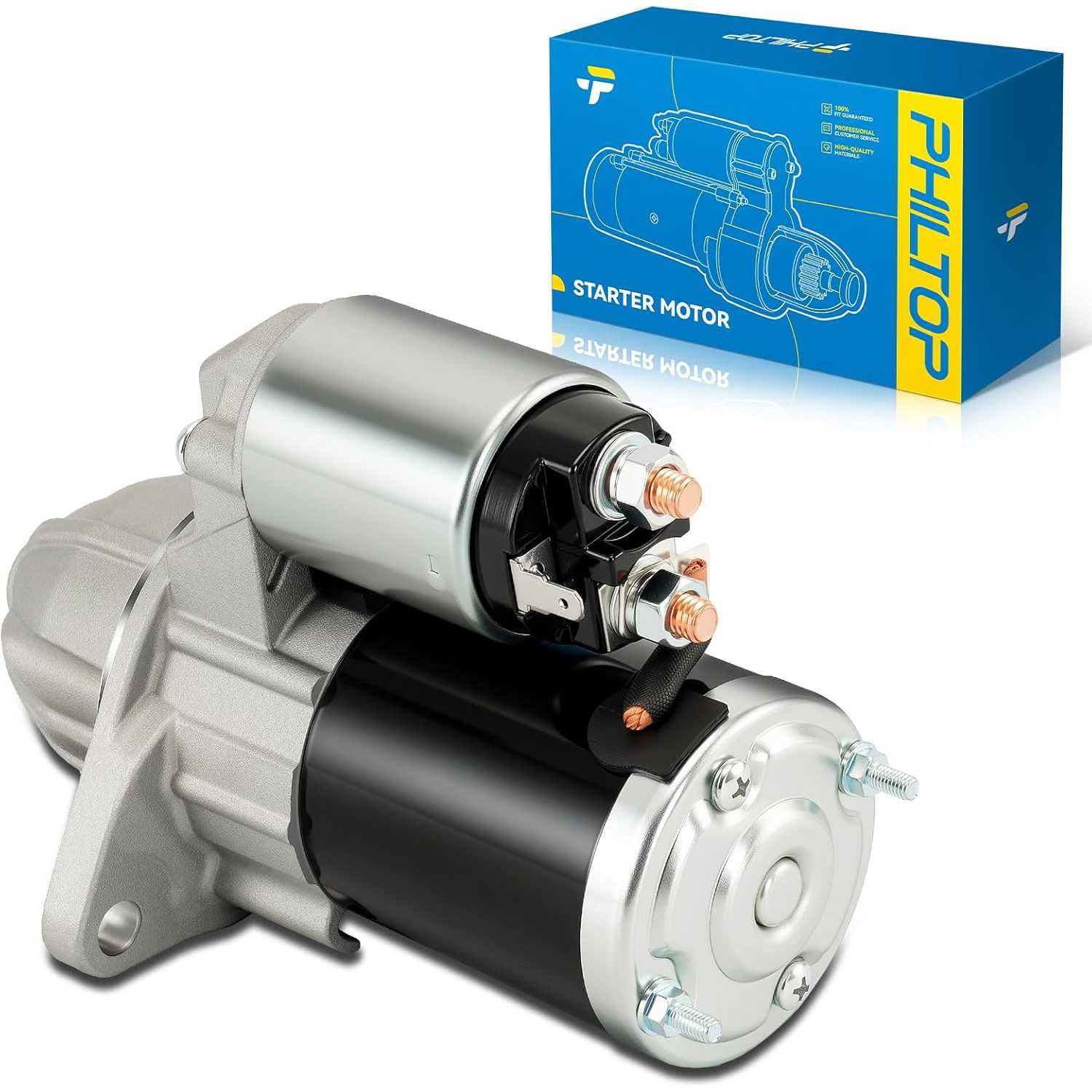

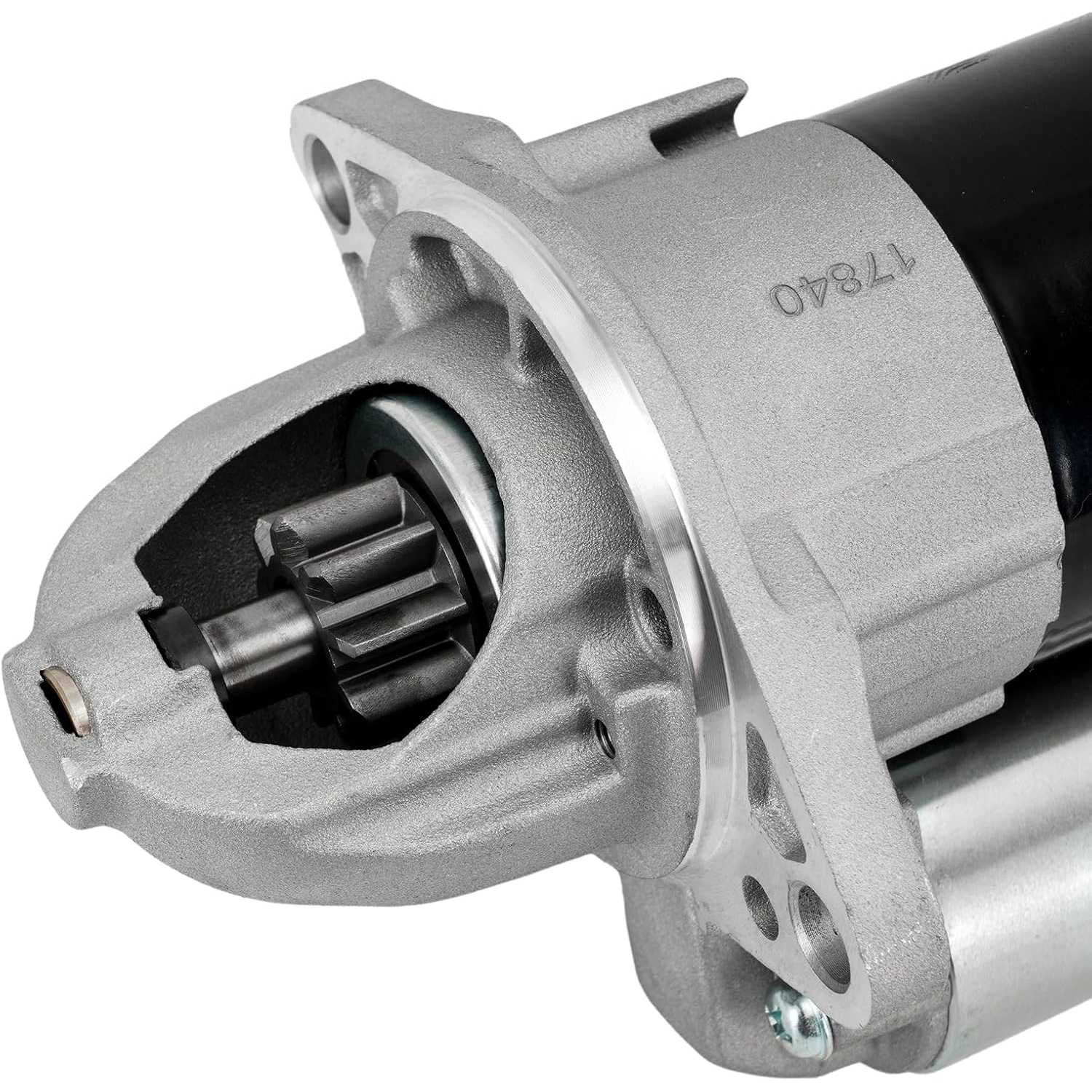

2005-2007 Subaru Outback 2.5L H4 | 1.4KW 9-Tooth Starter | 17840N - PHILTOP

2005-2007 Subaru Outback 2.5L H4 | 1.4KW 9-Tooth Starter | 17840N - PHILTOP

Power: 1.4 kW

Pinion Teeth: 9

Quick Starting Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9659STR295QUS

Specifications

Brand
PHILTOP
Power
1.4 kW
Pinion Teeth
9
Voltage
12 V
Rotation Direction
CCW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17840N 1x Manual
Warranty Period
2-Year
Part Number
17840N

Highlights

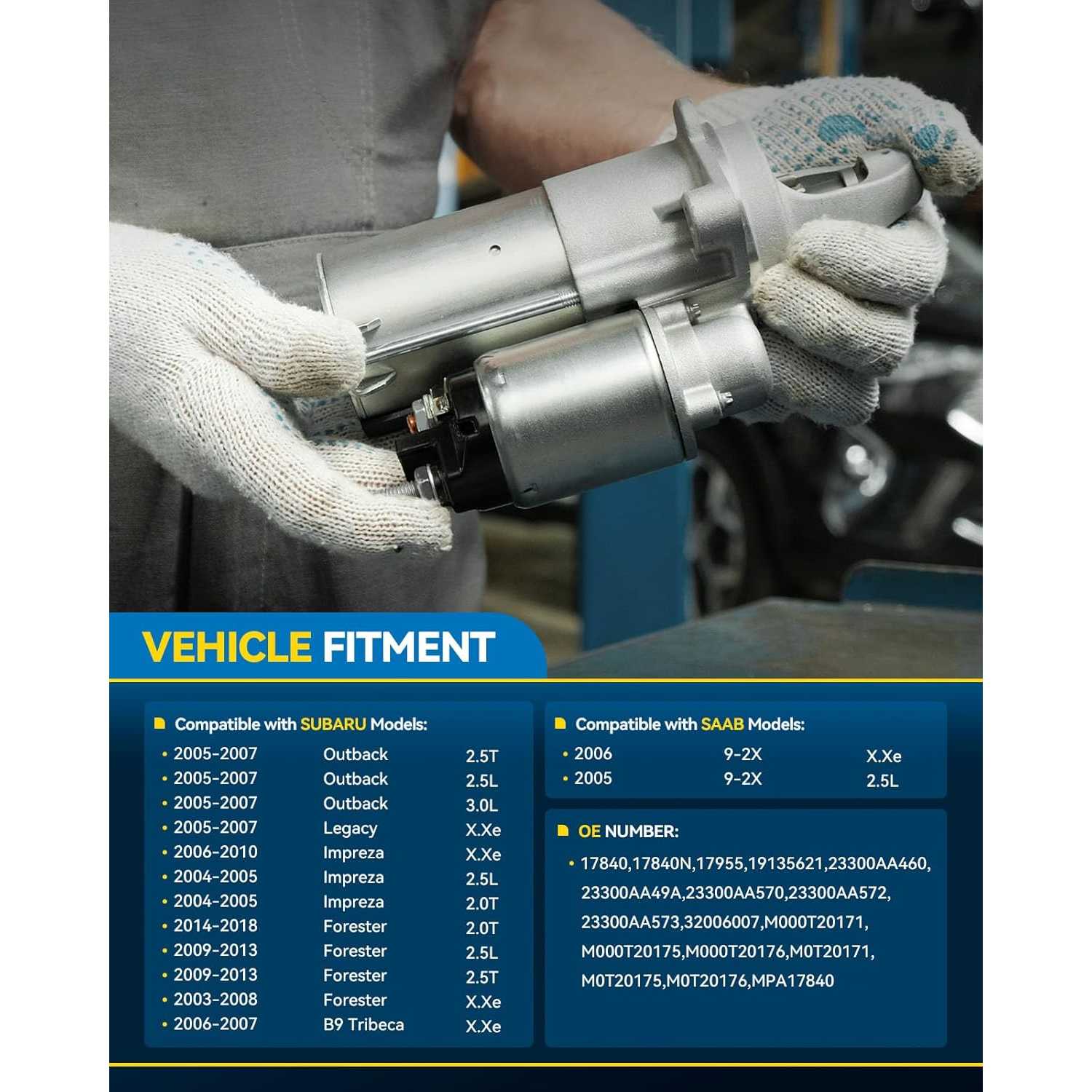

  • Compatibility: 2009-2013 Forester 2.5L, 2003-2008 Forester, 2006-2010 Impreza, 2005-2007 Outback 2.5T, 2005-2007 Outback 2.5L, 2014-2018 Forester 2.0T, 2004-2005 2011 Impreza 2.5L, 2005-2007 Legacy, 2006-2007 B9 Tribeca, 2005-2007 Outback 3.0L, 2004-2005 Impreza 2.0T, 2009-2013 Forester 2.5T, 2005 9-2X 2.5L, 2006 9-2X
  • OEM Number: 17840N、M000T20171、MPA17840、19135621、M000T20176、M0T20176、M000T20175、23300AA573、23300AA570、23300AA572、23300AA570、23300AA460、23300AA460、32006007、32006007、17840、17840、23300AA573、M0T20175、M0T20171、17840、17840、23300AA49A、23300AA49A、17955、17955
  • Starter Specification: ①Power Rating: 1.4KW; ②Voltage: 12V; ③Number of Teeth: 9 Teeth; ④Rotation: CCW(Counterclockwise); ⑤Specs for: Mitsubishi PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.

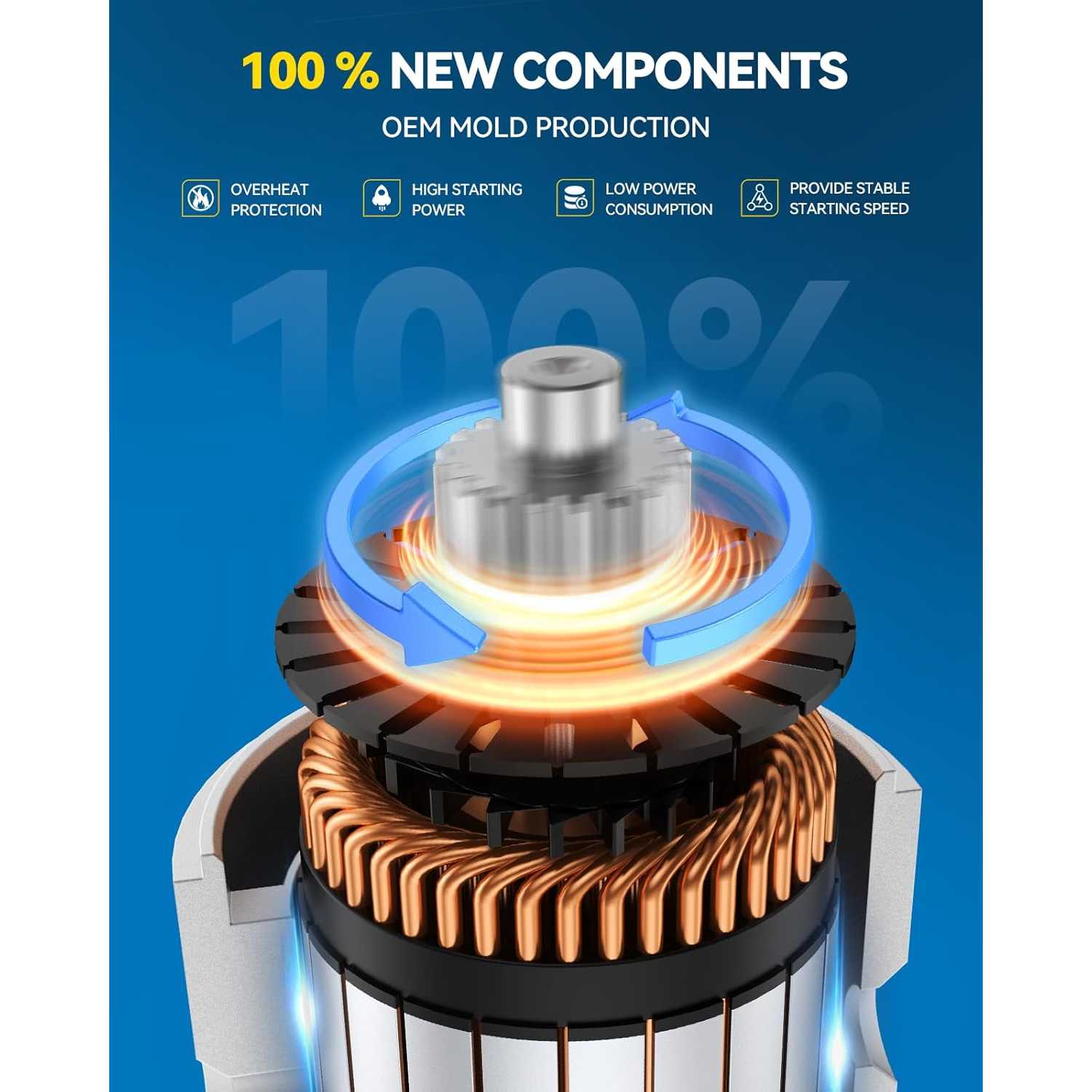

  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006200620052006 - 20072006 - 20072014 - 20182014 - 2018200820082003 - 20132006 - 20082009 - 20132009 - 20132011 - 20132003 - 200520052004 - 200520092006 - 201020052010 - 20132011 - 20132009 - 20102006 - 20112010 - 201120042005 - 20112004 - 200520042004 - 20052006 - 20082006 - 20072006 - 2007200720072017 - 20192005 - 200620052007200520052006 - 200720072006 - 20072017 - 20192017 - 201920052005 - 20062005 - 2007200620052005 - 20062005 - 20072005
MakeSaabSaabSaabSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaru
Model9-2X9-2X9-2XB9 TribecaB9 TribecaForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterForesterImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaImprezaLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyLegacyOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutbackOutback
Trim2.5iAeroLinearBaseLimited2.0XT Premium2.0XT TouringSports 2.5 XSports 2.5 XTXX L.L. Bean EditionX LimitedX PremiumX TouringXSXS L.L. Bean EditionXTXTXT LimitedXT PremiumXT PremiumXT Touring2.5 GT2.5i2.5i PremiumOutbackOutback SportRSTSWRXWRXWRX Limited2.5i2.5i Limited2.5i Special Edition3.6R LimitedGTGT LimitedGT LimitedLimitedi2.5i2.5i Basic2.5i Limited3.6R Limited3.6R TouringLimitedRR L.L. Bean EditionR VDC LimitedVDC LimitedXTXT Limitedi
Engine2.5L H42.5L H42.5L H43.0L H63.0L H62.0L H42.0L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.0L H42.5L H42.5L H42.5L H42.5L H42.5L H43.6L H62.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H43.6L H63.6L H62.5L H43.0L H63.0L H63.0L H63.0L H62.5L H42.5L H42.5L H4
Note-------
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
To 10/07/2012
--------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

AutoMom_2019_887

12/23/2025

This was a direct fit for my Outback and the whole process took less than an hour. Shipping was lightning fast and the packaging was very secure.

RickFixIt_731

03/04/2026

My old starter was dragging for months and finally died, so I swapped it with this one. The car cranks over so much faster now, it is like night and day compared to the OEM one.

FAQS

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.

Check the part number, mounting points, and electrical connections. Confirm any differences before installation.

Not necessarily. Keep your existing battery if it tests good and holds a charge.
