2012-2020 Polaris Ranger EV 4x156mm 131mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2012-2020 Polaris Ranger EV 4x156mm 131mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
86ISWSA4667US

Specifications

Brand
PHILTOP
Bolt Pattern
4x156mm
Wheel Bolt Pattern
4x156mm
Vehicle Bolt Pattern
4x156mm
Thread Size
M12x1.5
Center Bore
131
Hub-Centric Lip
No
Thickness
1.5inch
Outside Diameter
192
Inside Diameter
5.16 in/131 mm
Lug Patterns
4
Type
Wheel Spacer
Items Included
4x Lug-Centric Wheel Spacers
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 4x4" ; | Thickness: 1 inch(25mm) ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 59mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 4x4 Wheel Spacer set replacement for 2003-2013 Trail Boss 330; 1990-2006 Trail Blazer 250; 1999-2002 Trail Boss 325; 2008-2013 Trail Blazer 330; 2000-2002 Xpedition 425; Xpedition 325; 1991-1999 Trail Boss 250; 1996-1999 Xpress 300; 2001 Worker 500; 1994-1999 Sport 400L; 1999 Worker 335; Worker 500; 1996-1997 Xpress 400L; 2003 Trail Blazer 400; 1987 Cyclone 250X; 1985-1986 Scrambler 250

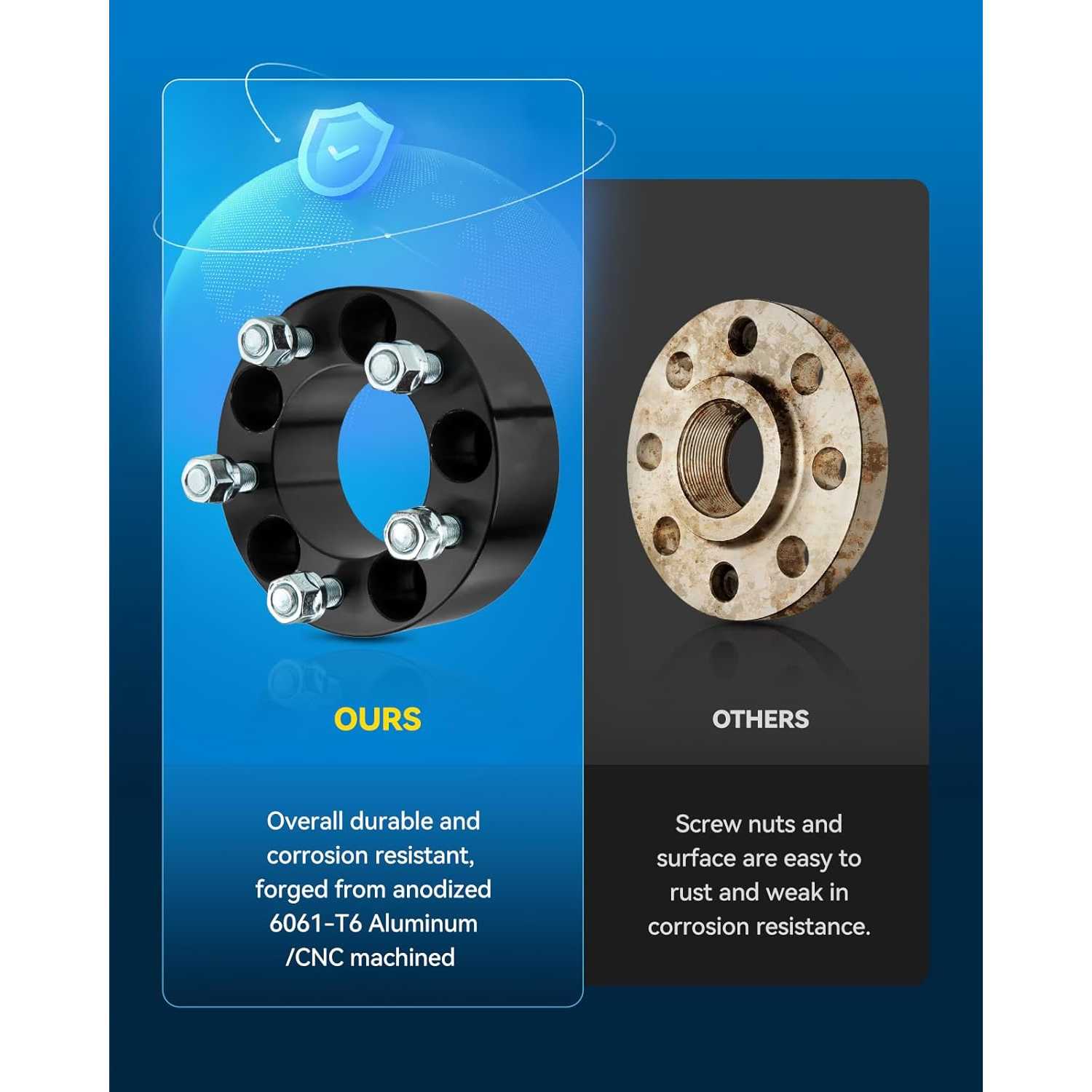

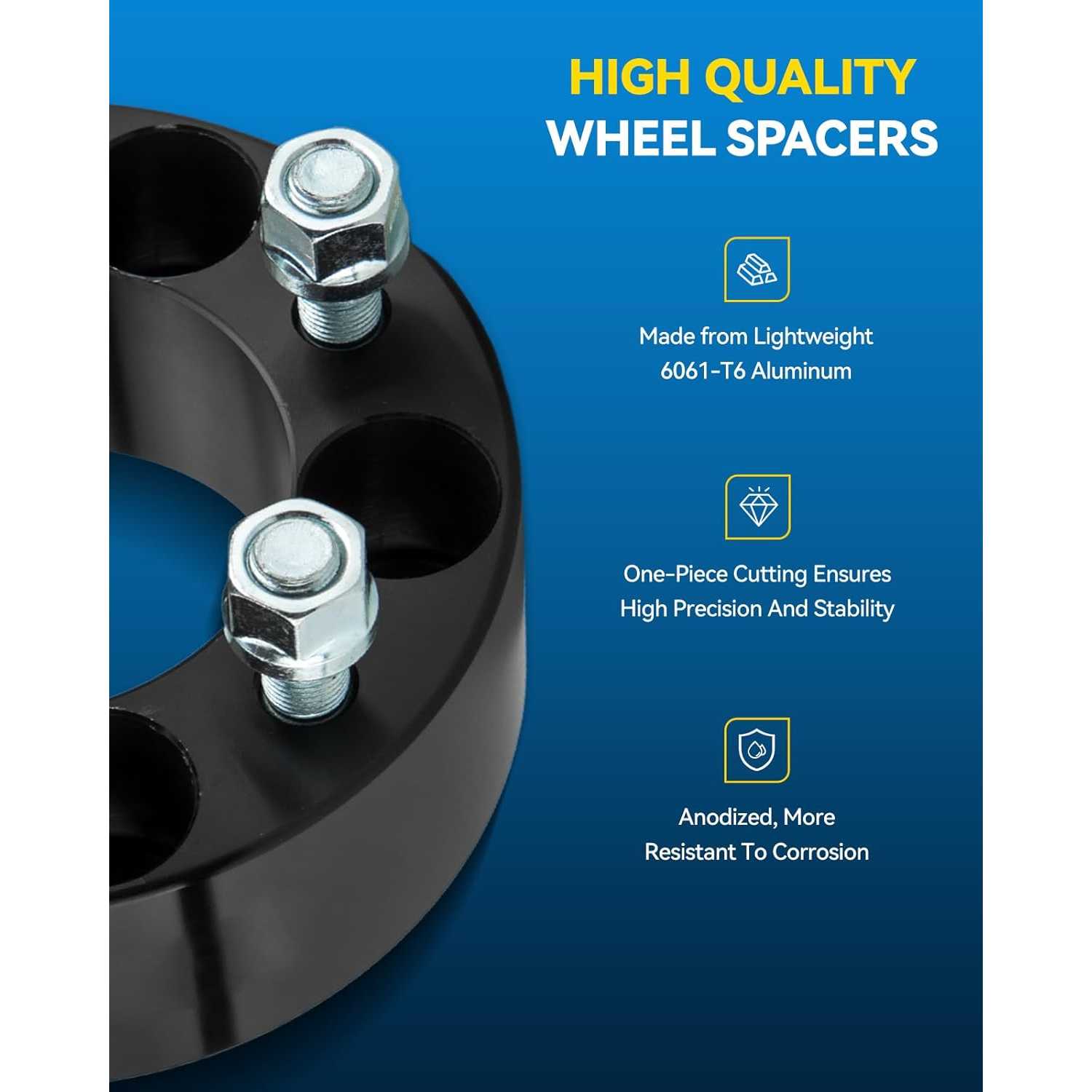

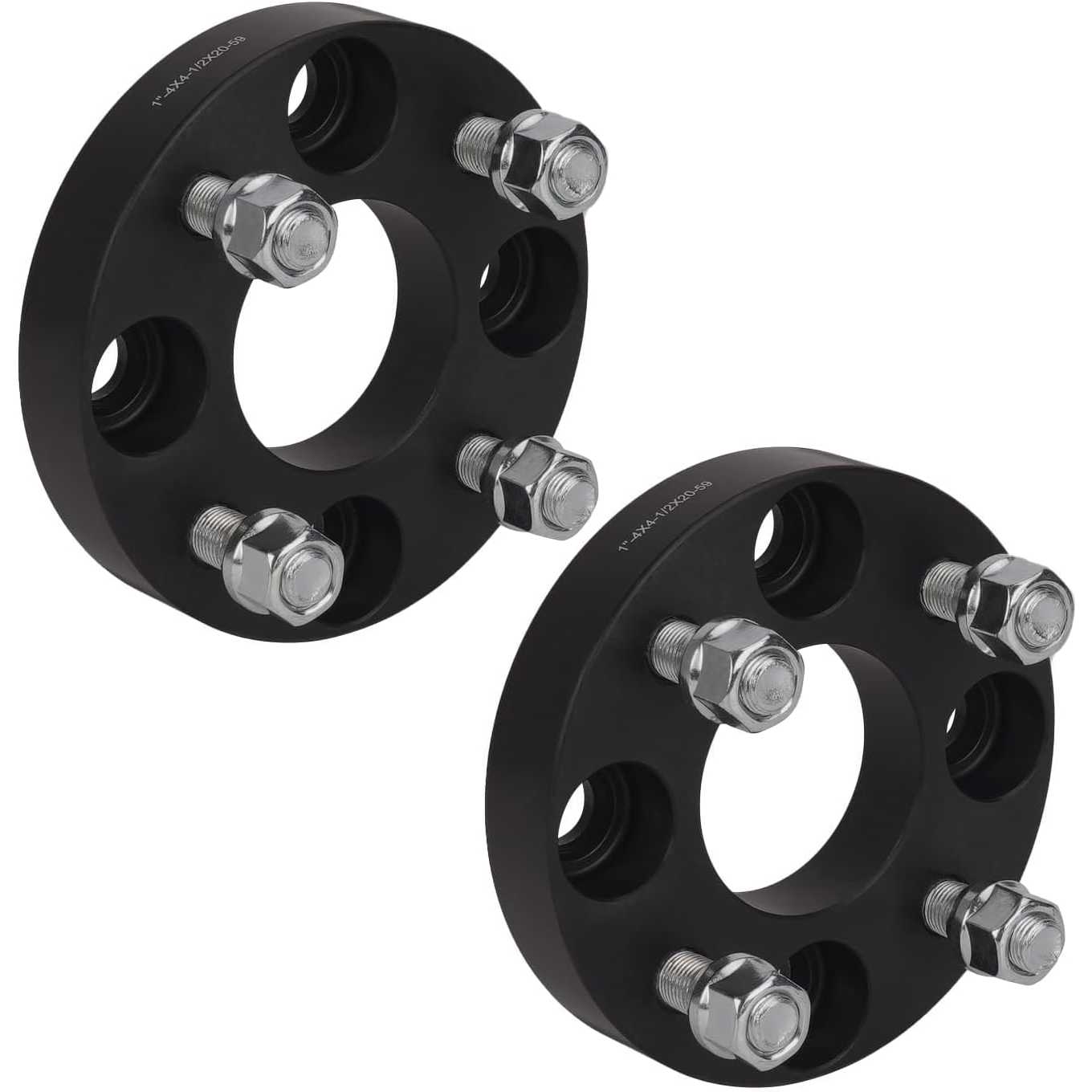

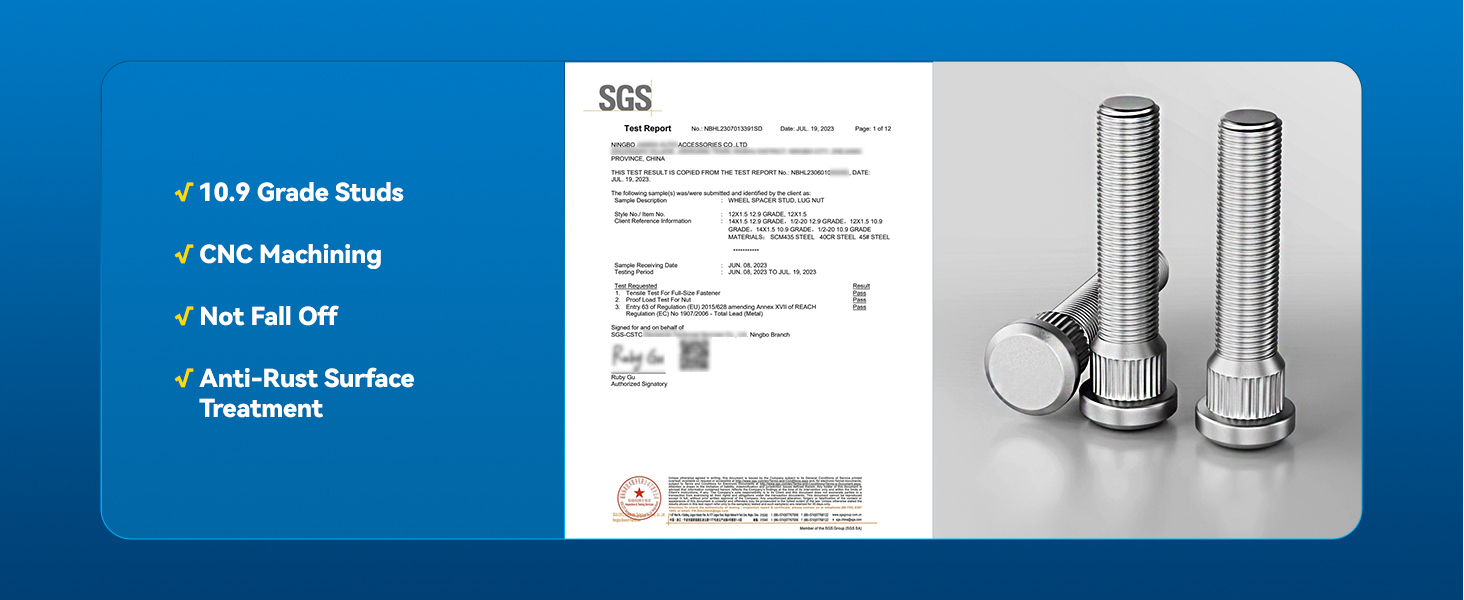

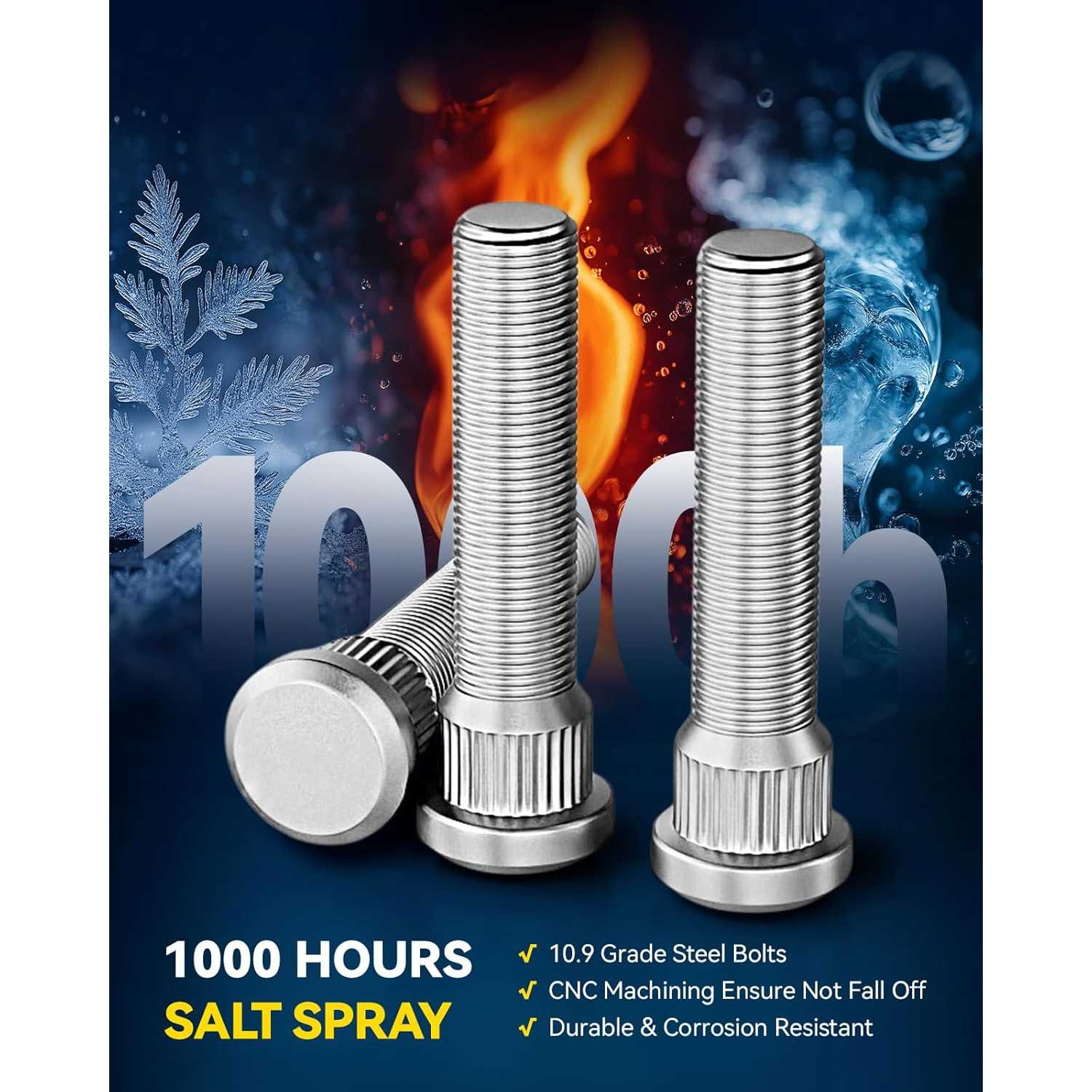

  • [High Quality] ---4x4 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 4x4 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20172018 - 201920172014 - 2020201720202020202020162015 - 20162012 - 20202016 - 2018
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelACE 570ACE 570 EPSACE 570 SPRZR 570RZR 570 EPSRZR 570 PremiumRanger 500Ranger 570Ranger 6x6 800Ranger ETXRanger EVRanger EV Li-Ion
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine------------
Note------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

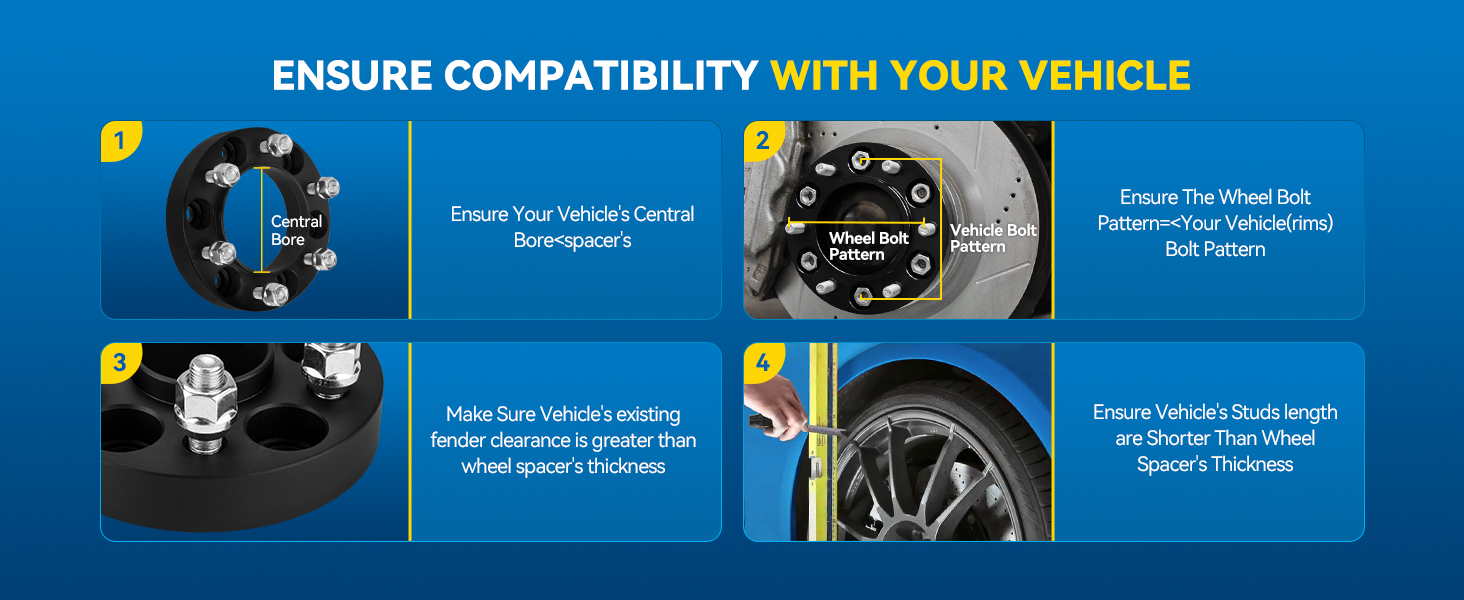

Checks Before Installation

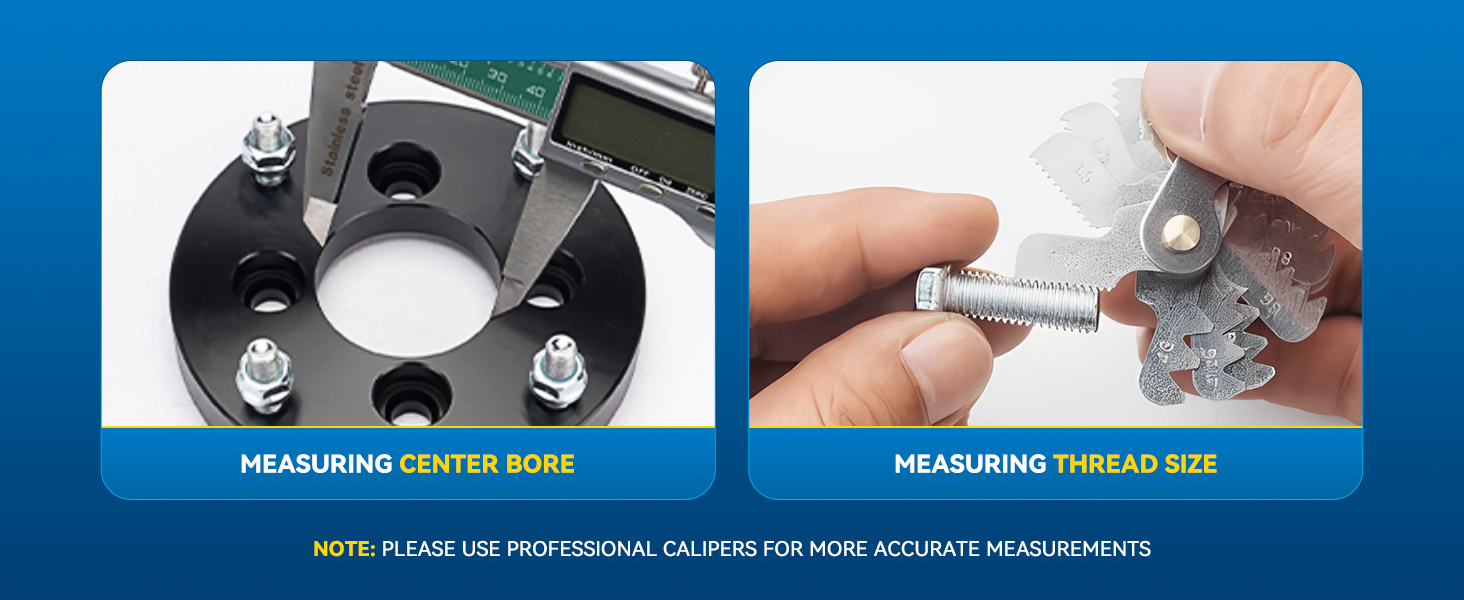

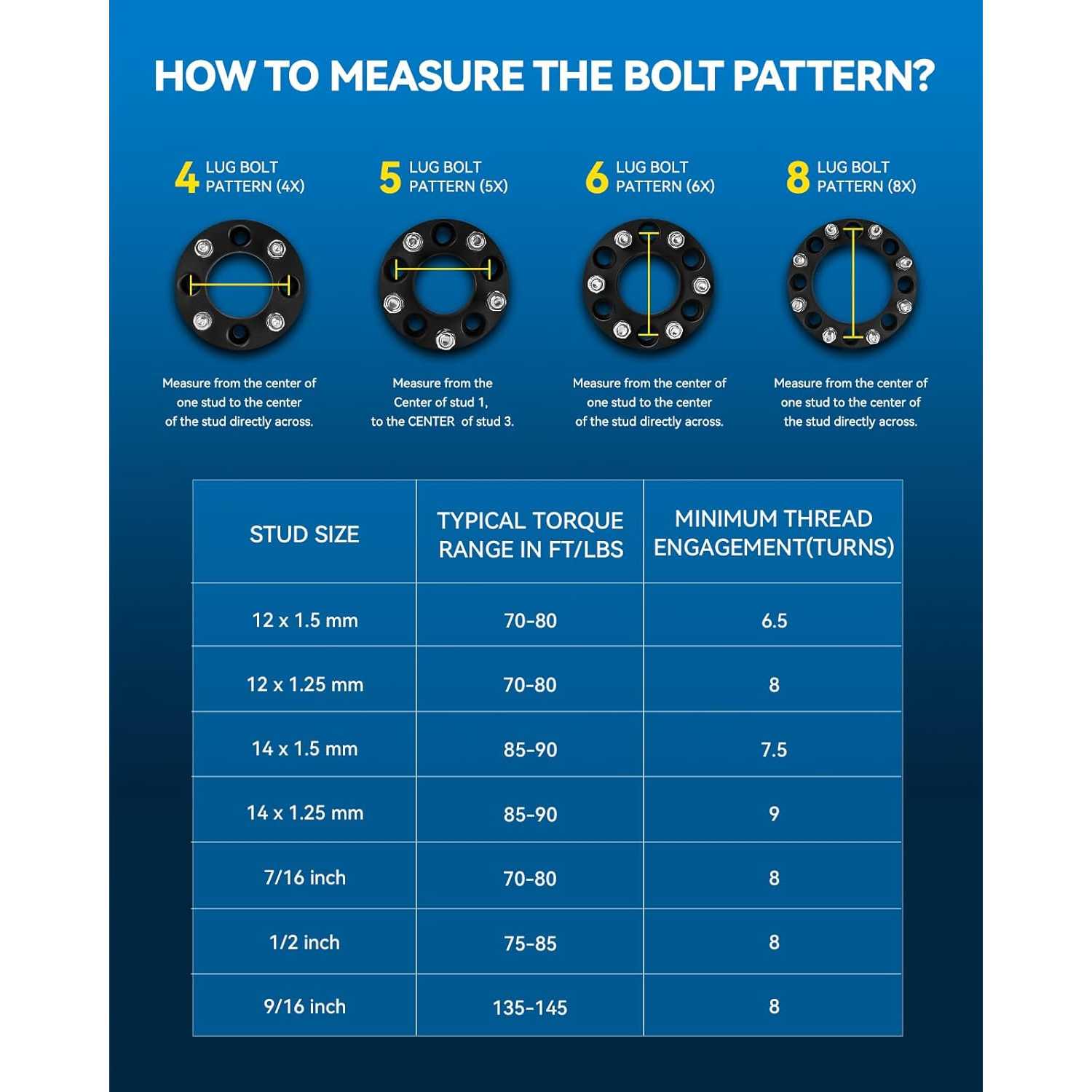

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.

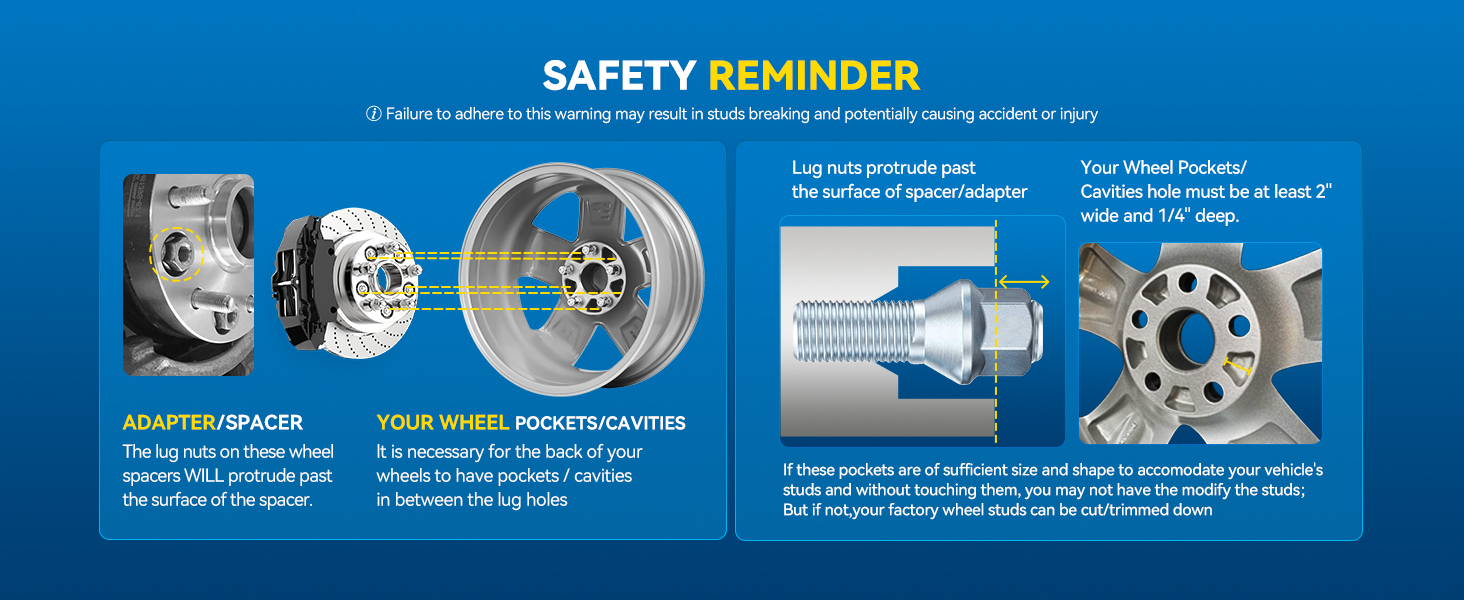

  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

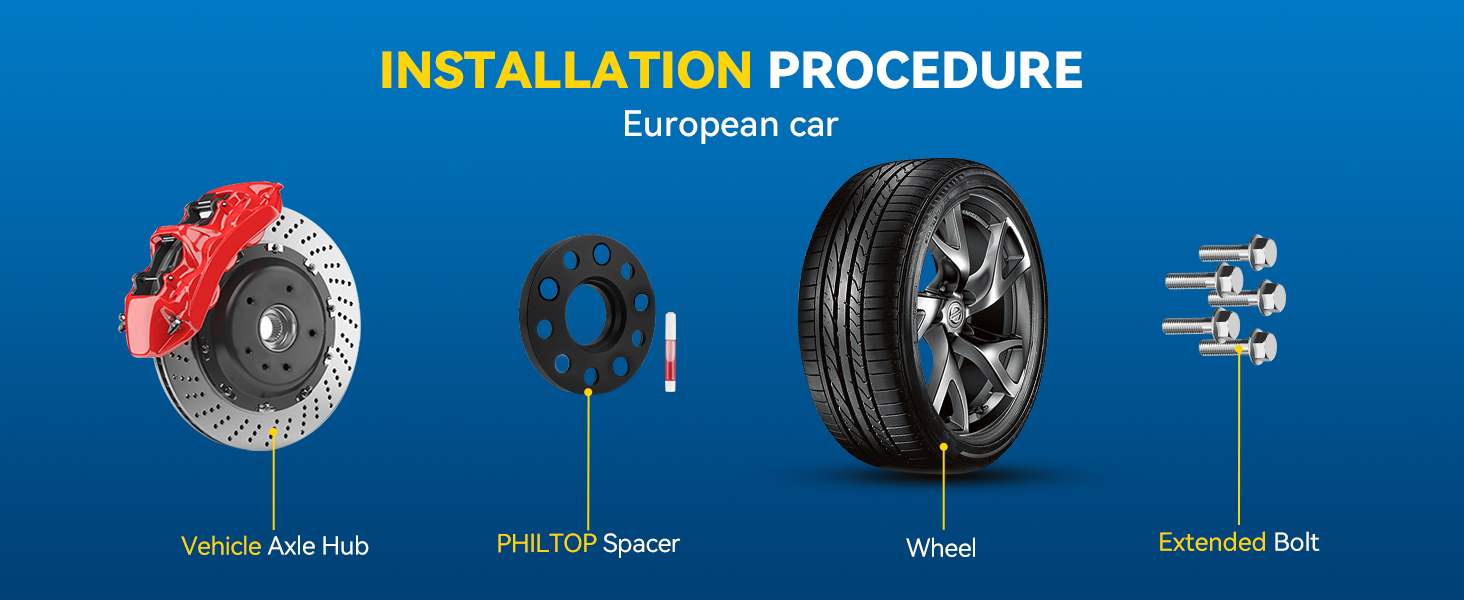

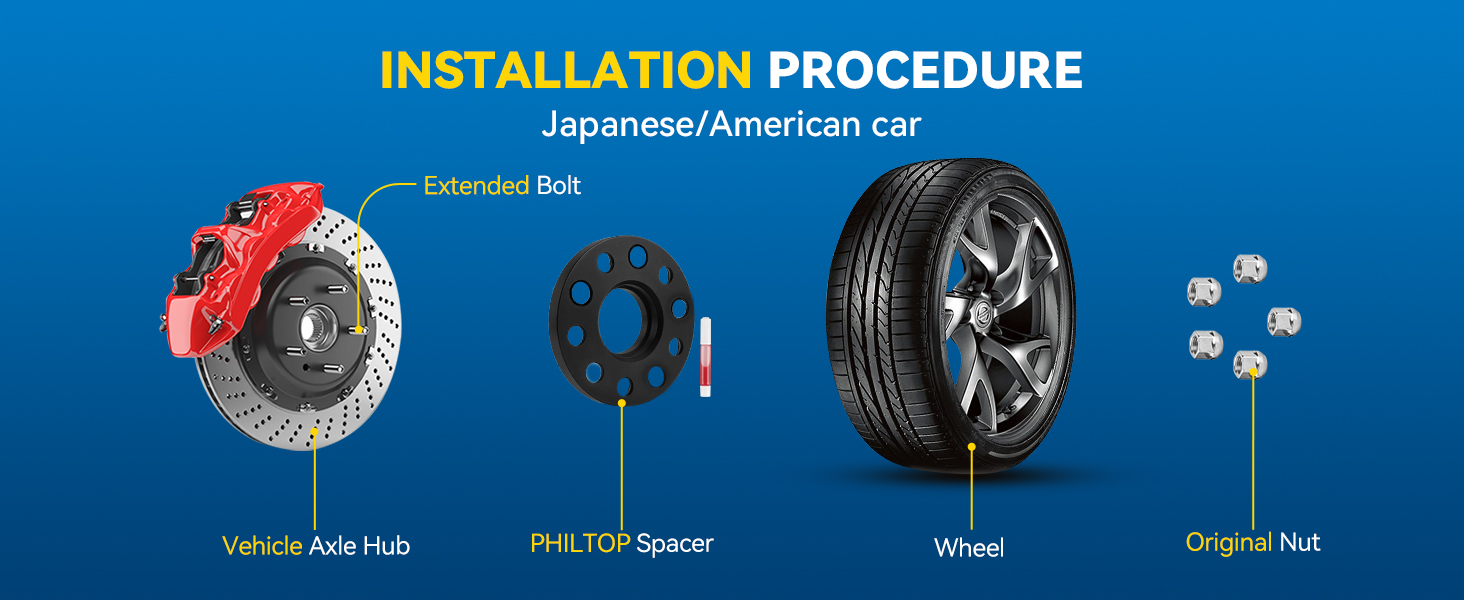

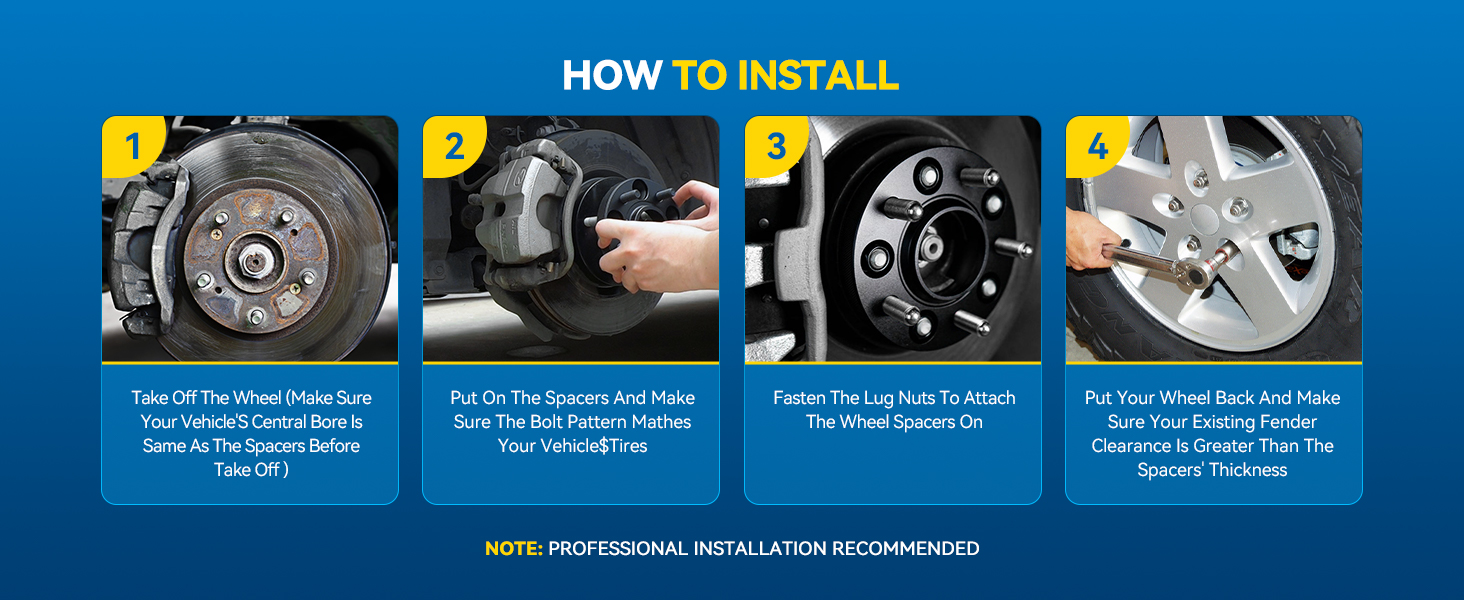

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

edsel

01/26/2025

Verified buyer

Fast delivery perfect fit

Juvon Johnson

01/26/2025

Verified buyer

Very happy with my order

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.

Spacers alone do not always change alignment settings, but an alignment check may be useful if handling changes, uneven tire wear appears, or other suspension work is performed.
