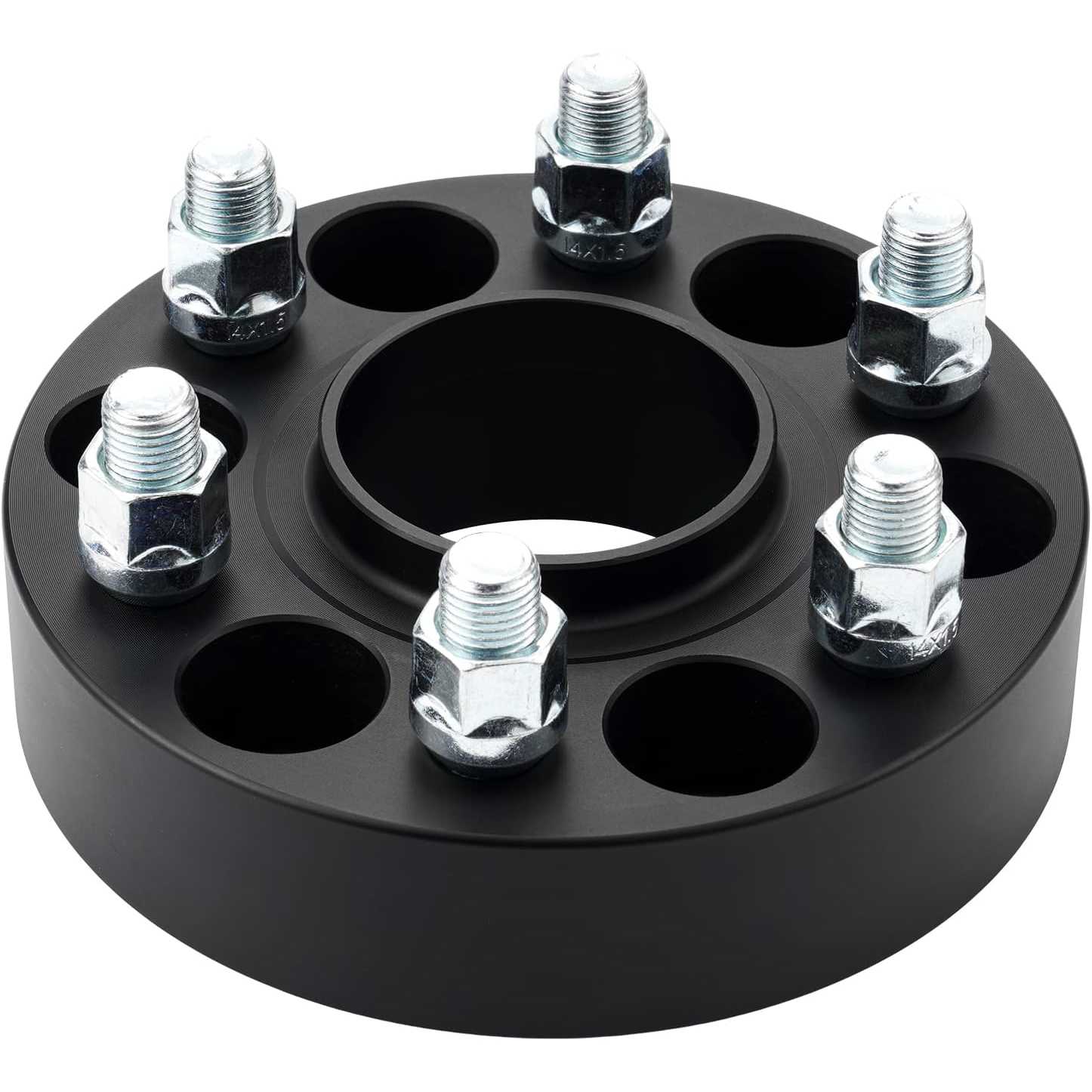

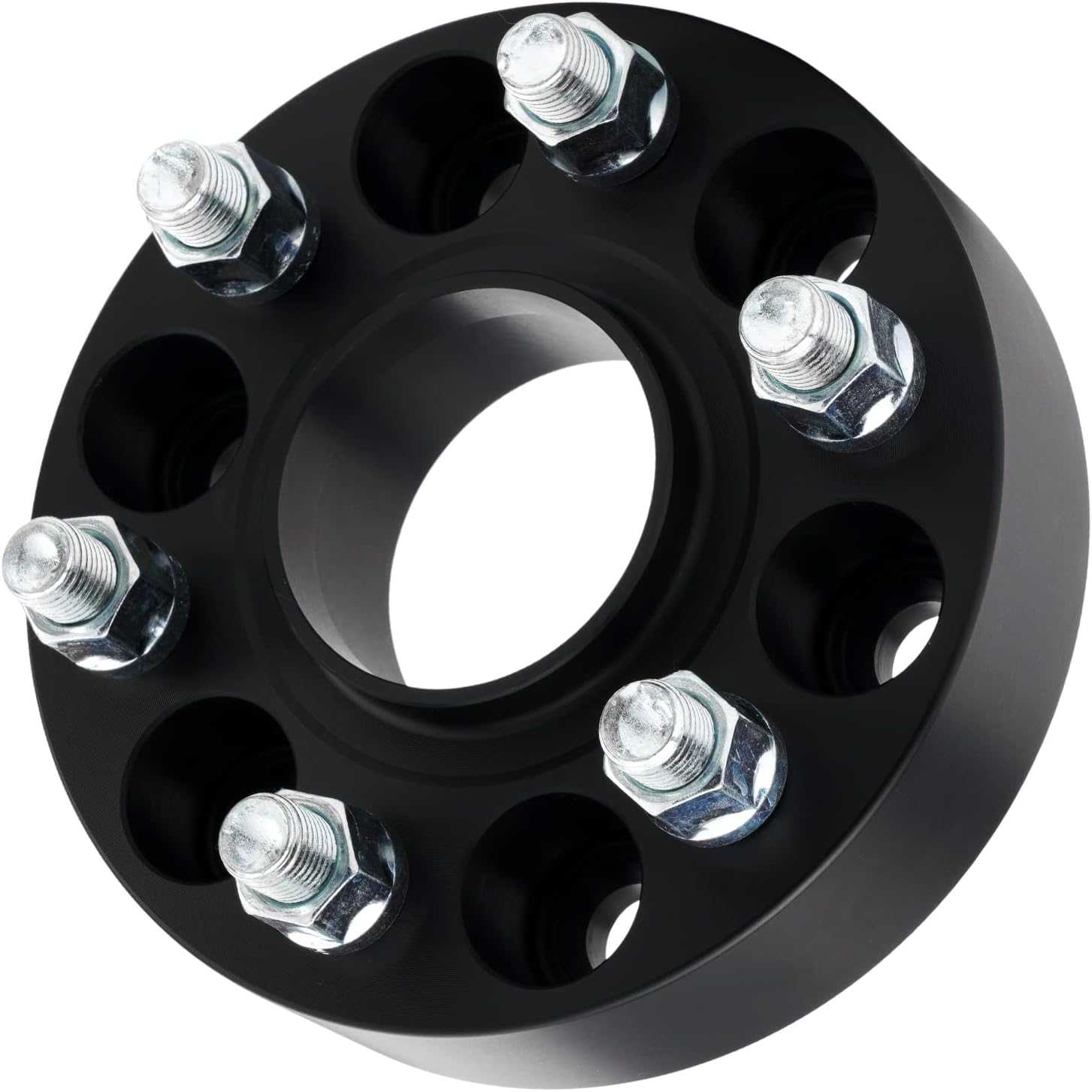

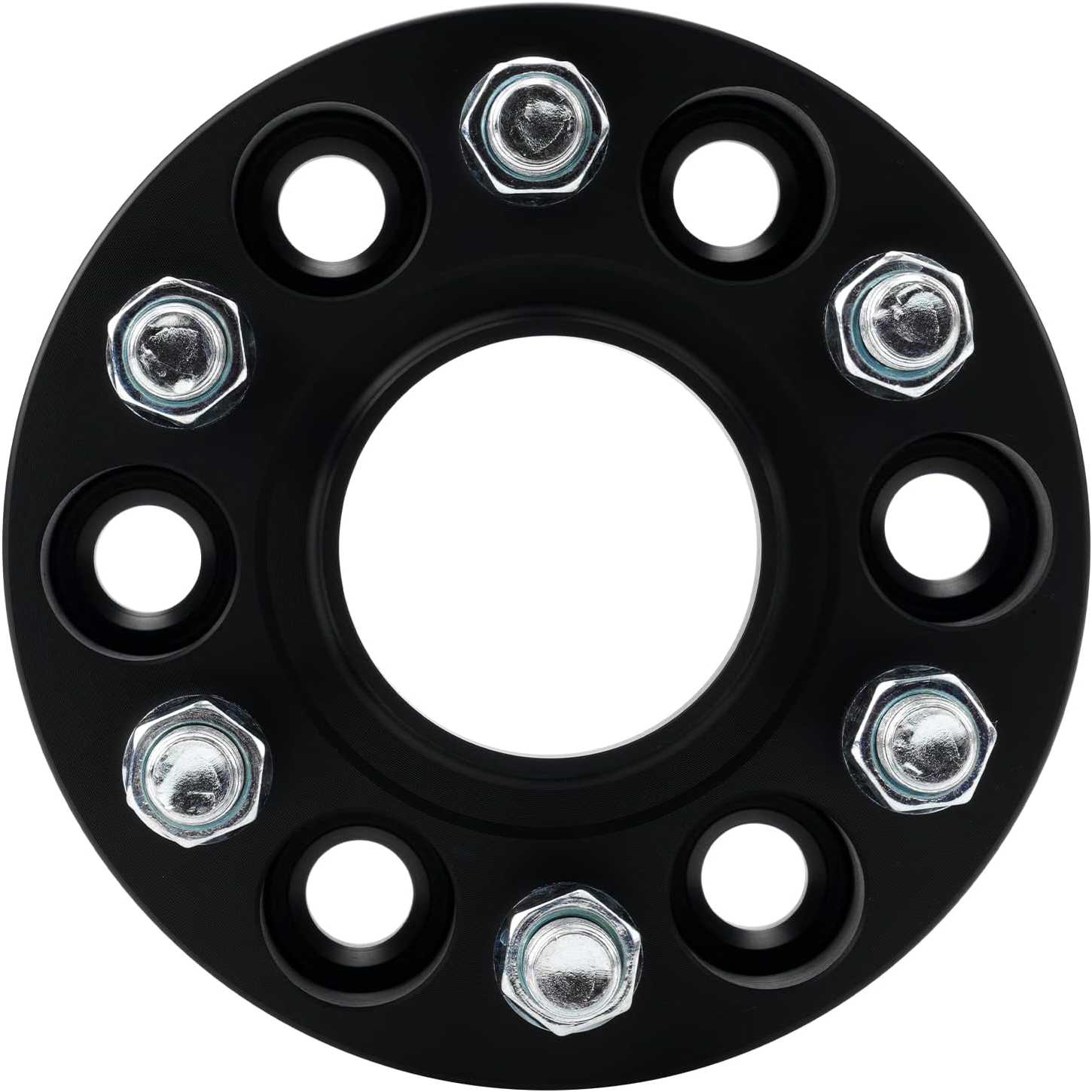

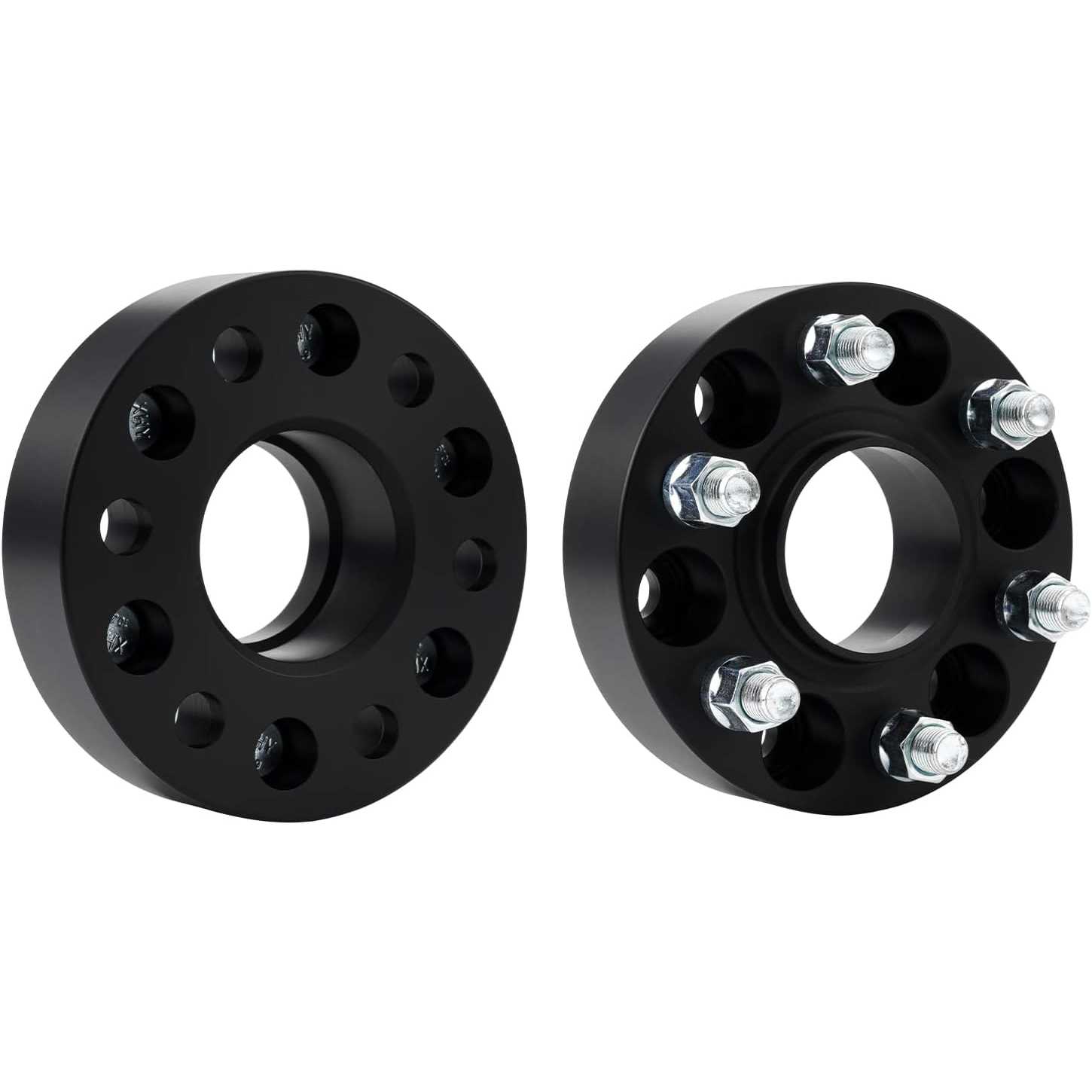

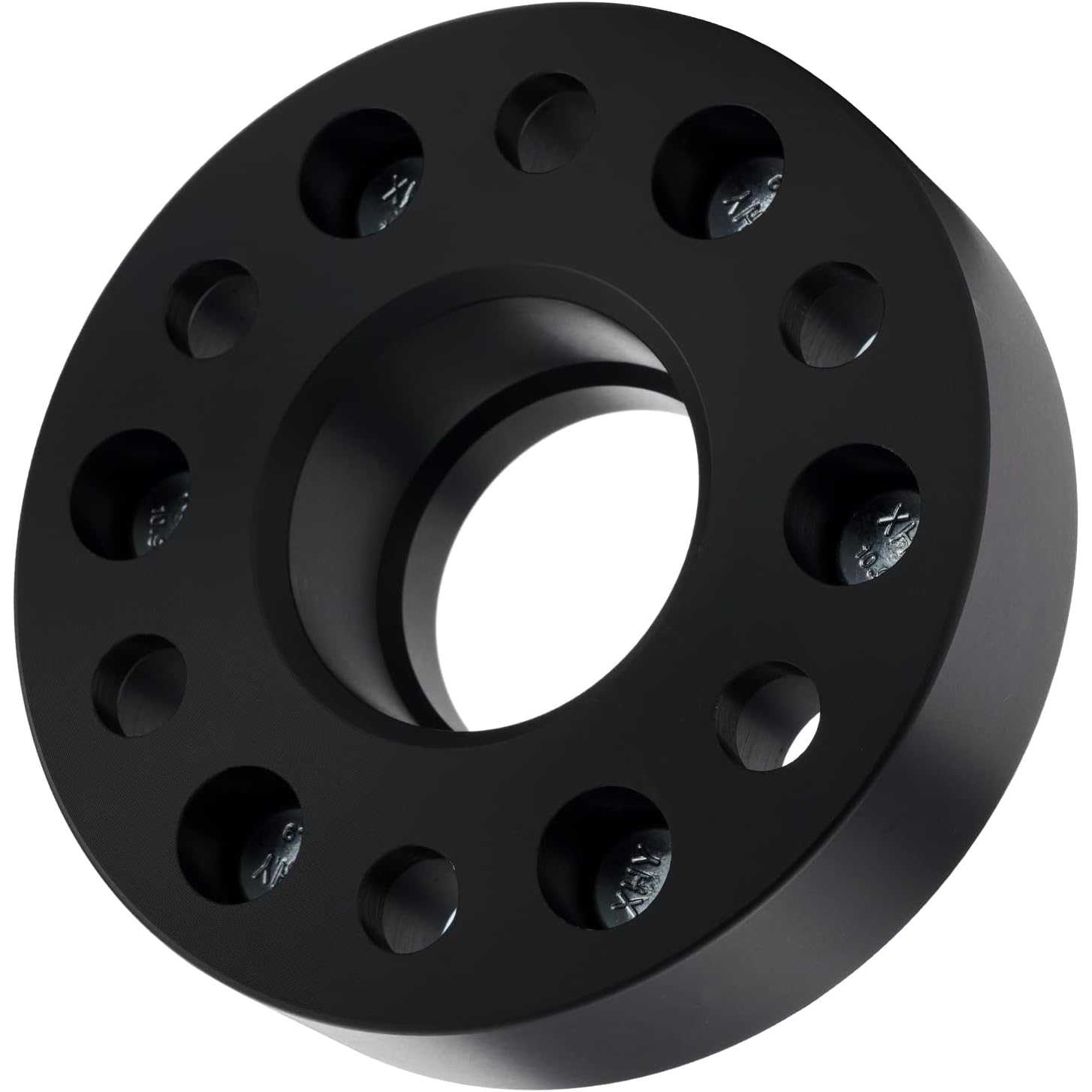

2018-2023 Chevrolet Traverse 3.6L V6/2.0L L4 | 6x120mm 66.9mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP
Durable
6061T6
5.0
Check if this fits your vehicle
Select a vehicle to check this product.
SKU:
90ISWSA4717US
Specifications
Brand
PHILTOP
Bolt Pattern
6x120mm
Wheel Bolt Pattern
6x120mm
Vehicle Bolt Pattern
6x120mm
Thread Size
M14x1.5
Center Bore
66.9
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
160
Inside Diameter
2.63 in/66.9 mm
Lug Patterns
6
Type
Wheel Spacer
Items Included

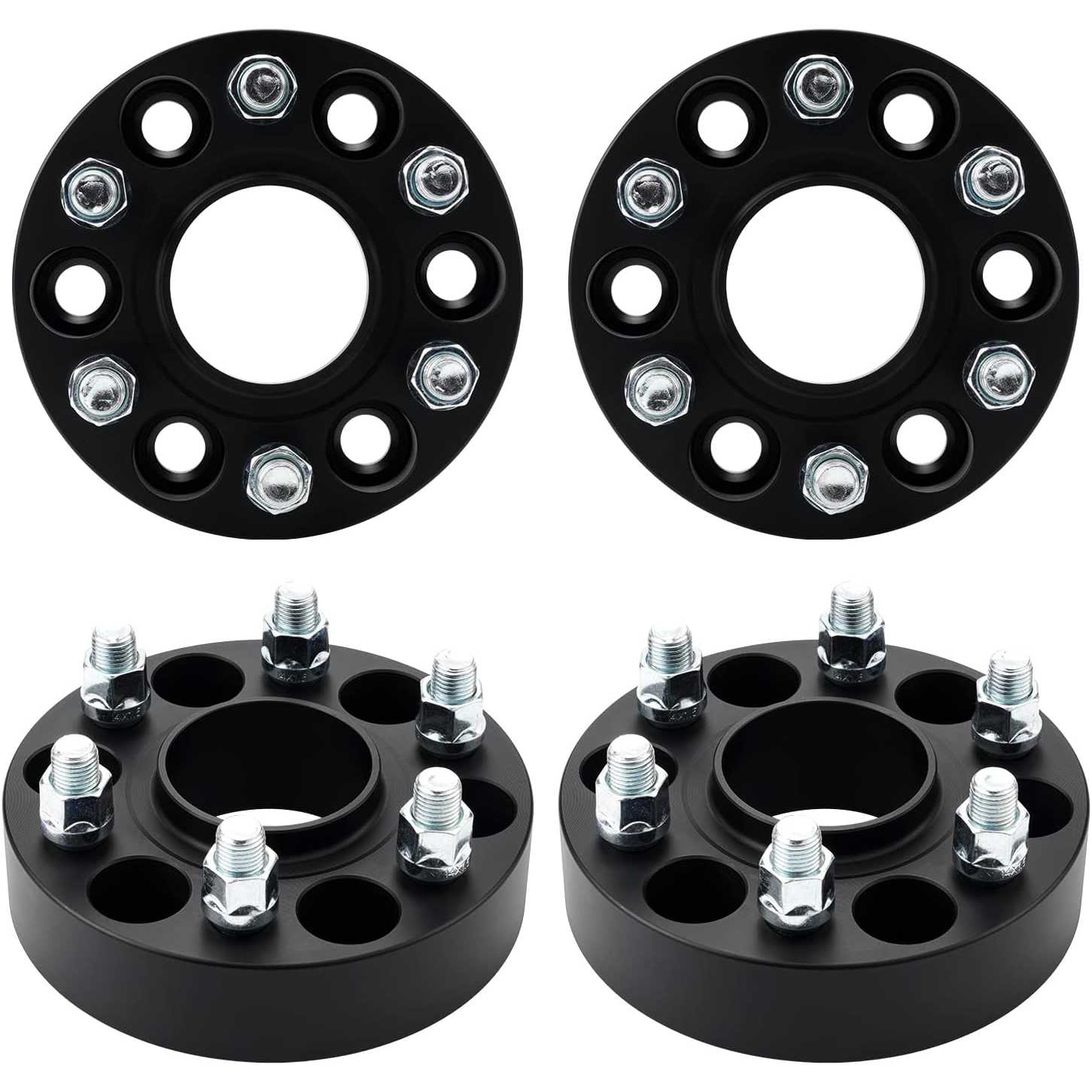

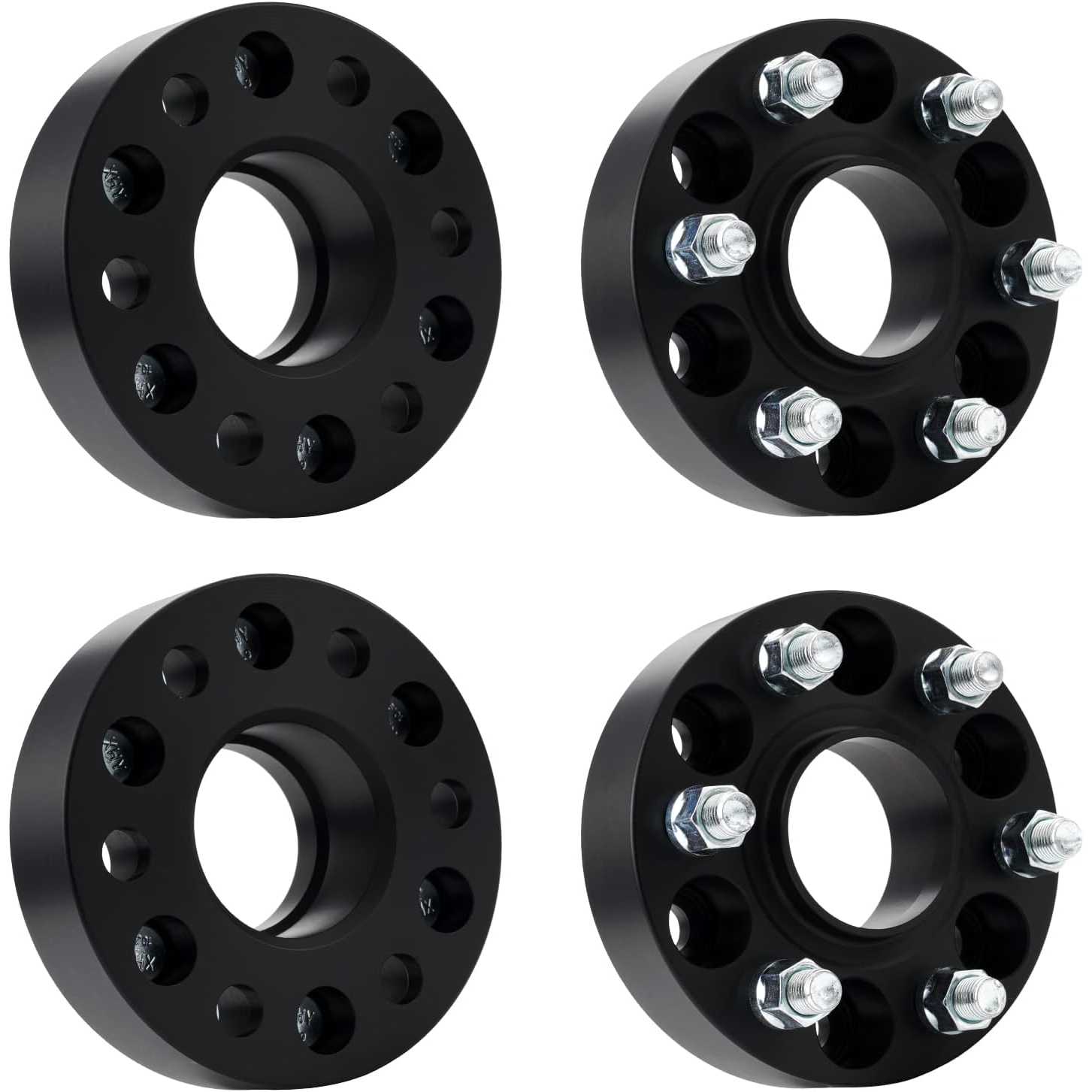

4x Hub-Centric Wheel Spacers
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year
Highlights
[Wheel Spacers Specification] --- Bolt Pattern: 6x120mm ; | Thickness: 1.5 inch(38mm) ; | Thread Pitch: M14x1.5 ; | Hub Bore: 66.9mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
[Vehicle Application] --- The 6x120mm Wheel Spacer set replacement for 2018-2022 Traverse 3.6L 4WD/FWD Naturally Aspirated GAS V6; Enclave 3.6L 4WD/FWD Naturally Aspirated GAS V6; 2015-2022 Colorado 2.5/3.6L 4WD Naturally Aspirated GAS L4/V6; Canyon 2.5/3.6L 4WD Naturally Aspirated GAS L4/V6; 2017-2022 Acadia 3.6L 4WD/FWD Naturally Aspirated GAS V6; XT5 3.6L 4WD/FWD Naturally Aspirated GAS V6; 2012-2016 SRX 3.6L Naturally Aspirated FLEX V6; 2010-2011 SRX 2.8/3.0L Naturally Aspirated/Tur

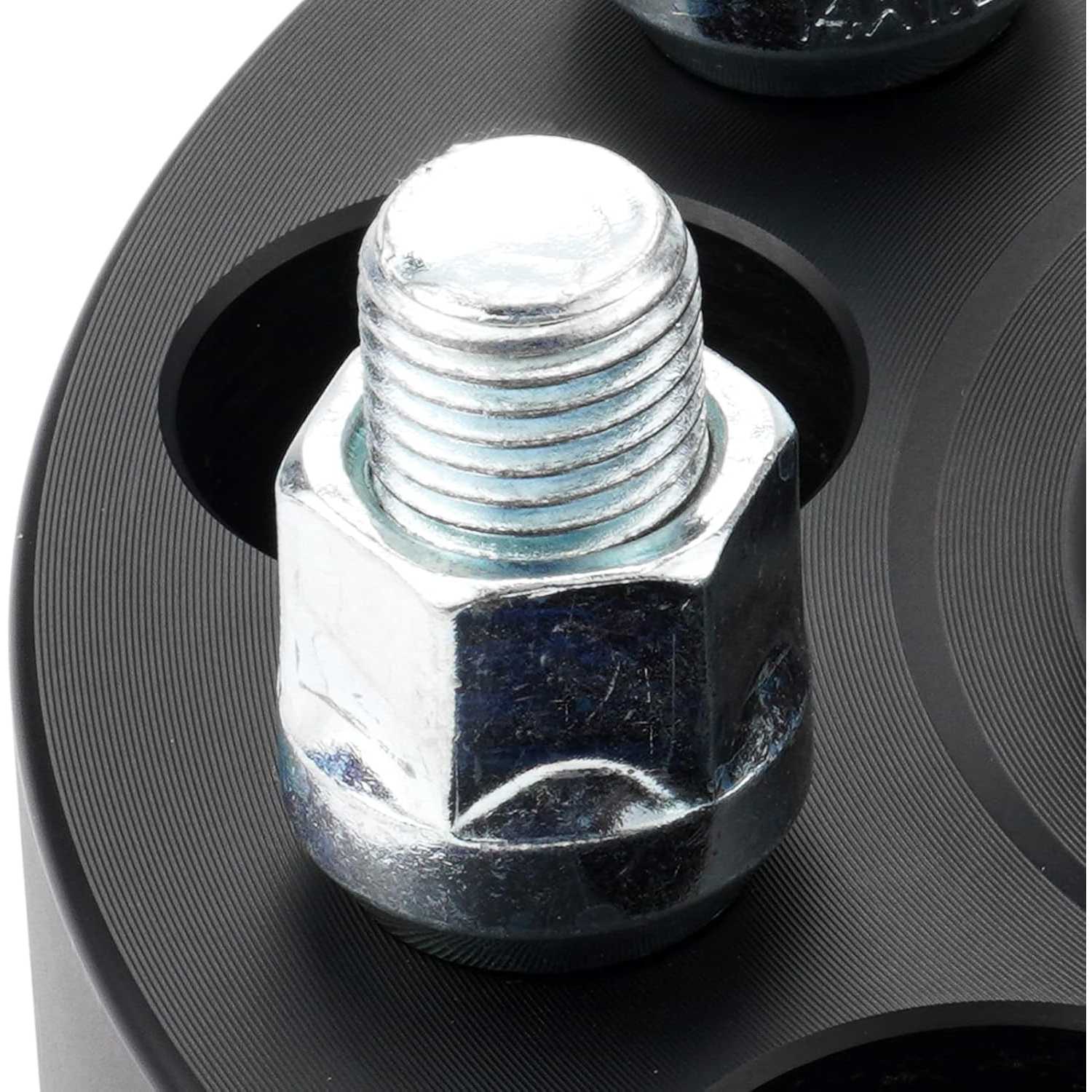

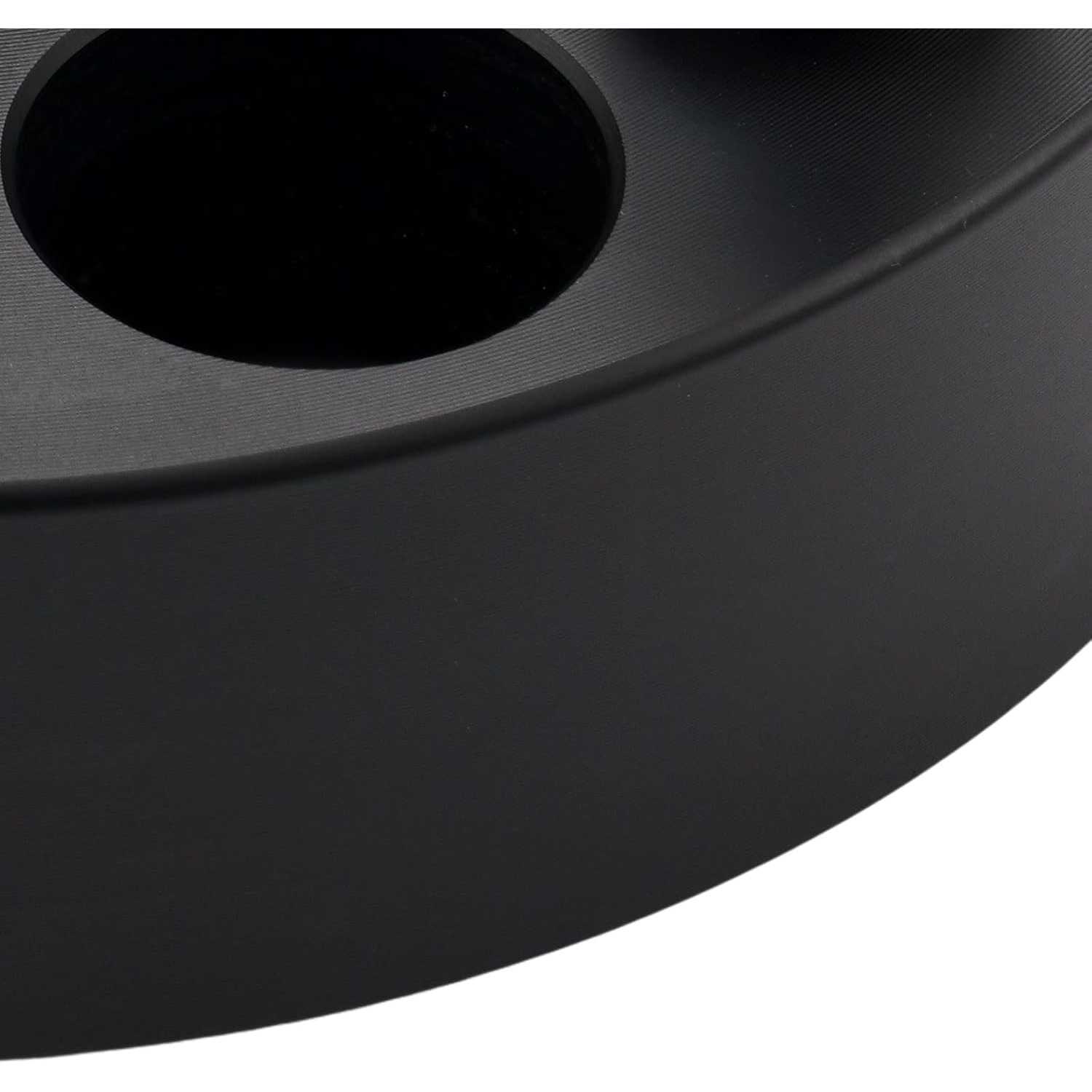

[High Quality] ---6x120mm Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
[Aggressive Driving Experience] --- These 6x120mm Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
[Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information
Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
Check the stock stud length. Extended studs may be required if the original studs are too short.
Confirm adequate wheel-to-fender clearance.
Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.
Installation Steps
Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.
After Installation
Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
Check that all fasteners are secure and the wheel rotates freely.
Recheck the adapter nuts and bolts after the first 50–100 miles.
Recheck and retorque every 3,000–5,000 miles.
Product Video
Product Description
Reviews
5.0/5
Based on 41 reviews
5
95%
4
5%
3
0%
2
0%
1
0%
Customer photos and videos
R
RCinMotion
08/20/2023
Verified buyer
I wanted to add car wheels and tires to my quad, but I needed a spacer that would allow that. In my case I was able to install these spacer with the added change. My quad is 4x110 and I needed yo change them to the 4x156. Not only did they change it but also were able to bring the rear out because of the adapter thickness. They did come with the lug nuts and I used my stock bolts to attach it to the hub, although I would recommend longer ones if yours are too short. Overall great option for upgrading any vehicle.
G
Genaro
09/21/2025
Verified buyer
Looks awesome Looks even more like a hot rod
FAQS
Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.
Changing wheel position can reduce clearance to the fender or increase exposure at the wheel opening. Check clearance through the full steering and suspension range before regular driving.
Spacers alone do not always change alignment settings, but an alignment check may be useful if handling changes, uneven tire wear appears, or other suspension work is performed.
