2003-2022 Ford F-250 Super Duty 6.7L V8 | 8x6.69" to 8x6.5" 130mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2003-2022 Ford F-250 Super Duty 6.7L V8 | 8x6.69" to 8x6.5" 130mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
20ISWSA201147US

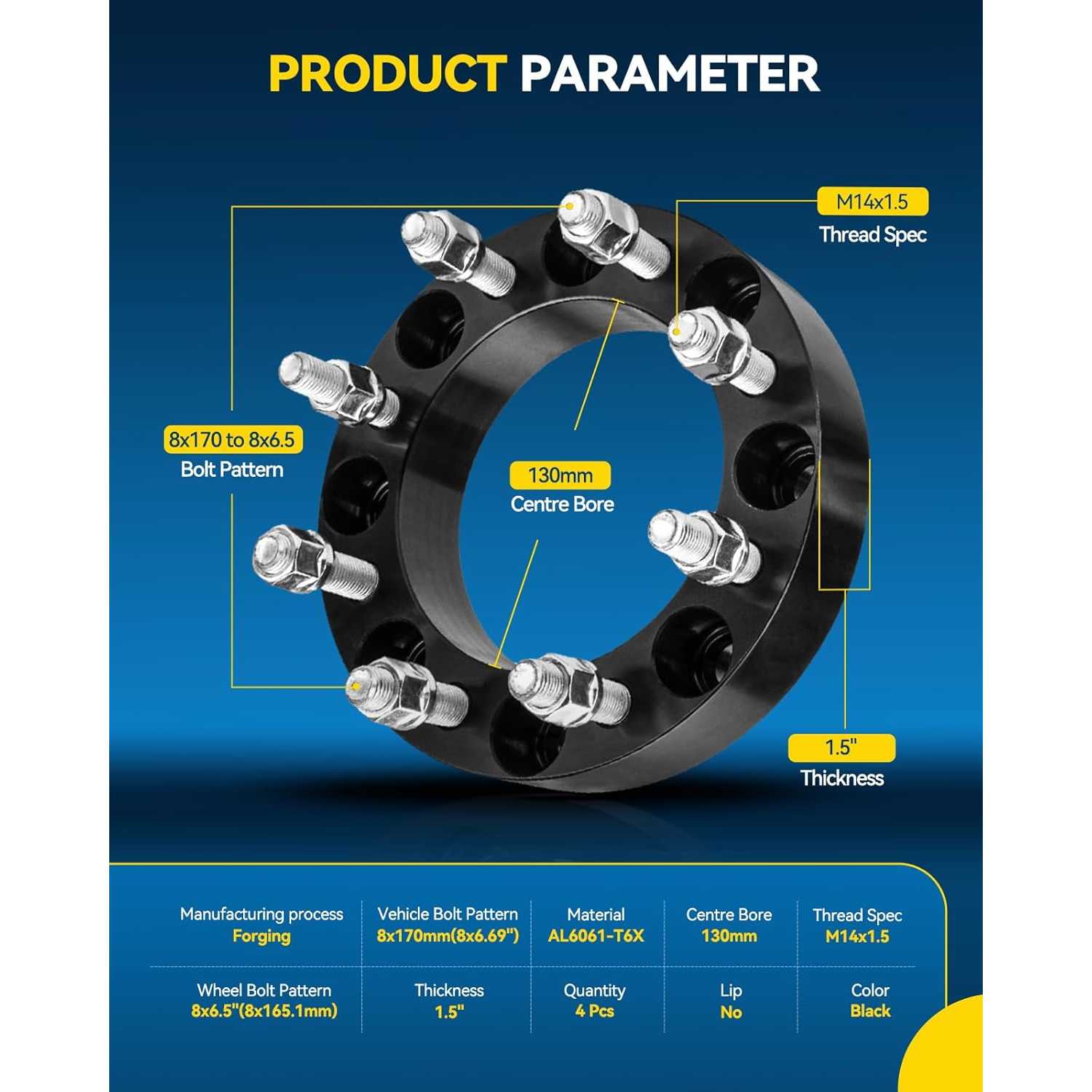

Specifications

Brand
PHILTOP
Bolt Pattern
8x170mm To 8x6.5"
Wheel Bolt Pattern
8x6.5"
Vehicle Bolt Pattern
8x170mm
Thread Size
M14x1.5
Center Bore
130
Hub-Centric Lip
No
Thickness
1.5inch
Note1
Only for 8x170mm Models with 8x6.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 8x6.5" Wheel.
Outside Diameter
215
Inside Diameter
5.12 in/130 mm
Lug Patterns
8
Type
Wheel Adapter
Items Included

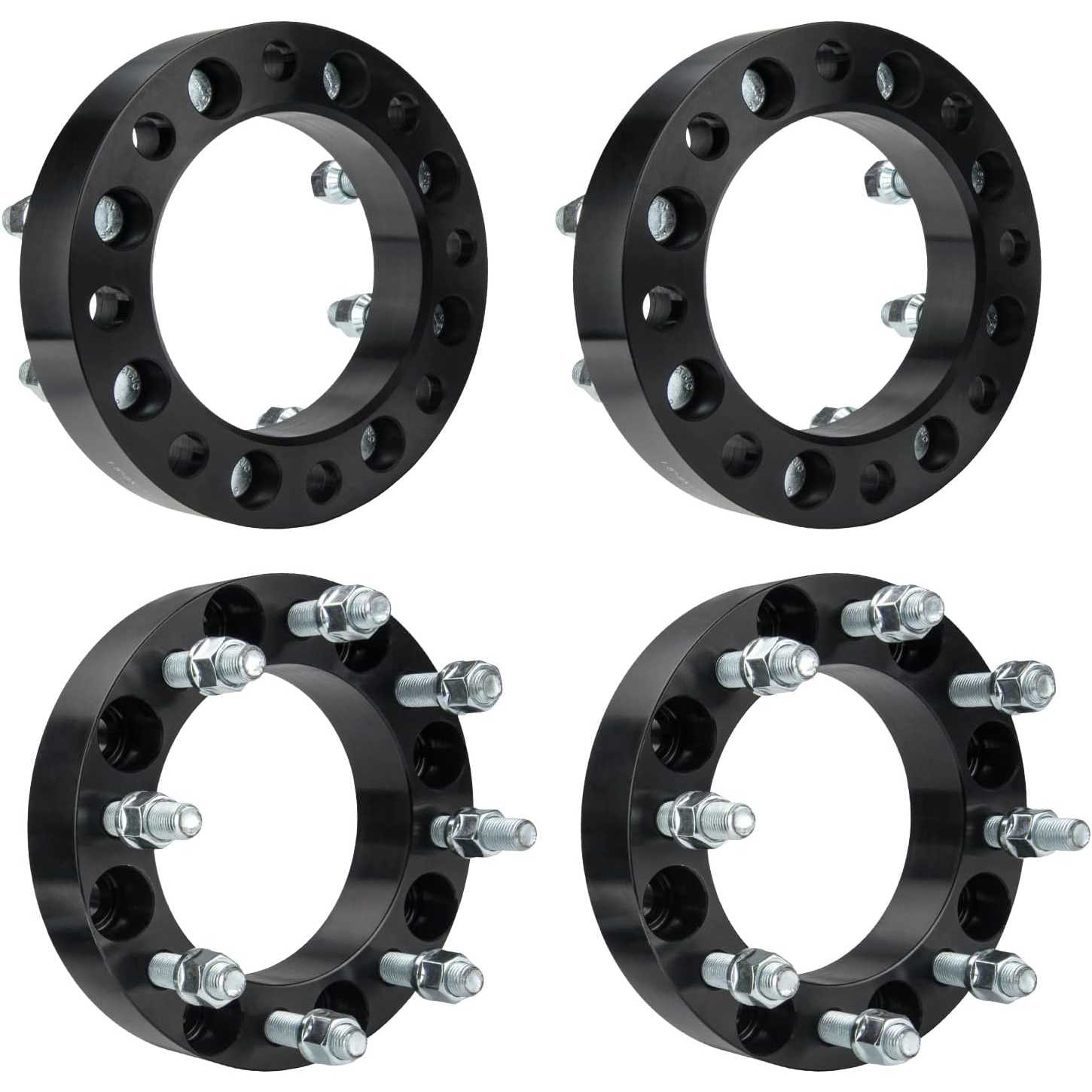

4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 8x170mm(8x6.69") ; | Wheel Bolt Pattern: 8x6.5"(8x165.1mm) ; | Thickness: 1.5 inch(38mm) ; | Thread Pitch: M14x1.5 ; | Hub Bore: 130mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 8x170 to 8x6.5 Wheel Adapters set replacement for 2011-2016 F-25-0 Super Duty 6.2/6.7L 4WD Naturally Aspirated/Turbocharged DIESEL/FLEX V8; F-35-0 Super Duty 6.2/6.7L 4WD Naturally Aspirated/Turbocharged DIESEL/FLEX V8; 2003-2007 F-35-0 Super Duty 6.0L 4WD Turbocharged DIESEL V8; 1999-2003 F-35-0 Super Duty 7.3L 4WD Turbocharged DIESEL V8; 1999-2010 F-35-0 Super Duty 5.4/6.8L 4WD Naturally Aspirated GAS V10/V8

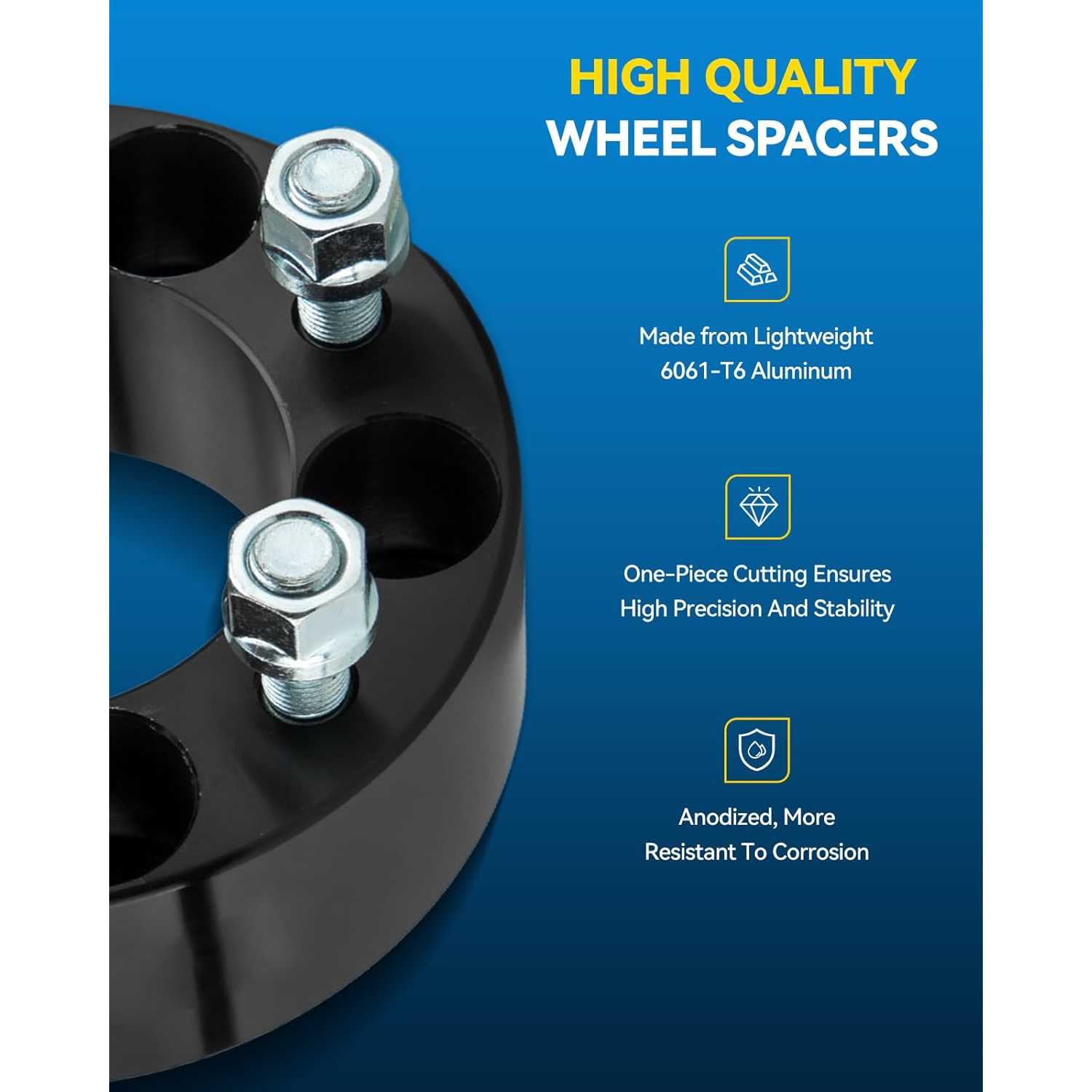

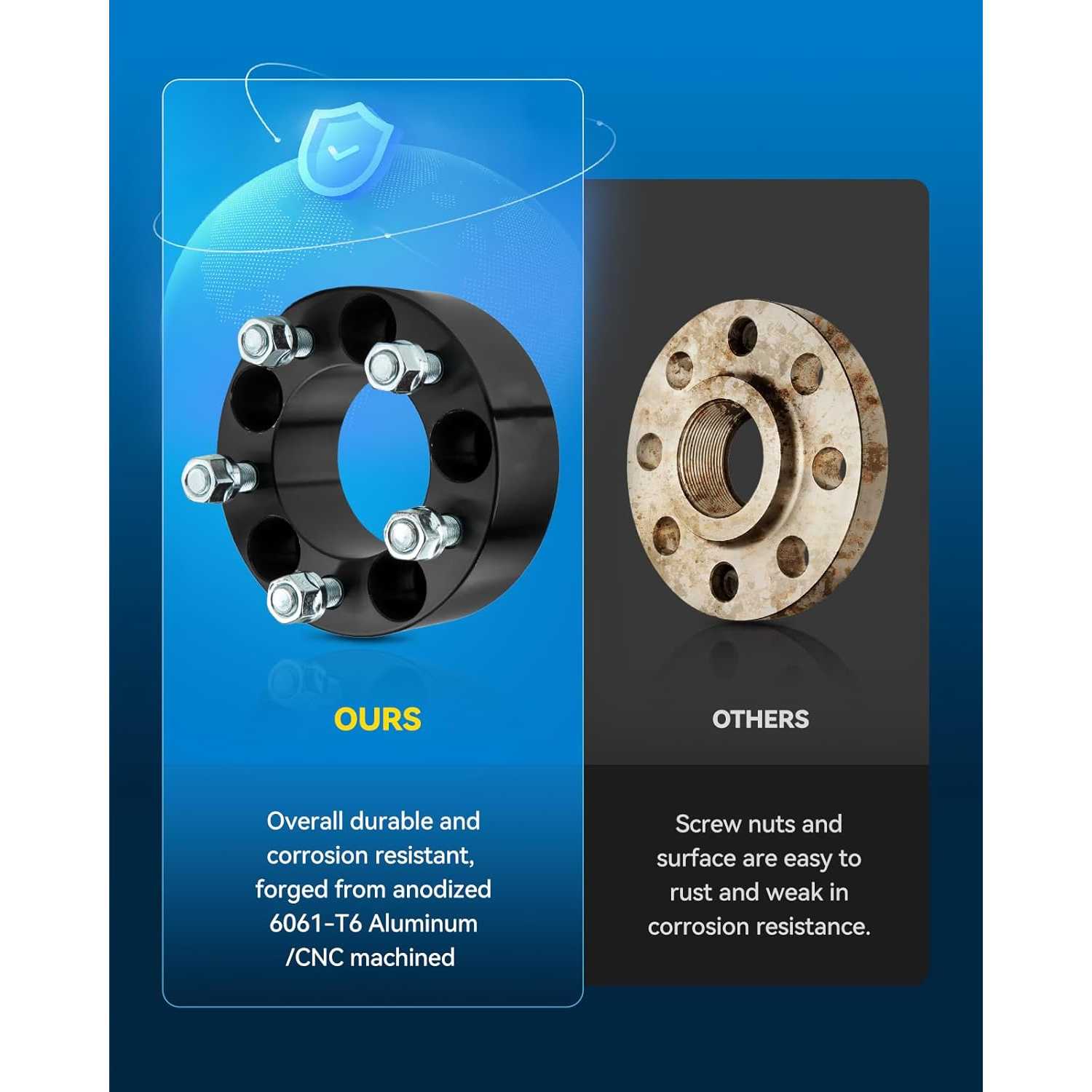

  • [High Quality] --- 8x170 to 8x6.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

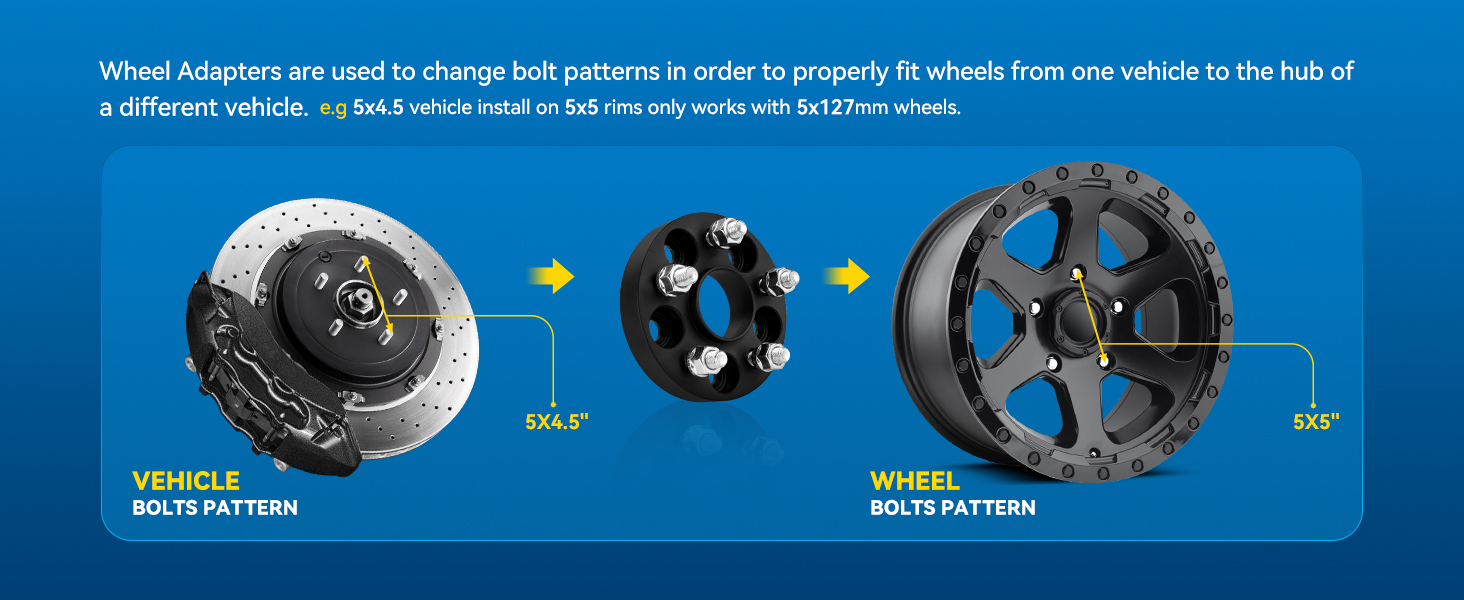

  • [Aggressive Driving Experience] --- These 8x170 to 8x6.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20052003 - 20052003 - 200520032003 - 20052003 - 20052003 - 200520032004 - 20052004 - 20052004 - 20052003 - 20052003 - 20052003 - 200520032009 - 20102009 - 20102009 - 20102008 - 20092008 - 20092008 - 20092004 - 20072008 - 20102004 - 20052008 - 20092004 - 20102004 - 20072011 - 20222008 - 20102011 - 20222004 - 20102020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222018 - 20222013 - 20222013 - 20222020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222009 - 20102009 - 20102009 - 20102008 - 20092008 - 20092008 - 20092004 - 20072008 - 20102004 - 20052008 - 20092003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222018 - 20222013 - 20222013 - 20222020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 20222003 - 20102003 - 20072011 - 20222008 - 20102011 - 20222003 - 201020032020 - 2022
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimEddie BauerEddie BauerEddie BauerEddie BauerLimitedLimitedLimitedLimitedXLSXLSXLSXLTXLTXLTXLTCabela'sCabela'sCabela'sFX4FX4FX4Harley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariatLariatLariatLimitedPlatinumPlatinumPlatinumXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLTCabela'sCabela'sCabela'sFX4FX4FX4Harley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariatLariatLariatLimitedPlatinumPlatinumPlatinumXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLT
Engine5.4L V86.0L V86.8L V107.3L V85.4L V86.0L V86.8L V107.3L V85.4L V86.0L V86.8L V105.4L V86.0L V86.8L V107.3L V85.4L V86.4L V86.8L V105.4L V86.4L V86.8L V106.0L V86.4L V86.8L V106.8L V105.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V86.7L V86.2L V86.7L V87.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V85.4L V86.4L V86.8L V105.4L V86.4L V86.8L V106.0L V86.4L V86.8L V106.8L V105.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V86.7L V86.2L V86.7L V87.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V85.4L V86.0L V86.2L V86.4L V86.7L V86.8L V107.3L V87.3L V8
Note
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only
Fits Models w/ 14X1.5 Threads Only

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

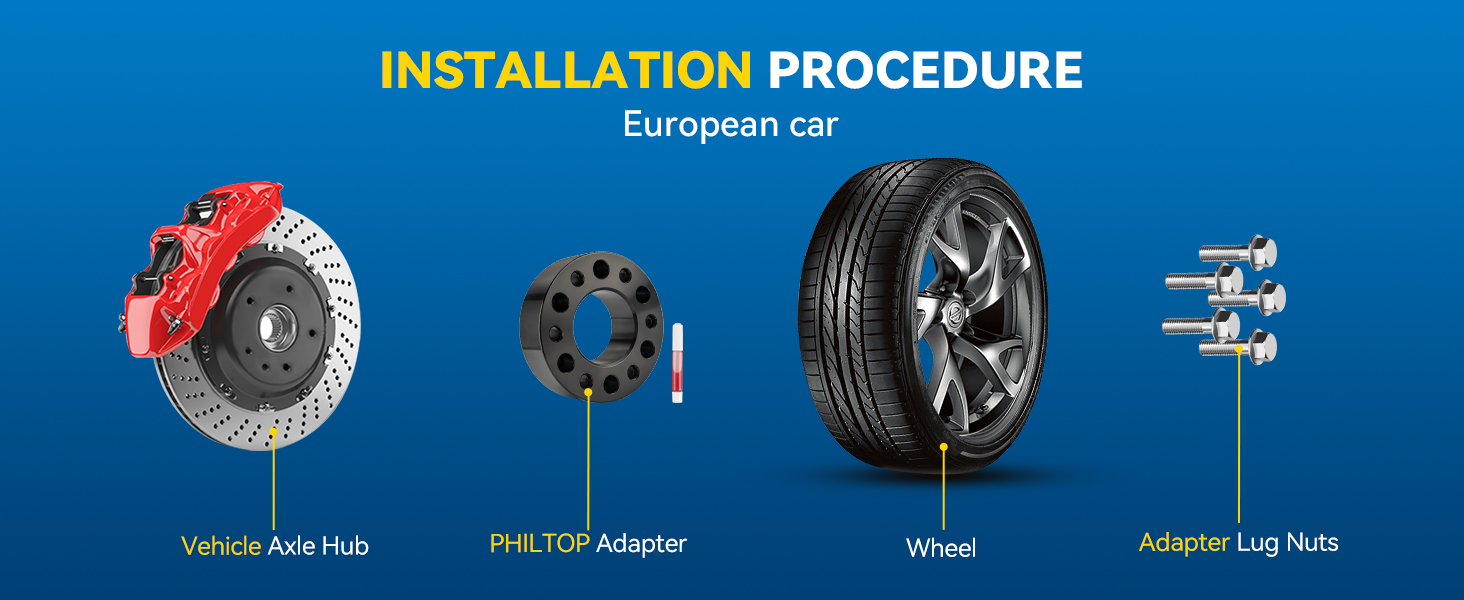

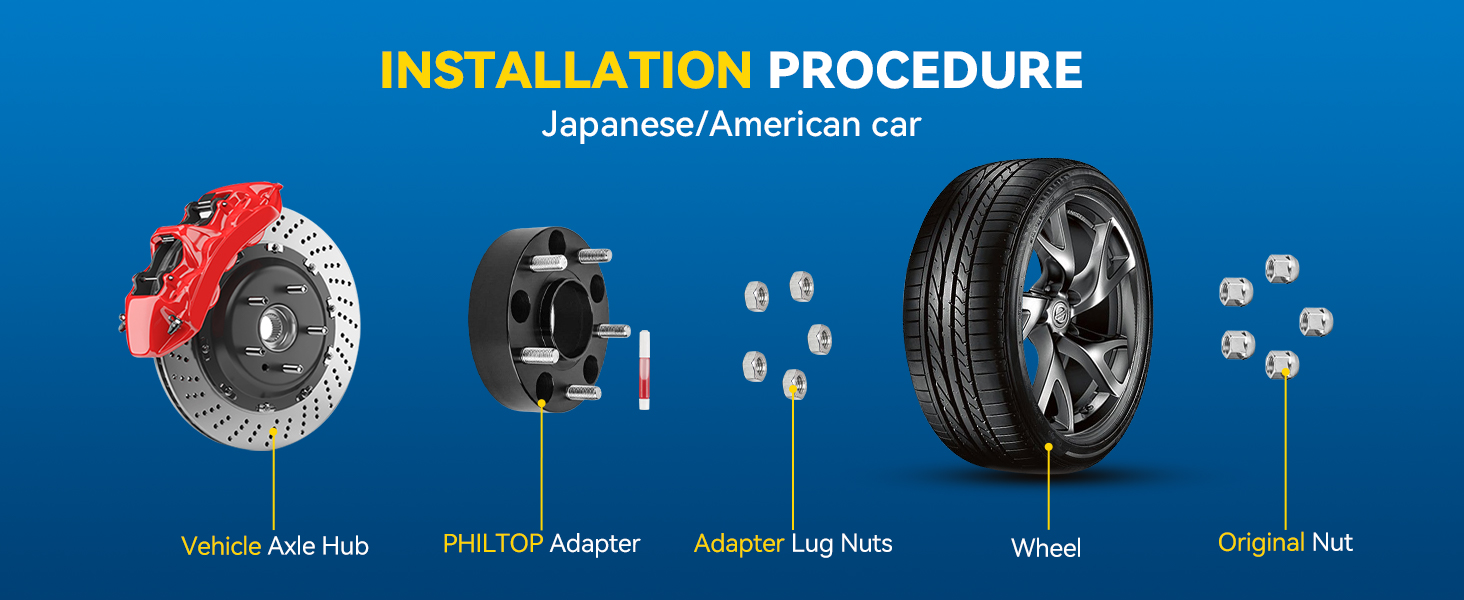

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Taylor C.

01/26/2025

Verified buyer

Just what I was looking for. Great price and solid product. 8x170 to 8x6.5 wheel spacer I highly recommend

mjc

01/26/2025

Verified buyer

8x170 to 8x6.5 wheel spacer. Newer version of the same tire was bigger and was rubbing on the fender attachments. So, added the spacers and took it out last Sunday. Worked great. Easy to install.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
