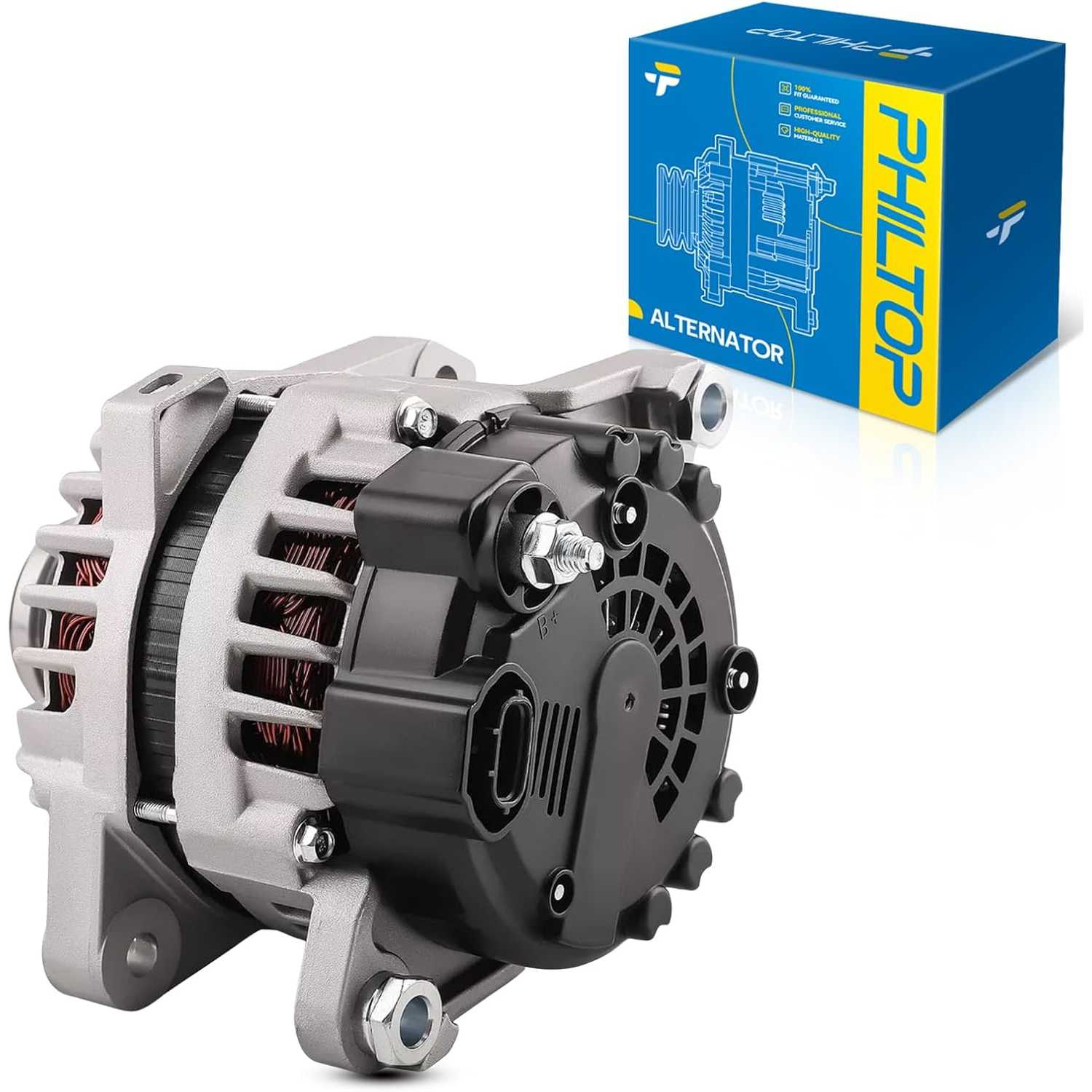

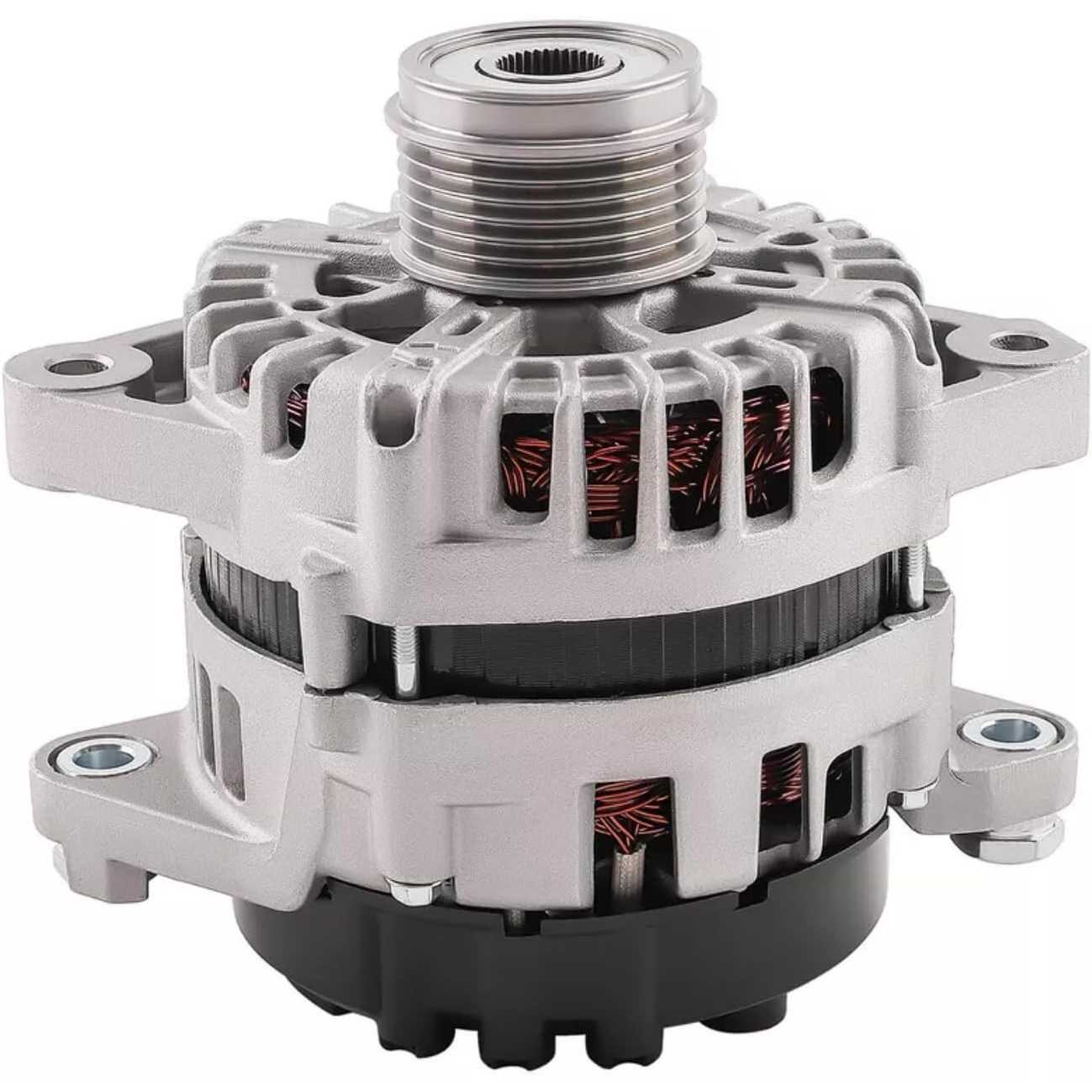

2013-2016 Kia Optima Hyundai Santa Fe Sport 2.4L L4 | 6-Groove Pulley 150A Alternator | OE#11710N - PHILTOP

2013-2016 Kia Optima Hyundai Santa Fe Sport 2.4L L4 | 6-Groove Pulley 150A Alternator | OE#11710N - PHILTOP

Pulley Grooves: SC6

Amperage: 150 A

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5366ANR065WUS

Specifications

Brand
PHILTOP
Pulley Grooves
SC6
Amperage
150 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11710N 1x Manual
Warranty Period
2-Year
OE Number
11606,11710N,2612017B,373002G800,373002G855,373002G950,440811140532,8400310,AR134559,FG15S059,FG15S060,FG15S110

Highlights

  • Compatibility: PHILTOP 11710N New Alternator compatible with 2014-2015 Optima 2.4L, 2013-2016 Santa Fe Sport 2.4L, 2012-2014 Sorento 2.4L, 2014 Sonata 2.4L, 2014-2016 Santa Fe Sport 2.0T, 2014-2015 Optima 2.0T
  • OEM Number: 11710N、11606、2612017B、373002G800、373002G855、373002G950、440811140532、8400310、AR134559、FG15S059、FG15S060、FG15S110
  • Alternator Specification: ①Amperage: 150A; ②Voltage: 12V; ③Pulley Class: SC6; ④Rotation: CW(Clockwise); ⑤Specs for: Valeo IR/IF
  • Professional Alternator: PHILTOP alternator has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Safety & Stability: PHILTOP alternators feature an upgraded aluminum housing with superior heat dissipation and deformation resistance. Equipped with an OEM-compatible voltage regulator and overload protection, they comprehensively safeguard your vehicle's electrical system.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014 - 20162013 - 2016201420142014201420152015201520142015201420152014201520142015201420152012201320122013 - 2014
MakeHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKia
ModelSanta Fe SportSanta Fe SportSonataSonataSonataOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaSorentoSorentoSorentoSorento
Trim2.0TBaseGLSLimitedSEEXEXHybrid EXHybrid LXLXLXLimitedLimitedSXSXSX TurboSX TurboSXL TurboSXL TurboEXEXLXLX
Engine2.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.0L L42.0L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L4
Note-----
Built in Korea;From 03/25/2014
---
Built in Korea;From 03/25/2014
-
Built in Korea;From 03/25/2014
-
Built in Korea;From 03/25/2014
-
Built in Korea;From 03/25/2014
-
Built in Korea;From 03/25/2014
-
To 4/11/2012
From 9/12/2012
To 4/11/2012
From 9/12/2012

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

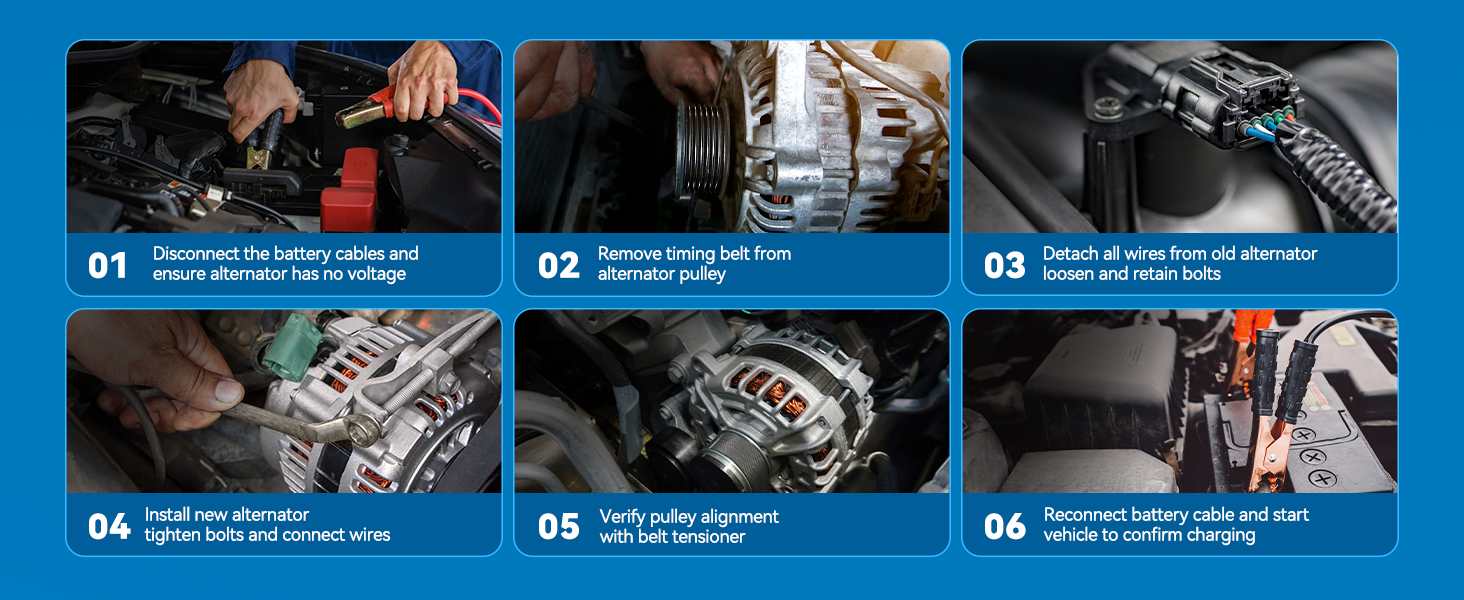

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Amanda_MomOfThree_803

03/17/2026

This is a high-quality replacement that did not break the bank. The machining and assembly look top-notch for the price point. Saved me hundreds of dollars over the local auto parts store.

Ashley_RoadTrip_175

12/10/2025

My Sorento was having all sorts of electrical gremlins until I swapped in this new alternator. Now the battery stays topped off and everything runs smooth. It feels way more reliable than the old one I pulled out.

FAQS

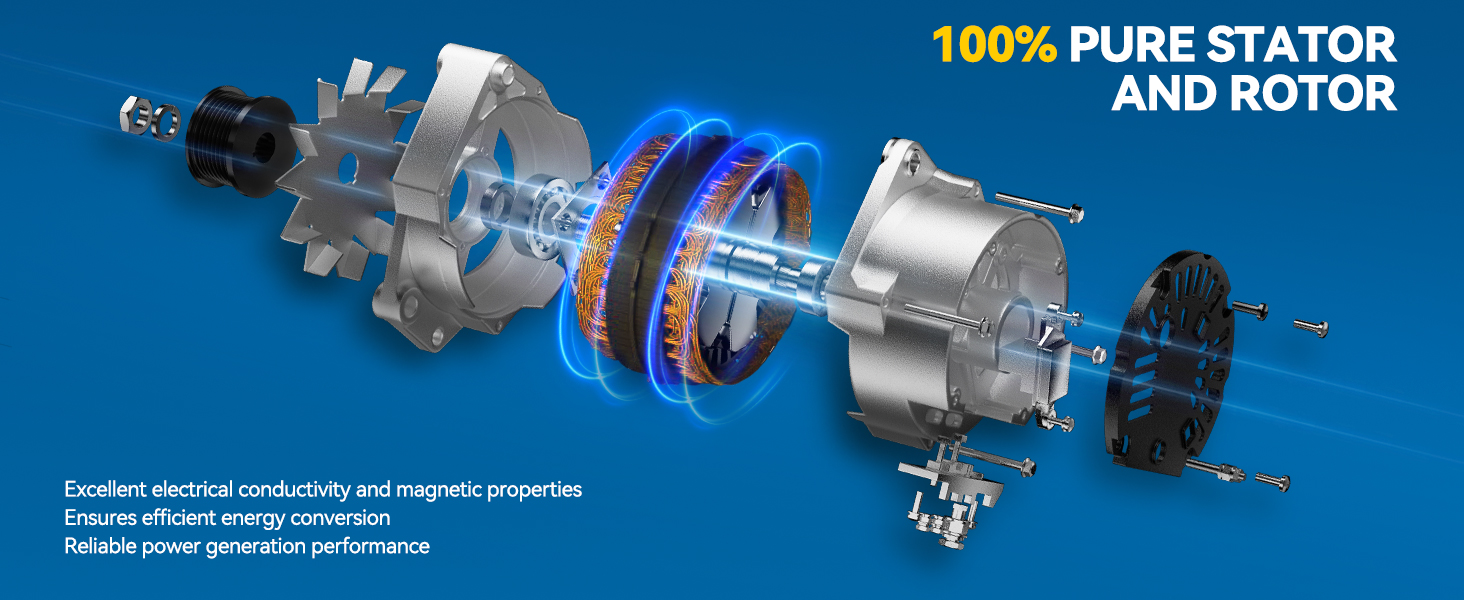

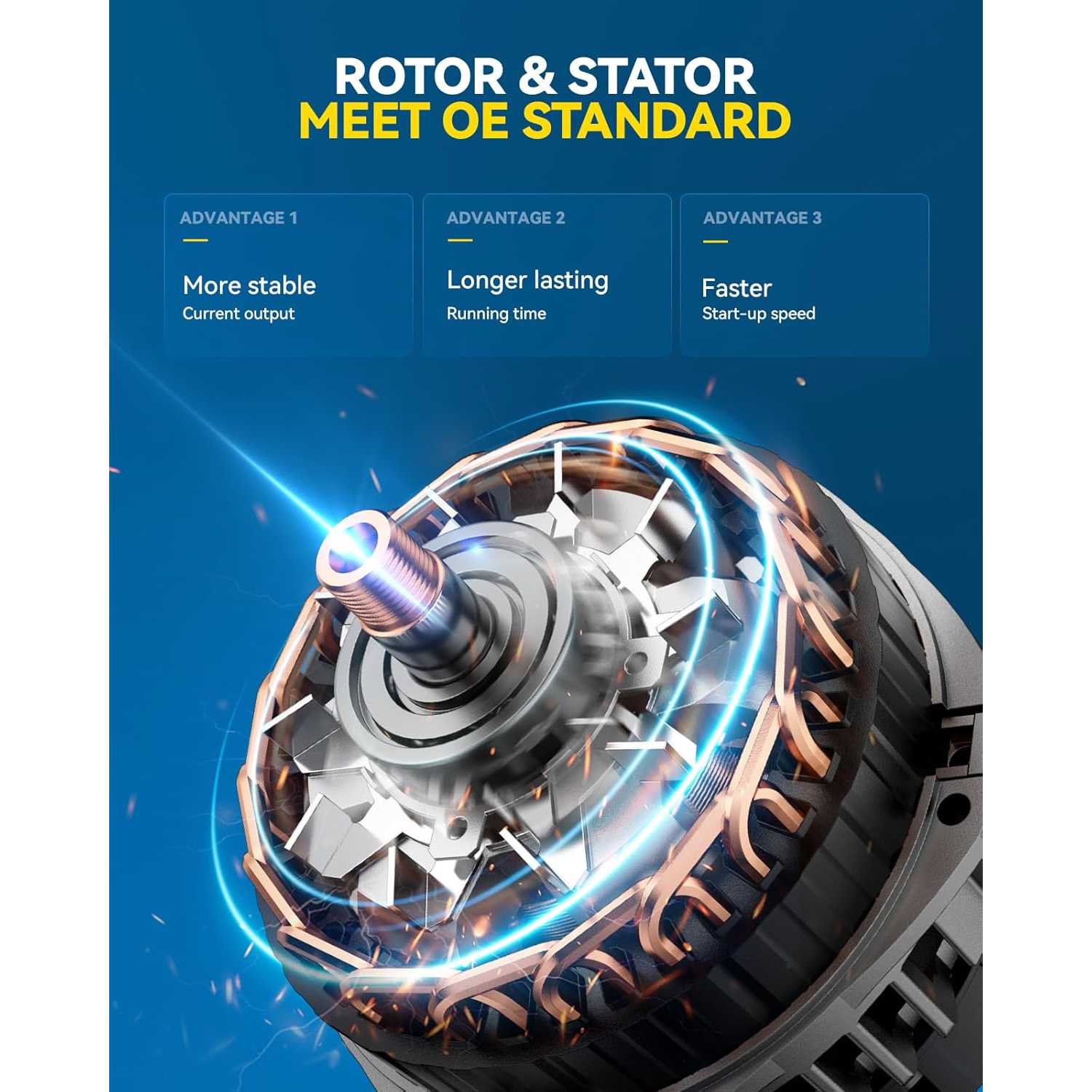

PHILTOP New Alternator feature factory-matched cores, stator and rotor are impregnated with insulating varnish. Rigorously tested to OE standards. This ensures secure bonding, stable high-speed operation, durability, and safety.

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.
