2005-2024 Honda Odyssey 3.5L V6 | 5x120mm 64.1mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

2005-2024 Honda Odyssey 3.5L V6 | 5x120mm 64.1mm Center Bore M14x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
69ISWSA5477US

Specifications

Brand
PHILTOP
Bolt Pattern
5x120mm
Wheel Bolt Pattern
5x120mm
Vehicle Bolt Pattern
5x120mm
Thread Size
M14x1.5
Center Bore
64.1
Hub-Centric Lip
Yes
Thickness
0.59inch
Outside Diameter
160
Inside Diameter
2.52 in/64.1 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included

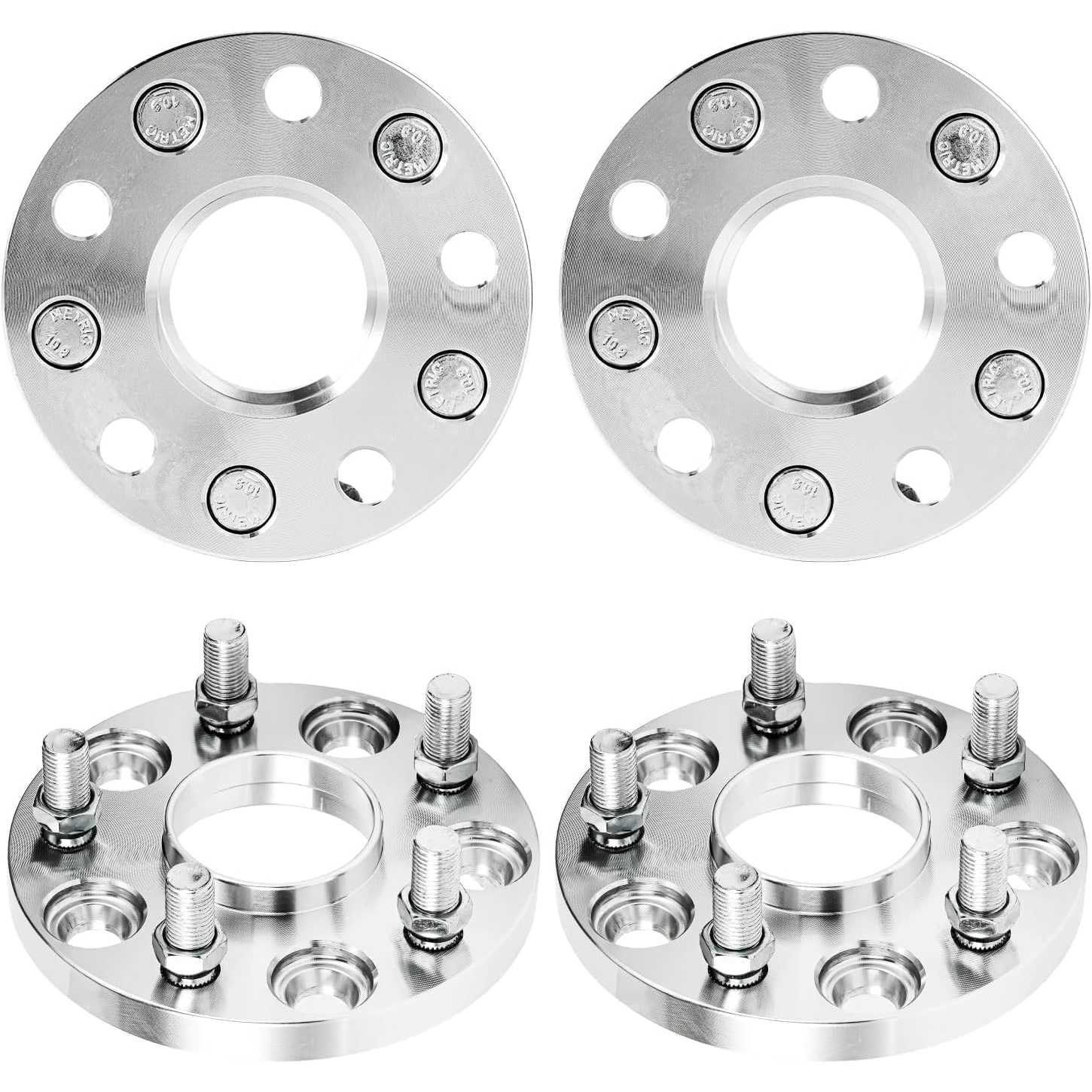

4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x120mm ; | Thickness: 15mm ; | Thread Pitch: M14x1.5 ; | Hub Bore: 64.1mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

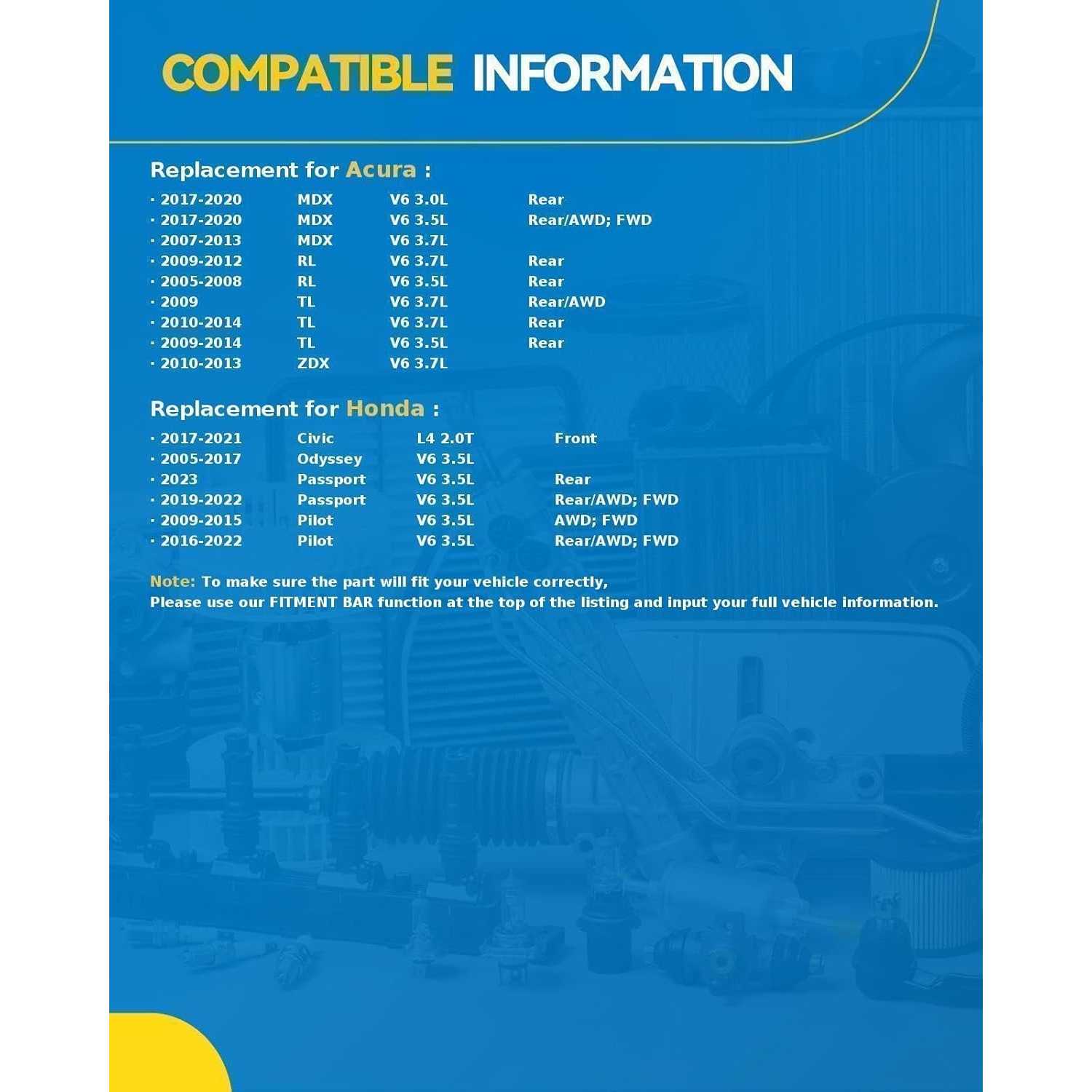

  • [Vehicle Application] --- The 5x120 Wheel Spacer set replacement for 2009-2022 Hon-da Pilot; 2005-2017 Hon-da Odyssey; 2005-2012 Ac-ura RL; 2007-2013 Ac-ura MDX; 2009-2014 Ac-ura TL; 2017-2021 Hon-da Civic; 2019-2023 Hon-da Passport; 2017-2020 Ac-ura MDX; 2010-2013 Ac-ura ZDX

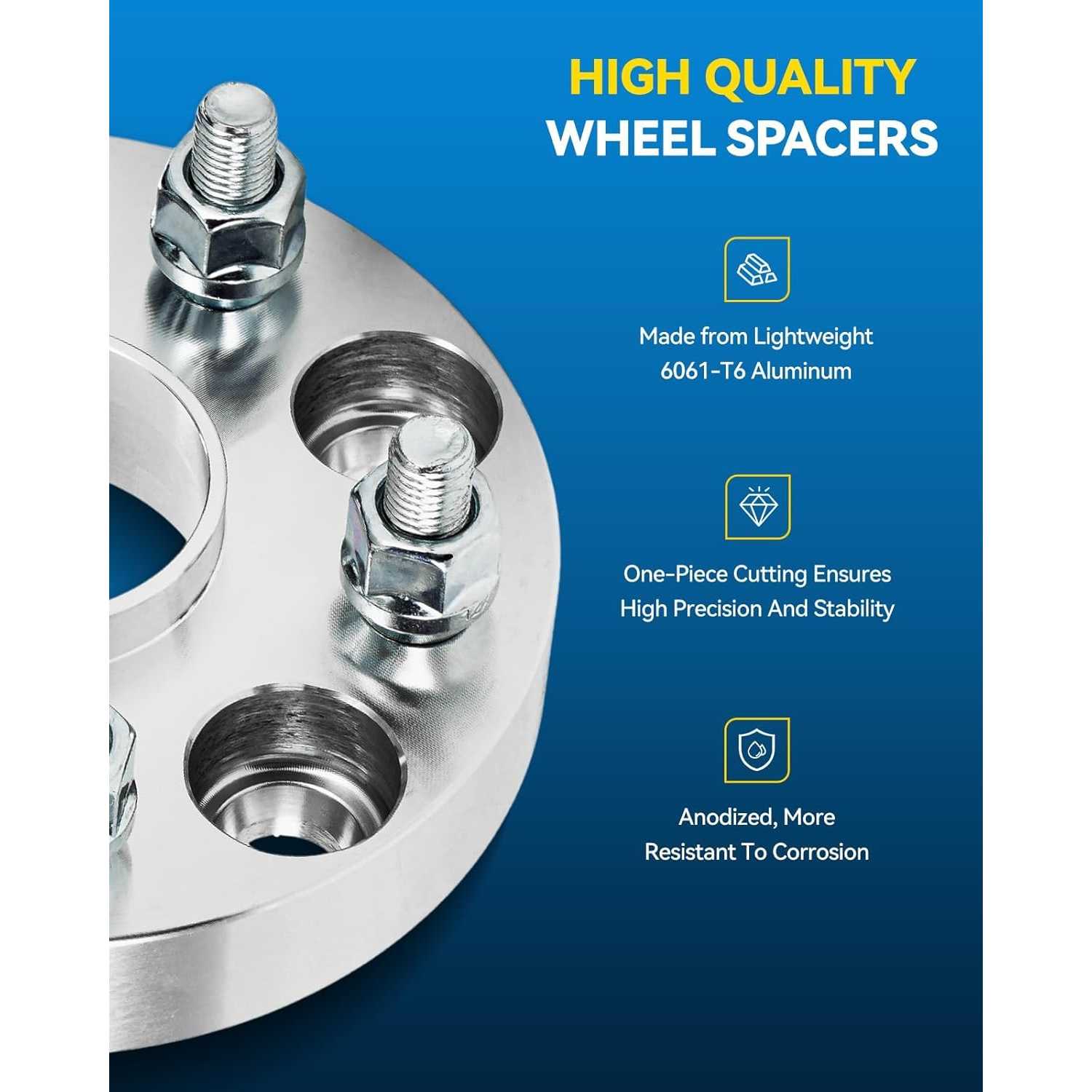

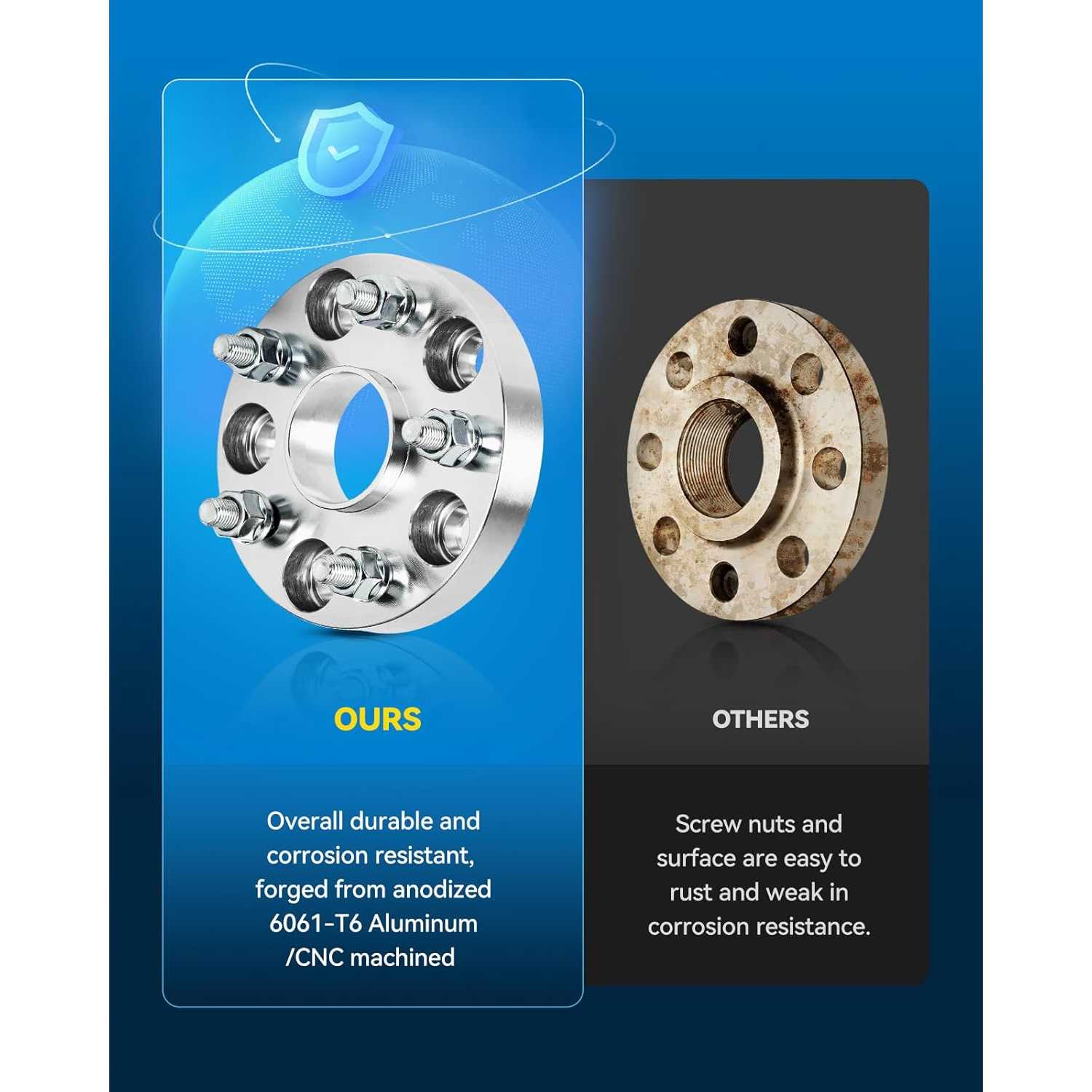

  • [High Quality] ---5x120 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving

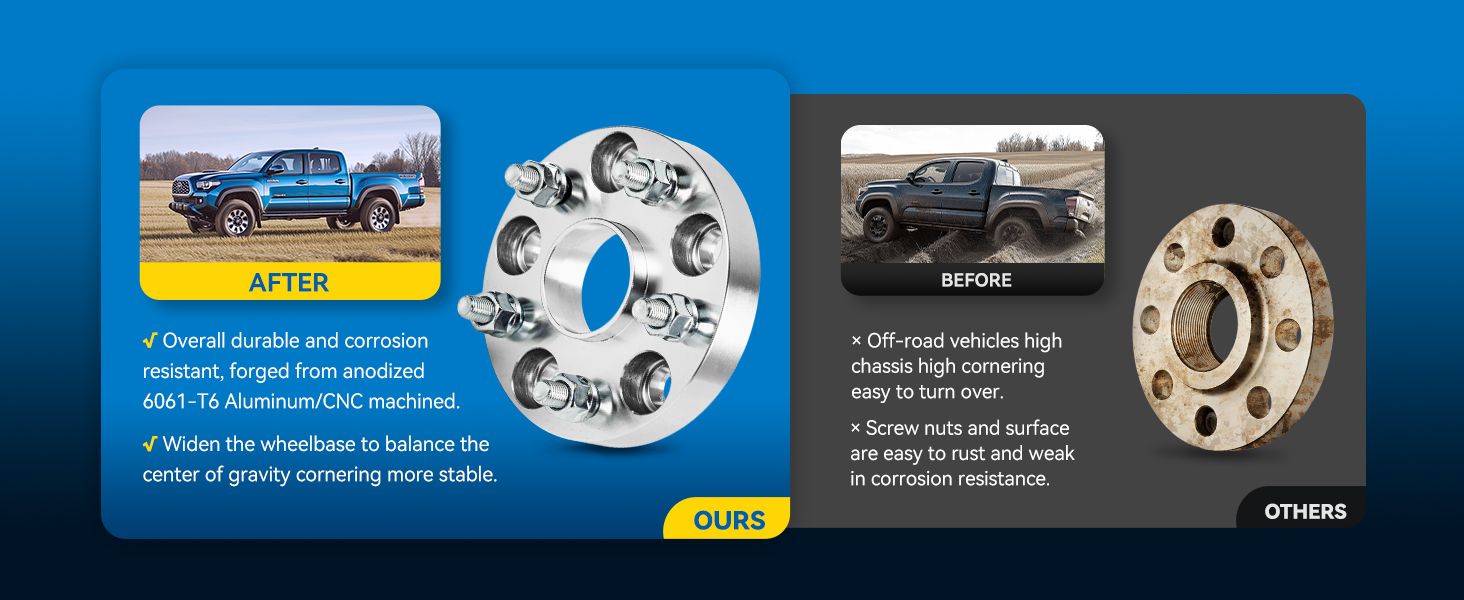

  • [Aggressive Driving Experience] --- These 5x120 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20202022 - 20242007 - 20132017 - 20202022 - 20242017 - 20202022 - 20242005 - 20082009 - 20122014 - 202020142016 - 202020092010 - 201420092010 - 20142021 - 20242021 - 20242021 - 202420232010 - 20132017 - 20212023 - 202420212005 - 20102011 - 20172018 - 20242005 - 20102011 - 20172018 - 20242018 - 20242005 - 20102011 - 20172018 - 20222016 - 20172023 - 20242005 - 20102011 - 20172018 - 20242011 - 201720242019 - 20242019 - 20232019 - 20212019 - 20212022 - 20242020 - 202220252009 - 20152016 - 20212009 - 20152016 - 20252016 - 20252009 - 20152016 - 20212023 - 202420152021 - 20222022 - 20252009 - 20152016 - 20252022 - 20252017 - 20242006 - 20142017 - 20192006 - 20142017 - 20242017 - 20232017 - 20192006 - 201420172007 - 200820142012 - 20142017 - 202420242018 - 2019201720172016201620172017 - 2019201620162016 - 20172012 - 201520212020 - 20212017 - 2019201620162020 - 202120212014 - 20152018 - 20192017 - 20192016 - 201720212020 - 20212017 - 2019201620162020 - 20212021
MakeAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTeslaTesla
ModelMDXMDXMDXMDXMDXMDXMDXRLRLRLXRLXRLXTLTLTLTLTLXTLXTLXTLXZDXCivicCivicCivicOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyOdysseyPassportPassportPassportPassportPassportPassportPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotPilotRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineRidgelineSSSSSSSSSSSSSSSSSSSXXXXXXXXXX
TrimBaseBaseBaseSH-AWDSH-AWDSport HybridType SBaseBaseBaseSport Hybrid SH-AWDSport Hybrid SH-AWDBaseBaseSH-AWDSH-AWDBaseSH-AWDType SType S PMC EditionBaseType RType RType R Limited EditionEXEXEXEX-LEX-LEX-LEliteLXLXLXSESportTouringTouringTouringTouring EliteBlack EditionEX-LEliteSportTouringTrailSportBlack EditionBlack EditionEXEXEX-LEX-LEliteLXLXLXSESpecial EditionSportTouringTouringTrailSportBlack EditionRTRTRTLRTLRTL-ERTL-TRTSRTSRTXSESportSportTrailSport100D6060D7070D7575D8585D90DBaseLong RangeLong Range PlusP100DP85DP90DPerformancePlaidSignature100D75D90DLong RangeLong Range PlusP100DP90D FounderP90D SignaturePerformancePlaid
Engine3.5L V63.5L V63.7L V63.5L V63.5L V63.0L V63.0L V63.5L V63.7L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.7L V62.0L L42.0L L43.0L V63.0L V63.7L V62.0L L42.0L L42.0L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6-----------------------------
Note--
Front;Rear;Replace Axle Nut;Torque to 181 ft-lbs (Nm 245);Torque to 242 ft-lbs (Nm 329)
----
Rear Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
Rear Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
---
Rear AWD Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
Rear Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
Rear AWD Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
Rear Replace Axle Nut Torque to 181 ft-lbs (245 Nm)
----
Front;Rear;Replace Spindle Nut (Axle Nut Torque 181 ft. lbs);Replace Spindle Nut (Axle Nut Torque 242 ft. lbs)
---
Front;Rear
Rear
-
Front;Rear
Rear
--
Front;Rear
Rear
-
Rear
-
Front;Rear
Rear
-
Rear
--------
AWD;Front;Rear
-
AWD;Front;Rear
--
AWD;Front;Rear
--
AWD;Front;Rear
--
AWD;Front;Rear
----------------
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum
5 on 120mm - 15mm - 64.10 OD/ID (2 Pack) 6061 Billet Aluminum

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Alyssa Porter

12/01/2024

Verified buyer

Very good quality, exactly as described by the seller, very satisfied Read more

Miguel Cepeda

12/01/2024

Verified buyer

Baby especially like, high level of appearance, good quality Read more

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Thickness depends on the desired clearance and the available space around the tire, fender, and suspension. Measure carefully and confirm that the selected size is permitted for your vehicle setup.

Hub-centric spacers use a center bore or lip to help center the wheel on the hub, while lug-centric designs rely mainly on the wheel fasteners. Use the design specified for your application.
