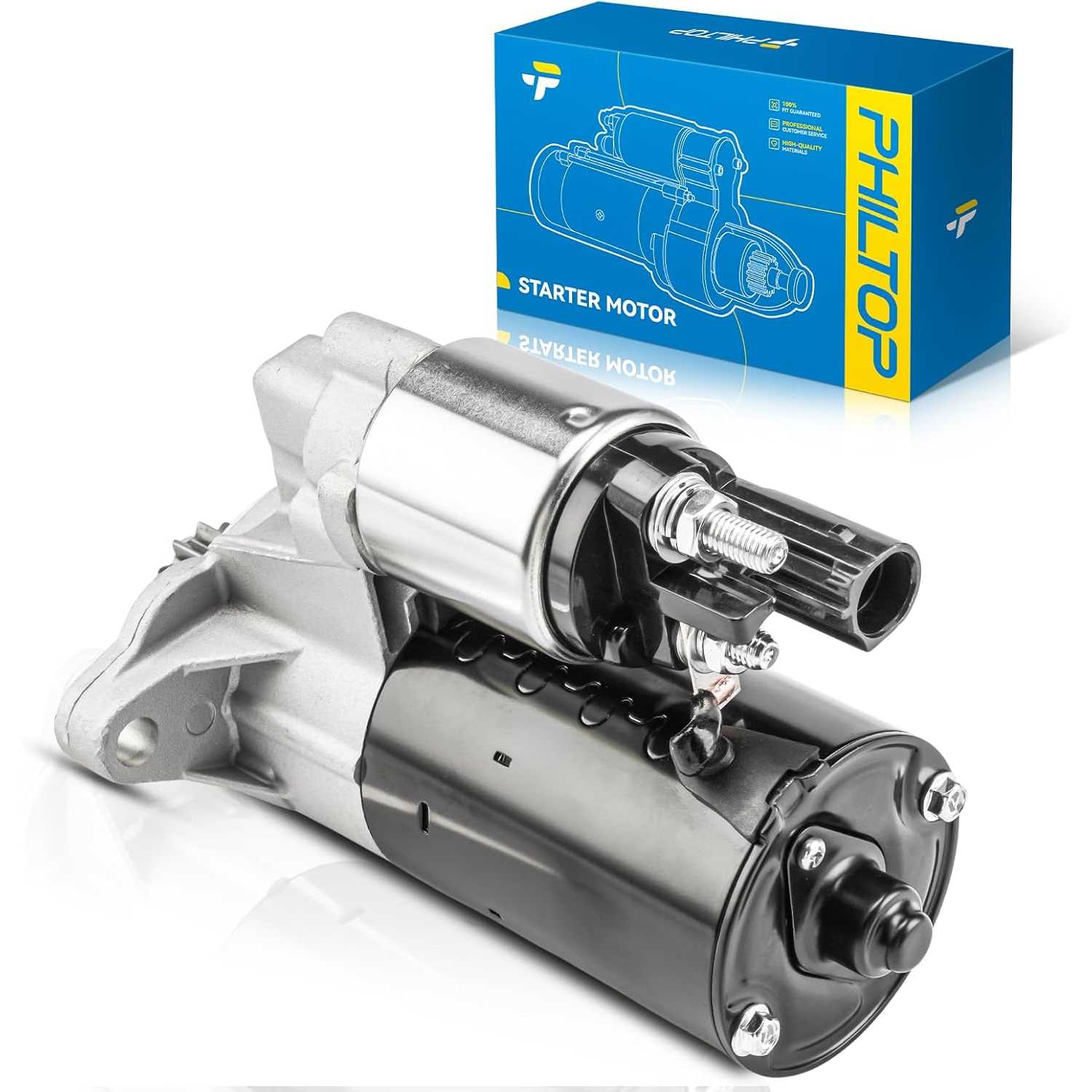

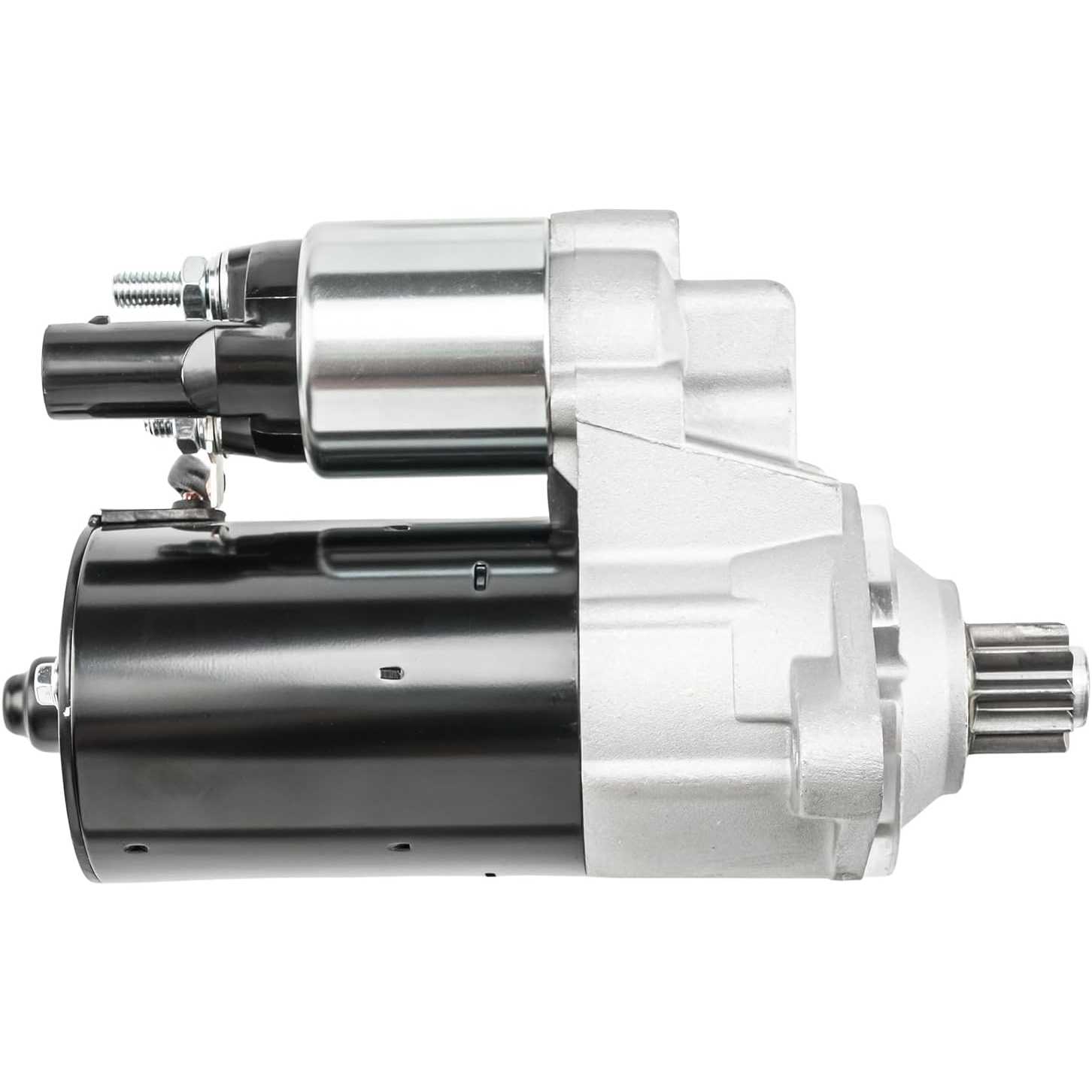

2006-2009 Volkswagen Jetta 2.0L L4 | 1.0KW 10-Tooth Starter | 19001N - PHILTOP

2006-2009 Volkswagen Jetta 2.0L L4 | 1.0KW 10-Tooth Starter | 19001N - PHILTOP

Power: 1.0 kW

Pinion Teeth: 10

Quick Starting Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5885STM154DUS

Specifications

Brand
PHILTOP
Power
1.0 kW
Pinion Teeth
10
Voltage
12 V
Rotation Direction
CCW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 19001N 1x Manual
Warranty Period
2-Year
Part Number
19001N

Highlights

  • Compatibility: 2006-2009 GTI 2.0T, 2006-2009 Jetta 2.0T, 2009-2011 Eos 2.0T, 2007-2008 A3, 2009-2010 2013 A3 2.0T, 2008-2009 TT
  • OEM Number: 02E911023J、02E911023JX、19001、19001N、91157234、190018、MPA19001
  • Starter Specification: ①Power Rating: 1KW; ②Voltage: 12V; ③Number of Teeth: 10 Teeth; ④Rotation: CCW(Counterclockwise); ⑤Specs for: Bosch PMGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

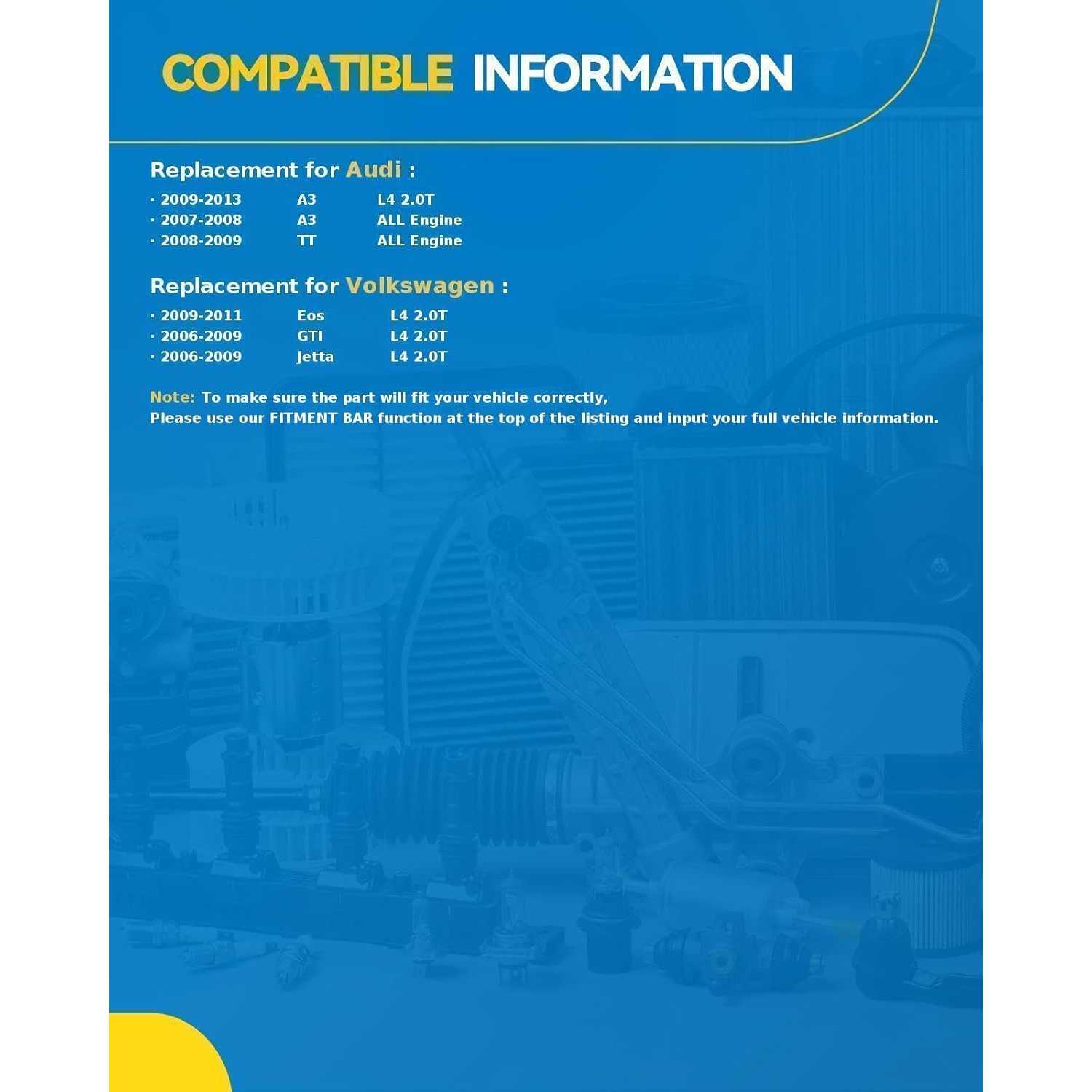

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20082009 - 20132011 - 20132008 - 2009201020142009 - 20112009 - 20112006 - 200920072006 - 20072006 - 200920092008 - 2009
MakeAudiAudiAudiAudiAudiAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelA3A3A3TTTT QuattroTT QuattroEosEosGTIGTIJettaJettaJettaJetta
TrimBaseBaseTDIBaseBaseBaseKomfortLuxBaseFahrenheit2.0TGLISELWolfsburg Edition
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note-
2010 GAS ONLY
2010 GAS ONLY
-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Kelly_SUV_Life_300

10/30/2025

Direct fit for my 2008 GTI and the shipping was very quick. I'm glad I chose this over the more expensive options.

Ashley_RoadTrip_243

04/27/2026

Shipping was lightning fast and the package arrived in great shape. Installing it on my Audi was a breeze with no fitment issues.

FAQS

PHILTOP Starter are specifically designed for [specific vehicle models]. Rigorously tested to OE standards. You can check the vehicle compatibility and product images to ensure a perfect match.

Avoid prolonged or repeated cranking. Follow your vehicle’s recommended starting intervals to prevent overheating.

Slow cranking can also result from low battery charge, poor ground connections, damaged cables, unsuitable engine oil viscosity, or mechanical resistance in the engine. Check these conditions before assuming the replacement starter is faulty.
