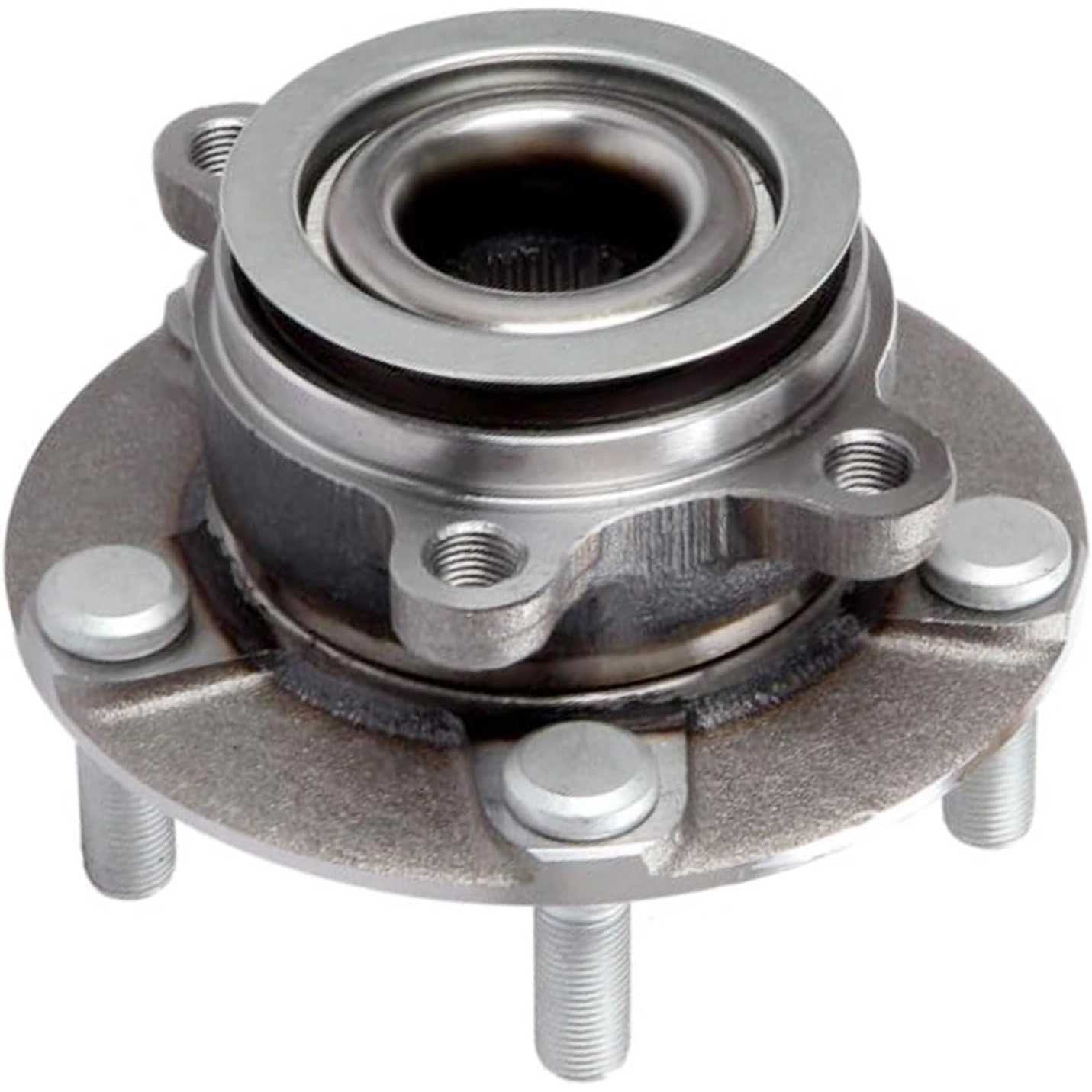

2008-2013 Nissan Rogue 2.5L L4 | 1 PC Front Wheel Bearing | 40202JG000/513298 - PHILTOP

2008-2013 Nissan Rogue 2.5L L4 | 1 PC Front Wheel Bearing | 40202JG000/513298 - PHILTOP

Triple-Lip Seal

Front

AISI 52100

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2247WSA391LUS

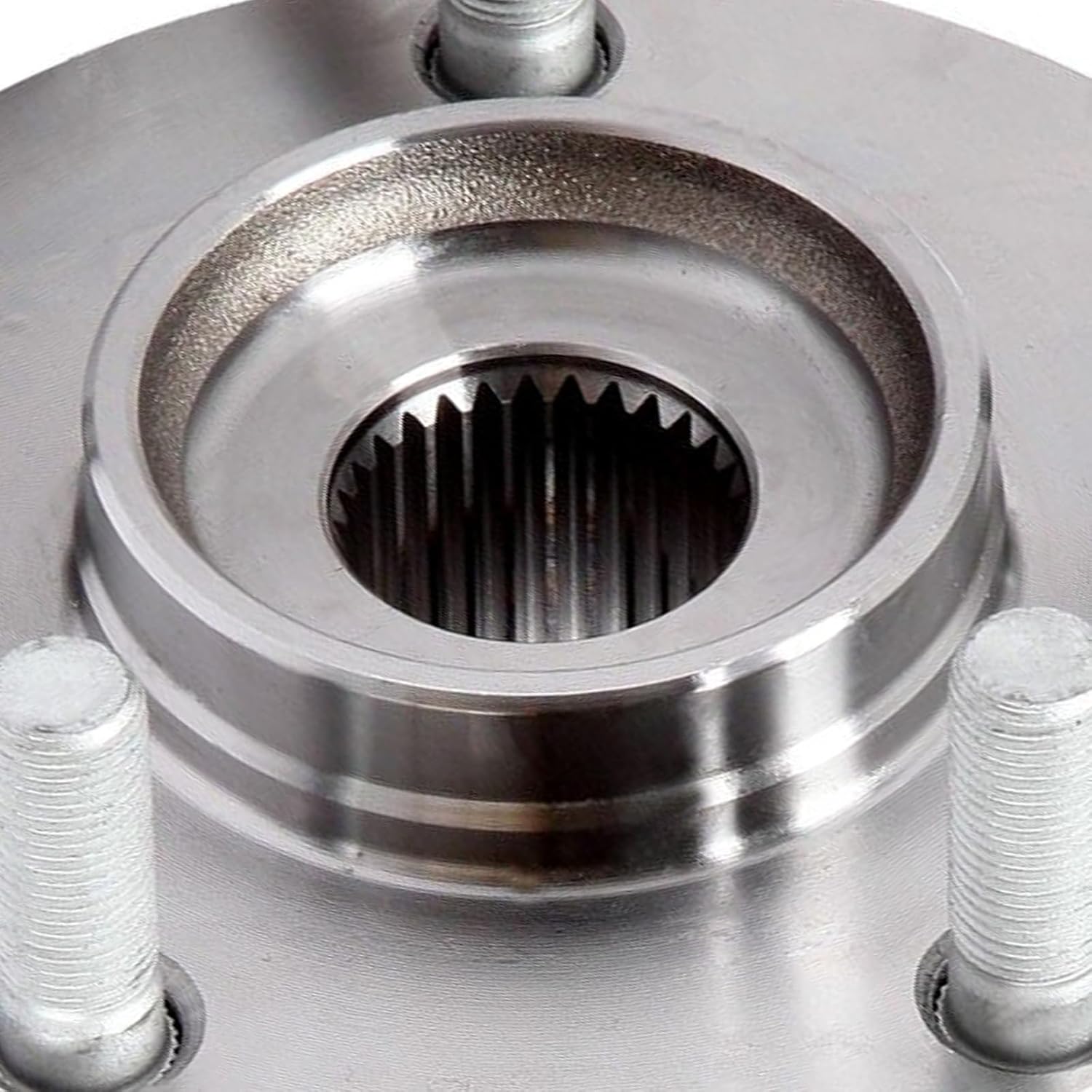

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Front
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

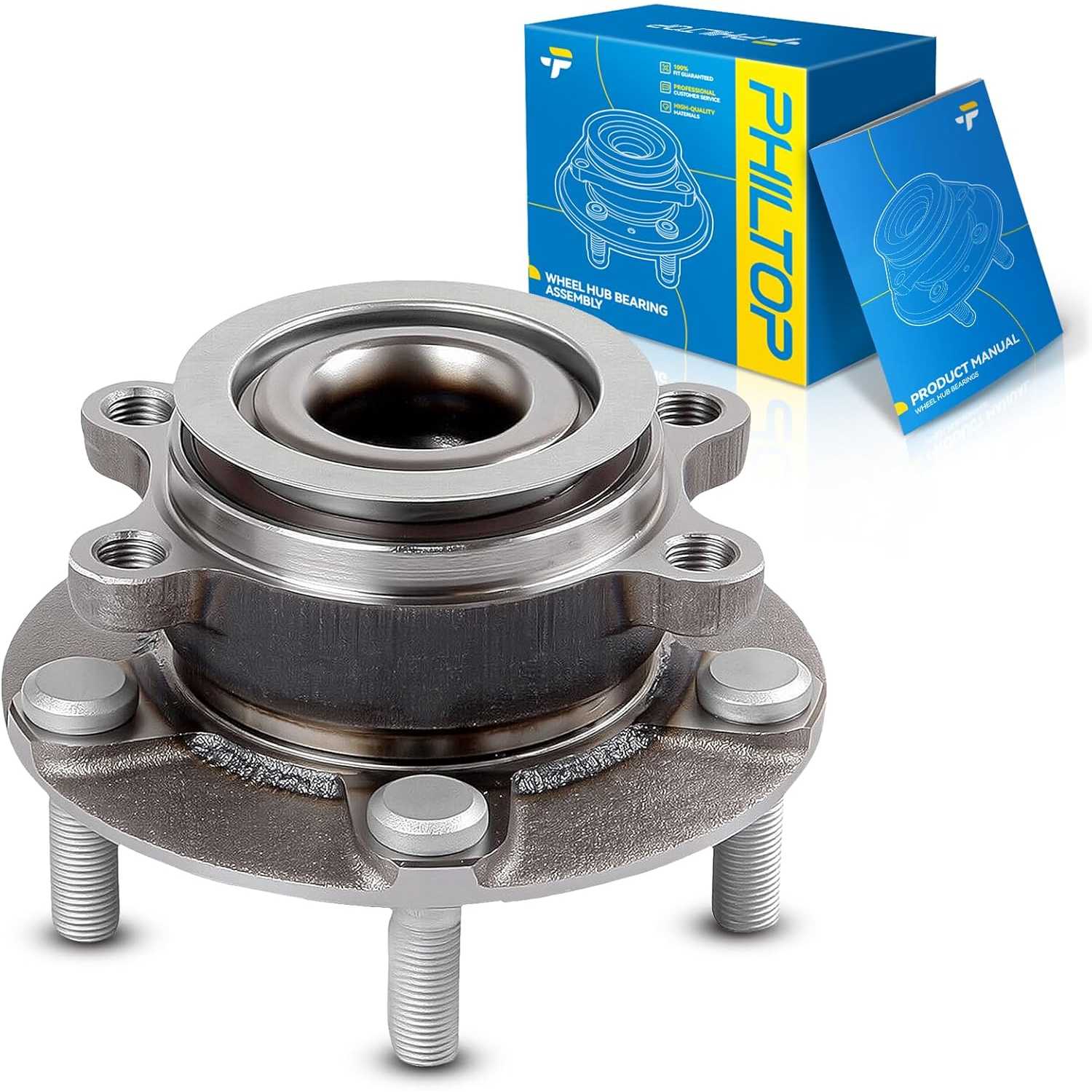

1x Front Wheel Hub and Bearing Assembly - 513298,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.1 in
Wheel Stud Size
M12x1.25
Flange Offset
1.61 in/40.8 mm
Flange Diameter
5.35 in/136.0 mm
Brake Pilot Diameter
2.68 in/68.0 mm
Warranty Period
2-Year
OE Number
40202JG000,40202JG01B,40202BR00A,40202JG01A,40202EN010
Part Number
513298,WE60491,HA590278,7500021,BR930772,HA590239,WA513298,MB30304,VKBA6996,WH513298,713298,534298,1411425345,101860,29513298,PT513298,G30304,516343,DL513298
Quantity
1

Highlights

  • [Fitment] Wheel Bearing and Hub Assemblies compatible with 2008-2013 Nissan Rogue, 2014-2015 Nissan Rogue Select, 2007-2012 Nissan Sentra
  • [OE Number] 513298, WE60491, 40202JG000, 40202JG01A, HA590278, 40202EN010, 7500021, 40202JG01B, WA513298, 40202BR00A, WH513298, 713298, 534298

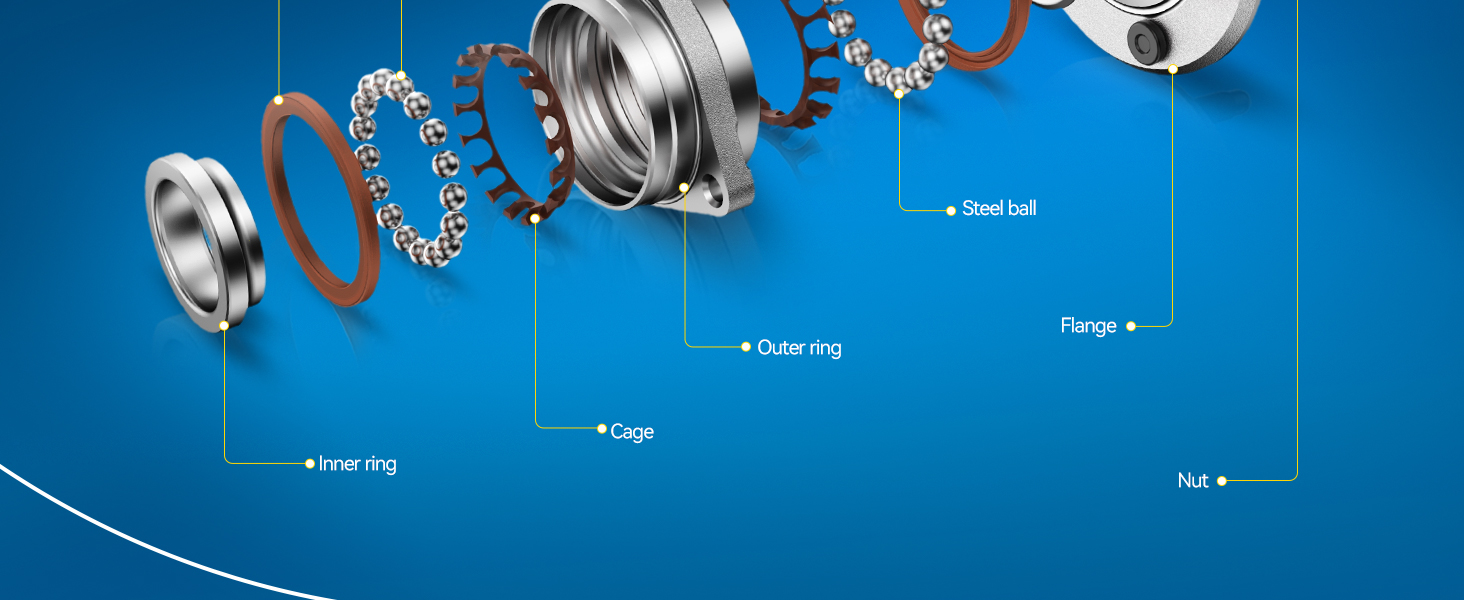

  • [Premium Materials] The outer ring and flange are made of high-quality #55 carbon structural steel for superior hardness and strength; the inner ring is crafted from GCr15 bearing steel, which achieves uniform hardness after quenching and tempering for excellent wear resistance and fatigue strength.

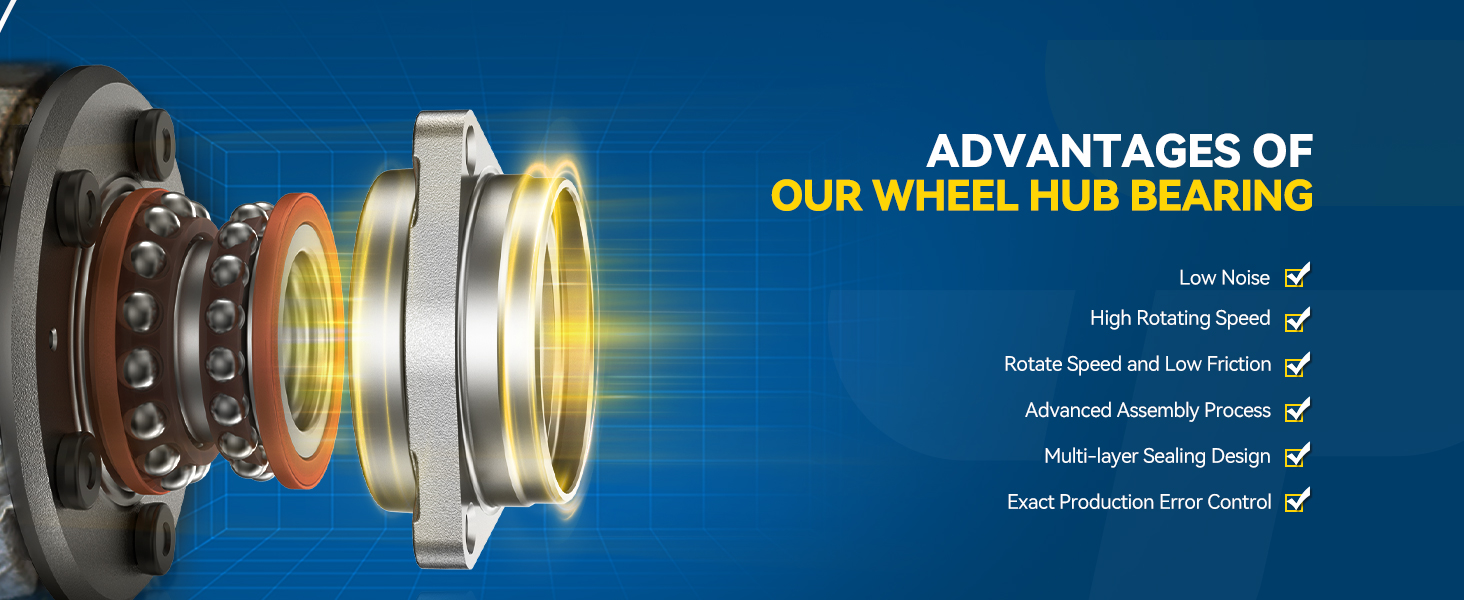

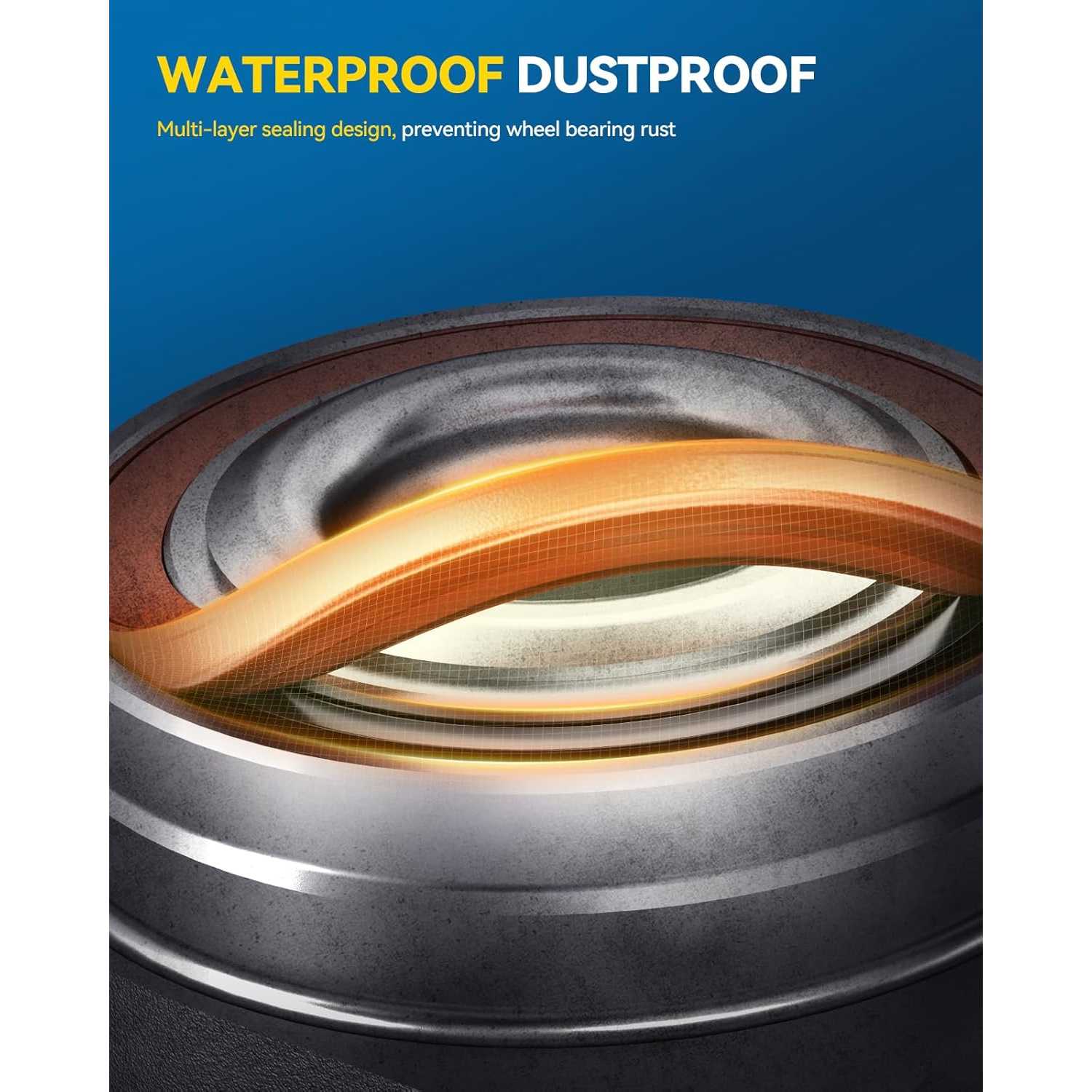

  • [Long Life, Stable Drive] Our brand-new hub assemblies and studs are finished with rust-proof coating for longer service life. Featuring a triple oil seal structure, they effectively block moisture and dust, while minimizing noise and vibration to deliver a smoother, more comfortable drive.
  • [Pro Installation for Safety] If you lack installation instructions or professional experience, have a qualified mechanic install the bearing to guarantee optimal performance and safe driving.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102008 - 201320112008 - 20102011 - 20132014 - 20152007 - 20122007 - 2012
MakeNissanNissanNissanNissanNissanNissanNissanNissan
ModelRogueRogueRogueRogueRogueRogue SelectSentraSentra
TrimKromSS KromSLSVSSE-RSE-R Spec V
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Brad_AutoParts_911

04/07/2026

Got this for my Sentra and it fit like a factory part. Super fast shipping too. Couldn't ask for a better experience.

Lisa_CivicDriver_703

03/09/2026

This bearing fixed the wobble I was feeling in my Rogue's front end. It's smooth as can be now. Big improvement and worth every penny.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.

The design depends on the application. Compare the product type and images with the original part before installation; press-in bearings generally require suitable shop tools.
