2001-2005 Polaris Sportsman 400 4x110mm 84mm Center Bore M10x1.25 Thread Wheel Hub Accessory - PHILTOP

2001-2005 Polaris Sportsman 400 4x110mm 84mm Center Bore M10x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
78ISWSA4697US

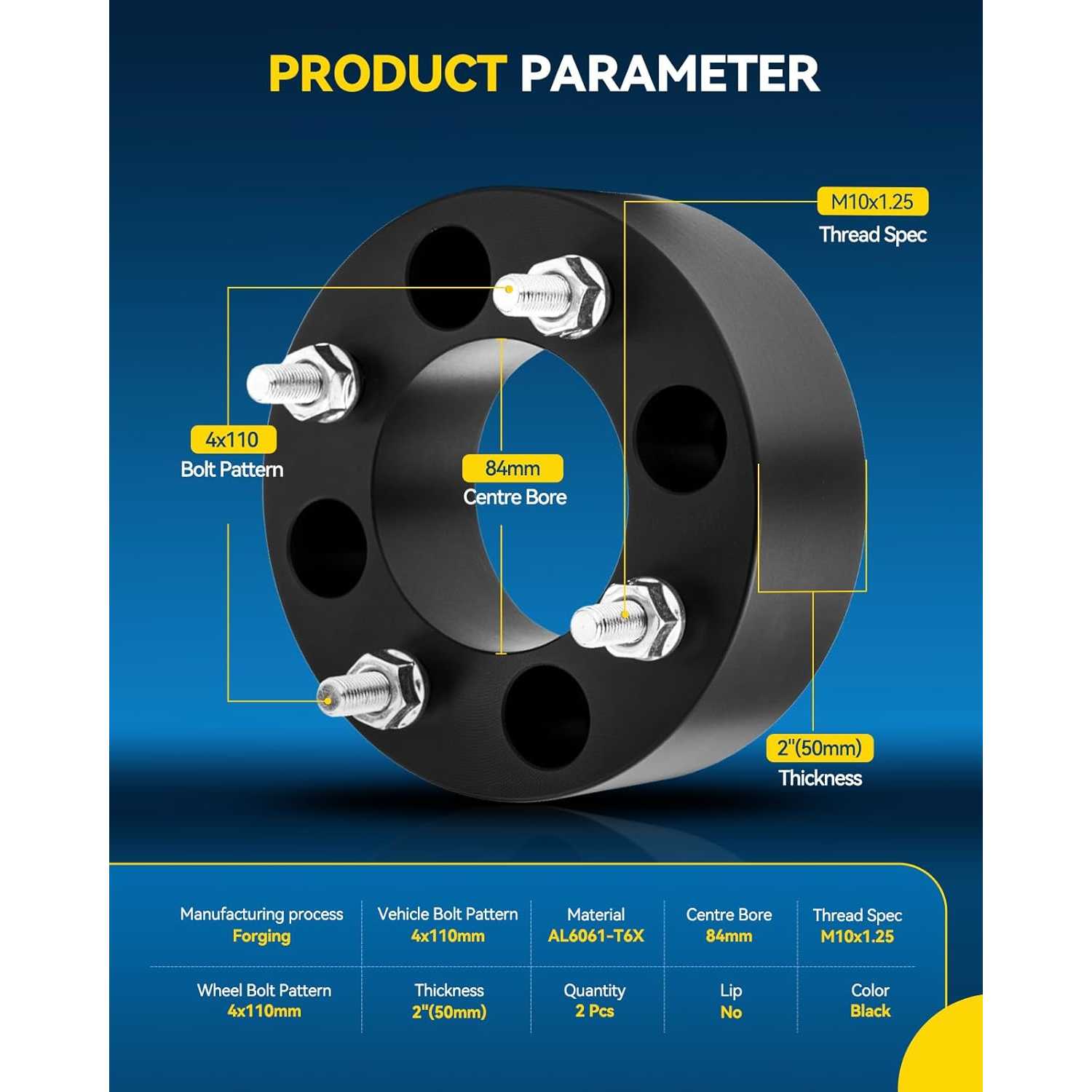

Specifications

Brand
PHILTOP
Bolt Pattern
4x110mm
Wheel Bolt Pattern
4x110mm
Vehicle Bolt Pattern
4x110mm
Thread Size
M10x1.25
Center Bore
84
Hub-Centric Lip
No
Thickness
2inch
Outside Diameter
147.5
Inside Diameter
3.31 in/84 mm
Lug Patterns
4
Type
Wheel Spacer
Items Included

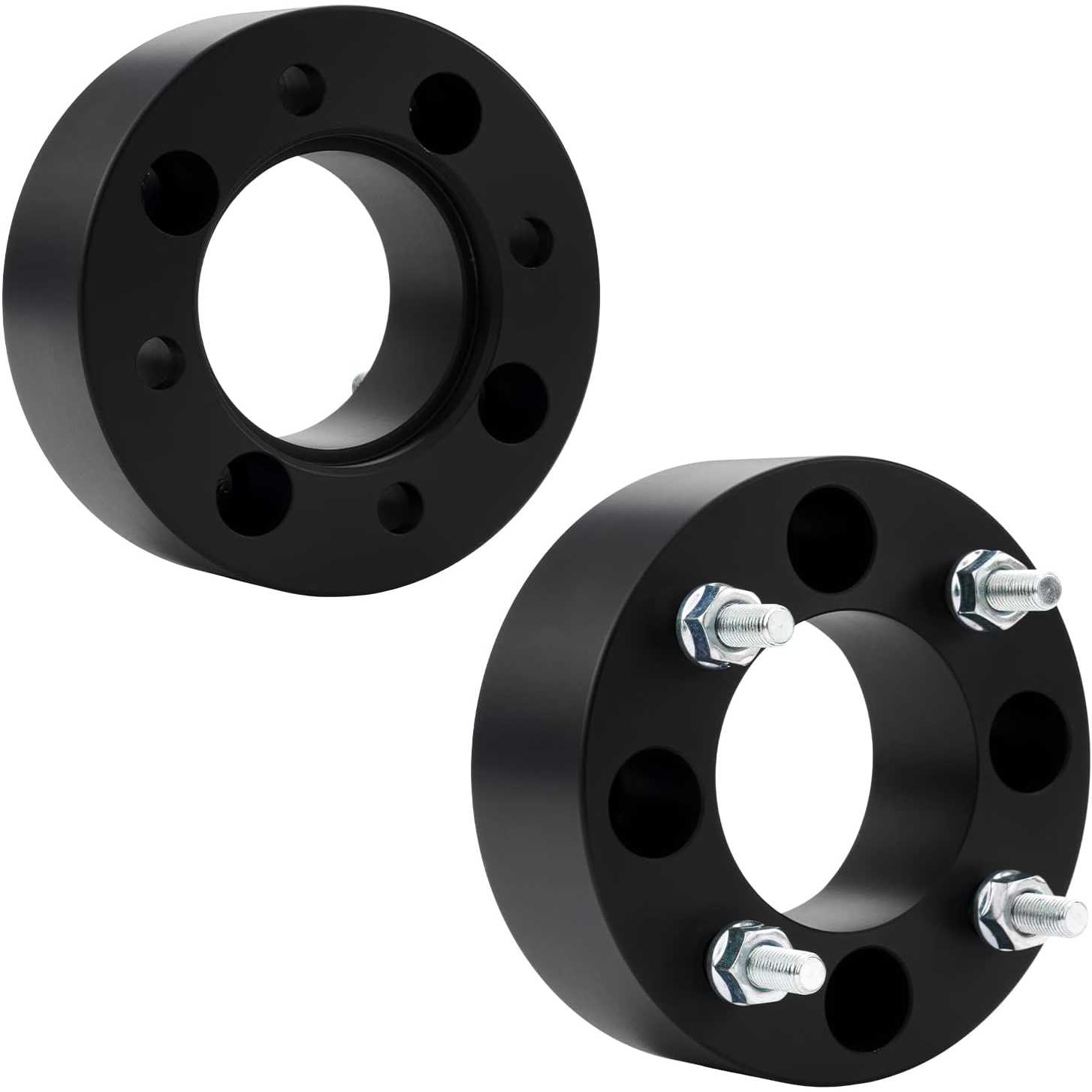

2x Lug-Centric Wheel Spacers
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
40-50 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 4x110mm ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M10x1.25 ; | Hub Bore: 84mm ; | Recommended torque: 45-55 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 4x110 Wheel Spacer set replacement for 2001-2005 Sportsman 400 Base; 1999-2000 Sportsman 335 Base; 1999-2002 Diesel (455cc) Base

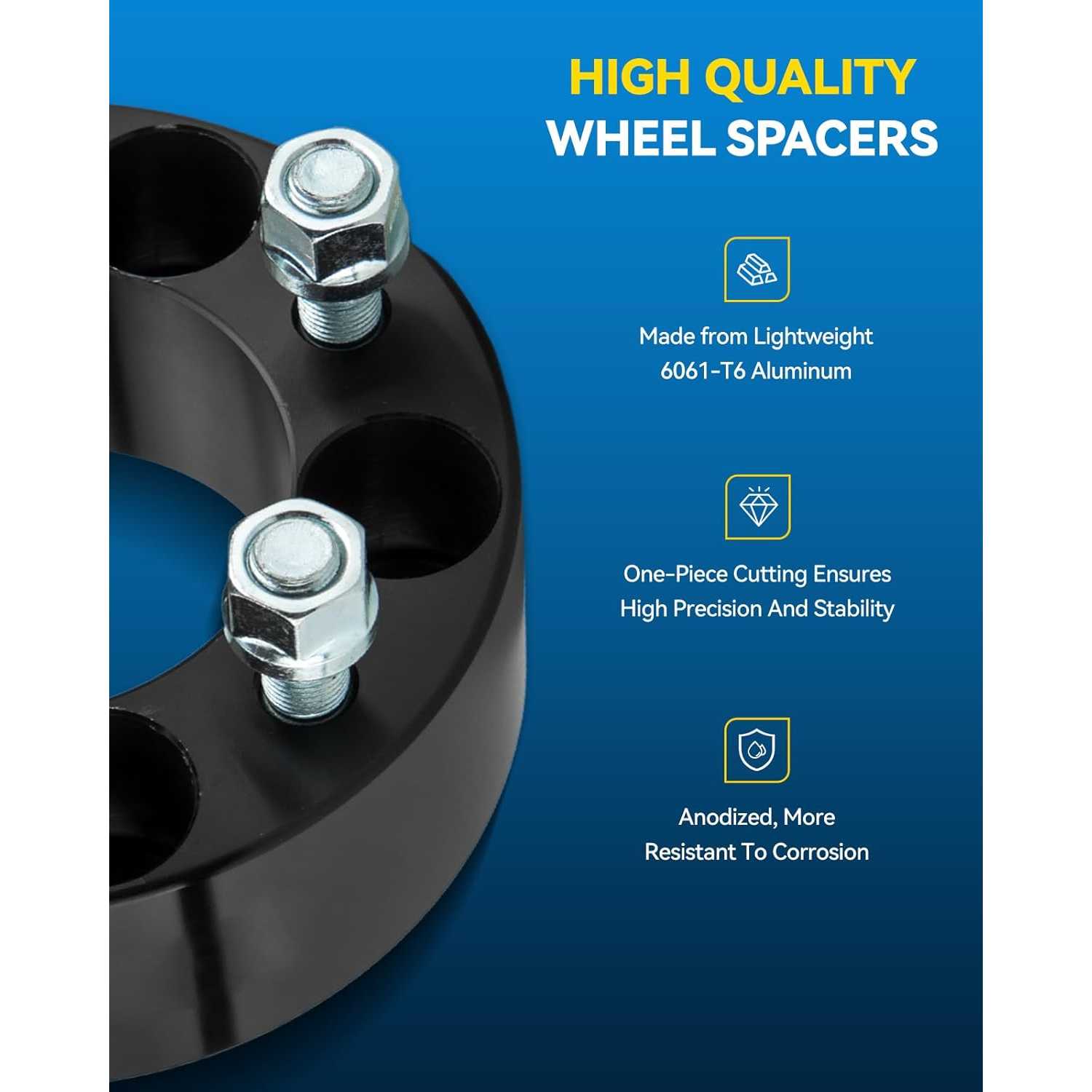

  • [High Quality] ---4x110 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 4x110 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1999 - 20021999 - 20002001 - 2005
MakePolarisPolarisPolaris
ModelDiesel (455cc)Sportsman 335Sportsman 400
TrimBaseBaseBase
Engine---
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 7 reviews

5100%
40%
30%
20%
10%

eli

12/01/2024

Verified buyer

As ordered and on time Good seller Read more

Kendell Bauman

12/01/2024

Verified buyer

Package was shipped and arrived very quickly. Great job!! Price was very reasonable. Read more

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Hub-centric spacers use a center bore or lip to help center the wheel on the hub, while lug-centric designs rely mainly on the wheel fasteners. Use the design specified for your application.

Compare the spacer specifications with the vehicle hub and wheel, including bolt pattern, center bore, stud or bolt size, and thread pitch. All dimensions should match the intended application.
