2006-2023 Dodge Charger 2.7L V6/3.5L V6/5.7L V8/6.4L V8/3.6L V6/6.2L V8/6.1L V8 | 5x4.53" 71.5mm Center Bore M14x1.5 Thread Whee

2006-2023 Dodge Charger 2.7L V6/3.5L V6/5.7L V8/6.4L V8/3.6L V6/6.2L V8/6.1L V8 | 5x4.53" 71.5mm Center Bore M14x1.5 Thread Whee

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
24ISWSA4797US

Specifications

Brand
PHILTOP
Bolt Pattern
5x115mm
Wheel Bolt Pattern
5x115mm
Vehicle Bolt Pattern
5x115mm
Thread Size
M14x1.5
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
2inch
Outside Diameter
150
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included

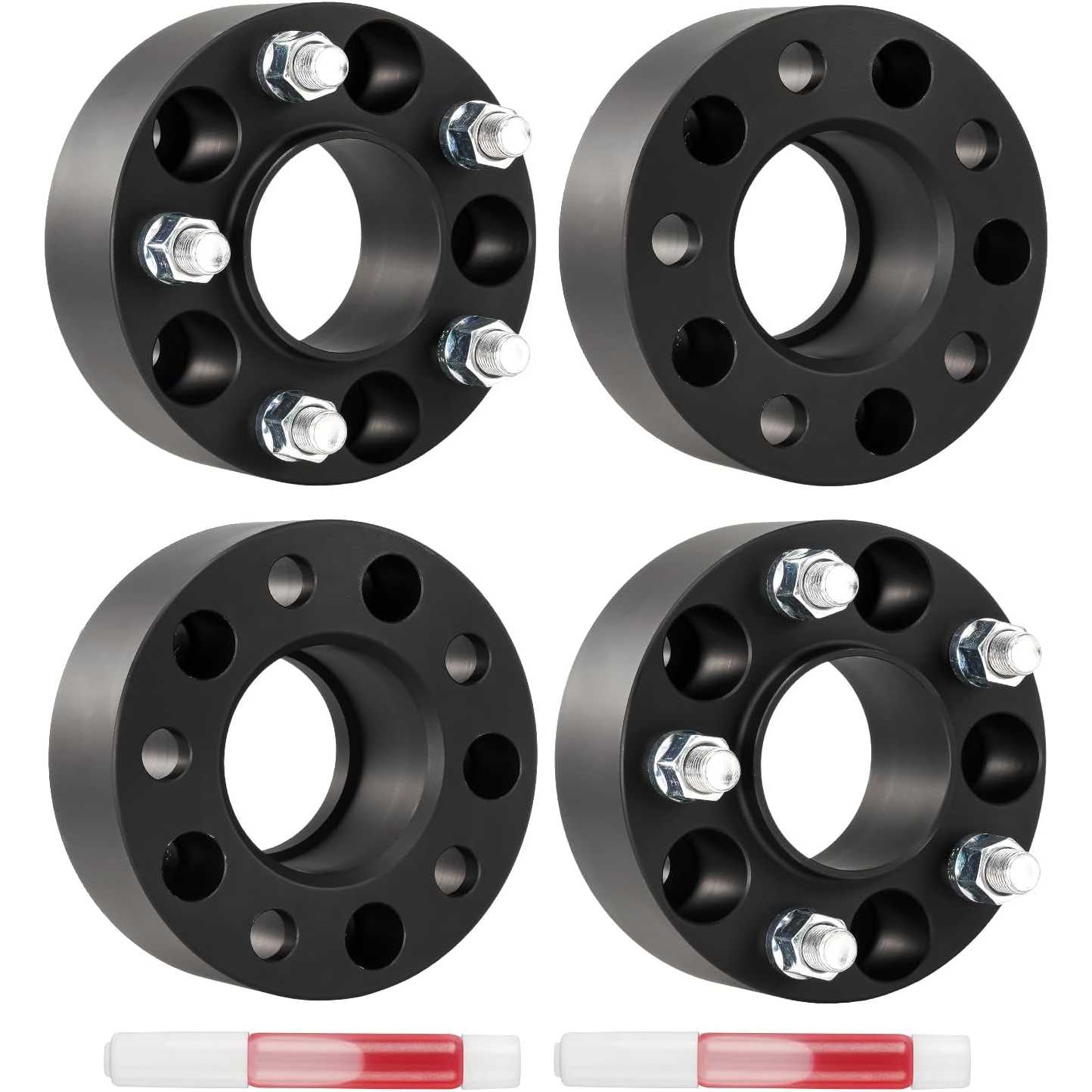

4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 5x115mm ; | Thickness: 2 inch(50.8mm) ; | Thread Pitch: M14x1.5 ; | Hub Bore: 71.5mm ; | Recommended torque: 85-90 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 5x115 Wheel Spacer set replacement for 2011-2023 Charger 3.6L RWD Naturally Aspirated V6; Challenger 3.6/6.4L RWD Naturally Aspirated V6/V8; 2006-2023 Charger 5.7L RWD Naturally Aspirated V8; 2005-2010 300 2.7/3.5/6.1L AWD/RWD Naturally Aspirated V6/V8; 2006-2010 Charger 2.7/3.5/6.1L RWD Naturally Aspirated V6/V8; 2012-2023 Charger 3.6/6.4L AWD/RWD Naturally Aspirated V6/V8; 300 3.6L AWD Naturally Aspirated V6; 2009-2023 Challenger 5.7L RWD Naturally Aspi

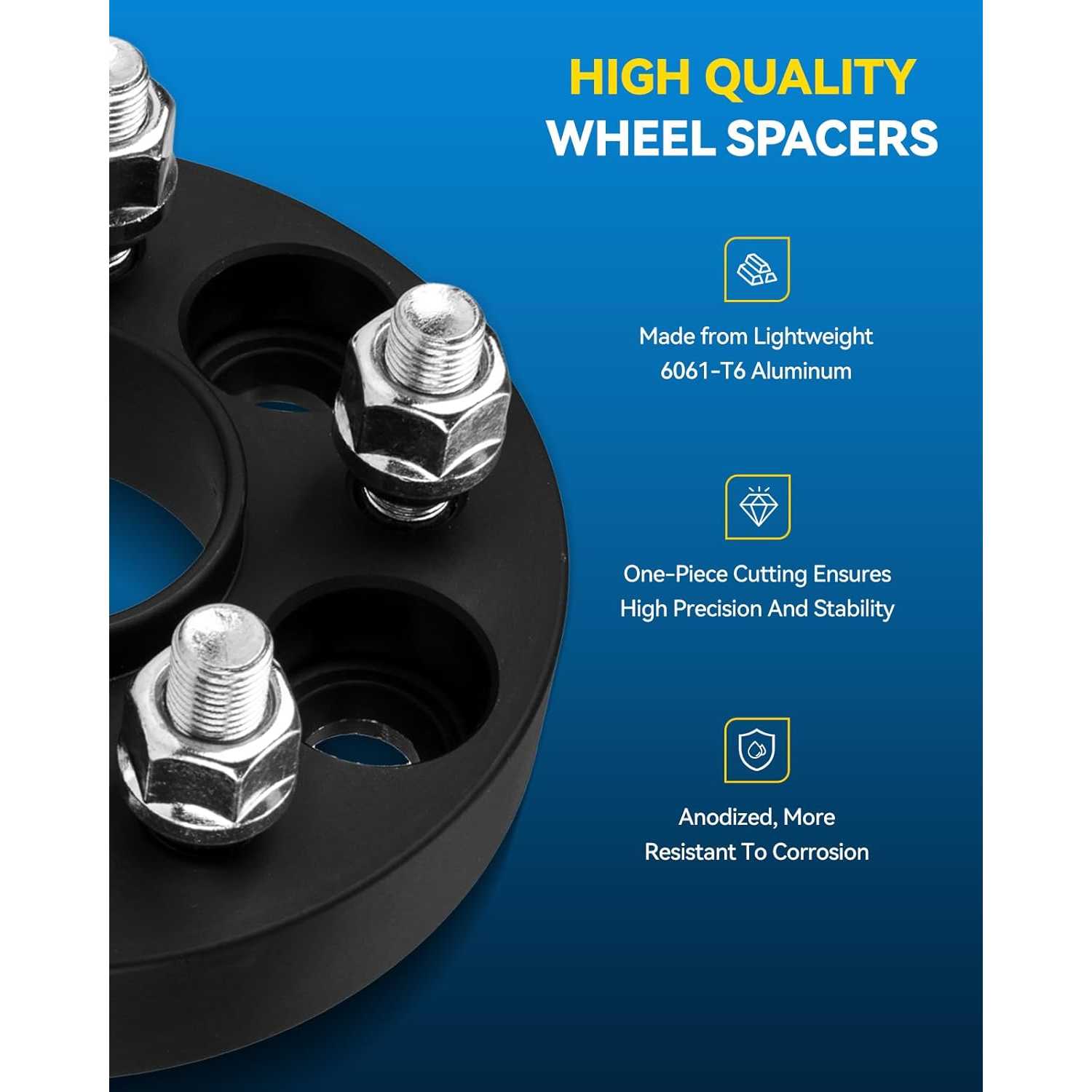

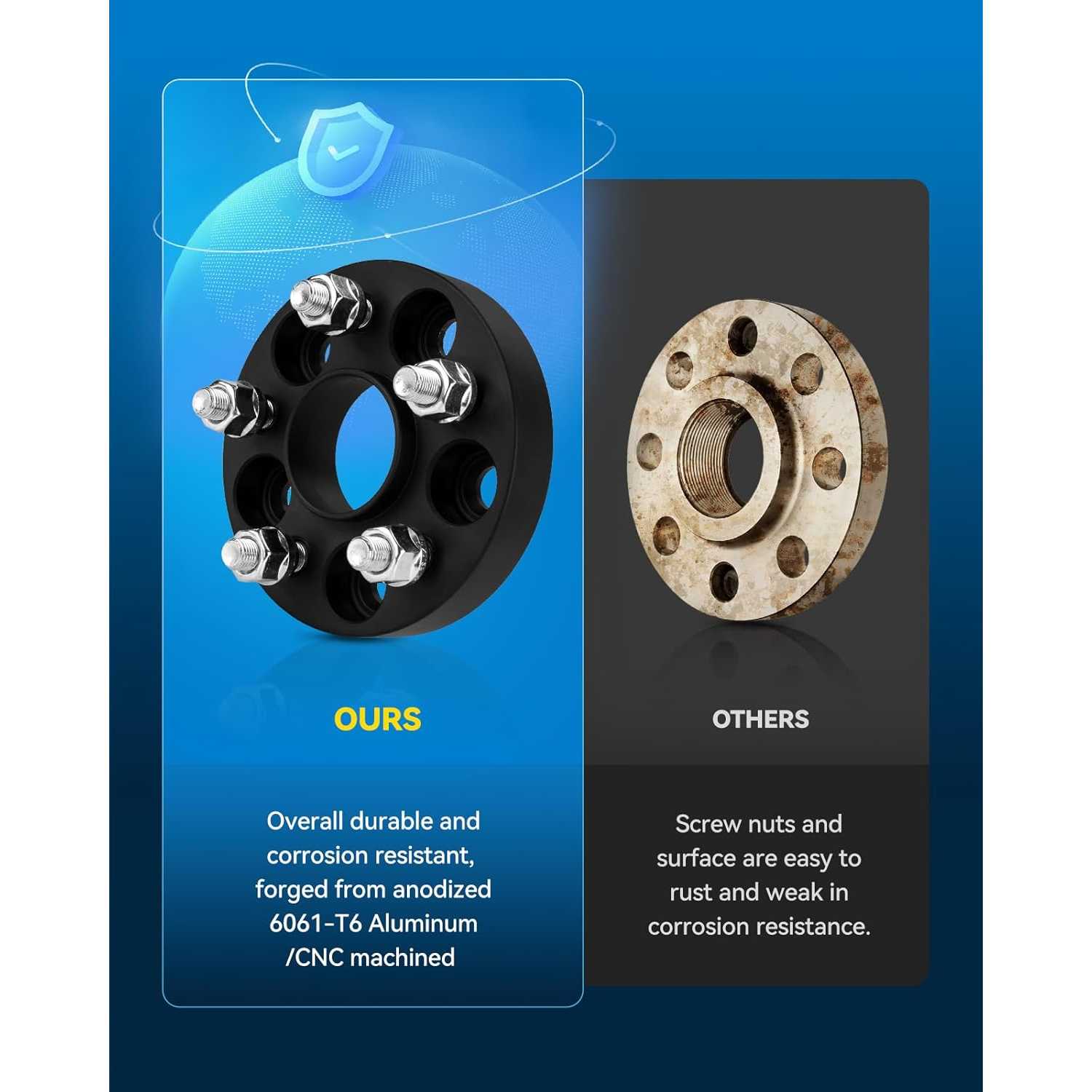

  • [High Quality] ---5x115 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 5x115 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

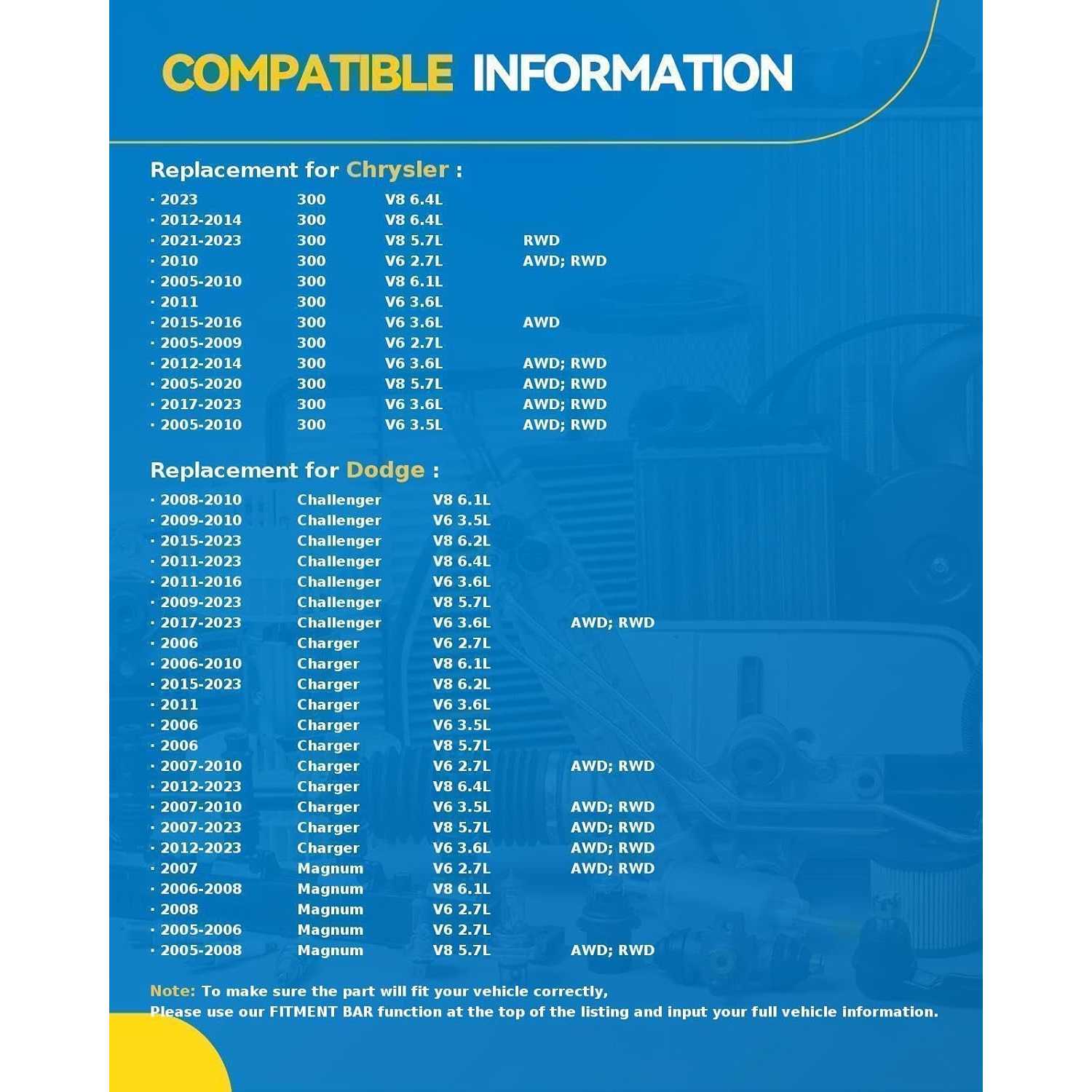

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 2007201120122013 - 20142013 - 20142015 - 20172005 - 200820092010 - 201120122013 - 20142015 - 202020232013 - 201420122013 - 20142015 - 20172015 - 20172005 - 200820092010200820092005 - 200820092010201120122015 - 2020201020122013 - 20142015 - 20222023201020122013 - 20142015 - 2022202320122013 - 20142013200920102005 - 2008200920102018 - 202220232018 - 20222023201620172018201920202021 - 202220232009 - 2010201120122013 - 20142015 - 20172018201920202021 - 2022202320172018201920122015 - 201620162016 - 20172018201920202021 - 202220232021201920202021 - 20222023201620142009 - 201020112015 - 20172018201820232015 - 20172018201920202021 - 20222023201920202021 - 20222023201920202021 - 202220232018201920202021 - 20222023202220202021 - 2022202320082009 - 2010201120122013 - 201420122013 - 20142015 - 20172018201920202021 - 2022202320122015 - 2017201820152017201820172018202120062007200620072017 - 20182017 - 2018200620182019 - 20222023201820062007 - 20082009201020112012 - 2013201420152016 - 20182019 - 2022202320062007 - 200820092010 - 20112012 - 2013201420152016 - 20182019 - 2022202320062007 - 200820092010 - 20112012 - 2013201420152016 - 20182019 - 202220232017 - 20182015201620152016 - 20182007 - 20082009201020062007 - 20082009201020112012 - 2013201420152016 - 2017200820092010 - 20112012 - 201320152016 - 201820152016 - 20182019 - 20202021 - 2022202320232020 - 202220232023202220062007 - 2008200920102012 - 2013201420062007 - 2008200920102012 - 2013201420152016 - 20182019 - 202220232012201820182019 - 202220232020202220232005 - 20082005 - 20082007 - 20082006 - 20082005 - 20082005
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerMagnumMagnumMagnumMagnumMagnumMagnum
TrimBaseBaseBaseBaseCCCCCCCCCC LuxuryC LuxuryC LuxuryC PlatinumC PlatinumC SRT8C SRT8C SRT8LXLXLimitedLimitedLimitedLimitedLimitedLimitedSSSSSSSSSSSRT8SRT8SRT8 CoreSignature SeriesTouringTouringTouringTouringTouringTouringTouring LTouring L392 Hemi Scat Pack ShakerGTGTGTGTGTGTR/TR/TR/TR/TR/TR/TR/TR/TR/TR/TR/T 392R/T 392R/T 392R/T ClassicR/T PlusR/T Plus ShakerR/T Scat PackR/T Scat PackR/T Scat PackR/T Scat PackR/T Scat PackR/T Scat PackR/T Scat Pack Shaker WidebodyR/T Scat Pack WidebodyR/T Scat Pack WidebodyR/T Scat Pack WidebodyR/T Scat Pack WidebodyR/T ShakerRallye RedlineSESESRT 392SRT 392SRT DemonSRT Demon 170SRT HellcatSRT HellcatSRT HellcatSRT HellcatSRT HellcatSRT Hellcat JailbreakSRT Hellcat RedeyeSRT Hellcat RedeyeSRT Hellcat RedeyeSRT Hellcat Redeye JailbreakSRT Hellcat Redeye WidebodySRT Hellcat Redeye WidebodySRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT Super StockSRT Super StockSRT Super StockSRT8SRT8SRT8SRT8SRT8SXTSXTSXTSXTSXTSXTSXTSXTSXT PlusSXT PlusSXT PlusScat PackT/AT/AT/A 392T/A 392T/A 392 WidebodyBaseBaseBaseBaseDaytonaDaytona 392Daytona R/TGTGTGTGT PlusPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitR/TR/TR/TR/TR/TR/TR/TR/TR/TR/TR/T 392R/T Road & TrackR/T Road & TrackR/T Scat PackR/T Scat PackSESESESESESESESESESESESESESESESESRT 392SRT 392SRT HellcatSRT HellcatSRT HellcatSRT Hellcat Redeye WidebodySRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT8SRT8SRT8SRT8SRT8SRT8SXTSXTSXTSXTSXTSXTSXTSXTSXTSXTSXT PlusSXT PlusSXT Plus LeatherScat PackScat PackScat Pack 392 WidebodyScat Pack WidebodyScat Pack WidebodyR/TSESESRT8SXTSXT Special Edition
Engine2.7L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V83.6L V65.7L V85.7L V83.6L V65.7L V86.1L V86.1L V86.1L V82.7L V62.7L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.5L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V83.5L V62.7L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V66.4L V83.6L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V85.7L V83.6L V63.5L V63.6L V66.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V86.1L V86.4L V86.4L V86.4L V83.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V66.4L V85.7L V85.7L V86.4L V86.4L V86.4L V82.7L V62.7L V63.5L V63.5L V65.7L V86.4L V85.7L V83.6L V63.6L V63.6L V63.6L V63.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V85.7L V85.7L V86.4L V86.4L V82.7L V62.7L V62.7L V63.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V86.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V86.1L V86.1L V86.1L V86.4L V86.4L V83.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V66.4L V86.4L V86.4L V86.4L V86.4L V85.7L V82.7L V63.5L V66.1L V83.5L V63.5L V6
Note
AWD;Front;Rear
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
Except Performance Brakes;Rear
AWD;Front
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
-
Except Performance Brakes;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
AWD;Front
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
AWD;Front
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
-
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
-
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
Except Performance Brakes;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front
-
AWD;Front
-
All Models
All Models
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
Front;Rear
All Models Front;Rear
All Models Rear
Rear
All Models
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
All Models
AWD;Front
with 4 Piston Caliper
All Models Rear
All Models
All Models
All Models
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
All Models
Rear
Front;Rear
All Models Front;Rear
All Models
AWD;Front
AWD;Front
All Models with 4 Piston Caliper
All Models
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
Front
Front;Rear
All Models Front;Rear
All Models Rear
Rear
All Models Rear
Rear
All Models
AWD;Front
with 4 Piston Caliper
AWD;All Models Front
with 4 Piston Caliper
All Models with 4 Piston Caliper
All Models Rear
All Models
AWD;Front
All Models
All Models
AWD;Front
All Models
AWD;Front
with 4 Piston Caliper
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
All Models
All Models
Front;Rear
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
All Models
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
--
Rear
All Models Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Rear
All Models Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Rear
All Models Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
All Models
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
--
Rear
All Models Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front
AWD;All Models Front
All Models with 4 Piston Caliper
All Models with 4 Piston Caliper
AWD;All Models Front
All Models with 4 Piston Caliper
All Models with 4 Piston Caliper
AWD;All Models Front
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Rear
All Models Rear
Front;Rear
AWD;All Models Front;Rear;with 4 Bolt Flange
AWD;All Models Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
-
Rear
All Models Rear
AWD;All Models Front;with 4 Bolt Flange
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
Rear
All Models
All Models
AWD;All Models Front
All Models with 4 Piston Caliper
AWD;All Models Front
AWD;All Models Front
All Models with 4 Piston Caliper
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Jovany

10/20/2024

Verified buyer

Easy to install. Nice high quality parts. Definitely would by again and recommend.

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

This depends on spacer type and thickness. Slip-on spacers may require sufficient additional thread engagement, while bolt-on designs may include separate hardware. Follow the product and vehicle requirements.

Stacking spacers is generally not recommended because it may affect seating and fastener engagement. Select a single spacer of the appropriate specification instead.
