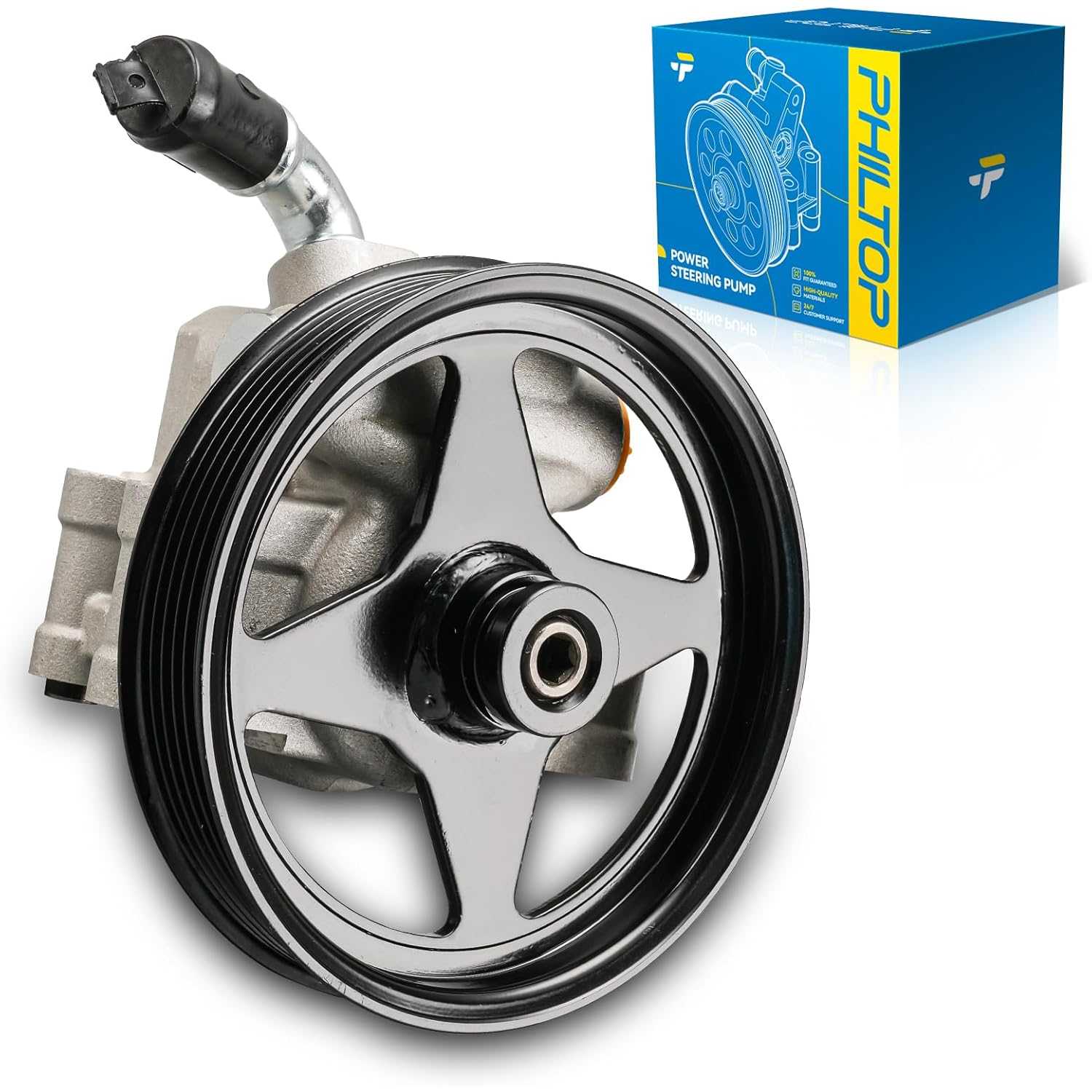

2008-2010 Ford F-250 Super Duty 5.4L V8 | Power Steering Pump | 20373P1 - PHILTOP

2008-2010 Ford F-250 Super Duty 5.4L V8 | Power Steering Pump | 20373P1 - PHILTOP

Complete Parts Range

Leak-Tested

Durable

4.6

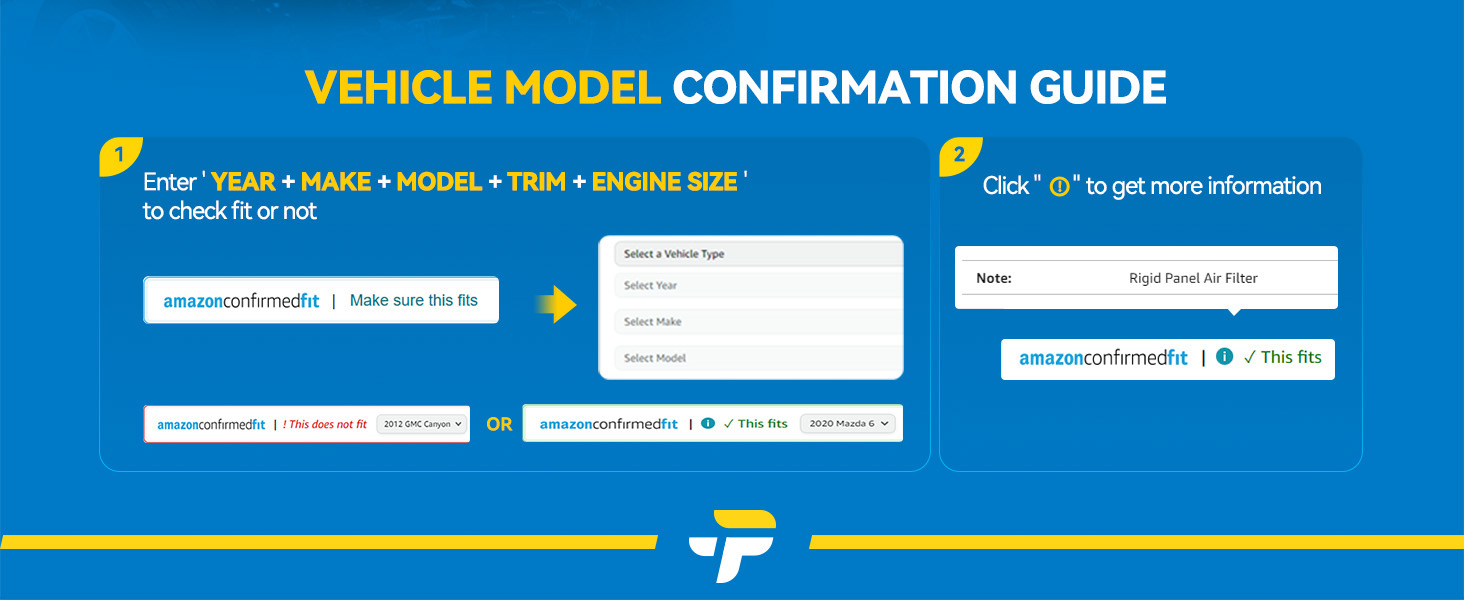

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6778PSP535FUS

Specifications

Brand
PHILTOP
Pulley Included
Yes
Reservoir Included
No
Pulley Attachment Type
Press-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included
1x Power Steering Pump - 20373P1, 1x Manual
Warranty Period
2-Year
Part Number
20373P1

Highlights

  • [Vehicle Fitment] 2008 2009 2010 F-250/F-350 Super Duty 5.4L
  • [OE Number] 20-373P1、7C3Z3A674A, Condition: Brand New (Not Remanufactured); Pulley Included: Yes, Reservoir Included: No, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Threaded, Pulley attachment types: Press-on, Outlet inner diameter size: 16X1.5
  • [Durable and Leak-proof] This power assist pump is crafted from premium aluminum alloy and wear-resistant components, offering exceptional strength, corrosion resistance, and an extended service life. Precision-machined seals and a reinforced pump housing help prevent fluid leaks and maintain stable hydraulic pressure. Designed to meet or exceed original equipment manufacturer (OEM) standards, it delivers responsive, reliable steering performance for a smooth and precise driving experience
  • [Customer Support] We promise a two-year quality guarantee and comprehensive after-sales support. Please contact us at any time. Regarding noise: ① Check if the suction pipe resistance is too high. ② Check if the safety valve pressure setting is too high. ③ Ensure all air is expelled from the pump and check for leaks to prevent air from entering. Regarding leakage: ① Check for damage to the pipeline. ② Tighten the steering pump mounting bolts. ③ Check the filter and ensure the oil path is clear
  • [Installation Tips] ① Before installing the new pump, thoroughly flush the entire power steering system. ② Be sure to replace the old seals on the high-pressure oil pipe and return oil pipe. ③ Do not overtighten the mounting bolts. ④ When replacing the power steering pump, completely drain the old oil and add the power steering fluid recommended by the manufacturer. ⑤ Start the engine and turn the steering wheel left and right several times to fully expel air from the steering system

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102008 - 20092008 - 20102008 - 20102008 - 20102008 - 20102009 - 20102008 - 20092008 - 20102008 - 20102008 - 20102008 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimCabela'sFX4King RanchLariatXLXLTCabela'sFX4King RanchLariatXLXLT
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included;Supplied with Pulley

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

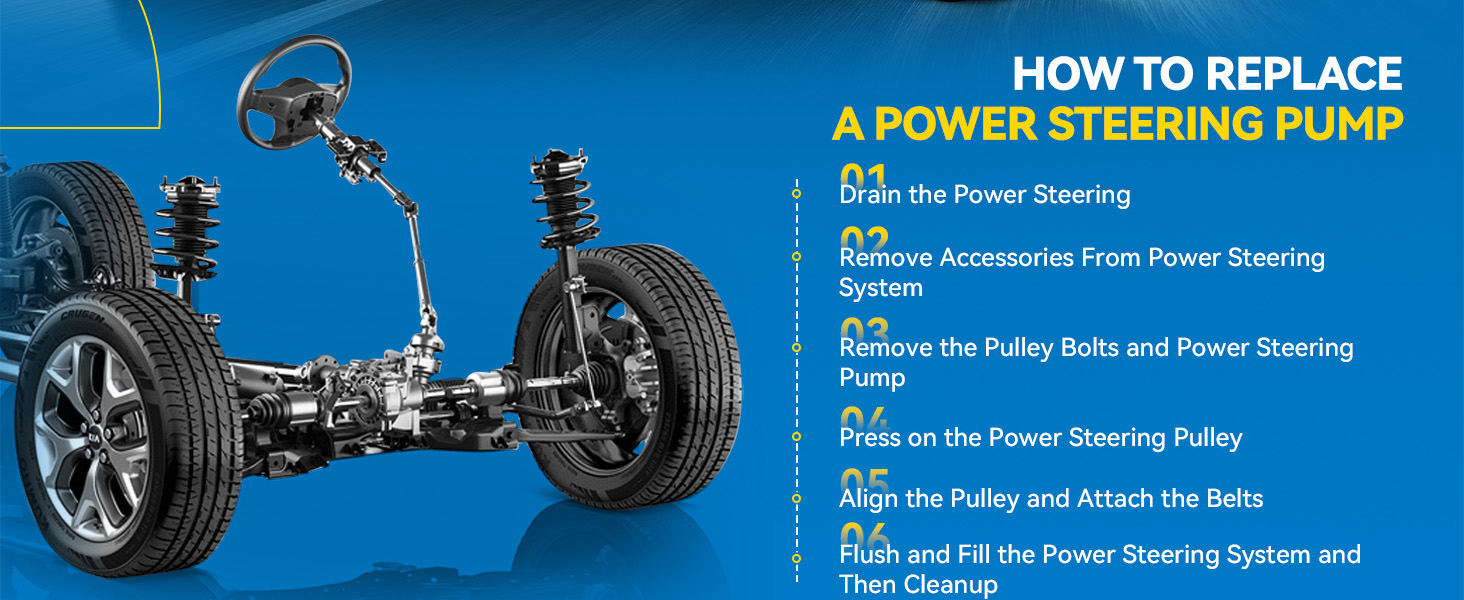

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

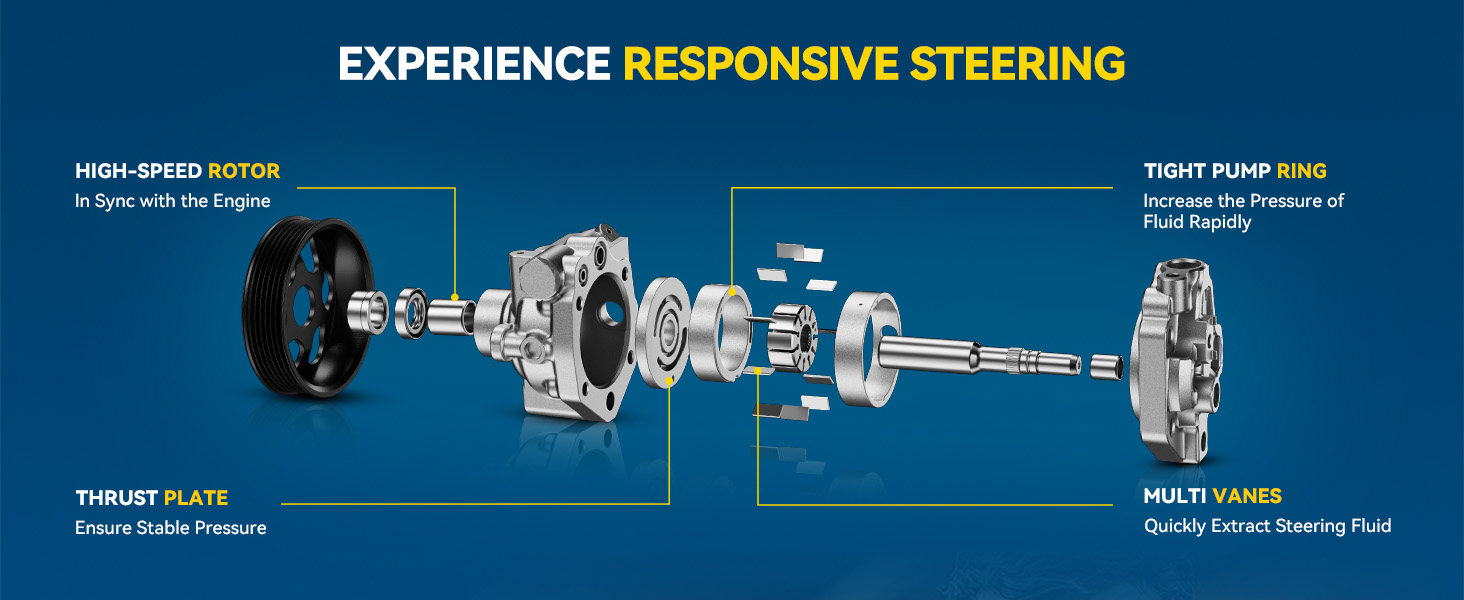

Product Description

Power Steering PumpPower Assist Pump

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

mark

05/30/2026

Verified buyer

Worked as it should. Been on truck couple weeks no problem.

Lisa_CivicDriver_302

03/06/2026

My old pump was on its last legs. This replacement is quiet and the steering is tight and responsive again. It's like driving a new truck! Highly recommend.

FAQS

1. The long storage time causes the vanes to be stuck by oil: Check for oil fluctuations in oil tank. 2. Faults of tie rods, ball cages, tires, steering gear: Check the relevant parts

1.Power steering fluid low: Check oil tank level. 2. Air in the boost system: Check the oil for air bubbles. 3. Aging pipes and clip: Check the aging of low pressure pipe. 4. Rotational system issues: Check associated axle clearance except crankshaft

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
