2004-2006 Scion xB 1.5L L4 | 4x100mm 54.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory 2-Pack 20mm - PHILTOP

2004-2006 Scion xB 1.5L L4 | 4x100mm 54.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory 2-Pack 20mm - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
30ISWSA5417US

Specifications

Brand
PHILTOP
Bolt Pattern
4x100mm
Wheel Bolt Pattern
4x100mm
Vehicle Bolt Pattern
4x100mm
Thread Size
M12x1.5
Center Bore
54.1
Hub-Centric Lip
Yes
Thickness
20mm
Outside Diameter
140
Inside Diameter
2.13 in/54.1 mm
Lug Patterns
4
Type
Wheel Spacer
Items Included
2x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 4x100mm ; | Thickness: 20mm ; | Thread Pitch: M12x1.5 ; | Hub Bore: 54.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 4x100 to 4x100 Wheel Spacer set replacement for 2000-2022 Hyundai Accent; 2003-2021 Kia Rio; 2006-2020 Toy-ota Yaris; 1988-2002 Toy-ota Corolla; 1990-2003 Mazda Protege; 1991-2003 Fo-rd Escort; 1991-1999 Mercury Tracer; 2016-2023 Mazda MX-5 Miata; 2012-2019 Toy-ota Prius C; 1989-1995 Mazda 323; 2000-2005 Toy-ota Echo; 2006-2011 Kia Rio5; 1998-2002 Chevr-olet Prizm; 1992-1996 Mazda MX-3; 2006-2010 Do-dge Attitude; 1993-1997 Geo Prizm; 2011-2014 Mazda 2

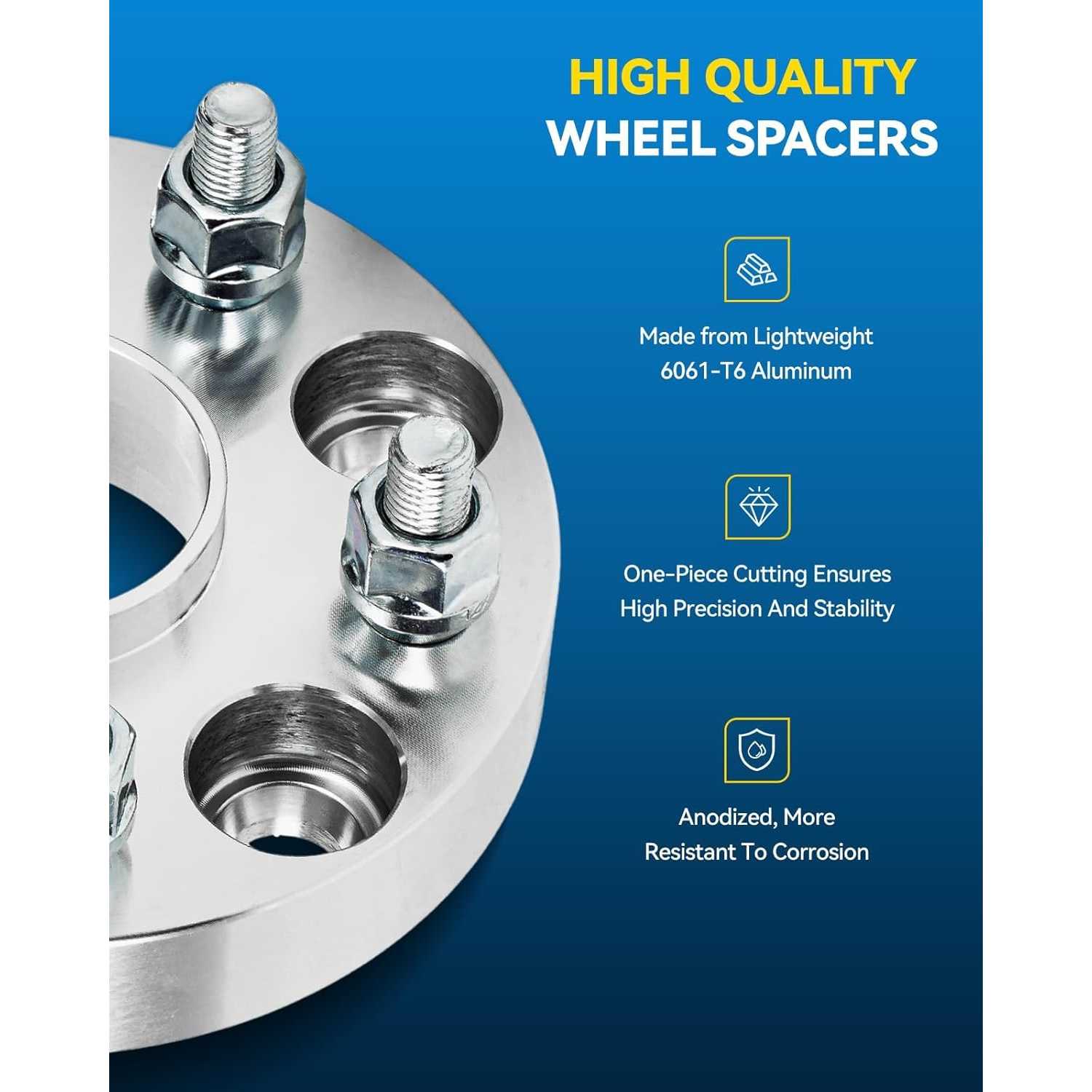

  • [High Quality] ---4x100 to 4x100 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 4x100 to 4x100 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

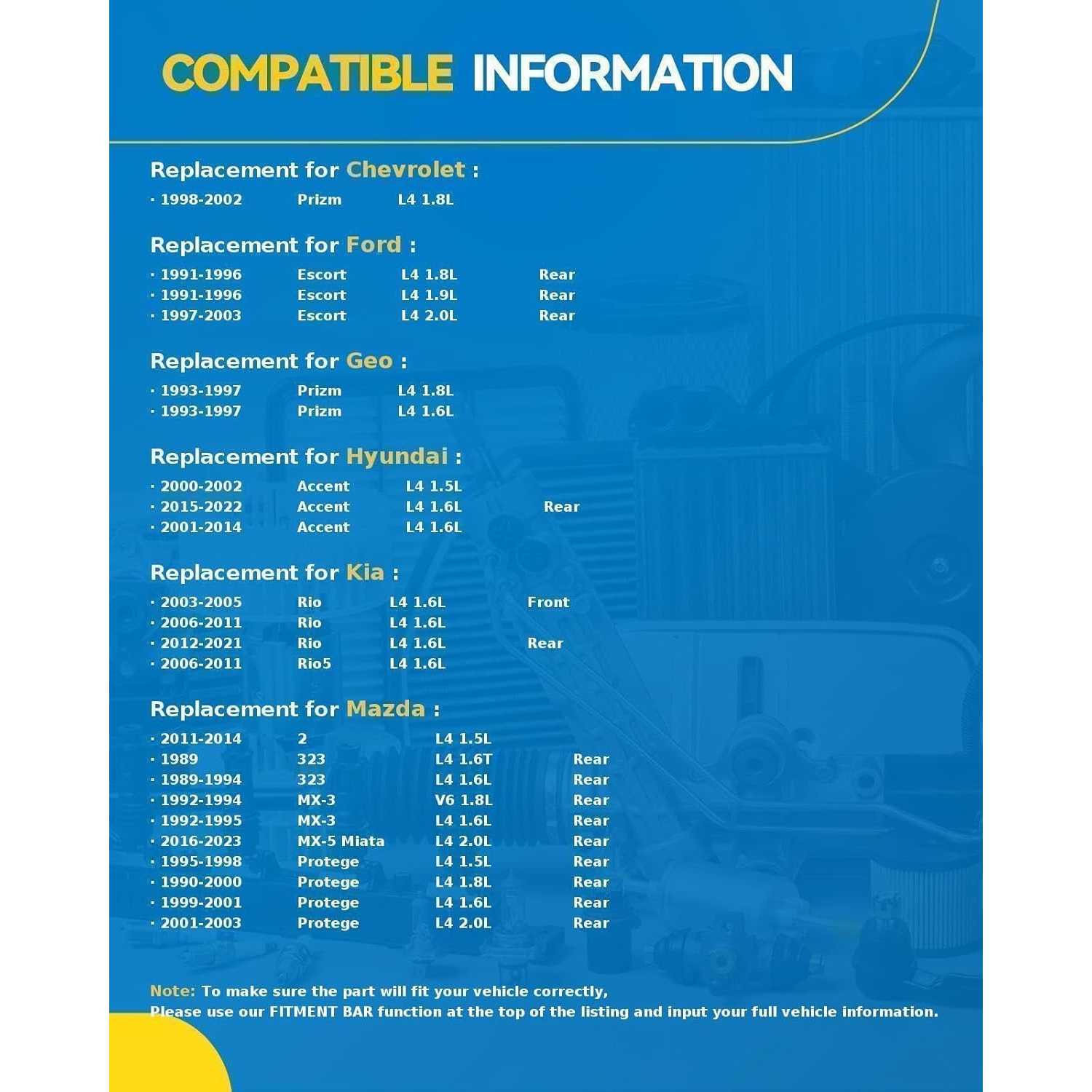

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 20021998 - 20022017 - 20202017 - 20202017 - 20202019 - 20201991 - 199319941995 - 199619971991 - 199319941995 - 19961991 - 199319941995 - 19961997 - 20001991 - 1993199419951992 - 19931998 - 19992001 - 20021996199720002001 - 20031998 - 19991998 - 19991999 - 20001993 - 19951996 - 19971993 - 19951996 - 19971993 - 19951996 - 19972003 - 2004201020002001 - 20042011200520062007 - 20112012 - 2014201520002001 - 20022007 - 20112012 - 20142015200420052000 - 20022018 - 20222007 - 20112012 - 20142016 - 20172018 - 20222018 - 20222015 - 201720172001 - 20022003 - 20052006 - 201120022003 - 20052012 - 201720182006 - 20112012 - 20172018 - 20232018 - 20232007 - 20112012 - 20172008 - 20112006 - 20111998 - 20011994 - 19961995 - 19971994 - 19971995 - 20011994 - 19971996 - 19972002 - 200420042000 - 20042000 - 20042002 - 200420042011 - 20142011 - 20141989 - 1994198919891989 - 19931992199319941995199219931994199320202016 - 20242016 - 202420202017 - 20242017 - 20242016 - 202419991990 - 19931994 - 19971999 - 200519932000 - 20051994 - 19972004 - 200519912000 - 2003199720031990 - 1991199419951996 - 19981999 - 200020011991 - 19942002200319951996 - 19981999 - 200020012002200319951996 - 19981999 - 200020011990 - 19942001200220032001200319901991 - 199319941995 - 199619971998 - 199919971998 - 19991991 - 199319941995 - 19961991 - 199319941995 - 199619971998 - 199920162012 - 201520132004 - 20062004 - 20061988 - 199119921986 - 19891990 - 19911992 - 19931986 - 19891990 - 19911992 - 199319931990 - 19911992 - 19931986 - 198919861990199119921993 - 1997199719971998 - 200219881989 - 19901991199219881989 - 1990199119921993 - 199719881989 - 1990199119881989 - 1990199119921993 - 199519971998 - 20022001 - 200219881989 - 1990199119881989 - 19901998 - 20002000 - 20051985 - 19891988 - 19892000 - 20051992 - 19962001 - 20032012 - 20152016 - 2018201920192012 - 20152016 - 201820162012 - 20152016 - 20182012 - 20152016 - 20181989 - 1990199719871991 - 19941987 - 19901995 - 19961989 - 19901991 - 19941987 - 19962007 - 20082009 - 201120122012 - 201420152016 - 20172018 - 20202012 - 201420152016 - 20172018 - 20202007 - 200820092012 - 201420152016 - 201720182019 - 20202017 - 2018
MakeChevroletChevroletFiatFiatFiatFiatFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordGeoGeoGeoGeoGeoGeoHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryScionScionScionScionScionToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelPrizmPrizm124 Spider124 Spider124 Spider124 SpiderEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortPrizmPrizmPrizmPrizmPrizmPrizmAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentAccentRioRioRioRioRioRioRioRioRioRioRioRioRioRio5Rio5SephiaSephiaSephiaSephiaSephiaSephiaSephiaSpectraSpectraSpectraSpectraSpectraSpectra22323323323323MX-3MX-3MX-3MX-3MX-3MX-3MX-3MX-3MX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeTracerTracerTracerTracerTracerTracerTracerTracerTracerTracerTracerTracerTracerTracerTraceriAiQiQxAxBCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCelicaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaEchoMR2MR2MR2 SpyderPaseoPriusPrius CPrius CPrius CPrius CPrius CPrius CPrius CPrius CPrius CPrius CPrius CTercelTercelTercelTercelTercelTercelTercelTercelTercelYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYarisYaris iA
TrimBaseLSiAbarthClassicaLussoUrbanaBaseBaseBaseBaseGTGTGTLXLXLXLXLX SportLX SportLX SportLX-ESESESportSportZX2ZX2ZX2 Cool CoupeZX2 Hot CoupeZX2 S/RBaseBaseLSiLSiLSiLSiBaseBlueGLGLGLGLSGLSGLSGLSGLSGSGSGSGSGSGTGTLLimitedSESESESESELSportValue EditionBaseBaseBaseCincoCincoEXEXLXLXLXSSXSXLXSXBaseGSGSLSLSRSRSBaseEXGSGSXLSLXSportTouringBaseGTXLXSEBaseBaseBaseBaseGSGSGSSE100th Anniversary Special EditionClubGrand TouringRF 100th Anniversary Special EditionRF ClubRF Grand TouringSport10th AnniversaryBaseBaseBaseLELSM EditionMazdaspeedSESESTOShinsen4WDBaseDXDXDXDXDXDXDXESESESESESESLXLXLXLXLXLXLXLXMP3MazdaspeedSEBaseBaseBaseGSGSLSLSLTSLTSLTSTrioTrioTrioTrioTrioBaseBaseEVBaseBaseAll TracAll TracGTGTGTGTSGTSGTSGTS All TracSTSTSTSupraBaseBaseBaseBaseCECECEDLXDLXDLXDLXDLX All TracDLX All TracDLX All TracDLX All TracDXGTSGTSGTSLELELELELELELESSR5SR5SR5SR5 All TracSR5 All TracVEBaseGTSuper ChargedBaseBaseBaseFourFourLLEOneOnePersona SeriesThreeThreeTwoTwoBaseCEDLXDLXDXDXEZLESTDBaseBaseBaseLLLLLELELELESSSESESESEXLEBase
Engine1.8L L41.8L L41.4L L41.4L L41.4L L41.4L L41.9L L41.9L L41.9L L42.0L L41.8L L41.8L L41.8L L41.9L L41.9L L41.9L L42.0L L41.9L L41.9L L41.9L L41.8L L42.0L L42.0L L41.9L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.6L L41.6L L41.6L L41.6L L41.8L L41.8L L41.6L L41.6L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.5L L41.6L L41.6L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.6L L41.8L L41.6L L41.8L L41.6L L41.8L L41.8L L42.0L L41.8L L41.8L L41.8L L42.0L L41.5L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L V61.8L V61.8L V61.8L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.6L L41.8L L41.8L L41.6L L41.8L L41.8L L41.8L L41.6L L41.8L L41.8L L41.8L L41.8L L41.8L L41.5L L41.5L L41.6L L41.6L L41.8L L42.0L L42.0L L41.8L L41.8L L41.8L L42.0L L42.0L L42.0L L41.5L L41.5L L41.6L L41.6L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.9L L41.9L L41.9L L42.0L L42.0L L42.0L L42.0L L41.8L L41.8L L41.8L L41.9L L41.9L L41.9L L42.0L L42.0L L41.5L L41.3L L4-1.5L L41.5L L42.0L L42.0L L42.0L L42.2L L42.2L L42.0L L42.2L L42.2L L42.0L L41.6L L41.6L L42.0L L42.8L L61.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.8L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.8L L41.8L L41.8L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.5L L41.6L L41.6L L41.8L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L4
Note
Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
----
4 Lug Models Only Rear
4 Lug Models Only Rear;4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear
4 Lug Models Only Rear;4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;wo Anti-lock Brakes
4 Lug Models Only Rear
4 Lug Models Only Rear;4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear
4 Lug Models Only Rear;4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;wo Anti-lock Brakes
4 Lug Models Only Rear
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4 Lug Models Only Rear;Rear;Rear Disc Brakes;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
Front;Rear Wheel Spacers
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
Front;Rear Wheel Spacers
Front;Rear Wheel Spacers
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes Wheel Spacers
Front;GLS Model Wheel Spacers;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
-
Rear Wheel Spacers
Front;Rear Wheel Spacers
Front;Rear Wheel Spacers
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
-
Rear Wheel Spacers
Front;Rear Wheel Spacers
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes Wheel Spacers
Front;Rear Wheel Spacers
-
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
-
Rear Wheel Spacers
--
Rear Wheel Spacers
Rear Wheel Spacers
-
Front;Pressed in stud
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear
-
Front;Pressed in stud
Rear
-
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear
Rear
--
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear
Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels) Wheel Spacers;Front;Rear
-------------
Front
Front
Rear
Rear
Rear
Rear
GS Model;Rear;wo Anti-lock Brakes
GS Model or SE Model;Rear;wo Anti-lock Brakes
Rear;wo Anti-lock Brakes
Rear;Rear Disc Brakes;Rear Drum Brakes;wo Anti-lock Brakes
GS Model;Rear;wo Anti-lock Brakes
GS Model or SE Model;Rear;wo Anti-lock Brakes
Rear;wo Anti-lock Brakes
GS Model or SE Model;Rear;wo Anti-lock Brakes
-------------------
Rear
Rear
4 Lug Model ONLY 4 lug only Rear;Rear Disc Brakes
4 Lug Model ONLY 4 lug only Rear
4 Lug Model ONLY 4 lug only Rear;Rear Drum Brakes
4 Lug Model ONLY 4 lug only Rear;LX Model
Rear
4 Lug Model ONLY 4 lug only Rear;DX Model or LX Model
4 Lug Model ONLY
4 Lug Model ONLY 4 lug only Rear;Rear Disc Brakes
4 Lug Model ONLY 4 lug only Rear
4 Lug Model ONLY 4 lug only Rear;Rear Drum Brakes
4 Lug Model ONLY 4 lug only Rear;LX Model
4 Lug Model ONLY 4 lug only Rear;DX Model or LX Model
4 Lug Model ONLY
4 Lug Model ONLY 4 lug only Rear;Rear Disc Brakes
4 Lug Model ONLY 4 lug only Rear
4 Lug Model ONLY 4 lug only Rear;Rear Drum Brakes
4 Lug Model ONLY 4 lug only Rear;LX Model
Rear
4 Lug Model ONLY 4 lug only Rear;LX Model
4 Lug Model ONLY 4 lug only Rear;DX Model or LX Model
4 Lug Model ONLY
4 Lug Model ONLY 4 lug only Rear;LX Model
4 Lug Model ONLY
Rear
Rear
Base Model or LS Model;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;Rear Drum Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;Rear Drum Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
Rear
Base Model or LS Model;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear
Rear
Base Model or LS Model;Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;Rear Drum Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Rear;wo Anti-lock Brakes
-
Front
Front
Rear Wheel Spacers
Front;Rear Wheel Spacers
4 lug only
4 stud
4 lug only
4 lug only
4 stud
4 lug only
4 lug only
4 stud
4 stud
4 lug only
4 stud
4 lug only
4 lug only
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
Front
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
Front;Rear;wo Anti-lock Brakes
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model;Front
DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Base Model or DLX All Trac or DLX Model or LE Model or SR5 All Trac;Front
Front;Rear;wo Anti-lock Brakes
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes Wheel Spacers
-----
Front;Rear
Rear
Rear
Rear
Front;Rear
Rear
Rear
Front;Rear
Rear
Front;Rear
Rear
---------
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes Wheel Spacers
Front;Rear Wheel Spacers
Front;Japan Production Identified By 1st Digit Of VIN J;Rear Wheel Spacers
Front;Japan Production Identified By 1st Digit Of VIN J;Rear Wheel Spacers
Front Wheel Spacers
Wheel Spacers
-
Front;Japan Production Identified By 1st Digit Of VIN J;Rear Wheel Spacers
Front Wheel Spacers
Wheel Spacers
-
4-Wheel ABS (ABS Sensors on all 4 Wheels);Front;Rear;wo Anti-lock Brakes Wheel Spacers
Front;Rear Wheel Spacers
Front;Japan Production Identified By 1st Digit Of VIN J;Rear Wheel Spacers
Front Wheel Spacers
Wheel Spacers
---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Tahlia

10/18/2024

Verified buyer

Perfect fit

Tahlia

10/18/2024

Verified buyer

Perfect fit Read more

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Remove rust, dirt, and raised debris so the spacer can sit flat against the hub. The mating surfaces should be clean and undamaged before the fasteners are tightened.

Thickness depends on the desired clearance and the available space around the tire, fender, and suspension. Measure carefully and confirm that the selected size is permitted for your vehicle setup.
