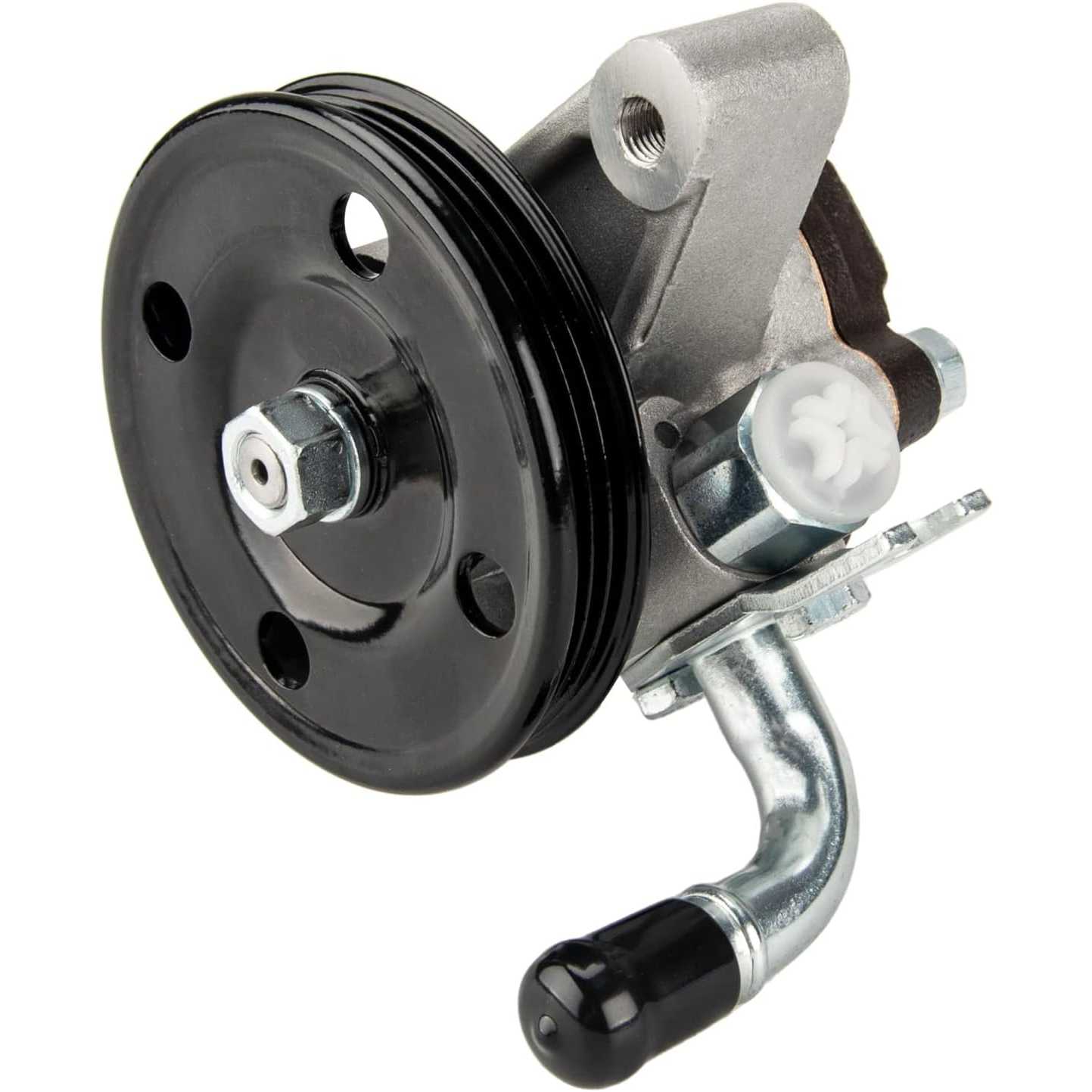

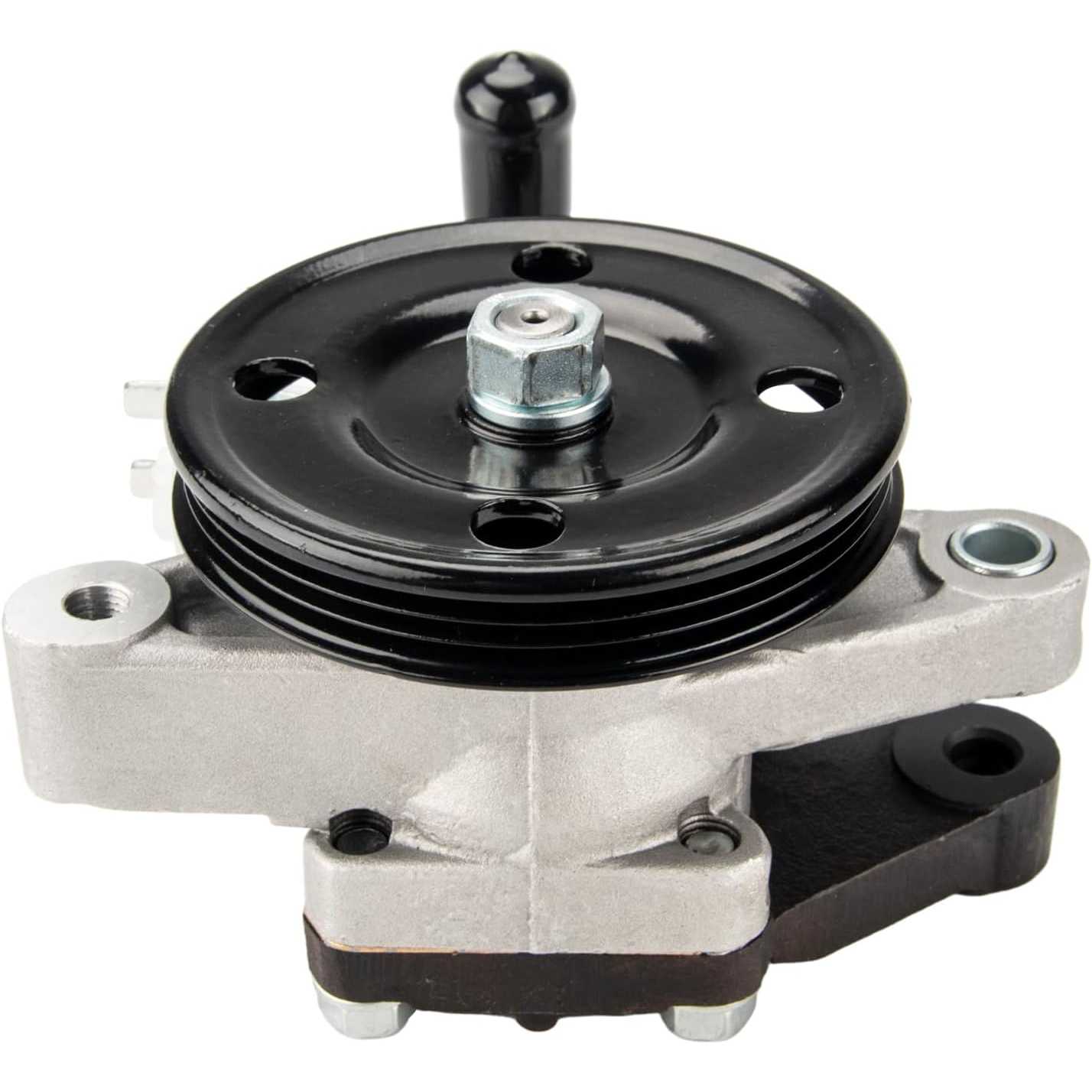

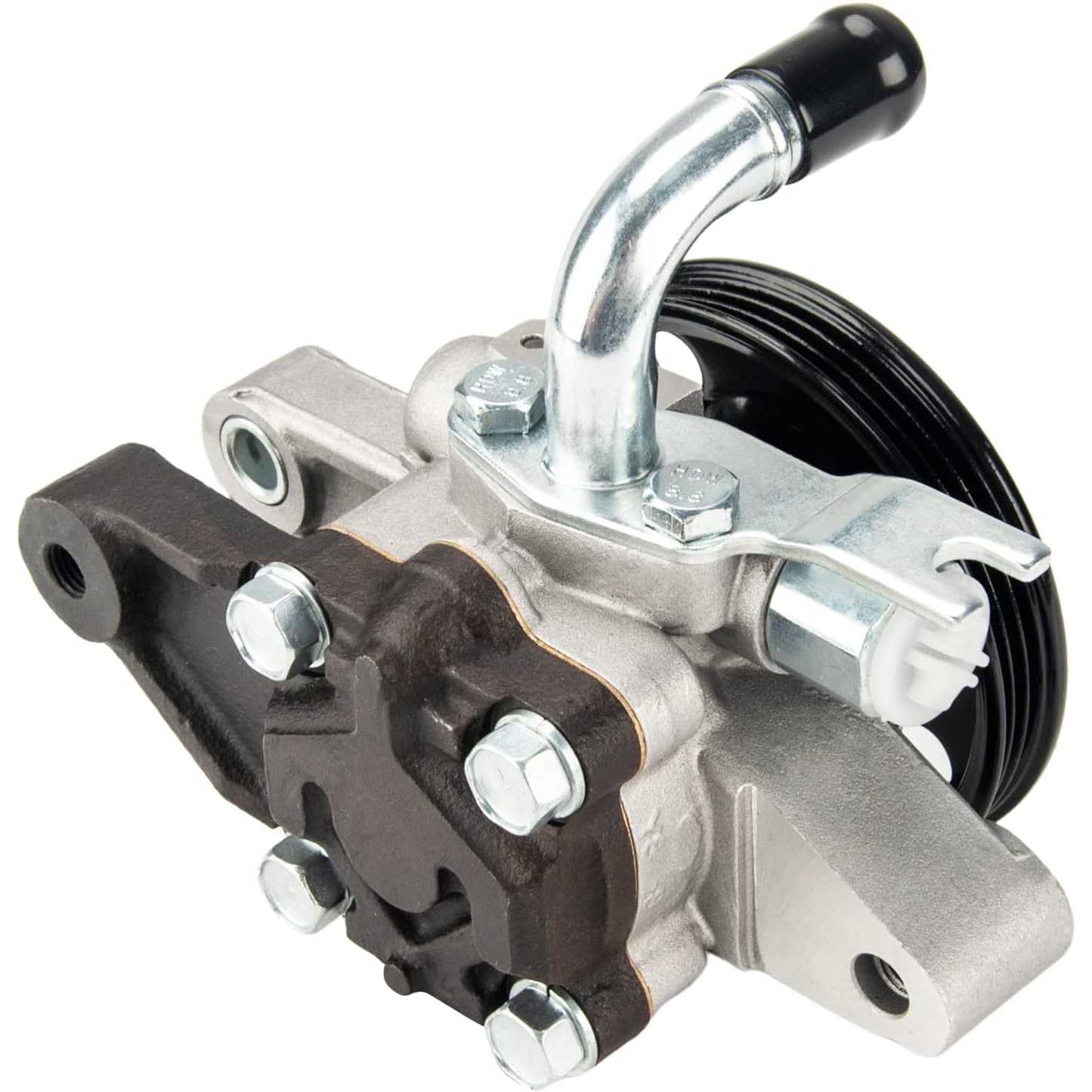

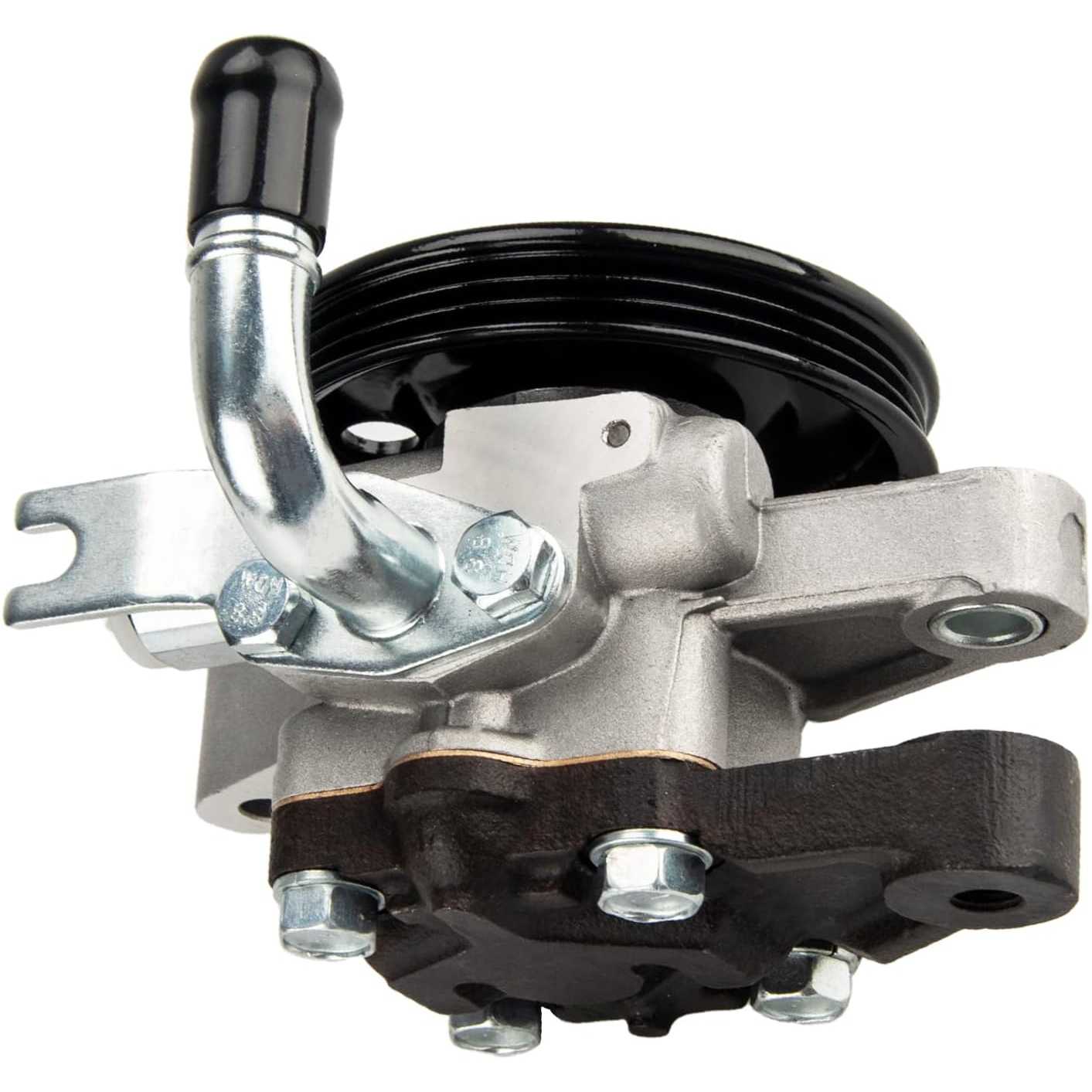

2004-2009 Kia Spectra 2.0L L4 | Power Steering Pump | 215440 - PHILTOP

2004-2009 Kia Spectra 2.0L L4 | Power Steering Pump | 215440 - PHILTOP

Complete Parts Range

Leak-Tested

Durable

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4416PSP146ZUS

Specifications

Brand
PHILTOP
Pulley Included
Yes
Reservoir Included
No
Pulley Attachment Type
Bolt-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included

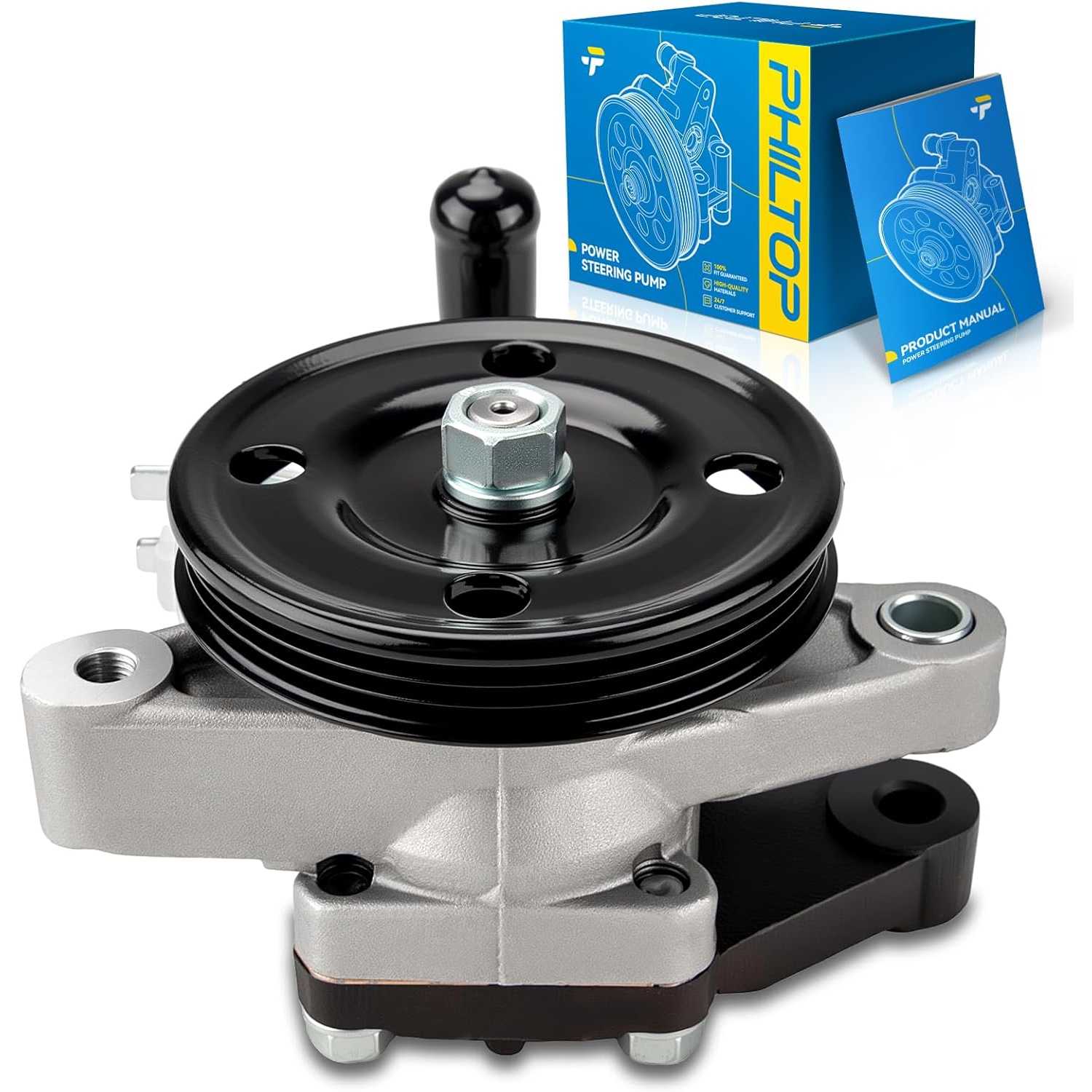

1x Power Steering Pump - 215440, 1x Manual
Warranty Period
2-Year
Part Number
215440

Highlights

  • #116,275 in Automotive (See Top 100 in Automotive)
  • #75 in Automotive Replacement Power Steering Pumps
  • (Vehicle Fitment)2004 2005 2006 2007 2008 2009 Spectra 2.0L,2005-2010 Sportage 2.0L,2005-2009 Spectra5,2005-2009 Tucson 2.0L
  • (OE Replacement)21-5440、571002E000、571002F151, Condition: Brand New (Not Remanufactured); Pulley Included: Yes, Reservoir Included: No, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Threaded, Pulley attachment types: Bolt-on, Outlet inner diameter size: 16X1.5
  • (Excellent Quality)The Power Steering Pump is mainly made of high-strength aluminum alloy or iron and other high-quality metal materials, with excellent corrosion resistance and service life; the internal key components are made of high-quality engineering plastics, and undergo strict material selection and processing technology to ensure a higher reliability.
  • (Reliable and Durable)The Power Steering Pump adopts advanced CNC machining technology, with strict tolerance control of each component and high assembly accuracy. It also adopts high-quality seals and lubrication system design to effectively prevent oil leakage and wear. Product performance indicators meet or exceed industry standards.
  • (Professional After-sales)Before placing the order,please check your car model in the Suncentauto Fitment Filter System in the top left corner,Do not count on year make and model only,view compatability tab including the notes.Any problem please free to contact us and you will get a satisfactory solution.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20062007 - 20092008 - 20092004 - 20092004 - 20052007 - 20092005 - 20092005 - 20062007 - 20092005 - 2010
MakeHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKia
ModelTucsonTucsonTucsonSpectraSpectraSpectraSpectraSpectra5Spectra5Sportage
TrimGLGLSLimitedEXLXLXSXBaseSXLX
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

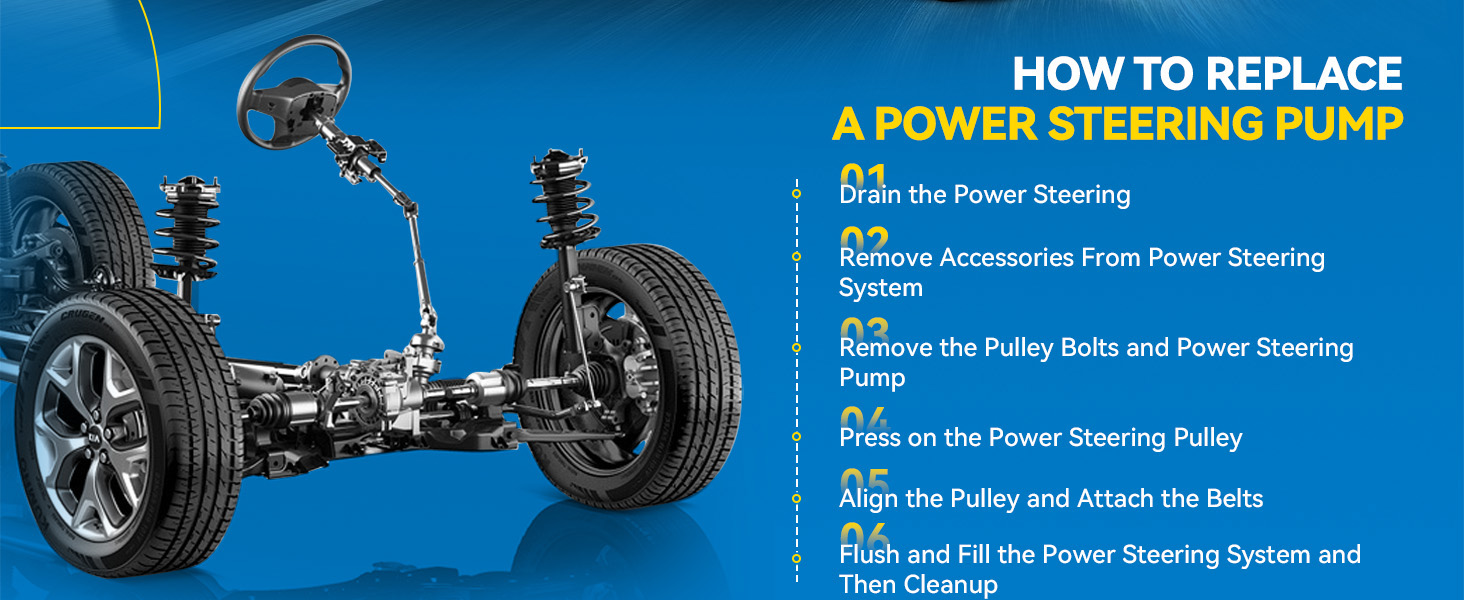

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

Power Steering PumpSteering Pump

Reviews

4.7/5

Based on 9 reviews

578%
411%
311%
20%
10%

Black roses

07/27/2024

Verified buyer

Fit great ! Went on easy no problems !

Scott Brewer

06/18/2026

Verified buyer

GREAT ITEM

FAQS

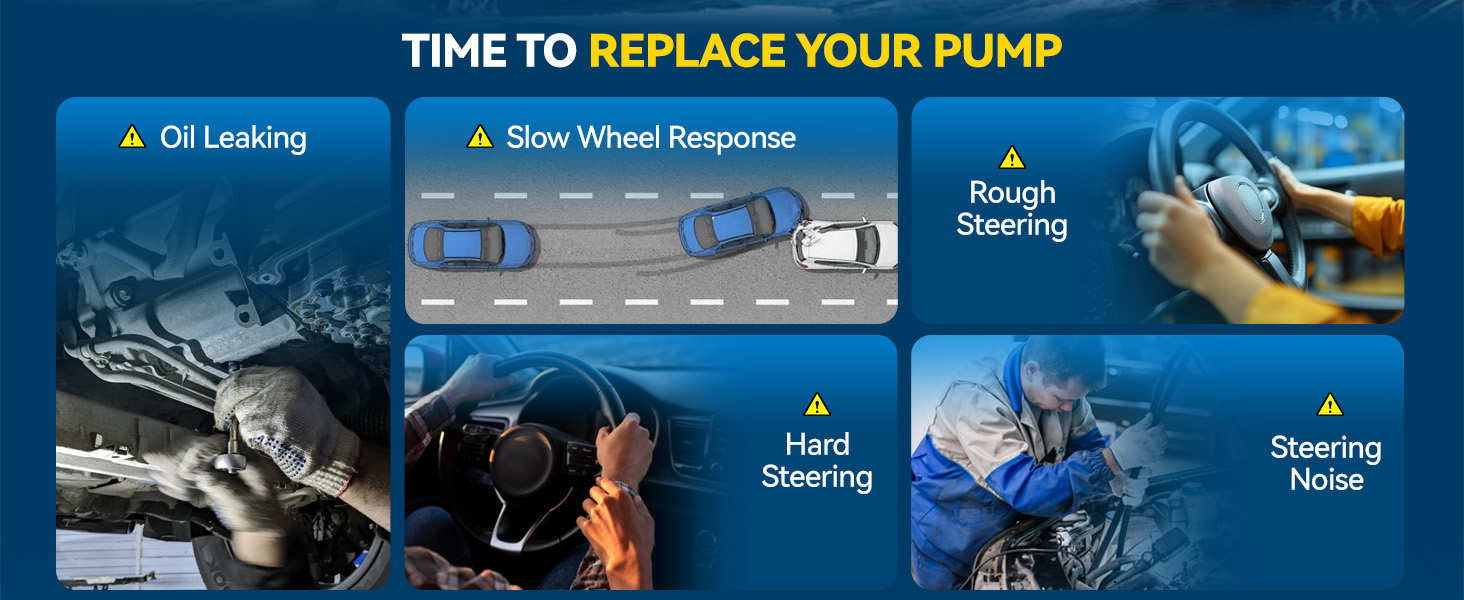

1.Power steering fluid low: Check oil tank level. 2. Air in the boost system: Check the oil for air bubbles. 3. Aging pipes and clip: Check the aging of low pressure pipe. 4. Rotational system issues: Check associated axle clearance except crankshaft

Please take the time to carefully verify if your vehicle is compatible with our offering.Please under the guidance of professionals, ensure a smooth and expert installation process. (Instructions not included)

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
