2010-2017 Polaris Ranger 6x6 800 | Front Driver Side & Passenger Side ATV/UTV Compatible CV Axle 26.36in | POL7026 - PHILTOP

2010-2017 Polaris Ranger 6x6 800 | Front Driver Side & Passenger Side ATV/UTV Compatible CV Axle 26.36in | POL7026 - PHILTOP

Front

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5532SHA2577US

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
No
Quantity
2
Input Shaft Spline Count
22
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

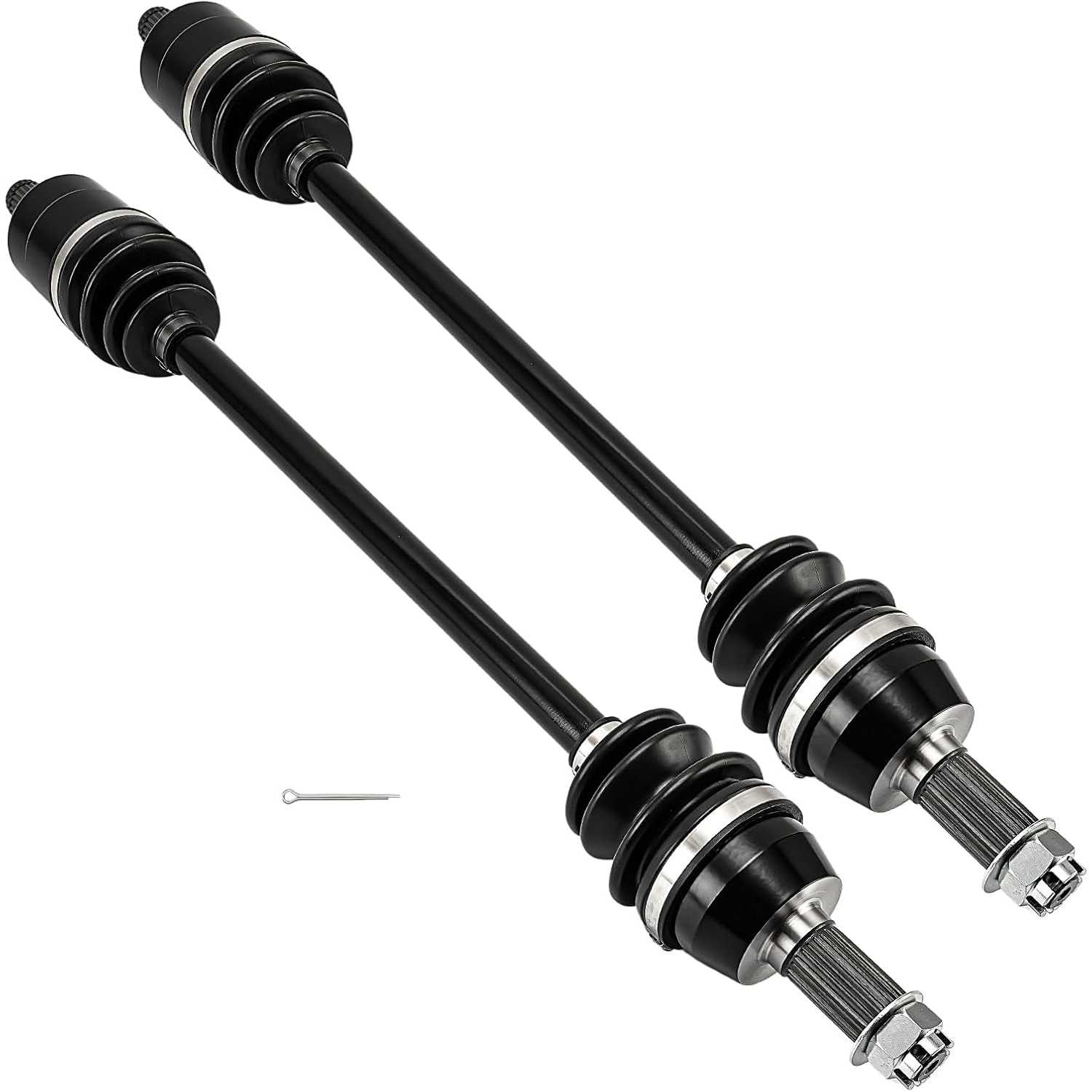

2x Front Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
POL7026

Highlights

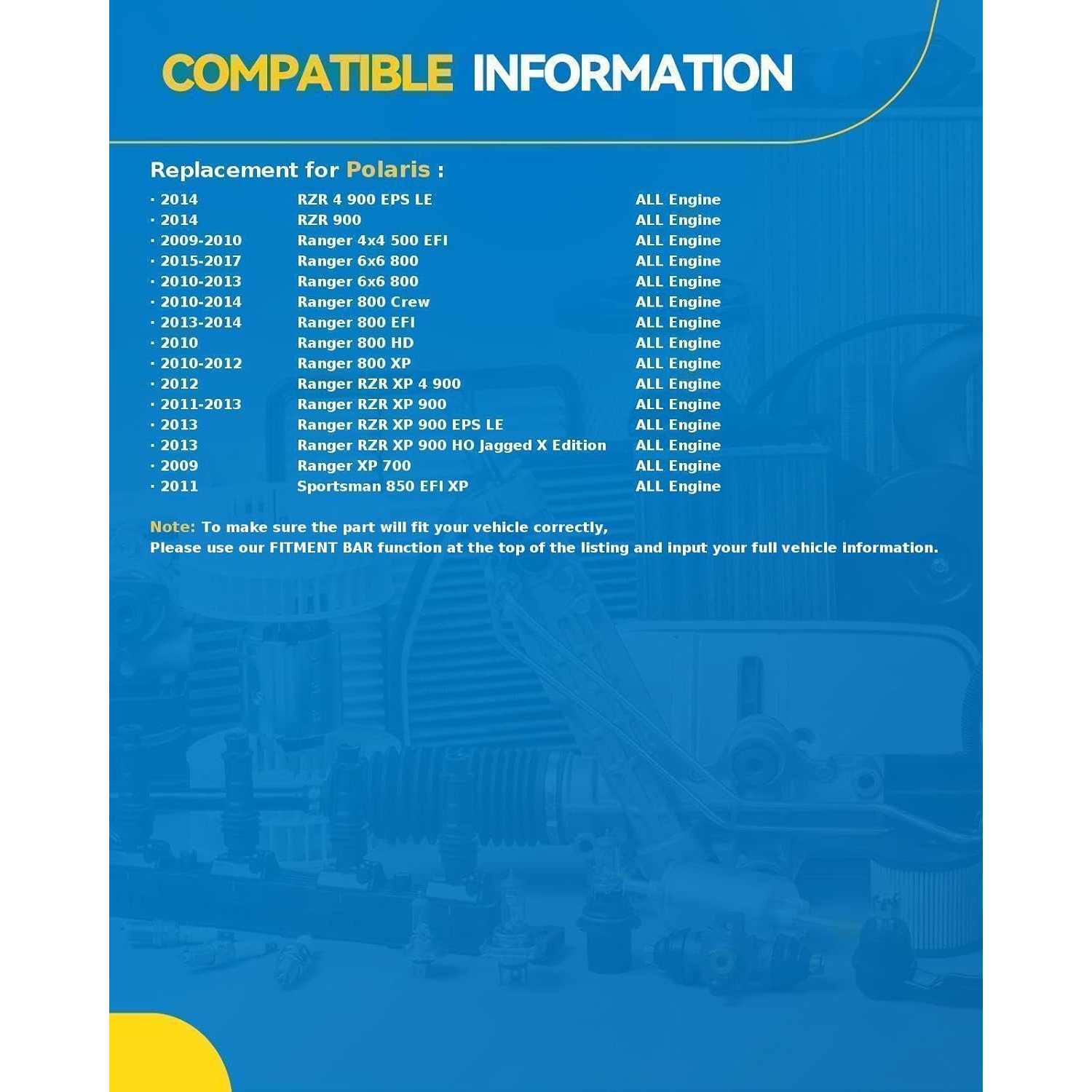

  • Vehicle Fitment: Front CV Axle for Ranger 800 Crew 2010-2014, Ranger RZR XP 900 2011-2013, Ranger 6x6 800 2010-2013 2015-2017, Ranger 800 XP 2010-2012, Ranger RZR XP 4 900 2012, Ranger RZR XP 900 EPS LE 2013, Ranger RZR XP 900 HO Jagged X Edition 2013, Ranger XP 700 2009, Ranger 800 HD 2010, Ranger 800 EFI 2013-2014, RZR 4 900 EPS LE 2014, RZR 900 2014, Sportsman 850 EFI XP 2011, Ranger 4x4 500 EFI 2009-2010.Please use the Suncentauto filter to confirm that the half shaft fits your vehicle!

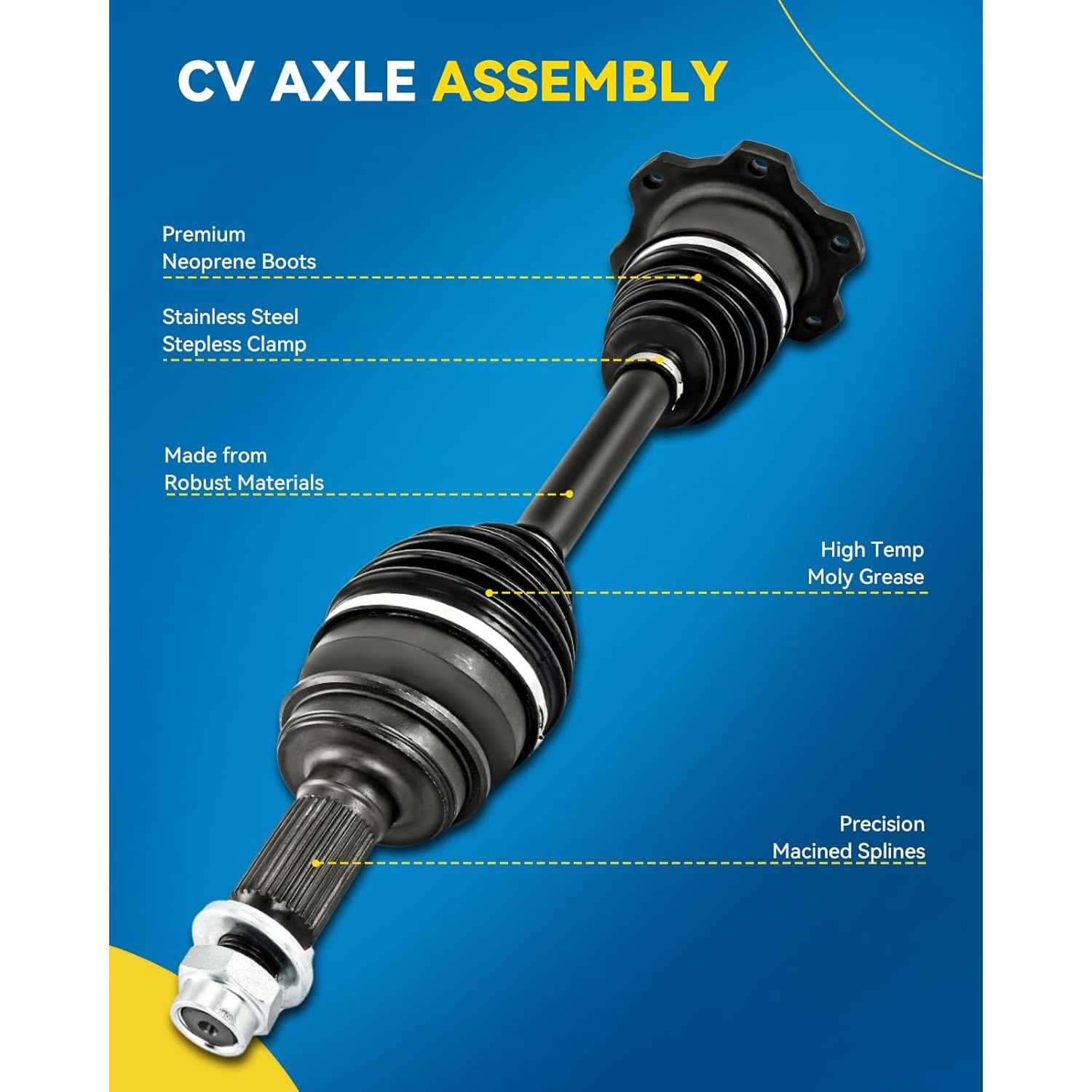

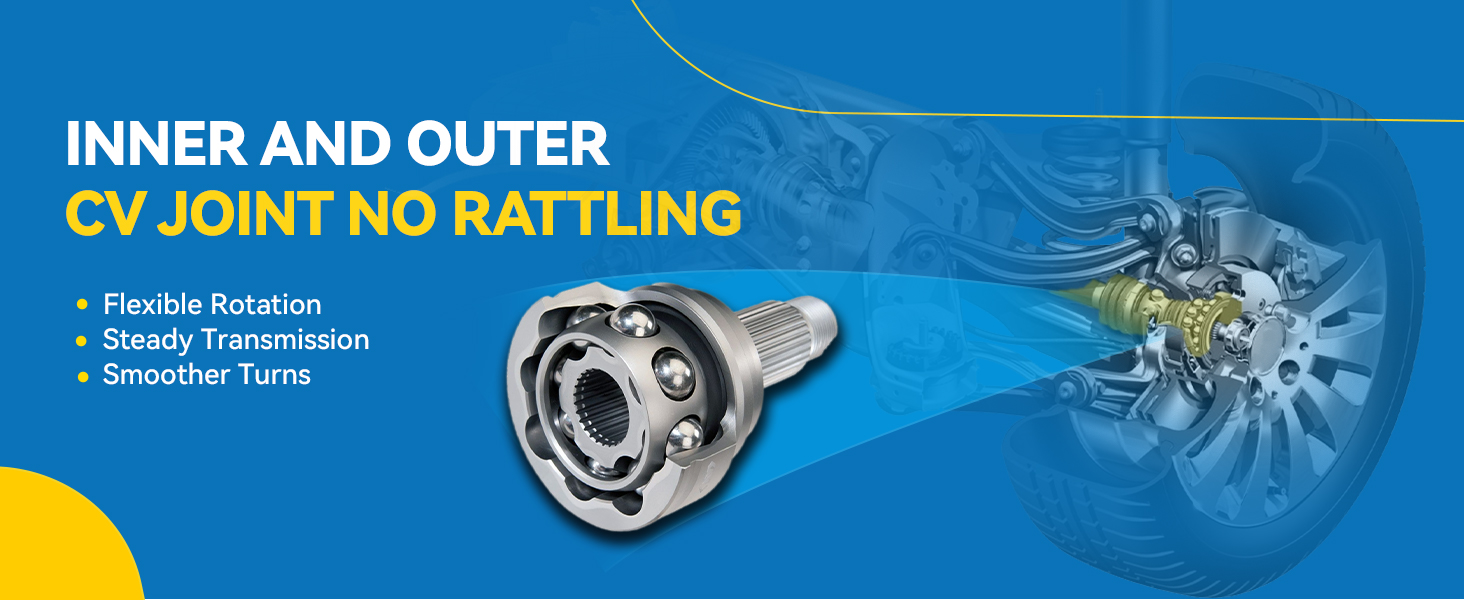

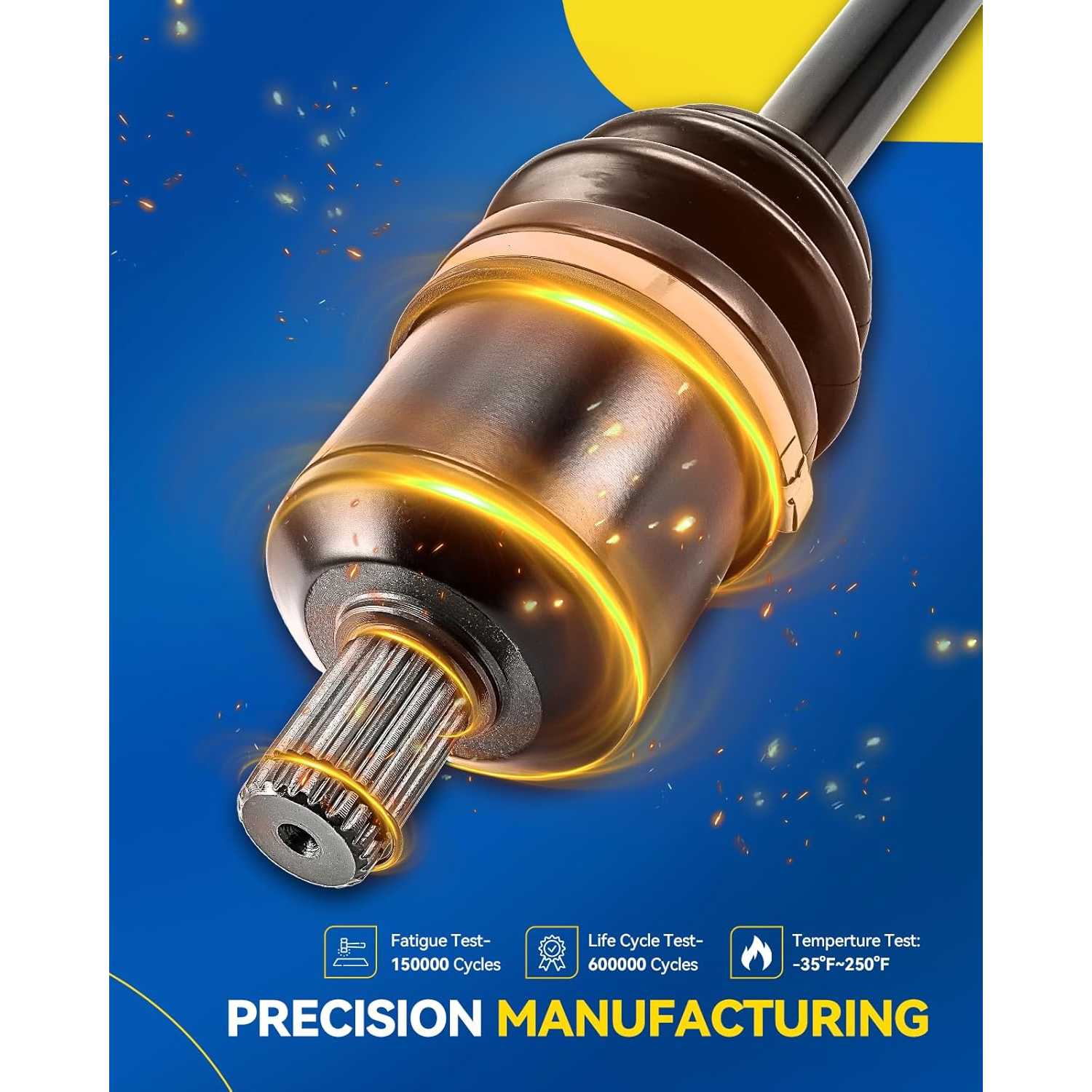

  • Quality Control: The ball cage of the half-shaft is heat-treated in one piece to ensure more stable subsequent processing of the cv axle shaft.All half shafts undergo three levels of inspection and control to ensure factory quality.

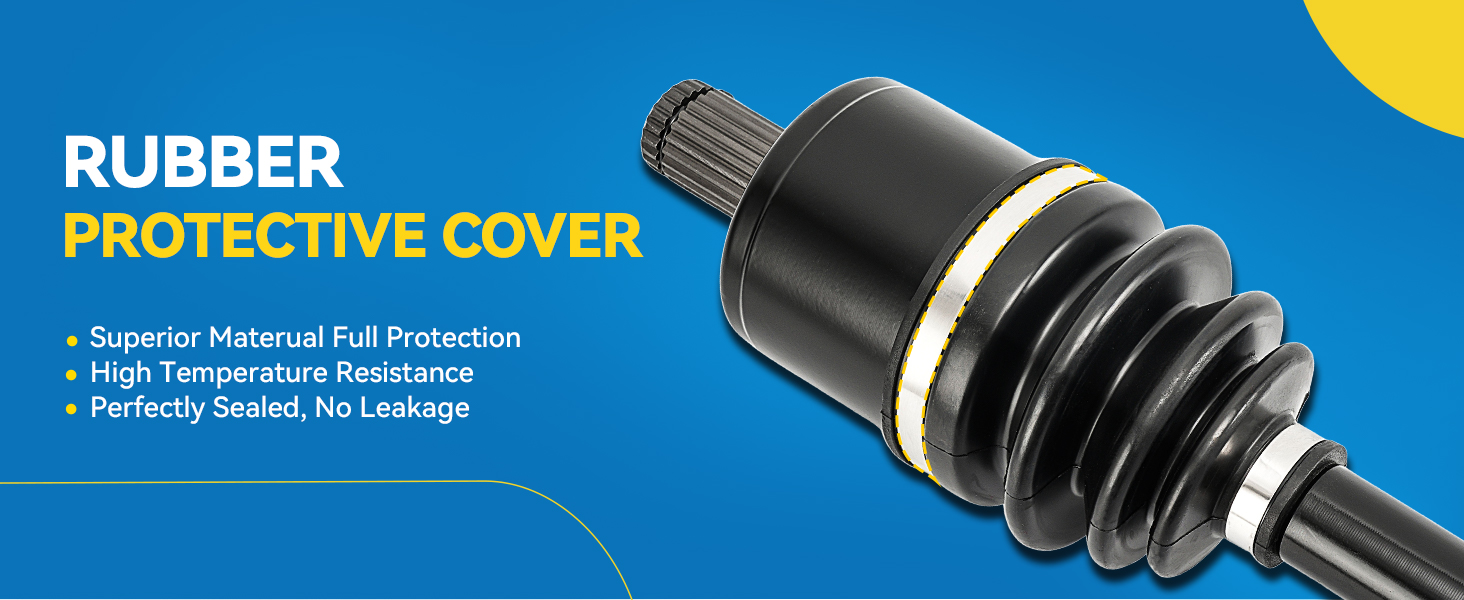

  • Good Sealing: Half shaft dust cover is made of natural neoprene, high temperature resistance 100 degrees, low temperature resistance -45 degrees.Enables cv axle half-shafts to be adapted to extreme environments.

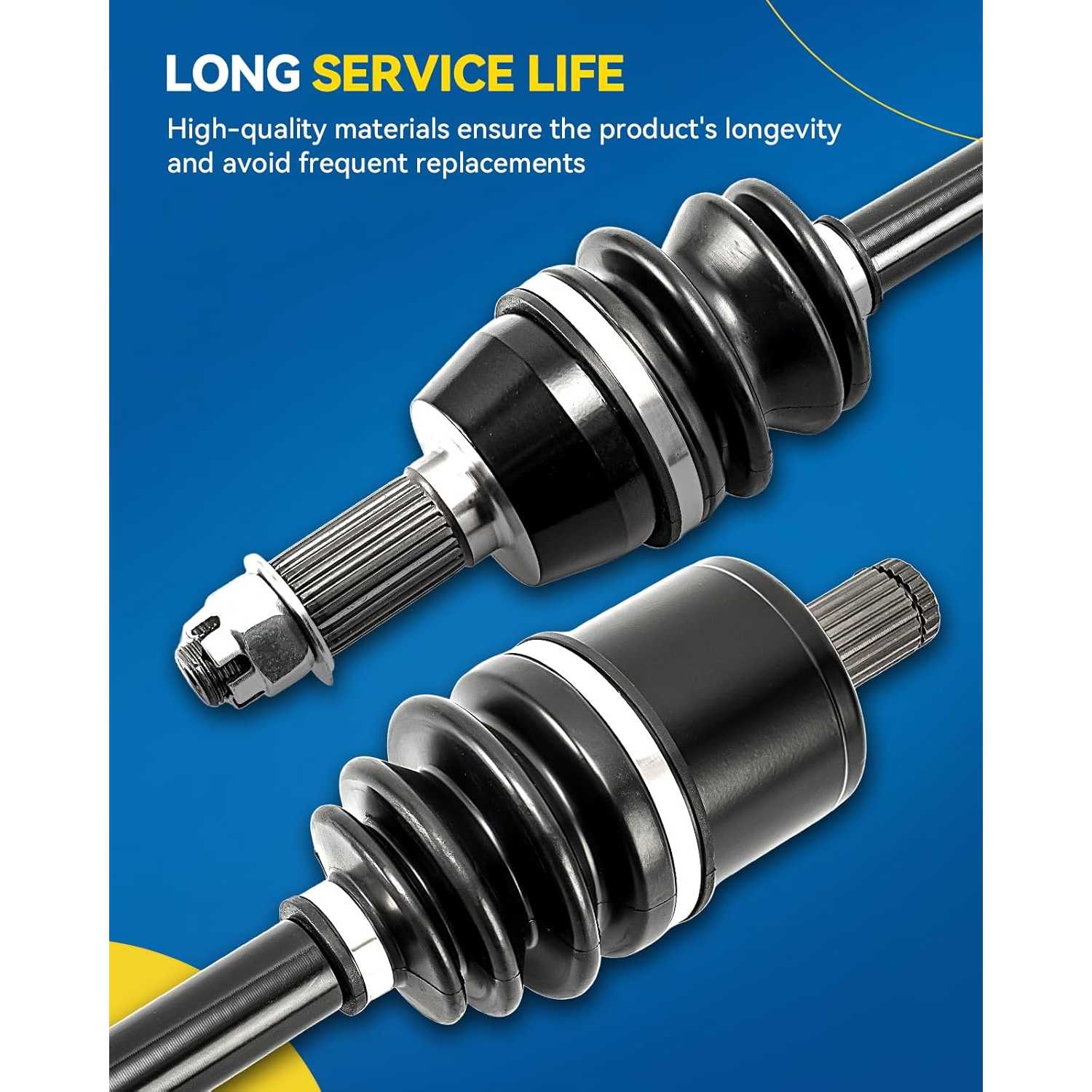

  • Long Service Life: The cv axle half shafts are made of 20CrMnTi. It makes the half shaft have better fatigue strength, good toughness and wear resistance.
  • Function: A new drive half-shaft transmits power well for a more comfortable and smooth ride. Solve problems such as difficult steering and rattling of the vehicle.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102010 - 20172010 - 20142011 - 20122012 - 20132013 - 201420102011 - 20122010 - 20122010 - 20122012201220092009
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelRanger 4x4 500 EFIRanger 6x6 800Ranger 800 CrewRanger 800 Crew EPSRanger 800 Crew EPS LERanger 800 EFIRanger 800 HDRanger 800 HD EPSRanger 800 XPRanger 800 XP EPSRanger 800 XP EPS LERanger 800 XP LERanger HD 700Ranger XP 700
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine--------------
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

CarGuy_John_127

01/19/2026

Solid construction and a great price point. I'm very happy with how this axle looks and feels. Worth the purchase.

AutoMom_2019_377

11/10/2025

Came well-packaged and fit my Ranger perfectly. Swapped it out in under an hour. Glad I found these.

FAQS

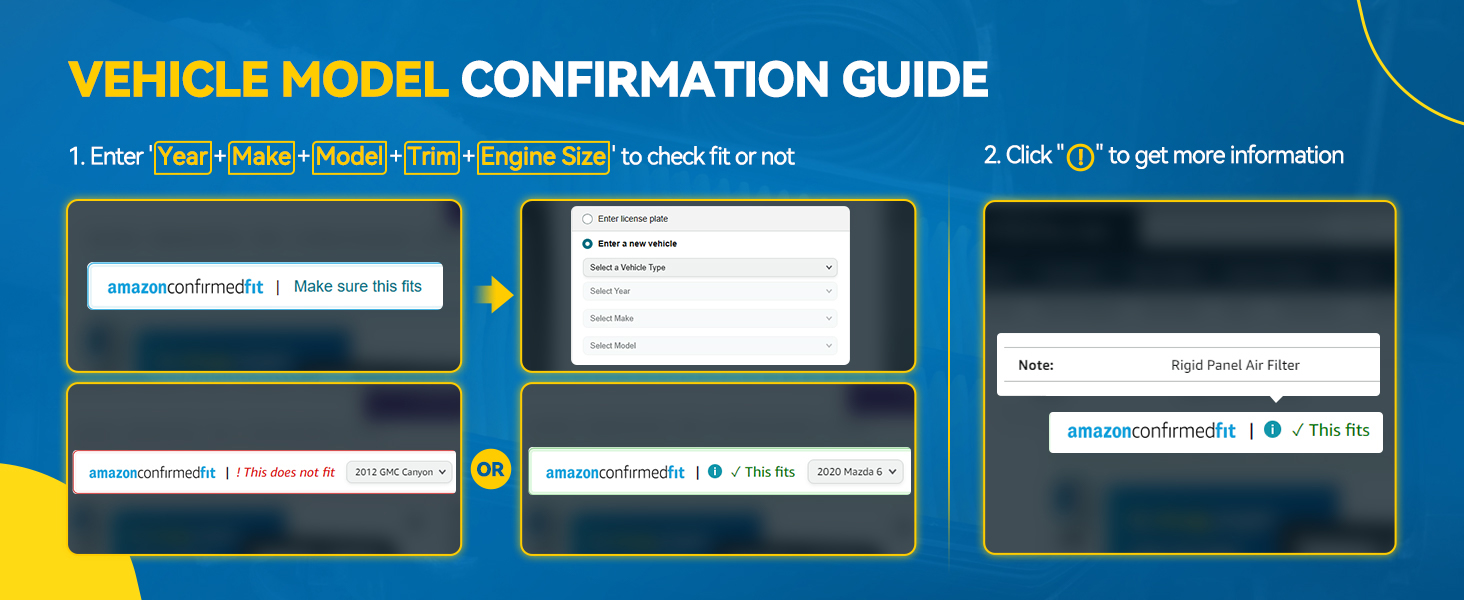

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
