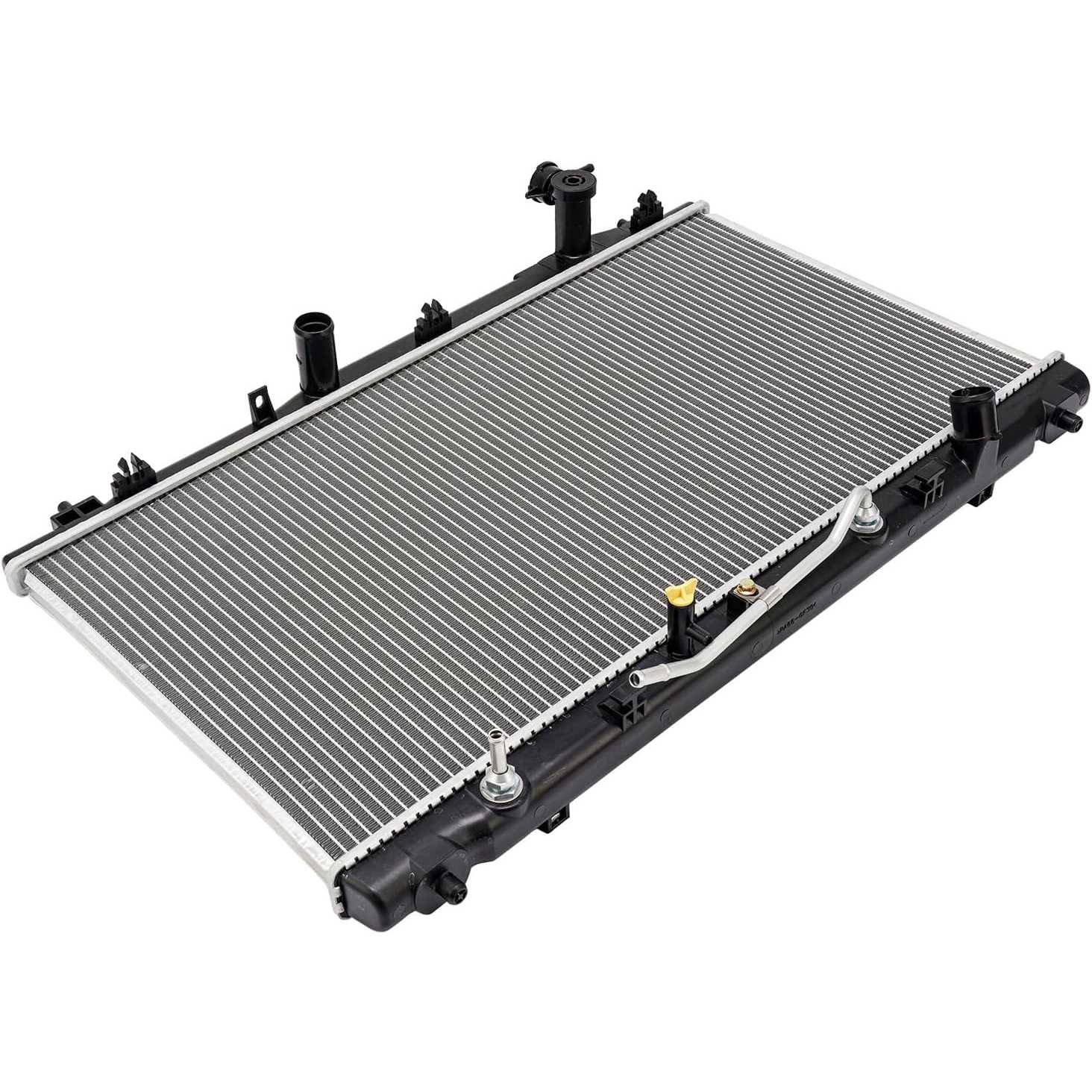

2007-2012 Lexus ES350 3.5L V6 | Aluminum 3/4" Radiator | OE#16403AD020/CU2817 - PHILTOP

2007-2012 Lexus ES350 3.5L V6 | Aluminum 3/4" Radiator | OE#16403AD020/CU2817 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9658CFK044NUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
30-1/8 in
Core Height
15-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included

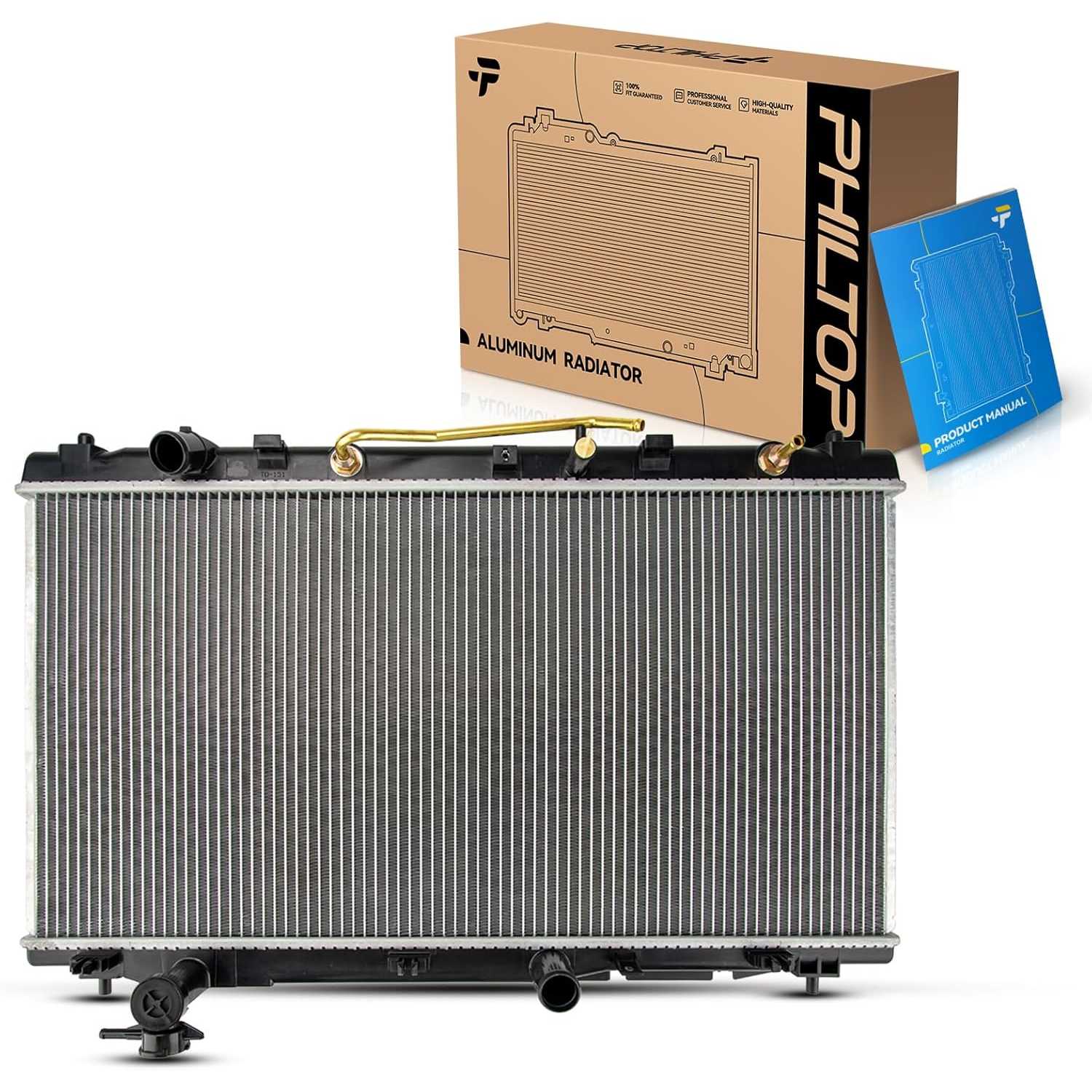

1x Radiator - CU2817, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
16403AD020,16403AD010,164000V070,16400AD010,16400AD020,164000P220,1640031410,16410AZ015,2480812
Part Number
CU2817,2213157,2817C,412817,SBR2817,8584,433995,3197,3409,KLI2817,8586,434000,PR2817KA,PR2817A,BES2817,REA412817A,B2817,CRS2817,CUC2817,0R002817A1CM,AM2817,NR2817B,CR2817,1981202475

Highlights

  • Engine Coolant Radiator compatible with 2005-2012 Avalon, 2007-2011 Camry 3.5, 2009-2015 Venza 3.5. Please confirm radiator assembly fitment via Suncentauto Fitment
  • 2817 OE automotive replacement engine radiators replaces 164000P220, 164000V070, 1640031410, 16400AD010, 16400AD020, 16410AZ015, 16410AZ016, CU2919
  • Leak tested radiator with high quality aluminium core and plastic tanks to prevent corrosion. Cooling efficiency at least 35%-60% higher than market radiators.
  • Corrosion resistant coating for longer life. Made from PA81 to maintain the shape of the radiator without deforming. Gaskets and O-rings withstand thermal shock for extreme cold durability
  • 1 x complete radiator supplied. No cap or sensor included. Supplied with 12 months free replacement and 24 hours online.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20122011 - 20122005 - 20122005 - 20082005 - 20102005 - 20112007200720072008 - 2011200720072008 - 2011200720072008 - 20112009 - 20112012 - 20142012 - 20152012 - 2015
MakeLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelES350AvalonAvalonAvalonAvalonAvalonCamryCamryCamryCamryCamryCamryCamryCamryCamryCamryVenzaVenzaVenzaVenza
TrimBaseBaseLimitedTouringXLXLSCELELELESESESEXLEXLEXLEBaseLELimitedXLE
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V62.4L L42.4L L43.5L V63.5L V62.4L L43.5L V63.5L V62.4L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
5/8 Thick Core;Radiator Cap Is Required
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required;USA or Japan Built;w/o Towing Package
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required;USA or Japan Built;w/o Towing Package
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Japan Built;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required;USA or Japan Built;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package
Radiator Cap Is Required;w/o Towing Package

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.8/5

Based on 8 reviews

575%
425%
30%
20%
10%

Tom_Handy_394

10/07/2025

Installation was a breeze, everything lined up perfectly. It arrived quickly too, which was a huge plus. Couldn't be happier.

Mike from Texas_940

02/15/2026

My old radiator was giving me fits, always running hot. This new one solved the problem immediately. My car stays cool now, even on long drives.

FAQS

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.
