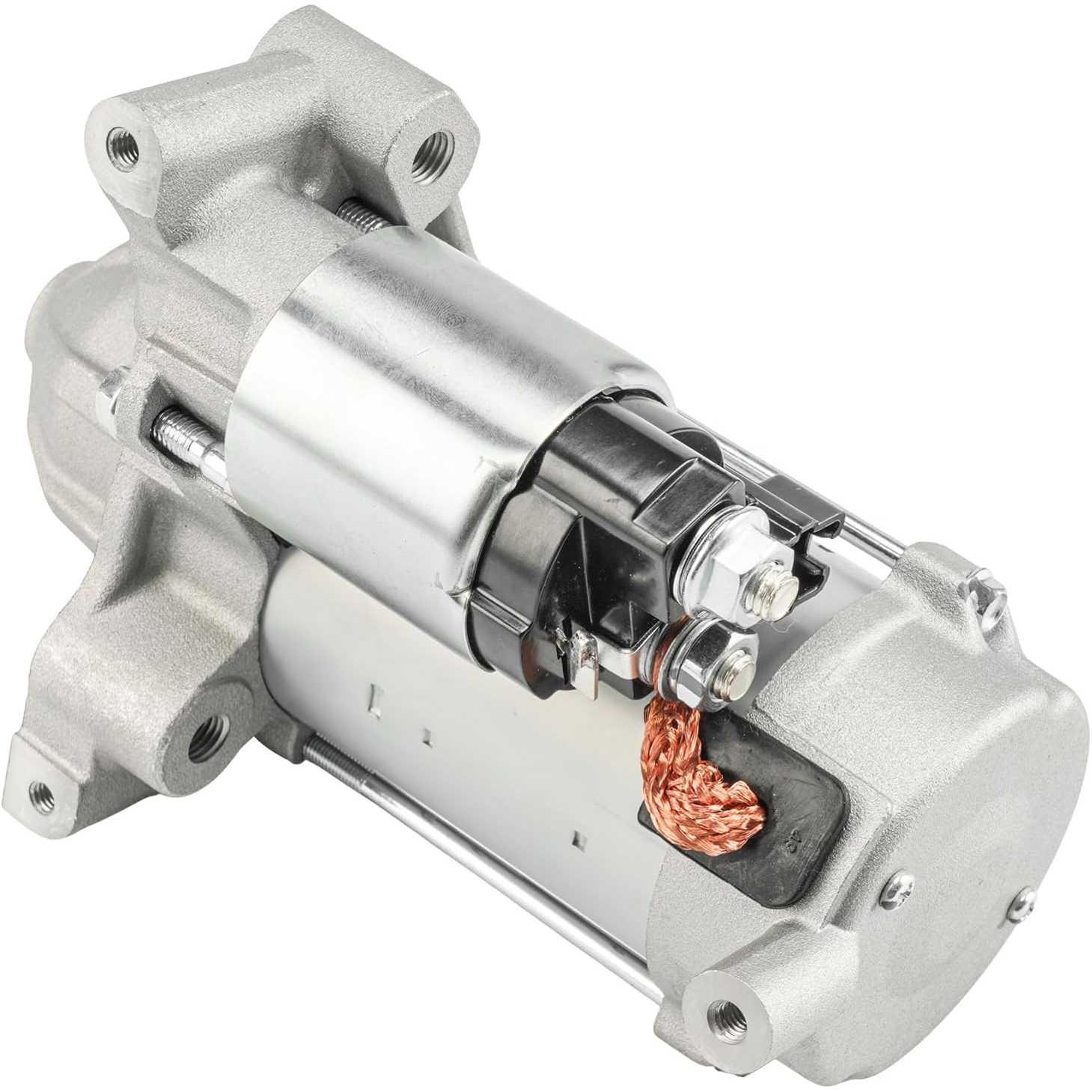

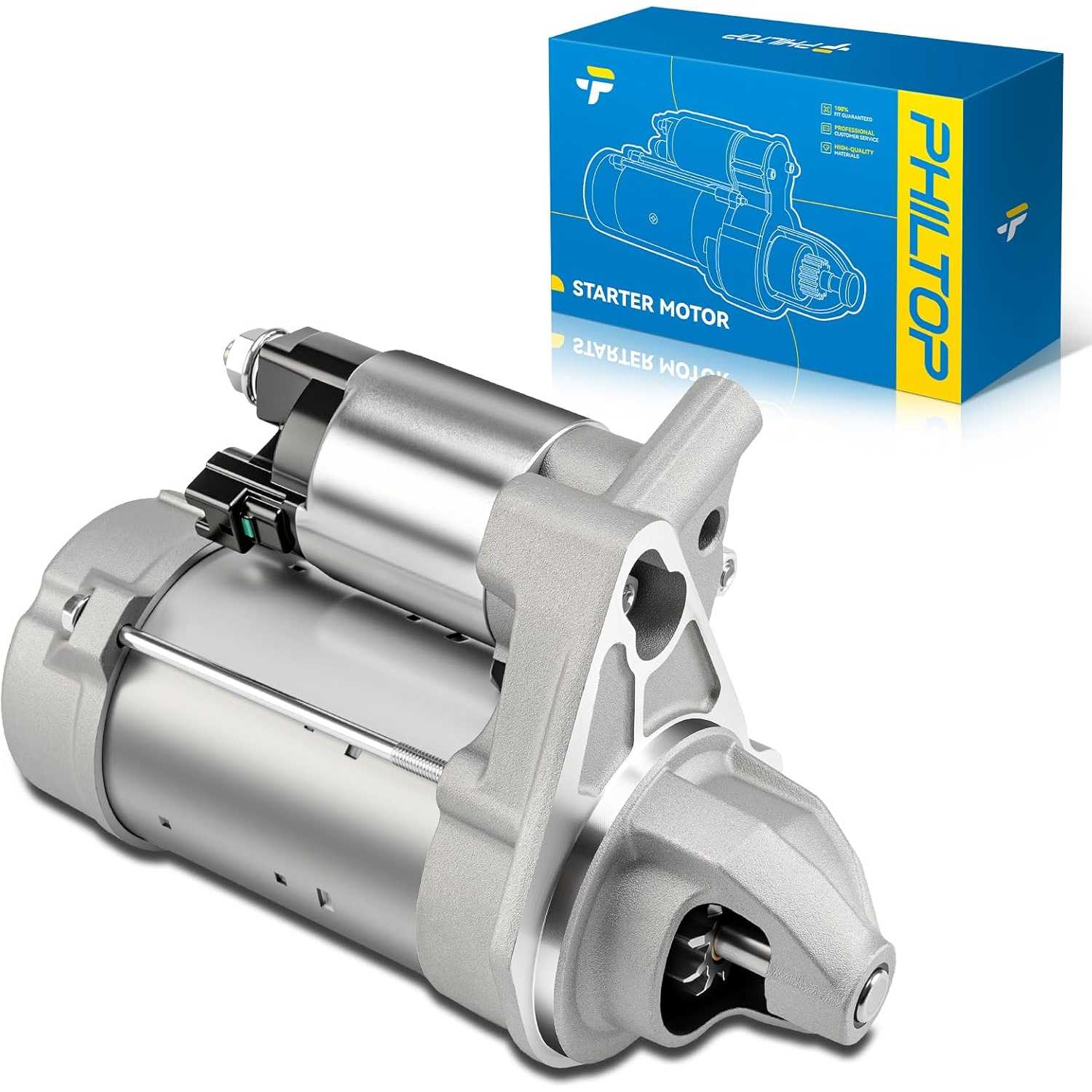

2008-2011 Toyota Sequoia 5.7L V8 | 2.0KW 9-Tooth Starter | 19045N - PHILTOP

2008-2011 Toyota Sequoia 5.7L V8 | 2.0KW 9-Tooth Starter | 19045N - PHILTOP

Power: 2.0 kW

Pinion Teeth: 9

Quick Starting Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5223STM1199US

Specifications

Brand
PHILTOP
Power
2.0 kW
Pinion Teeth
9
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 19045N 1x Manual
Warranty Period
2-Year
Part Number
19045N

Highlights

  • Compatibility: 2007-2011 Tundra 5.7L, 2008-2011 Sequoia 5.7L, 2008-2011 LX570, 2008-2011 Land Cruiser
  • OEM Number: 2810038041、2810038040、281000S010、281000S011、19045N
  • Starter Specification: ①Power Rating: 2KW; ②Voltage: 12V; ③Number of Teeth: 9 Teeth; ④Rotation: CW(Clockwise); ⑤Specs for: PLGR
  • Professional Starter: PHILTOP starter has undergone multiple professional tests, including a 2000-hour endurance test, voltage withstand test, vibration resistance test, 8-hour high/low temperature endurance test at operating temperatures ranging from -40°C to 105°C, and a 96-hour salt spray test. Engineered for exceptional reliability, it ensures a safe and stable power supply under any conditions.
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20112008 - 20112008 - 20112008 - 20112008 - 20112007 - 20112007 - 20112010 - 20112007 - 2011
MakeLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelLX570Land CruiserSequoiaSequoiaSequoiaTundraTundraTundraTundra
TrimBaseBaseLimitedPlatinumSR5BaseLimitedPlatinumSR5
Engine5.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V8
Note--
To 04/2011
To 04/2011
To 04/2011
To 03/2011
To 03/2011
To 03/2011
To 03/2011

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

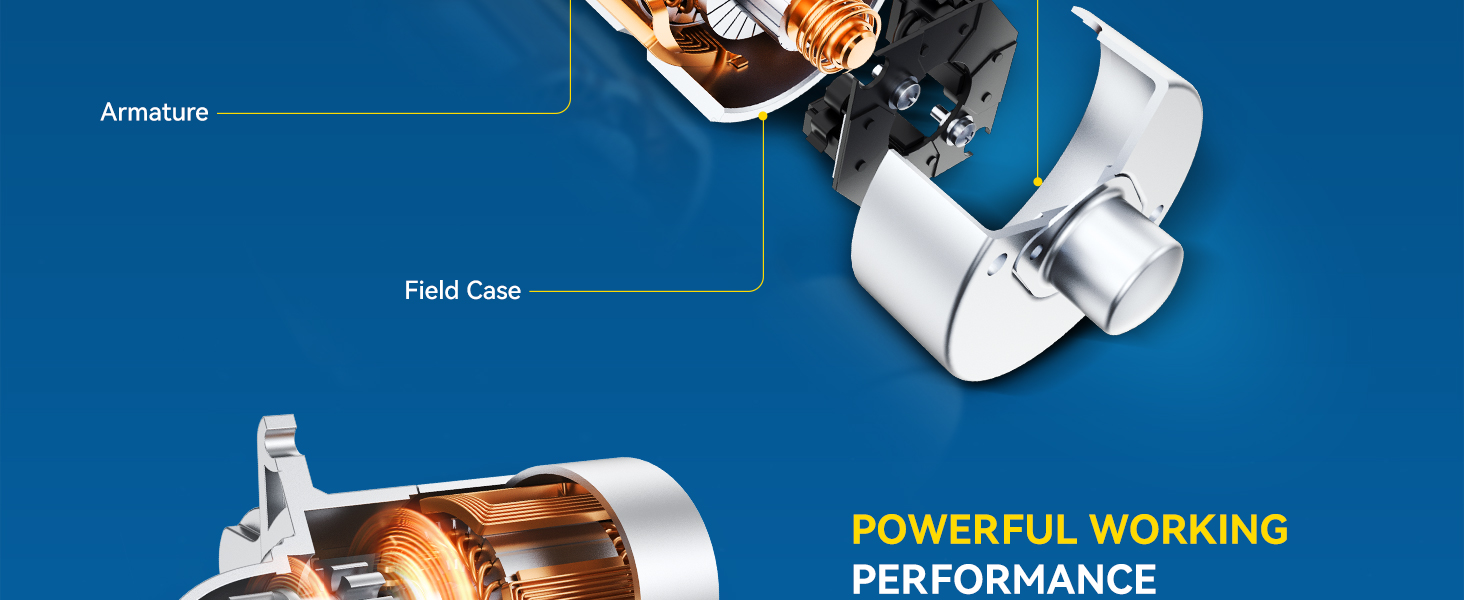

starter motorstarter motor

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Chris_GearHead_269

11/10/2025

My old starter was making a nasty grinding sound every morning. This new unit is quiet and engages perfectly every time I turn the key. It feels like my Sequoia is brand new again.

Brad_AutoParts_603

12/10/2025

This starter for my Tundra is built like a tank and cost way less than what the dealership wanted. The casing and terminals all look high-quality. It is definitely the best bang for your buck if you need a replacement.

FAQS

Consider replacement if you notice: slow cranking, loud grinding/clicking noises, or the engine not turning over. Please confirm the specific parameters of the product before purchasing.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.

Yes. Follow your vehicle’s instructions; on most conventional vehicles, disconnect the negative terminal first.
