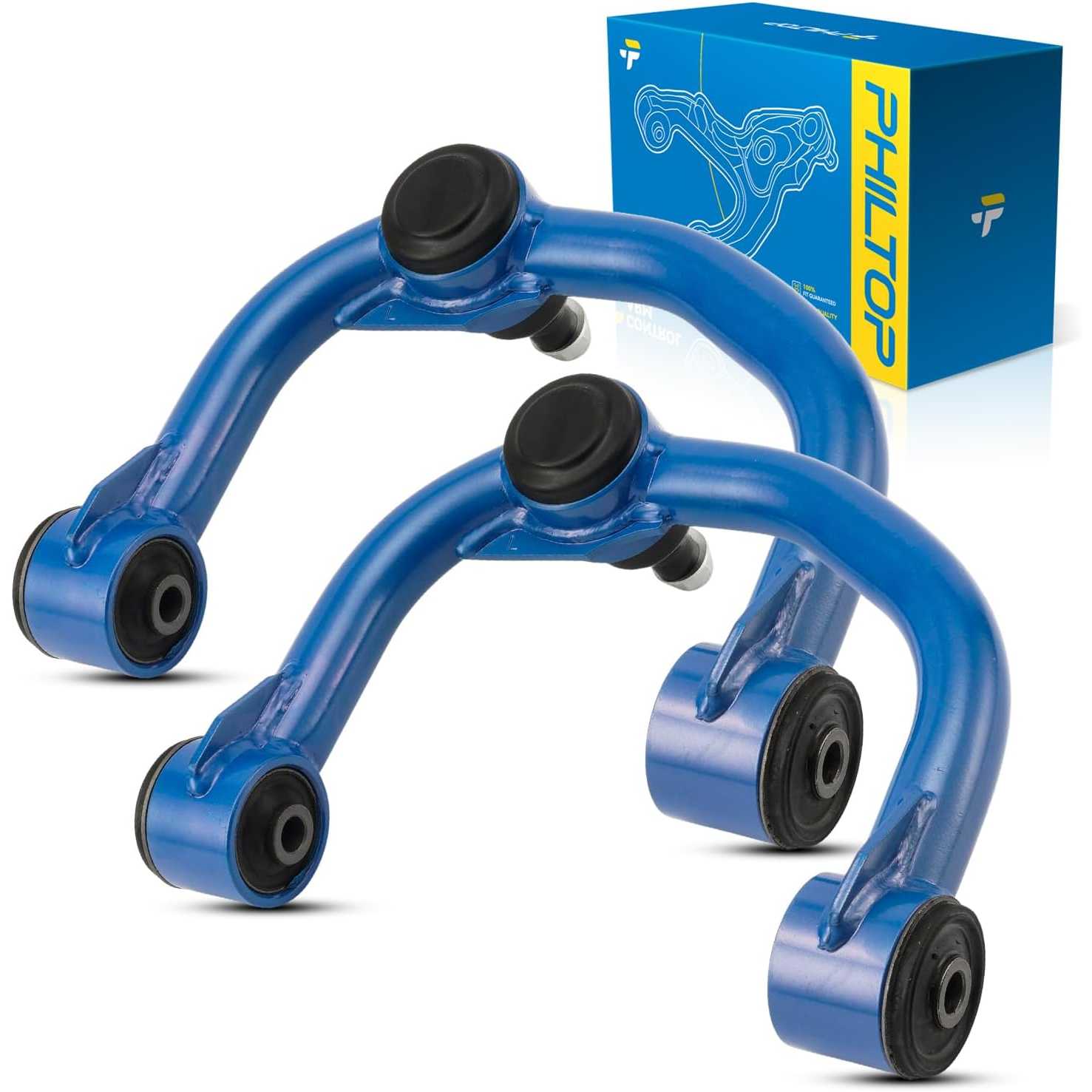

PHILTOP 2pcs Front Upper Control Arms for F150 2004-2021, Expedition 2007-2015, Navigator 2007-2015, Mark LT 2007-2008 Suspensio

PHILTOP 2pcs Front Upper Control Arms for F150 2004-2021, Expedition 2007-2015, Navigator 2007-2015, Mark LT 2007-2008 Suspensio

Corrosion Resistant

Deformation Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8952CAK202XUS

Specifications

Brand
PHILTOP
Items Included
2x Front Upper Control Arms (Left & Right)
Quantity
2
Position
Front Upper
Surface Finish
Polished, Rust Protected
Material
Steel
Warranty Period
2-Year

Highlights

  • #23,981 in Automotive (See Top 100 in Automotive)
  • #45 in Automotive Replacement Control Arms
  • Fitment: PHILTOP Control Arms Lower Ball Joints Sway Bars Tie Rods for Expedition 2007-2015, N-av-ig-at-or 2007-2015, Mark LT 2007-2008, F150 2004-2021 5.0L,3.3L,2.7L,3.0L,3.5L
  • Kit Includes: 2pcs x Front Upper Control Arms (Left & Right)

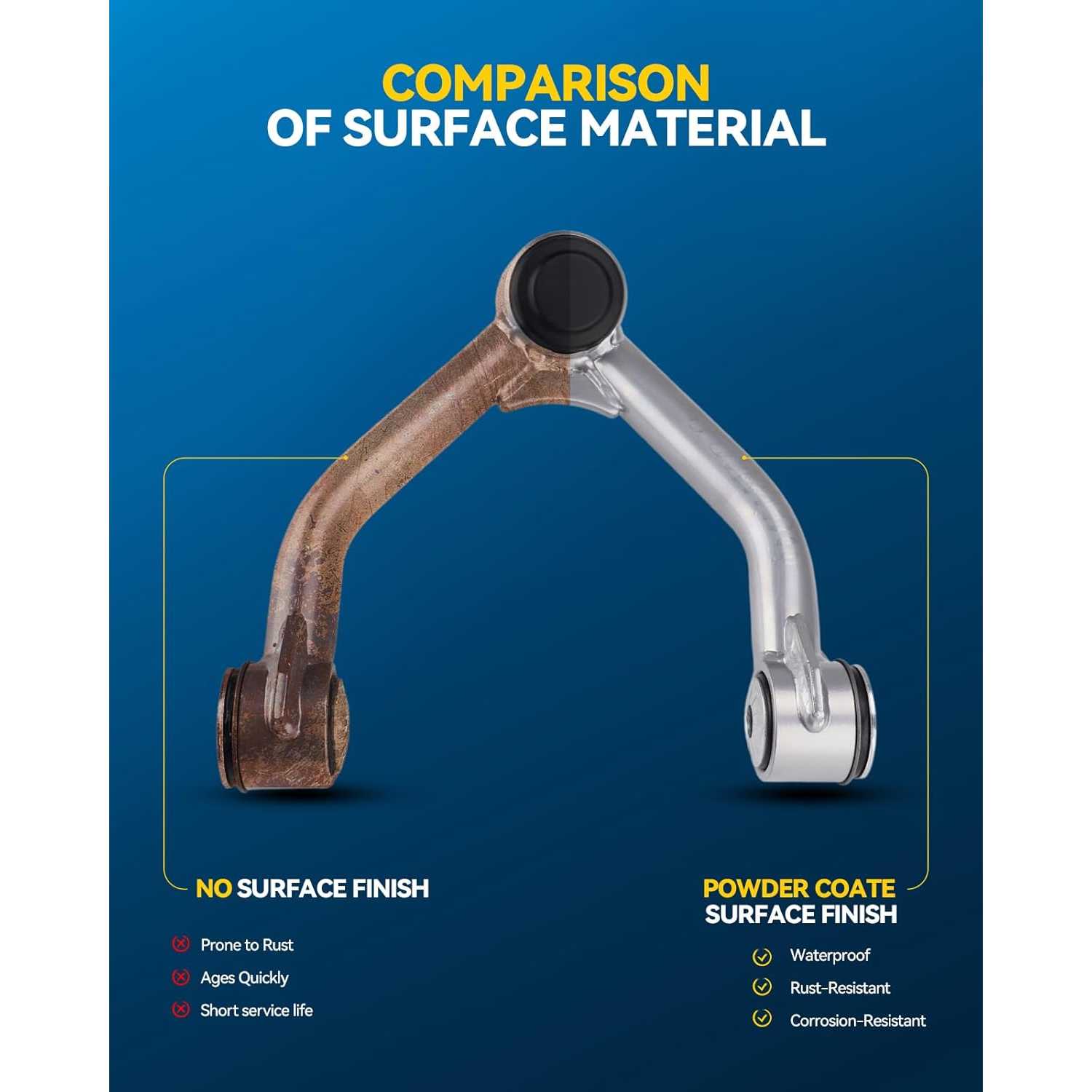

  • High Quality: Polishing and rust prevention; the anti-corrosion coating on the control arm can prolong the service life. All materials used for the control arm coating are environmentally friendly
  • Easy Installation: Precision tolerances for easy installation on all parts. Control arm has steering alignment that ensure you a perfect work

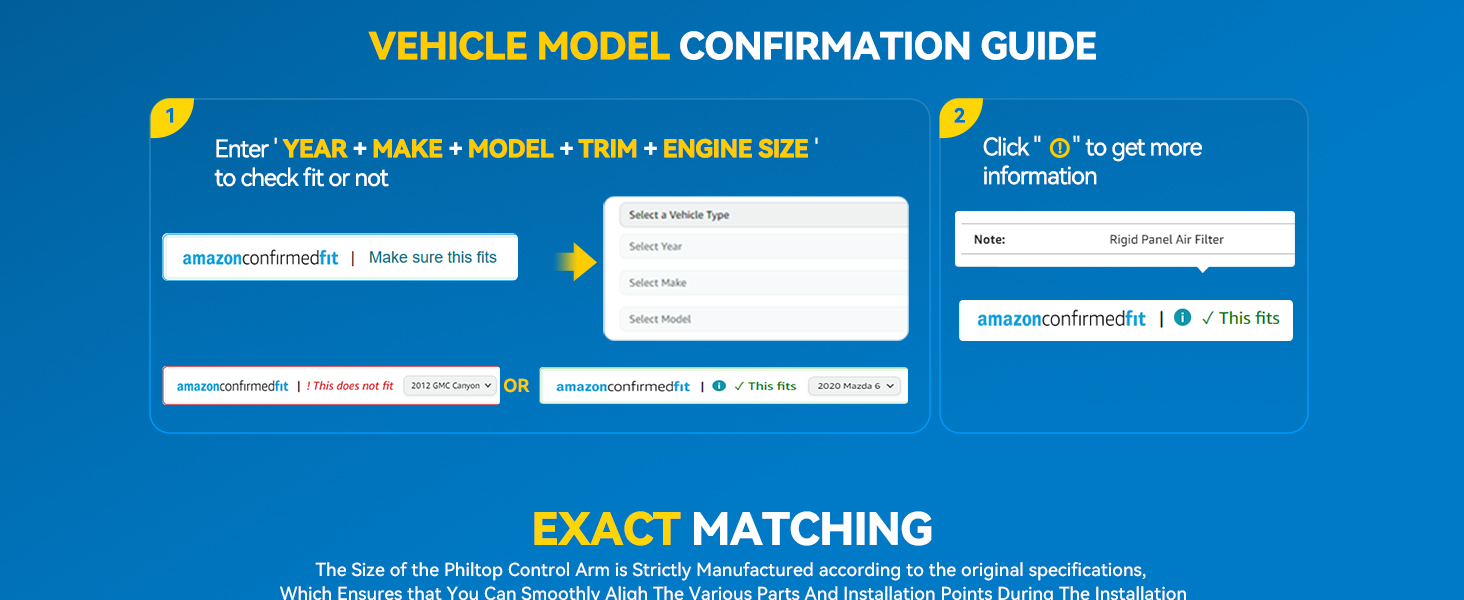

  • PHILTOP Support: Please recheck your vehicle compatibility (year/make/model) before purchasing the control arms suspension kit. You can use the "confirmedfit" frame above the title to check whether it is suitable for your model

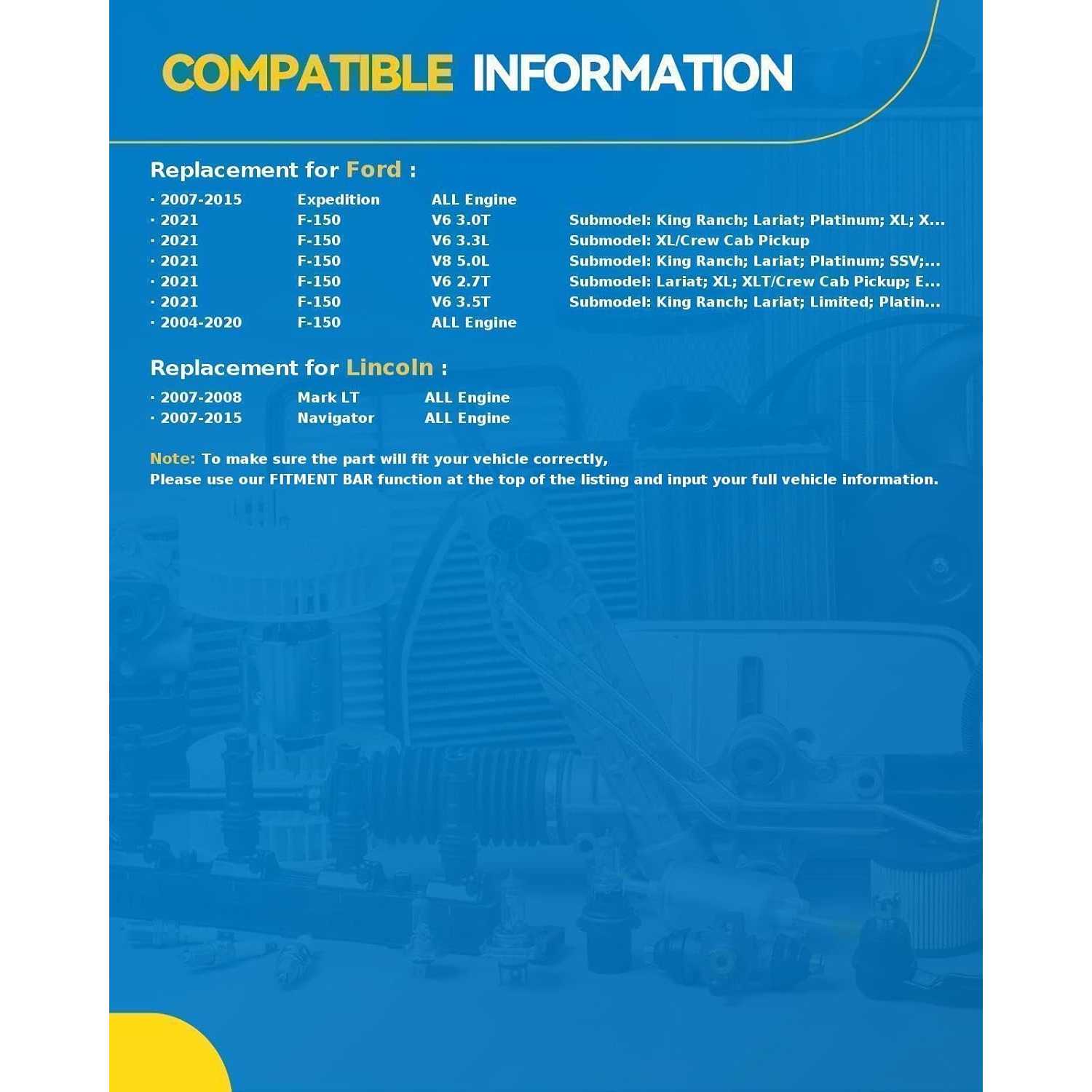

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 2014200820102011 - 20142007 - 200820102013 - 20142011 - 20142011 - 20142004 - 20102013 - 20142006 - 200820102011 - 20122018 - 20202011 - 20202011 - 20172005 - 20102015 - 20202018 - 20202011 - 20202011 - 20172004 - 20102011 - 201420112013 - 20142016 - 202020082018 - 20202011 - 20202011 - 20172009 - 20102011 - 20142018 - 20202017 - 20202016 - 20202016 - 20172011 - 20142005 - 20082004 - 20102011 - 201420102010 - 2014200820082015 - 20202018 - 20202018 - 20202011 - 20202011 - 20142005 - 20082004 - 20102011 - 20172004 - 20102015 - 20202018 - 20202018 - 20202011 - 20202011 - 20142005 - 20082004 - 20102011 - 20172004 - 20102013 - 2014
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150
TrimFX2FX2FX2FX2FX2FX2FX2FX4FX4FX4FX4Harley-Davidson EditionHarley-Davidson EditionHarley-Davidson EditionKing RanchKing RanchKing RanchKing RanchLariatLariatLariatLariatLariatLariatLariat LimitedLimitedLimitedLimitedPlatinumPlatinumPlatinumPlatinumPlatinumPolice ResponderRaptorSSVSSVSTXSTXSTXSTXSVT RaptorSVT RaptorTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLTXLTXLTXLTXLT
Engine3.5L V64.6L V84.6L V85.0L V85.4L V85.4L V86.2L V83.5L V65.0L V85.4L V86.2L V85.4L V85.4L V86.2L V83.0L V63.5L V65.0L V85.4L V82.7L V63.0L V63.5L V65.0L V85.4L V86.2L V86.2L V83.5L V63.5L V65.4L V83.0L V63.5L V65.0L V85.4L V86.2L V83.5L V63.5L V63.5L V65.0L V83.7L V64.2L V64.6L V85.0L V85.4L V86.2L V84.6L V85.4L V82.7L V63.0L V63.3L V63.5L V63.7L V64.2L V64.6L V85.0L V85.4L V82.7L V63.0L V63.3L V63.5L V63.7L V64.2L V64.6L V85.0L V85.4L V86.2L V8
Note----------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the installation side, mounting points and ball-joint configuration.
  • Inspect the new control arm, bushings, ball joint and dust boot for damage.
  • Check the steering linkage, stabilizer link and related suspension components for looseness or wear.
  • Support the vehicle with approved jack stands and support the steering knuckle to protect the brake hose and ABS wiring.
  • Replacing control arms in left/right pairs is recommended when both sides have similar mileage or wear.

Installation Steps

  • Step-1: Raise and support the vehicle, then remove the wheel.
  • Step-2: Support the steering knuckle and disconnect the stabilizer link or related components as required.
  • Step-3: Separate the ball joint using the correct puller—do not strike or pry it aggressively.
  • Step-4: Remove the mounting bolts and old control arm, then clean the mounting points.
  • Step-5: Position the new arm and hand-start all fasteners.
  • Step-6: Connect the ball joint and stabilizer link, replacing any single-use nuts or bolts.
  • Step-7: Return the suspension to normal ride height before tightening the control-arm pivot bolts to specification.

After Installation

  • Confirm all fasteners and locking components are secure.
  • Check that the wheel rotates freely without interference.
  • Perform a short, low-speed road test and check for noise, pulling or unstable steering.
  • A professional four-wheel alignment is required after installation.
  • Recheck the installation after the first 50–100 km.

Product Video

Product Description

改装款-PC11

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Eric.lis

12/19/2024

Verified buyer

Installed on a 2011 Ford Expedition 4x4Sorry for the long review but I’m trying to answer all the things I was uneasy about before purchasing/installing. So let’s get into it!I wanted to upload a side by side picture since these didn’t seem all that different (aside from the increased beefiness) from the OEMs I took off but the way they sat next to each other with the different bushing sizes doesn’t really show anything meaningful. They are roughly the same size as OEM but with less bushing diameter which makes me a little nervous for longevity (less contact area with the tower). Also, the angle of the ball joint vs OEM was visually the same. What IS different is the position of the ball joint. The collar that the ball joint sits in is pretty long and it seems the ball joint is shifted vertically vs OEM which is what makes the difference in my opinion.It doesn’t contact the springs anymore but that could just be because the new bushing is providing more frictional resistance against the shock pushing down on the LCA/knuckle.If you don’t have wheel spacers and are running larger wheels (mine are 275/65/20), you will likely need them afterwards. However I have 1.75” spacers so that wasn’t a problem for me. Note: 2.5” lift running my tires with the OEM UCAs I had only ~0.25” of clearance before the wheel spacers. But hey, clearance is clearance, right? haha but now I’ve got so much clearance I don’t even care to measure it. So all I can say is, you’ll probably need spacers/wheels with less than stock back spacing.The fun part is, after the alignment I had zero rubbing which I was totally struggling with before! I installed my spacers about a month before installing these UCAs and was getting ready to do a NorCal mod. These UCAs saved a good portion of my wheel well and the front of the side steps from getting chopped! I even made aggressive turns while going over steep parking lot easements and nothing made contact.So far, all-in-all really good value but we’ll see how time and terrain treats these guys. One thing I’d really like to know is if the ball joints are replaceable (it doesn’t look like it) and if so, what ball joints will fit it? Read more

EricL

12/19/2024

Verified buyer

Installed on a 2011 Ford Expedition 4x4 Sorry for the long review but I’m trying to answer all the things I was uneasy about before purchasing/installing. So let’s get into it! I wanted to upload a side by side picture since these didn’t seem all that different (aside from the increased beefiness) from the OEMs I took off but the way they sat next to each other with the different bushing sizes doesn’t really show anything meaningful. They are roughly the same size as OEM but with less bushing diameter which makes me a little nervous for longevity (less contact area with the tower). Also, the angle of the ball joint vs OEM was visually the same. What IS different is the position of the ball joint. The collar that the ball joint sits in is pretty long and it seems the ball joint is shifted vertically vs OEM which is what makes the difference in my opinion. It doesn’t contact the springs anymore but that could just be because the new bushing is providing more frictional resistance against the shock pushing down on the LCA/knuckle. If you don’t have wheel spacers and are running larger wheels (mine are 275/65/20), you will likely need them afterwards. However I have 1.75” spacers so that wasn’t a problem for me. Note: 2.5” lift running my tires with the OEM UCAs I had only ~0.25” of clearance before the wheel spacers. But hey, clearance is clearance, right? haha but now I’ve got so much clearance I don’t even care to measure it. So all I can say is, you’ll probably need spacers/wheels with less than stock back spacing. The fun part is, after the alignment I had zero rubbing which I was totally struggling with before! I installed my spacers about a month before installing these UCAs and was getting ready to do a NorCal mod. These UCAs saved a good portion of my wheel well and the front of the side steps from getting chopped! I even made aggressive turns while going over steep parking lot easements and nothing made contact. So far, all-in-all really good value but we’ll see how time and terrain treats these guys. One thing I’d really like to know is if the ball joints are replaceable (it doesn’t look like it) and if so, what ball joints will fit it?

FAQS

Fitment depends on your car's year, model, and sometimes whether it is 2WD or 4WD. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm.

We stand behind our chassis components with a 3-Year Limited Warranty for your safety and peace of mind. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

We offer both individual arms and complete suspension kits. Please check the "Package Includes" or "Quantity" section to see if you are ordering a single Driver/Passenger side arm or a full multi-piece kit.
