2000-2005 Buick LeSabre 3.8L | 2 PC Rear Wheel Bearing | OE#7470555/512003 - PHILTOP

2000-2005 Buick LeSabre 3.8L | 2 PC Rear Wheel Bearing | OE#7470555/512003 - PHILTOP

Triple-Lip Seal

Rear

AISI 52100

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9728WBR366CUS

Specifications

Brand
PHILTOP

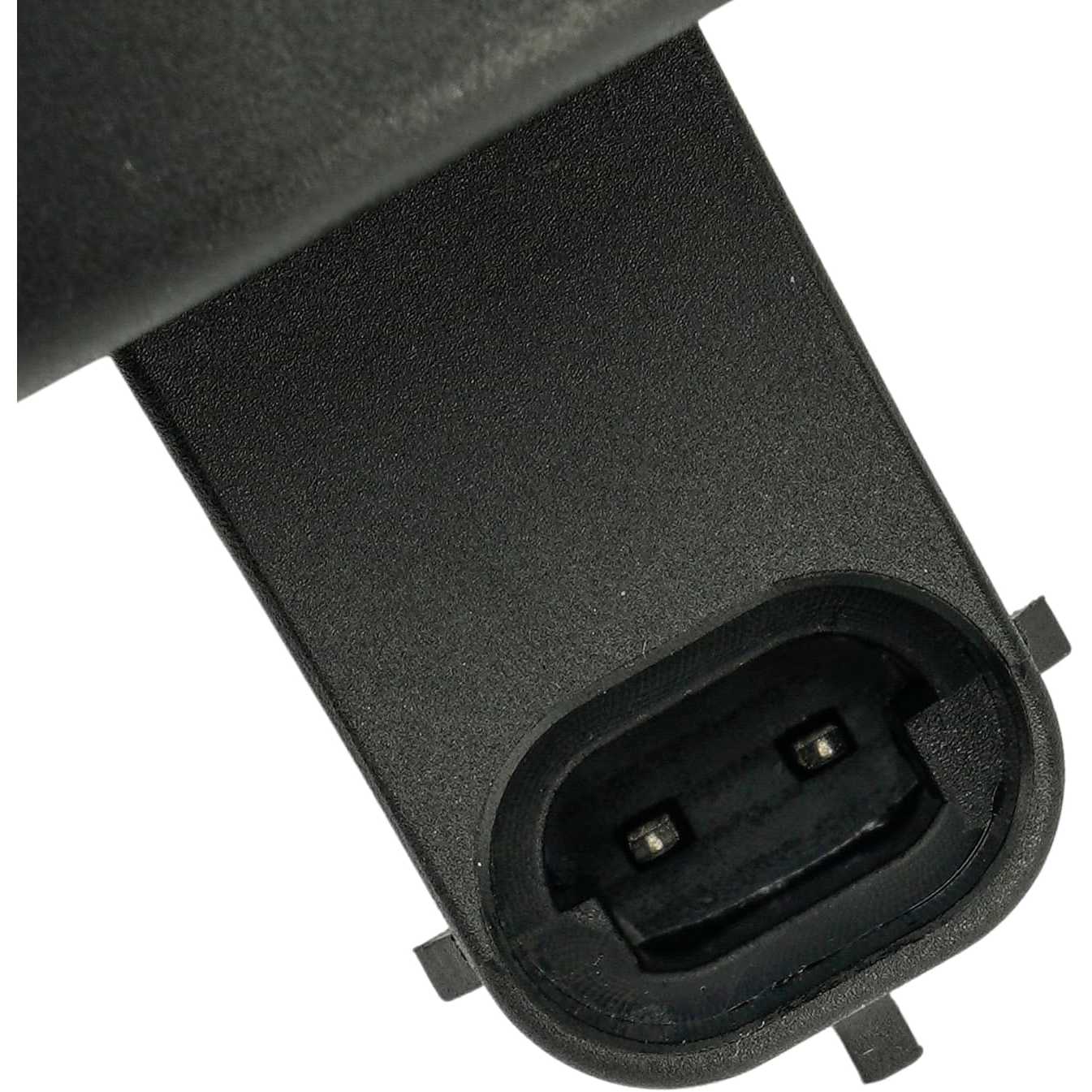

ABS Type
Speed Sensor
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

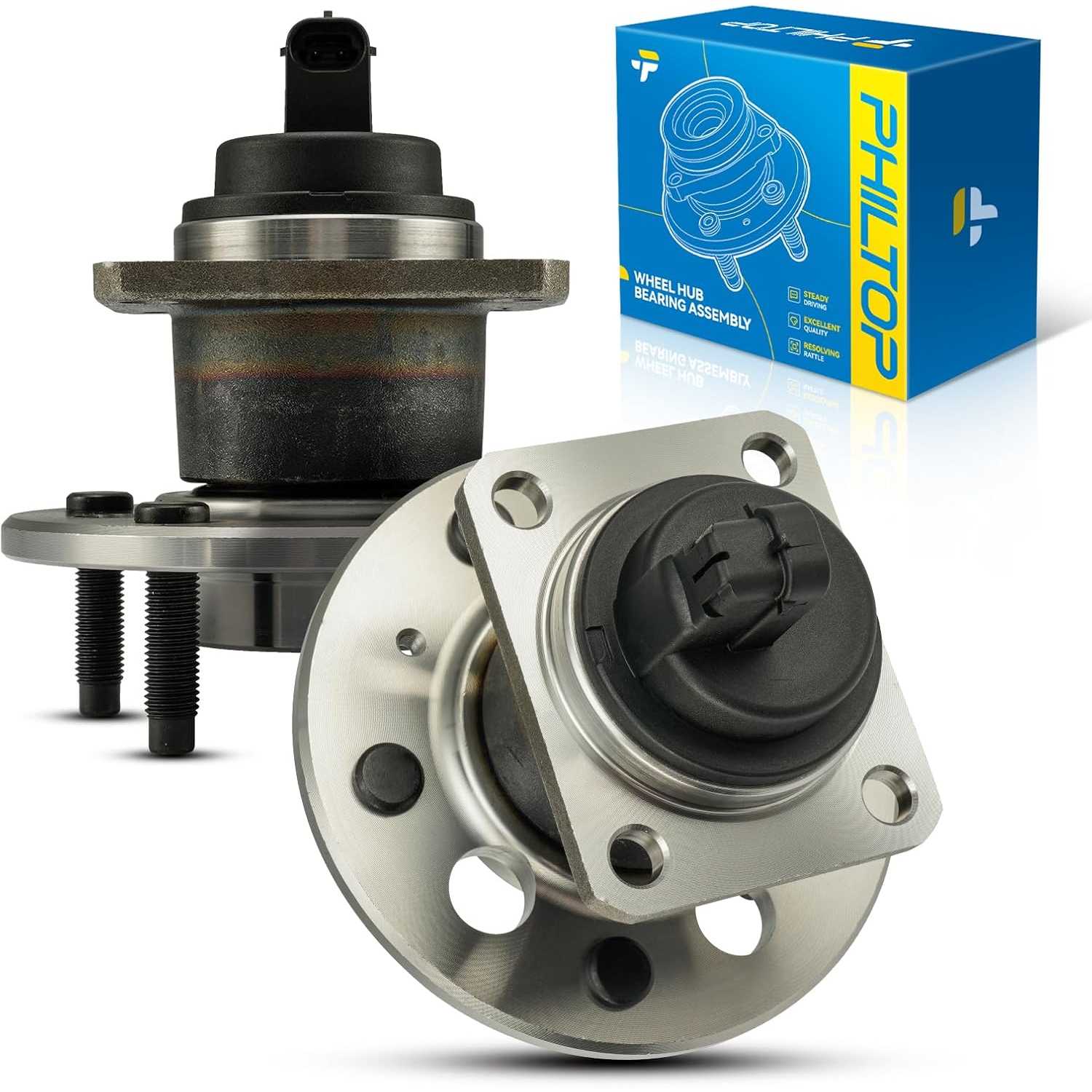

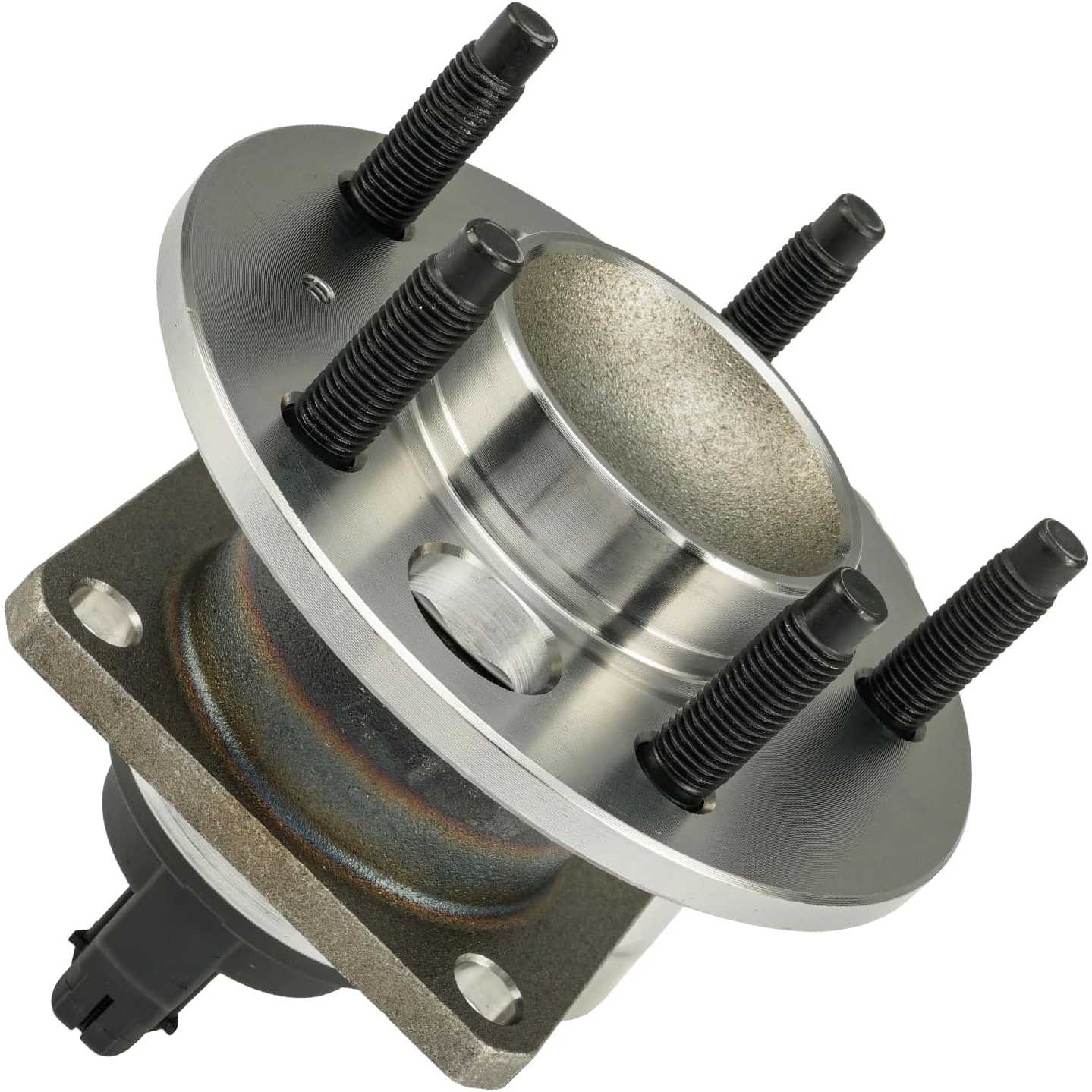

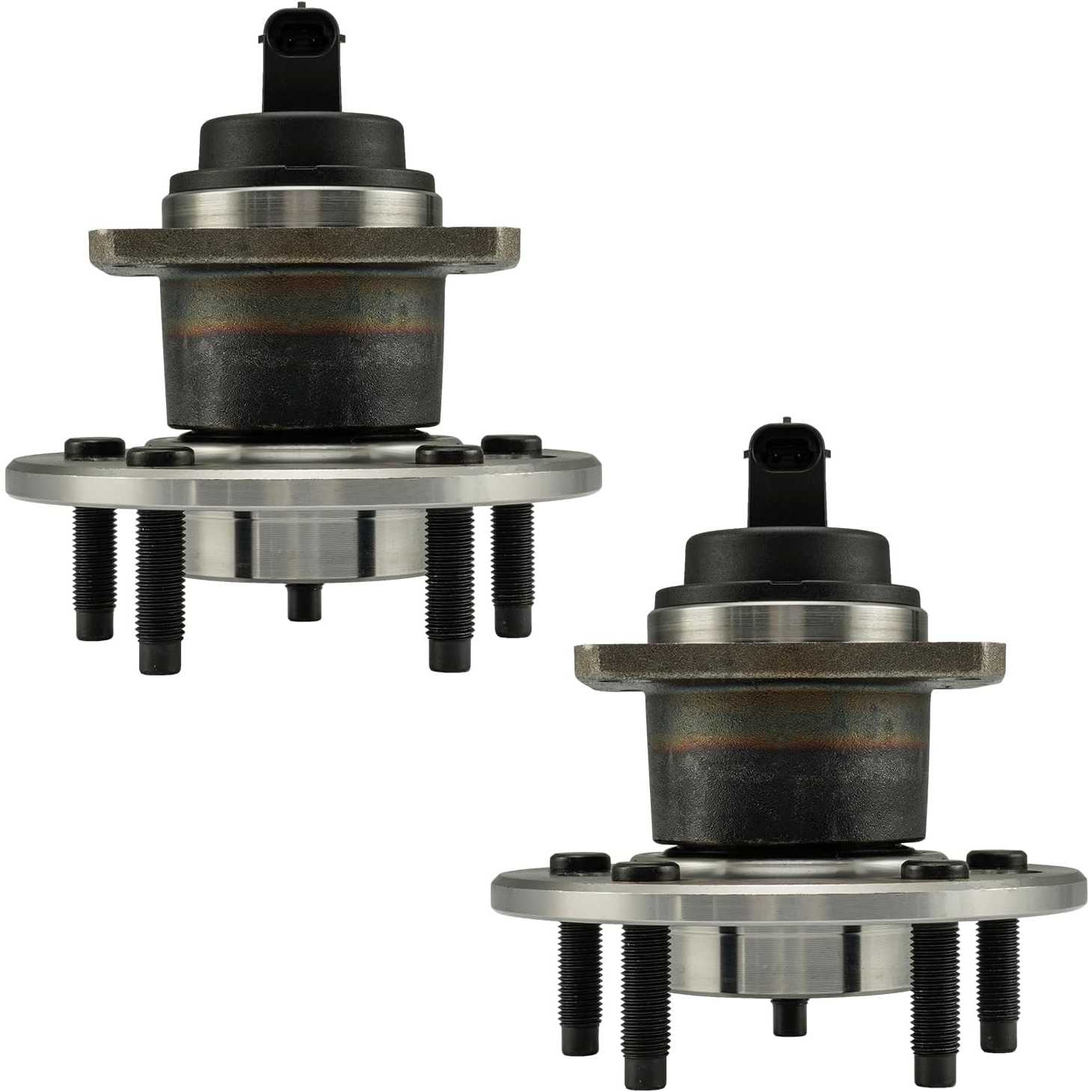

2x Rear Wheel Hub and Bearing Assembly - 512003,Installation Instructions
Bolt Pattern
5 X 4.53
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
2.8 in
Wheel Stud Size
M12x1.5
Flange Offset
2.55 in/64.8 mm
Flange Diameter
5.93 in/150.5 mm
Brake Pilot Diameter
2.78 in/70.6 mm
Warranty Period
2-Year
OE Number
7470555,7467119,7470520,7470519,7466992,7467113,7470556,21998965
Part Number
512003,WE60699,40762008,7300052,BR930074,512314,712003,BR930471,H512003,NT512003,2092,1AMH512003,WA512003,VKBA1640,G512003,40762008E,BR930092,7467562UR,53035074,512003AA,RW803,FW292,141102110,1411239699,29512003,WH512314,P512314,PT512003,PT512314,RW8314
Quantity
2

Highlights

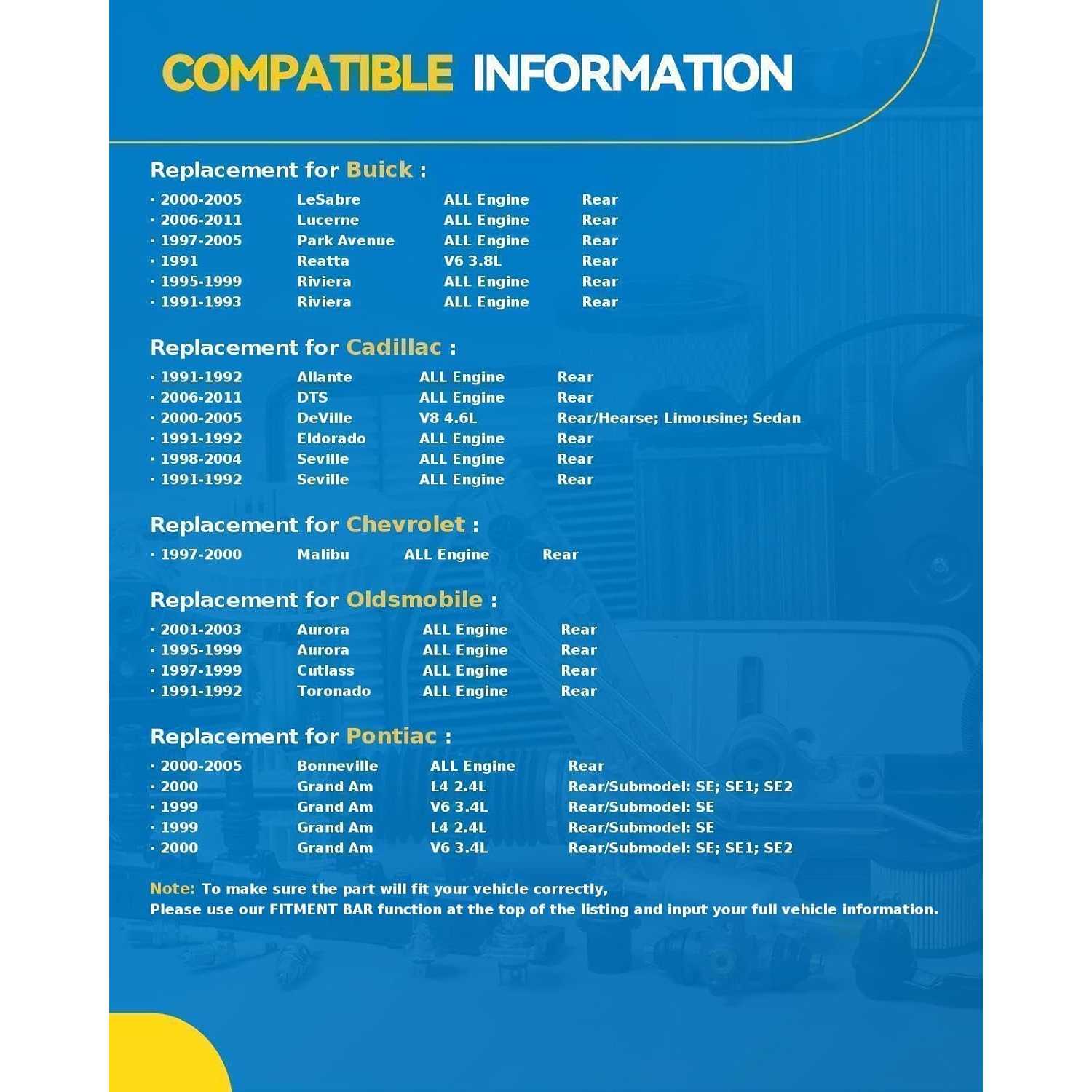

  • [Fitment] Wheel Bearing and Hub Assemblies compatible with 2000-2005 Buick LeSabre, 2006-2011 Buick Lucerne, 2006-2011 Cadillac DTS, 2000-2005 Cadillac DeVille, 1997-2005 Buick Park Avenue, 1997-2000 Chevrolet Malibu, 2000-2005 Pontiac Bonneville, 1991-1992 1998-2004 Cadillac Seville, 1999-2000 Pontiac Grand Am, 1995-1999 2001-2003 Oldsmobile Aurora, 1991-1993 1995-1999 Buick Riviera, 1997-1999 Oldsmobile Cutlass, 1991-1992 Cadillac Eldorado, 1991-1992 Cadillac Allante, 1991-1992 Oldsmobile Toronado, 1991 Buick Reatta
  • [OE Number] 512003, BR930074, 512314, 7470555, 7467119, WE60699, 7470520, 7470519, 7467113, 7466992, 7470556, 21998965, 1AMH512003, WA512003

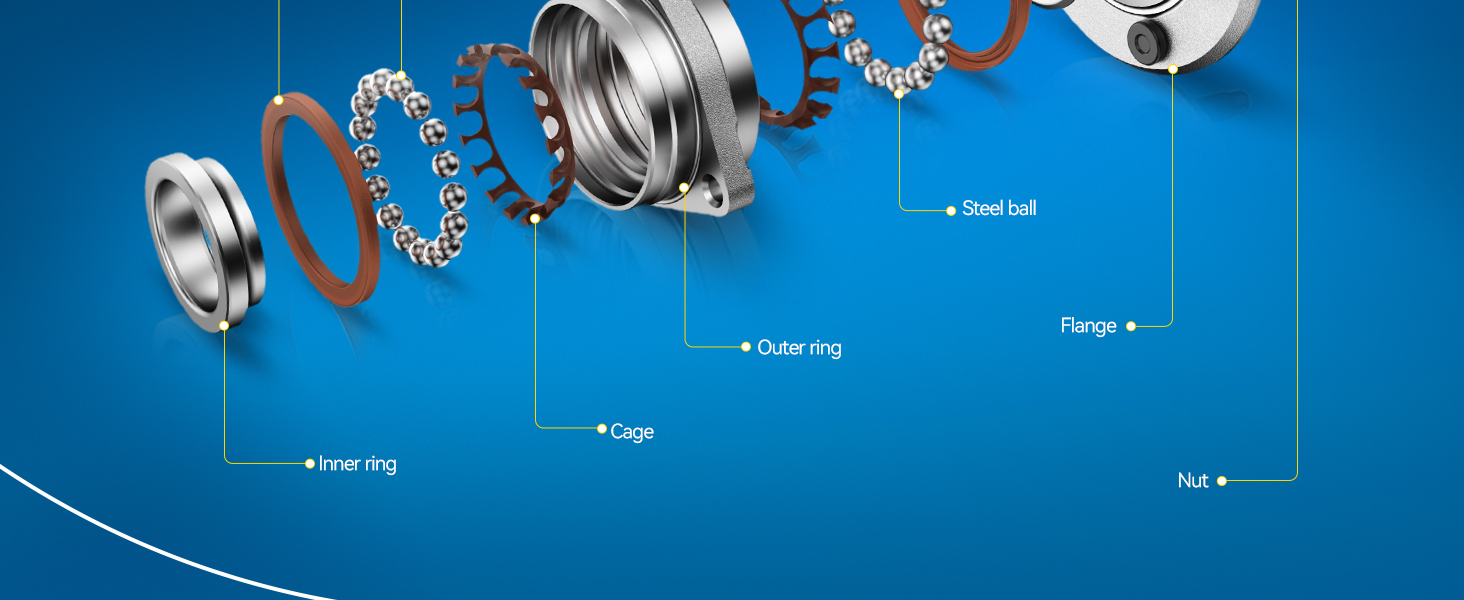

  • [Premium Materials] The outer ring and flange are made of high-quality #55 carbon structural steel for superior hardness and strength; the inner ring is crafted from GCr15 bearing steel, which achieves uniform hardness after quenching and tempering for excellent wear resistance and fatigue strength.

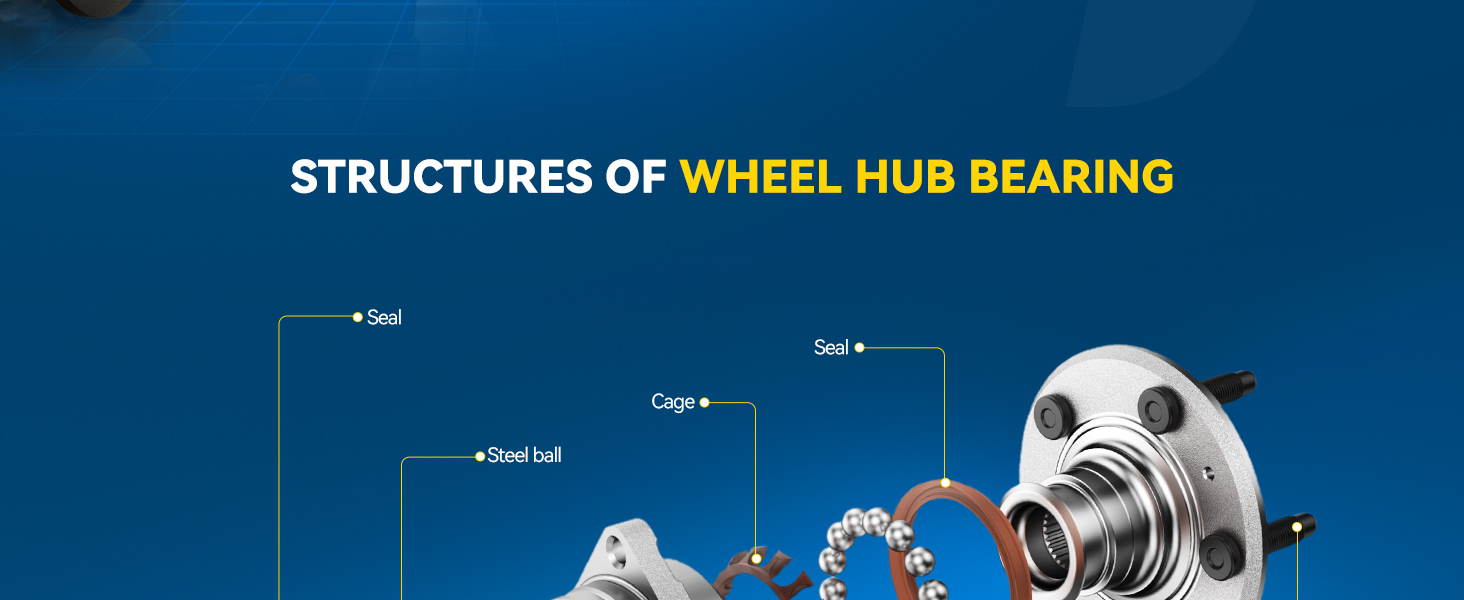

  • [Long Life, Stable Drive] Our brand-new hub assemblies and studs are finished with rust-proof coating for longer service life. Featuring a triple oil seal structure, they effectively block moisture and dust, while minimizing noise and vibration to deliver a smoother, more comfortable drive.
  • [Pro Installation for Safety] If you lack installation instructions or professional experience, have a qualified mechanic install the bearing to guarantee optimal performance and safe driving.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20052000 - 20052006 - 20082009 - 20112006 - 20082009 - 20112006 - 200820102006 - 20082008 - 20111997 - 20051997 - 200519911995 - 19991991 - 19931991 - 19921991 - 19922006 - 20112010 - 20112007 - 20112008 - 20112010 - 20112000 - 20052000 - 20052000 - 20052004 - 20051991 - 1992199119911991 - 19921991 - 19921998 - 20041998 - 20031991 - 19921997 - 19991997 - 20001997 - 20002001 - 20021995 - 19992001 - 20031997 - 199819991997 - 19991991 - 19921991 - 19922004 - 20052000 - 20052000 - 20052000 - 20031999 - 20001999 - 20002000200020002000
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelLeSabreLeSabreLucerneLucerneLucerneLucerneLucerneLucerneLucerneLucernePark AvenuePark AvenueReattaRivieraRivieraAllanteAllanteDTSDTSDTSDTSDTSDeVilleDeVilleDeVilleDeVilleEldoradoEldoradoEldoradoEldoradoSevilleSevilleSevilleSevilleMalibuMalibuMalibuAuroraAuroraAuroraCutlassCutlassCutlassToronadoToronadoBonnevilleBonnevilleBonnevilleBonnevilleGrand AmGrand AmGrand AmGrand AmGrand AmGrand Am
TrimCustomLimitedCXCXCXLCXLCXLCXL Special EditionCXSSuperBaseUltraBaseBaseLuxuryBaseValue LeaderBaseLiveryLuxuryPlatinumPremiumBaseDHSDTSProtection SeriesBaseBiarritzSpring EditionTouringBaseSLSSTSSTSBaseBaseLSBaseBaseBaseBaseGLGLSBaseTrofeoGXPSESLESSEiSESESE1SE1SE2SE2
Engine3.8L V63.8L V63.8L V63.9L V63.8L V63.9L V64.6L V83.9L V64.6L V84.6L V83.8L V63.8L V63.8L V63.8L V63.8L V64.5L V84.5L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.9L V84.9L V84.9L V84.9L V84.9L V84.6L V84.6L V84.9L V82.4L L43.1L V63.1L V63.5L V64.0L V84.0L V83.1L V63.1L V63.1L V63.8L V63.8L V64.6L V83.8L V63.8L V63.8L V62.4L L43.4L V62.4L L43.4L V62.4L L43.4L V6
Note-----------------
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
without Heavy Duty Suspension
-----------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

5.0/5

Based on 90 reviews

599%
41%
30%
20%
10%

Customer photos and videos

Briana

08/31/2026

Verified buyer

Excelentt

N. ALFONSO VILCHIS

04/04/2026

Verified buyer

A very good product. It fit perfectly in my Hyundai Tucson.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Torque values differ by vehicle and fastener. Use the vehicle manufacturer’s specification rather than a general value, as incorrect torque may affect bearing operation.

Alignment may be advisable if suspension or steering components are disturbed during the repair. Follow the vehicle service procedure and check alignment if the vehicle pulls or the steering wheel is off-center.
