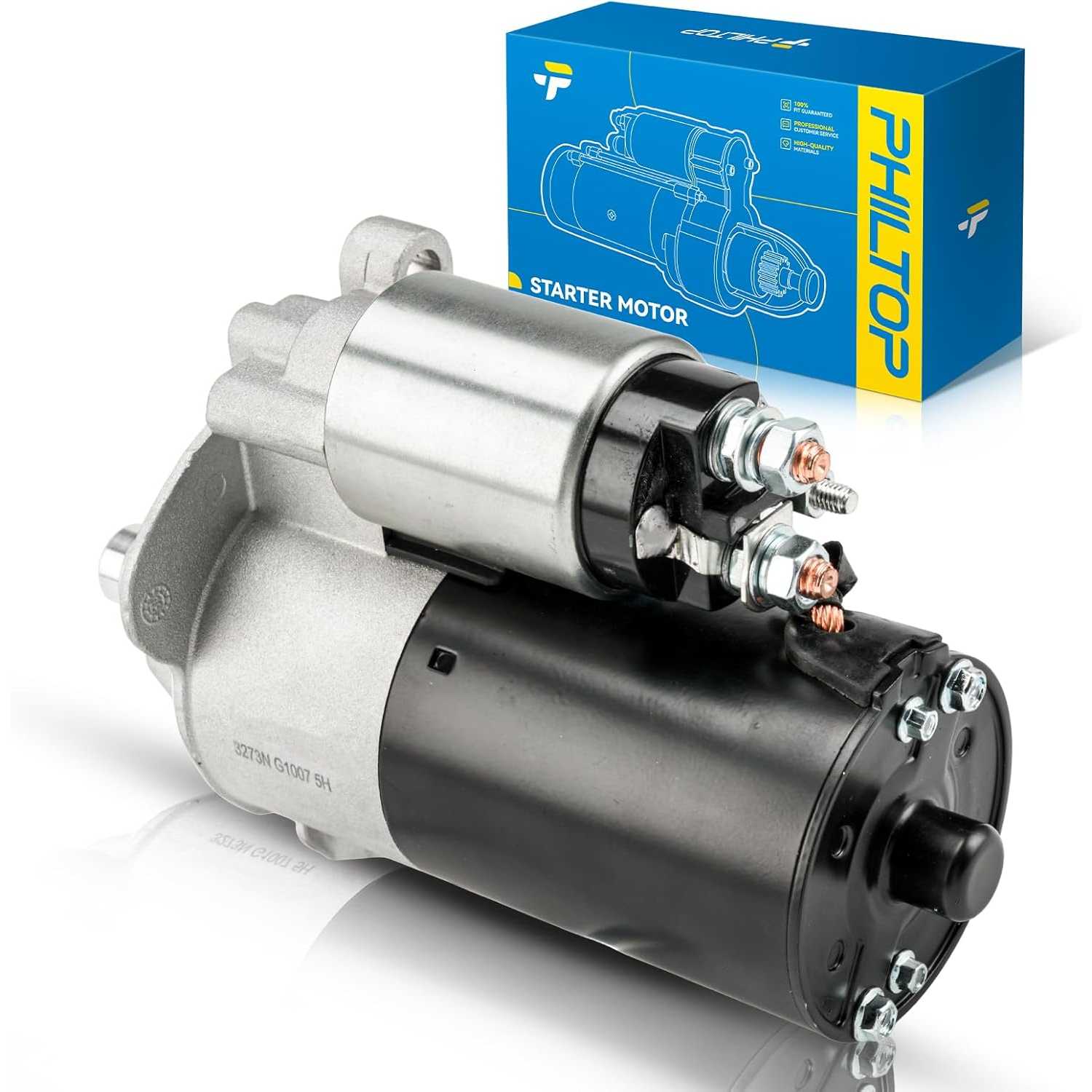

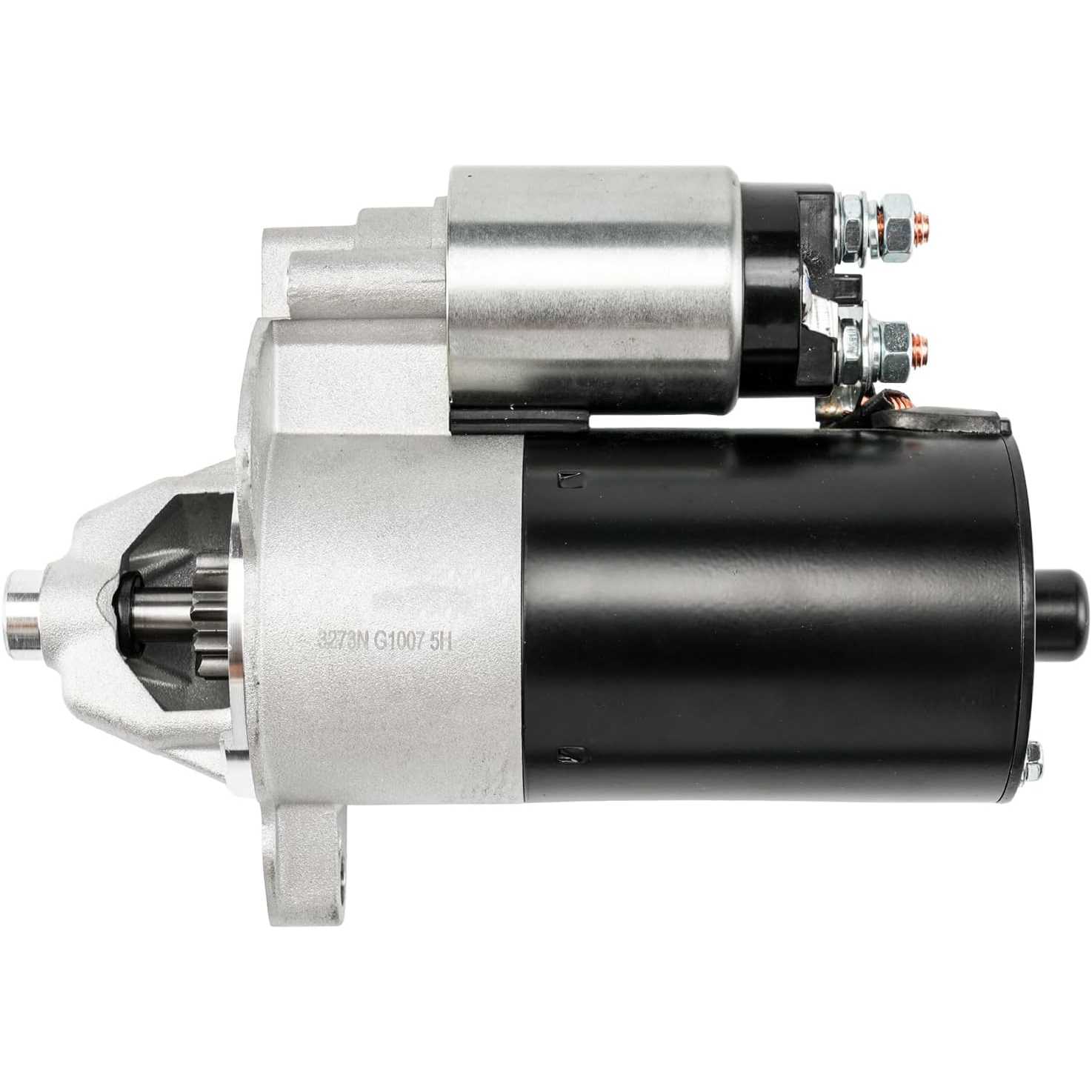

2013-2017 Ford Mustang 3.7L V6 | 1.4KW 13-Tooth Starter | 19260N - PHILTOP

2013-2017 Ford Mustang 3.7L V6 | 1.4KW 13-Tooth Starter | 19260N - PHILTOP

Power: 1.4 kW

Pinion Teeth: 13

Quick Starting Response

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2519STM058UUS

Specifications

Brand
PHILTOP
Power
1.4 kW
Pinion Teeth
13
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 19260N 1x Manual
Warranty Period
2-Year
Part Number
19260N

Highlights

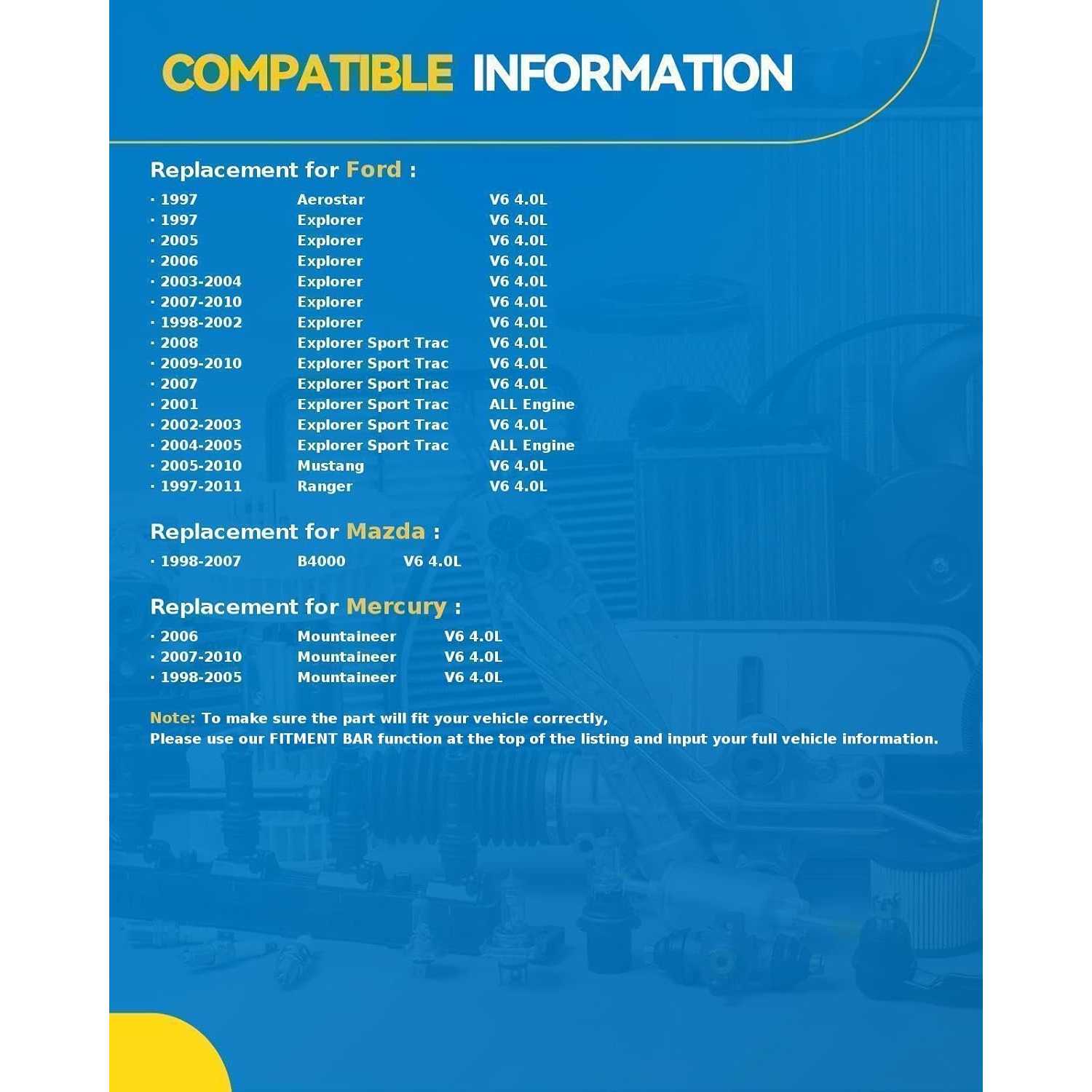

  • Vehicle Fitment: 1997-2010 Explorer 4.0L, 1997-2011 Ranger 4.0L, 2005-2010 Mustang 4.0L, 2002-2003 2007-2010 Explorer Sport Trac 4.0L, 2001 2004-2005 Explorer Sport Trac, 1998-2010 Mountaineer 4.0L, 1998-2007 B4000 4.0L, 1997 Aerostar 4.0L
  • OEM Number: 4R3Z11002AA、F89Z11002BA、F89U11000BB、F89U11000BA、6L2Z11002AA、5L2T11000AA、6L2T11000AA、5L2Z11002AA、7R3Z11002A、6L2Z11002C、6L2T11000CA、4R3T11000AB、1F8218400、F89UBA、5L2TAA、6L2TCA、F89UBB、4R3TAB、4R3TAA、ZZP218400、ZZP218400A、3273N、F89Z11002BARM、7R3T11000AA、F77U11000AA、F77Z11002AA、F77UAA、F77Z11002ACRM、F77Z11002AC
  • Starter Specification: ①Power Rating: 1.4KW; ②Voltage: 12V; ③Number of Teeth: 10 teeth; ④Specs for: Ford PMGR; ⑤ROTATION: CW
  • Premium Starters: Rigorously tested to OE standards with 2000H endurance, 96H salt spray resistance, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your safety and stable power in any condition
  • Efficient Quiet: Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 20172016 - 20172015 - 20172015 - 20172015 - 20172015 - 20172015 - 20172016 - 20172015 - 20172015 - 20172013 - 20142013 - 20142013 - 20162013 - 20162013 - 201420162013 - 201620162013 - 20142013 - 20172013 - 20142013 - 20172013 - 20142013 - 20142015 - 20172015 - 20232015 - 20192020 - 20232015 - 20232015 - 20192015 - 20232015 - 20192015 - 20232015 - 20192016 - 20232016 - 20192015 - 20232015 - 20192020 - 20232015 - 20232015 - 20192015 - 20232015 - 2019201520152016 - 20172016 - 20172016 - 20172016 - 2017
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150MustangMustangTransit-150Transit-150Transit-150Transit-150Transit-150Transit-150Transit-150Transit-250Transit-250Transit-250Transit-250Transit-350Transit-350Transit-350Transit-350Transit-350Transit-350Transit-350NavigatorNavigatorNavigatorNavigatorNavigatorNavigator
TrimEL King RanchEL LimitedEL PlatinumEL SSVEL XLEL XLTKing RanchLimitedPlatinumSSVXLXLTFX2FX4King RanchLariatLimitedLimitedPlatinumSSVSTXXLXLXLTXLTBaseV6BaseBasePTVXLXLXLTXLTBaseBasePTVPTVBaseBasePTVXLXLXLTXLTBaseLL ReserveL SelectReserveSelect
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.5L V63.7L V63.5L V63.7L V63.7L V63.7L V63.5L V63.7L V63.5L V63.5L V63.7L V63.5L V63.7L V63.5L V63.7L V63.5L V63.7L V63.5L V63.7L V63.5L V63.5L V63.7L V63.5L V63.7L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note---------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

starter motorstarter motor

Reviews

4.6/5

Based on 5 reviews

580%
40%
320%
20%
10%

AutoMom_2019_930

03/08/2026

Extremely fast shipping and it was a direct fit for my Explorer. I was able to swap it out in the driveway with just basic tools in about 45 minutes.

Nancy_FirstCar_344

10/25/2025

My old Ranger was barely turning over, but this new starter makes it sound like a brand new truck. Huge difference in cranking speed and reliability.

FAQS

PHILTOP Starter are specifically designed for [specific vehicle models]. Rigorously tested to OE standards. You can check the vehicle compatibility and product images to ensure a perfect match.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.

Yes. Follow your vehicle’s instructions; on most conventional vehicles, disconnect the negative terminal first.
