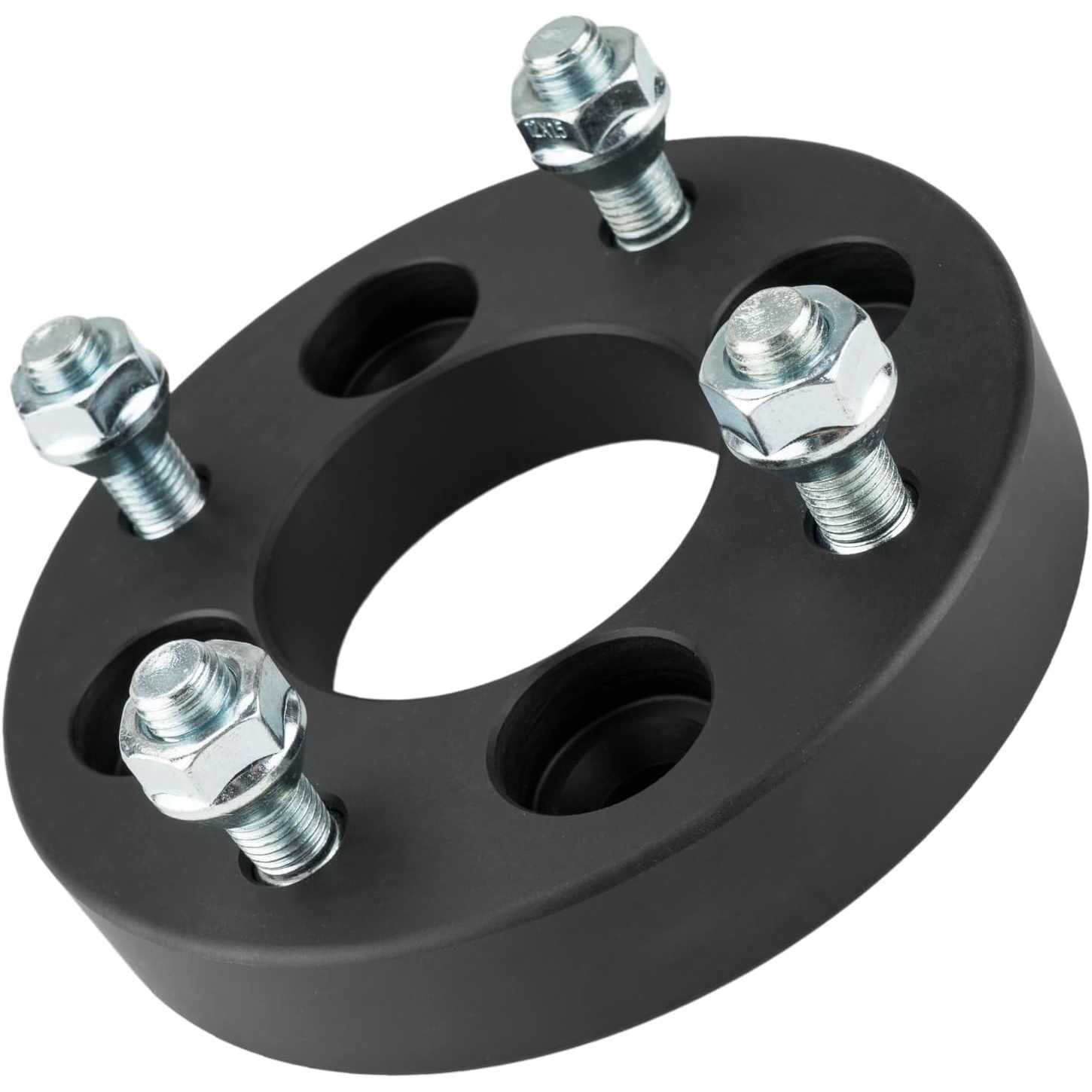

2007-2013/2015-2019 Honda Fit 1.5L | 4x3.94" to 4x4.5" 67.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2007-2013/2015-2019 Honda Fit 1.5L | 4x3.94" to 4x4.5" 67.1mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
97ISWSA4247US

Specifications

Brand
PHILTOP
Bolt Pattern
4x100mm To 4x4.5"
Wheel Bolt Pattern
4x4.5"
Vehicle Bolt Pattern
4x100mm
Thread Size
M12x1.5
Center Bore
67.1
Hub-Centric Lip
No
Thickness
1inch
Note1
Only for 4x100mm Models with 4x4.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 4x4.5" Wheel.
Outside Diameter
150
Inside Diameter
2.64 in/67.1 mm
Lug Patterns
4
Type
Wheel Adapter
Items Included

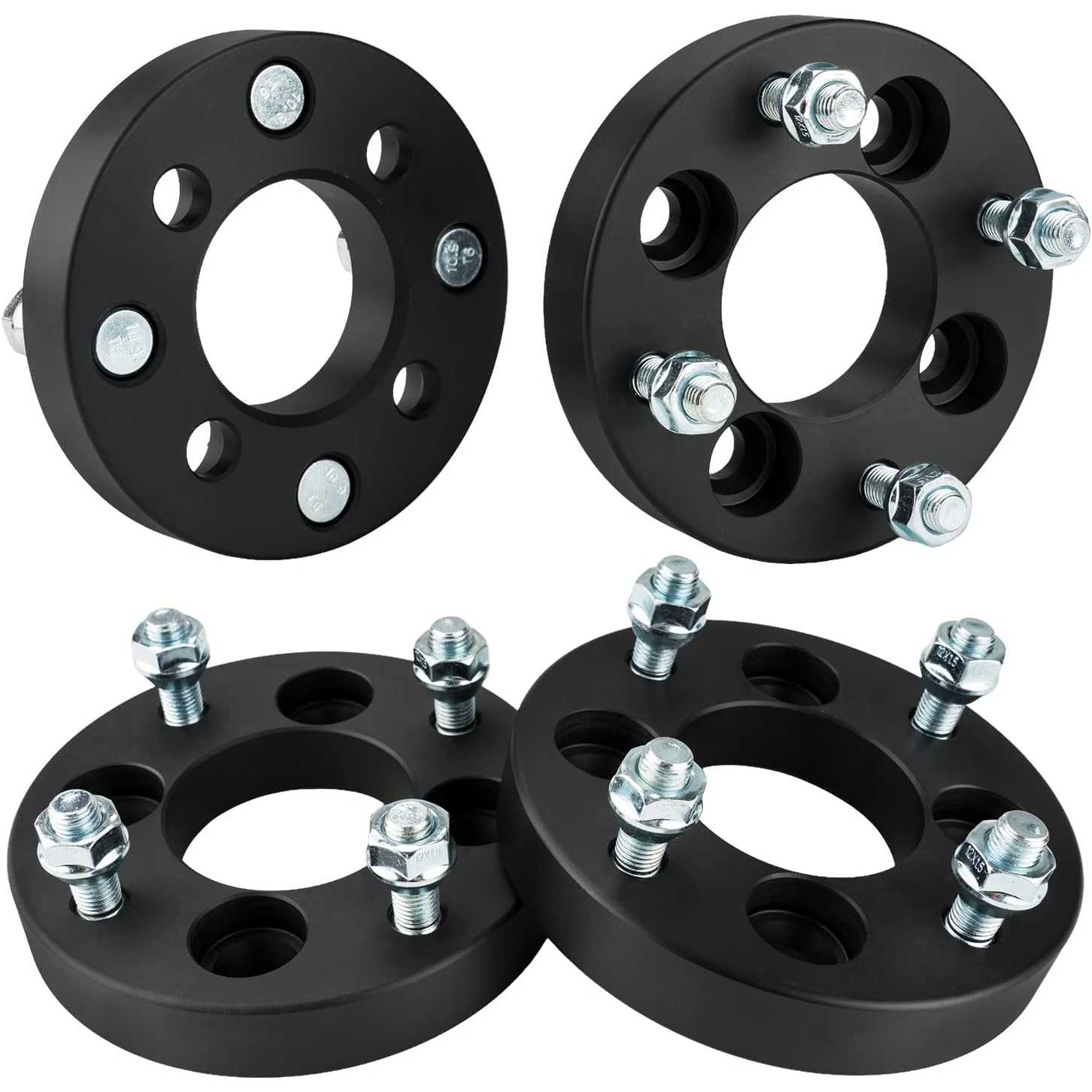

4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • [Vehicle Application] --- The 4x100 to 4x4.5 Wheel Adapters set replacement for 2007-2019 Fit; Rio; Accent GLS/SE; 2001-2005 Civic 1.7L DX/EX/GX/HX/LX; Rio; 2013-2019 Spark; 2006-2010 Cobalt Coupe/Sedan LS/LT; 1996-2000 Civic 1.6L CX/DX/HX/LX; 2006-2011 Aveo; 1995-2005 Neon; 2005-2010 Cobalt Coupe/Sedan LT/SS; 1997-2000 Civic 1.6L EX-R; 1990-2000 Civic 1.6L EX; 1992-2001 Escort Sedan; 2014-2019 Mirage; 1990-1997 Miata; 1986-2001 Integra; 2007-2015 Accent GS; 2008-2019 Accent GL; 1999-2005 Miata
  • [Wheel Adapters Specification] --- Vehicle Bolt Pattern: 4x100mm ; | Wheel Bolt Pattern: 4x4.5"(4x114.3mm) ; | Thickness: 1 inch(25mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 67.1mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts

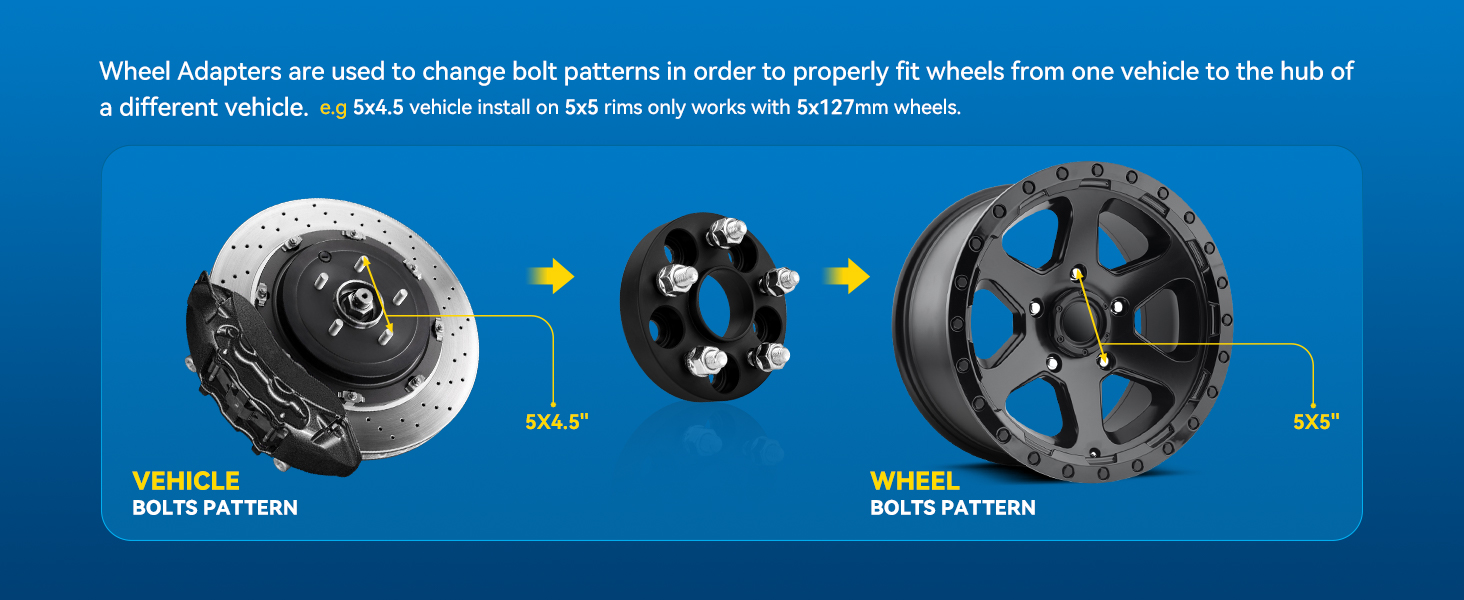

  • [Enhance Driving Experience] --- These 4x100 to 4x4.5 wheel adapters change bolt pattern,it help you to fit the wheel of one factory vehicle to the hub of a different vehicle. The Wheel Adapters can move your wheels further out from the wheel hub, mount larger wheel or tires. Installing the wheel adapters can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability,giving an aggressive performance to your vehicle

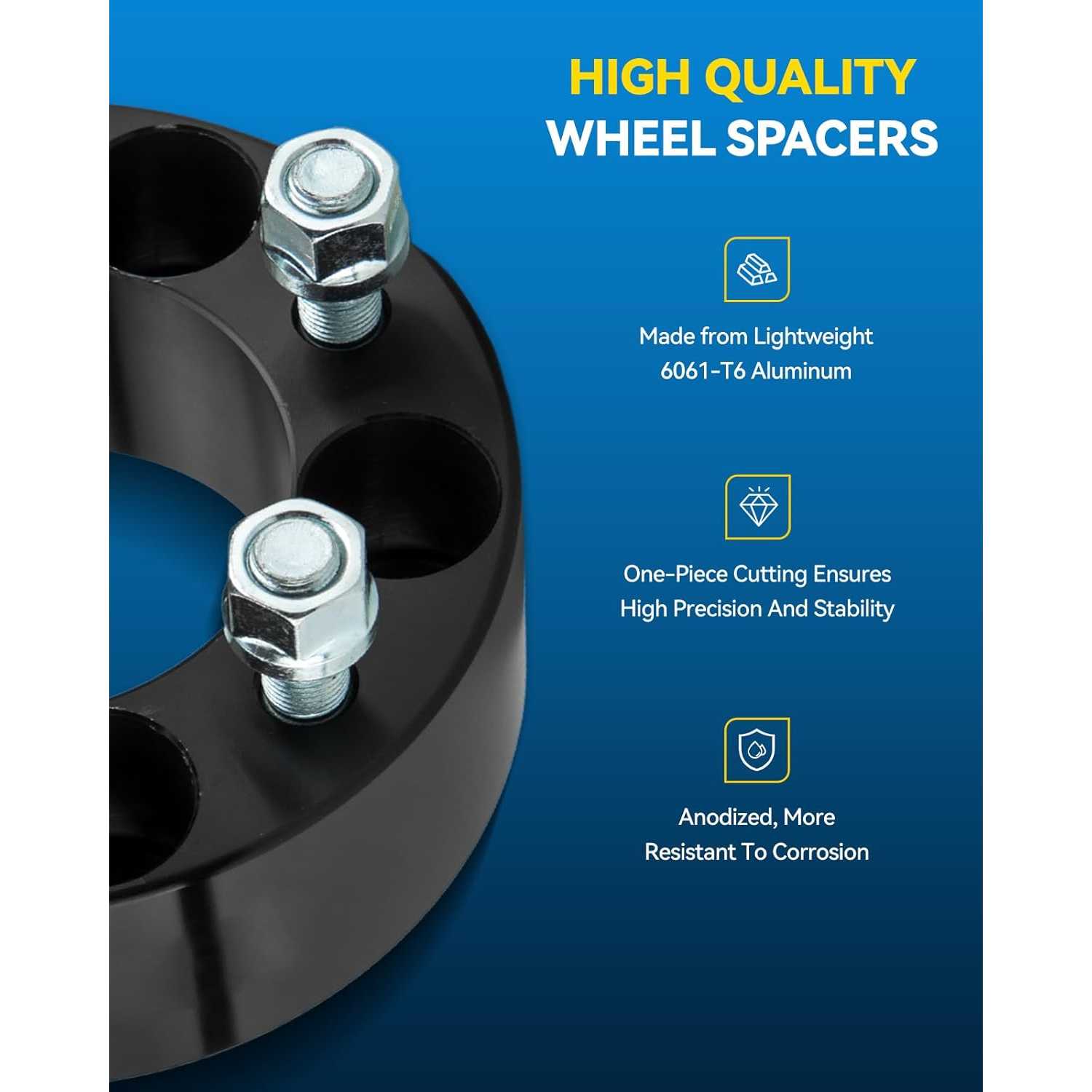

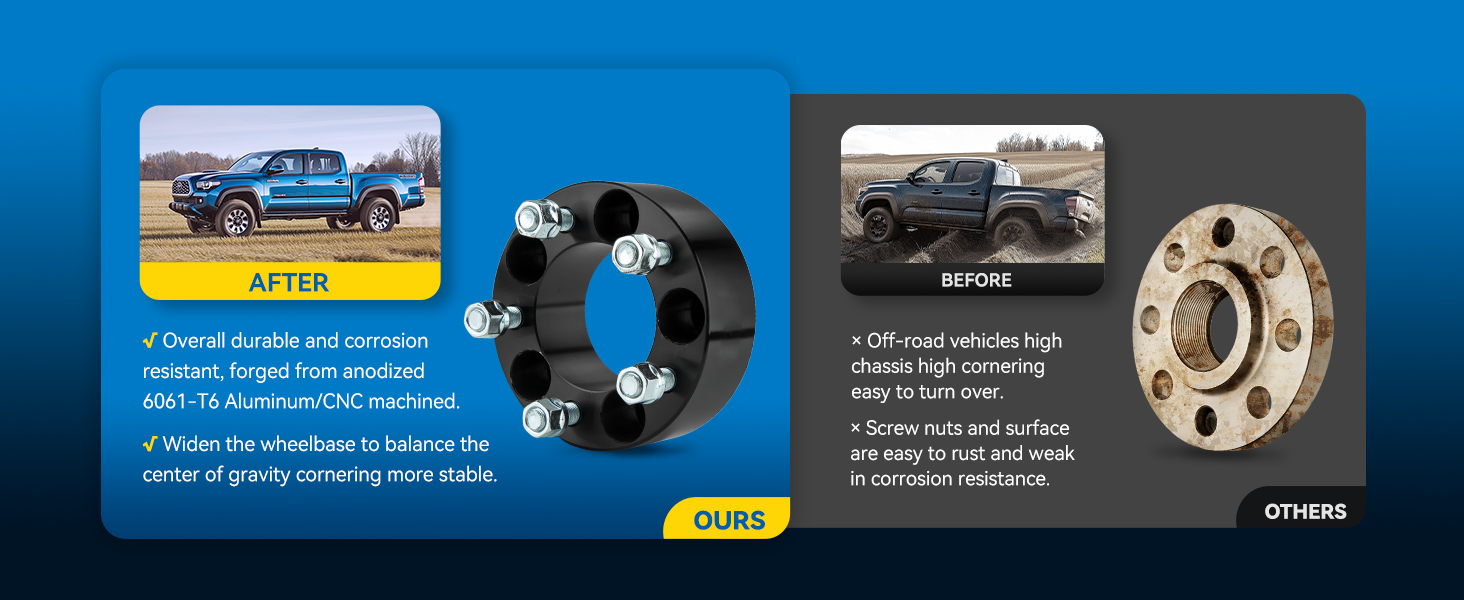

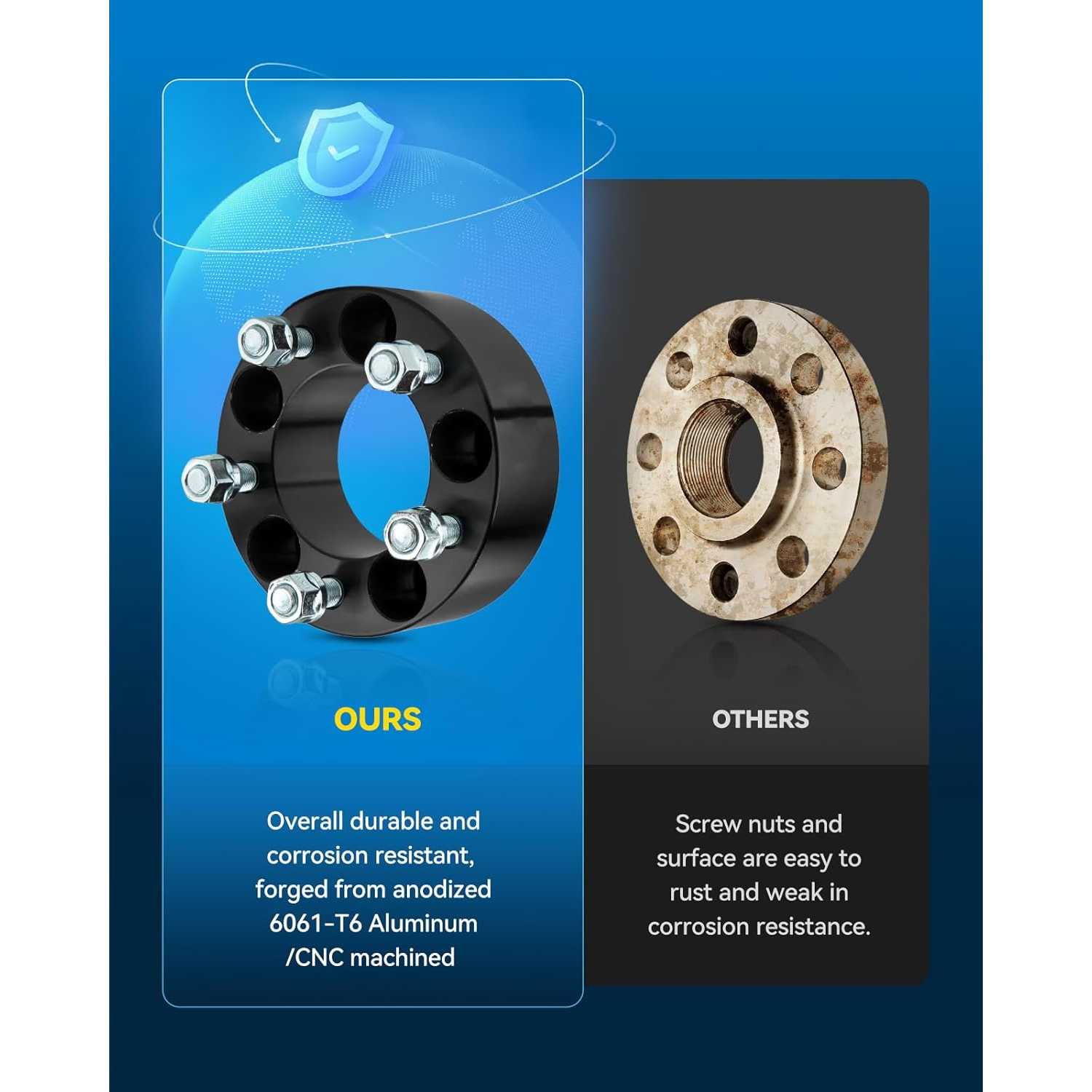

  • [Unsurpassed Quality] --- 4x100 to 4x4.5 Wheel Adapter is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Please Confirm] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1990 - 19931997 - 20011992 - 19931994 - 20011986 - 19891990 - 20011987 - 19881986 - 19891990 - 19981995 - 19961997 - 19982000 - 200120042004 - 20112005 - 20112005 - 2006200520102005 - 200920102005 - 200920102006 - 20072005 - 200920102006 - 200720082017 - 20192013 - 20152016 - 20192013 - 20152016 - 20191998 - 19991995 - 19971995 - 19991998 - 19991995 - 19992017 - 20192017 - 20192017 - 201920191991 - 199619971991 - 19961991 - 19961997 - 20001991 - 19951992 - 19931998 - 19992001199619972000 - 20011998 - 19991998 - 19991999 - 20001982 - 19851986 - 19891982 - 19851986 - 19891986 - 198919851983198519891980 - 19831980 - 19811982 - 198319801980 - 19831980 - 19821983 - 19851984 - 19871981 - 19851987 - 199119841985 - 198719841985 - 19871985 - 19871992 - 19951996 - 20001984 - 19951996 - 20002001 - 20051990 - 20002001 - 200520051998 - 20002001 - 20051996 - 20002001 - 20052003 - 20051988 - 19951996 - 20002001 - 200520051988 - 19911986 - 19871989 - 19951999 - 20002002 - 20051992 - 199519992004 - 20051982 - 19831988 - 19892007 - 201220132015 - 20192015 - 20192015 - 20192007 - 201220132018 - 20192000 - 20062011 - 20142010 - 20142010 - 20141988 - 19901988 - 19911988 - 19891990 - 19911990 - 19911990 - 19912001 - 20022003 - 201120022003 - 20052012 - 20182006 - 20192018 - 20192007 - 20172008 - 20112006 - 20111998 - 20011994 - 19961995 - 19971994 - 19971995 - 20011994 - 19971996 - 19972002 - 200420042000 - 20042000 - 20042002 - 200420042006 - 201120112008 - 201120062007 - 20092008 - 20112011 - 20142011 - 20142016 - 20192016 - 20192017 - 20192017 - 20192016 - 201919991990 - 19931994 - 19971999 - 200519932000 - 20051994 - 19972004 - 200519912000 - 2003199720031995 - 19981999 - 20012002 - 20031995 - 20002001 - 20031995 - 19981999 - 20012001 - 2003200120031991 - 19961997 - 19991997 - 19991991 - 19961991 - 19961997 - 19992002 - 20051991 - 19922014 - 20151997 - 200220002014 - 20152017 - 20191993 - 19951993 - 199520011991 - 19922017 - 201920191991 - 19931993 - 2002201520191993 - 19962017 - 20191991 - 19921991 - 19921992 - 199319931992 - 199319931992 - 19931992 - 199319921992 - 19931987 - 19891990
MakeAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraAcuraChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletDodgeDodgeDodgeDodgeDodgeFiatFiatFiatFiatFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaLotusLotusLotusLotusLotusLotusMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiPlymouthPlymouthPlymouthPlymouthPlymouthPlymouthPlymouthPlymouthPlymouthPlymouth
ModelIntegraIntegraIntegraIntegraIntegraIntegraIntegraIntegraIntegraIntegraIntegraIntegraAveoAveoAveoAveoCobaltCobaltCobaltCobaltCobaltCobaltCobaltCobaltCobaltCobaltCobaltSparkSparkSparkSparkSparkNeonNeonNeonNeonNeon124 Spider124 Spider124 Spider124 SpiderEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortEscortAccordAccordAccordAccordAccordAccordAccordAccordAccordCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicFitFitFitFitFitFitFitFitInsightInsightInsightInsightPreludePreludePreludePreludePreludePreludeRioRioRioRioRioRioRioRioRio5Rio5SephiaSephiaSephiaSephiaSephiaSephiaSephiaSpectraSpectraSpectraSpectraSpectraSpectraEliseEliseEliseExigeExigeExige22MX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMX-5 MiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataMiataProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeProtegeTracerTracerTracerTracerTracerTracerLancerMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageMirageColtColtColtColtColtColtColtColtHorizonHorizon
TrimGSGSGS-RGS-RLSLSLS Special EditionRSRSSpecial EditionType RType RBaseLSLTSpecial ValueBaseBaseLSLSLTLTLTZSSSSSSSportACTIVLSLSLTLTACRBaseHigh LineR/TSportAbarthClassicaLussoUrbanaBaseBaseGTLXLXLX SportLX-ESESESportSportZX2ZX2 Cool CoupeZX2 Hot CoupeZX2 S/RBaseDXLXLXLXiSSESEiSEi13001300 DX1300 FE15001500 DX1500 GL1500 SBaseBaseBaseCRXCRXCRX 1.5CRX HFCRX SiCXCXDXDXDXEXEXEX Special EditionGXGXHXHXHybridLXLXLXLX Special EditionRT 4WDSiSiSiSiVXValue PackageValue PackageWagovanWagovanBaseBaseEXEX-LLXSportSportSportBaseBaseEXLX2.0 S2.0 Si2.0 Si 4WSSiSi 4WSSi ALBBaseBaseCincoCincoEXLXSSXLXSXBaseGSGSLSLSRSRSBaseEXGSGSXLSLXBaseRSCBaseSS 240SportTouringClubGrand TouringRF ClubRF Grand TouringSport10th AnniversaryBaseBaseBaseLELSM EditionMazdaspeedSESESTOShinsenDXDXDXESESLXLXLXMP3MazdaspeedBaseGSLSLTSTrioTrioESBaseDEDEDEESESESESESGSGTLELSLSRFRFSSESEVLBaseBaseGLGLVistaVistaVista SEVista SEAmericaBase
Engine1.8L L41.8L L41.7L L41.8L L41.6L L41.8L L41.6L L41.6L L41.8L L41.8L L41.8L L41.8L L41.6L L41.6L L41.6L L41.6L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.0L L42.0L L42.4L L42.4L L41.4L L41.2L L41.4L L41.2L L41.4L L42.0L L42.0L L42.0L L42.0L L42.0L L41.4L L41.4L L41.4L L41.4L L41.9L L42.0L L41.8L L41.9L L42.0L L41.9L L41.8L L42.0L L42.0L L41.9L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L42.0L L41.8L L42.0L L42.0L L41.8L L41.8L L41.8L L42.0L L41.3L L41.3L L41.3L L41.5L L41.5L L41.5L L41.5L L41.3L L41.5L L41.5L L41.3L L41.5L L41.5L L41.5L L41.5L L41.5L L41.6L L41.5L L41.6L L41.7L L41.6L L41.7L L41.7L L41.6L L41.7L L41.6L L41.7L L41.3L L41.5L L41.6L L41.7L L41.7L L41.6L L41.5L L41.6L L41.6L L42.0L L41.5L L41.6L L41.7L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.0L L31.3L L41.3L L41.3L L42.0L L42.0L L42.0L L42.1L L42.1L L42.1L L41.5L L41.6L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.8L L41.6L L41.8L L41.6L L41.8L L41.6L L41.8L L41.8L L42.0L L41.8L L41.8L L41.8L L42.0L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.5L L41.5L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.6L L41.8L L41.8L L41.6L L41.8L L41.8L L41.8L L41.6L L41.8L L41.8L L41.8L L41.5L L41.6L L42.0L L41.8L L42.0L L41.5L L41.6L L42.0L L42.0L L42.0L L41.9L L42.0L L42.0L L41.8L L41.9L L42.0L L42.0L L41.5L L41.2L L31.5L L41.8L L41.2L L31.2L L31.5L L41.8L L41.8L L41.6L L41.2L L31.2L L31.5L L41.8L L41.2L L31.2L L31.5L L41.2L L31.5L L41.5L L41.5L L41.8L L41.5L L41.8L L41.8L L42.4L L41.8L L42.4L L42.2L L42.2L L4
Note----------------
4 Lug Bolt Pattern Only
-
4 Lug Bolt Pattern Only
-
4 Lug Bolt Pattern Only
-
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
-
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
-----
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
-----------------------------------------------------------------------
4 Lug Bolt Pattern Only
----
4 Lug Bolt Pattern Only
-------------------------------------------------------------------
4 Lug Bolt Pattern Only
4 Lug Bolt Pattern Only
-------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

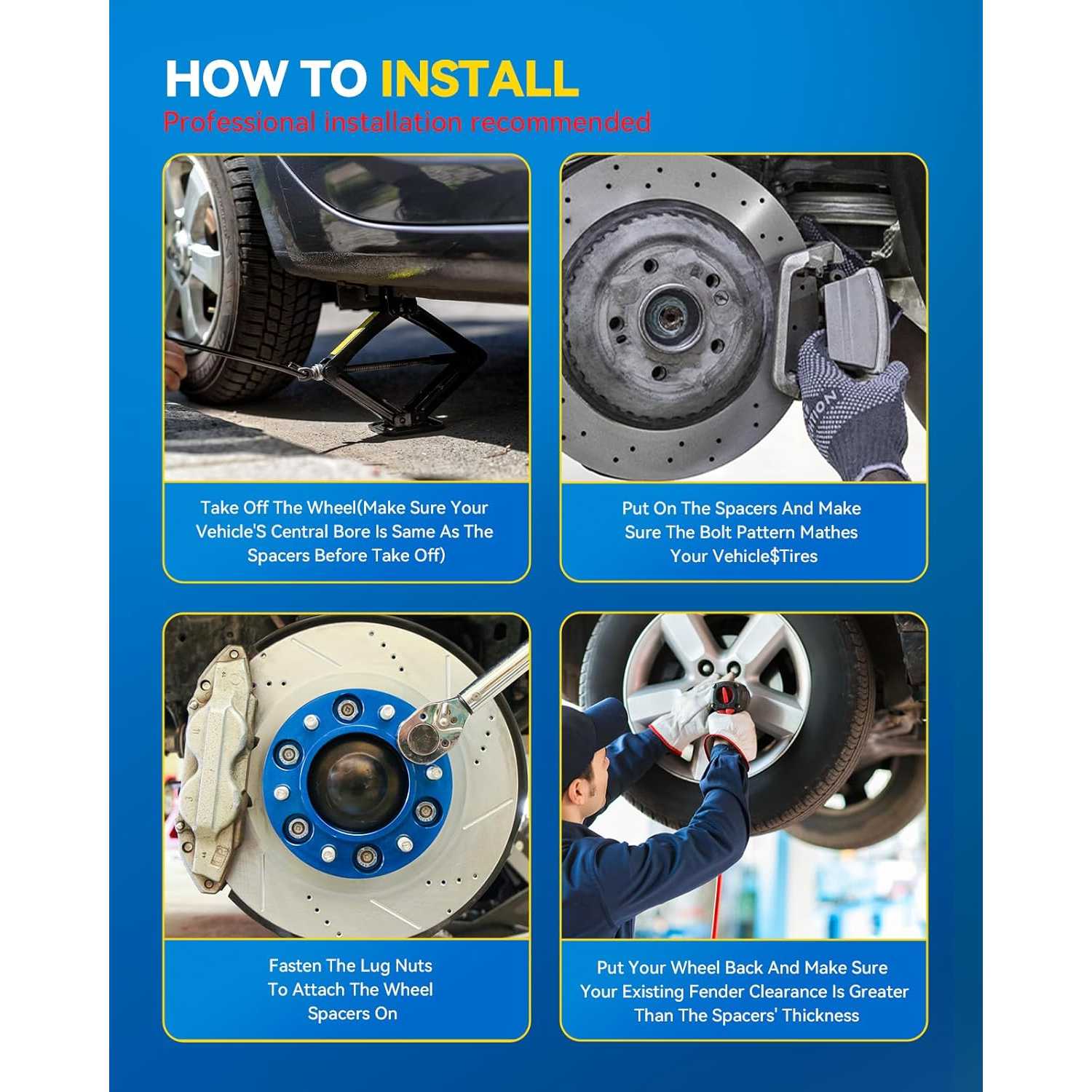

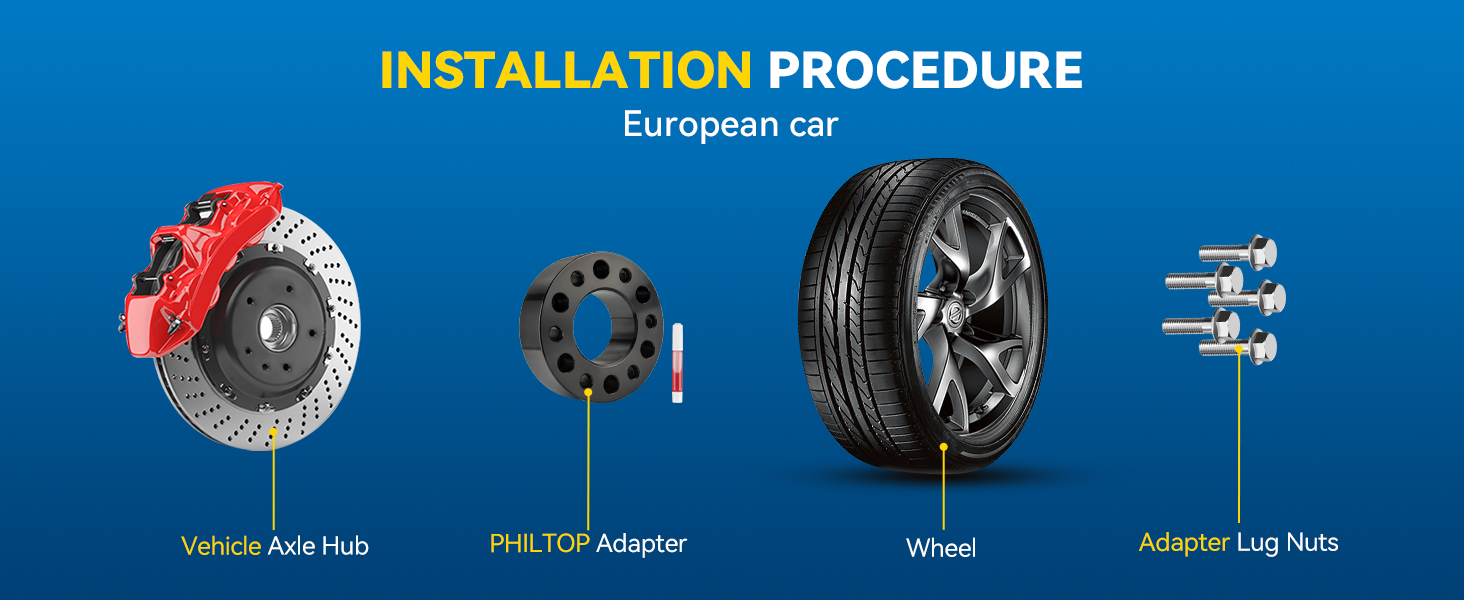

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Raymond D Gomez

10/01/2026

Verified buyer

Great fix perfect on my Toyota Sienna 2012 good plastic material mach 👍

FAQS

Remove rust, dirt, and raised debris so the spacer can sit flat against the hub. The mating surfaces should be clean and undamaged before the fasteners are tightened.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.
