2008-2013 Polaris Trail Blazer 330 | 4x4" 59mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

2008-2013 Polaris Trail Blazer 330 | 4x4" 59mm Center Bore 1/2"x20 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
87ISWSA087007US

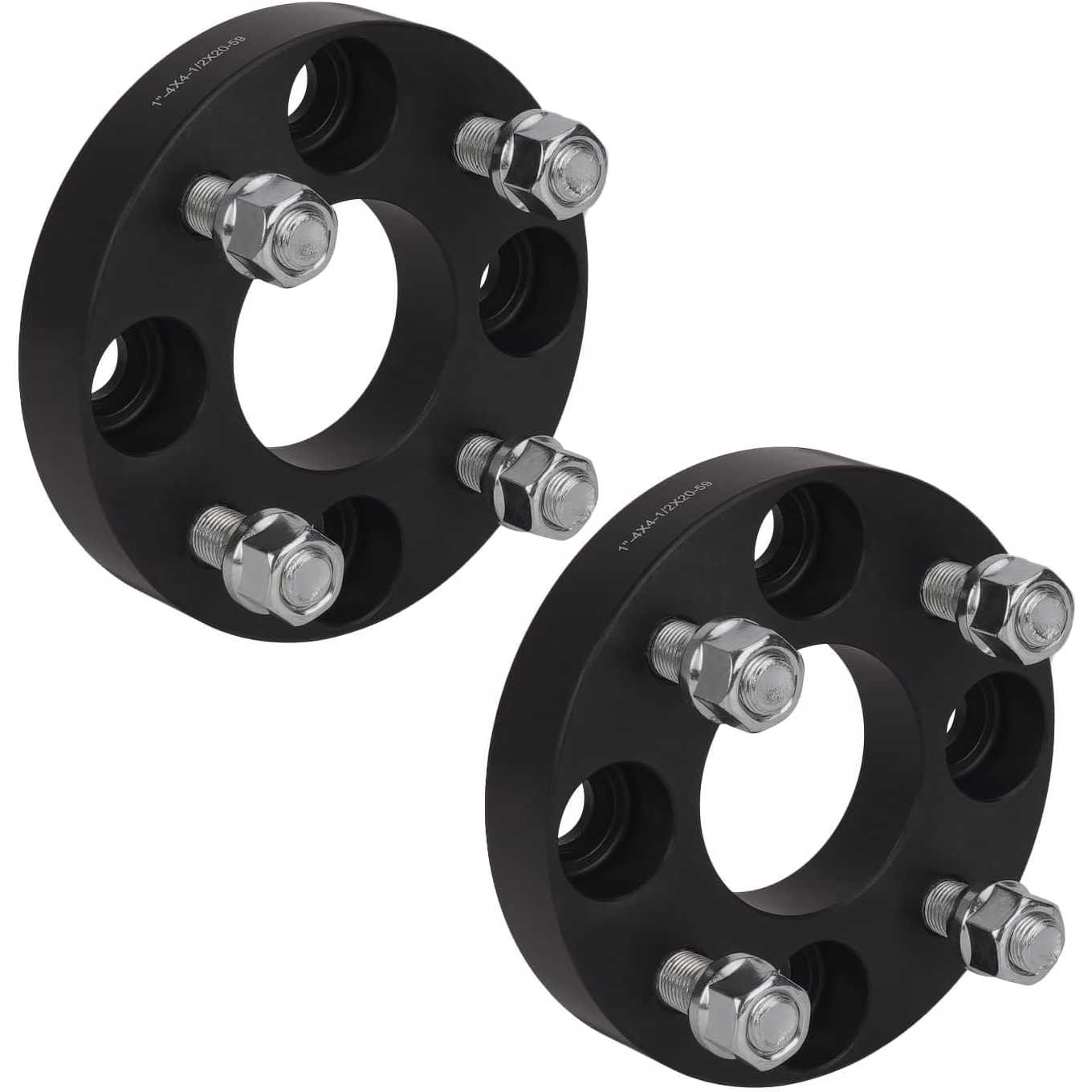

Specifications

Brand
PHILTOP
Bolt Pattern
4x4"
Wheel Bolt Pattern
4x4"
Vehicle Bolt Pattern
4x4"
Thread Size
1/2"x20
Center Bore
59
Hub-Centric Lip
No
Thickness
1inch
Outside Diameter
138
Inside Diameter
2.32 in/59 mm
Lug Patterns
4
Type
Wheel Spacer
Items Included
2x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • [Wheel Spacers Specification] --- Bolt Pattern: 4x4" ; | Thickness: 1 inch(25mm) ; | Thread Pitch: 1/2"x20 ; | Hub Bore: 59mm ; | Recommended torque: 75-85 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • [Vehicle Application] --- The 4x4 Wheel Spacer set replacement for 2003-2013 Trail Boss 330; 1990-2006 Trail Blazer 250; 1999-2002 Trail Boss 325; 2008-2013 Trail Blazer 330; 2000-2002 Xpedition 425; Xpedition 325; 1991-1999 Trail Boss 250; 1996-1999 Xpress 300; 2001 Worker 500; 1994-1999 Sport 400L; 1999 Worker 335; Worker 500; 1996-1997 Xpress 400L; 2003 Trail Blazer 400; 1987 Cyclone 250X; 1985-1986 Scrambler 250

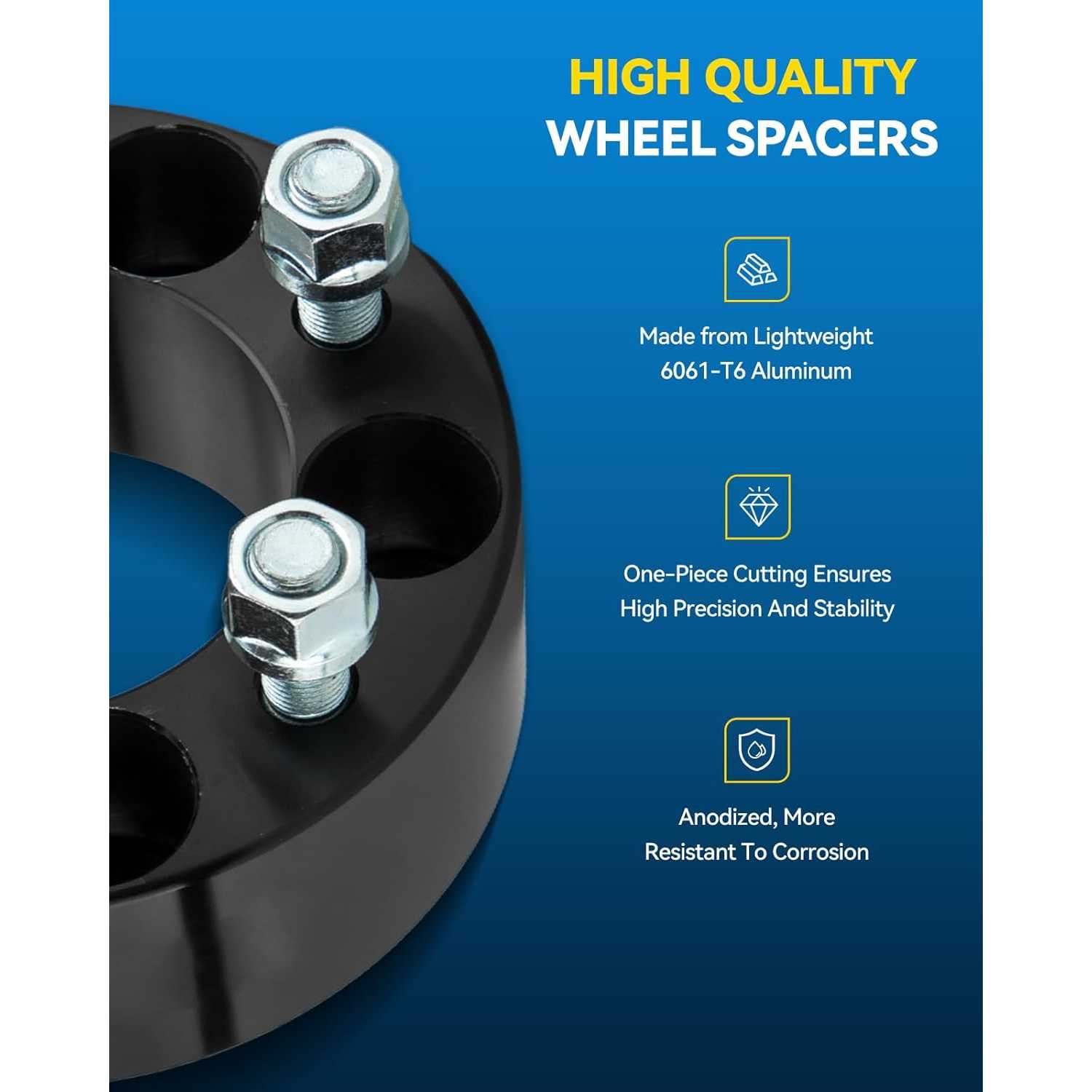

  • [High Quality] ---4x4 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 10.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • [Aggressive Driving Experience] --- These 4x4 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • [Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the PhiltopAuto suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

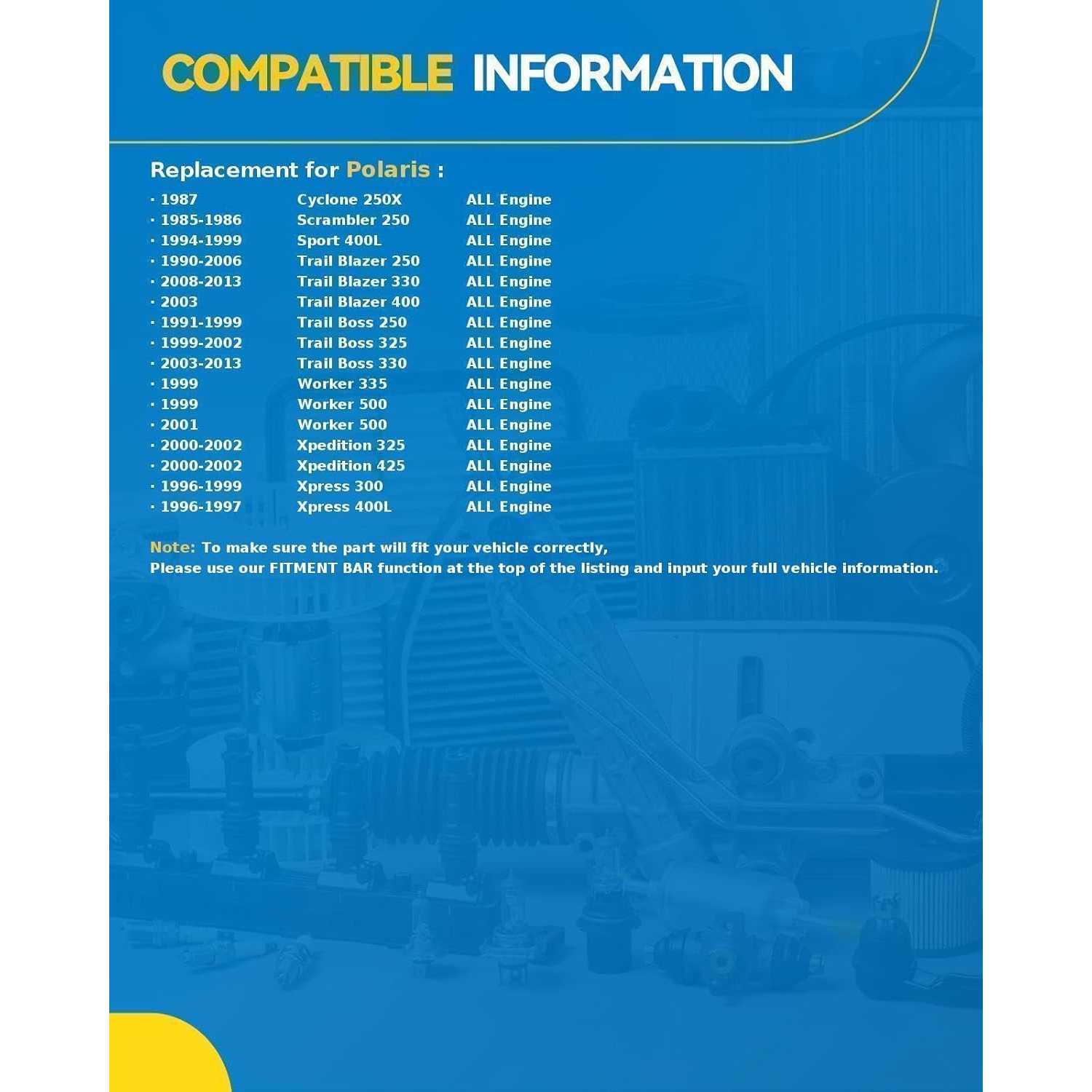

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19871985 - 19861994 - 19991990 - 20062008 - 201320031991 - 19991999 - 20022003 - 20131999199920012000 - 20022000 - 20021996 - 19991996 - 1997
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelCyclone 250XScrambler 250Sport 400LTrail Blazer 250Trail Blazer 330Trail Blazer 400Trail Boss 250Trail Boss 325Trail Boss 330Worker 335Worker 500Worker 500Xpedition 325Xpedition 425Xpress 300Xpress 400L
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine----------------
Note
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
-
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern
4x101.6 Vehicle Bolt Pattern

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel Adapters & SpacersWheel Adapters & Spacers

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Mason B.

10/18/2024

Verified buyer

Perfect fit Read more

Malcolm Daigle

10/18/2024

Verified buyer

Perfect fit Read more

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Compare the spacer specifications with the vehicle hub and wheel, including bolt pattern, center bore, stud or bolt size, and thread pitch. All dimensions should match the intended application.

This depends on spacer type and thickness. Slip-on spacers may require sufficient additional thread engagement, while bolt-on designs may include separate hardware. Follow the product and vehicle requirements.
