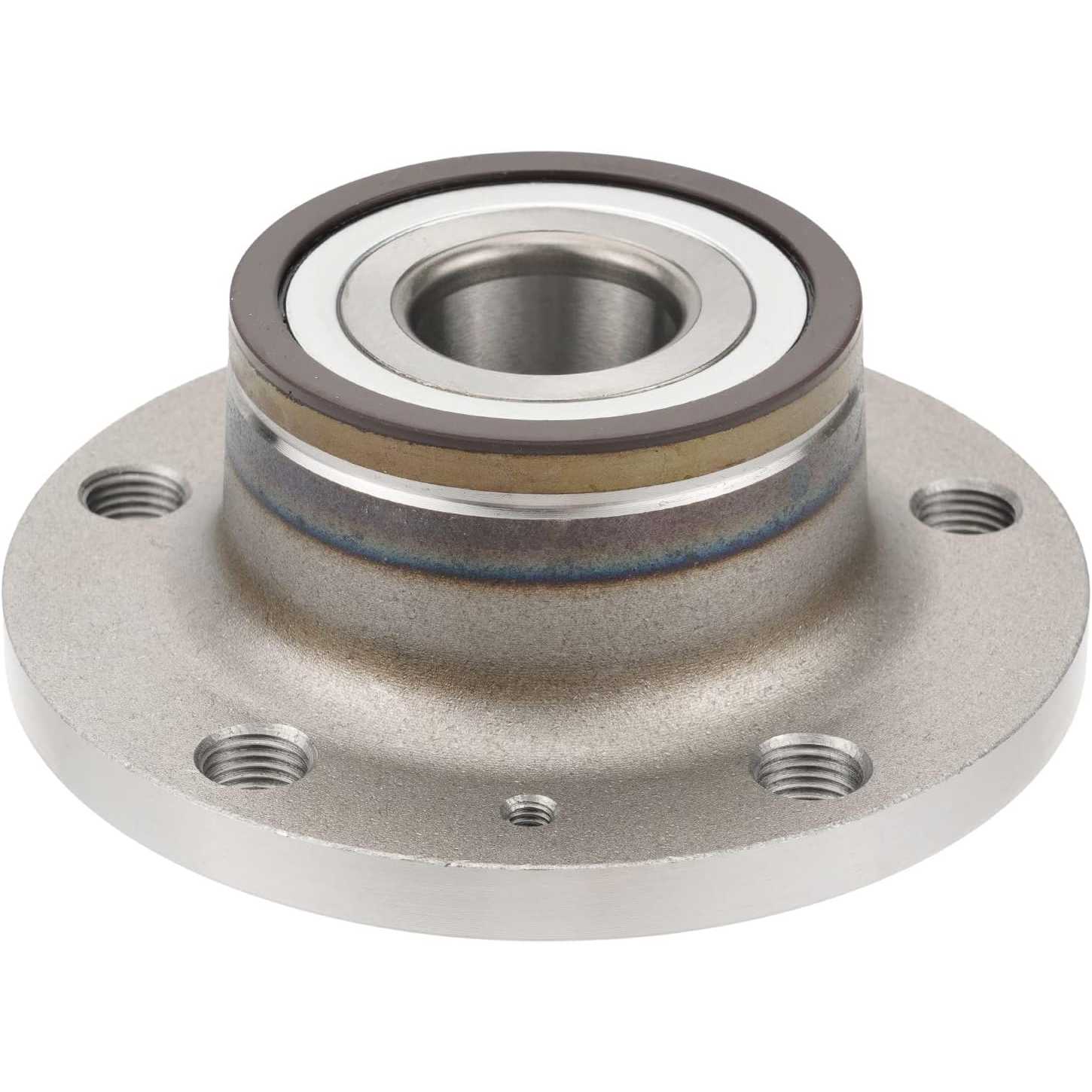

2005-2018 Volkswagen Jetta 1.4L/1.8L/2.0L/2.5L | 1 PC Rear Wheel Bearing | 5QF598611/512319 - PHILTOP

2005-2018 Volkswagen Jetta 1.4L/1.8L/2.0L/2.5L | 1 PC Rear Wheel Bearing | 5QF598611/512319 - PHILTOP

Triple-Lip Seal

Rear

AISI 52100

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9511WBK0963US

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Rear
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

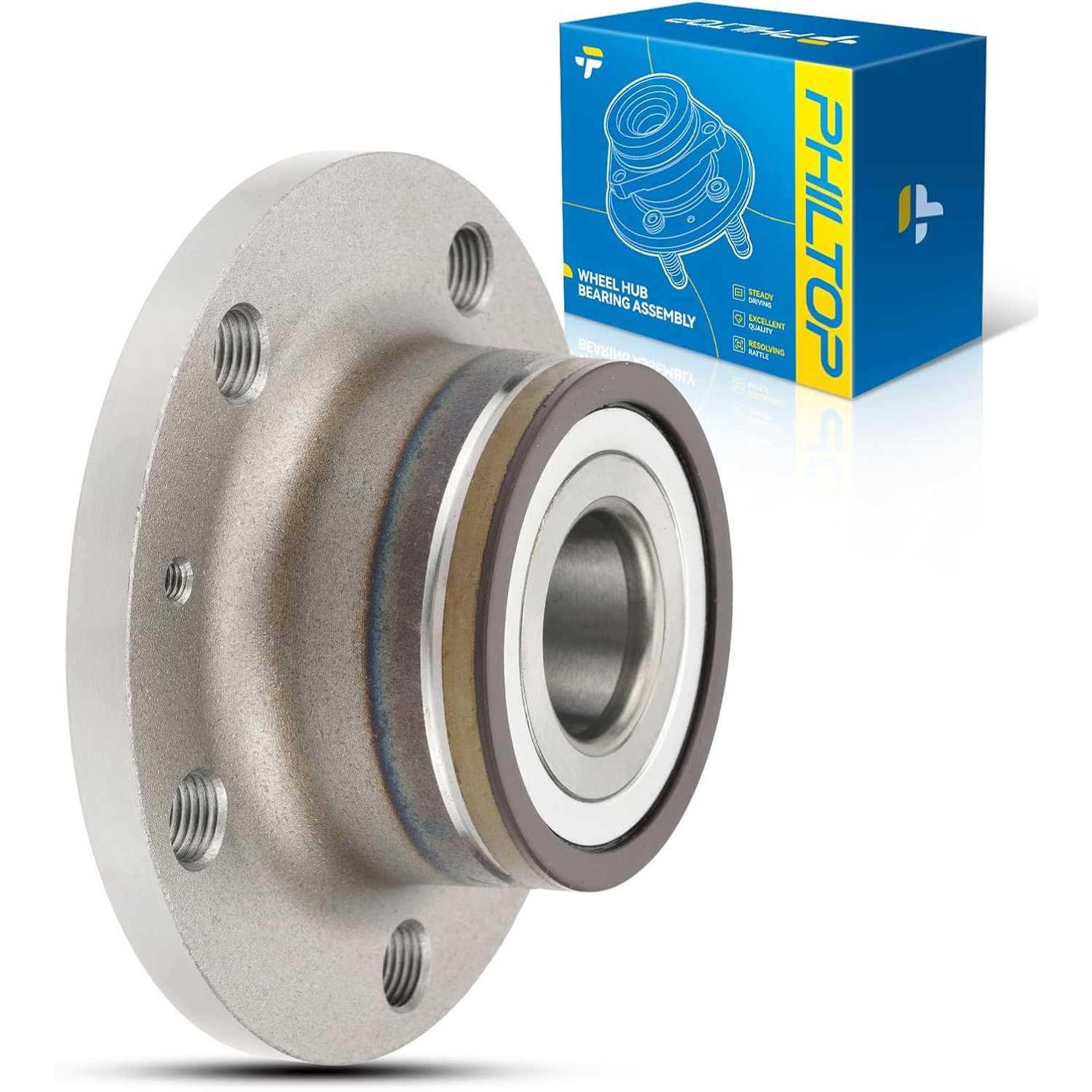

1x Rear Wheel Hub and Bearing Assembly - 512319,Installation Instructions
Bolt Pattern
5 X 4.41
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.1 in
Wheel Stud Size
M14x1.5
Flange Offset
1.95 in/49.53 mm
Flange Diameter
5.37 in/136.5 mm
Brake Pilot Diameter
2.56 in/65.0 mm
Warranty Period
2-Year
OE Number
5QF598611,7N0598611,1T0598611,1T0598611B,3G0598611,1T0598611A,1T0501611H,1T0598611E,3G0598611A
Part Number
512319,WE60687,40533003,BR930622,WH512319,WA512319,29512319,RW8319,57419106,805409B,PT512319,805409AE,IJ132023,XTGB41161S02
Quantity
1

Highlights

  • Exact Replacement: 512319 Rear Wheel hub assembly compatible with Volkswagen Jetta 2005-2018, Volkswagen Passat 2009-2010 2012-2022, Volkswagen Beetle 2012-2019, Volkswagen Tiguan 2009-2016 FWD, Volkswagen Golf 2010-2015, Volkswagen GTI 2010-2014, Volkswagen Eos 2007-2016, Volkswagen CC 2009-2010 2013 FWD, Volkswagen Passat 2006-2008 FWD, Volkswagen CC 2011-2012 2014-2017, Audi Q3 2015-2018, Audi TT 2008-2009

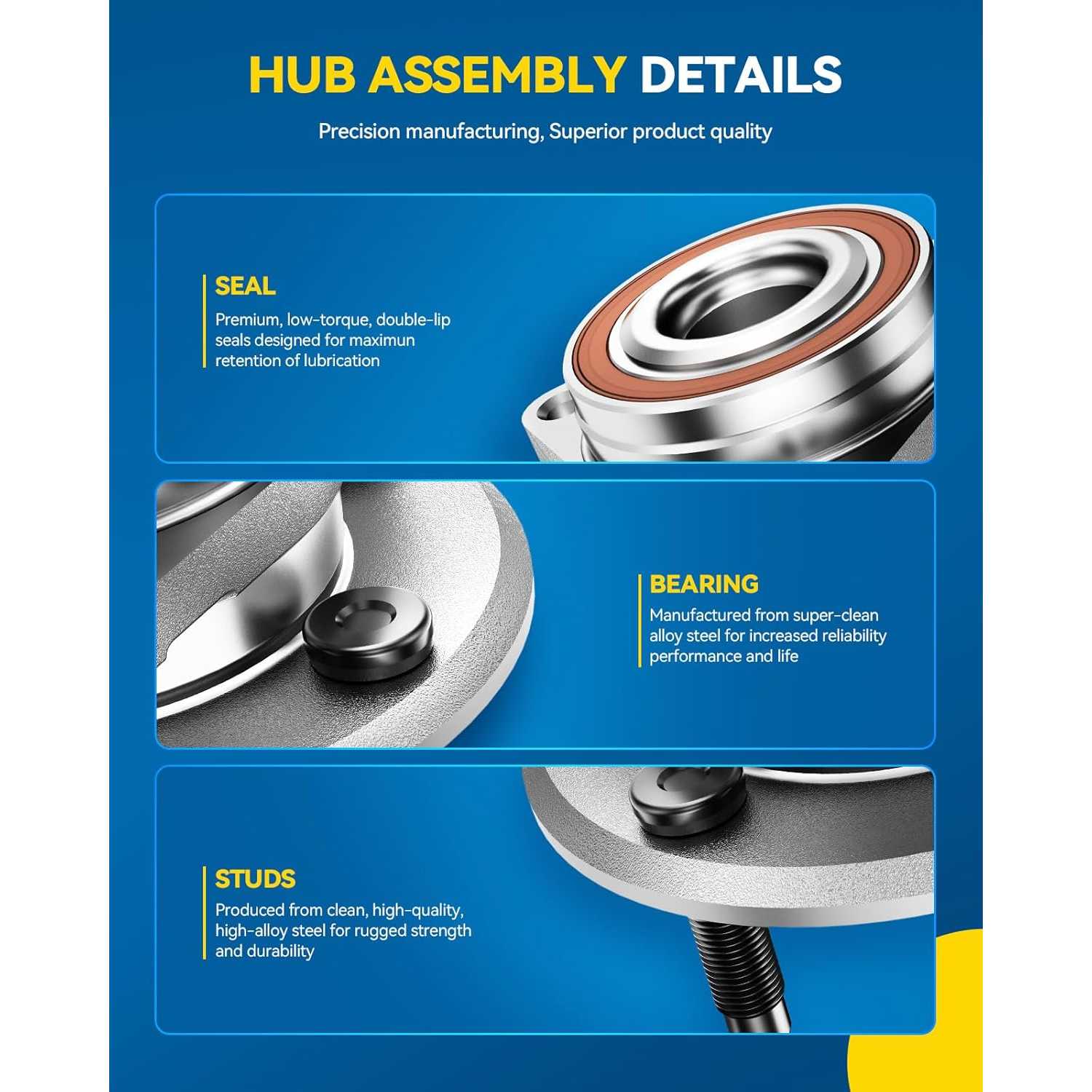

  • Premium Quality Materials: The wheel bearing hub assembly is crafted from high-grade materials. The outer ring and flange are constructed using premium #55 carbon structural steel, ensuring exceptional surface hardness and strength.
  • Long Lifespan: The brand-new wheel hub assemblies and studs feature a corrosion-resistant surface finish, ensuring extended bearing life. With an advanced seal design and triple oil seals, they deliver lasting performance while reducing noise and vibration. The enhanced sealing also effectively blocks moisture and contaminants.
  • Installation: Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

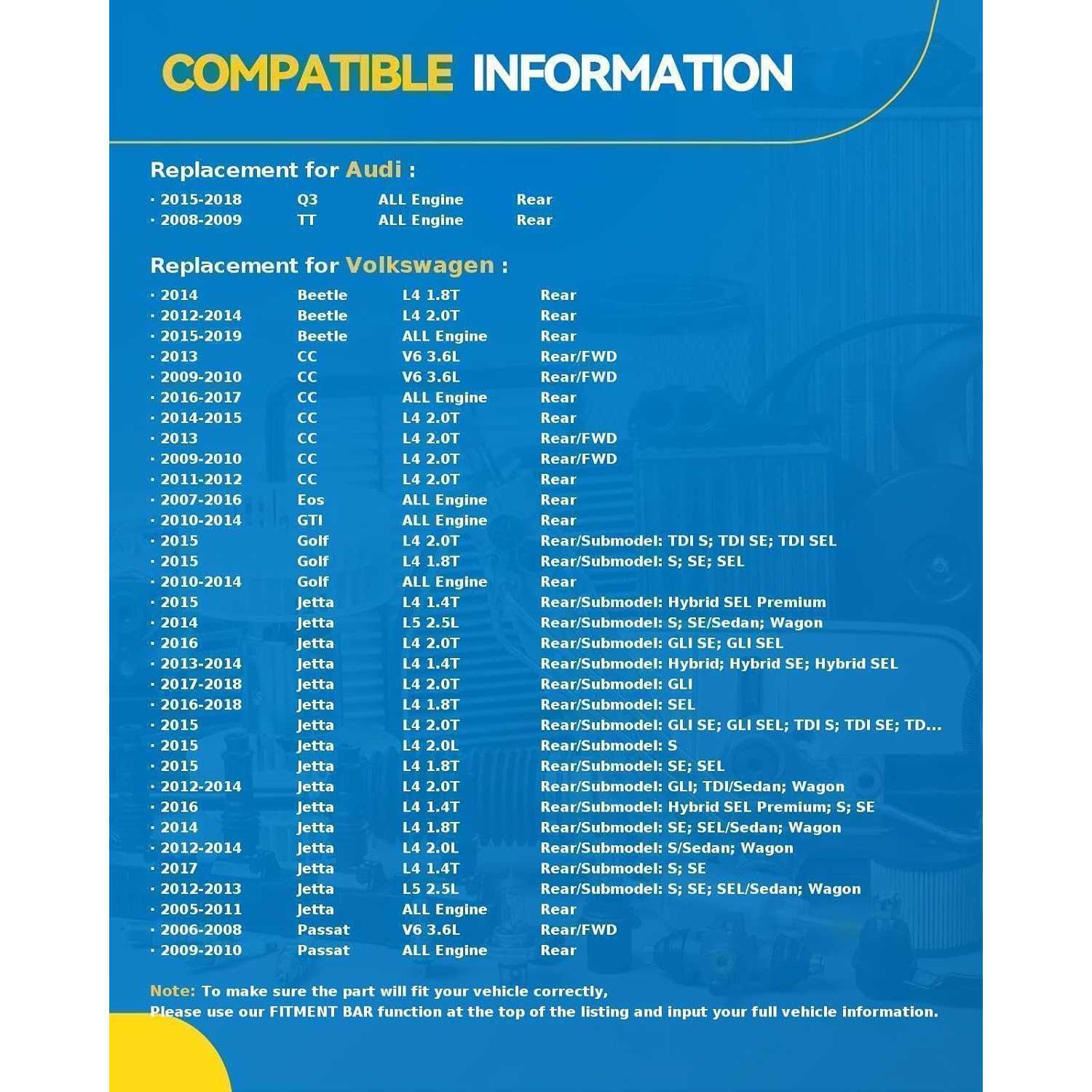

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20182015 - 20182015 - 20172008 - 200920172014 - 201520152017201820162016 - 20172018201920192015 - 201620142013 - 2015201620162016 - 20172016 - 20172018 - 20192016 - 20172018 - 20192016 - 20172013 - 20152012 - 201320162014 - 20152012 - 20132013201220122009 - 20112011 - 20162016 - 20172009 - 20172013201620162009 - 20102009 - 20102007200720072012 - 201520152008 - 20162008 - 20132013 - 2014200820082010 - 2013201420142010 - 201420152015201520152010 - 20142015201520152006 - 200720052006 - 20072011201520052005200520052006 - 20092012 - 20142017 - 20182015 - 20162015 - 20162005200520052013201420132014201320142015 - 20162016 - 20182011 - 20122013201420152008 - 20102011 - 2012201320142016 - 2018201420152008 - 20102011 - 201220132014201820142015 - 201820092008 - 20102011 - 2012201320162015 - 2018200520062009 - 20102011 - 2012201320142010201220132014201520152015200620182008 - 201020072006 - 20072006 - 200720182008 - 20102015202220082016 - 201720182020 - 20222014 - 201720182020 - 20212012 - 20142014 - 201720182020 - 20222012 - 20142012 - 201420172019201620202012 - 20132014 - 201720182012 - 20132012 - 201820152012 - 20152012 - 20132014 - 2015200820082006 - 20072014 - 2015200720192013 - 20142014 - 20162009 - 20162009 - 20162009 - 20162010
MakeAudiAudiAudiAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelQ3Q3Q3TTBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleBeetleCCCCCCCCCCCCCCCCCCCCCCCCCCCCEosEosEosEosEosEosEosEosEosEosGTIGTIGTIGolfGolfGolfGolfGolfGolfGolfGolfGolfJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaJettaPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatTiguanTiguanTiguanTiguanTiguan
TrimPremiumPremium PlusPrestigeBase#PinkBeetleBaseClassicClassicCoastDenimDuneDuneFinal Edition SEFinal Edition SELFleet EditionGSRR-LineR-Line SR-Line SER-Line SELSSSESESELTDITurboWolfsburg EditionExecutiveLuxLuxLux LimitedLux PlusLuxuryR-LineR-Line ExecutiveSportSport PlusTrendV6 Executive 4MotionVR6VR6 Sport2.0T3.2BaseExecutiveFinal EditionKomfortLuxSportTurboVR6BaseDriver's EditionWolfsburg EditionBaseLaunch EditionSSESELTDITDI STDI SETDI SEL2.0T2.52.5BaseBaseGLGLGL TDIGLIGLIGLIGLIGLI SEGLI SELGLSGLSGLS TDIHybridHybridHybrid SEHybrid SEHybrid SELHybrid SELHybrid SEL PremiumSSSSSSSSSSESESESESESESESE SportSELSELSELSELSELSELSEL PremiumSportTDITDITDITDITDITDITDI Cup EditionTDI PremiumTDI PremiumTDI PremiumTDI STDI SETDI SELValue EditionWolfsburg EditionWolfsburg EditionWolfsburg Edition2.0T3.6GTKomfortLimited EditionLimited EditionLuxR-LineR-LineR-LineSSSSSESESESESESESE R-LineSELSELSELSEL PremiumSEL PremiumSEL PremiumSEL PremiumSportTDI SETDI SELTDI SEL PremiumTurboVR6Value EditionWolfsburg EditionWolfsburg EditionWolfsburg EditionWolfsburg EditionR-LineSSESELWolfsburg Edition
Engine2.0L L42.0L L42.0L L42.0L L41.8L L41.8L L41.8L L41.8L L42.0L L41.8L L41.8L L42.0L L42.0L L42.0L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L42.0L L41.8L L42.0L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L43.6L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.6L V63.6L V63.6L V62.0L L43.2L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.2L V62.0L L42.0L L42.0L L42.5L L51.8L L41.8L L41.8L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L42.5L L52.5L L52.0L L42.0L L41.8L L42.0L L41.9L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L42.0L L41.9L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L41.4L L42.0L L42.0L L42.0L L42.0L L42.5L L52.5L L52.5L L52.5L L51.4L L41.8L L41.8L L42.5L L52.5L L52.5L L52.5L L51.8L L41.8L L41.8L L42.0L L42.5L L52.5L L52.5L L51.8L L41.8L L41.9L L41.9L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.5L L51.4L L42.0L L42.5L L52.0L L43.6L V63.6L V62.0L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L42.5L L51.8L L42.0L L42.0L L42.5L L53.6L V63.6L V62.0L L41.8L L42.0L L42.5L L51.8L L42.0L L42.5L L53.6L V61.8L L42.0L L42.0L L42.0L L42.0L L43.6L V62.0L L41.8L L42.0L L42.0L L42.5L L52.0L L42.0L L42.0L L42.0L L42.0L L4
Note----------------------------------------------------
32mm Bearing
32mm Bearing
32mm Bearing
32mm Bearing
----
32mm Bearing
----
2nd Design
-
Independent Rear Suspension
-
2nd Design
2nd Design
2nd Design
2nd Design
-
Independent Rear Suspension
---
2nd Design
2nd Design
2nd Design
-
Independent Rear Suspension
-
Independent Rear Suspension
-
Independent Rear Suspension
--
Independent Rear Suspension
-
Independent Rear Suspension
--
Independent Rear Suspension
-
Independent Rear Suspension
-
Independent Rear Suspension
--
Independent Rear Suspension
-
Independent Rear Suspension
-
Independent Rear Suspension
---
Independent Rear Suspension
---
2nd Design
--
Independent Rear Suspension
-
Independent Rear Suspension
-
Independent Rear Suspension
-
Independent Rear Suspension
---------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

DaveTheMechanic_207

04/28/2026

Looks and feels like a quality part. It's heavy and well-made. I'm confident it'll last a long time.

DIY_Karen_447

12/05/2025

Arrived quickly and fit perfectly on my Jetta. The installation was a breeze. Very satisfied with the whole process.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Possible signs include humming or grinding that changes with vehicle speed, wheel looseness, vibration, or an ABS warning. Similar symptoms can have other causes, so an inspection is recommended.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.
