2007-2010 Ford Edge 3.5L | 2 PC Rear AWD Wheel Bearing 7T412C299BF/512335 - PHILTOP

2007-2010 Ford Edge 3.5L | 2 PC Rear AWD Wheel Bearing 7T412C299BF/512335 - PHILTOP

Triple-Lip Seal

Rear

AWD

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1170WSA3583US

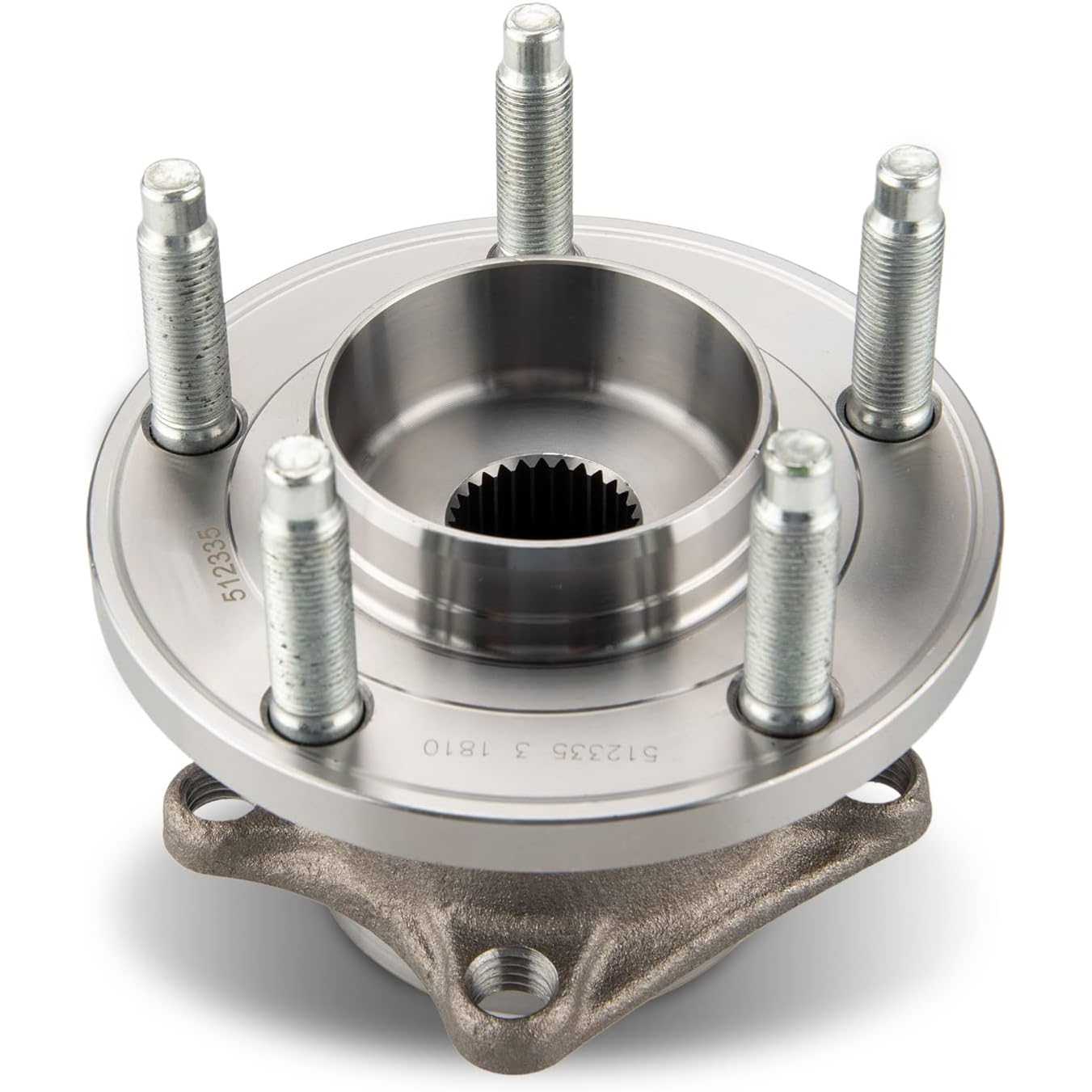

Specifications

Brand
PHILTOP
ABS Type
No
Drive Type
AWD
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

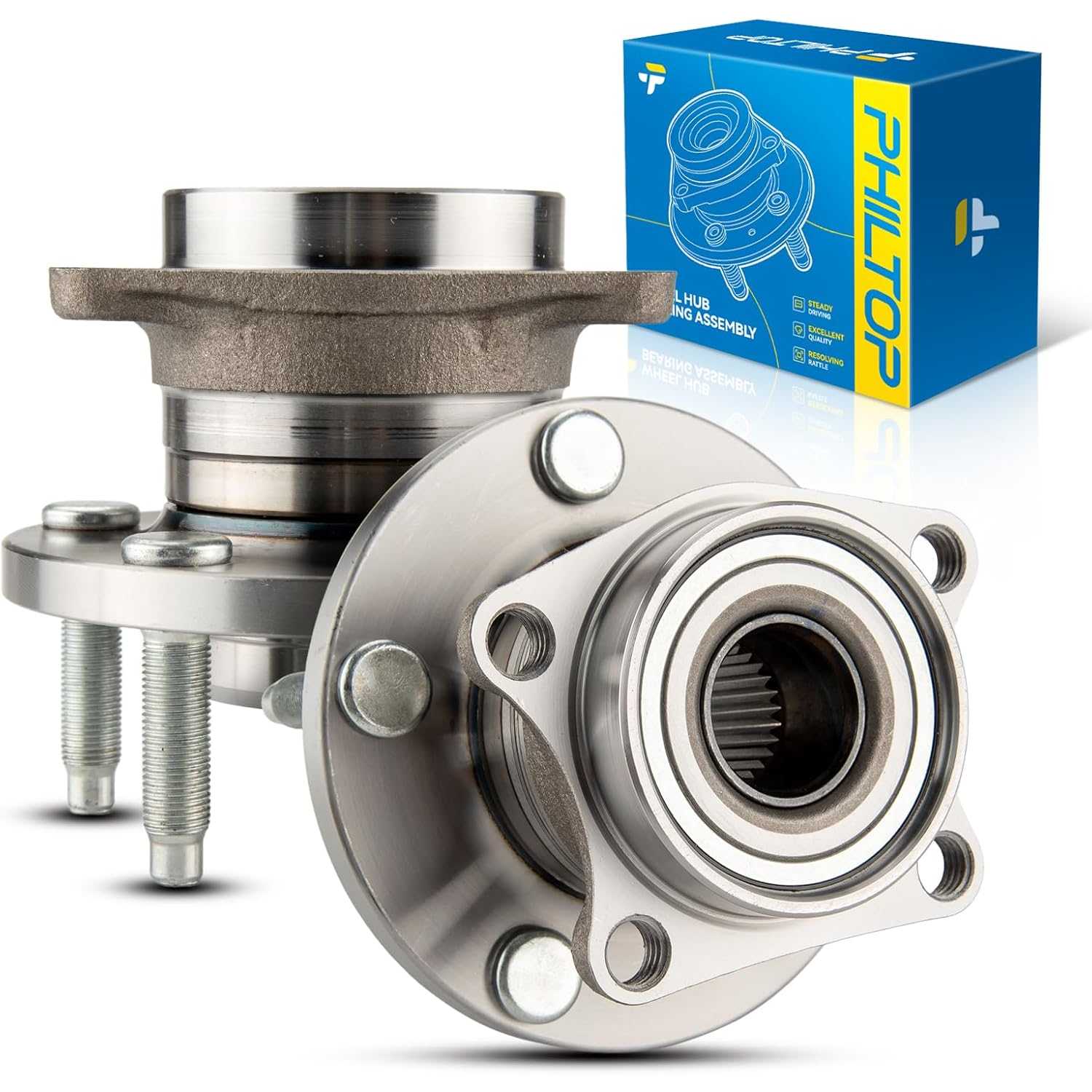

2x Rear Wheel Hub and Bearing Assembly - 512335,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.1 in
Wheel Stud Size
1/2"x20 Unf
Flange Offset
2.48 in/63 mm
Flange Diameter
5.5 in/139.8 mm
Brake Pilot Diameter
2.83 in/71.9 mm
Warranty Period
2-Year
OE Number
7T412C299BF,7T412C299B,7T4Z1104C
Part Number
512335,HA590183,7250029,BR930636,712335,H512335,HUB34,102274,G512335
Quantity
2

Highlights

  • (Compatibility)PHILTOP Wheel Bearing Hub Replacement for 2007-2010 Ford Edge AWD, 2007-2010 Lincoln MKX AWD.
  • (Hub Specification)Compatible with 512335 Rear Wheel Hub Bearing Assembly, Wheel Bearingw/ ABS 5 Lugs 2PCS. OE Number: 512335, 712335, 7250029, 7T41-2C299B, 7T41-2C299BF, 7T412C299B, 7T412C299BF, 7T4Z-1104C, 7T4Z1104C, BR930636, H512335, HA590183

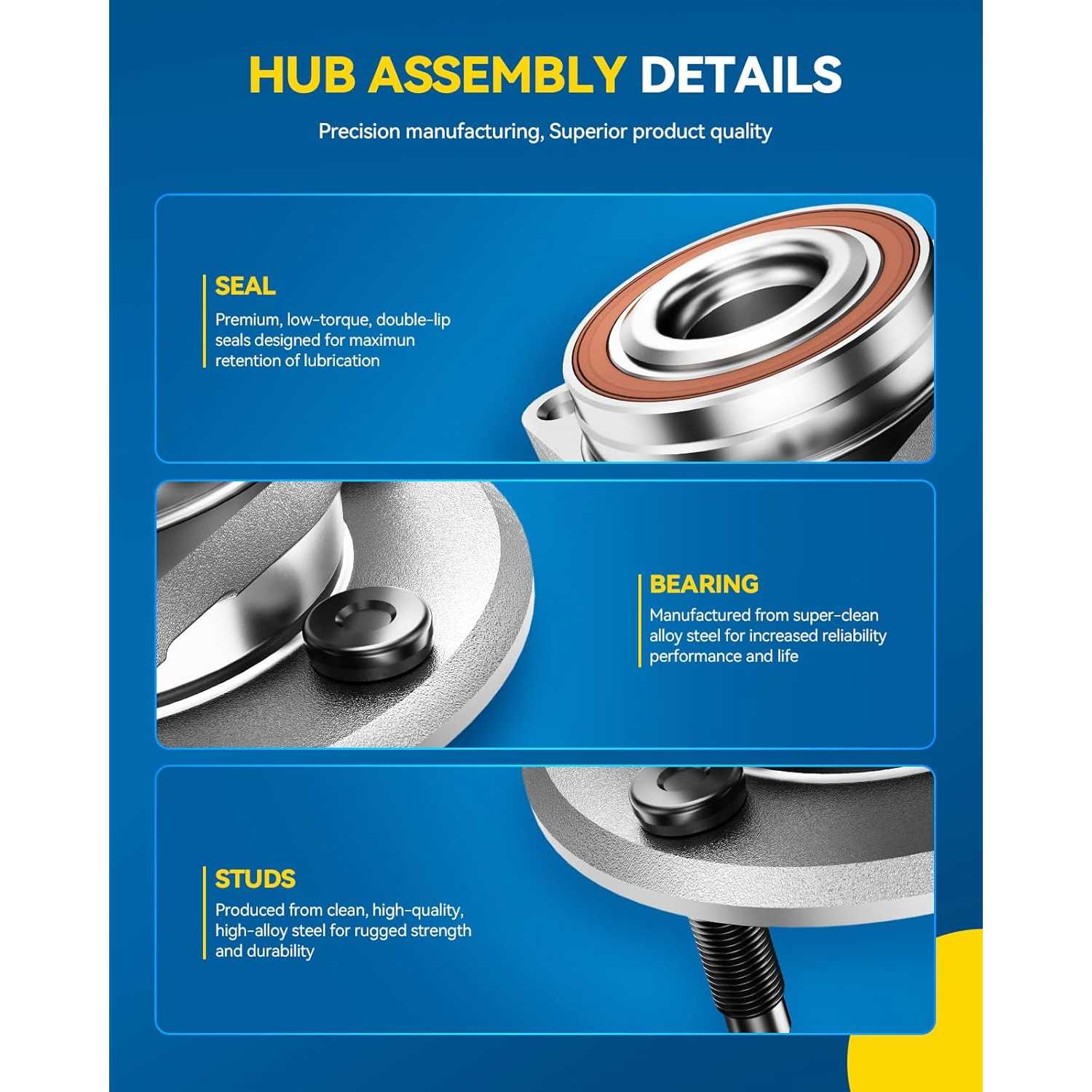

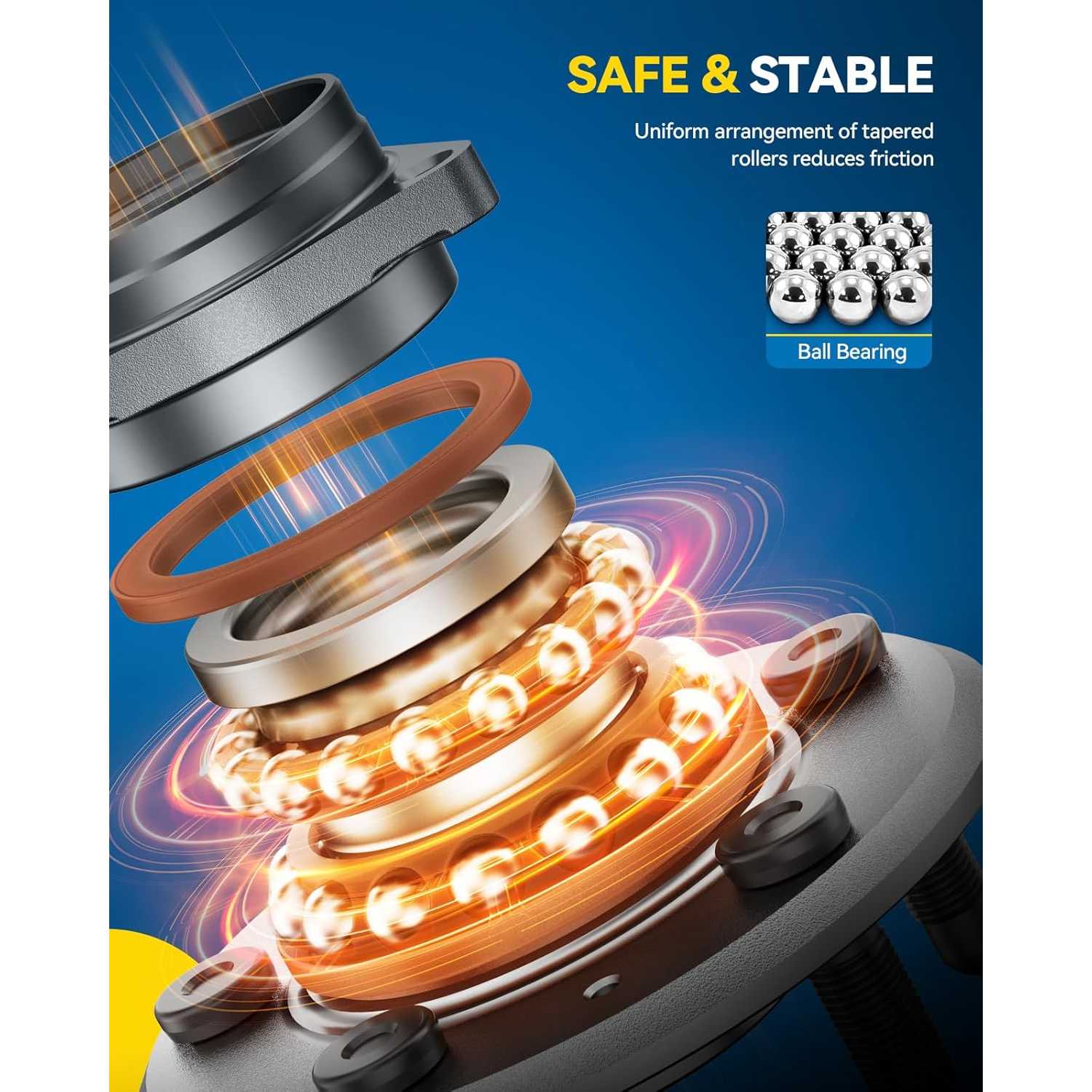

  • (Material & Quanlity)Wheel Hub Bearing Assembly with Quad Lip Seal Design is Specially Quality-Tested and Engineered to the Highest of Manufacturing Standards, Meeting or Exceeding OE Quality. The Induction-Hardened Raceway Provides Superior Load-Bearing Capacities And Service Life. Worry-Free of Abnormal Noises or Faulty Connections

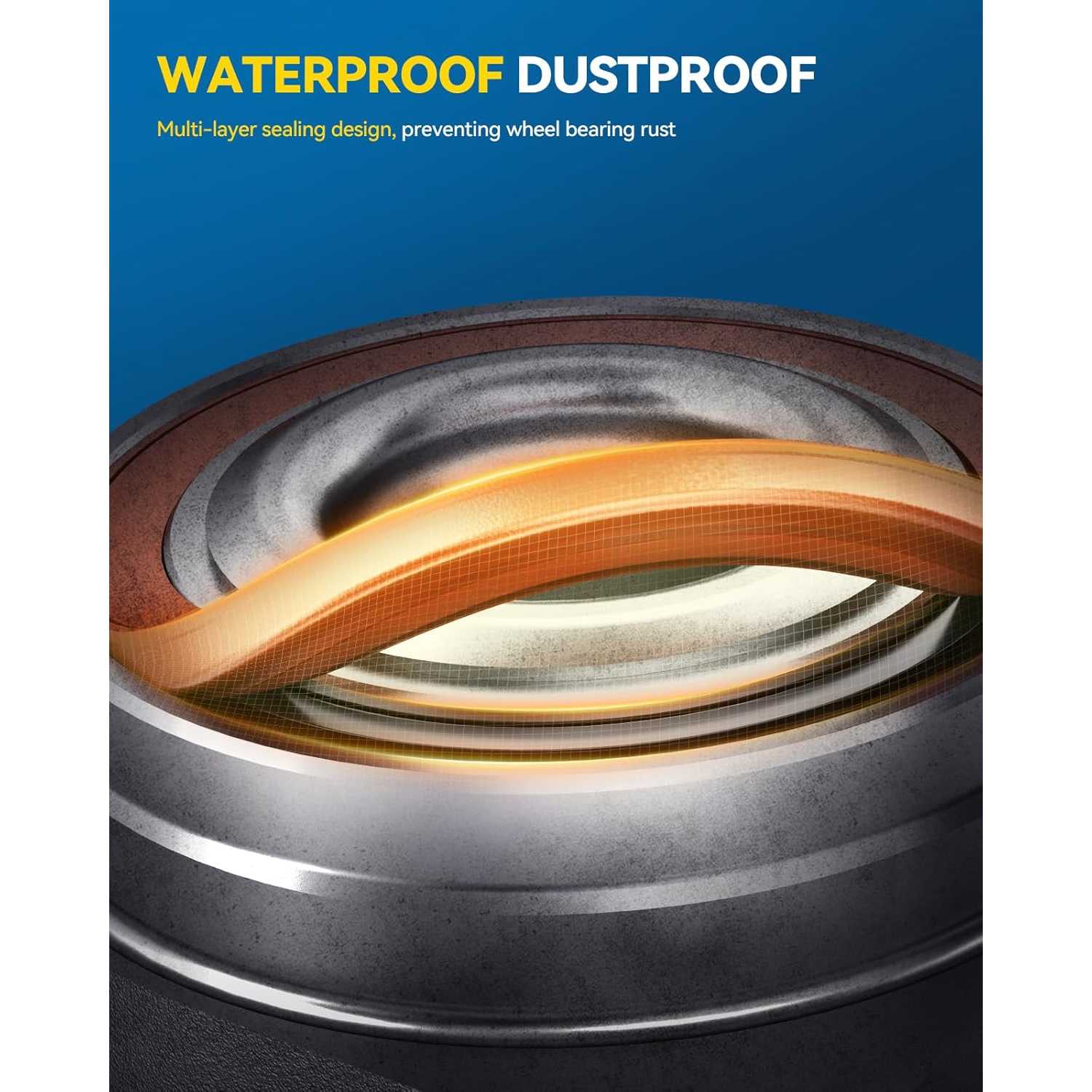

  • (Long-Lasting and Wear-Resistant)Robust, light-weight and coated flange: avoids galvanised corrosion for easier wheel replacement and longer bearing life. Correct induction-hardening processes: strengthens raceways and avoids hub fractures for safety and long service life.
  • (Non-Destructive Installation)In-situ installation Fit the original car. Wheel bearings are easy to install and do not require professional tools, making it convenient for you to replace them at home.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20102007 - 20102007 - 201020072009 - 20102007 - 2010
MakeFordFordFordFordFordLincoln
ModelEdgeEdgeEdgeEdgeEdgeMKX
TrimLimitedSESELSEL PlusSportBase
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

Darlene Cornwell

02/07/2024

Verified buyer

Everything was fine but we did not have to use them and sent back

Jason_Trucks_380

02/22/2026

Came really fast and was well packaged. Installation was a breeze, took me about 30 minutes per side. My car is running smooth again.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.
