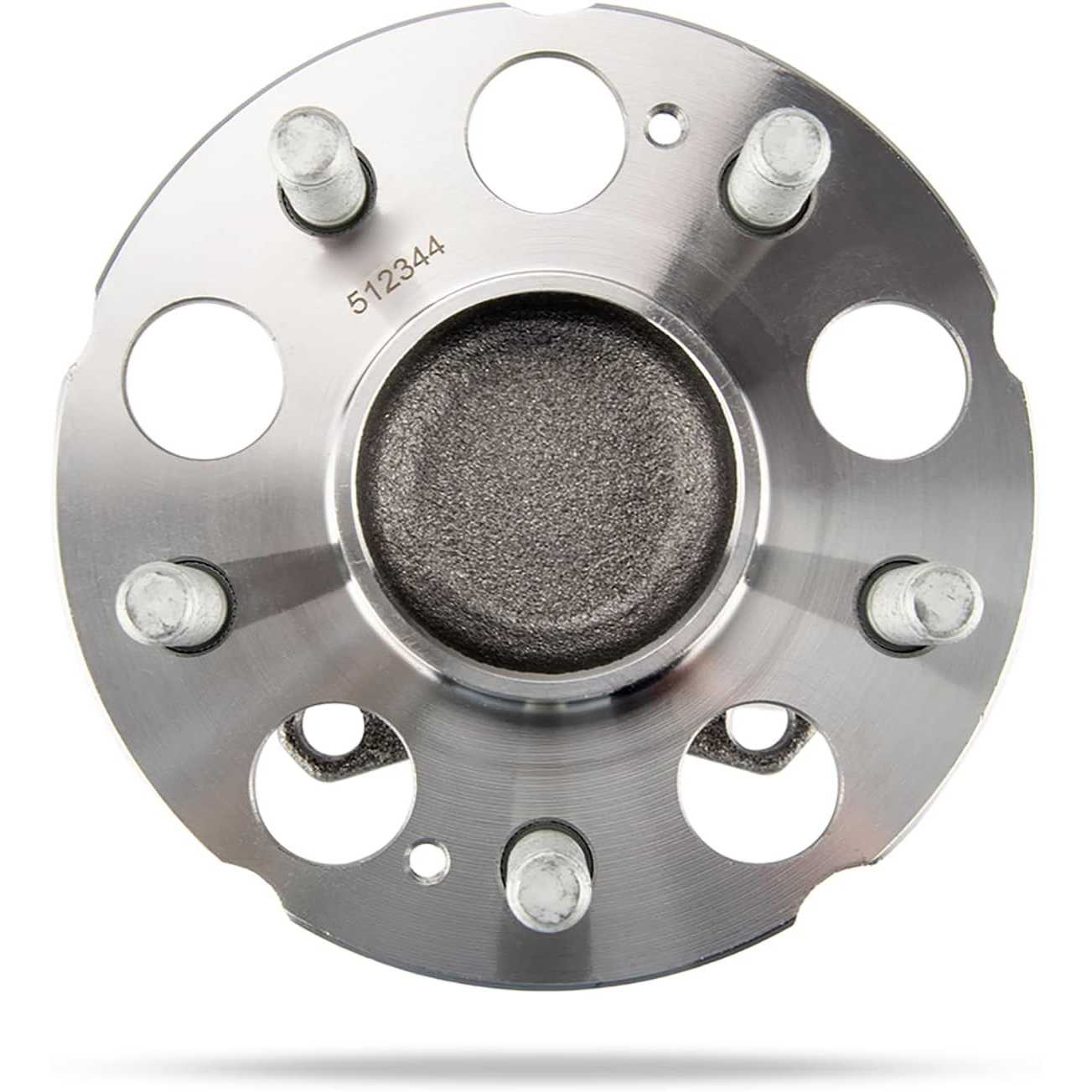

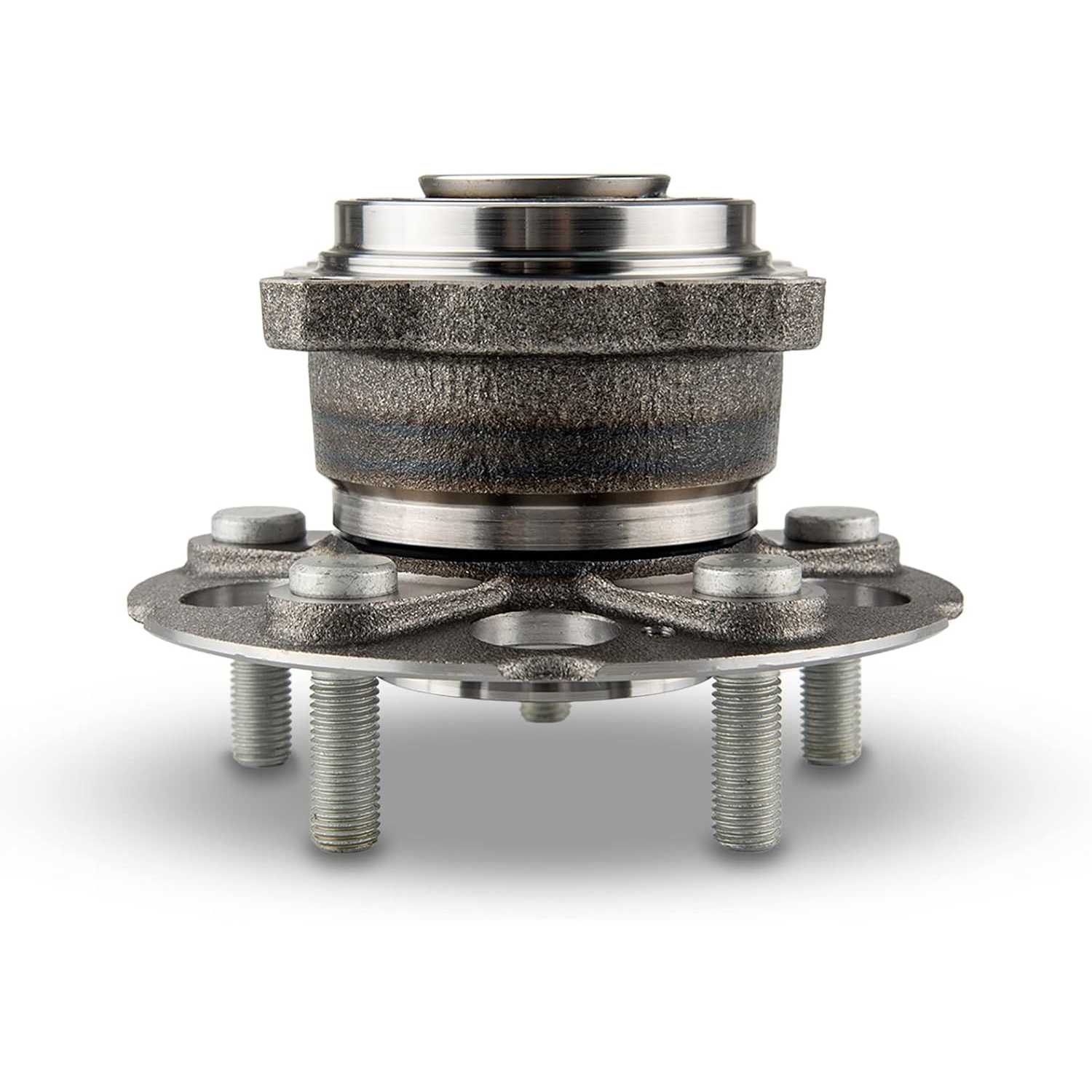

2007-2011 Honda CR-V 2.4L L4 | 2 PC Rear FWD Wheel Bearing | 42200TRNH61/512344 - PHILTOP

2007-2011 Honda CR-V 2.4L L4 | 2 PC Rear FWD Wheel Bearing | 42200TRNH61/512344 - PHILTOP

Triple-Lip Seal

Rear

FWD

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2705WSA355BUS

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Drive Type
FWD
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

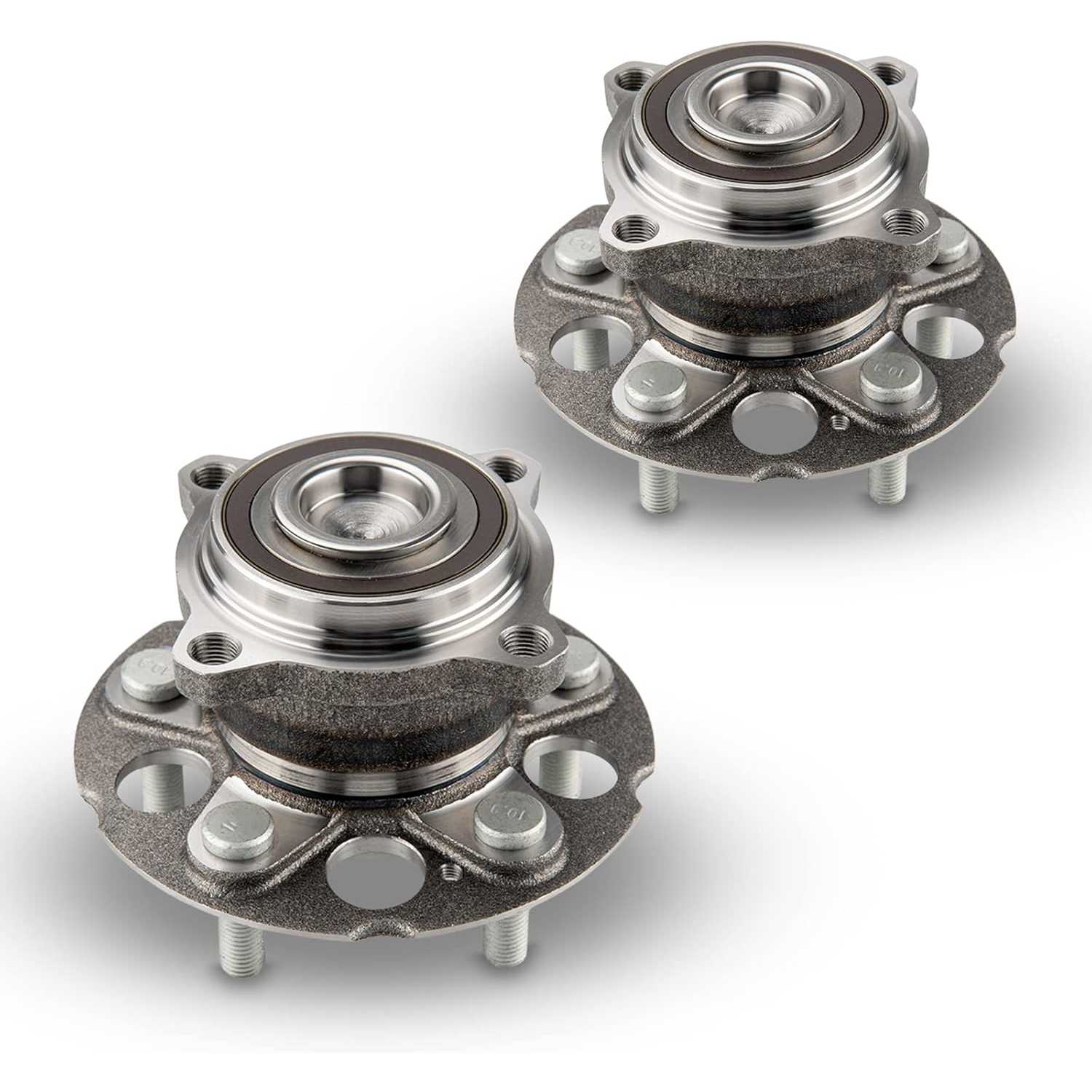

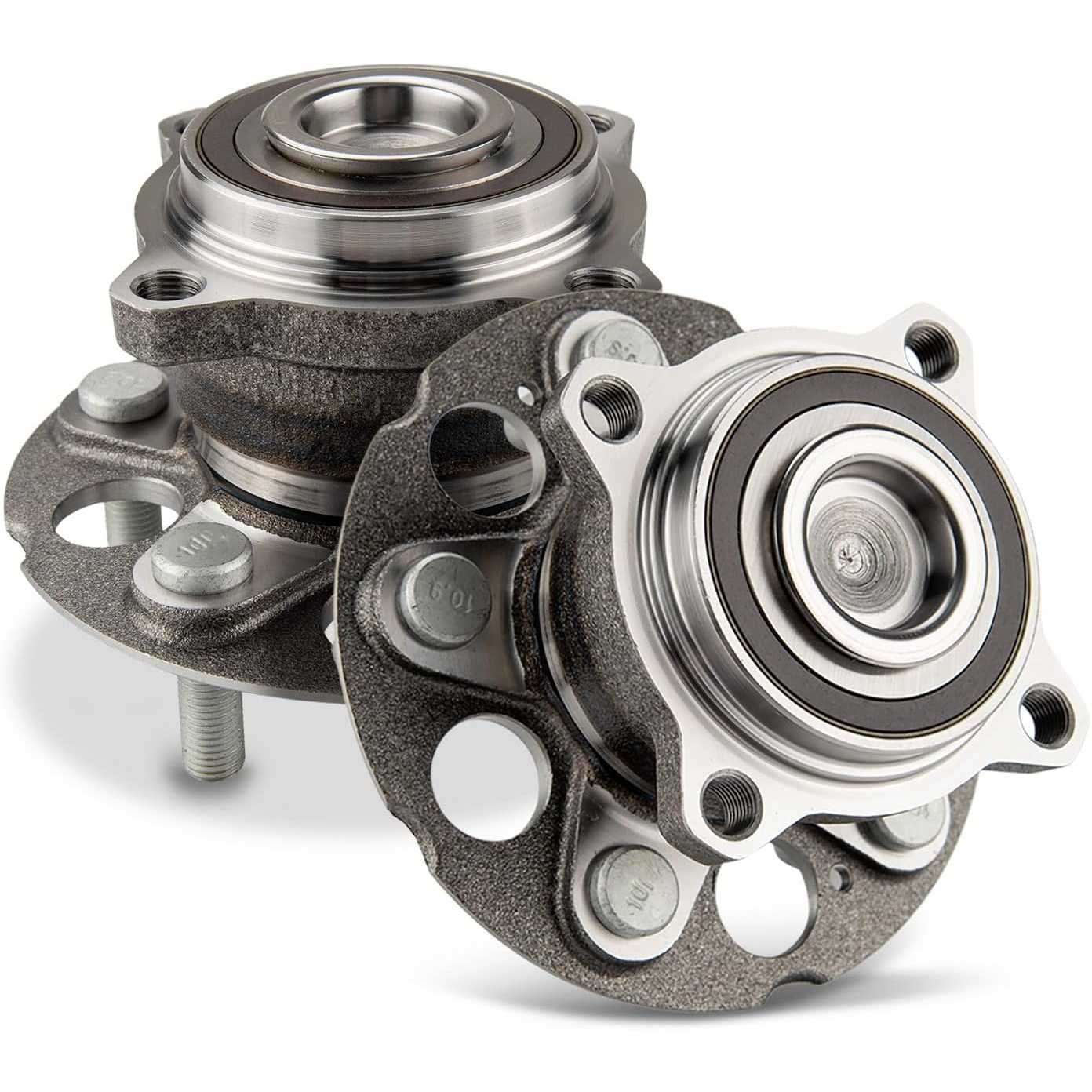

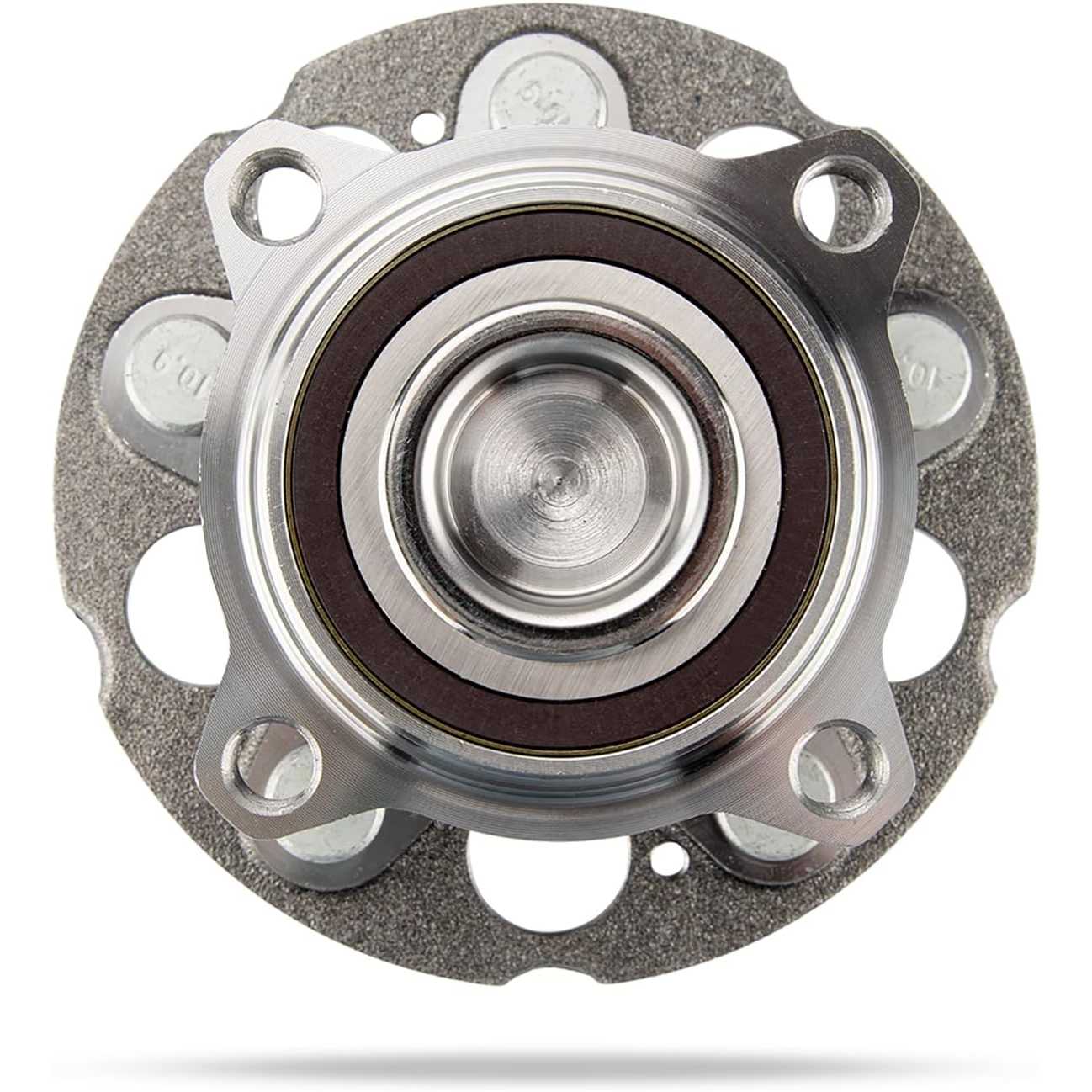

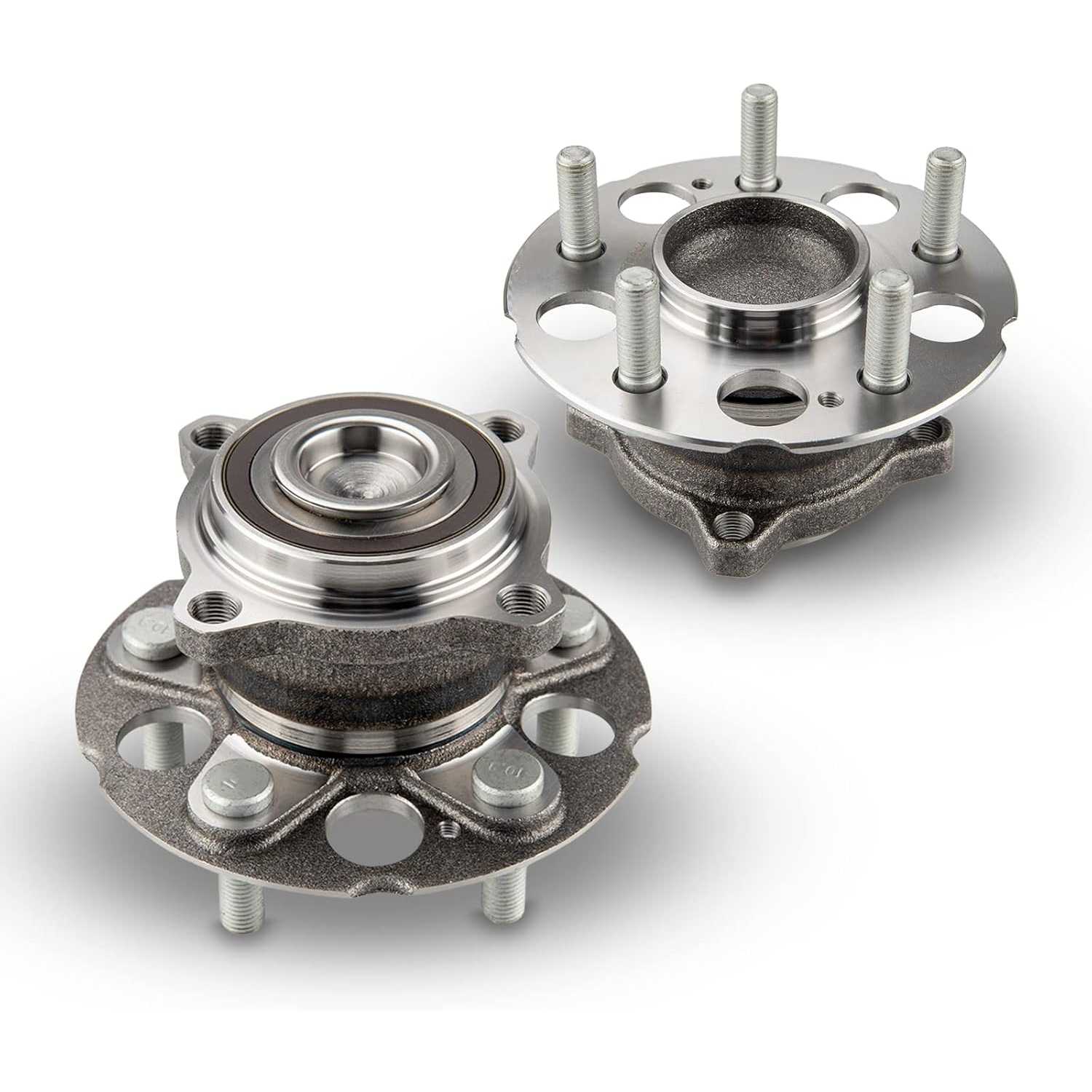

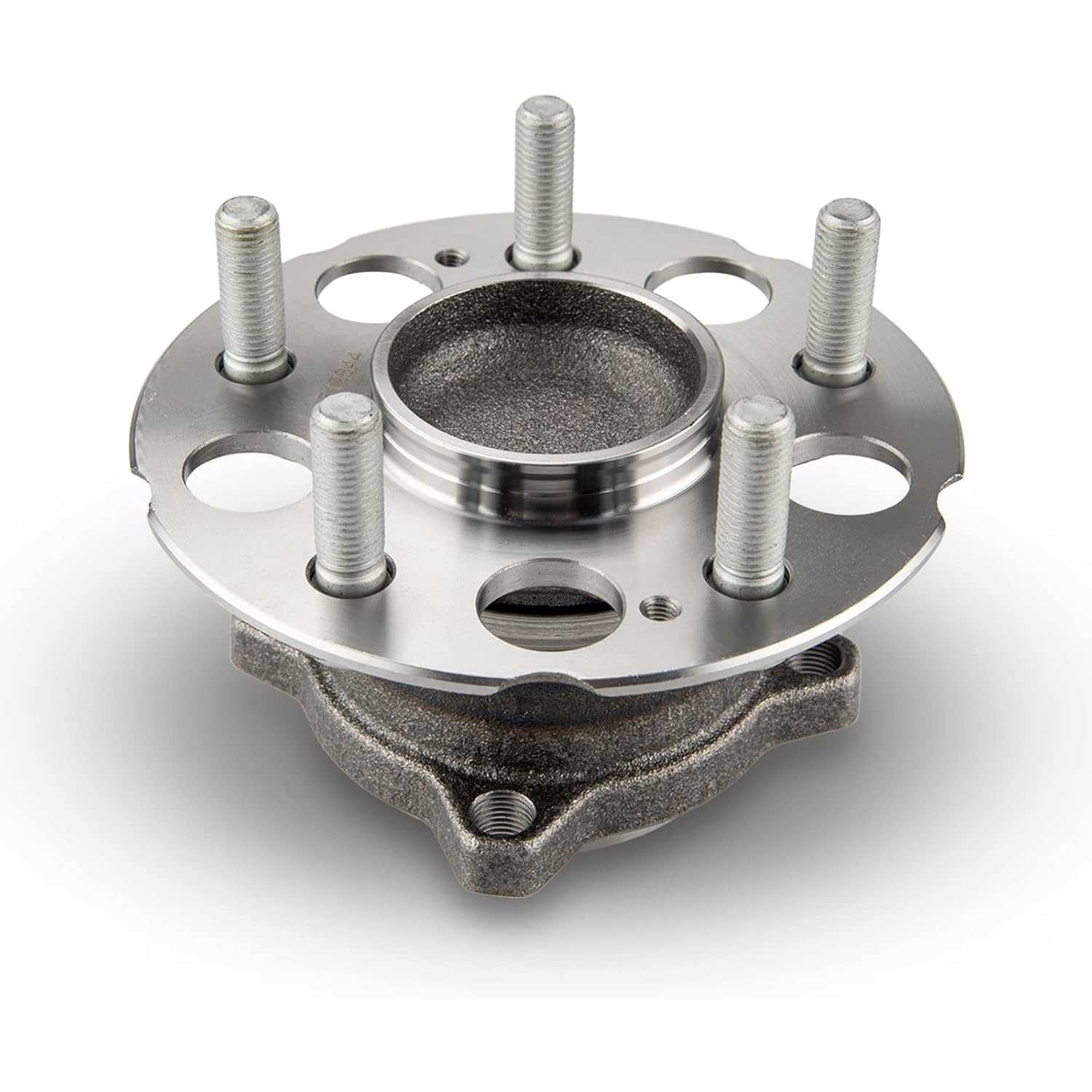

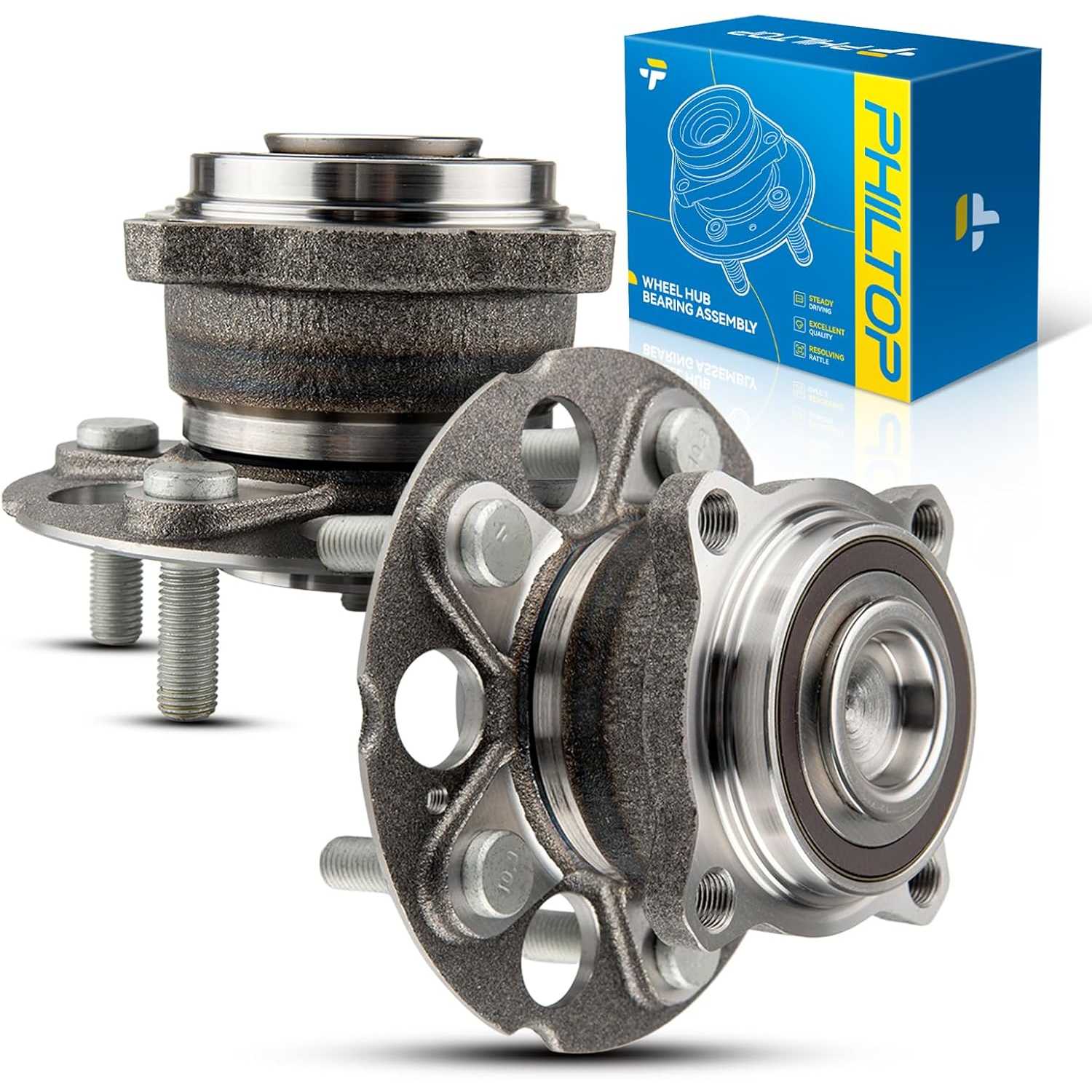

2x Rear Wheel Hub and Bearing Assembly - 512344,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3 in
Wheel Stud Size
M12x1.5
Flange Offset
2.42 in/61.5 mm
Flange Diameter
5.97 in/151.7 mm
Brake Pilot Diameter
2.52 in/64.1 mm
Warranty Period
2-Year
OE Number
42200TRNH61,42200SWB951,42200SWB9510M2
Part Number
512344,HA590190,7350028,WE60846,40540023,712344,0516274,BR930719,29512344,H512344,40540023E,102331,363344,1411248695,57BWKH02DY5CP01F
Quantity
2

Highlights

  • [Exact Replacement] 512344 Rear Wheel Bearing and Hub Assembly fit for 2007-2011 Honda CR-V FWD, 2012-2015 Honda Crosstour FWD, 2010-2011 Honda Accord Crosstour FWD
  • [Premium Quality Materials] Rear wheel bearing hub assembly are manufactured with premium quality materials. The outer ring and flange are made of high quality #55 carbon structural steel for high surface hardness and strength.
  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [Specification] ①Position: Rear ; ②ABS Included: No; ③Wheel Stud Quantity: 5; ④Flange Bolt Hole Quantity: 4; ⑤Reference Part Number: 512344, 42200SWB951, HA590190, BR930719, 7350028. Please refer to the Vehicle menu at the top of the list, select your vehicle's "Year, Make, Model" and click "Confirm" to make sure the wheel bearing fit your car.
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

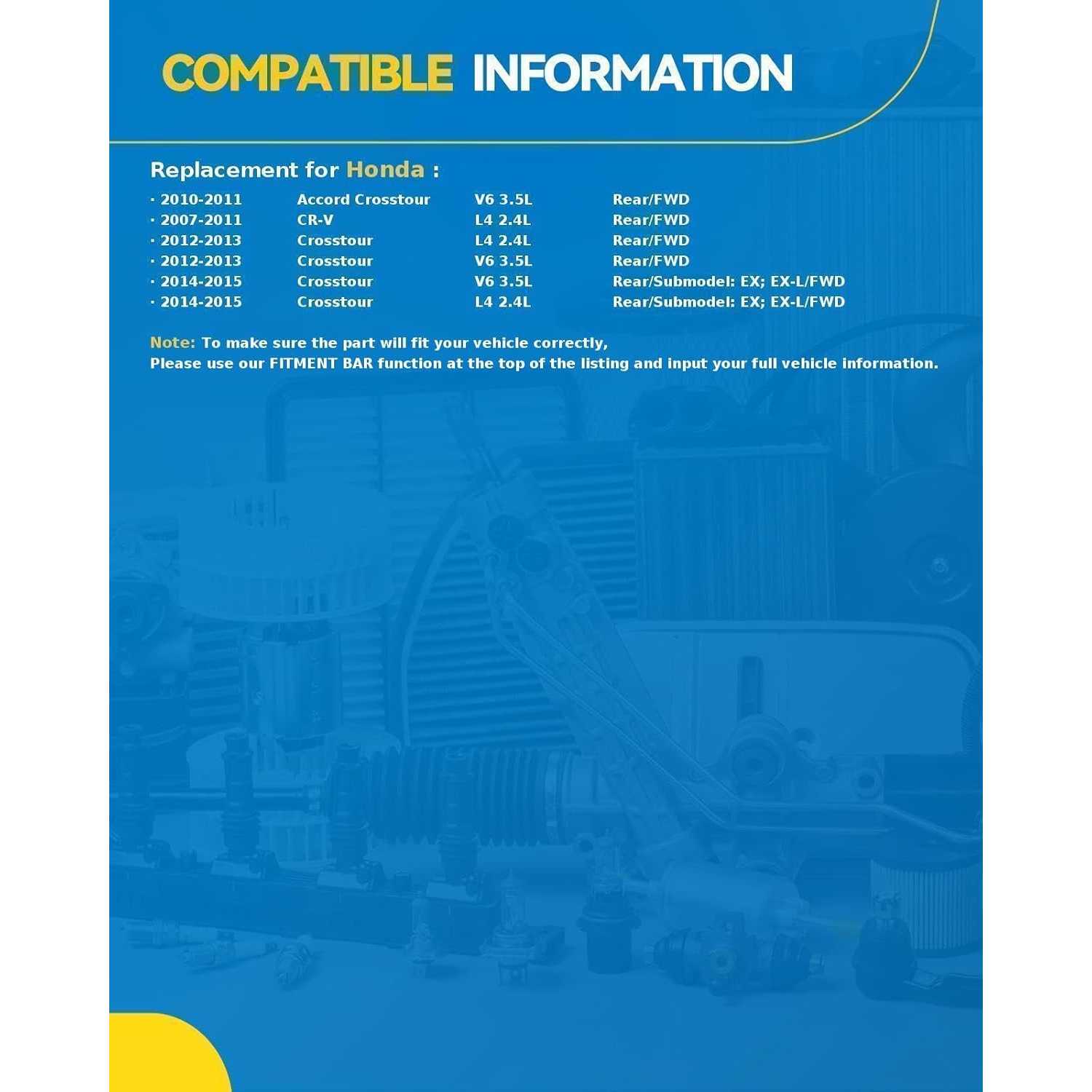

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20112010 - 20112007 - 20112007 - 20112007 - 201120112012 - 20152012 - 20152012 - 20152012 - 2015
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelAccord CrosstourAccord CrosstourCR-VCR-VCR-VCR-VCrosstourCrosstourCrosstourCrosstour
TrimEXEX-LEXEX-LLXSEEXEXEX-LEX-L
Engine3.5L V63.5L V62.4L L42.4L L42.4L L42.4L L42.4L L43.5L V62.4L L43.5L V6
Note
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.4/5

Based on 7 reviews

557%
429%
314%
20%
10%

Jennifer_Auto_789

01/24/2026

Super impressed with how fast this got here. It was packaged well and bolted right up. Took me about an hour per side and now the steering feels tight again.

DaveTheMechanic_103

12/31/2025

The old bearing was shot, making a racket. This replacement unit solved the problem completely. The car handles much better now, feels safer too.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Torque values differ by vehicle and fastener. Use the vehicle manufacturer’s specification rather than a general value, as incorrect torque may affect bearing operation.

Alignment may be advisable if suspension or steering components are disturbed during the repair. Follow the vehicle service procedure and check alignment if the vehicle pulls or the steering wheel is off-center.
