2008-2014 Scion xD 1.8L L4 | 2 PC Rear Wheel Bearing | OE#4245052080/512425 - PHILTOP

2008-2014 Scion xD 1.8L L4 | 2 PC Rear Wheel Bearing | OE#4245052080/512425 - PHILTOP

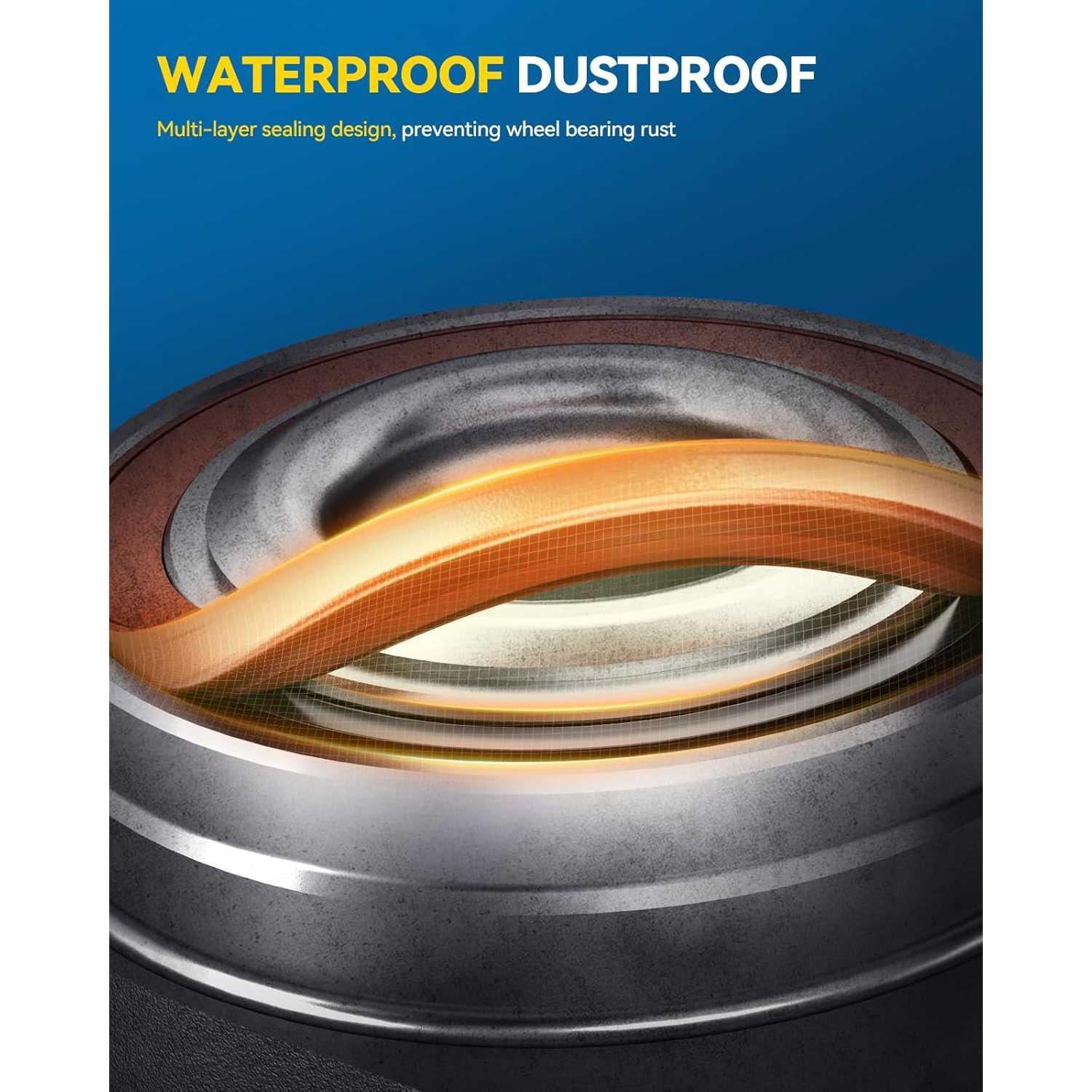

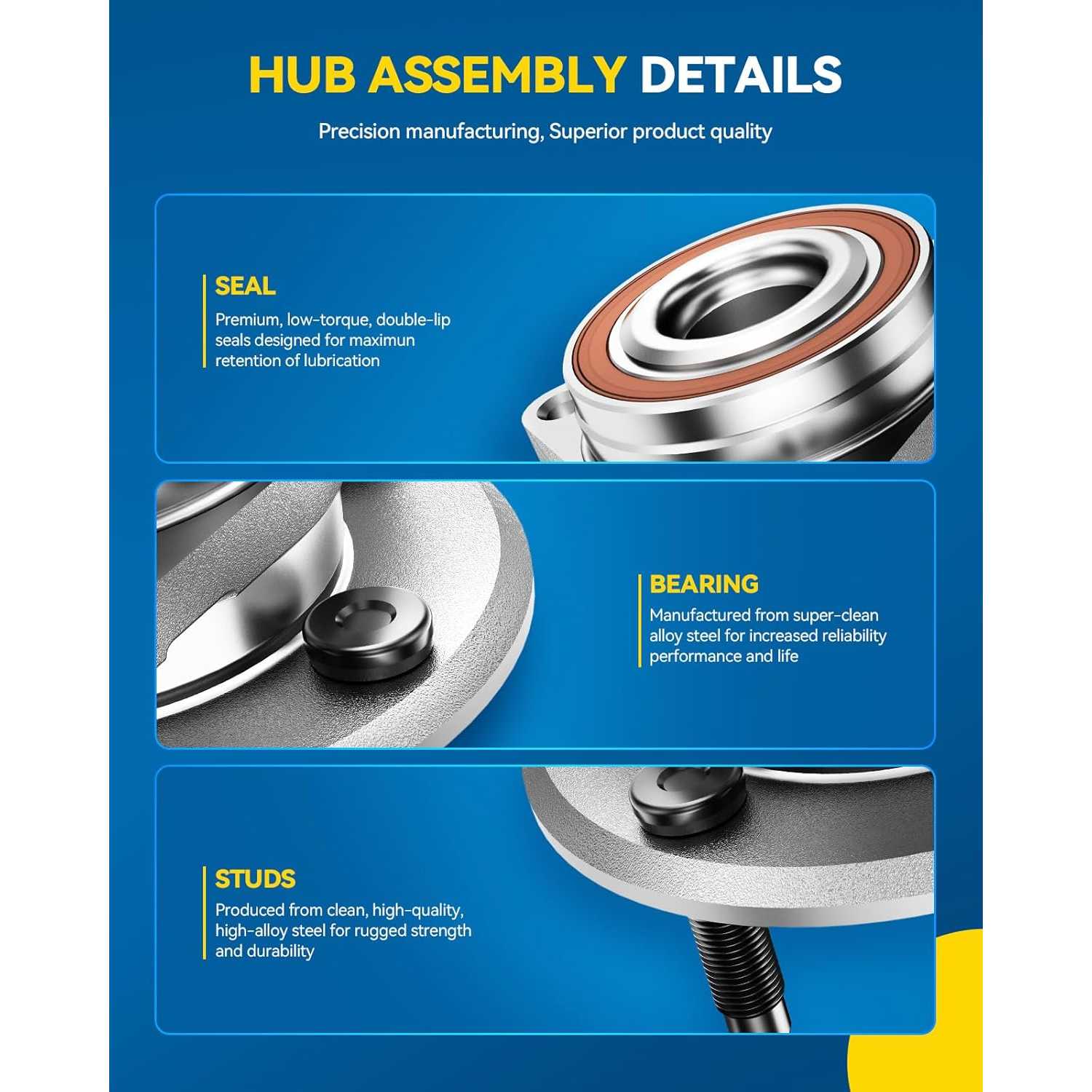

Triple-Lip Seal

Rear

AISI 52100

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4900WBR301PUS

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

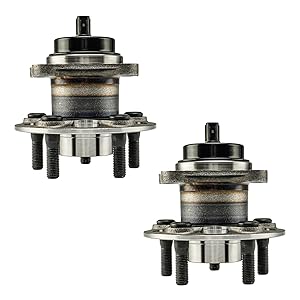

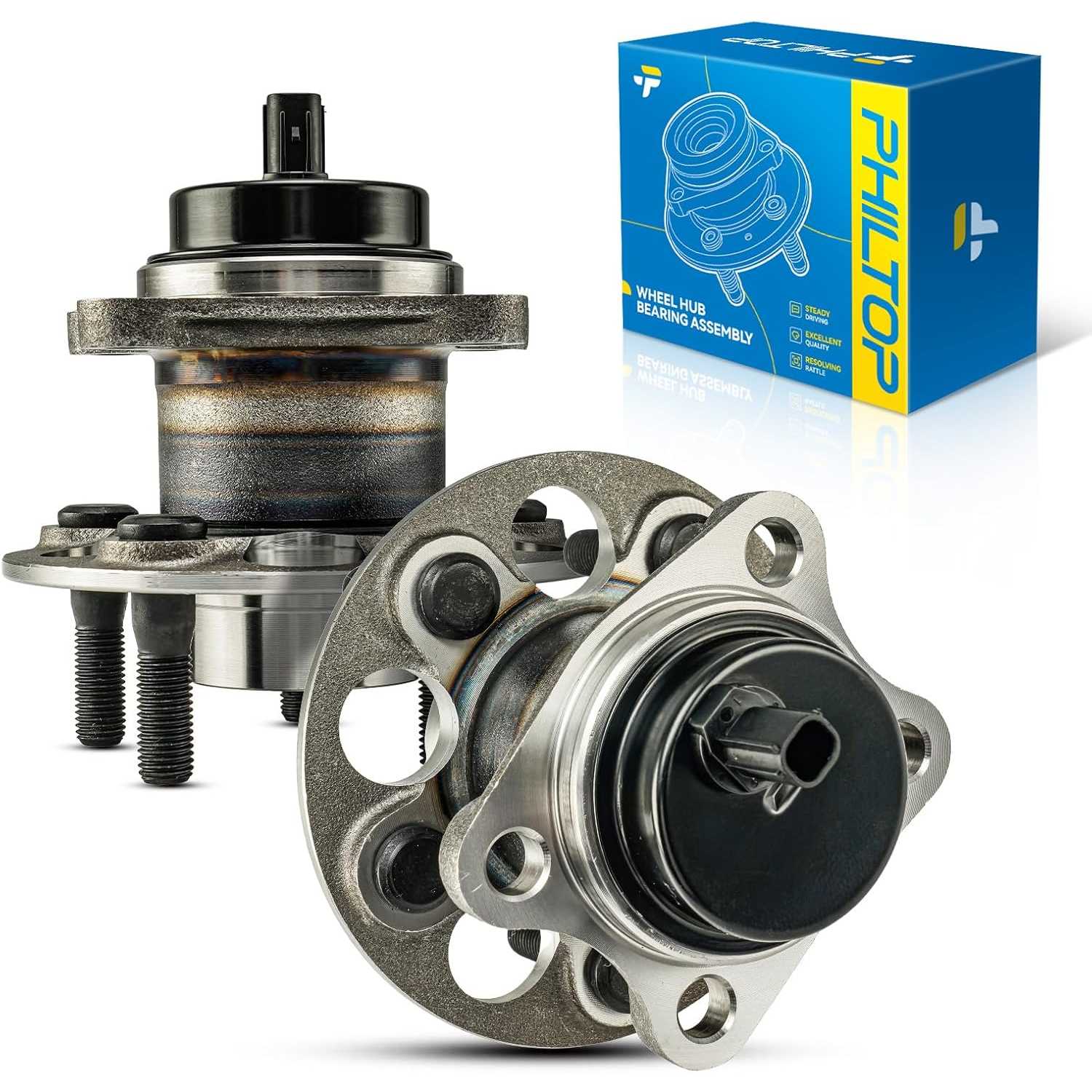

2x Rear Wheel Hub and Bearing Assembly - 512425,Installation Instructions
Bolt Pattern
5 X 3.94
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
2.9 in
Wheel Stud Size
M12*1.5
Flange Offset
2.36 in/60 mm
Flange Diameter
5.31 in/135.0 mm
Brake Pilot Diameter
2.16 in/54.9 mm
Warranty Period
2-Year
OE Number
4245052080
Part Number
512425,HA590365,7700055,BR930771,0516431,712425,H512425,40744024
Quantity
2

Highlights

  • Compatibility: Rear Wheel Bearing and Hub Assembly for 2008-2014 Scion xD.
  • Wheel Hub Num: 512425, 4245052080, HA590365, BR930771, WA512425, 0516431, 7700055, NT512425, H512425, 712425, 40744024, 516431, 29512425, 40744024E, WH512425, RW8425, 3DACF026F37BS, WE61206.
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: Wheel bearings support the gravity of the entire body and precisely guide the wheel rotation. High-quality wheel hub assemblies allow you to drive your vehicle safely and smoothly.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 2014
MakeScion
ModelxD
TrimBase
Engine1.8L L4
Note-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

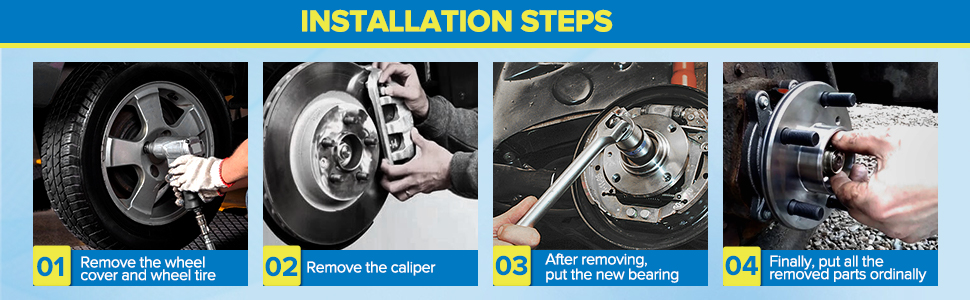

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

5.0/5

Based on 16 reviews

5100%
40%
30%
20%
10%

Customer photos and videos

Dalton A.

01/26/2026

Verified buyer

Fits perfectly. on time great price ๐Ÿ‘Œ

David L.

08/05/2026

Verified buyer

Fit my 2011 Colorado perfect. Less then 1/4 price of local stores.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Some bearings have a magnetic encoder or sealing side that must face a particular direction. Follow the vehicle service information and any markings supplied with the part.

Some vehicle manufacturers specify a one-time-use axle nut. Check the service procedure for your vehicle and use new hardware when required.
