2003-2008 Hyundai Tiburon 2.0L/2.7L | 2 PC Rear Wheel Bearing | OE#527102C100/512428 - PHILTOP

2003-2008 Hyundai Tiburon 2.0L/2.7L | 2 PC Rear Wheel Bearing | OE#527102C100/512428 - PHILTOP

Triple-Lip Seal

Rear

AISI 52100

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7399WBR300ZUS

Specifications

Brand
PHILTOP
ABS Type
Tone Ring
Lug Count
5
Position
Rear
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

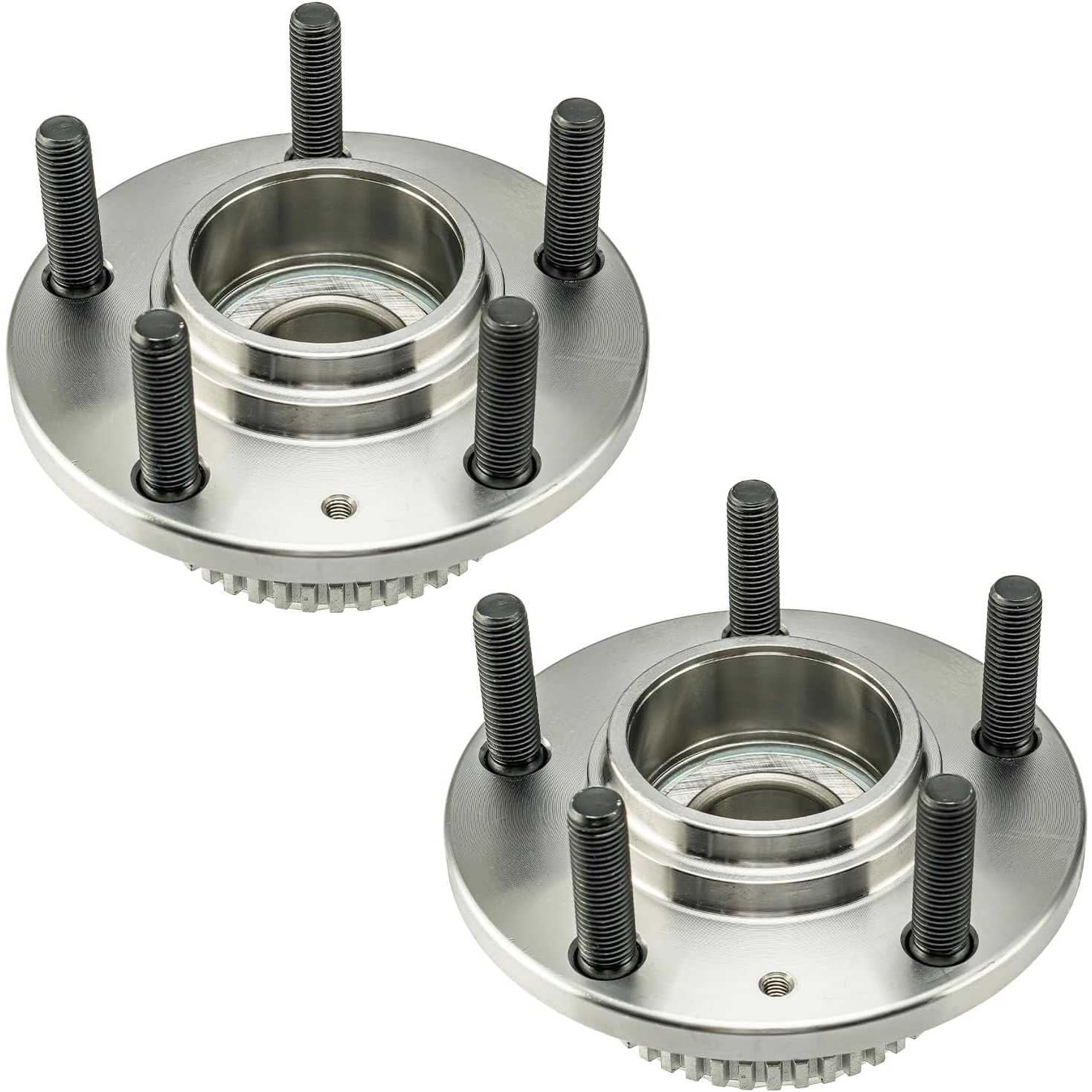

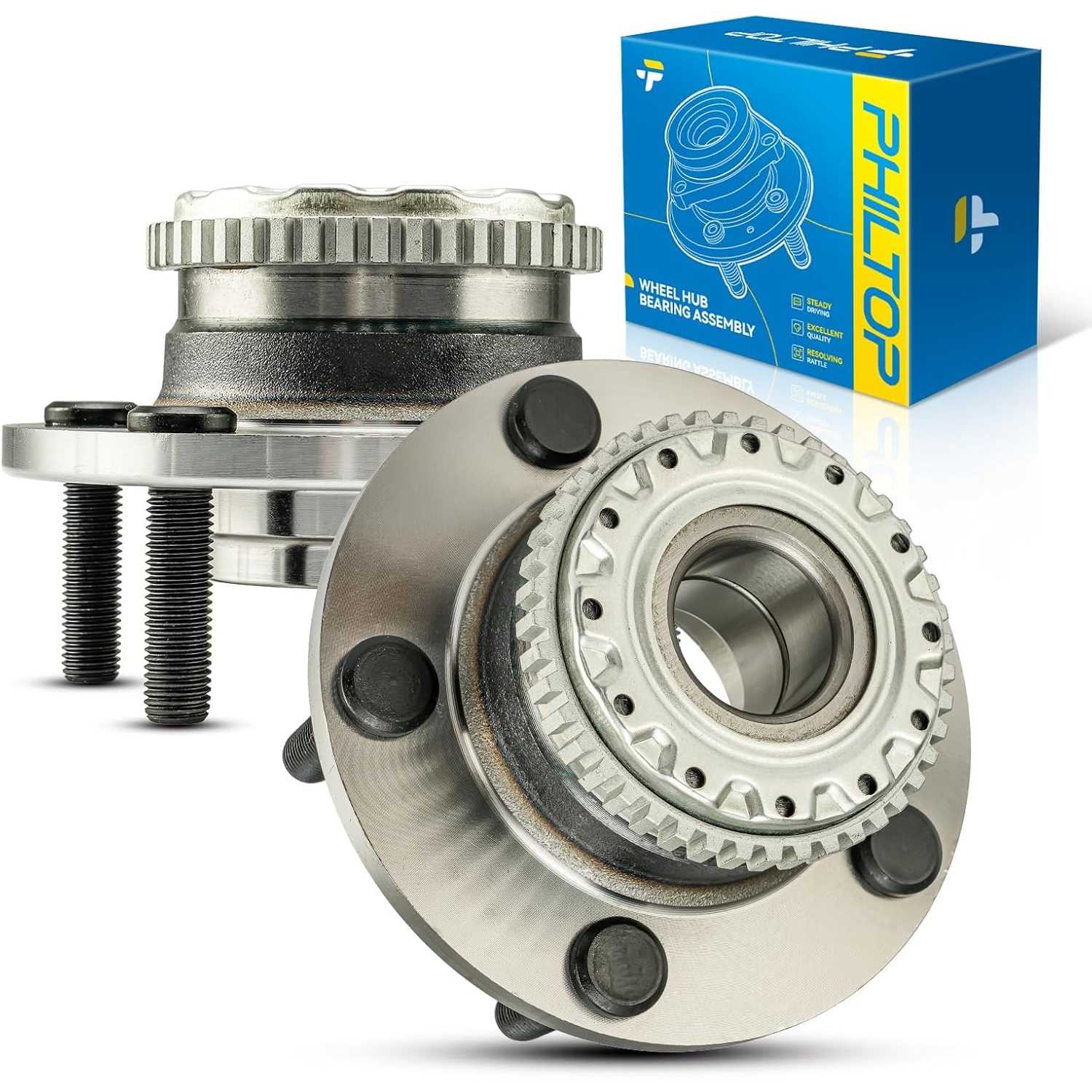

2x Rear Wheel Hub and Bearing Assembly - 512428,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
2.9 in
Wheel Stud Size
M12x1.5
Flange Diameter
5.47 in/139.0 mm
Brake Pilot Diameter
2.99 in/76.0 mm
Warranty Period
2-Year
OE Number
527102C100,527102C000,527102C001,527102C101,527102C005,527102C205,527102C105,527102C305
Part Number
512428,HA590200,WE61285,512429,40651008,40551006,7460289,7460121,40651008E,BR930494,512198,512199,712428,BR930398,0516124,BR930399,H512198,40751003,WH512198,RW8199,RW8198,102320,IJ112024,712198,373198,40551006E,H512199,0516104,NT512198,101891,1010221,1411248385,141149177,IJ112030,IJ112025,IJ112029
Quantity
2

Highlights

  • Compatibility: Rear Wheel Bearing and Hub Assembly for 2003-2008 Hyundai Tiburon.
  • Wheel Hub Num: 512428, 512198, 527102C305, 527102C100, PBR930398, 527102C105, 512199, HA590200, BR930398, 712428, NT512198, 527102C000, 527102C001, BR930399, 712199, 7460121, 40551006, WE61285, WA512428, H512198, 0516104, 40651008, 102320, WA512198, 40551006E, 7460289, 527102C101, H512199, 40651008E, 516104, 712198, 527102C005, WH512198, 1010336, 1010221, 141149177, 101891, 40751003, RW8198, PT512198, 29512198, 512429, 527102C205, 373198, 1411248385, RW8199, 40751003E.
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: Wheel bearings support the gravity of the entire body and precisely guide the wheel rotation. High-quality wheel hub assemblies allow you to drive your vehicle safely and smoothly.
  • Please Note: If you do not have an installation manual or are not skilled enough to install wheel bearings, it is recommended that you seek assistance from a qualified mechanic.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20032006 - 20082003 - 20082007 - 20082006 - 2008
MakeHyundaiHyundaiHyundaiHyundaiHyundai
ModelTiburonTiburonTiburonTiburonTiburon
TrimBaseGSGTGT LimitedSE
Engine2.0L L42.0L L42.7L V62.7L V62.7L V6
Note
4-Wheel ABS
4-Wheel ABS
4-Wheel ABS
4-Wheel ABS
4-Wheel ABS

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

DaveTheMechanic_182

03/02/2026

Installation was a breeze, everything lined up perfectly. Plus, it got here way faster than I expected. Super happy with the quick shipping and easy install.

RickFixIt_198

02/06/2026

Replaced my old worn-out hub with this one and man, what a difference. No more grinding noise and the ride feels so much smoother now. Definitely worth the upgrade.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Alignment may be advisable if suspension or steering components are disturbed during the repair. Follow the vehicle service procedure and check alignment if the vehicle pulls or the steering wheel is off-center.

Noise may come from another wheel bearing, the tire, brake, CV joint, or an installation issue. Recheck the installation and inspect nearby components before assuming the new bearing is faulty.
