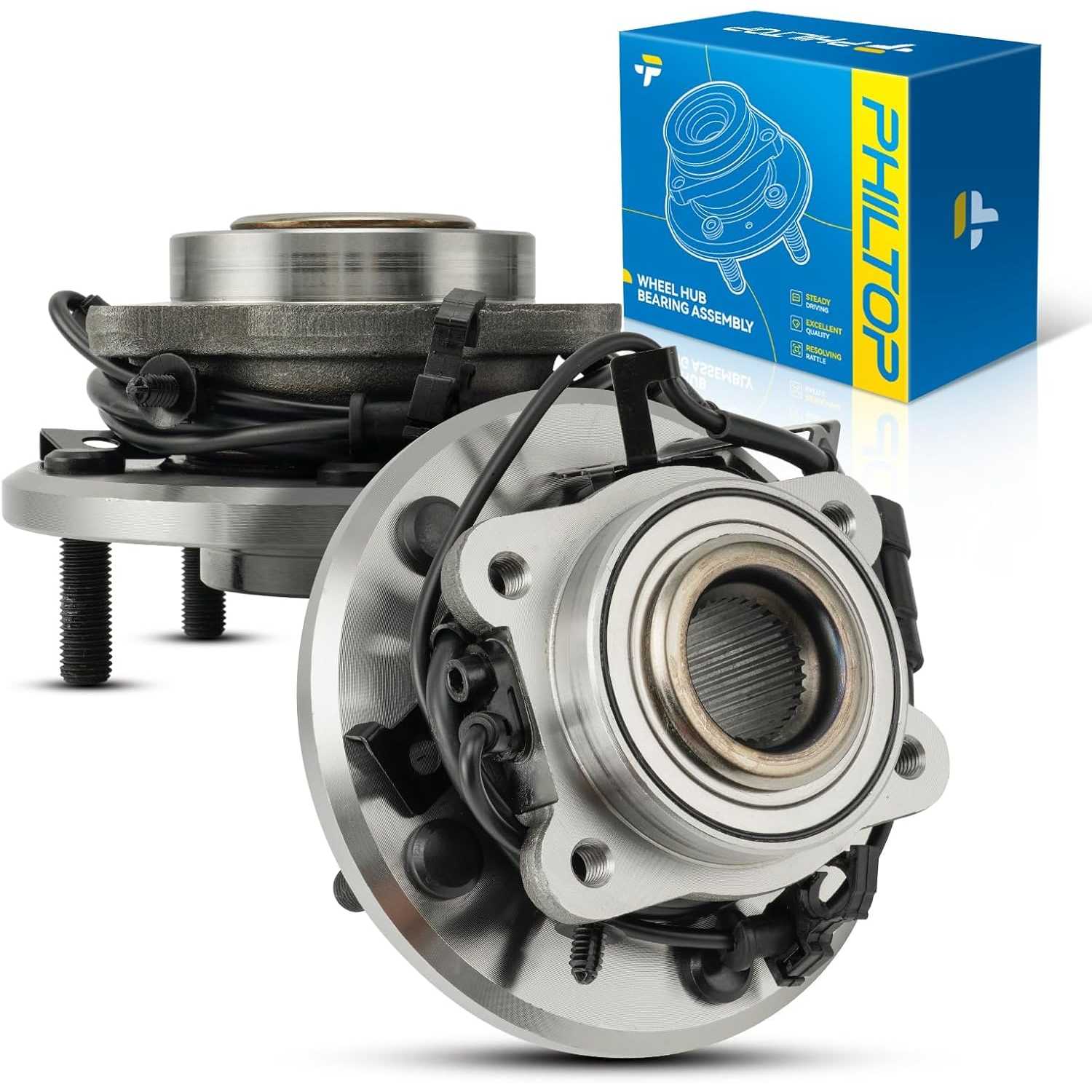

2009-2020 Dodge Journey 2.4L/3.5L/3.6L | 2 PC Rear Wheel Bearing | OE#05171125AA/512479 - PHILTOP

2009-2020 Dodge Journey 2.4L/3.5L/3.6L | 2 PC Rear Wheel Bearing | OE#05171125AA/512479 - PHILTOP

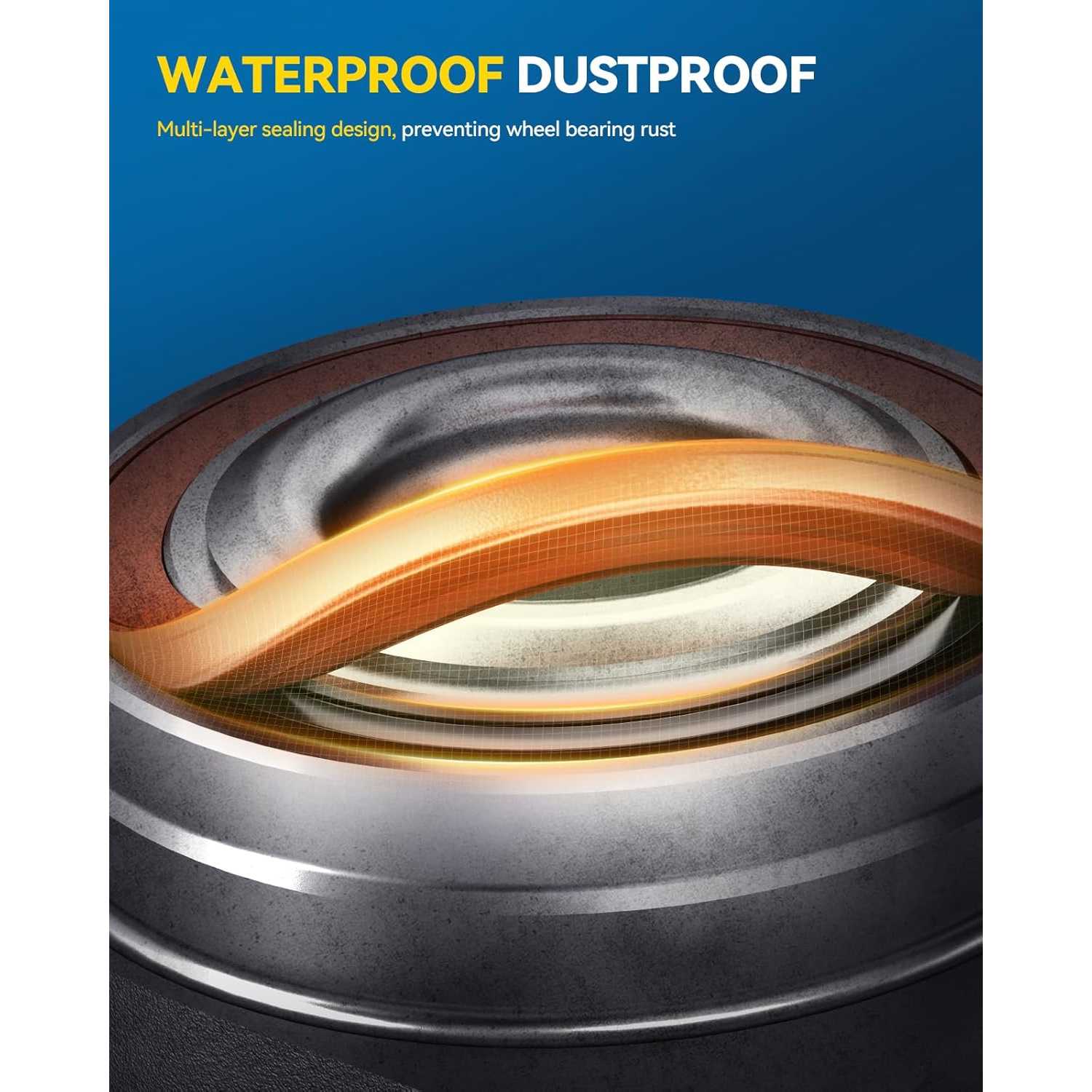

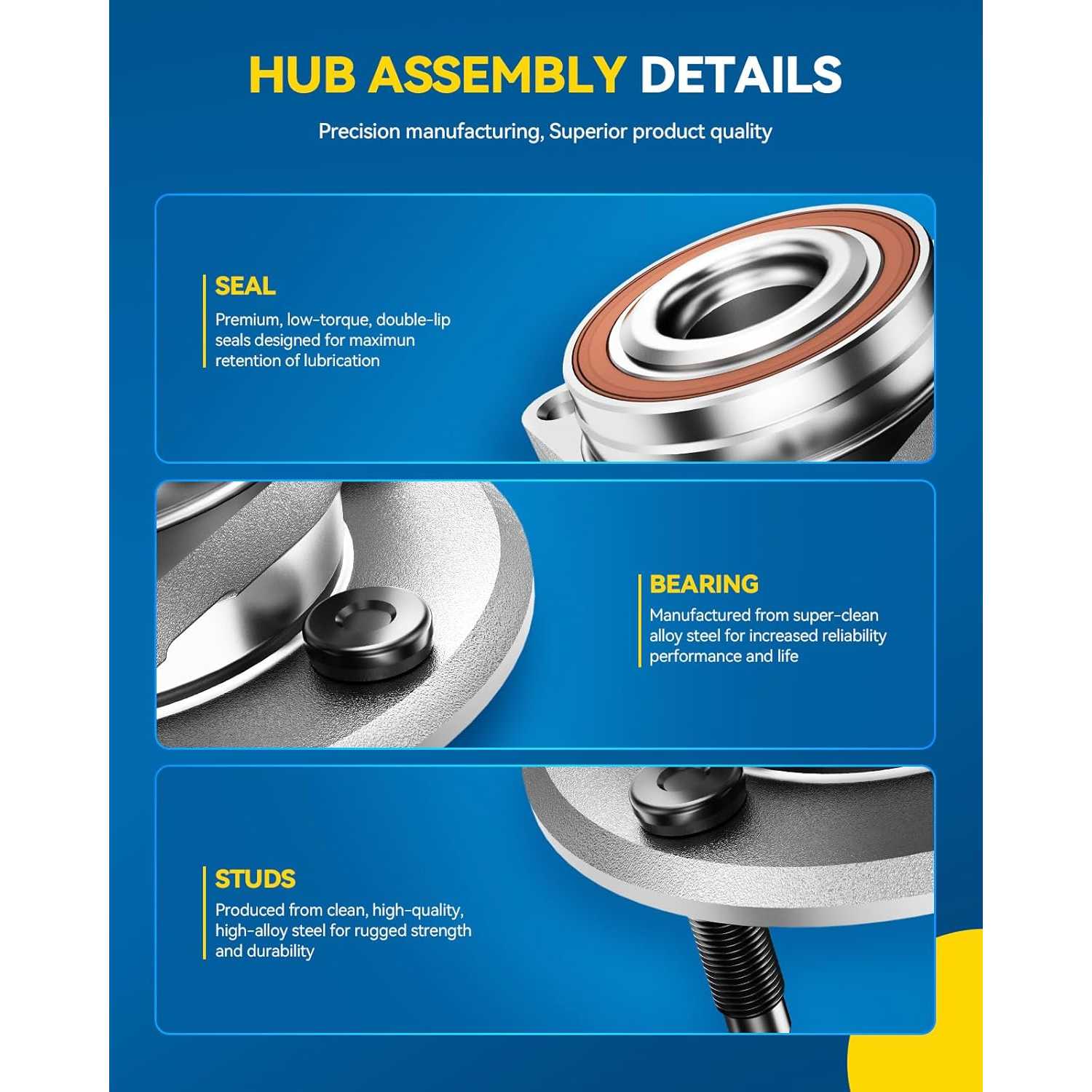

Triple-Lip Seal

Rear

AISI 52100

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4070WBR2929US

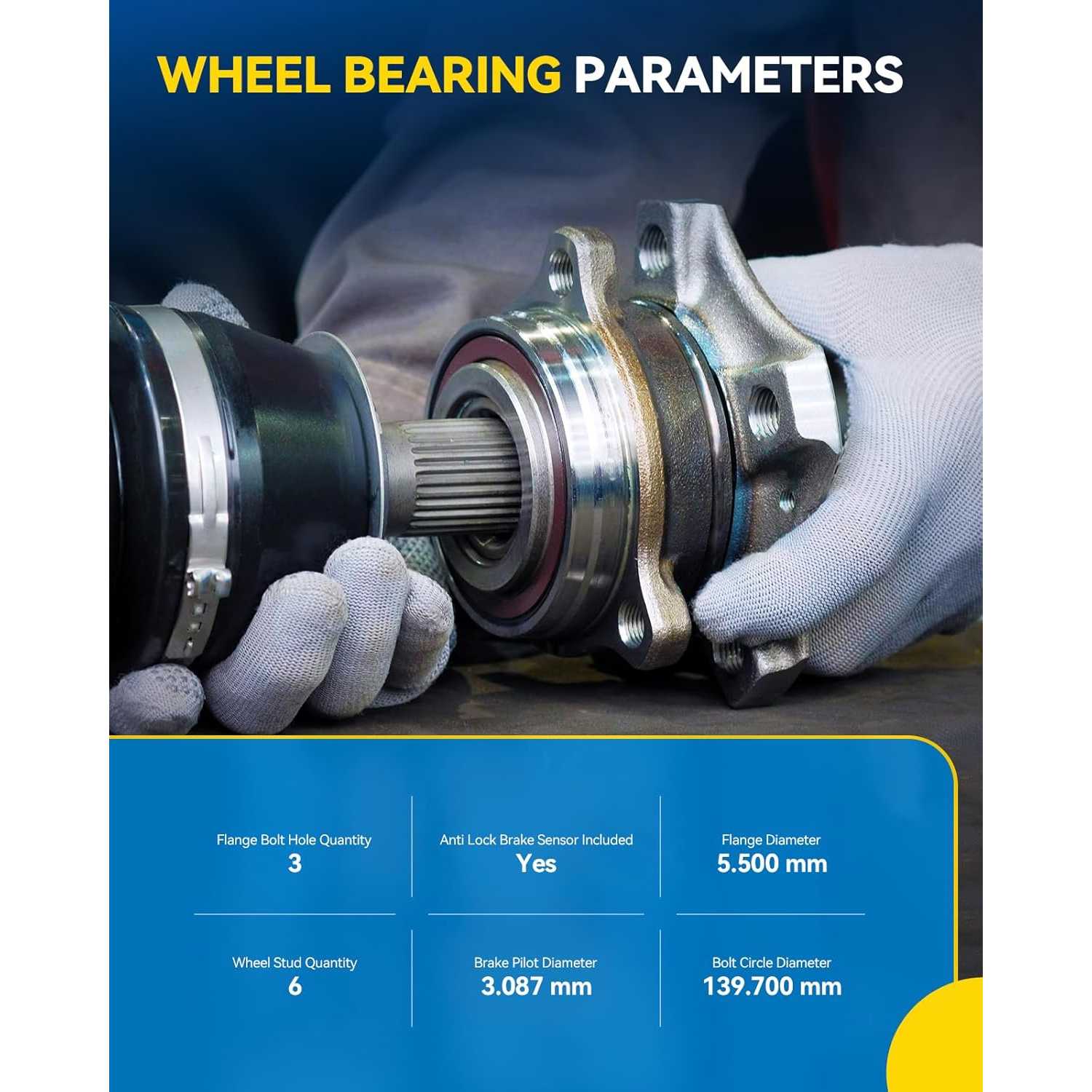

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

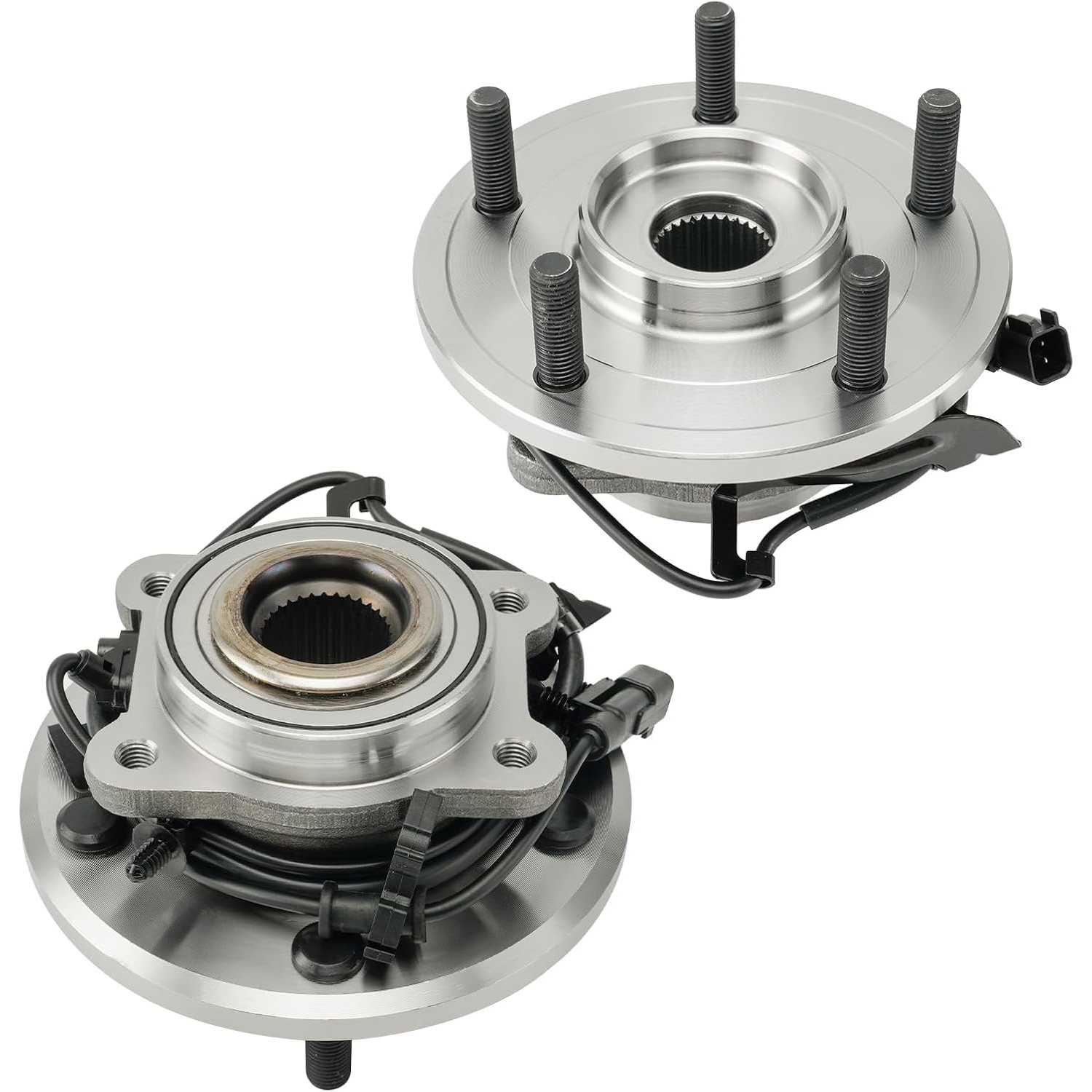

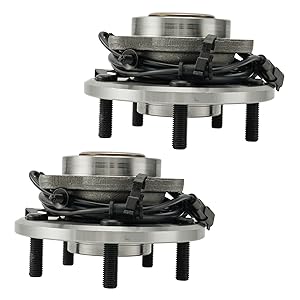

2x Rear Wheel Hub and Bearing Assembly - 512478/512479,Installation Instructions
Bolt Pattern
5 X 5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.3 in
Wheel Stud Size
M12x1.5
Flange Offset
1.91 in/48.6 mm
Warranty Period
2-Year
OE Number
05171125AA,05171125AC,05171125AB,68184743AC,05171125AD,05171124AB,68184744AB,04779797AA,05171124AA,04779796AB,68184744AA,68184745AA,68184743AB,5171124AD,68184742AC,04779796AA,4779797AA,5171125AC,68184743AA,5171125AD,05171125AE,5171125AA,05171124AC,68184742AA,05171124AE,05171124AD,4779796AA,4779796AB,5171124AC,5171124AA,05171125AF,5171125AF,68184742AB,5171124AF,05171124AF,68184745AB,5171124AB,5171125AB,5171125AE,5171124AE,4779797AB,04779797AB
Part Number
512479,512478,HA590362,HA590361,WE61364,WE61365,40263006,40263005,951203,MB25302,MB25301,BR930879,BR930869,7203090,BR930821,7203100,559748L,VKBA6679,559748R,712478,712479,PT512478,H512478,40263005E,1411424851,40263006E,1411424850,H512479,G25302,VKBA6763,G25301,PT512479,559748
Quantity
2

Highlights

  • Compatibility: Wheel Bearing and Hub Assembly for 2009-2017 2019-2020 Dodge Journey, 2018 Dodge Journey FWD, 2018 Dodge Journey AWD
  • Wheel Hub Num: 512478, HA590362, MB25301, 04779797AA, 05171125AB, 05171125AA, 05171125AC, BR930879, 05171125AD, 5171125AB, 951203, BR930869, 5171125AA, 5171125AC, 5171125AD, 4779797AA, 05171125AE, 68184743AA, 68184743AB, 5171125AE, BR930821, VKBA6679, 68184745AA, 68184743AC, 7203100, 05171125AF, 5171125AF, WE61365, 68184745AB, 559748L, 712478, 40263005E, 40263005, 1411424851, H512478, G25301.
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: Wheel bearings support the gravity of the entire body and precisely guide the wheel rotation. High-quality wheel hub assemblies allow you to drive your vehicle safely and smoothly.
  • Please Note: If you do not have an installation manual or are not skilled enough to install wheel bearings, it is recommended that you seek assistance from a qualified mechanic.

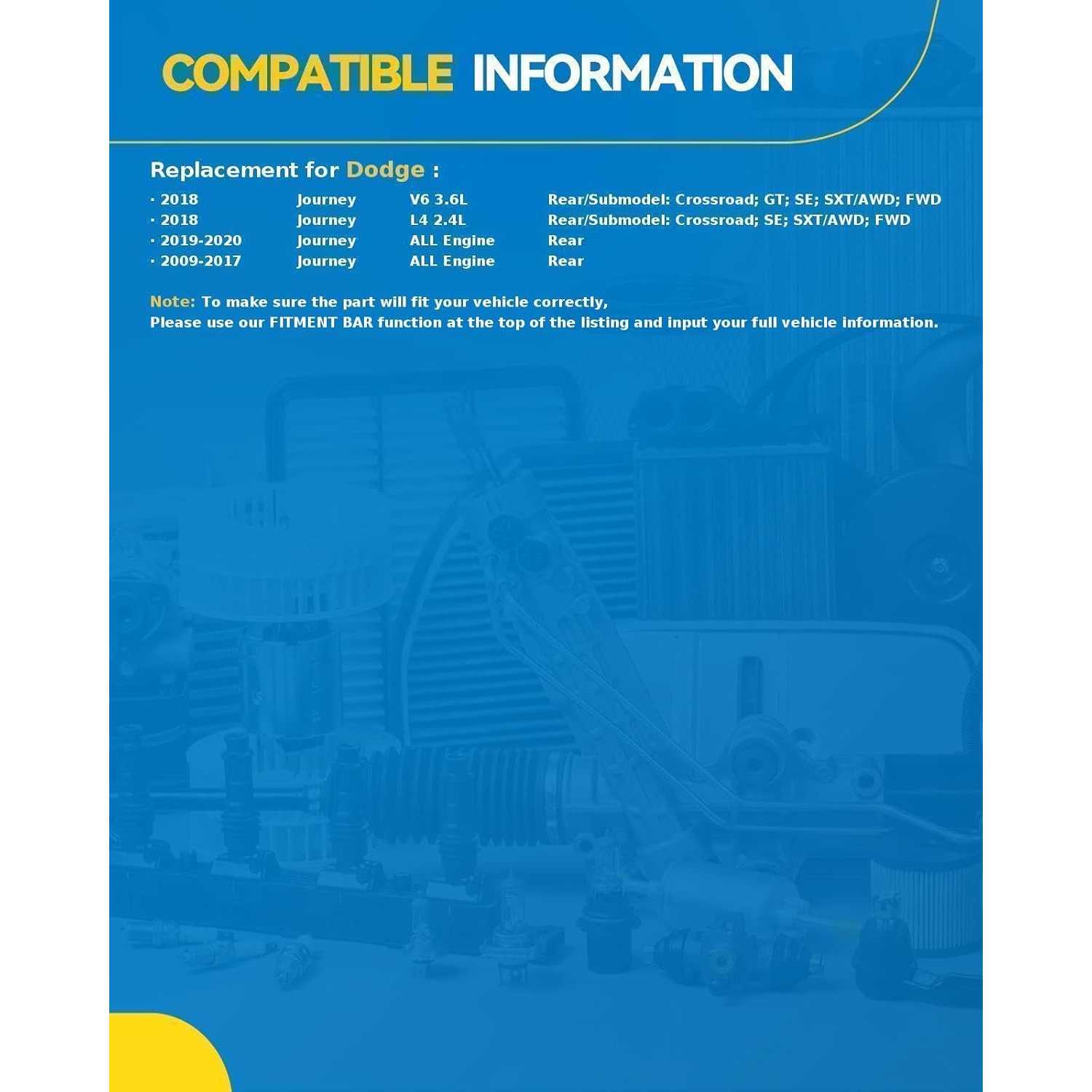

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20132015201020102011 - 20132014 - 201720182019 - 20202014 - 20172018201920112017201820192014 - 2015201120112009 - 20102011 - 20162009 - 20102012 - 2017201820192015 - 20172018201920202012 - 201720182009 - 20102012 - 20172018
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
ModelJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourneyJourney
TrimAVPAVPBaseCrewCrewCrossroadCrossroadCrossroadCrossroadCrossroadCrossroadExpressGTGTGTLimitedLuxMainstreetR/TR/TSESESESESESESESE ValueSXTSXTSXTSXTSXT
Engine2.4L L42.4L L42.4L L43.5L V63.6L V62.4L L42.4L L42.4L L43.6L V63.6L V63.6L V62.4L L43.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.5L V63.6L V62.4L L42.4L L42.4L L42.4L L43.6L V63.6L V63.6L V62.4L L42.4L L42.4L L43.5L V63.6L V63.6L V6
Note------
All-Wheel Drive
--
All-Wheel Drive
---
All-Wheel Drive
--------
All-Wheel Drive
--
All-Wheel Drive
---
All-Wheel Drive
--
All-Wheel Drive

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

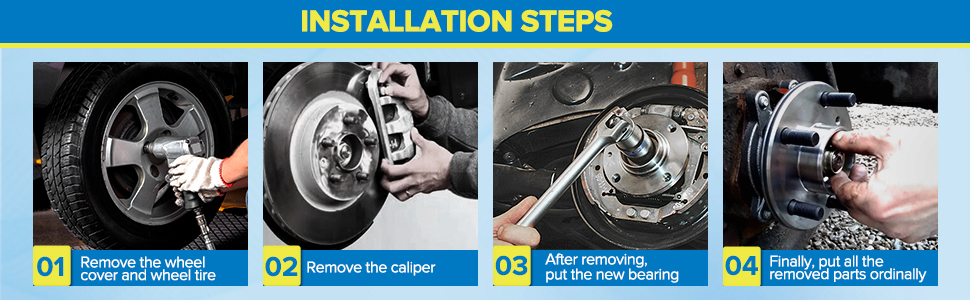

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Jason_Trucks_933

04/28/2026

That annoying squeal is history! This hub assembly fixed the issue completely. My Journey feels so much more stable and quiet now. Big improvement.

RickFixIt_720

02/19/2026

Seems like a solid piece of hardware, good quality for the price. The instructions were a little sparse, but I managed to get it installed okay. Performance is good so far.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.
