2013-2020 Mitsubishi Outlander Sport 2.0L L4 | 2 PC Rear FWD Wheel Bearing | 512563 - PHILTOP

2013-2020 Mitsubishi Outlander Sport 2.0L L4 | 2 PC Rear FWD Wheel Bearing | 512563 - PHILTOP

Triple-Lip Seal

Rear

FWD

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8948WBR2674US

Specifications

Brand
PHILTOP
Drive Type
FWD
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

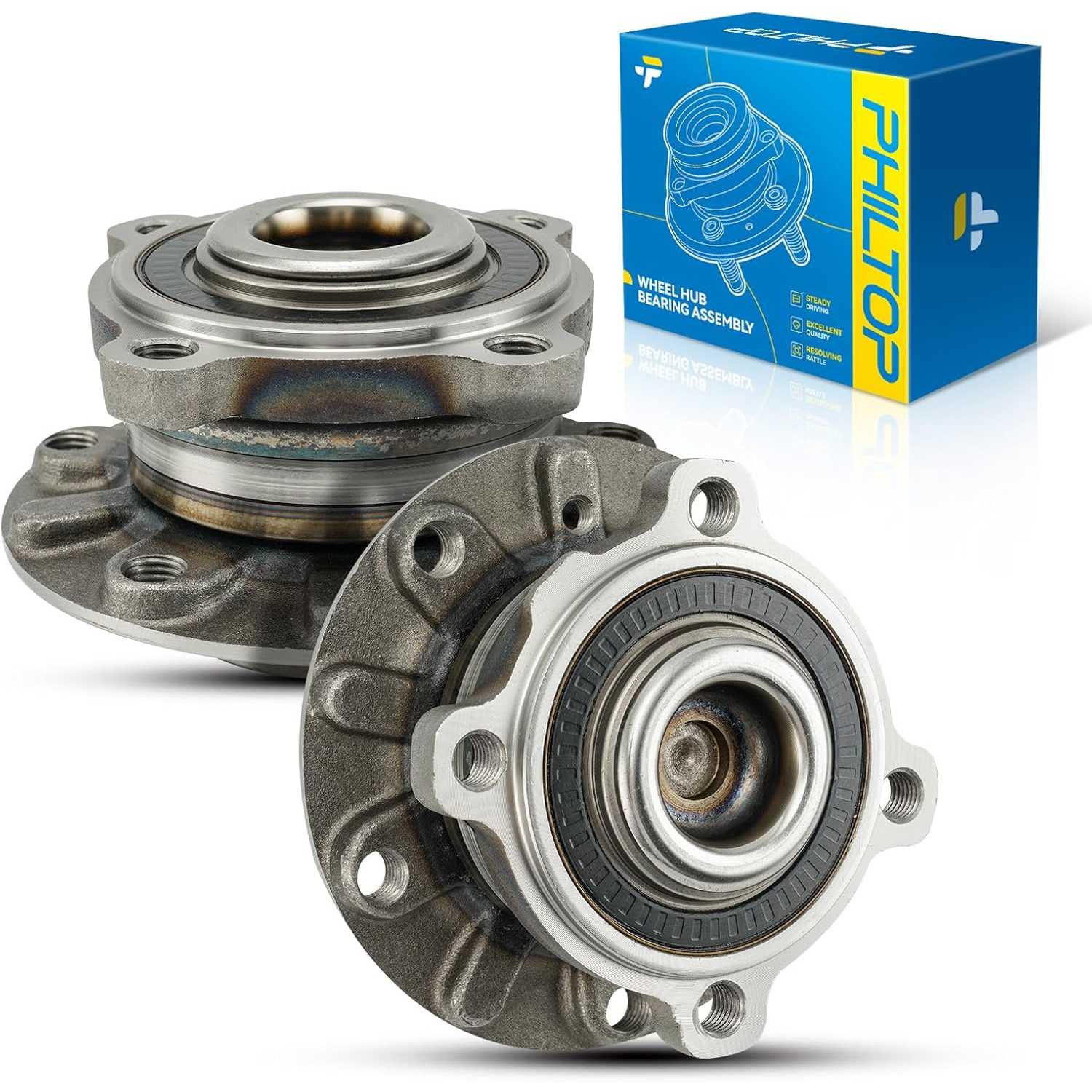

2x Rear Wheel Hub and Bearing Assembly - 512563,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.1 in
Wheel Stud Size
M12*1.5
Flange Offset
2.38 in/60.5 mm
Flange Diameter
5.53 in/140.5 mm
Brake Pilot Diameter
2.71 in/68.9 mm
Warranty Period
2-Year
Part Number
512563,HA590753,WE61867,WA512563,40746001,102637,7483050,1411584266
Quantity
2

Highlights

  • Exact Replacement: 512563 Rear Wheel hub assembly compatible with Mitsubishi Outlander Sport 2013-2020 FWD, Mitsubishi Outlander 2013-2020 FWD, Mitsubishi Eclipse Cross 2018-2020 FWD

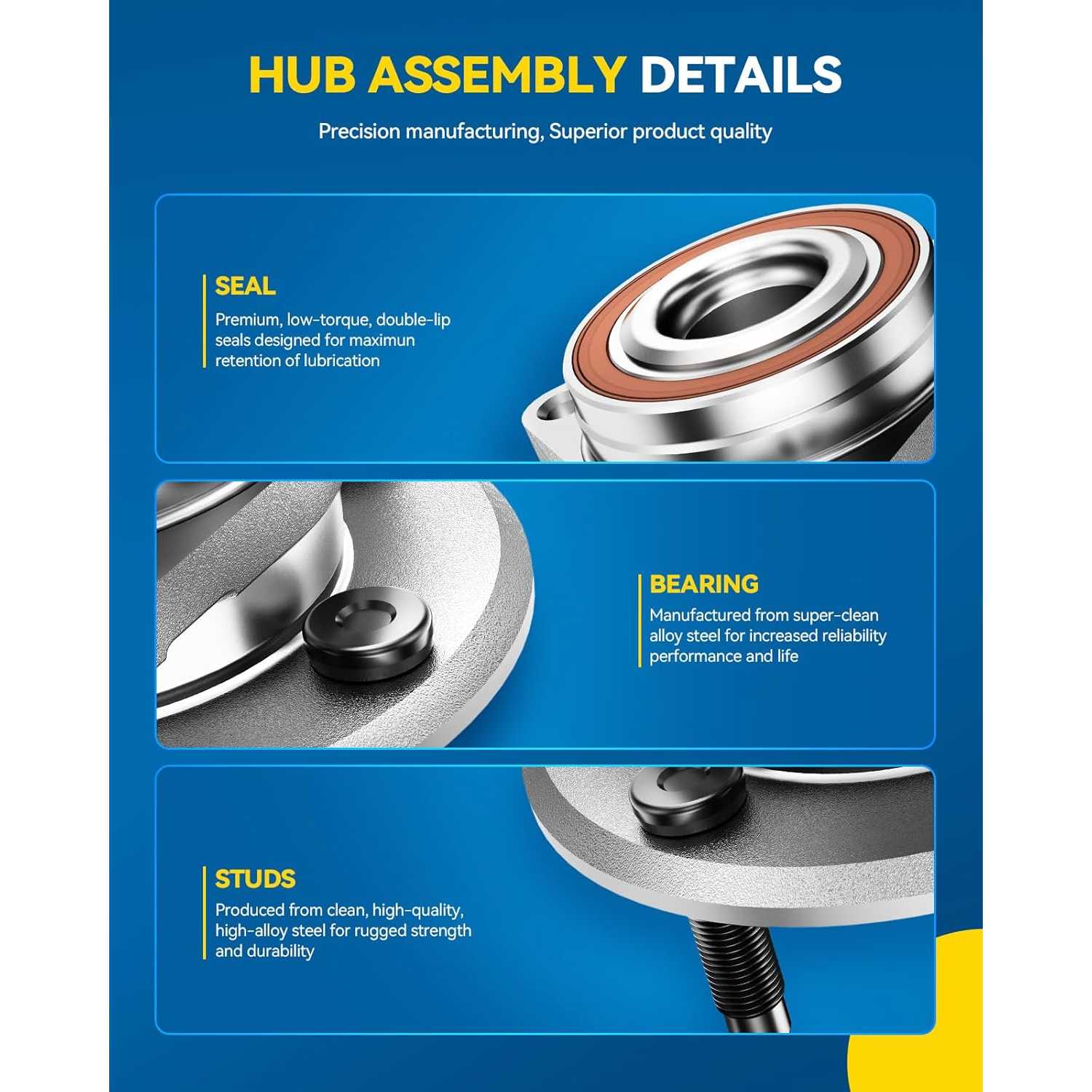

  • Premium Quality Materials: The wheel bearing hub assembly is crafted from high-grade materials. The outer ring and flange are constructed using premium #55 carbon structural steel, ensuring exceptional surface hardness and strength.

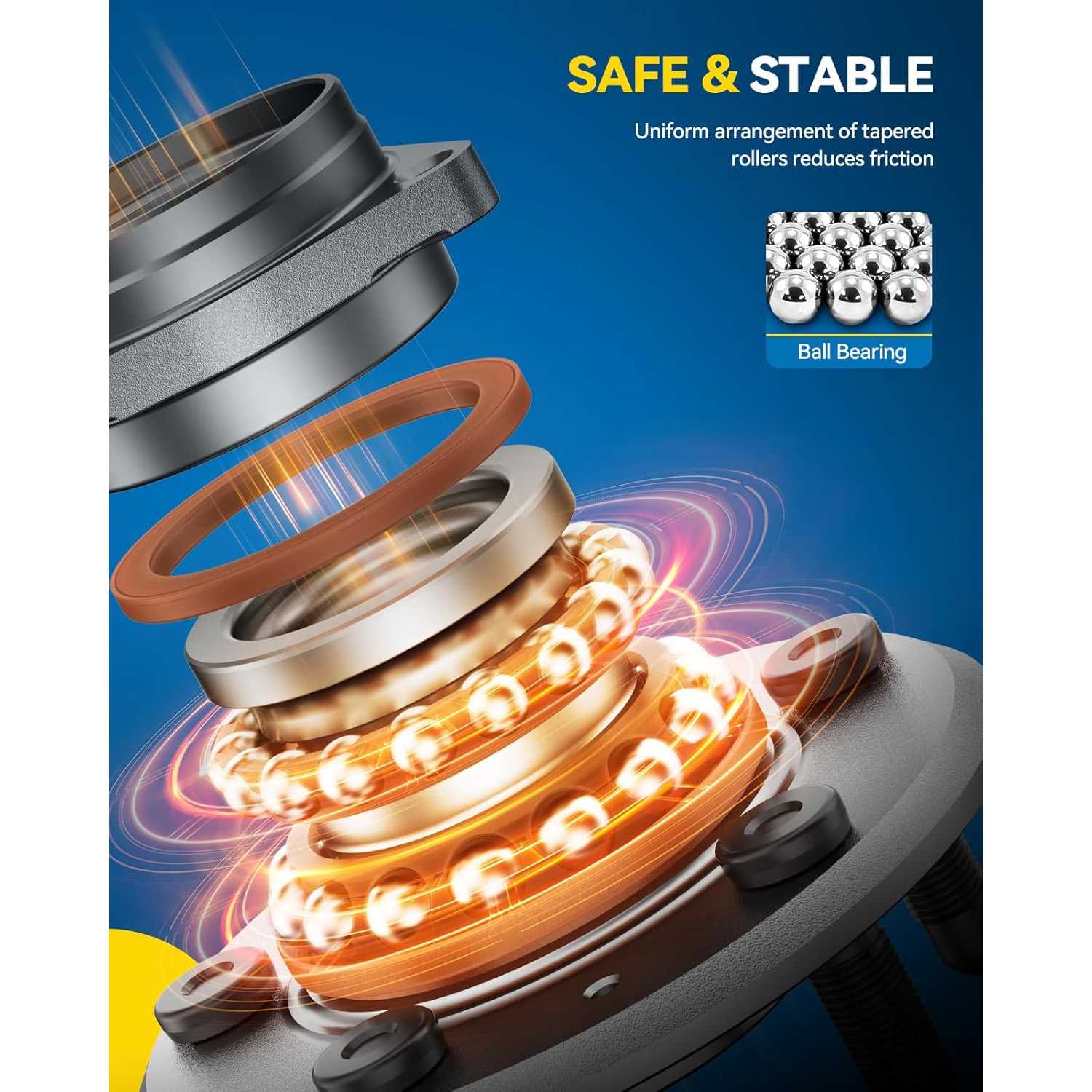

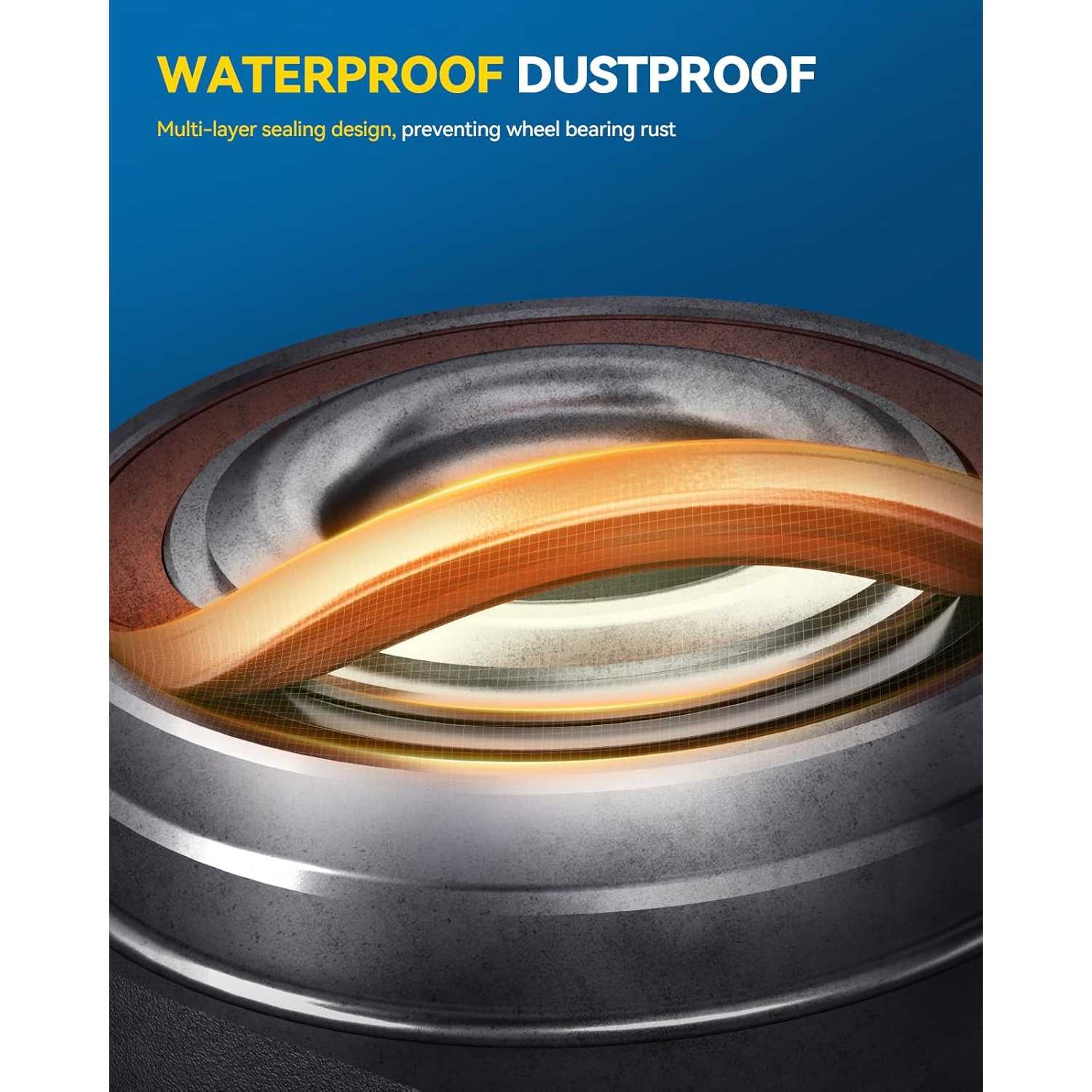

  • Long Lifespan: The brand-new wheel hub assemblies and studs feature a corrosion-resistant surface finish, ensuring extended bearing life. With an advanced seal design and triple oil seals, they deliver lasting performance while reducing noise and vibration. The enhanced sealing also effectively blocks moisture and contaminants.
  • Installation: Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

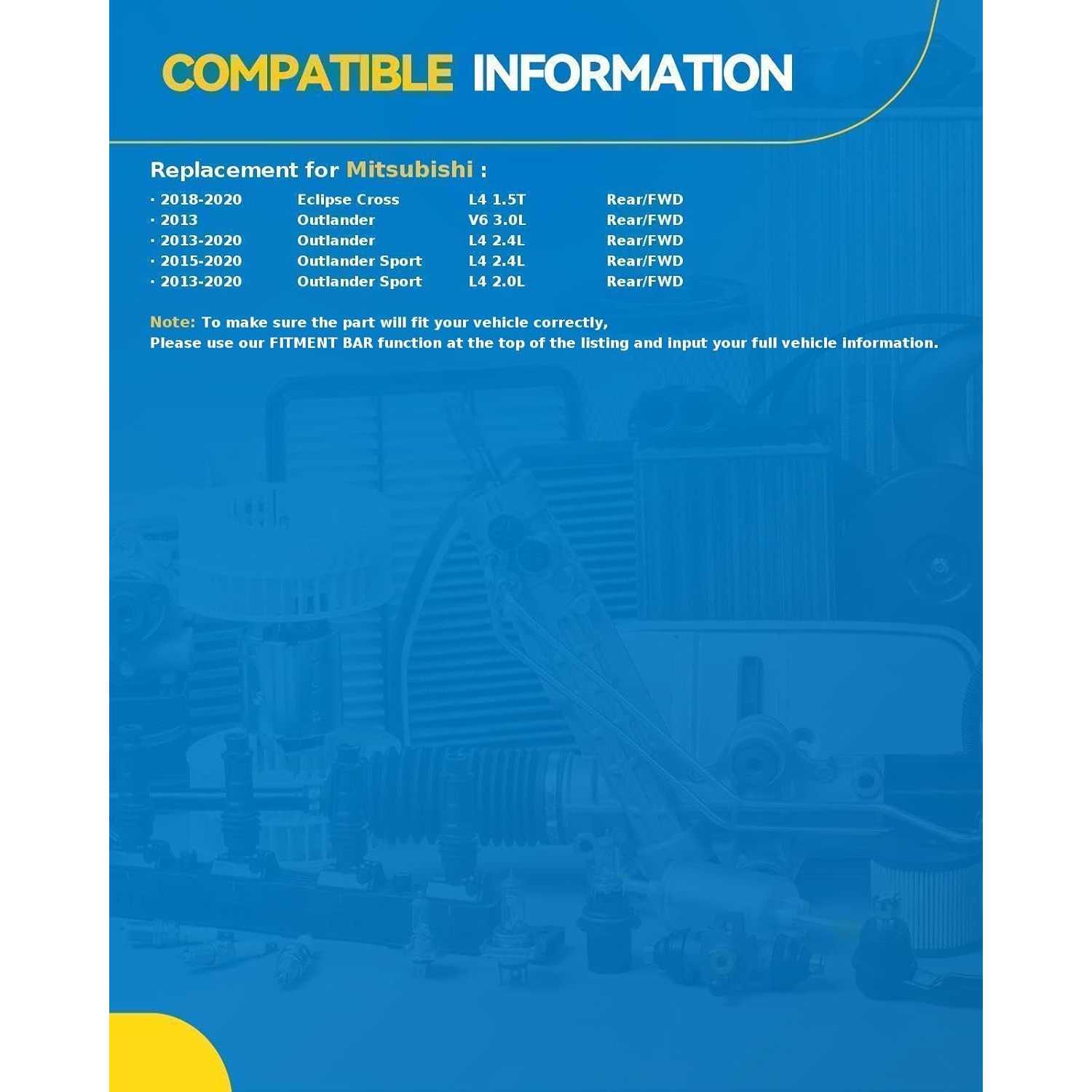

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2018 - 202020202020202020202013 - 202020132018 - 20202013 - 20202016 - 2020202020202013 - 20202015 - 20162015 - 20162019 - 202020132018 - 20192013 - 20152019 - 20202016 - 20182016 - 20182019 - 2020
MakeMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishi
ModelEclipse CrossEclipse CrossEclipse CrossEclipse CrossEclipse CrossOutlanderOutlanderOutlanderOutlanderOutlanderOutlanderOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander SportOutlander Sport
TrimESLESESELSPESGTLESESELSPBEESESGTGTLELESESESESELSP
Engine1.5L L41.5L L41.5L L41.5L L41.5L L42.4L L43.0L V62.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.0L L42.0L L42.0L L42.0L L42.4L L42.4L L42.0L L4
Note-----------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Customer photos and videos

aschae

10/12/2026

Verified buyer

Solid wheel bearing assembly. This bolted up and fit as it should. It spun smoothly and freely before installation. All the machining and hardware appear as good as any to me. So far, it has held up without any issues and is fairly priced, in my opinion. No noise after installation - happy so far!

Renton

10/02/2026

Verified buyer

Seems well made and installed without any issues. Fitment was correct and everything lined up as expected. No unusual noise or play after installation. Long-term durability is the main unknown, only time will tell how it holds up! **UPDATE** 500 miles later, still quiet with no play or ABS issues.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Keep the part clean, avoid impact through the rolling elements, use the correct pressing surface, and tighten fasteners to the specified torque. Professional installation is recommended if special tools are required.

Possible signs include humming or grinding that changes with vehicle speed, wheel looseness, vibration, or an ABS warning. Similar symptoms can have other causes, so an inspection is recommended.
