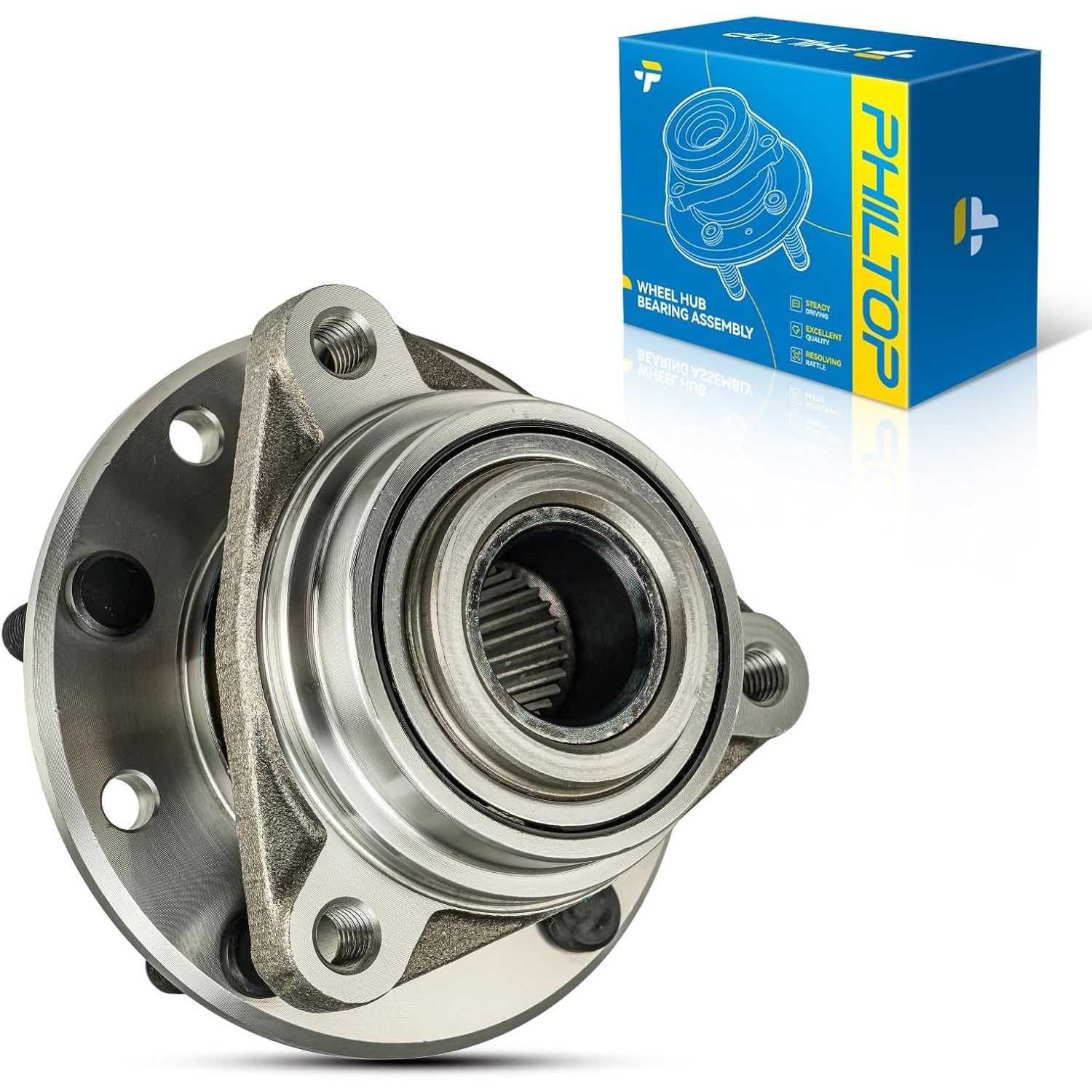

1984-1996 Chevrolet Corvette 5.7L V8 | 1 PC Front Rear Wheel Bearing | 513013 - PHILTOP

1984-1996 Chevrolet Corvette 5.7L V8 | 1 PC Front Rear Wheel Bearing | 513013 - PHILTOP

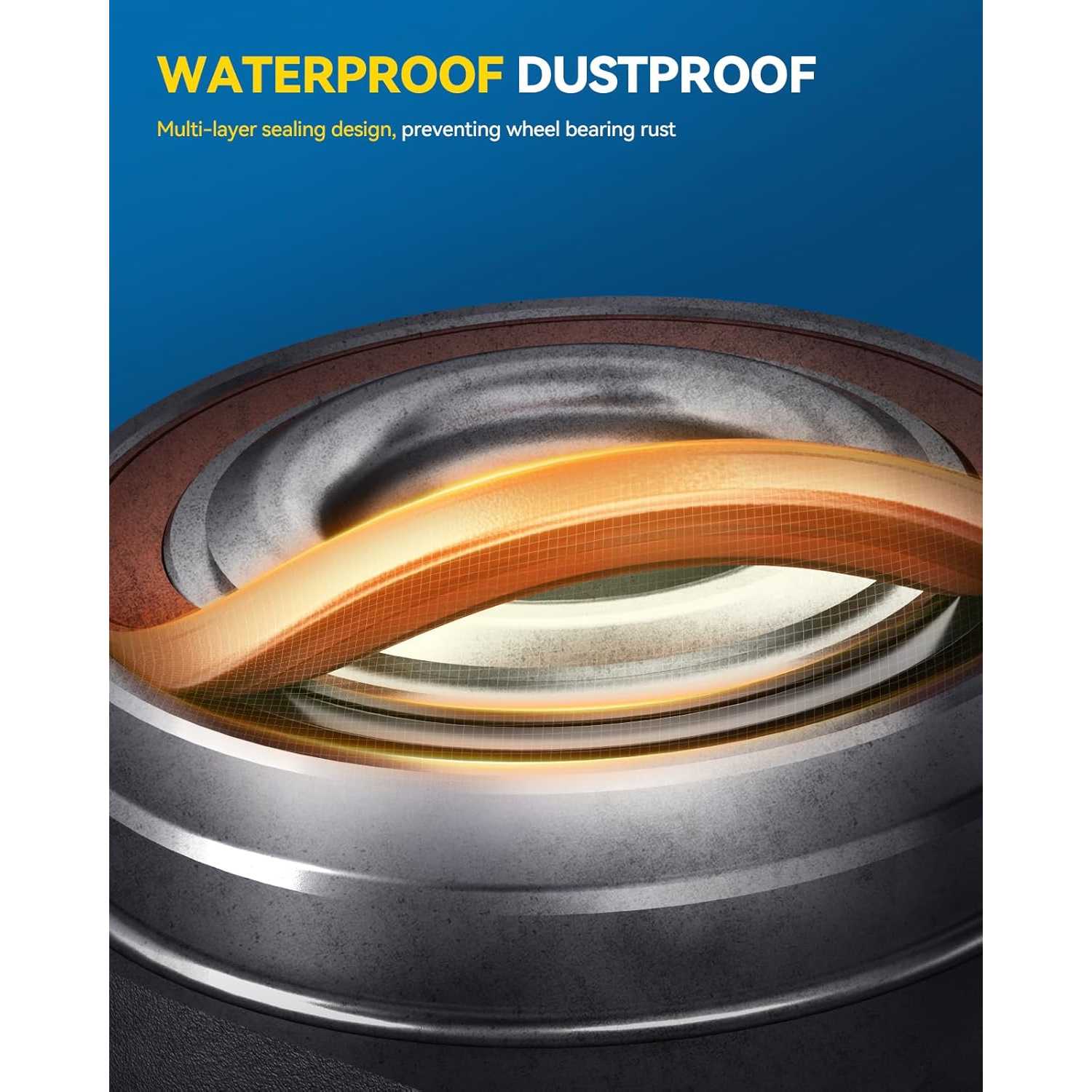

Triple-Lip Seal

Front、Rear

AISI 52100

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4204WBK476KUS

Specifications

Brand
PHILTOP
ABS Type
No
Lug Count
5
Position
Front、Rear
Flange Bolt Hole Count
3
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

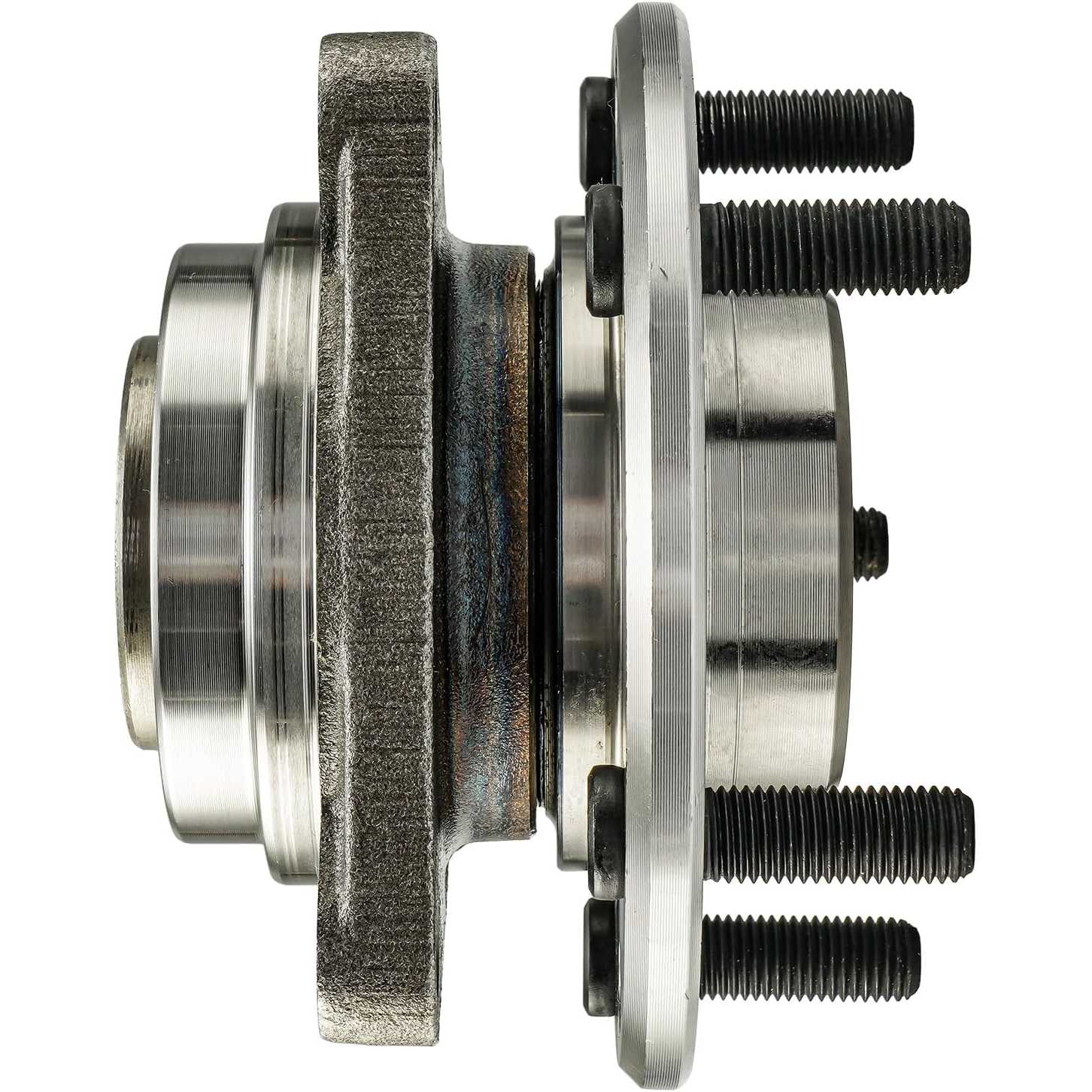

1x Front、Rear Wheel Hub and Bearing Assembly - 513013,Installation Instructions
Bolt Pattern
5x4.7
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.2 in
Flange Offset
1.86 in/47.2 mm
Flange Diameter
5.69 in/144.5 mm
Brake Pilot Diameter
2.78 in/70.6 mm
Warranty Period
2-Year
OE Number
7470005,7470536,7466952,7466907,7466920,7466942,7470501,7466924,7466945,7470502,7450005,7570005,74700S
Part Number
513013,7300035,713013,WE61390,40062010,40062010E,2020,BR930052K,513020,207,BR930024,2024,WH513013,H513013,2052K,NT513013,2045,VKBA1612,RW407,B20X52,951866,104013,NT513020,2028,2020TR,B2020,207TR,PT513013,FW913K,VKBA1614,G513013,4006201,WH64510K,RW920,FW920,FW913,PT513020,B93,104020,HA513013,141102098,BR930052,B95,53035052,45309,HZF031B3B
Quantity
1

Highlights

  • Compatibility: Wheel Bearing and Hub Assembly for 1984-1996 Chevrolet Corvette, 1983-1993 Chevrolet S10 4WD, 1983-1991 Chevrolet S10 Blazer 4WD, 1979-1985 Cadillac Eldorado, 1983-1991 GMC S15 Jimmy 4WD, 1983-1990 GMC S15 4WD, 1979-1985 Buick Riviera, 1980-1985 Cadillac Seville, 1979-1985 Oldsmobile Toronado.
  • Wheel Hub Num: BR930745, 513013, 7470005, 7470536, BR930052K, BR930024, 7466952, 513020, 7466942, 7466920, 7466907, NT513013, 7300035, H513013, 713020, 2052K, VKBA1612, 713013, NT513020, WH513013, 7466945, WA513013, 7300206, 104013, 2045, 7466924, 7470502, 4006201, B93, G513013, GM0005, FW913K, MG0005, B95, 7470501, 2024, VKBA1614, 40062010, 29513013, PBR930052K, 40062010E.
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: Wheel bearings support the gravity of the entire body and precisely guide the wheel rotation. High-quality wheel hub assemblies allow you to drive your vehicle safely and smoothly.
  • Please Note: If you do not have an installation manual or are not skilled enough to install wheel bearings, it is recommended that you seek assistance from a qualified mechanic.

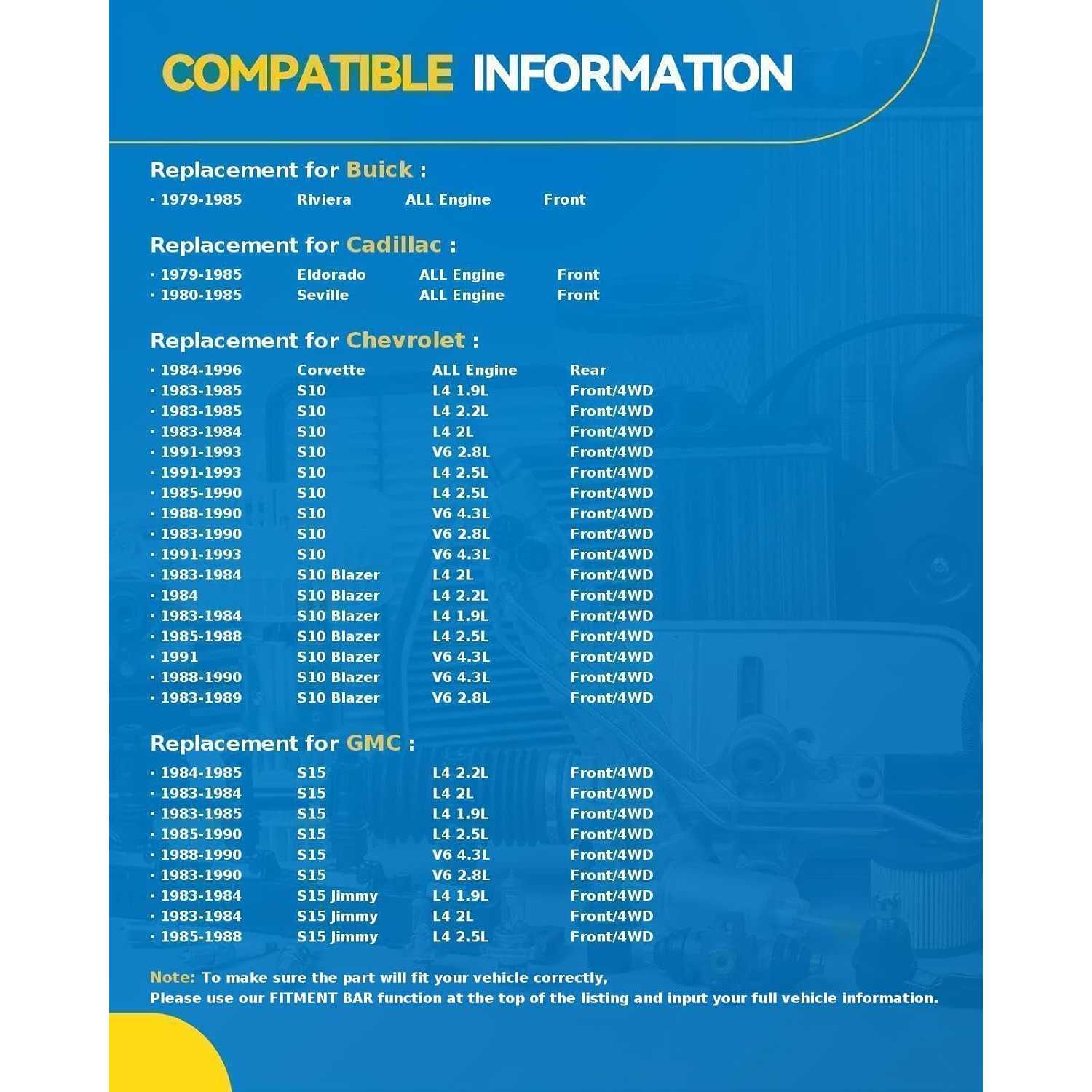

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1980 - 19811984 - 19851981 - 19841980 - 19851979 - 19851982198219821984 - 19851983 - 19841983 - 19851983 - 19851979 - 198019801979 - 19801981 - 1985198119811983198319831981 - 19821982 - 19851979 - 19851980 - 19811981 - 19821982 - 19851979 - 19831980 - 19811981198119811981 - 19821982 - 19851979 - 19851980 - 198119821982 - 19851982 - 19851981 - 19821982 - 19851980 - 19851980 - 19811981 - 19821982 - 19851980 - 19851980 - 1981198819931984 - 199619961996198619951990 - 1995199119911983 - 19851983 - 19841983 - 19851985 - 19901991 - 19931983 - 19901991 - 19931988 - 19901991 - 19931983 - 19851983 - 19841983 - 19851985 - 19901983 - 19901988 - 19901992 - 19931992 - 19931992 - 19931983 - 19851983 - 19841983 - 19851985 - 19891983 - 19891988 - 19891983 - 19851983 - 19841983 - 19851985 - 19901991 - 19921983 - 19901991 - 19921988 - 19901991 - 19921983 - 19841983 - 198419841985 - 19881983 - 19891988 - 199019911987 - 19881987 - 19891988 - 19891983 - 19841983 - 198419841985 - 19881983 - 19891988 - 19901983 - 19841983 - 198419841985 - 19881983 - 198819881990199119911983 - 19851983 - 19841984 - 19851985 - 19901983 - 19901988 - 199019871987198319831986 - 198819831986 - 198819881983 - 19851983 - 19841984 - 19851985 - 19901983 - 19901988 - 19901983 - 19851983 - 19841984 - 19851985 - 19901983 - 19901988 - 19901983 - 19841983 - 19841985 - 19881983 - 19891988 - 199019911983 - 19841983 - 19841985 - 19881983 - 19891988 - 1990198519851991199119911983 - 19841983 - 19841985 - 19881983 - 19891988 - 199019881988 - 19891988 - 19891981 - 19841980 - 19851979 - 1985198519851980 - 19811980 - 19811979
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobile
ModelRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoSevilleSevilleSevilleSevilleSevilleSevilleSevilleSevilleCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteS10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS10 BlazerS15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyS15 JimmyToronadoToronadoToronadoToronadoToronadoToronadoToronadoToronado
TrimBaseBaseBaseBaseBaseLimited EditionLimited EditionLimited EditionLuxuryLuxuryLuxuryLuxurySSST-TypeT-TypeT-TypeXX Anniversary EditionXX Anniversary EditionXX Anniversary EditionBaseBaseBaseBaseBiarritzBiarritzBiarritzBiarritzBrougham d'EleganceBrougham d'EleganceBrougham d'EleganceCabrioletCabrioletCabrioletCabrioletTouringTouringTouringBaseBaseBaseBaseEleganteEleganteEleganteElegante35th Anniversary Edition40th Anniversary EditionBaseCollector's EditionGrand SportIndianapolis 500 Pace CarIndianapolis 500 Pace CarZR-1BajaBajaBaseBaseBaseBaseBaseBaseBaseBaseBaseDurangoDurangoDurangoDurangoDurangoDurangoELELELSportSportSportSportSportSportTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeBaseBaseBaseBaseBaseBaseBaseHigh CountryHigh CountryHigh CountrySportSportSportSportSportSportTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoe LTBaseBaseBaseBaseBaseBaseELELGypsyGypsyGypsyGypsyGypsyGypsyHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicBaseBaseBaseBaseBaseBaseGypsyGypsyGypsyGypsyGypsyHigh SierraHigh SierraSLESLSSLTSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicTimberlineTimberlineTimberlineBroughamBroughamBroughamCalienteCalienteXSCXSCXSR
Engine3.8L V63.8L V64.1L V65.0L V85.7L V84.1L V65.0L V85.7L V83.8L V64.1L V65.0L V85.7L V83.8L V65.0L V85.7L V83.8L V64.1L V65.0L V84.1L V65.0L V85.7L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V65.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V86.0L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V82.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.5L L42.8L V62.8L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.5L L42.8L V62.8L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V64.3L V62.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V64.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V61.9L L42.0L L42.5L L42.8L V62.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.5L L42.8L V64.3L V64.3L V61.9L L42.0L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V64.3L V64.3L V61.9L L42.0L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V64.1L V65.0L V85.7L V85.0L V85.7L V85.0L V85.7L V85.7L V8
Note-------------------------------------------------------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
----
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
----------
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
------
Recommended for Use in Vehicles without ABS
----------------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
-------------------------------
Recommended for Use in Vehicles without ABS
-------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Nancy_FirstCar_347

03/26/2026

The old bearing was shot and causing all sorts of vibrations. This new one smoothed everything out instantly. My Corvette handles so much better now, I'm thrilled with the results.

Emma_DailyCommute_236

01/27/2026

This bearing feels really solid and well-made. For the price, it's an excellent value. It fit perfectly and has been working great ever since I installed it. Good quality part.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some vehicle manufacturers specify a one-time-use axle nut. Check the service procedure for your vehicle and use new hardware when required.

Torque values differ by vehicle and fastener. Use the vehicle manufacturer’s specification rather than a general value, as incorrect torque may affect bearing operation.
