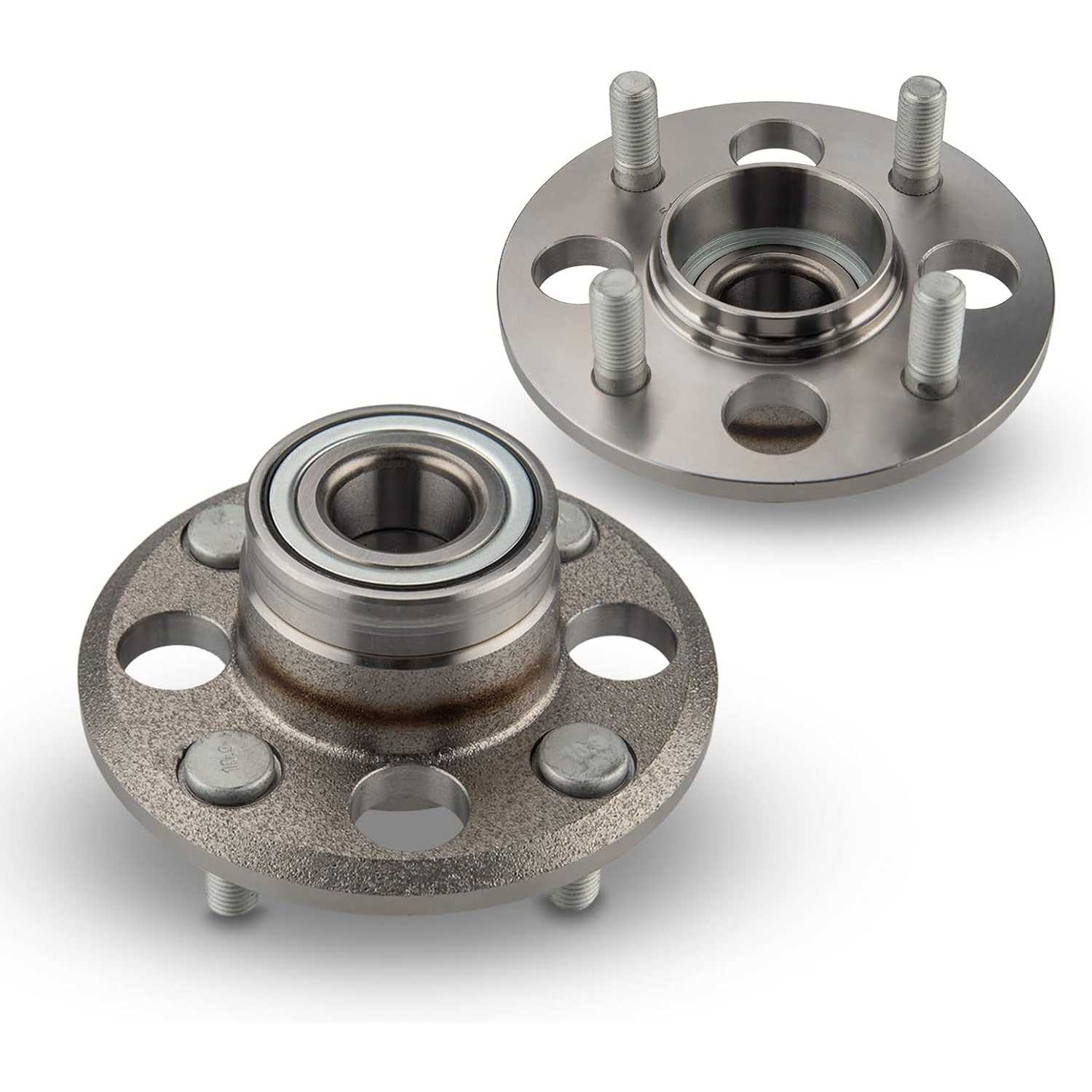

1985-2000 Honda Civic 1.5L/1.3L/1.6L | 2 PC Rear Wheel Bearing | 42200ST3E01/513035 - PHILTOP

1985-2000 Honda Civic 1.5L/1.3L/1.6L | 2 PC Rear Wheel Bearing | 42200ST3E01/513035 - PHILTOP

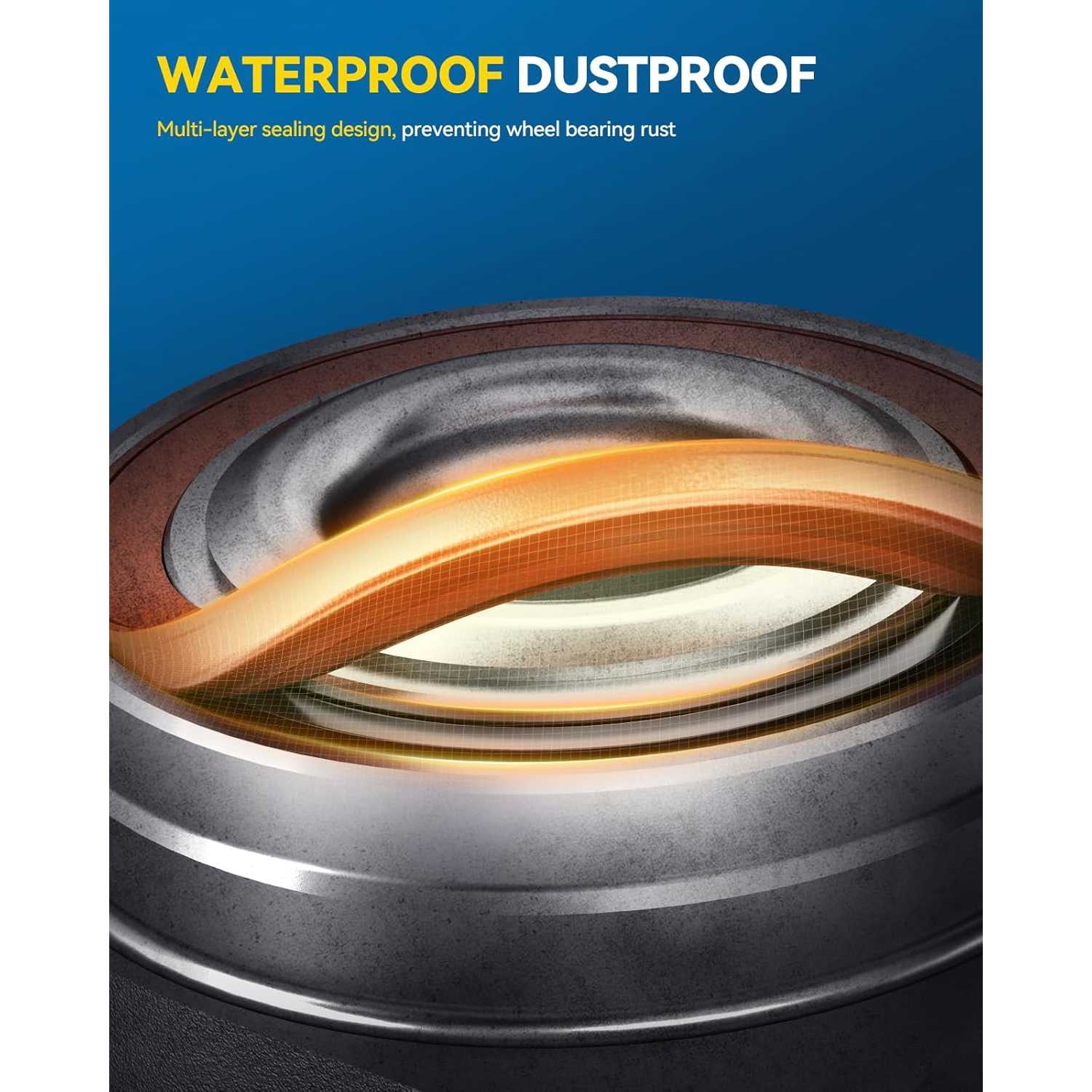

Triple-Lip Seal

Rear

AISI 52100

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2198WSA376HUS

Specifications

Brand
PHILTOP
Lug Count
4
Position
Rear
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

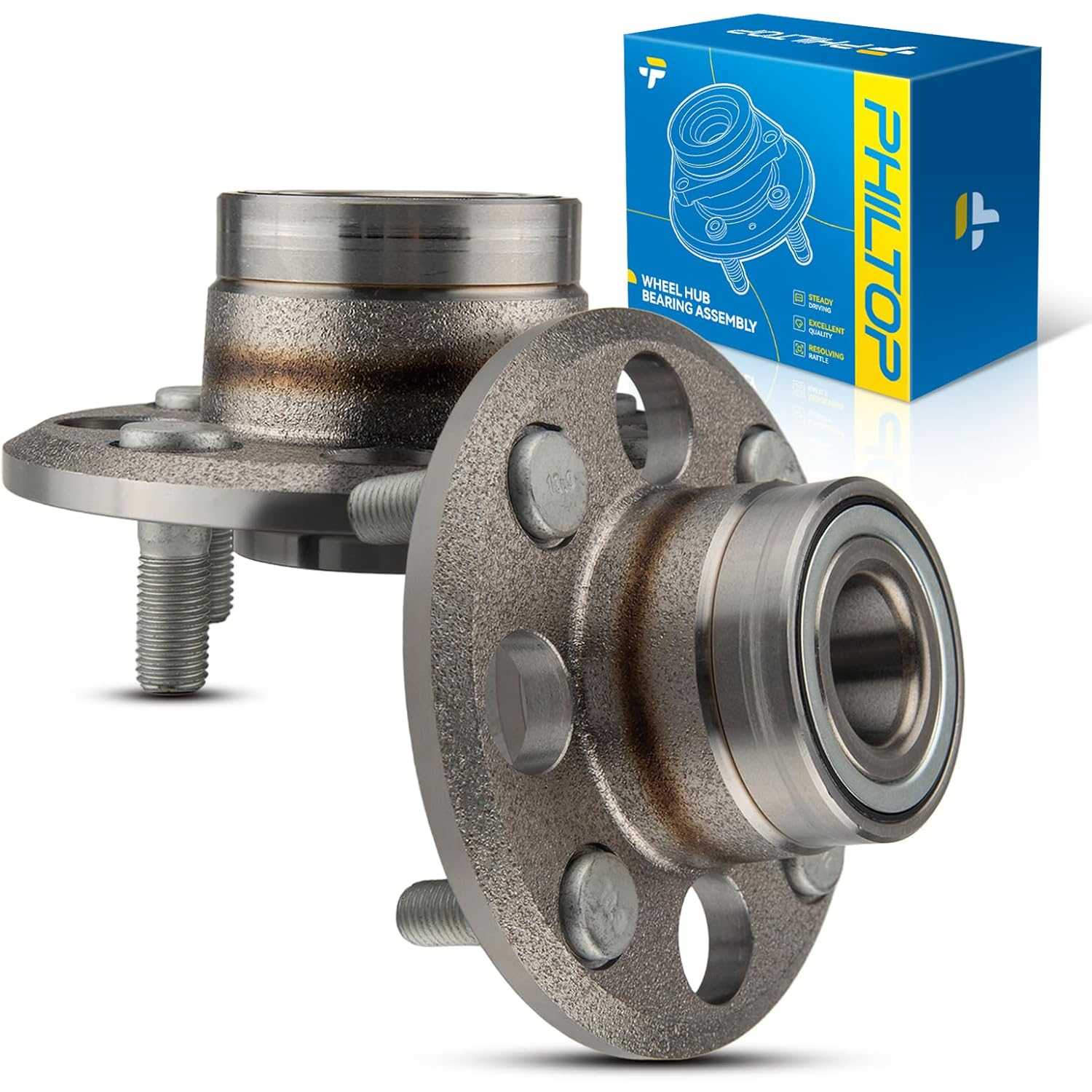

2x Rear Wheel Hub and Bearing Assembly - 513035,Installation Instructions
Bolt Pattern
4x3.9
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
2.5 in
Flange Diameter
5.28 in/134.0 mm
Brake Pilot Diameter
2.4 in/61.0 mm
Warranty Period
2-Year
OE Number
42200ST3E01,42200S04028,42200SX8008,42200SH3028,42200SB20050,42200SB20151,42200S04008,42200S04005,42200SR3008,42200SB2018,42200SB2015,42200SB2025,42200SH3008,42200SR3005,42200SH3018,42200SB2028,42200SH3970,42611SB2025,42611SB2005,42200SO4005,42200SO4008
Part Number
513035,WE60419,7350039,40540013,40540013E,BR930033,713035,VKBA1379,29513035,WA513035,0516052,H513035,NT513035,HUB00872,3800909,3800928,RW935,QWB843,VKBA3798,214035,PM513035,6403486,CR7595,G513035,141145249,102138,WH513035,P513035,1AMH513035,53035033,DACF1008A,4110329,GRW169,0513934,PT513035,RW850,45249,HA513035,HZF036B2B
Quantity
2

Highlights

  • Compatibility: 513035 x2 Rear Wheel hub assembly compatible with 1988-2000 Honda Civic, 1988-1991 Honda CRX, 1993-1997 Honda Civic del Sol, 1985-1987 Honda Civic FWD, 1986-1987 Honda Wagovan.
  • Superior Quality: Our wheel bearing hub assembly are made of high quality materials and have the same performance as the original equipment. In addition, the wheel hubs is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: PHILTOP hub bearings enables the wheels and attached components to rotate smoothly and keeps the wheel attached to the car. Wheel hub bearing can provide you with a smooth and quiet driving environment, enhancing your driving experience.
  • Installation: Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

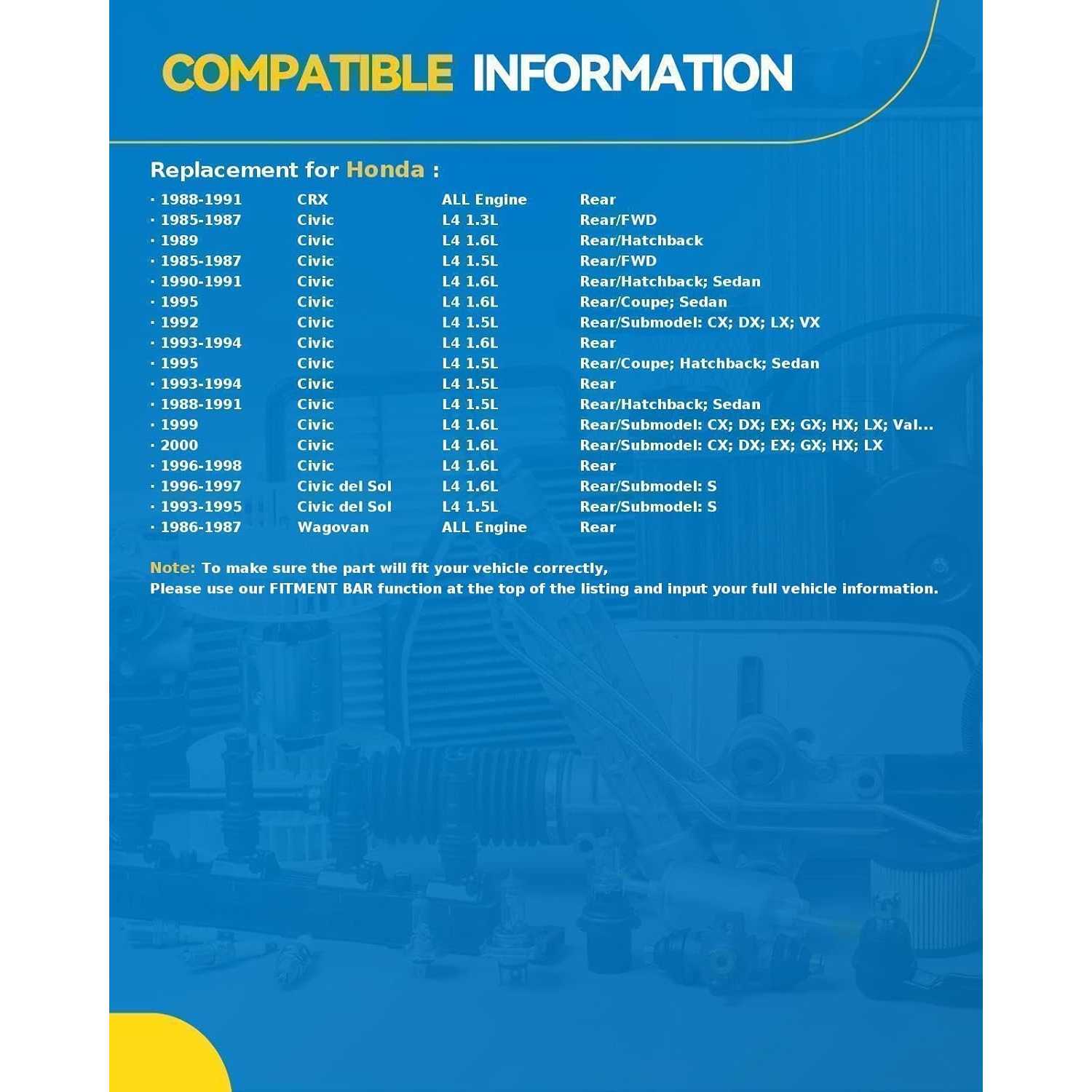

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1989 - 199119881988 - 19911988 - 199119851985 - 19871985 - 19871988 - 19911985 - 19871985 - 19871985 - 198719921993 - 199419951996 - 19981999 - 20001985 - 19871988 - 19921993 - 199419951996 - 19981999 - 20001990 - 19911993 - 19941995 - 19981999 - 200019981999 - 20001996 - 19981999 - 20001988 - 19921993 - 199419951996 - 19981999 - 20001986 - 19871989 - 199119921993 - 1994199519991993 - 19951996 - 19971986 - 1987
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelCRXCRXCRXCRXCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivic del SolCivic del SolWagovan
TrimBaseDXHFSi1500 SBaseBaseBaseCRXCRX HFCRX SiCXCXCXCXCXDXDXDXDXDXDXEXEXEXEXGXGXHXHXLXLXLXLXLXSiSiVXVXVXValue PackageSSDX
Engine1.5L L41.5L L41.5L L41.6L L41.5L L41.3L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.5L L41.6L L41.6L L41.5L L41.5L L41.5L L41.5L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.5L L41.5L L41.5L L41.6L L41.6L L41.5L L41.6L L41.5L L41.5L L41.5L L41.6L L41.5L L41.6L L41.5L L4
Note----
Front-Wheel Drive
Front-Wheel Drive
Front-Wheel Drive
-
Front-Wheel Drive
Front-Wheel Drive
Front-Wheel Drive
-
RearBrake:Drum
Non-ABS
Non-ABS
-
Front-Wheel Drive
-
RearBrake:Drum
Non-ABS
Non-ABS
--
RearBrake:Drum
Non-ABS
-
Non-ABS
-
Non-ABS
--
RearBrake:Drum
Non-ABS
Non-ABS
-
Front-Wheel Drive
--
RearBrake:Drum
Non-ABS
Non-ABS
---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Jack P.

09/07/2023

Verified buyer

What's not to like it works better than what was on there. Buy it

Chris_GearHead_209

04/27/2026

The part seems well-made for the cost, and it fits my Civic okay. Instructions were a little vague, took some looking up online to figure out a couple of steps. But it's holding up so far.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some bearings have a magnetic encoder or sealing side that must face a particular direction. Follow the vehicle service information and any markings supplied with the part.

Some vehicle manufacturers specify a one-time-use axle nut. Check the service procedure for your vehicle and use new hardware when required.
