1997-2001 GMC Jimmy 4.3L | 2 PC Front Wheel Bearing | 7470608/513124 - PHILTOP

1997-2001 GMC Jimmy 4.3L | 2 PC Front Wheel Bearing | 7470608/513124 - PHILTOP

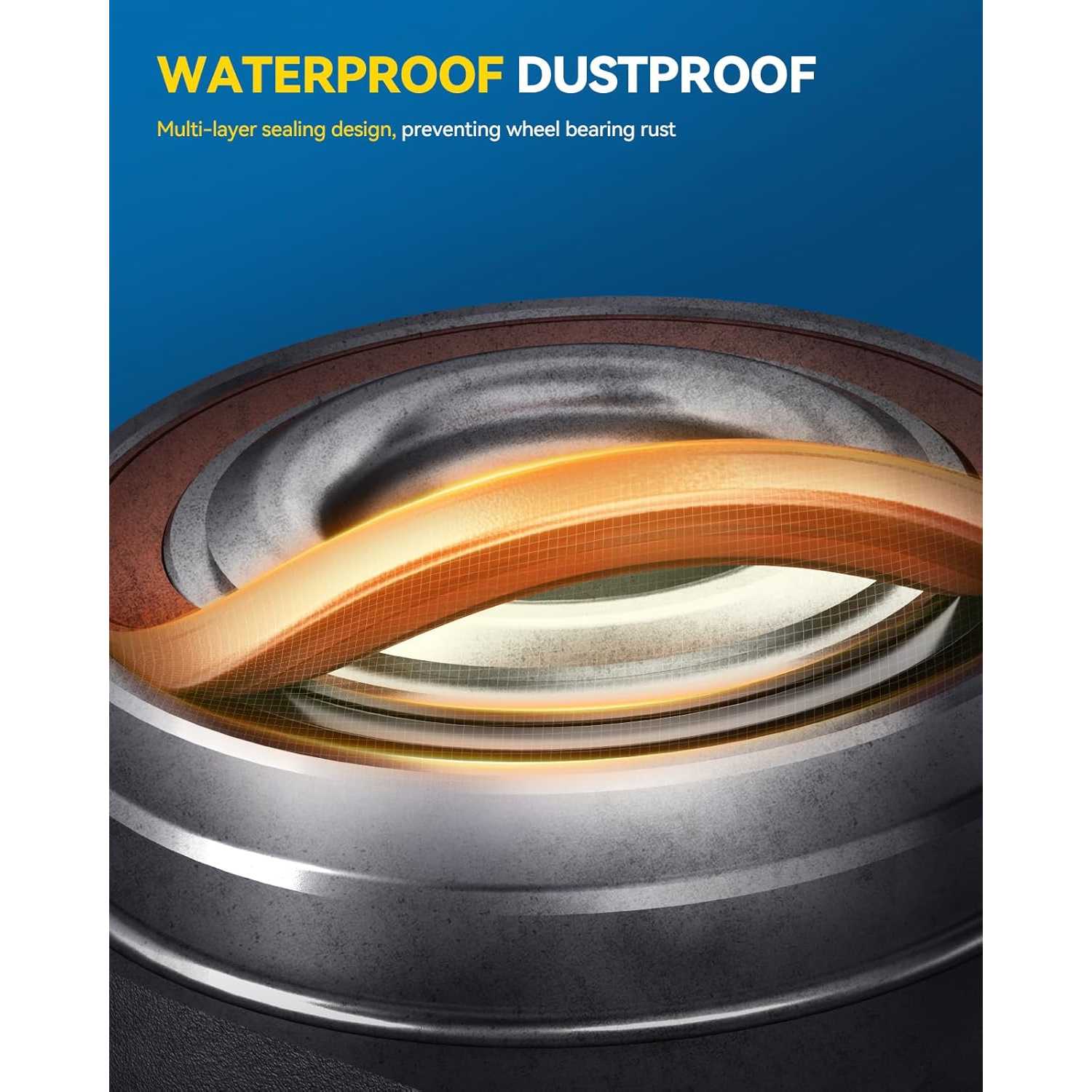

Triple-Lip Seal

Front

AISI 52100

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6078WBK0521US

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Lug Count
5
Position
Front
Flange Bolt Hole Count
3
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

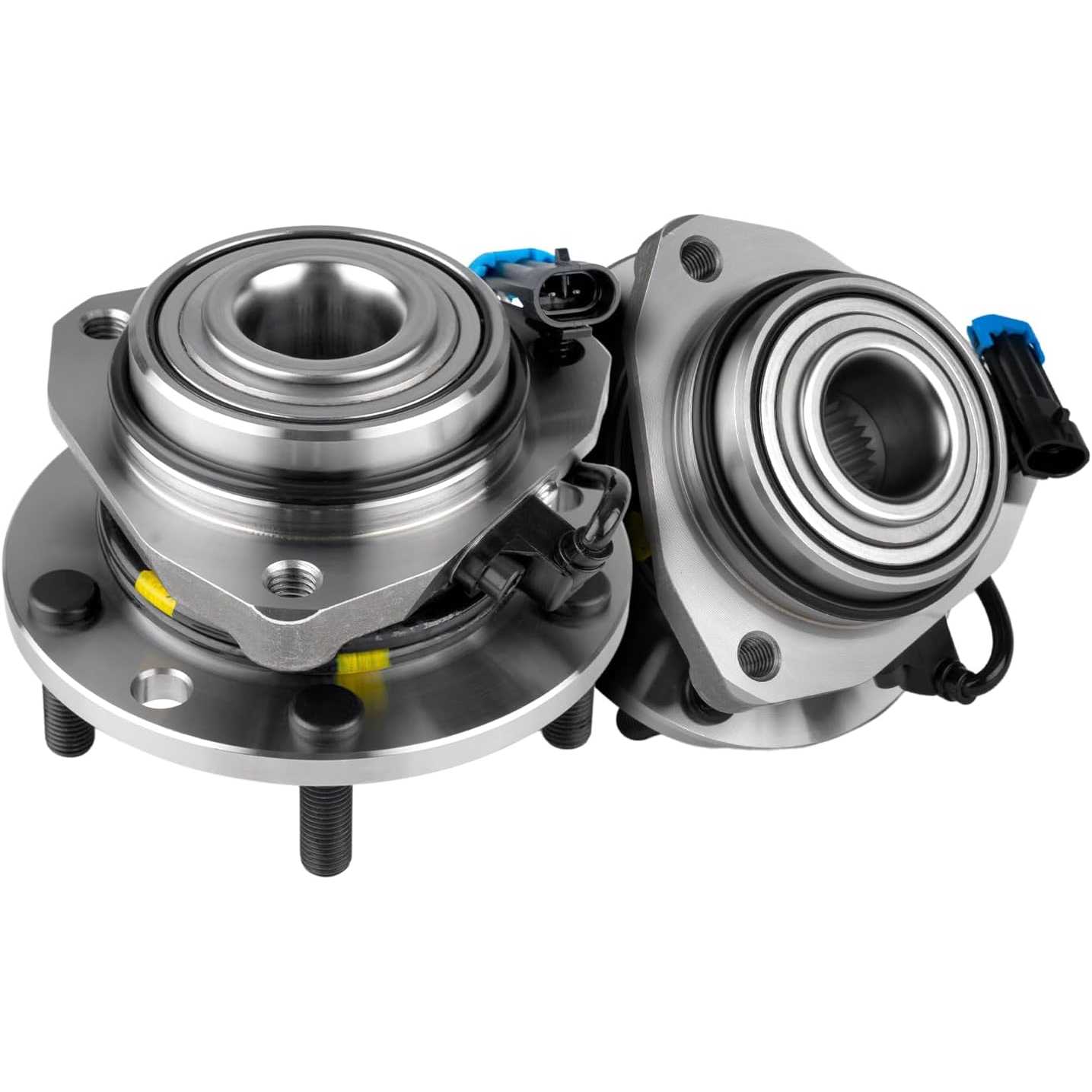

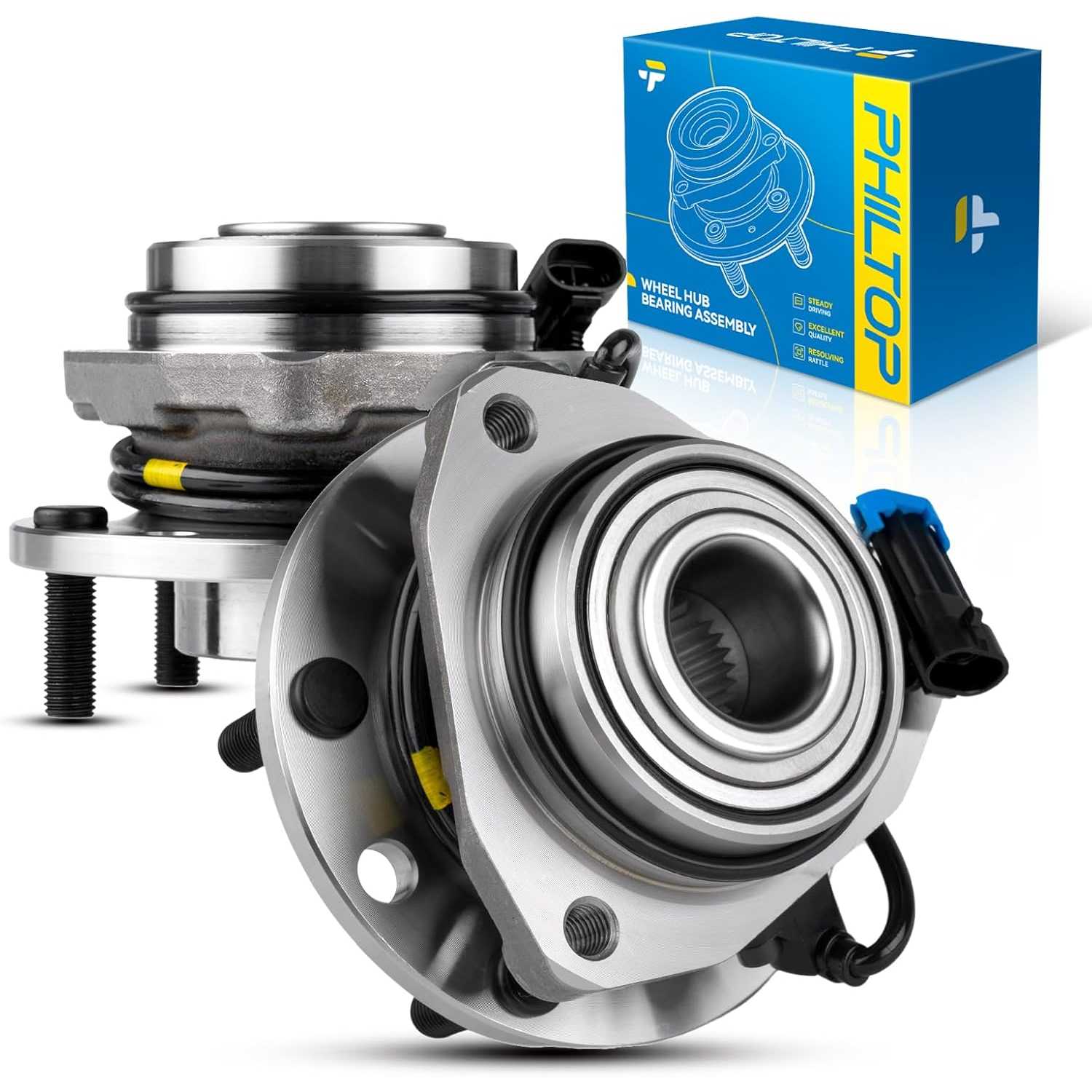

2x Front Wheel Hub and Bearing Assembly - 513124,Installation Instructions
Bolt Pattern
5 X 4.75
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.3 in
Wheel Stud Size
M12x1.5
Flange Offset
1.86 in/47.3 mm
Flange Diameter
5.68 in/144.3 mm
Brake Pilot Diameter
2.77 in/70.4 mm
Warranty Period
2-Year
OE Number
7470608,12413046,7467139,7470607,7470537,19150096,12413045,8124130450
Part Number
513124,WE60718,7300001,40266006,BR930097,713124,FW317,FW127,H513124,0516170,951011,NT513124,WA513124,WH513124,4110303,BAR5130A,40266006E,DL513124HD,1AMH513124,FW9124,29513124,PT513124,104124,P513124,102029,141145585,PT513124HD,PH513124,53035097,7467253UR,IJ123034,TXF513124,G513124
Quantity
2

Highlights

  • Fitment: Front Wheel bearing hub assebly compatible with 1997-2005 Chevrolet Blazer 4WD, 1997-2003 Chevrolet S10 4WD, 1997-2001 GMC Jimmy 4WD, 1997-2003 GMC Sonoma 4WD, 1997 1999-2001 Chevrolet Blazer AWD, 1997-2001 Oldsmobile Bravada, 2004 Chevrolet S10, 2004 GMC Sonoma, 1998 GMC Jimmy, 1998-2000 Isuzu Hombre 4WD

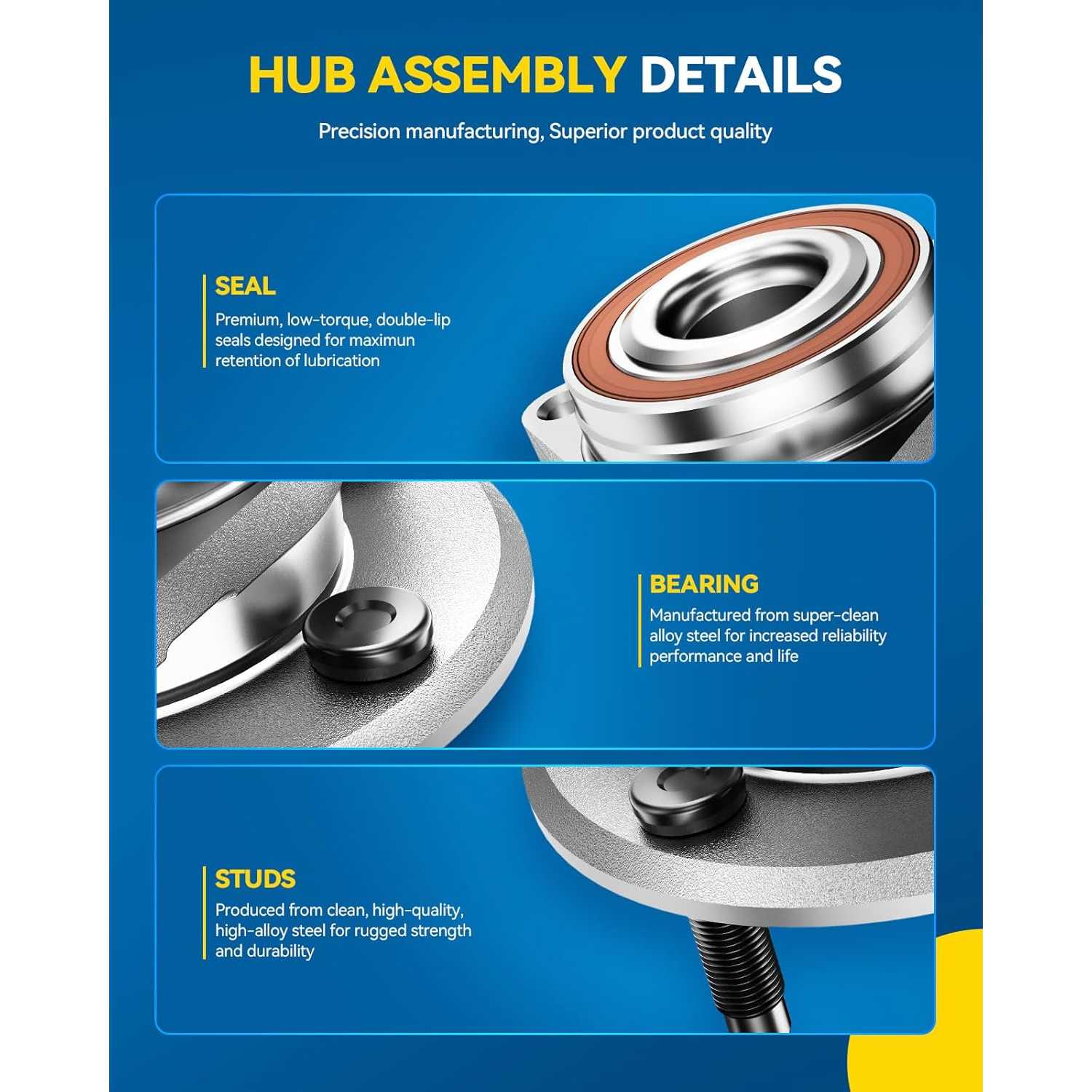

  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: PHILTOP Wheel hub bearing enables the wheels and attached components to rotate smoothly and keeps the wheel attached to the car. Bearing can provide you with a smooth and quiet driving environment, enhancing your driving experience.
  • Installation: Wheel hubs excellent assembly performance, precise overall structure, easy and quick installation.
  • Customer Service: PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

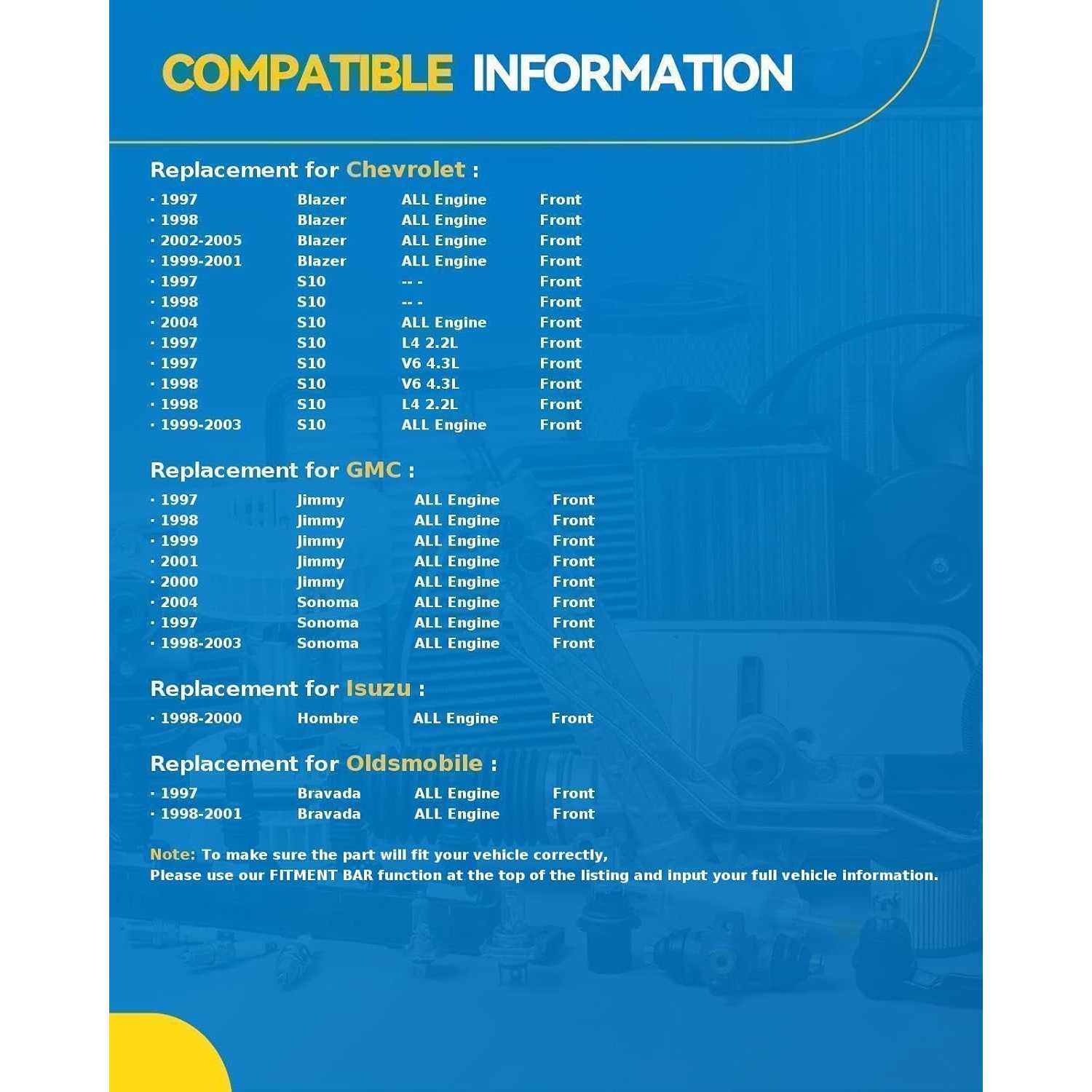

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997199819992005199719981999 - 20012002 - 2004199719981999 - 20011999 - 20012003 - 200519971998 - 200019971998 - 200319971998 - 200319971998 - 200319971998 - 2003200419971998 - 20032002 - 2003200420002001199819992000199719981999200119971998199920002001199719981999200020011997199819992000200119971998 - 200319971998 - 2003200419971998 - 200119971998 - 200119971998 - 200319971998 - 200320041998 - 20001998 - 20001998 - 20001998 - 200019971998 - 2001
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCIsuzuIsuzuIsuzuIsuzuOldsmobileOldsmobile
ModelBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerBlazerS10S10S10S10S10S10S10S10S10S10S10S10S10S10S10JimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmySonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaHombreHombreHombreHombreBravadaBravada
TrimBaseBaseBaseBaseLSLSLSLSLTLTLTTrailblazerZR2BaseBaseBaseBaseBaseBaseLSLSLSLSLSZR2ZR2ZR5ZR5Diamond EditionDiamond EditionEnvoyEnvoyEnvoySLSLSLSLSLESLESLESLESLESLSSLSSLSSLSSLSSLTSLTSLTSLTSLTSLSLSLSLSLSLESLESLESLESLSSLSSLSSLSSLSSSXSXSBaseBase
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V6--2.2L L42.2L L44.3L V64.3L V62.2L L42.2L L44.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V62.2L L42.2L L44.3L V64.3L V64.3L V62.2L L42.2L L44.3L V64.3L V62.2L L42.2L L44.3L V64.3L V64.3L V62.2L L44.3L V62.2L L44.3L V64.3L V64.3L V6
Note
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
AWD;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
AWD;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
AWD;Not Coated
AWD;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
4WD;Not Coated
Not Coated
AWD
4WD;Not Coated
4WD
AWD;Not Coated
AWD
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD
AWD;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD
AWD;Not Coated
AWD
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD
AWD;Not Coated
AWD
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD
AWD;Not Coated
AWD
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
2nd Design;4WD;Integral Sensor Ring;Not Coated
4WD;Not Coated
Not Coated
4WD;Not Coated
4WD;Not Coated
4WD;Not Coated
4WD;Not Coated
2nd Design;Integral Sensor Ring;Not Coated
Not Coated

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.3/5

Based on 6 reviews

550%
433%
317%
20%
10%

Chris_GearHead_524

03/15/2026

The vibrations I had are gone, and the steering feels so much more responsive. My truck feels safe and solid again.

Brad_AutoParts_960

04/02/2026

These feel really well-made and durable. I was expecting less for the price, but I'm pleasantly surprised. Great value!

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Possible signs include humming or grinding that changes with vehicle speed, wheel looseness, vibration, or an ABS warning. Similar symptoms can have other causes, so an inspection is recommended.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.
