2001-2003 BMW 530i 3.0L L6 | 2 PC Front Wheel Bearing | 31201095616/513172 - PHILTOP

2001-2003 BMW 530i 3.0L L6 | 2 PC Front Wheel Bearing | 31201095616/513172 - PHILTOP

Triple-Lip Seal

Front

AISI 52100

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1449WBR2417US

Specifications

Brand
PHILTOP
ABS Type
No
Lug Count
5
Position
Front
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

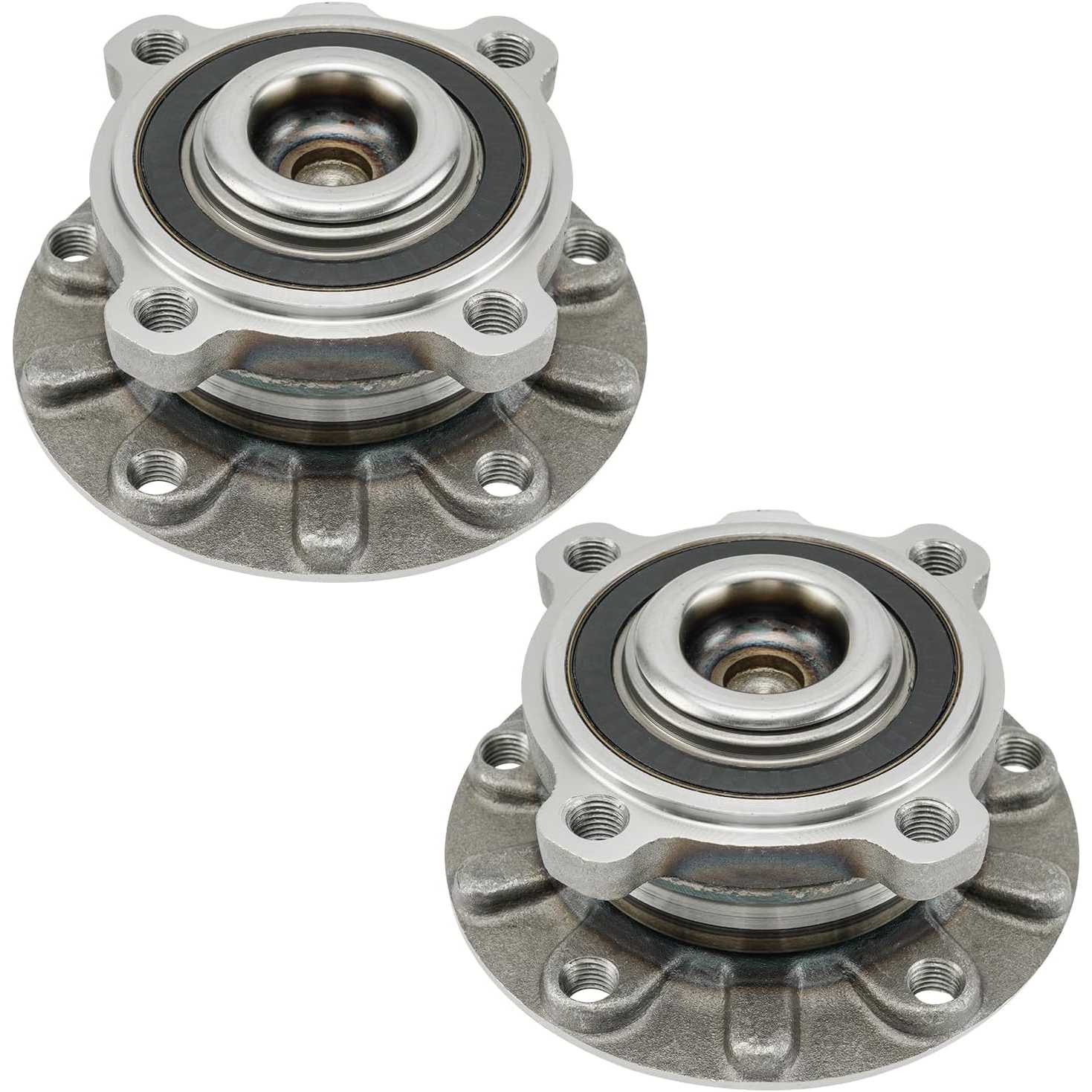

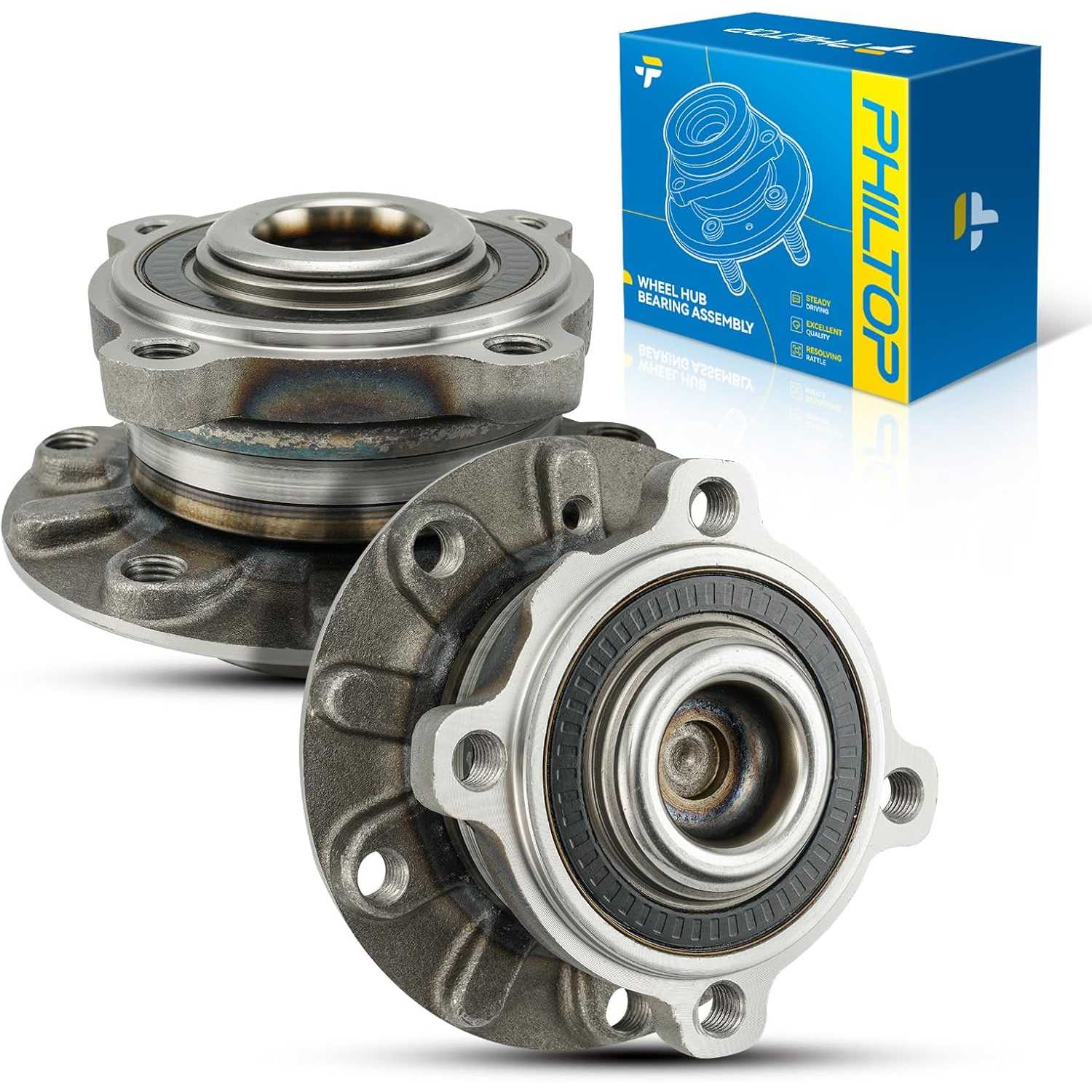

2x Front Wheel Hub and Bearing Assembly - 513172,Installation Instructions
Bolt Pattern
5x4.7
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.5 in
Flange Offset
2.43 in/61.6 mm
Flange Diameter
5.47 in/139.0 mm
Brake Pilot Diameter
3.11 in/79.0 mm
Warranty Period
2-Year
OE Number
31201095616,31221093427,31221093428
Part Number
513172,HA593427,7990149,40534002E,12179,18397,713172,0516323,0516165,BR930144,VKBA3444,QWB1244,QWB1200,NT513172,4000FW,40534002,801106DA,WE60641,WH513172,H513172,PT513172,HA590302,HZF1763B,44421
Quantity
2

Highlights

  • [Exact Replacement] 513172 Front Wheel Bearing and Hub Assembly fit for 1997-2000 BMW 528i, 2001-2003 BMW 530i, 1997-2003 BMW 540i, 2001-2003 BMW 525i, 2000-2003 BMW Z8
  • [Superior Quality] Our wheel bearing hub assembly are made of high quality materials and have the same performance as the original equipment. In addition, the wheel hubs is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.

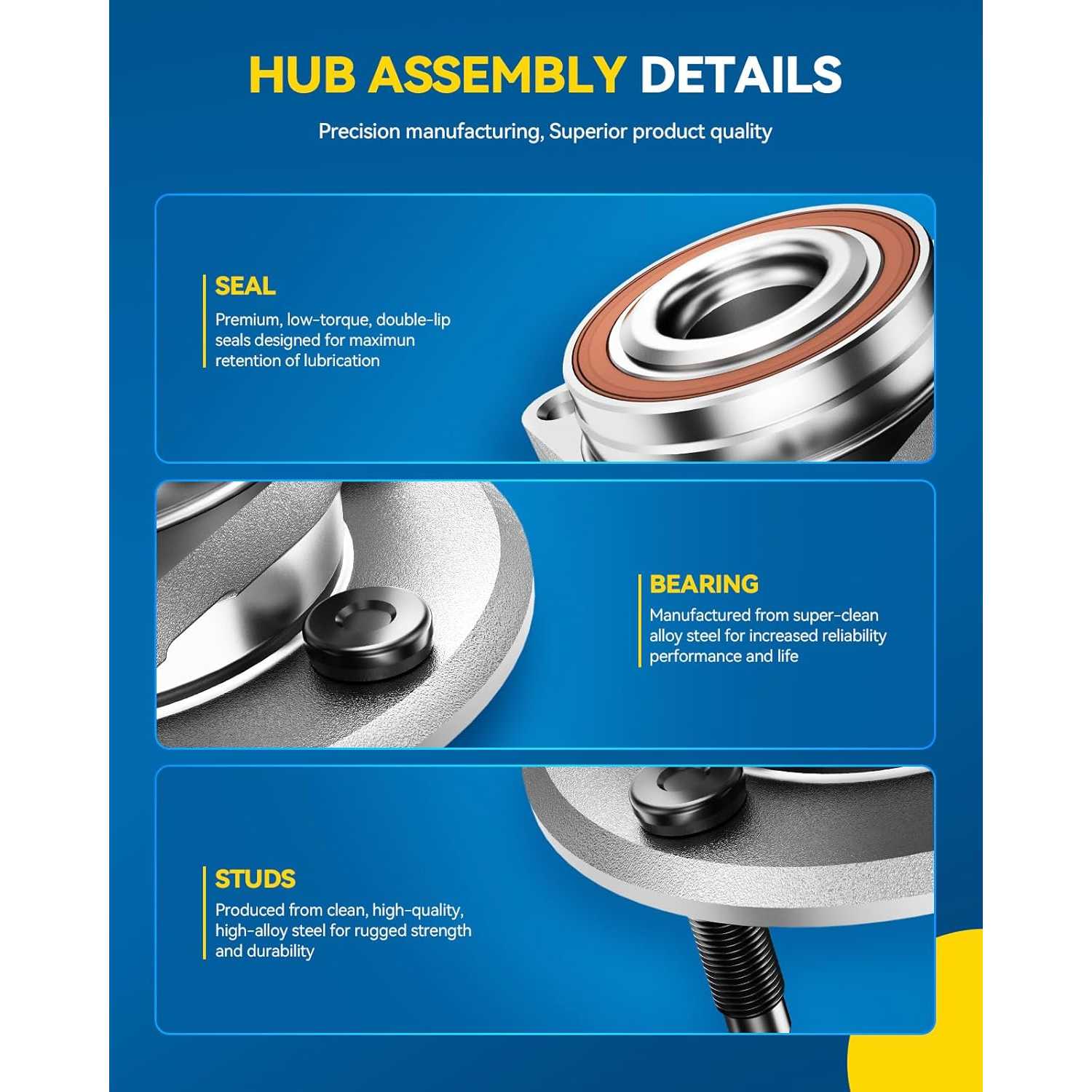

  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [OE Number] 513172, 31221093427, 31201095616, HA593427, 7990149, 40534002E, 31221093428, 12179, 18397, 713172, 0516323, 0516165, BR930144, VKBA3444, QWB1244, QWB1200, NT513172, 4000FW, 801106DA, WE60641, WH513172, PT513172, HA590302, HZF1763B, 44421, 40534002, H513172
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

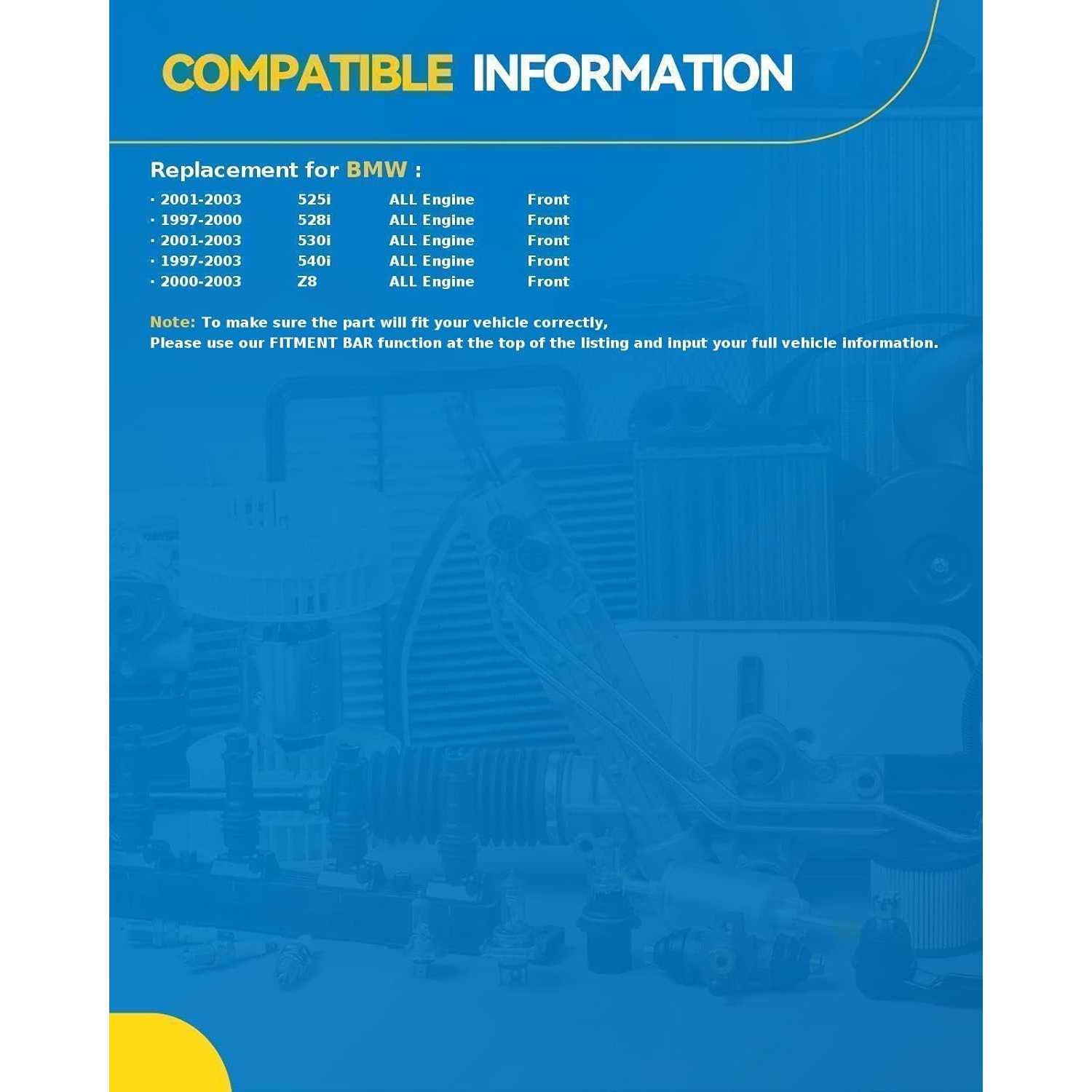

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20031997 - 20002001 - 20031997 - 200320032000 - 2003
MakeBMWBMWBMWBMWBMWBMW
Model525i528i530i540iZ8Z8
TrimBaseBaseBaseBaseAlpinaBase
Engine2.5L L62.8L L63.0L L64.4L V84.8L V85.0L V8
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Steve_DIYer_837

10/29/2025

Got these bearings for my 540i and they arrived super quick. Installation was pretty easy, everything fit perfectly. Couldn't ask for more.

Chris_GearHead_484

04/01/2026

My old wheel bearing was making a loud grinding noise, especially when turning. This new one fixed it completely. The car feels much safer and quieter now.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Some vehicle manufacturers specify a one-time-use axle nut. Check the service procedure for your vehicle and use new hardware when required.

Torque values differ by vehicle and fastener. Use the vehicle manufacturer’s specification rather than a general value, as incorrect torque may affect bearing operation.
